13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover, 12 in. Height, Black Box, Black Water Cover

SKU: 117BCW

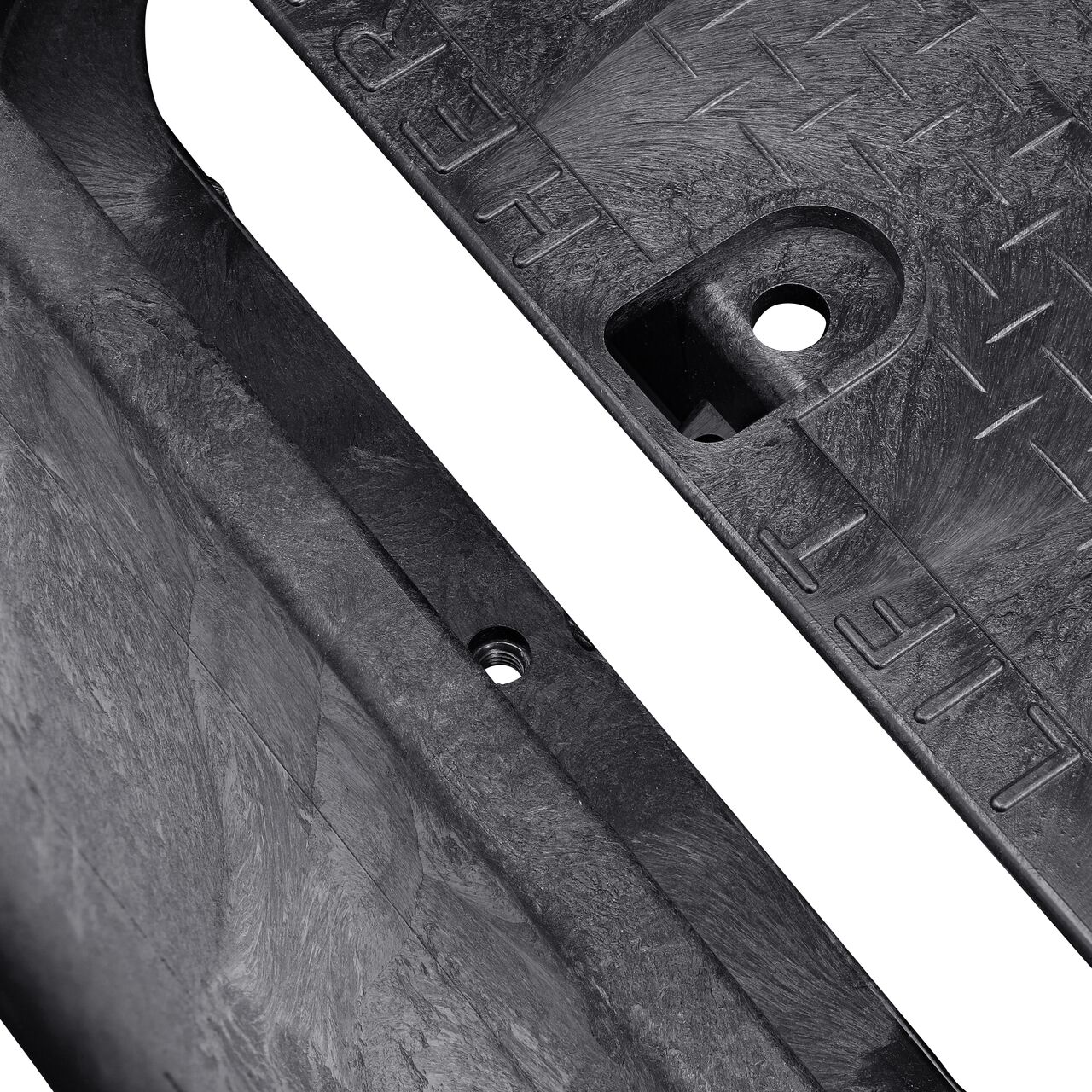

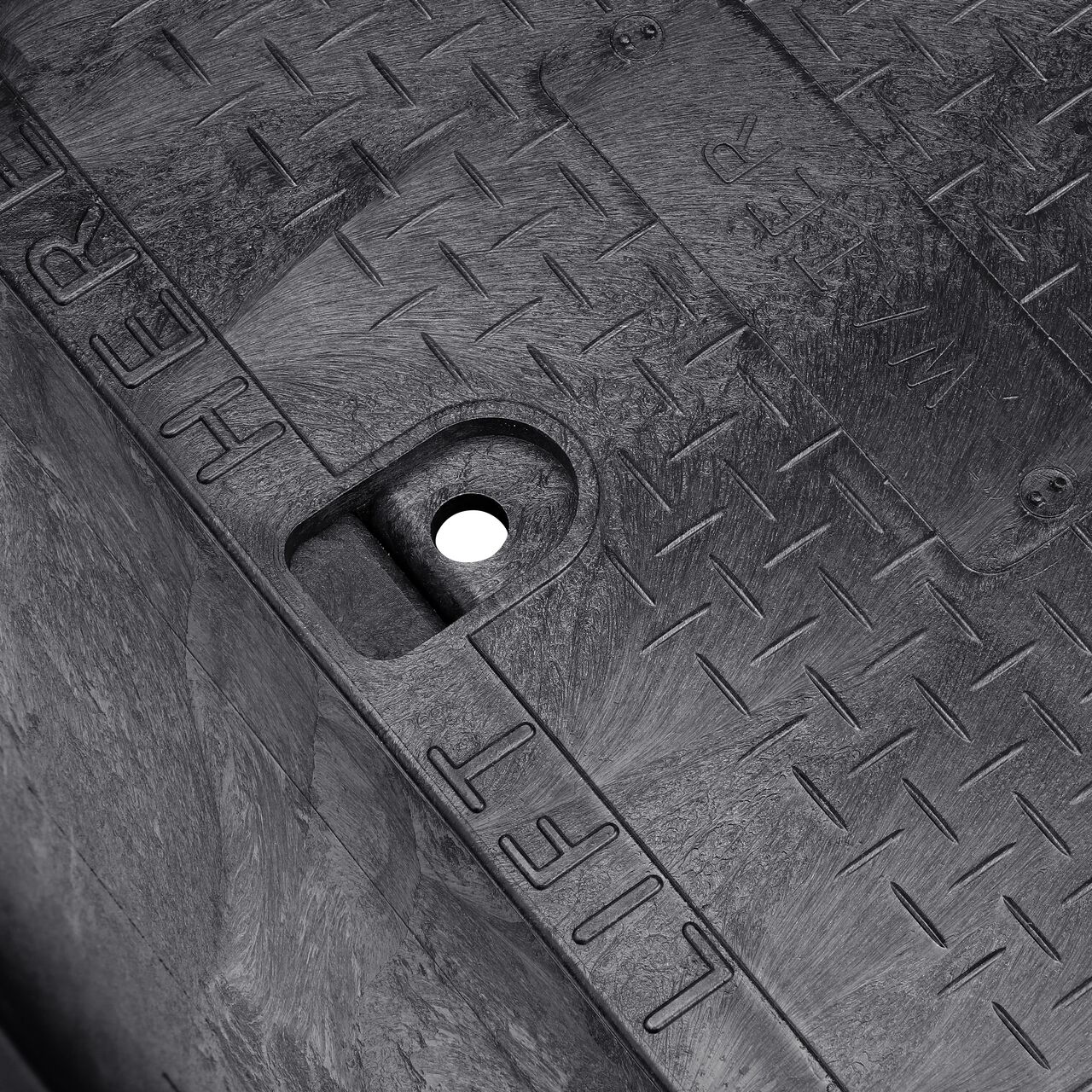

Align the bolt hole on the lid with the bolt hole from the NDS 13 in. X 20 in. Rectangular Standard Series Black Box and Black Water Cover (NDS 117BCW) for a secure fit

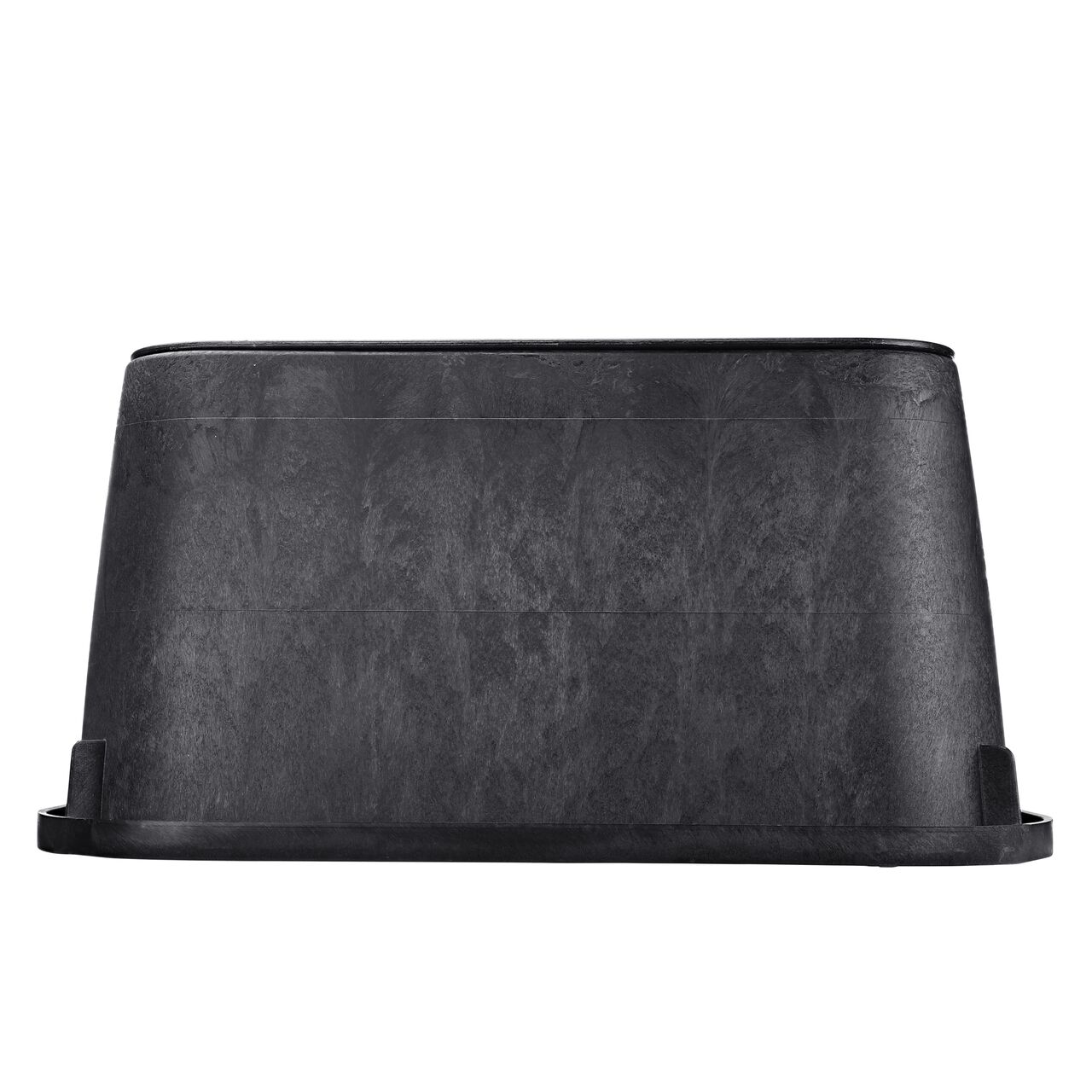

Side view of the longer length side of the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box & Water Cover (NDS 117BCW) which is engineered for superior strength with structural reinforcing ribs

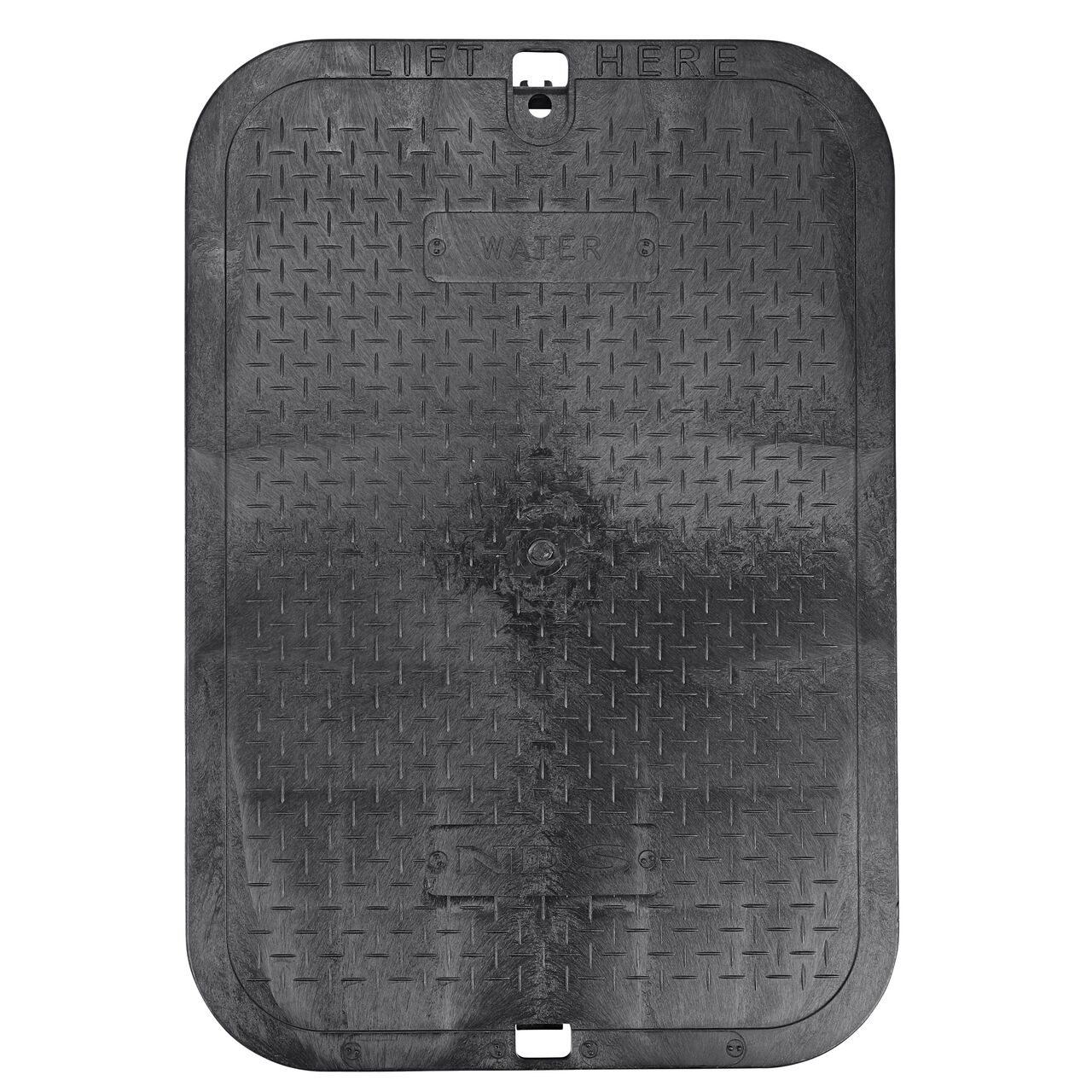

Top down view of the top side of the Black Water cover for the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box (NDS 117BCW) showing the Black Water markings

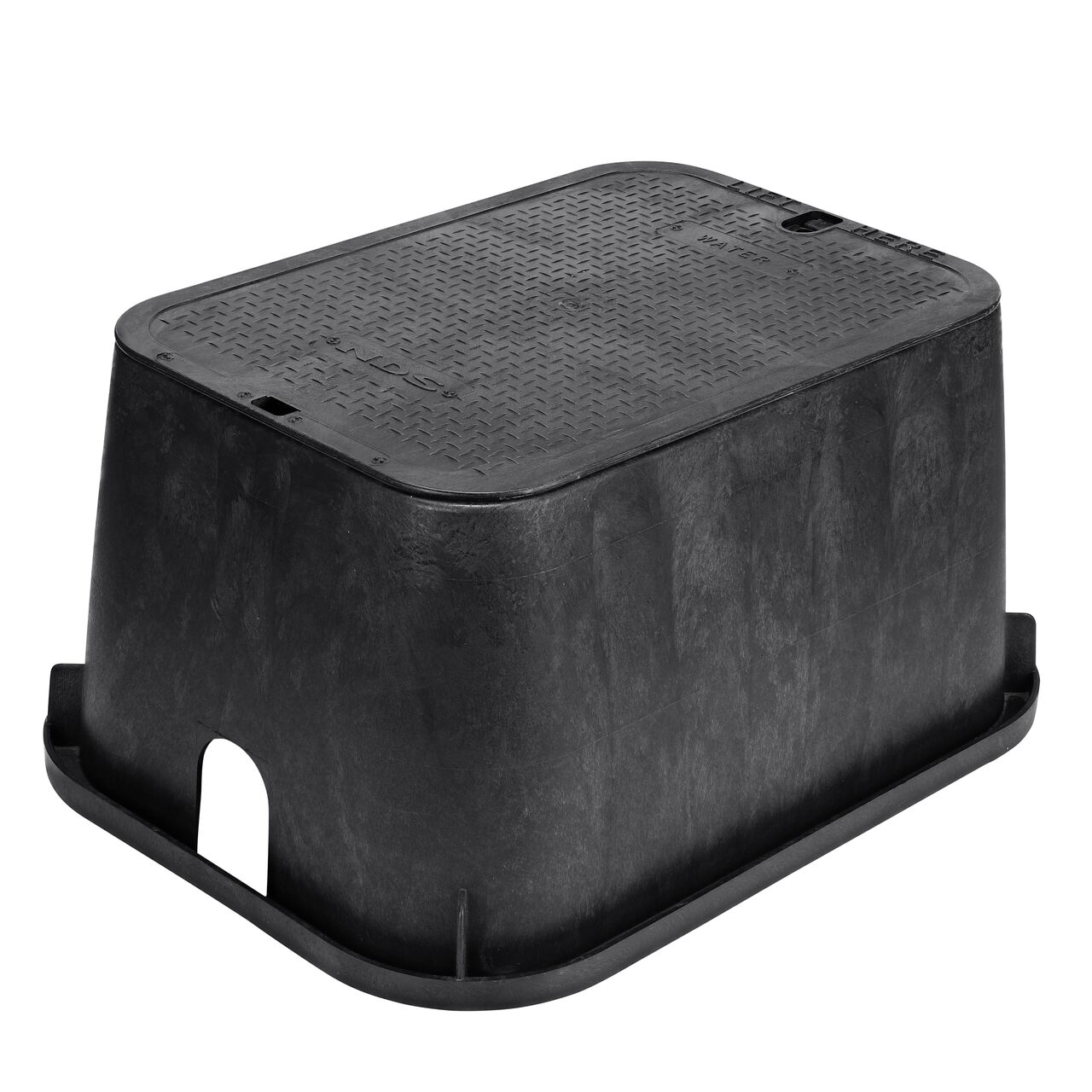

The NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover is a 12 in. high Black Box and Black Cover with Water markings on the overlapping lid (NDS 117BCW) and protects underground irrigation and sprinkler system components and keeps them out of sight
The valve box lid securely in place on the NDS 13 in. X 20 in. Rectangular Standard Series Black Box and Black Water Cover (NDS 117BCW) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight

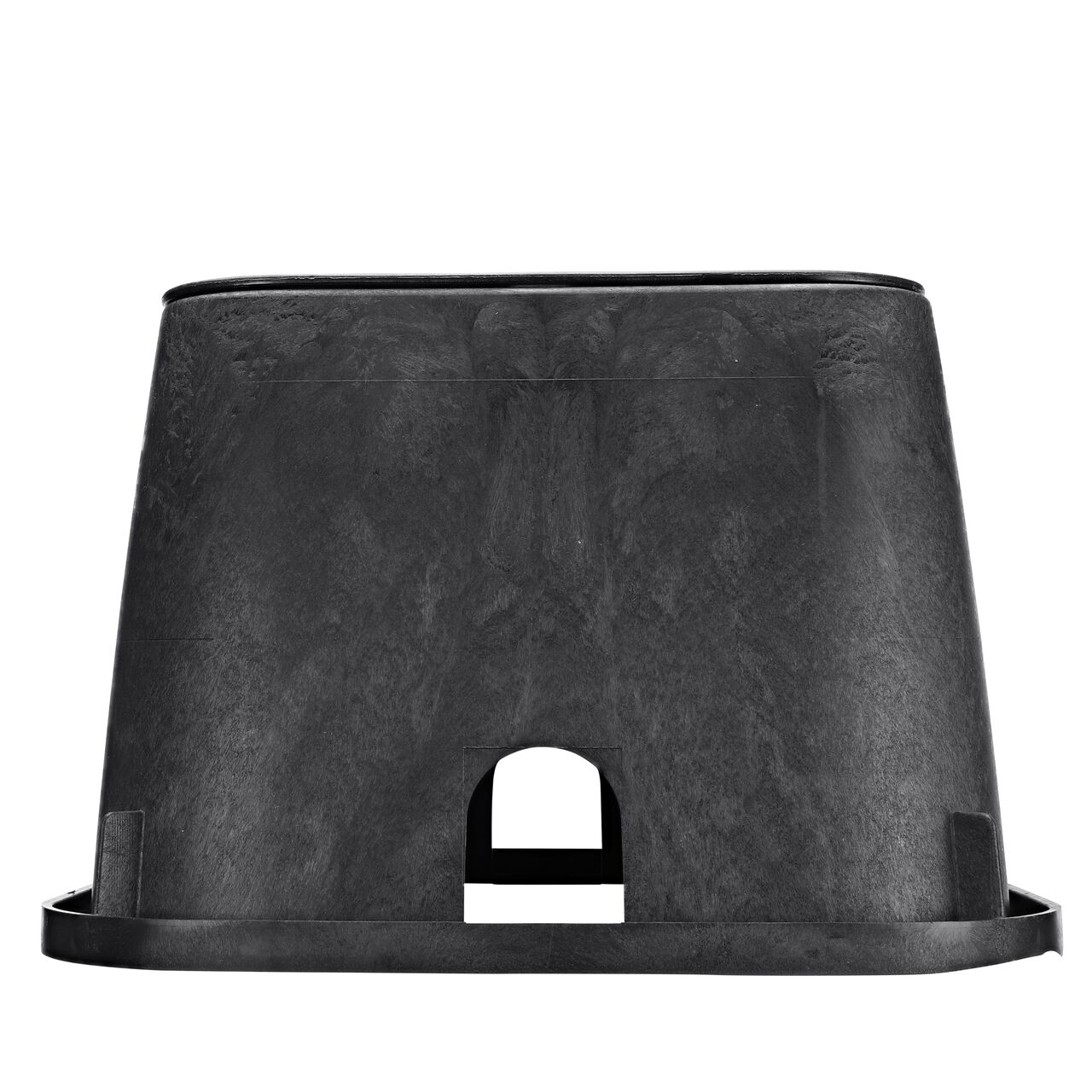

Side view of the shorter width side of the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box & Water Cover (NDS 117BCW) rugged enclosure for water and irrigation pipe connections

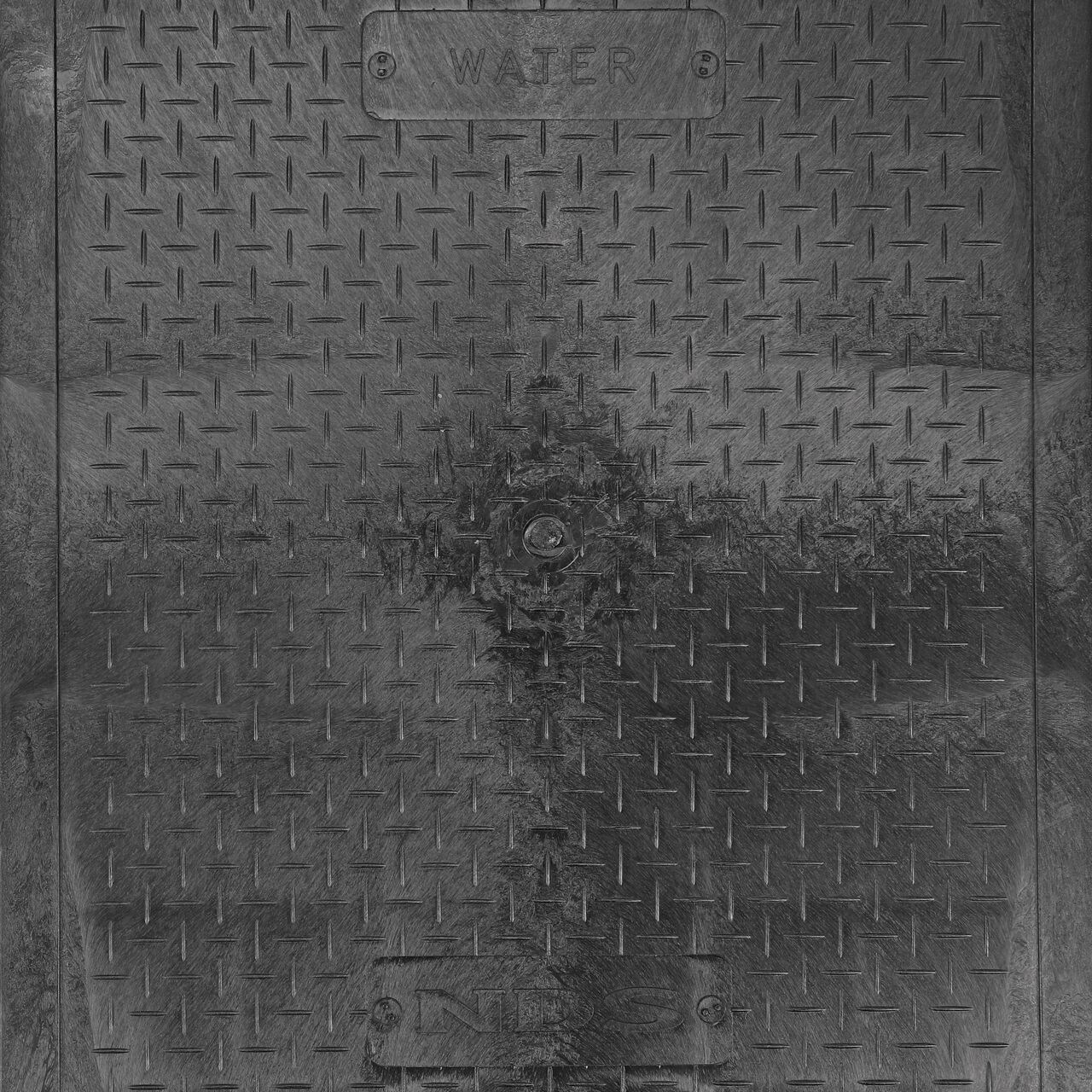

Closeup view of the Water markings on the Black Water cover for the NDS 13 in. X 20 in. Rectangular Standard Series Valve Box (NDS 117BCW)

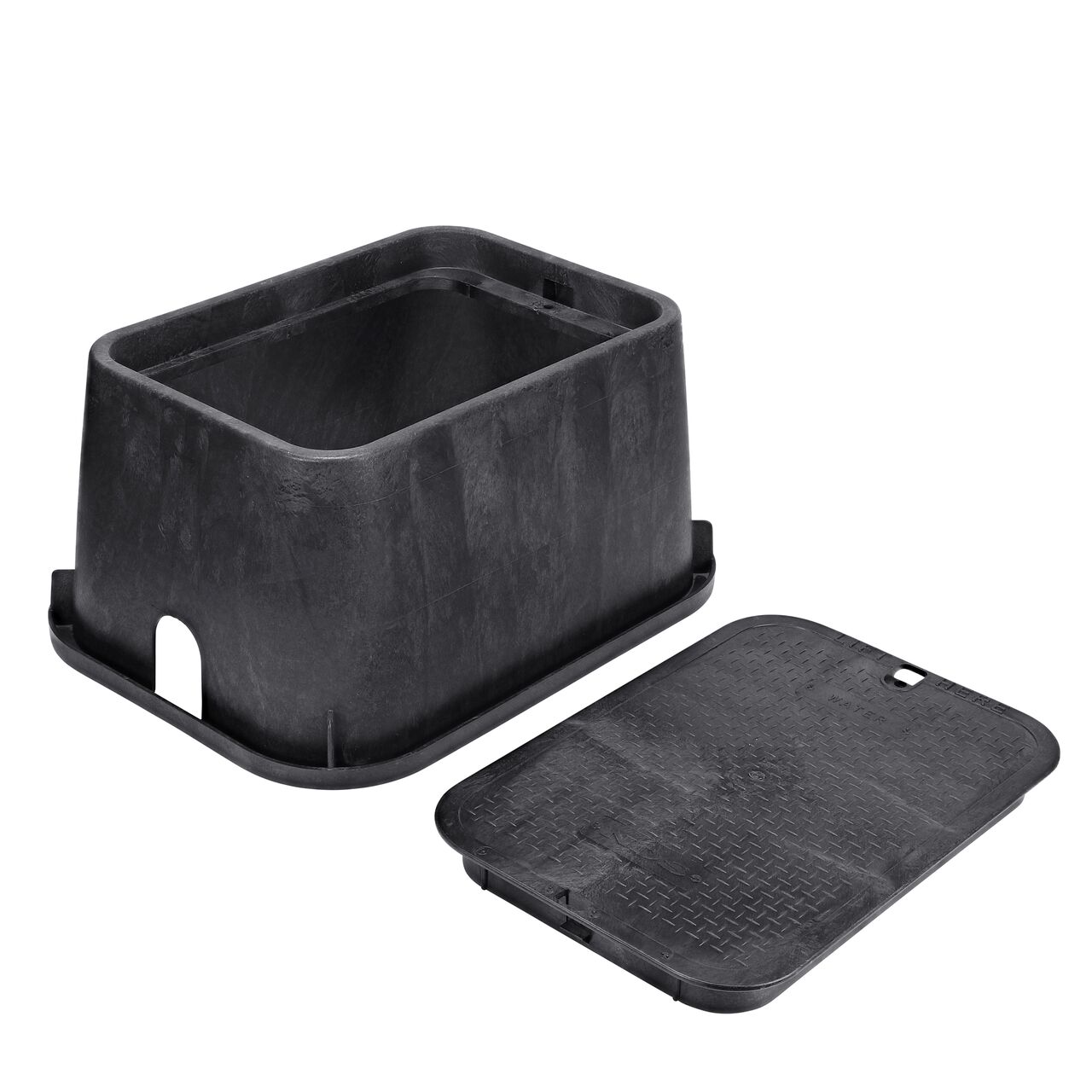

Unassembled View of the NDS 13 in. X 20 in. Black Rectangular Standard Series valve box and Black Water overlapping cover (NDS 117BCW)

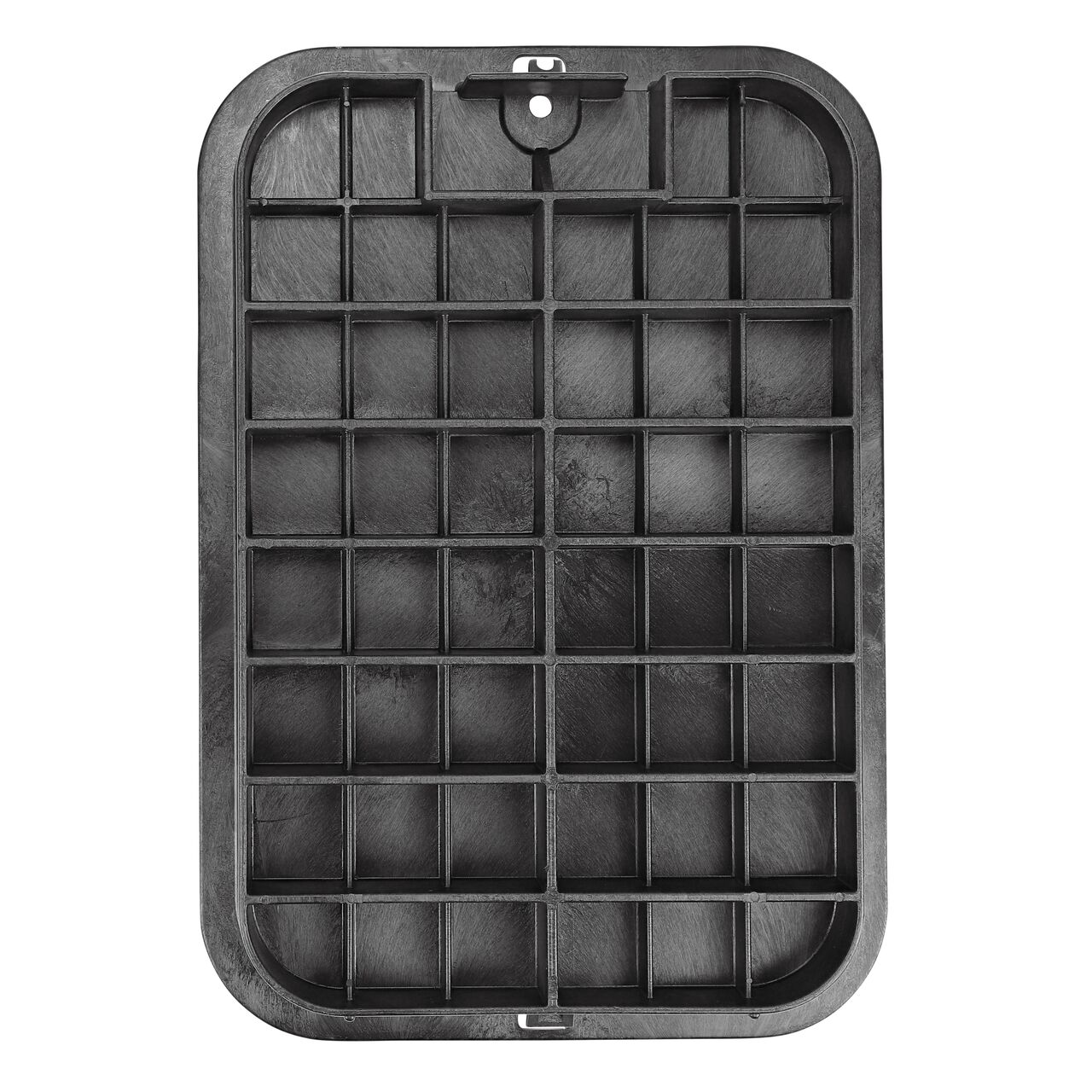

Top down view of the underside side of the Black Water cover (NDS 117BCW) for the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo valve box, showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment
Align the bolt hole on the lid with the bolt hole from the NDS 13 in. X 20 in. Rectangular Standard Series Black Box and Black Water Cover (NDS 117BCW) for a secure fit
Side view of the longer length side of the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box & Water Cover (NDS 117BCW) which is engineered for superior strength with structural reinforcing ribs
Top down view of the top side of the Black Water cover for the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box (NDS 117BCW) showing the Black Water markings
The NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover is a 12 in. high Black Box and Black Cover with Water markings on the overlapping lid (NDS 117BCW) and protects underground irrigation and sprinkler system components and keeps them out of sight
The valve box lid securely in place on the NDS 13 in. X 20 in. Rectangular Standard Series Black Box and Black Water Cover (NDS 117BCW) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight
Side view of the shorter width side of the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo Valve Box & Water Cover (NDS 117BCW) rugged enclosure for water and irrigation pipe connections
Closeup view of the Water markings on the Black Water cover for the NDS 13 in. X 20 in. Rectangular Standard Series Valve Box (NDS 117BCW)
Unassembled View of the NDS 13 in. X 20 in. Black Rectangular Standard Series valve box and Black Water overlapping cover (NDS 117BCW)
Top down view of the underside side of the Black Water cover (NDS 117BCW) for the NDS 13 in. X 20 in. Rectangular Standard Series Jumbo valve box, showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment

Guard underground irrigation and sprinkler system components against damage with the 13 X 20 in. Rectangular Standard Series Jumbo Valve Box and Cover. Designed for durability, the black access box is engineered with structural reinforcing ribs. Built-in pipe holes allow irrigation piping to pass through the walls of the box so that the box does not rest on the pipe. The durable enclosure features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured with a variety of bolts and screws (3/8 to 1/2 in. diameter, minimum 2-1/2 in. length) and without the need for a nut. Box includes a speed nut shelf as an alternative way to secure the cover (bolt and nut not included). Box stands 12 in. high and comes with an overlapping cover to keep debris from entering the box. Molded into the cover are the markings "WATER" to identify components. The black lid also indicates where to lift. The box is made of polypropylene (PP) and the lid is made of high-density polyethylene (HDPE), both treated with UV inhibitors.

Applications:

  • Protects critical infrastructure such as irrigation control valves, sewer cleanouts, wire splices, and backflow valves, and keeps them out of sight
  • Fits over underground components
  • Use to protect irrigation system components

Features:

  • Patented Universal Locking Mechanism (ULM) enables the valve box lid to be secured without requiring a traditional nut; works with a variety of bolts and screws from 3/8 in. to 1/2 in. in diameter and at least 2-1/2 in. long
  • Conceal and protect components without cluttering the landscape
  • Built to last with structural reinforcing ribs for durability; box made of polyethylene (PP) and cover made with high-density polyethylene (HDPE), both treated with UV inhibitors
  • Prevents debris from entering; overlapping cover can be levered open with a flathead screwdriver; easy installation with built-in pipe holes to accommodate irrigation pipe connections
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
