6 in. Round Standard Series Valve Box and Cover, 9 in. Height, Green Box, Green Irrigation Control Valve Cover

SKU: 2108BC

Closeup view of the pipe hole on the NDS black plastic 6 in. Round Standard Series Valve Box (NDS 2018B)

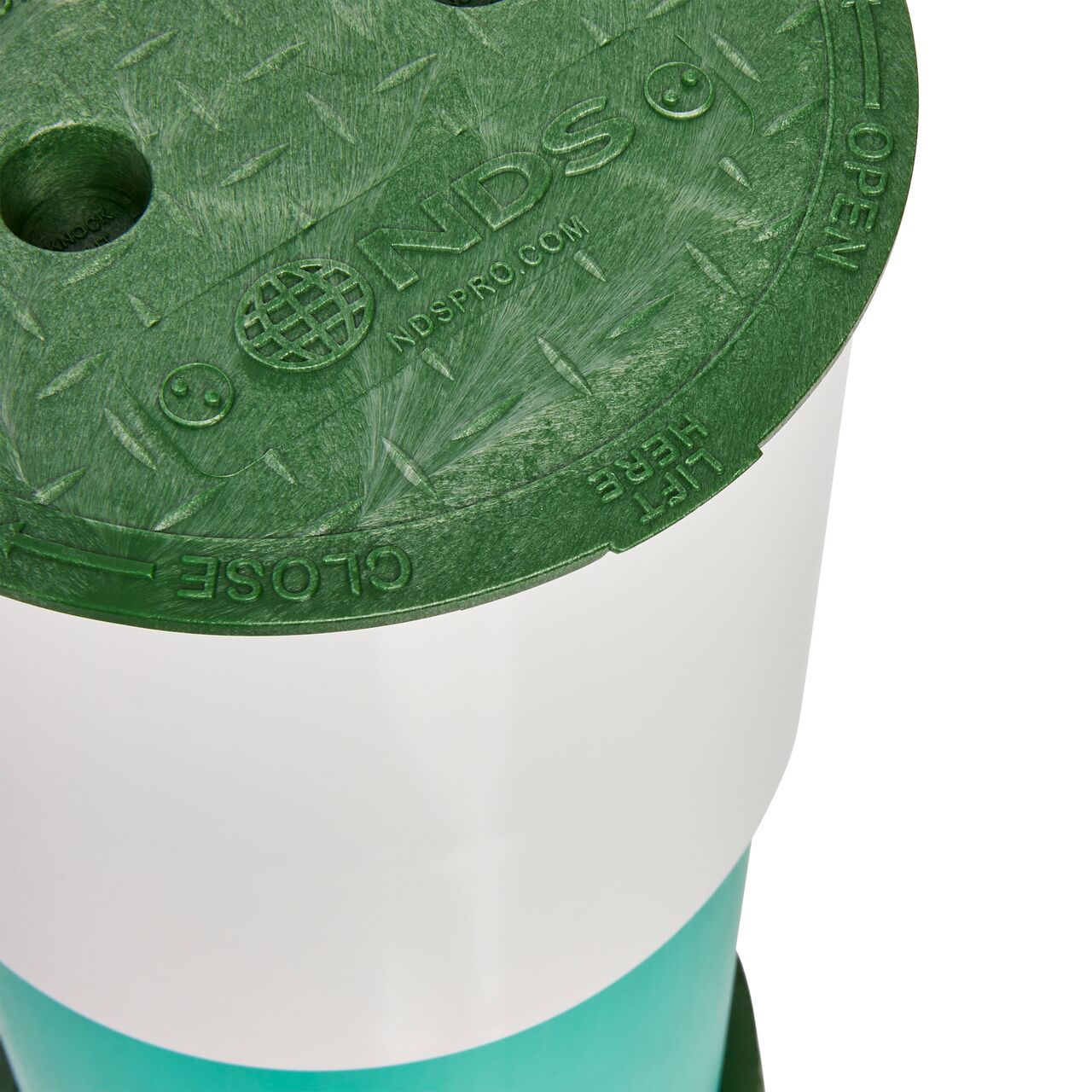

Closeup view of the bell end SDR-35 sewer and drain pipe installed on the 6 in. Standard Series Valve Box with the Irrigation Control Valve Cover on the top of the riser (NDS 2108BC)
NDS 6 in. Round Standard Series Box is (NDS 2108BC) spacious internal design provides more volume compared to other 6 in. valve boxes on the market

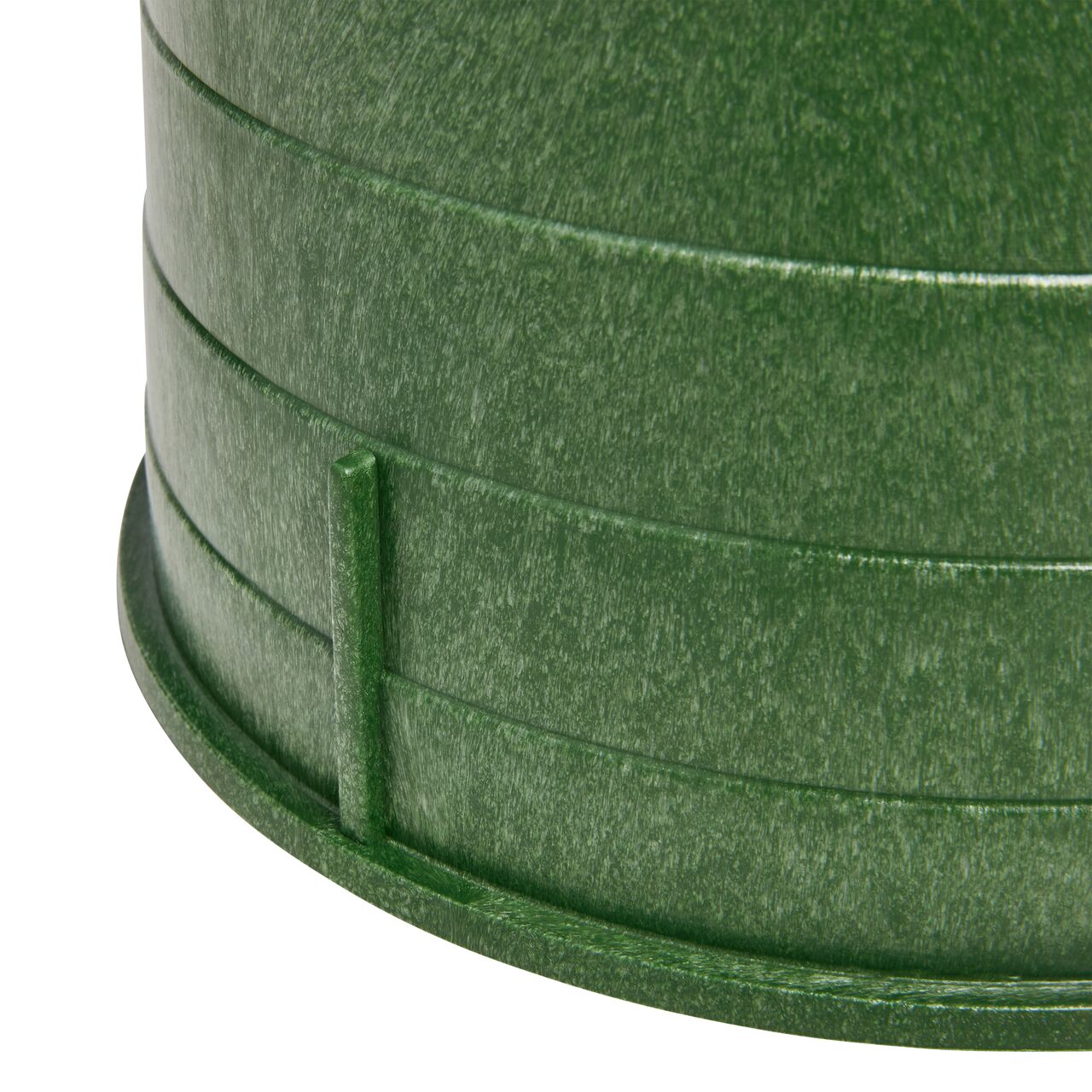

Closeup view of the outside reinforced edges on the NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)

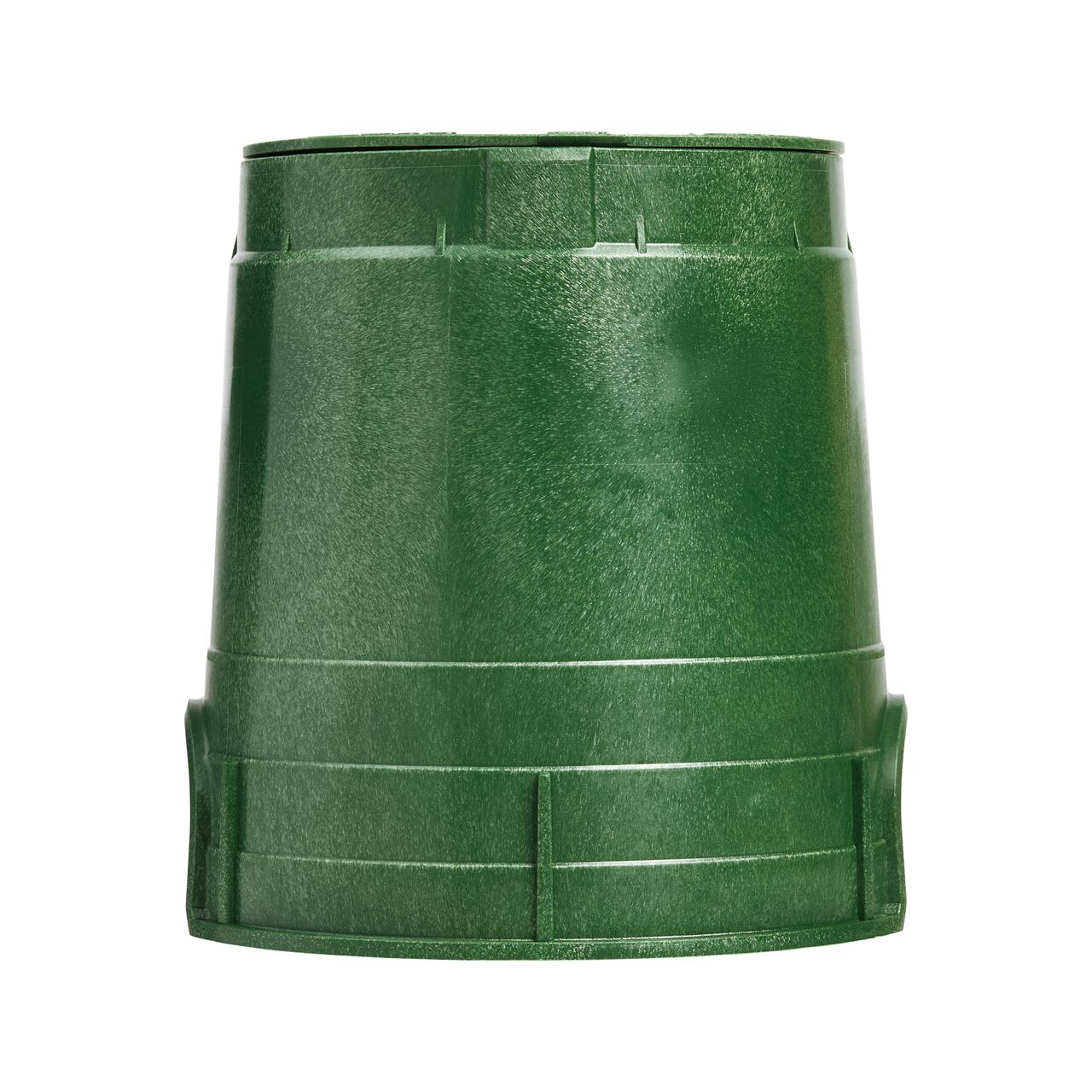

Side view of the non pipe hole side on the NDS Green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC)

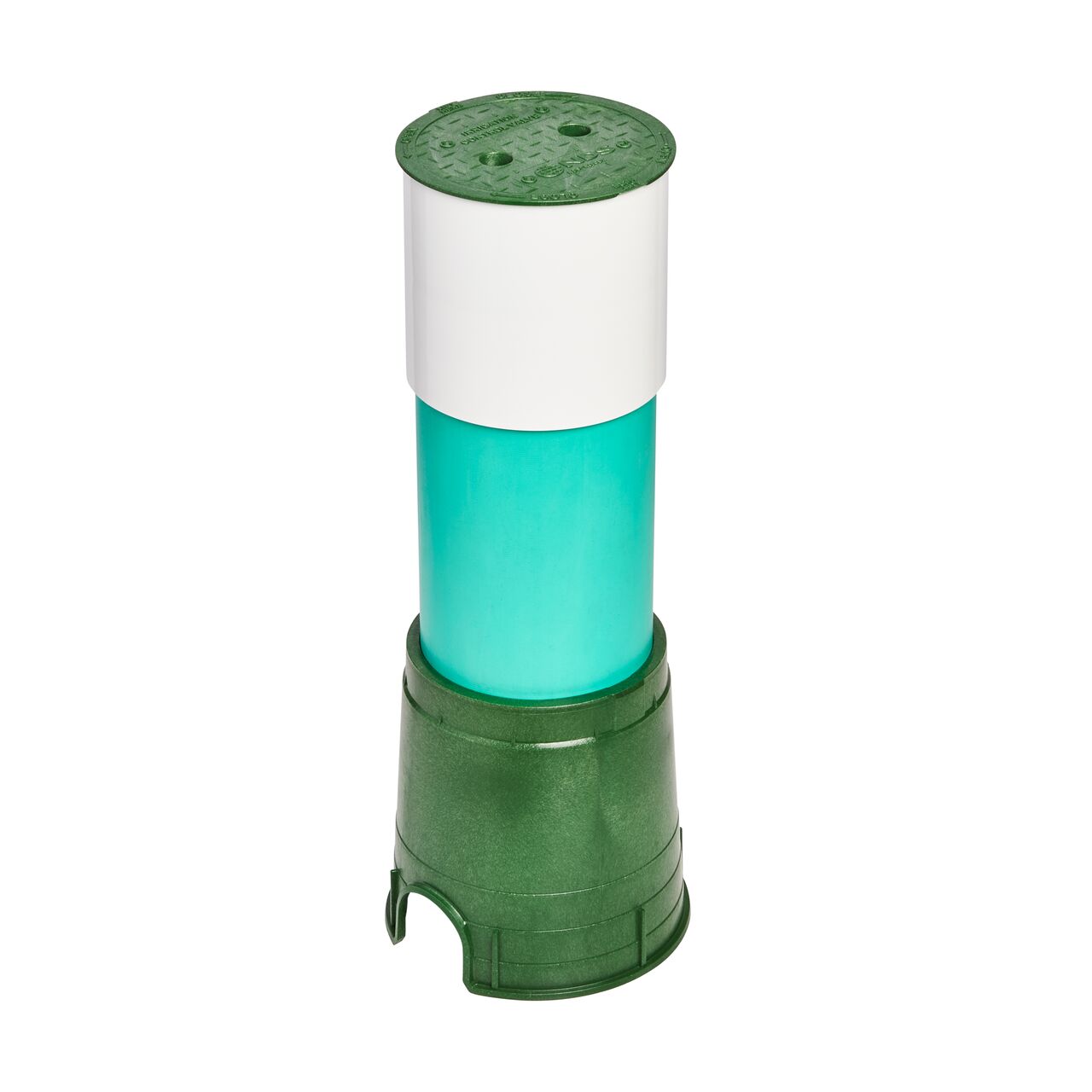

The NDS 6 in. Standard Series Green Valve Box and Cover with SDR-35 sewer and drain pipe attached to extend the basin intake to the surface level (NDS 2108BC)

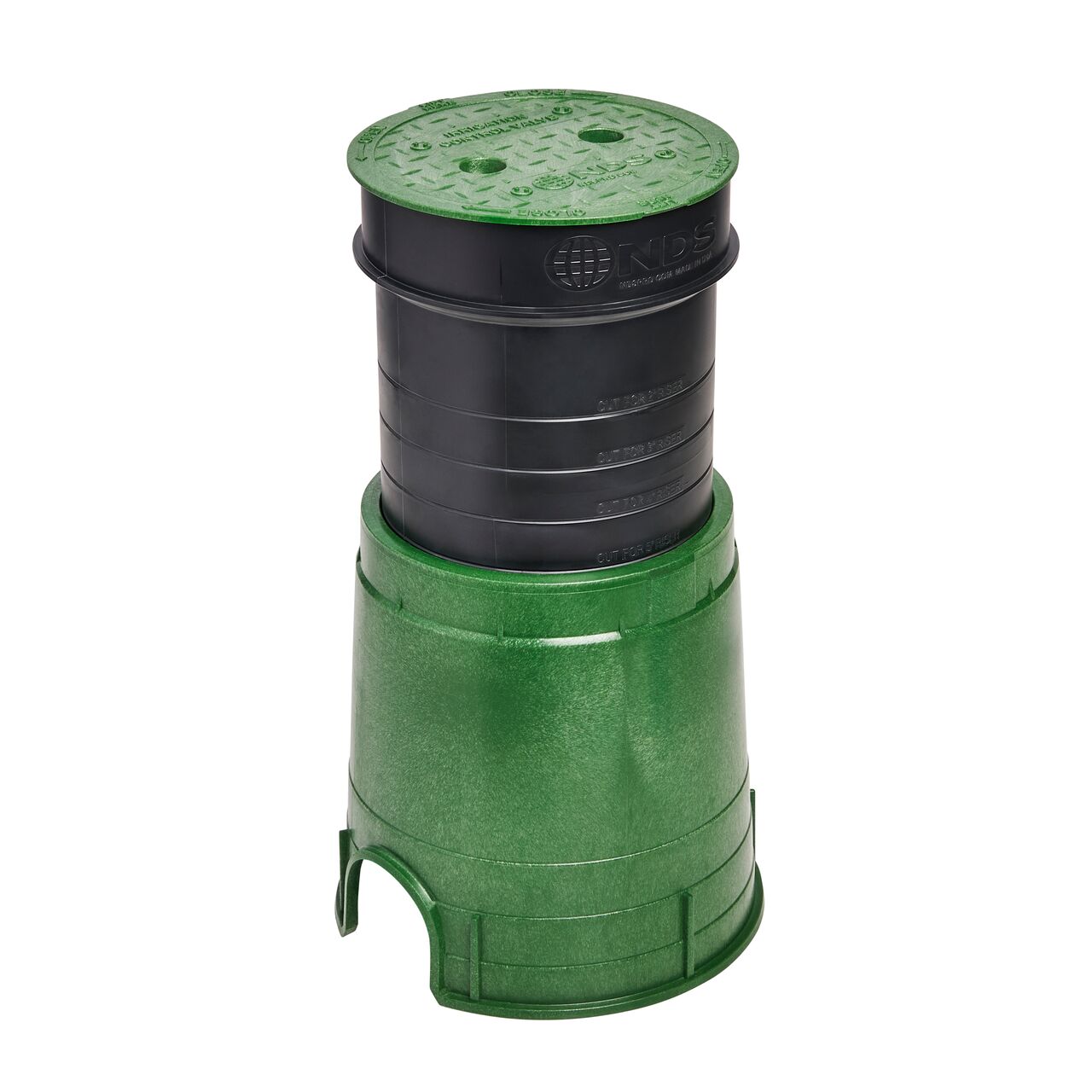

The NDS 6 in. Standard Series Green Valve Box and Cover with 6 in. Spee-D® riser attached to extend the basin intake to the surface level (NDS 2108BC)

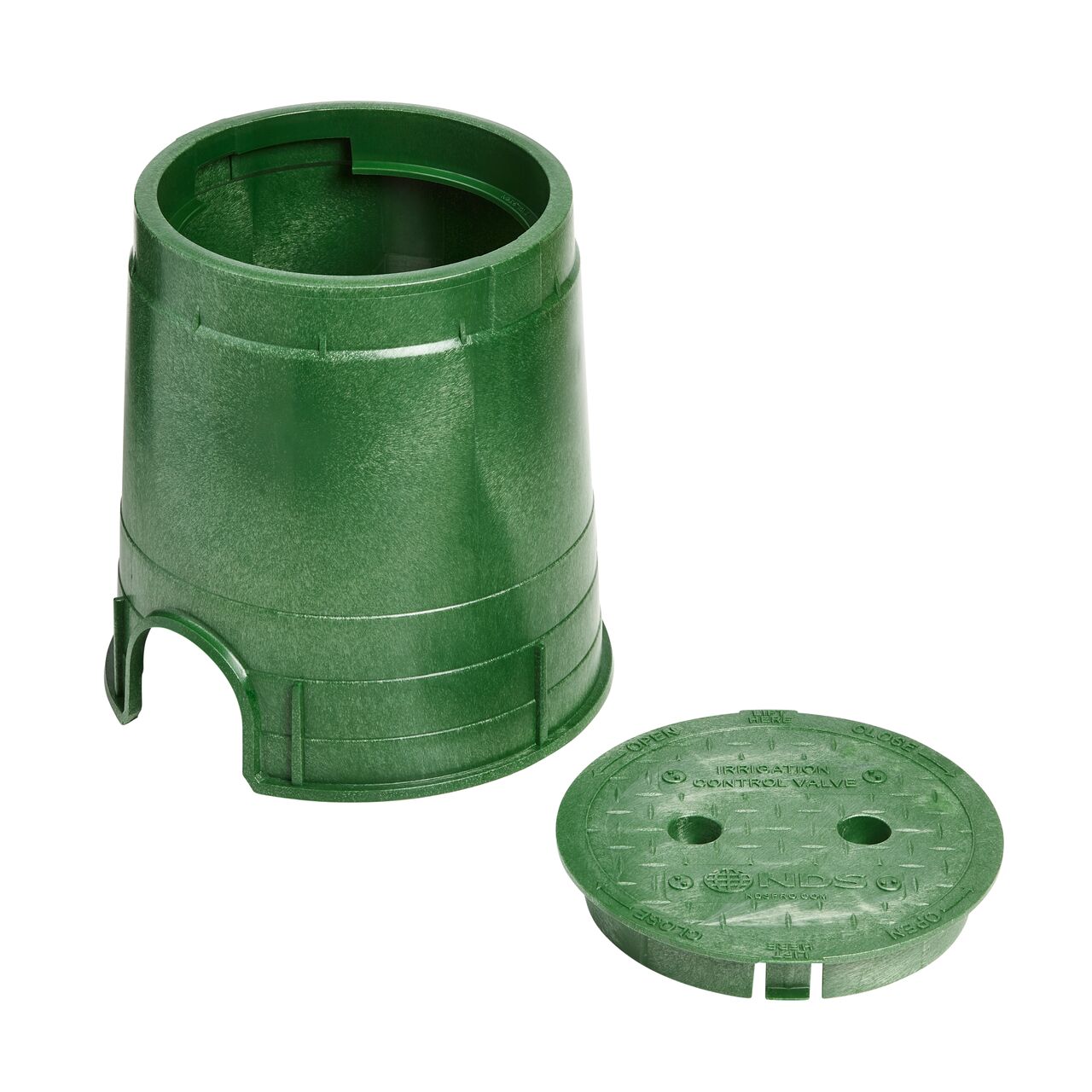

Unassembled View of the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) showing the overlapping cover with a twist-lock lid or snap-in with two pre-molded finger indentations that can be knocked out if needed

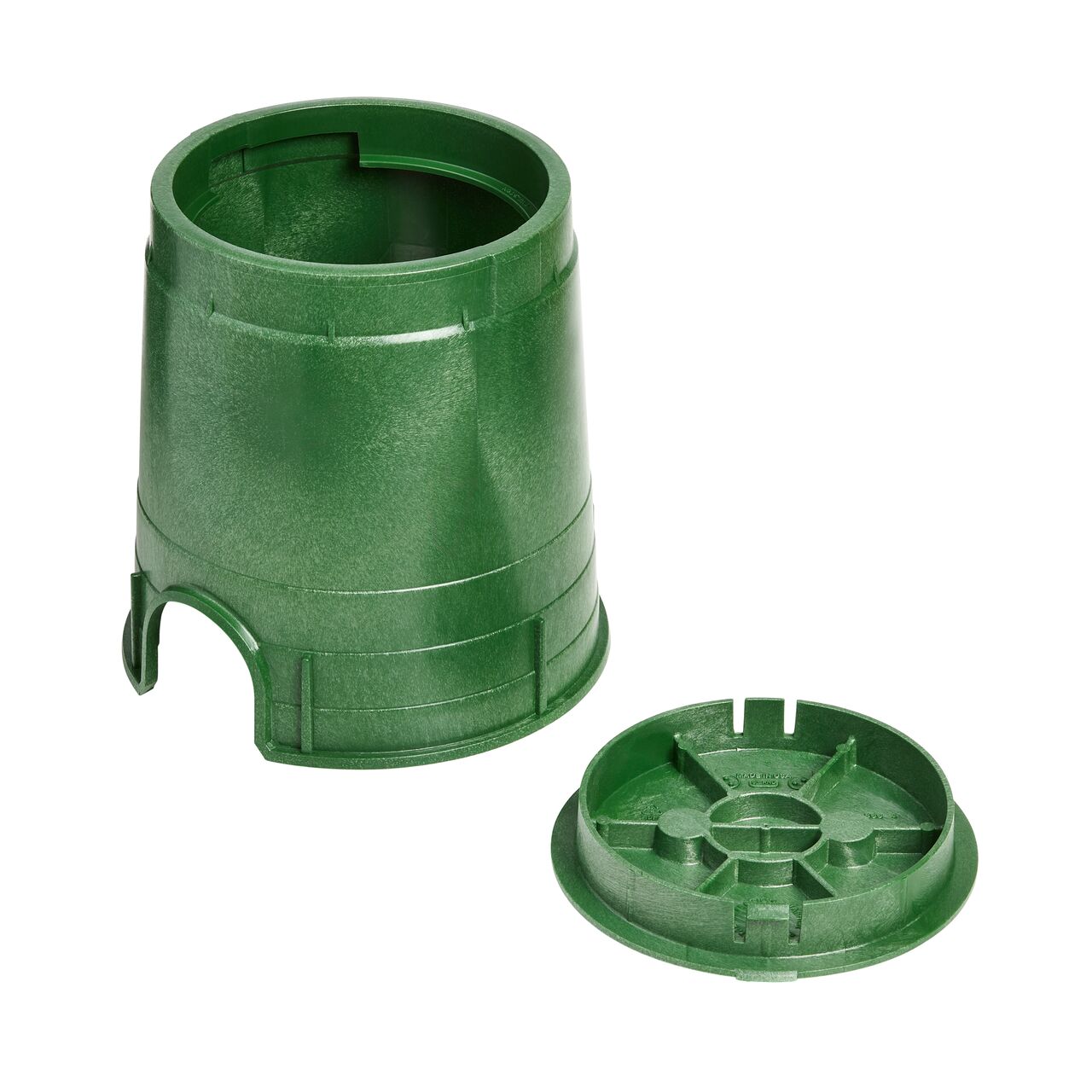

Unassembled View of the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) showing the built-in post on underside of lid to mount washer for metal detection

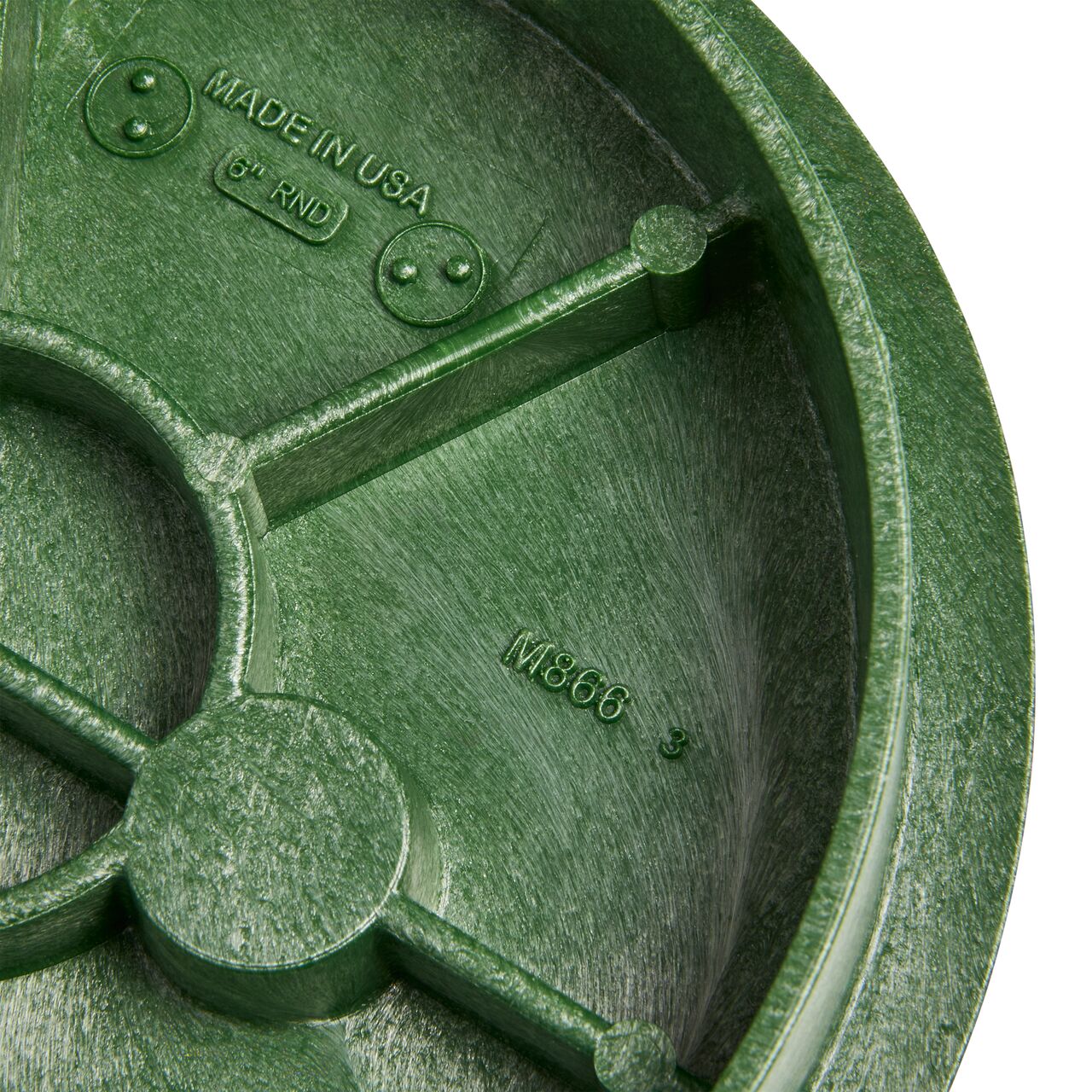

Closeup view of the structural support on the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment

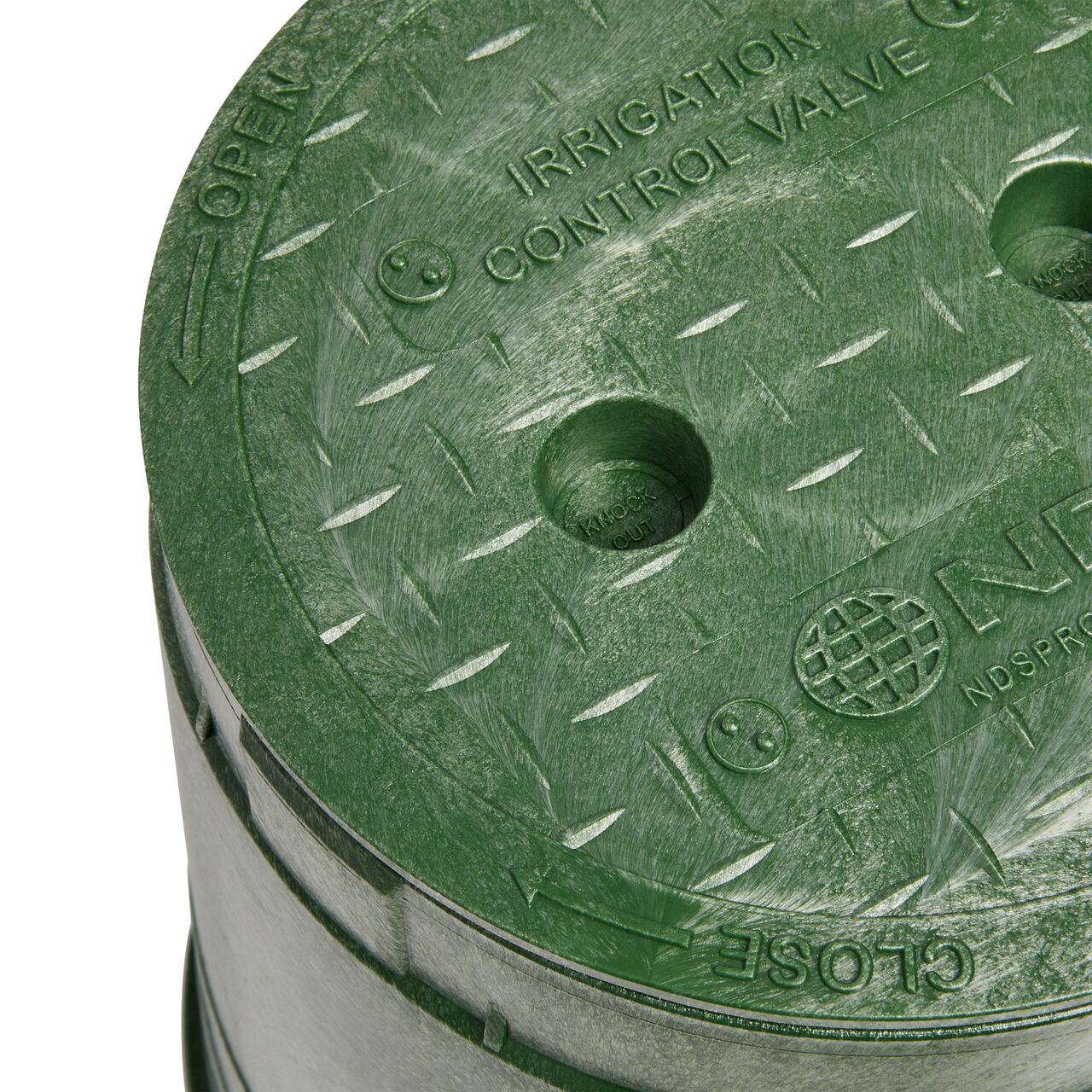

The valve box lid securely in place on the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight

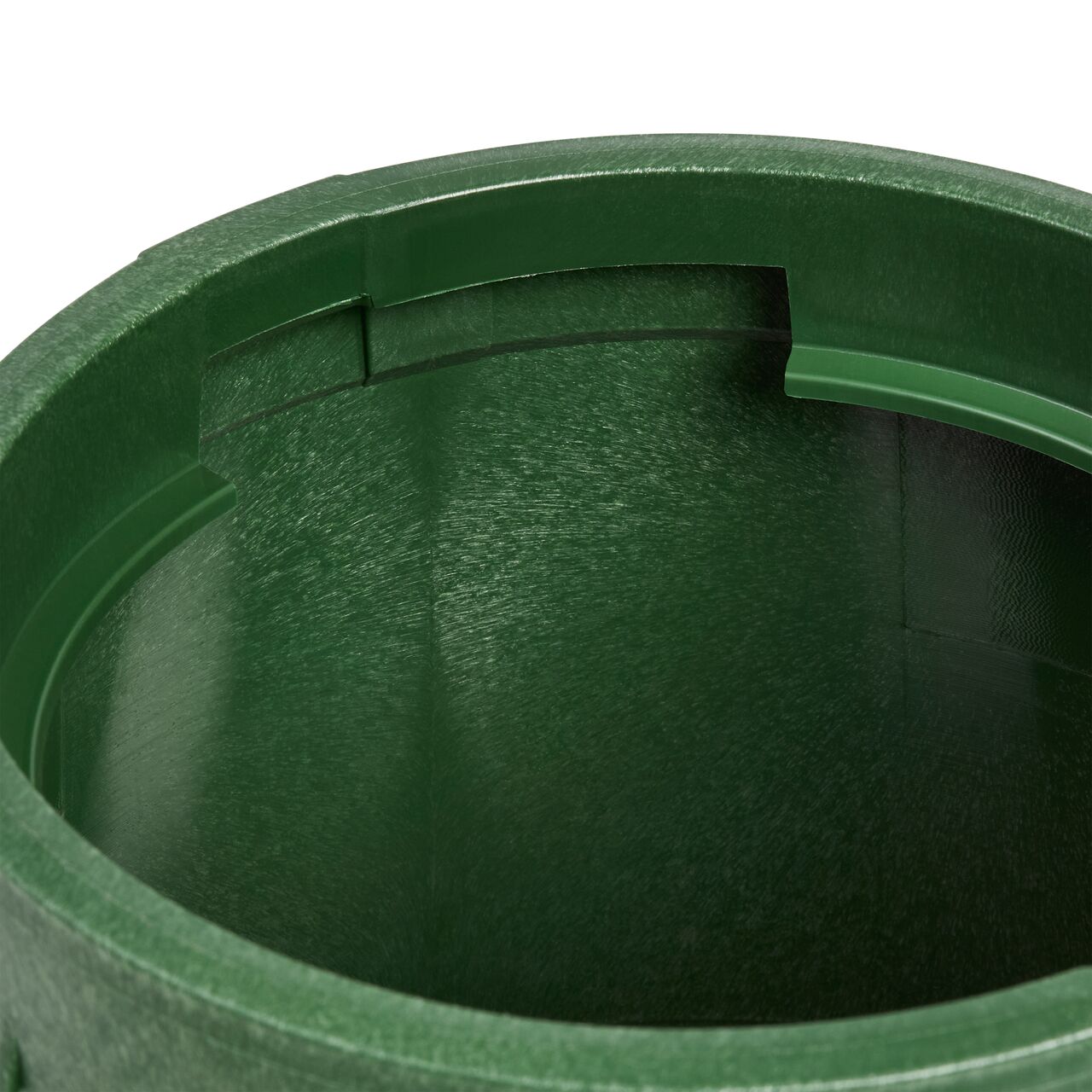

Closeup view of the locking lip that the valve box lid secures in when twisted to a locked position, showing the part to unlock the lid to access the inside on the Green NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)

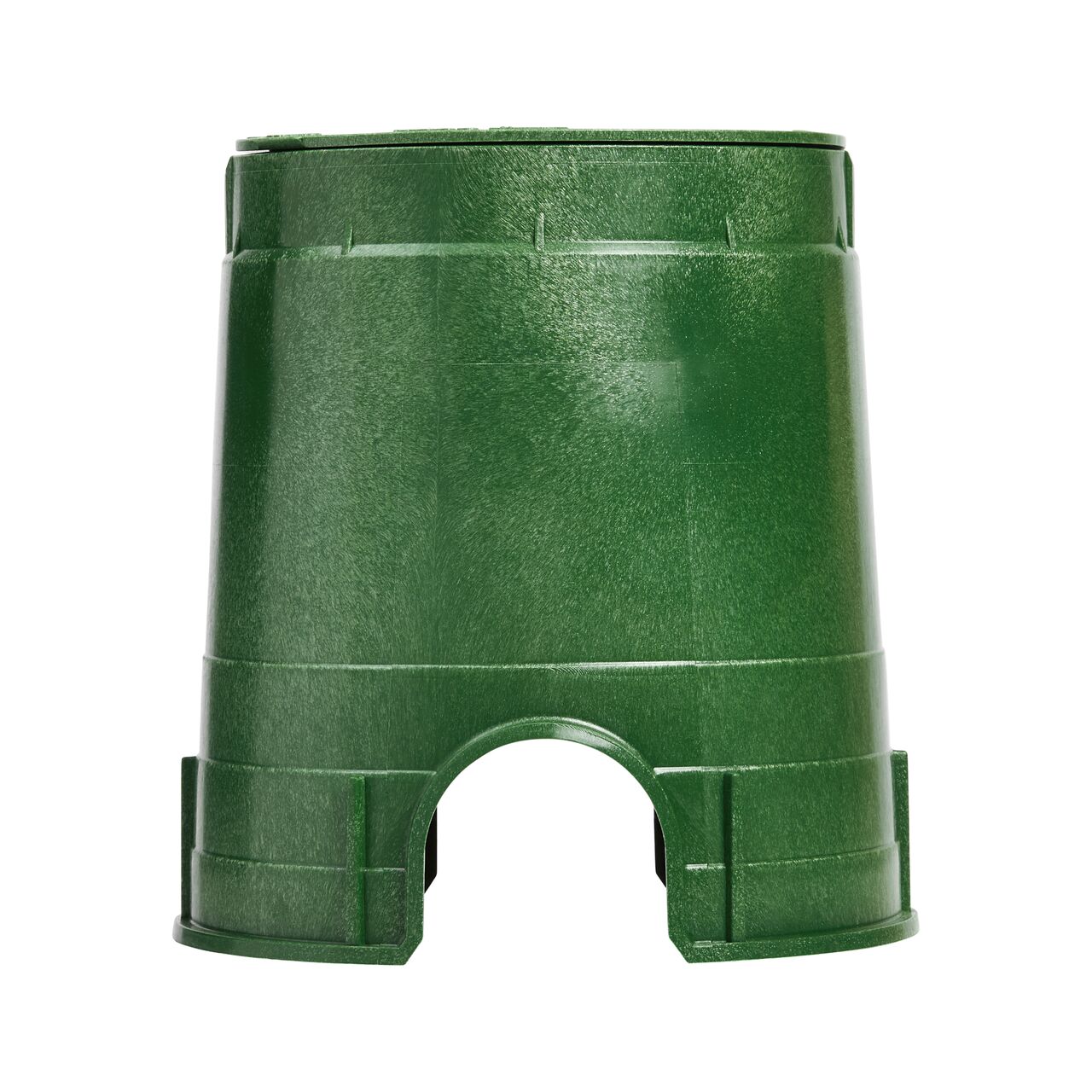

Side view of the pipe hole side on the NDS green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC) showing both pipe holes available to connect valves to your irrigation system

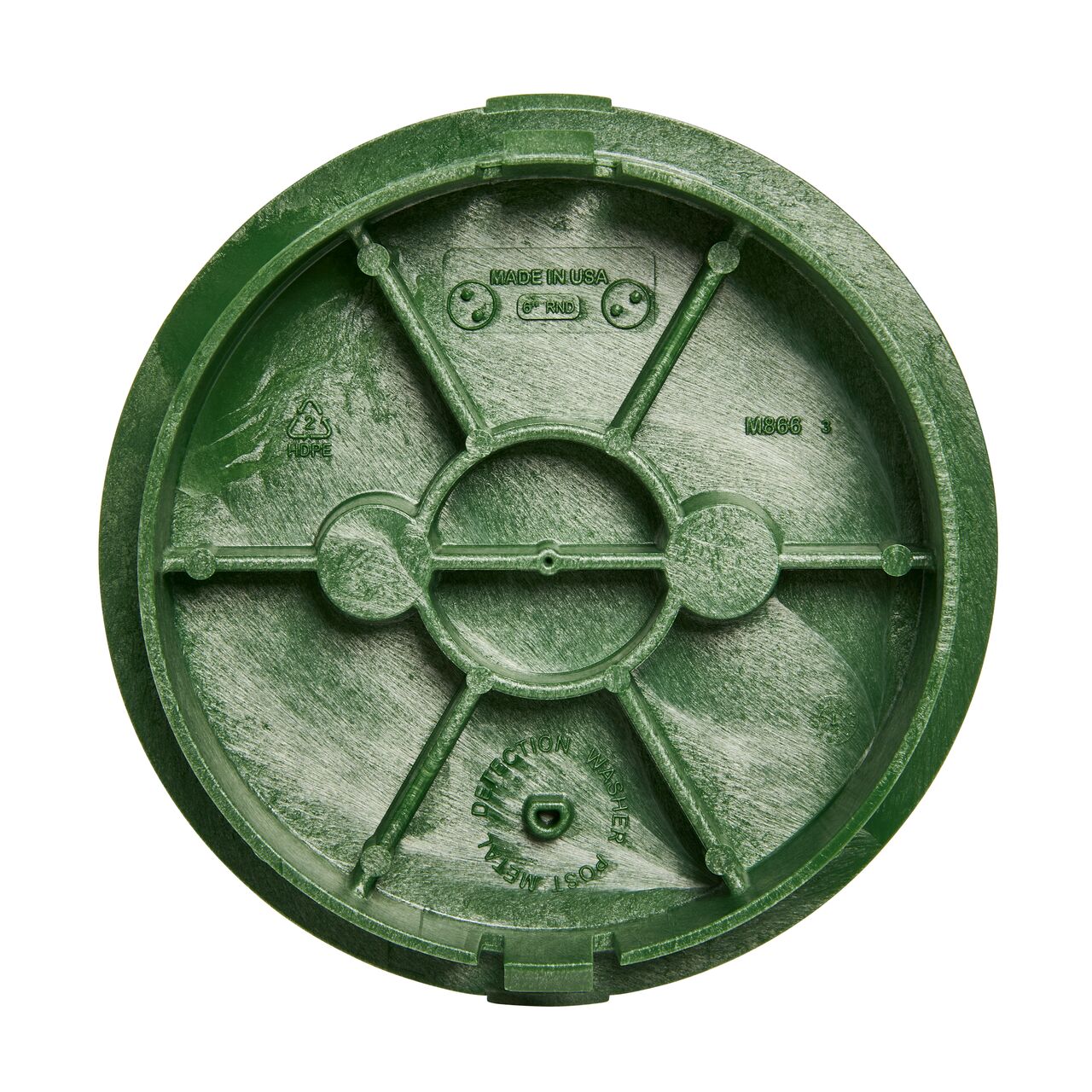

Top down view of the underside side of the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment
Lift the 6 in. NDS Green Irrigation Control Valve cover for irrigation maintenance, repairs, or inspections (NDS 2108BC)

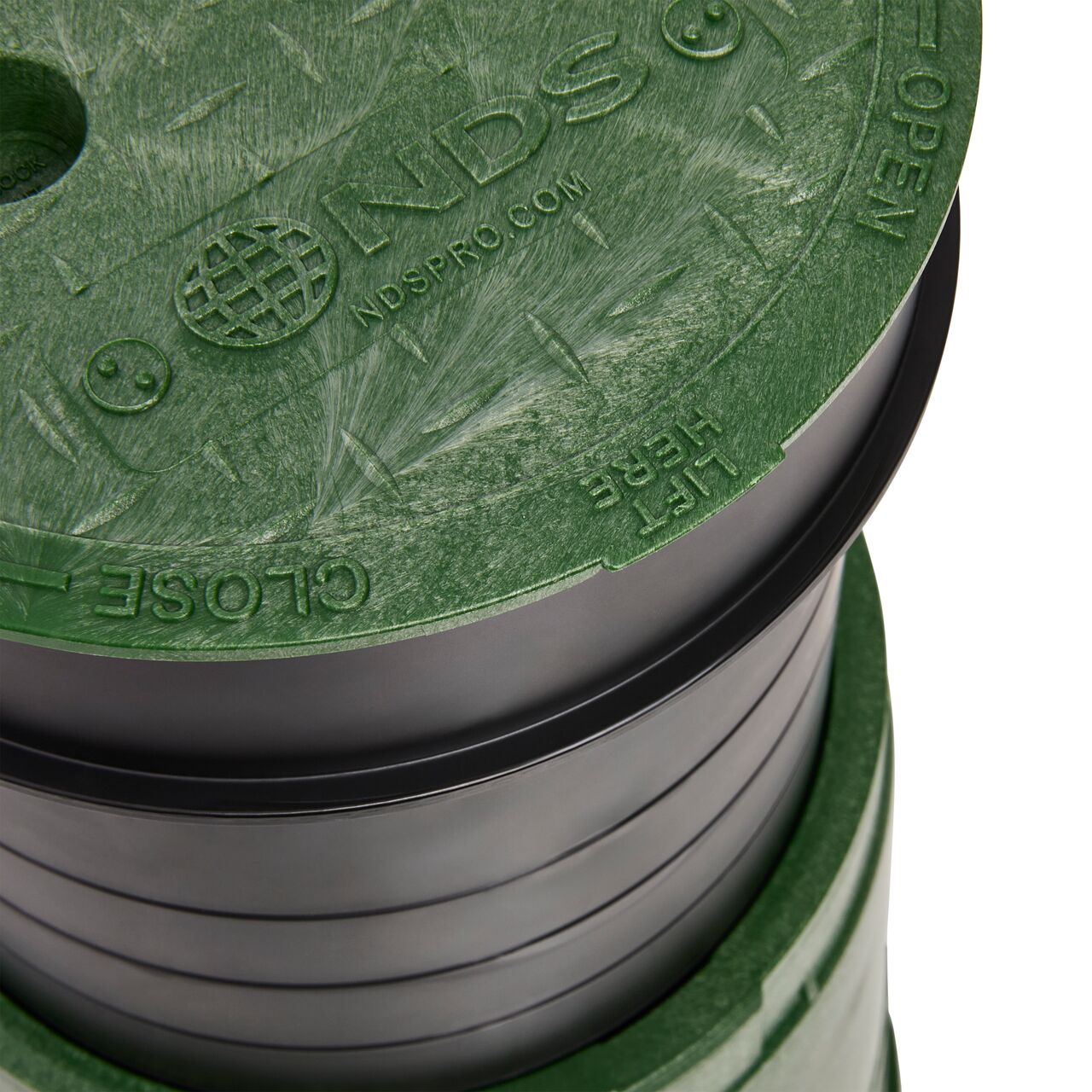

Closeup view of the 6 in. Standard Series Valve Box with the Irrigation Control Valve Secured Cover that has molded-in slip-resistant pattern and identification marking (NDS 2108BC)

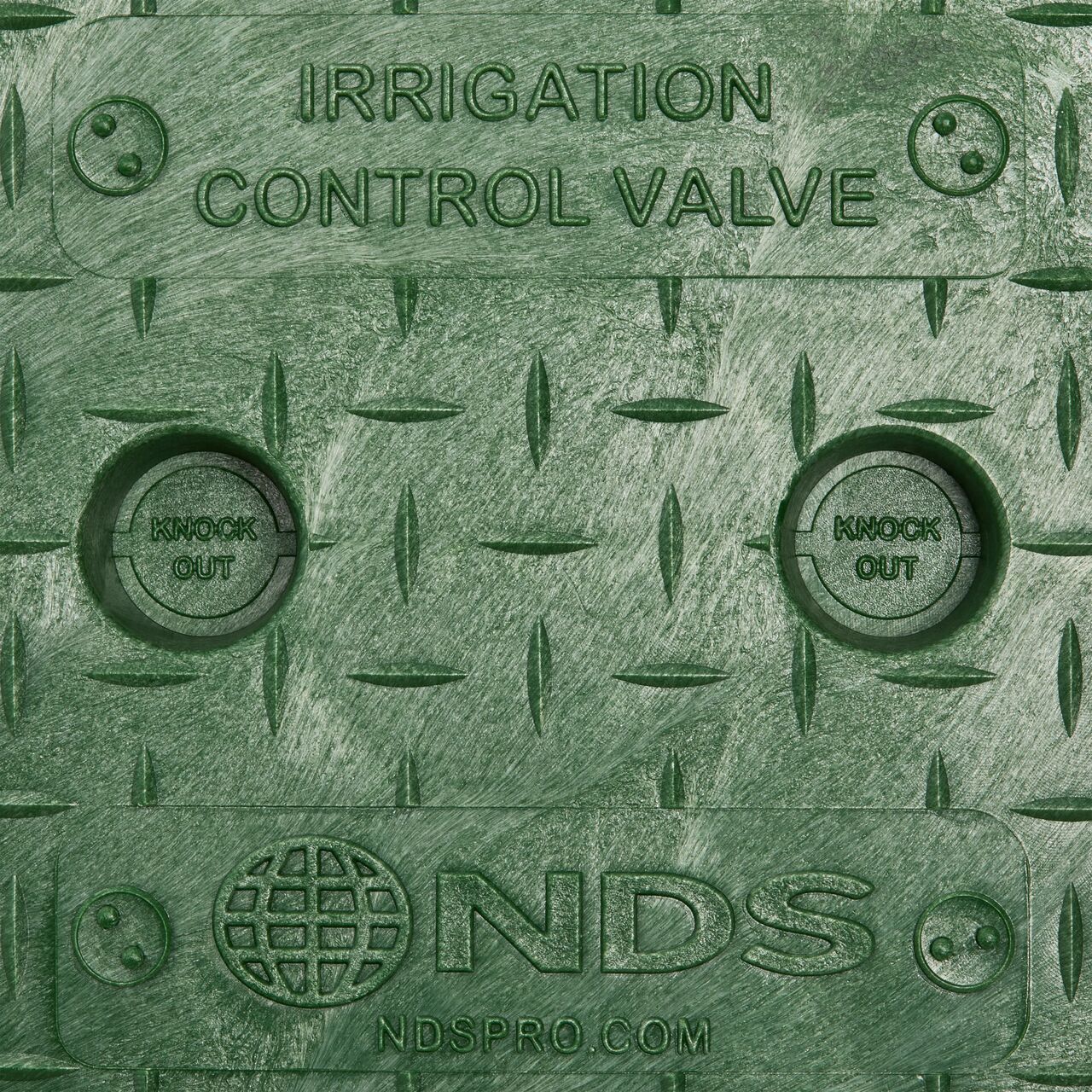

Closeup view of the Green Irrigation Control Valve markings and the fingerholes on the cover for the NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)

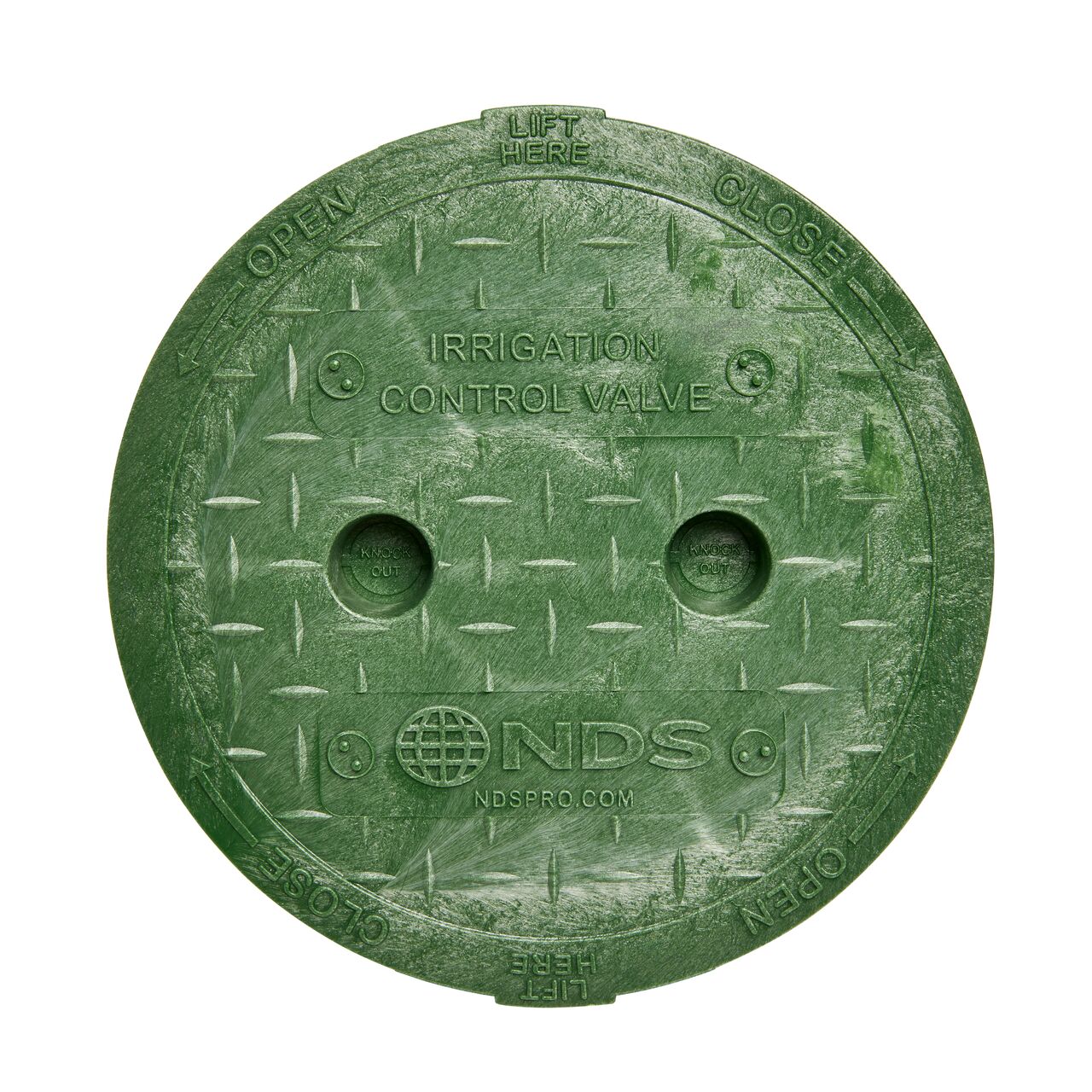

Top down view of the top side of the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) shows markings, two finger slots to twist and remove lid

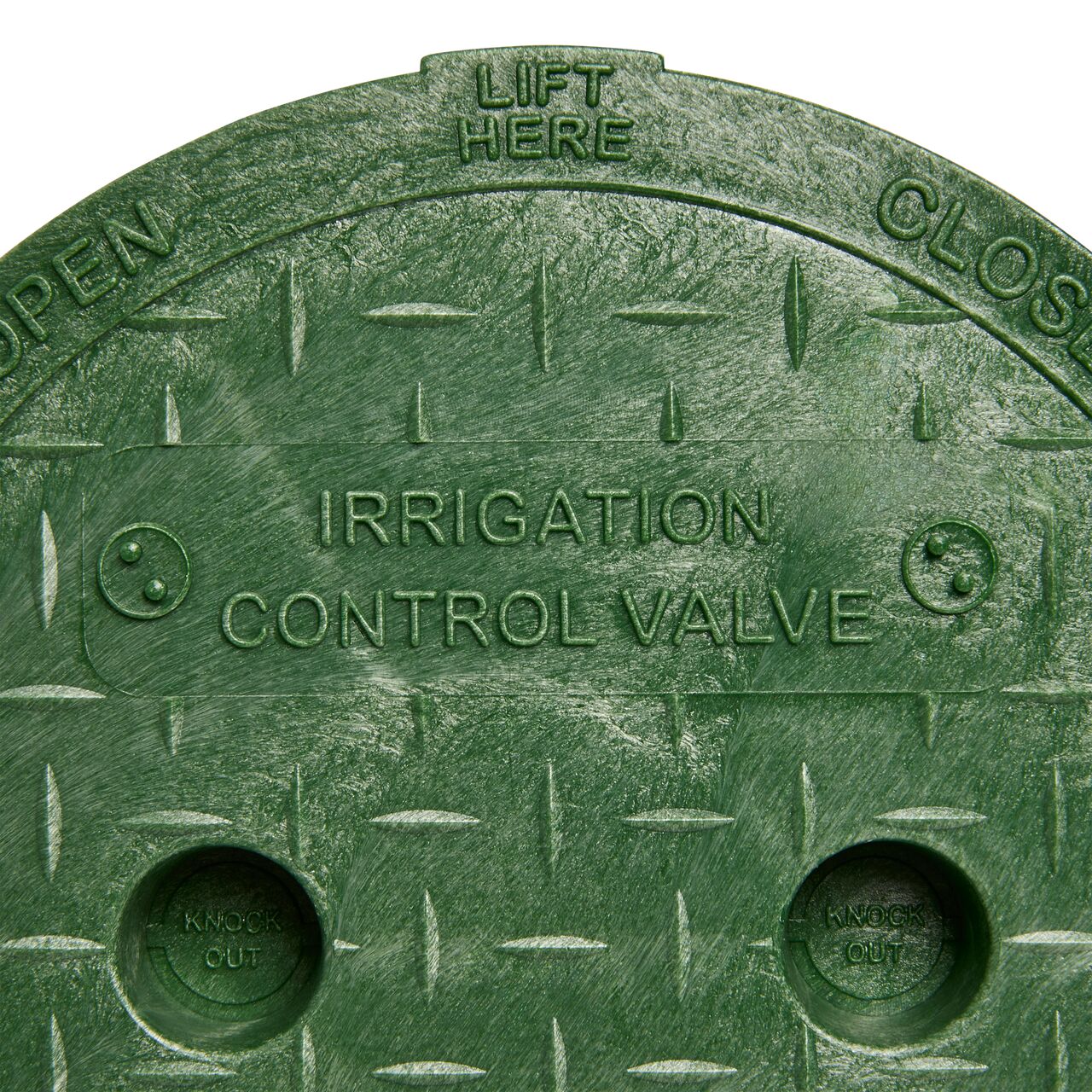

Closeup view of the Irrigation Control Valve markings on the Green Irrigation Control Valve cover for the NDS 6 in. Standard Series Valve Box (NDS 2108BC)

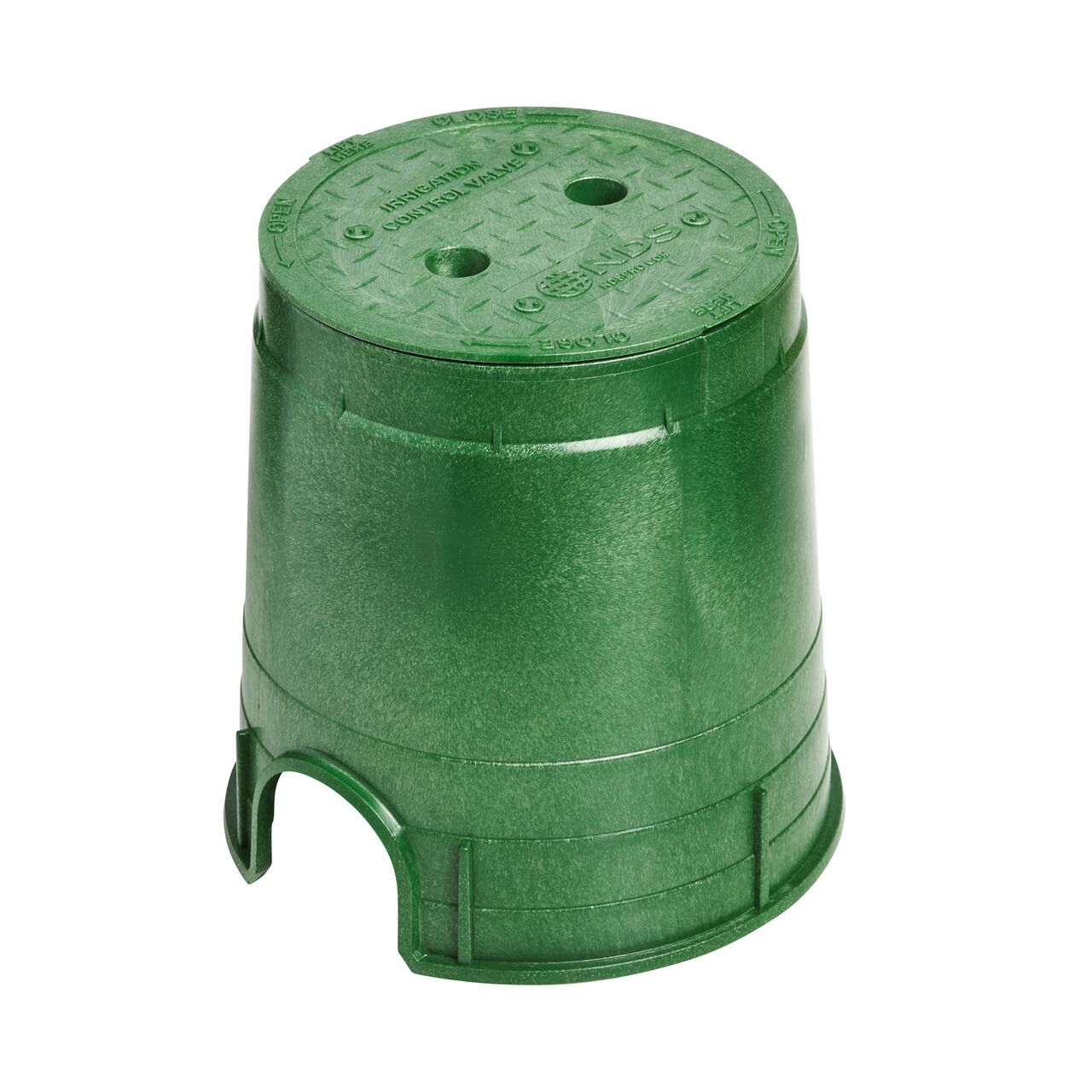

The NDS 6 in. Round Standard Series Valve Box and Cover is an 9 in. high Green Box and Green Cover with Irrigation Control Valve markings on the lid (NDS 2108BC) protect underground irrigation and sprinkler system components and keep them out of sight

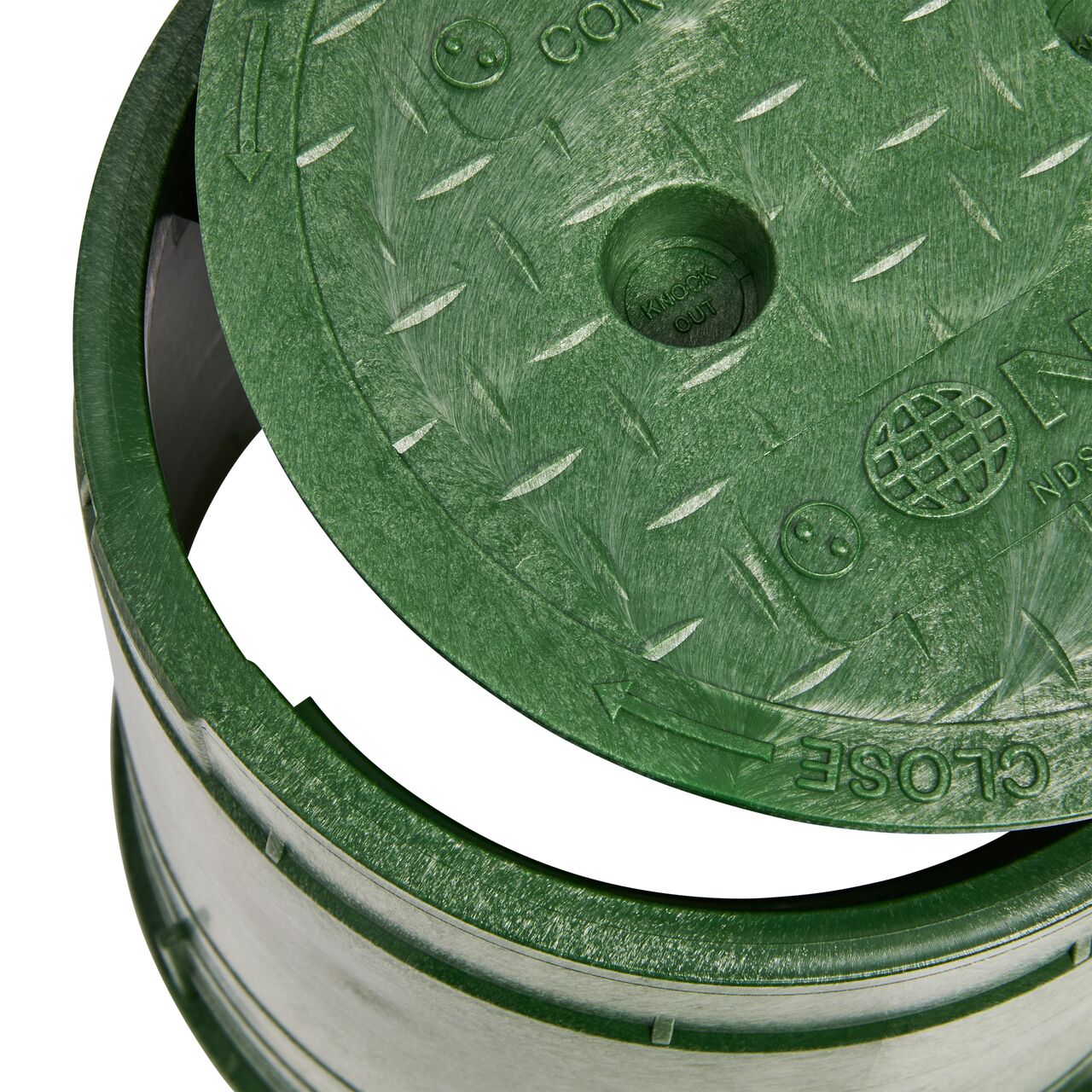

Align the bolt hole on the lid with the bolt hole from the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) for a secure fit

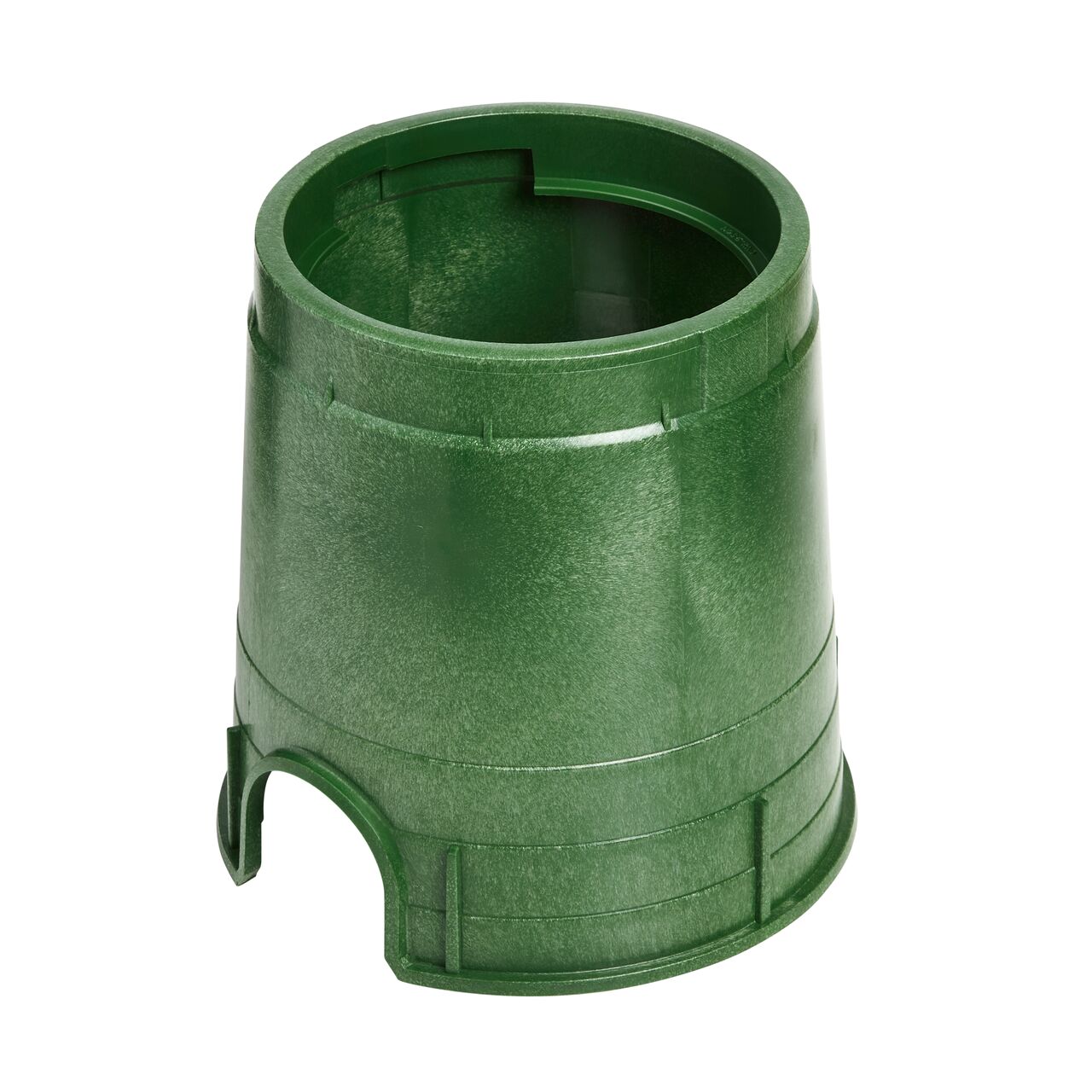

The durable Green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC has a height of 9 in. and the top opening fits 6 in. round standard series cover, 6 in. Spee-D® Riser or bell end SDR-35 sewer & drain pipe
Closeup view of the pipe hole on the NDS black plastic 6 in. Round Standard Series Valve Box (NDS 2018B)
Closeup view of the bell end SDR-35 sewer and drain pipe installed on the 6 in. Standard Series Valve Box with the Irrigation Control Valve Cover on the top of the riser (NDS 2108BC)
NDS 6 in. Round Standard Series Box is (NDS 2108BC) spacious internal design provides more volume compared to other 6 in. valve boxes on the market
Closeup view of the outside reinforced edges on the NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)
Side view of the non pipe hole side on the NDS Green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC)
The NDS 6 in. Standard Series Green Valve Box and Cover with SDR-35 sewer and drain pipe attached to extend the basin intake to the surface level (NDS 2108BC)
The NDS 6 in. Standard Series Green Valve Box and Cover with 6 in. Spee-D® riser attached to extend the basin intake to the surface level (NDS 2108BC)
Unassembled View of the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) showing the overlapping cover with a twist-lock lid or snap-in with two pre-molded finger indentations that can be knocked out if needed
Unassembled View of the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) showing the built-in post on underside of lid to mount washer for metal detection
Closeup view of the structural support on the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment
The valve box lid securely in place on the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) keeping components protected against the elements, foot traffic, lawn care equipment, and potential vandalism while keeping them out of sight
Closeup view of the locking lip that the valve box lid secures in when twisted to a locked position, showing the part to unlock the lid to access the inside on the Green NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)
Side view of the pipe hole side on the NDS green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC) showing both pipe holes available to connect valves to your irrigation system
Top down view of the underside side of the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) showing reinforcing ribs that are load rated to withstand pedestrian traffic and the rigors of lawn care equipment
Lift the 6 in. NDS Green Irrigation Control Valve cover for irrigation maintenance, repairs, or inspections (NDS 2108BC)
Closeup view of the 6 in. Standard Series Valve Box with the Irrigation Control Valve Secured Cover that has molded-in slip-resistant pattern and identification marking (NDS 2108BC)
Closeup view of the Green Irrigation Control Valve markings and the fingerholes on the cover for the NDS 6 in. Round Standard Series Valve Box (NDS 2108BC)
Top down view of the top side of the Green Irrigation Control Valve cover for the NDS 6 in. Round Standard Series (NDS 2108BC) shows markings, two finger slots to twist and remove lid
Closeup view of the Irrigation Control Valve markings on the Green Irrigation Control Valve cover for the NDS 6 in. Standard Series Valve Box (NDS 2108BC)
The NDS 6 in. Round Standard Series Valve Box and Cover is an 9 in. high Green Box and Green Cover with Irrigation Control Valve markings on the lid (NDS 2108BC) protect underground irrigation and sprinkler system components and keep them out of sight
Align the bolt hole on the lid with the bolt hole from the NDS 6 in. Round Standard Series Green Box and Green Irrigation Control Valve Cover (NDS 2108BC) for a secure fit
The durable Green plastic 6 in. Round Standard Series Valve Box (NDS 2108BC has a height of 9 in. and the top opening fits 6 in. round standard series cover, 6 in. Spee-D® Riser or bell end SDR-35 sewer & drain pipe

Protect irrigation control system components and keep them out of sight using the 6 in. round standard series valve box and cover. The durable valve box is engineered with structural reinforcing ribs for added strength while reducing material and weight. Built-in pipe hole allows piping to pass through the walls of the box so that the box does not rest on the pipe. Top of box accommodates 6 in. Spee-D® riser (101R) or bell end SDR-35 sewer & drain pipe. Box stands 9 in. high and comes with an overlapping cover that keeps debris from entering the box. The cover features a molded-in slip-resistant pattern and is marked "IRRIGATION CONTROL VALVE" to identify components. The cover underside has a built-in washer mounting post for metal detection and starter hole for marker disc. Cover has both snap-in or twist-lock designs with two pre-molded finger indentations that can be knocked out if needed. The green valve box is made of polypropylene (PP) and green cover is made of high-density polyethylene (HDPE) treated with UV inhibitors to prevent fading and cracking.

Where to Buy Find a Pro

Applications:

  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism
  • Fits over underground components to keep them out of sight; provides easy access for service and maintenance
  • Use to protect irrigation system components from the elements, foot and lawncare traffic; deter theft and tampering

Features:

  • Spacious internal design provides more volume compared to other 6 in. valve boxes on the market, with wider top opening for accessibility to components
  • Structural support ribs reinforces box and cover for added strength while reducing material and weight
  • Secure overlapping cover has molded-in slip-resistant pattern and identification marking
  • Built-in post on underside to mount washer for metal detection; starter hole for marker disc
  • Load rated for pedestrian and lawn care equipment
