10 in. Round Pro-Spec® Series Telecom Box and Cover with Marker Disc, 10 in. Height, Black Box, Green Telecom Cover, Includes Bolt

SKU: 311BCBT-M

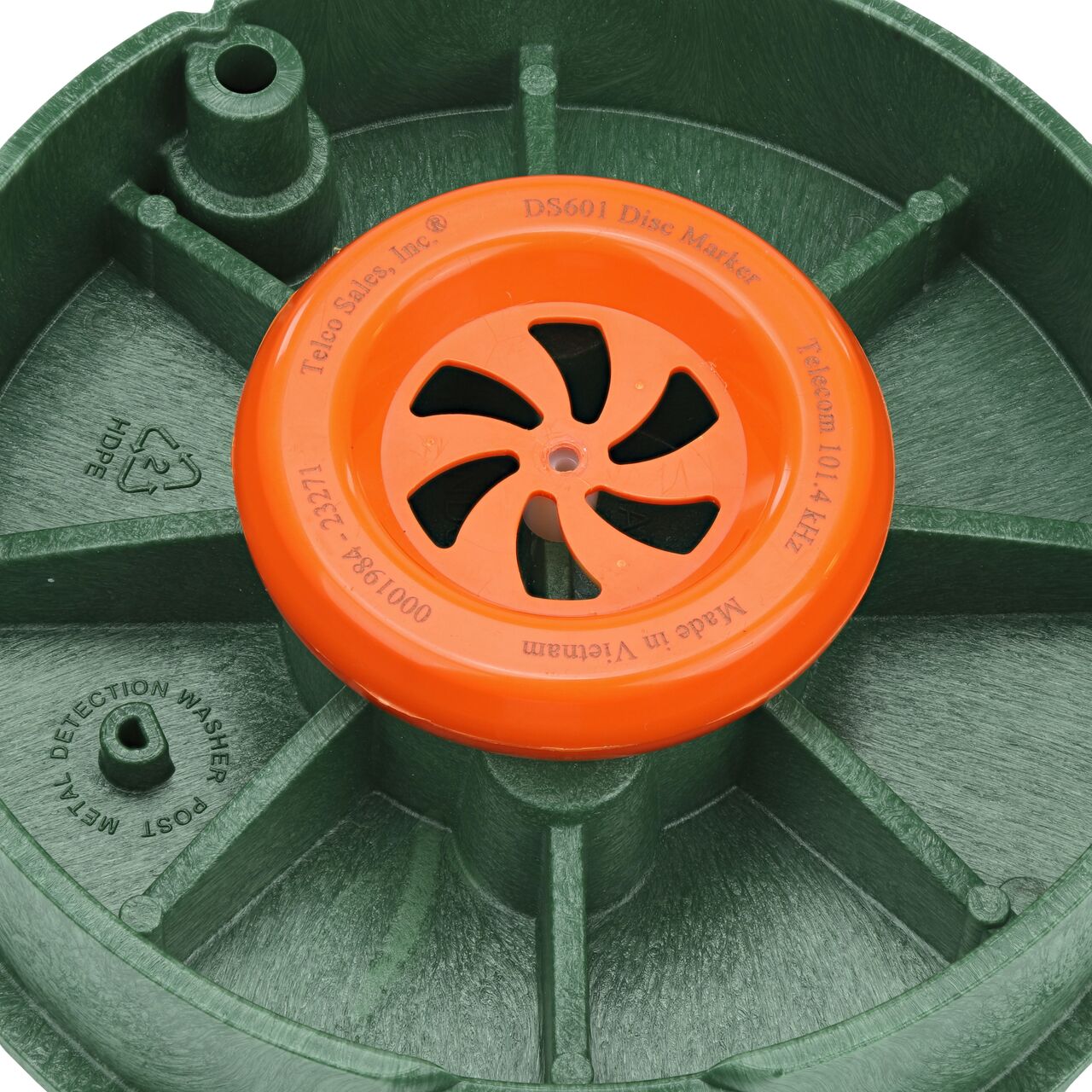

The first step in removing the electronic marker disc is to remove the center screw on the underside of the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M)

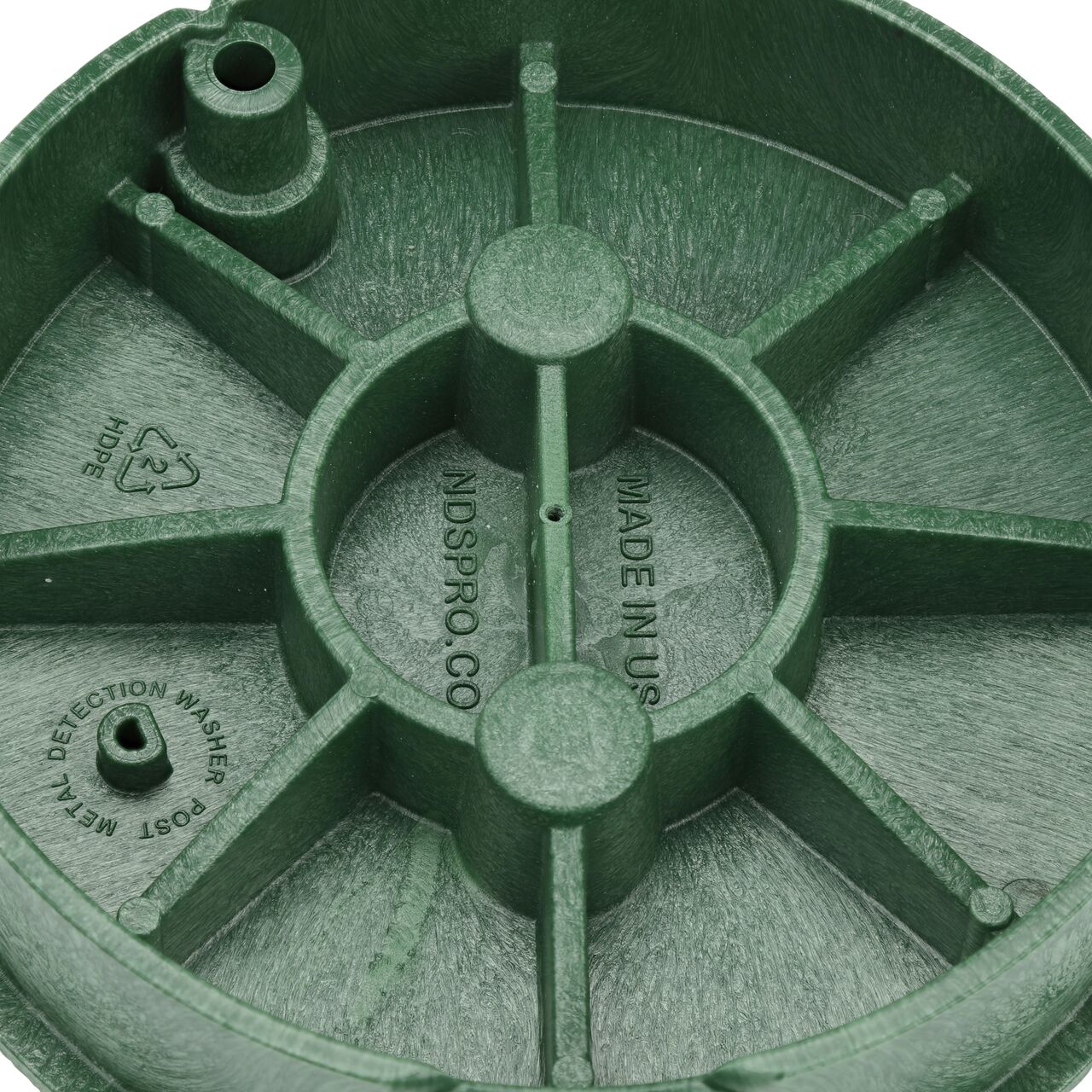

The telecom cover with the electronic marker disc bolt for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M)

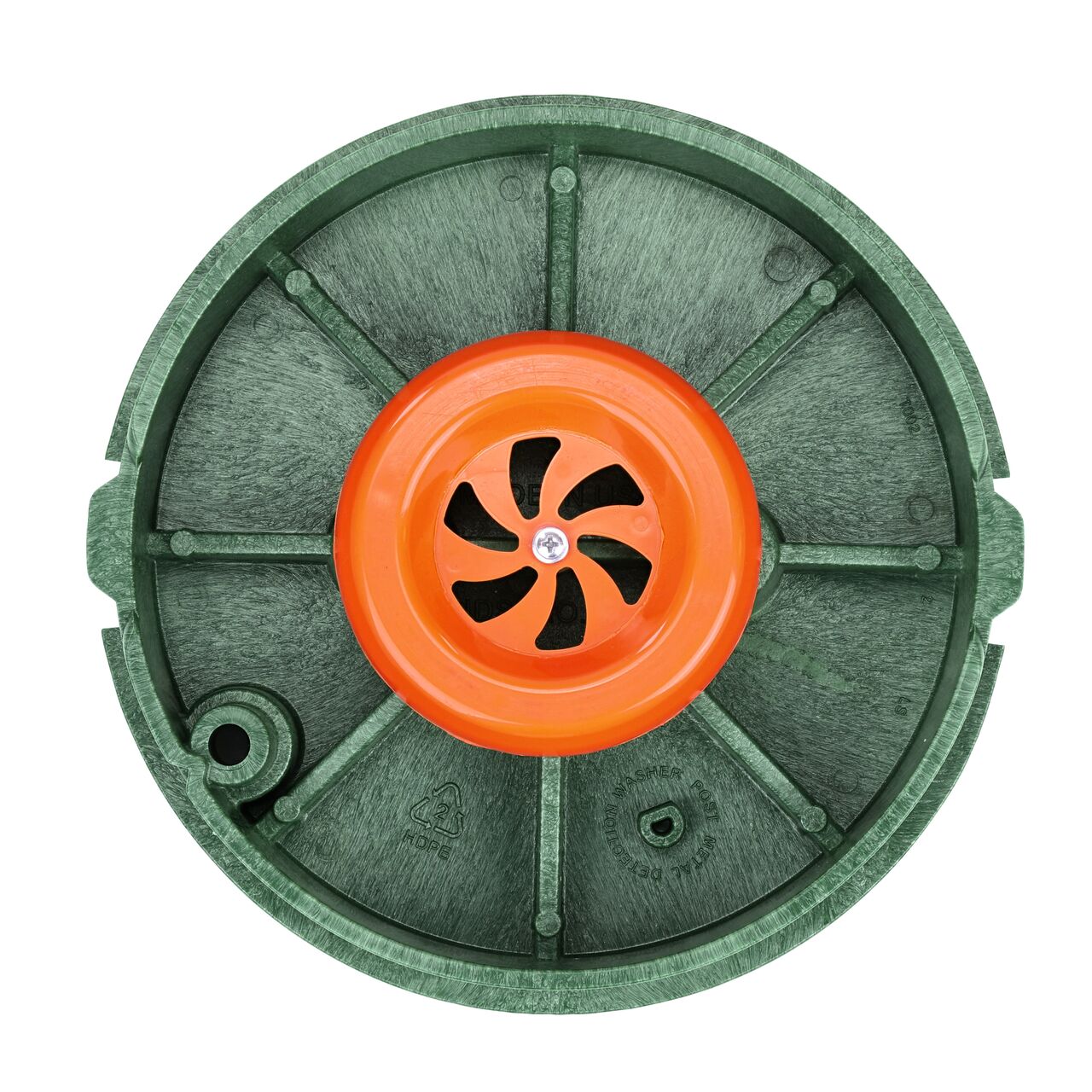

Top down view of the underside side of the Green Telecom cover (NDS 311BCBT-M) for the NDS 10 in. Round Pro-Spec® Series Telecom box, showing reinforcing ribs that are load rated and an electronic marker disc (frequency 101.4 kHz) to locate boxes buried underground when using a marker locator

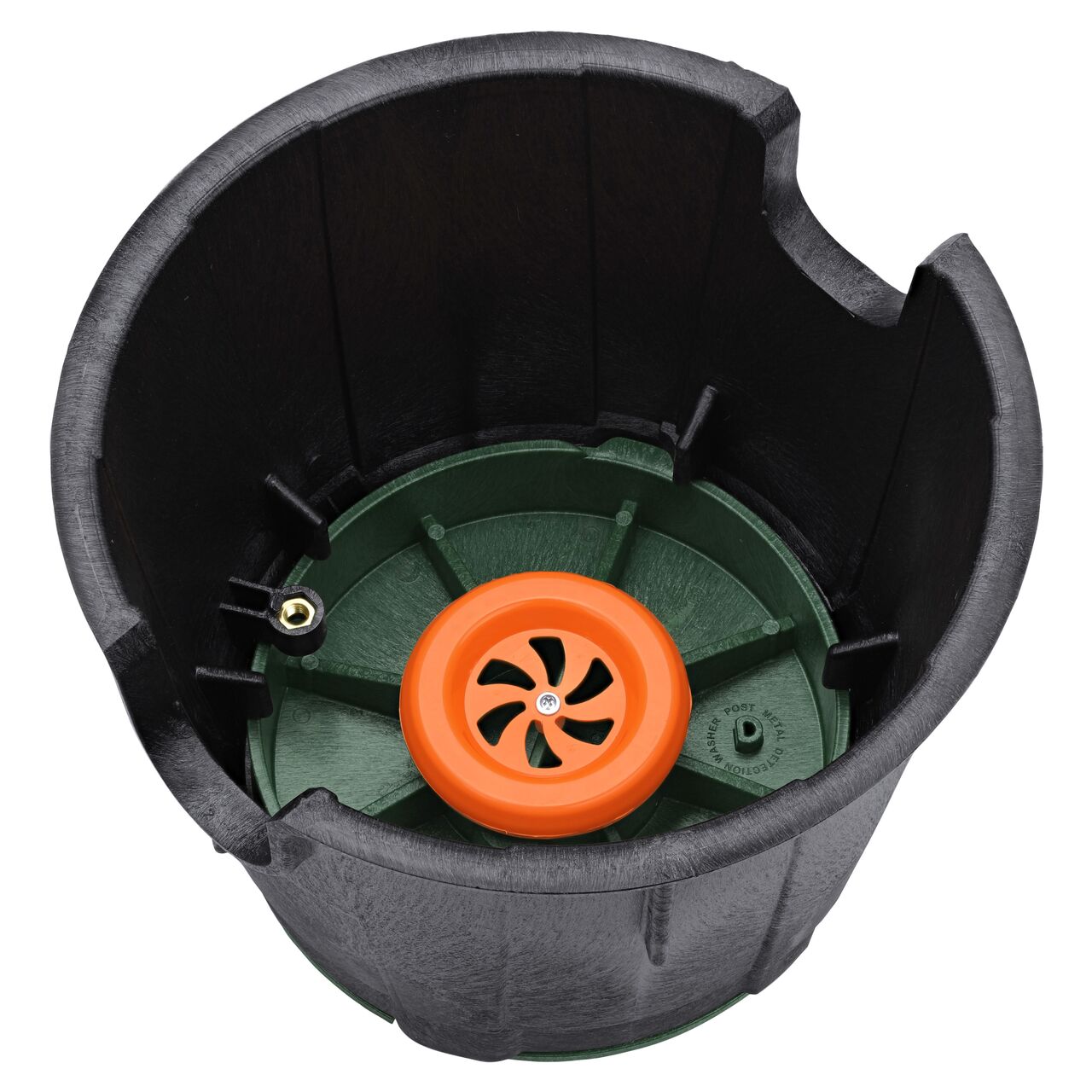

Upside down view of how the lid looks within the box with the fully installed electronic marker disc on the NDS 10 in. Round Pro-Spec® Series Telecom Box and Cover (NDS 311BCBT-M) which gives fiber optic cables and splices a clean and secure environment

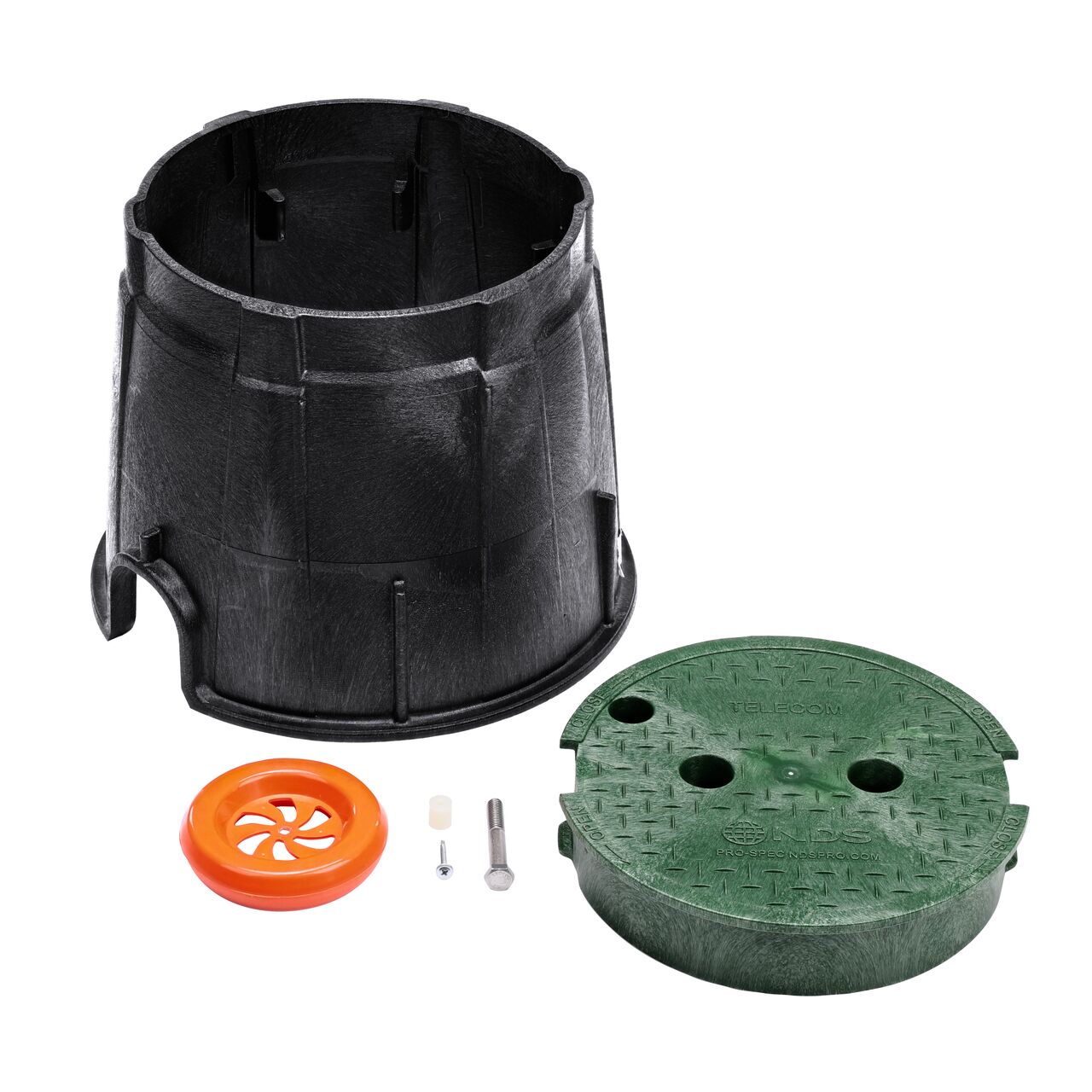

Unassembled View of the NDS 10 in. Black Round Pro-Spec® Series Telecom box, bolt, marker disc, and Green Telecom Overlapping cover (NDS 311BCBT-M) which provides easy access for service and maintenance of fiber optic cables and splices

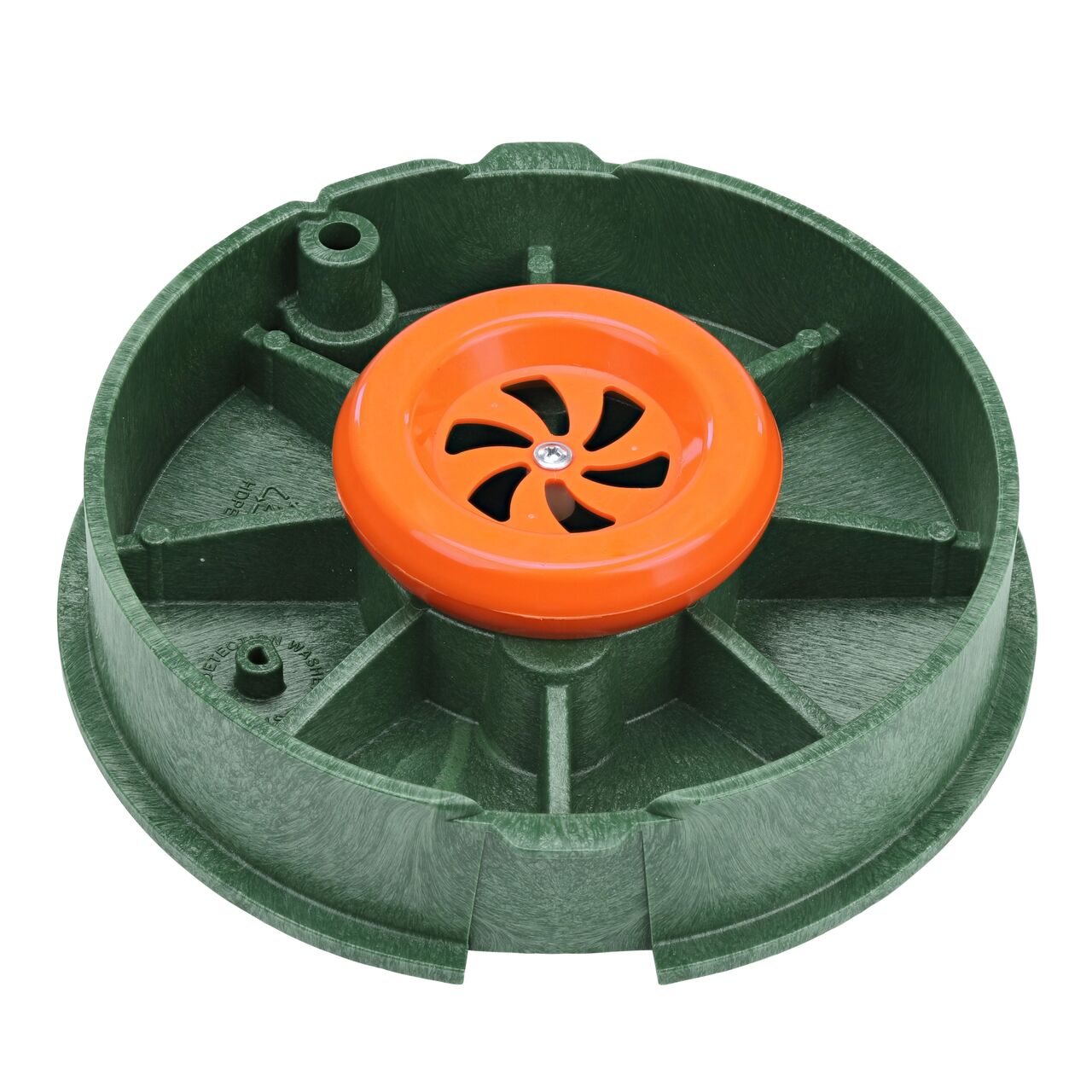

The 101.4 kHz frequency electronic marker disc comes installed on the underside of the Green Telecom cover (NDS 311BCBT-M) for the NDS 10 in. Round Pro-Spec® Series Telecom box and helps to locate boxes buried underground when using a marker locator

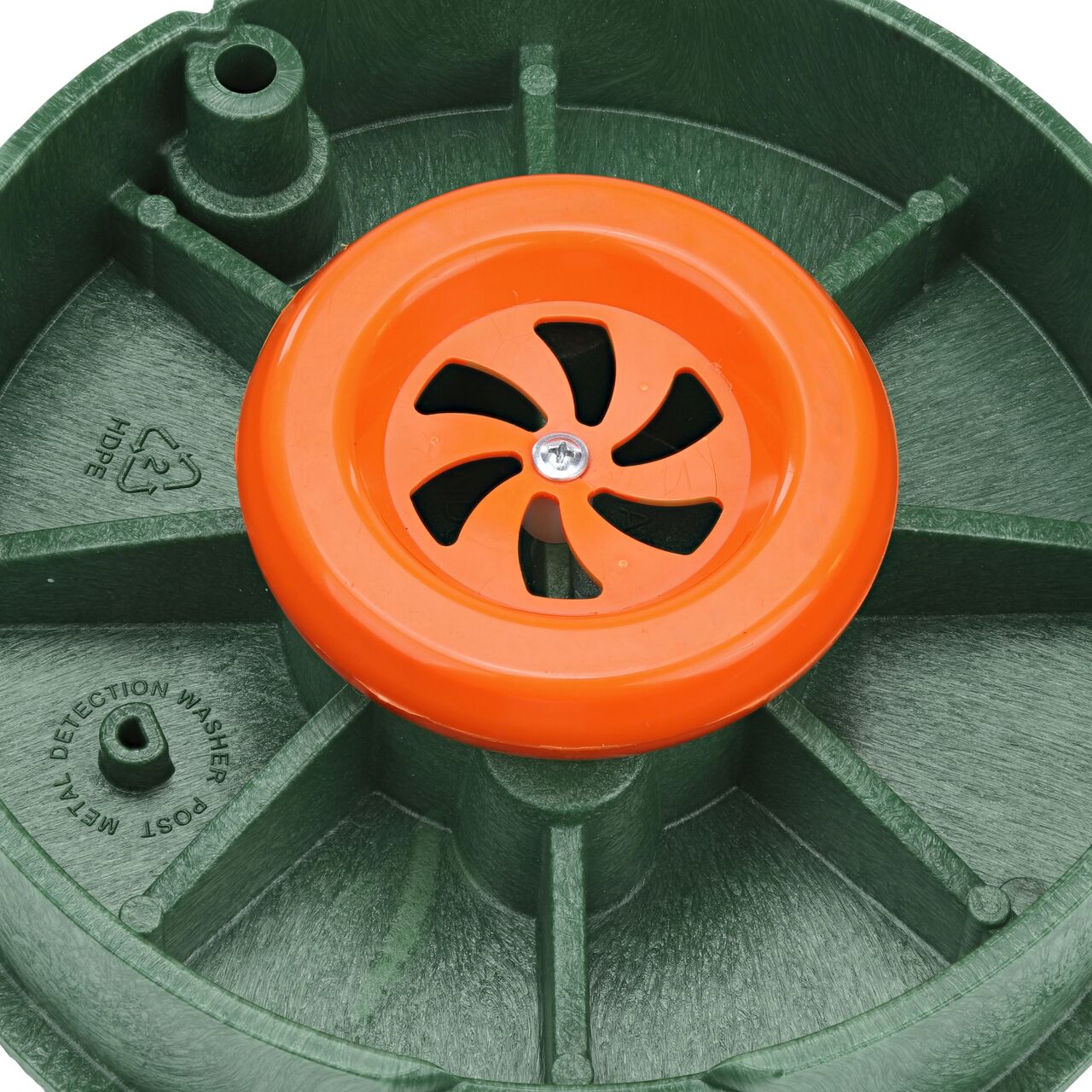

Closeup view of the 101.4 kHz frequency electronic marker disc installed on the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M) makes locating boxes buried underground when using a marker locator

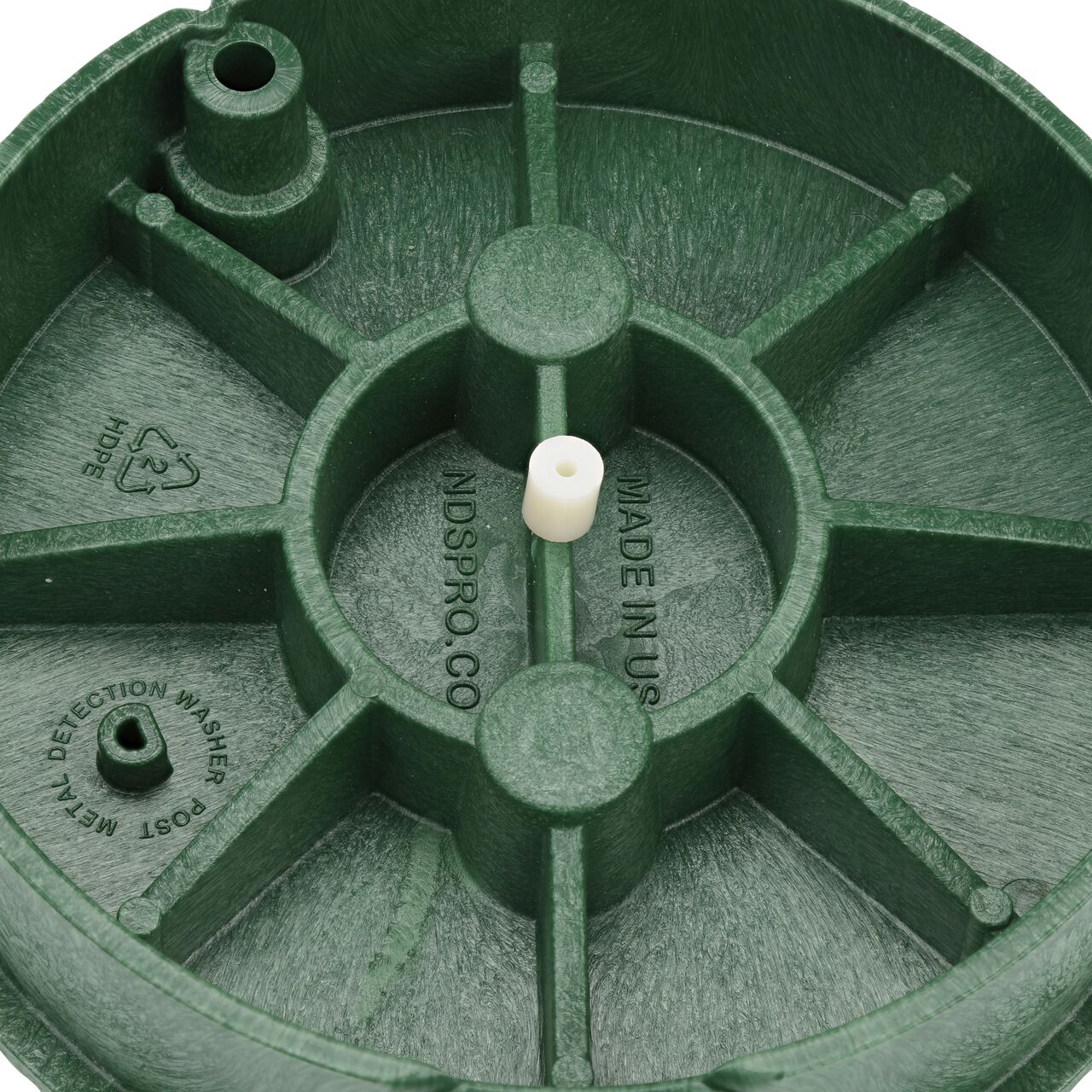

The electronic marker disc sits on a piece on the underside of the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M) before being screwed securely to the lid
The first step in removing the electronic marker disc is to remove the center screw on the underside of the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M)
The telecom cover with the electronic marker disc bolt for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M)
Top down view of the underside side of the Green Telecom cover (NDS 311BCBT-M) for the NDS 10 in. Round Pro-Spec® Series Telecom box, showing reinforcing ribs that are load rated and an electronic marker disc (frequency 101.4 kHz) to locate boxes buried underground when using a marker locator
Upside down view of how the lid looks within the box with the fully installed electronic marker disc on the NDS 10 in. Round Pro-Spec® Series Telecom Box and Cover (NDS 311BCBT-M) which gives fiber optic cables and splices a clean and secure environment
Unassembled View of the NDS 10 in. Black Round Pro-Spec® Series Telecom box, bolt, marker disc, and Green Telecom Overlapping cover (NDS 311BCBT-M) which provides easy access for service and maintenance of fiber optic cables and splices
The 101.4 kHz frequency electronic marker disc comes installed on the underside of the Green Telecom cover (NDS 311BCBT-M) for the NDS 10 in. Round Pro-Spec® Series Telecom box and helps to locate boxes buried underground when using a marker locator
Closeup view of the 101.4 kHz frequency electronic marker disc installed on the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M) makes locating boxes buried underground when using a marker locator
The electronic marker disc sits on a piece on the underside of the telecom cover for the NDS 10 in. Round Pro-Spec® Series Telecom Box (NDS 311BCBT-M) before being screwed securely to the lid

Protect critical infrastructure in FTTH (fiber to the home) installations with the 10 in. Round Pro-Spec® Series Telecom Box and Cover with Marker Disc. The durable, commercial grade box is engineered with corrugated sidewalls for added strength while reducing material and weight. The box features the patented Universal Locking Mechanism (ULM) that enables the cover to be secured quickly and easily, accommodating various sizes of bolts or screws without the need for a nut. Equipped with cable entry points to allow cables to pass through the walls of the box. The box stands 10 in. high and comes with an overlapping cover to block debris. The bayonet twist-lock cover is marked "TELECOM" and features two finger indentations for easy removal. The marker disc (also known as an ID disc) comes attached to the underside of the cover and is used for identification. The black valve box and green lid are made of HighDensityPolyethyleneHDPE treated with UV inhibitors to prevent fading and cracking, and includes a stainless steel bolt.

Where to Buy Find a Pro

Applications:

  • Protects critical infrastructure in fiber to the home (FTTH) installations; gives fiber optic cables and splices a clean and secure environment; provides easy access for service and maintenance
  • Fits over underground components
  • Protects components such as fiber optic cables and wire splices from the elements, foot and lawncare traffic

Features:

  • Patented Universal Locking Mechanism (ULM) enables lid to be secured to box without requiring the use of a traditional nut; accommodates various sizes to secure
  • Box is engineered with unique corrugated sidewalls for added strength while reducing material and weight
  • Overlapping cover prevents dirt and debris from entering; bayonet twist-lock cover is easy to install or remove
  • Equipped with cable entry points to enable cables to pass through the box
  • Load rated to withstand pedestrian traffic and the rigors of lawn care equipment
