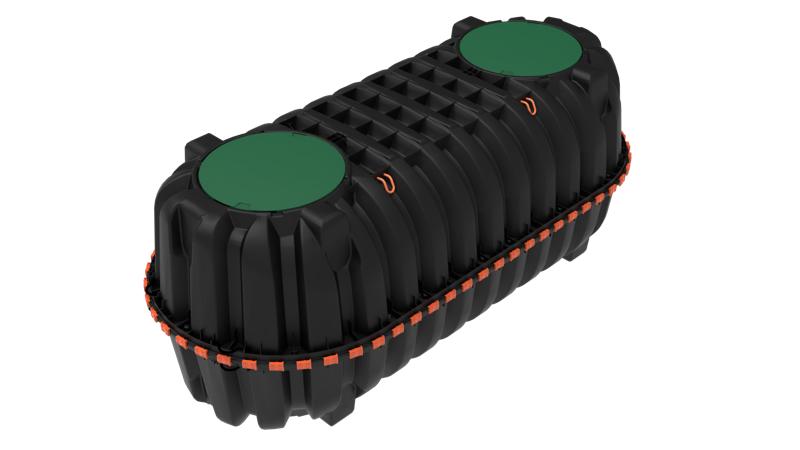

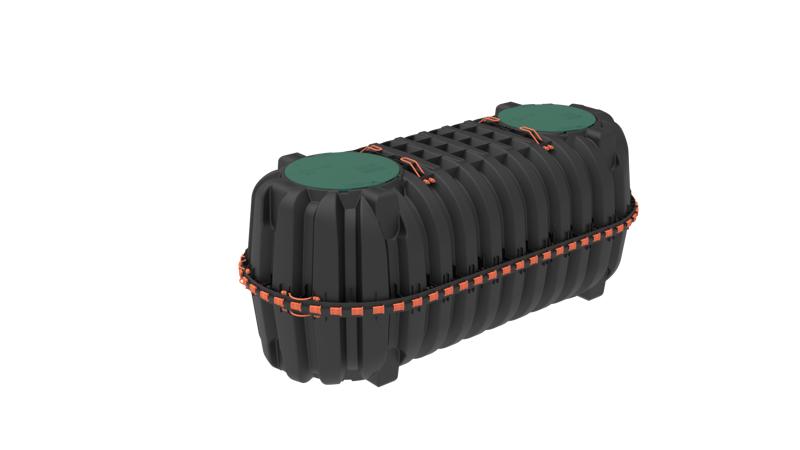

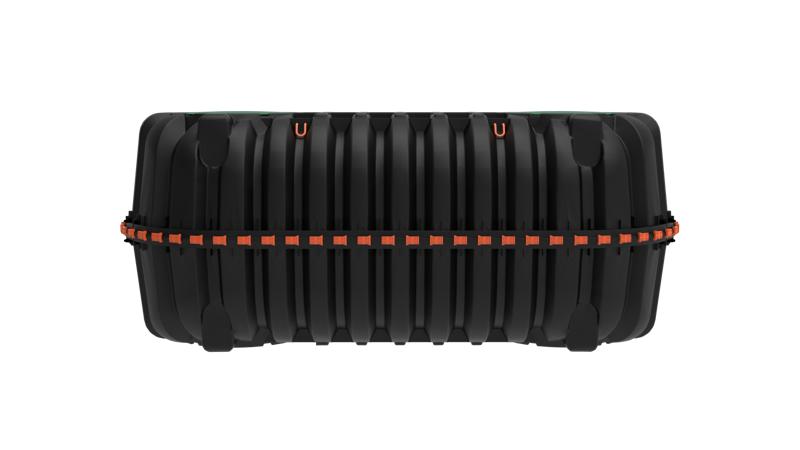

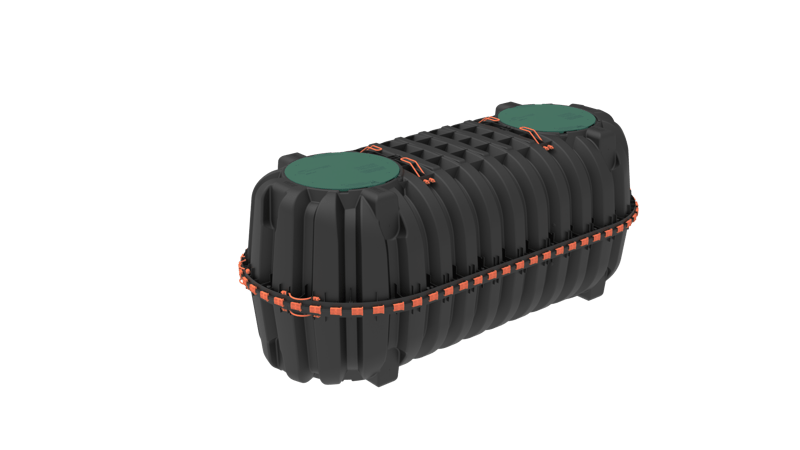

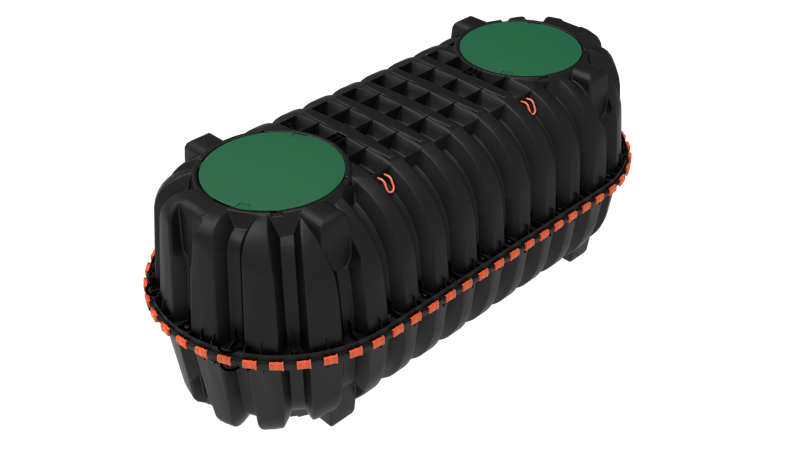

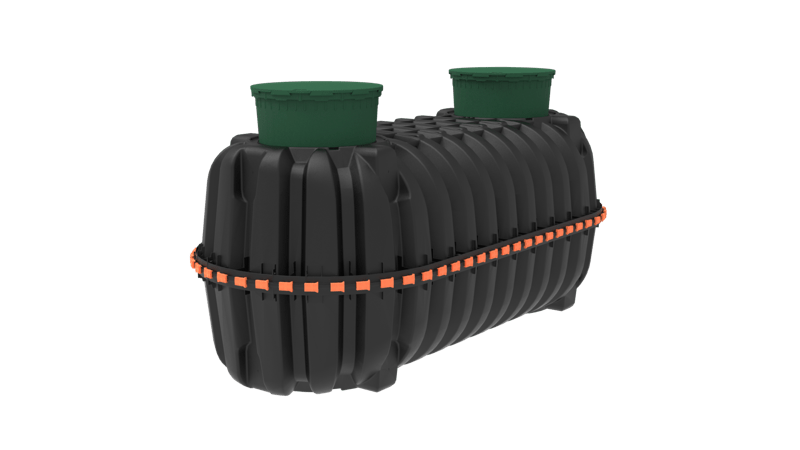

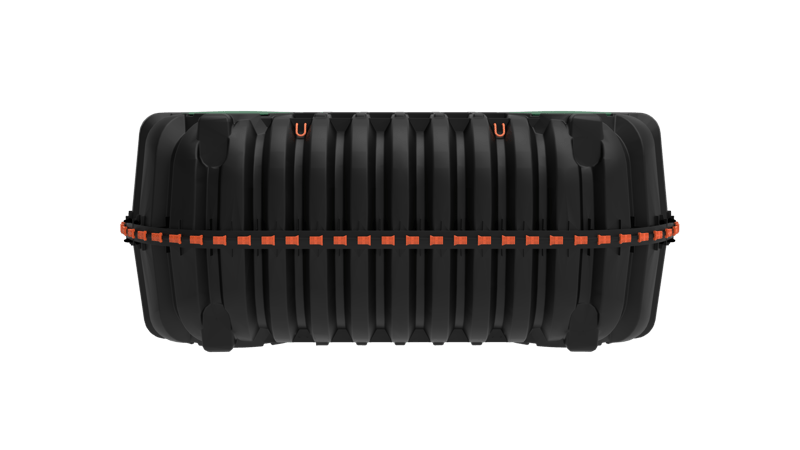

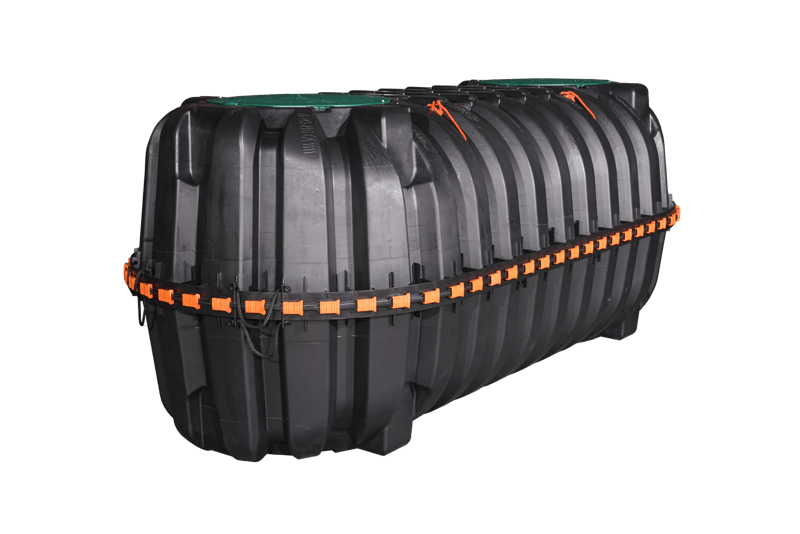

CM-1060 Tank

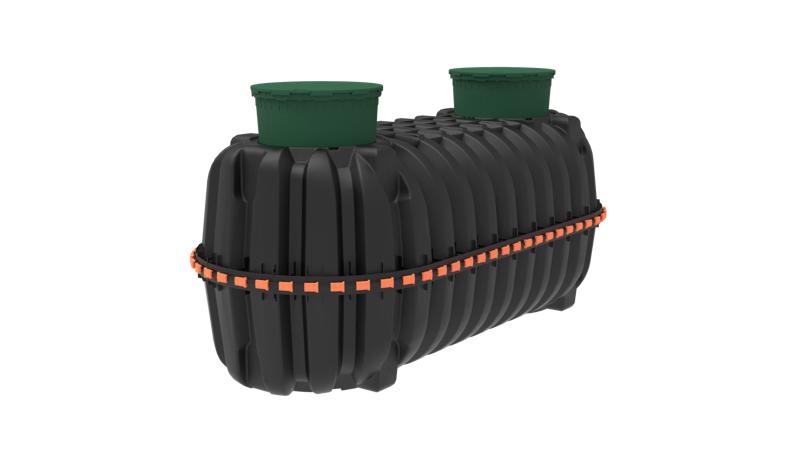

The Infiltrator CM-1060 is a lightweight, strong and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator compression molded tanks provide a revolutionary improvement in thermoplastic septic tank design, offering exceptional long-term strength and watertightness.
Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.
All CM-1060 tanks are fully assembled and available through our network of certified Infiltrator distributors.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
CM-1060 Tank
| Size |
61.7"W x 134"L x 54.5"H (1567 mm x 3409 mm x 1384 mm) |
|---|---|
| Two Access Ports | Each 24" (610 mm) |
| Weight | 331 lbs (151 kg) |
| Total Capacity | 1309 gal (4956 L) |
| Working Capacity | 1111 gal (4207 L) |
| Burial Depth |
Minimum 6" (152 mm) Maximum 48" (1219 mm) |
Benefits:
- Strong compression molded polypropylene construction
- Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
- Integral heavy-duty green lids that interconnect with EZsnap risers and pipe riser solutions
- Structurally reinforced access ports eliminate distortion during installation and pump-outs
- Reinforced structural ribbing and fiberglass bulkheads offer additional strength
- Can be installed with 6” to 48” (152 to 1,219 mm) of cover
- Can be pumped dry during pump-outs
- Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
- No special water filling requirements are necessary
- The tank may be backfilled with suitable native soil. See installation instructions for guidance.
Product Videos
Compatible Products
Septic Tank Installation Best Practices

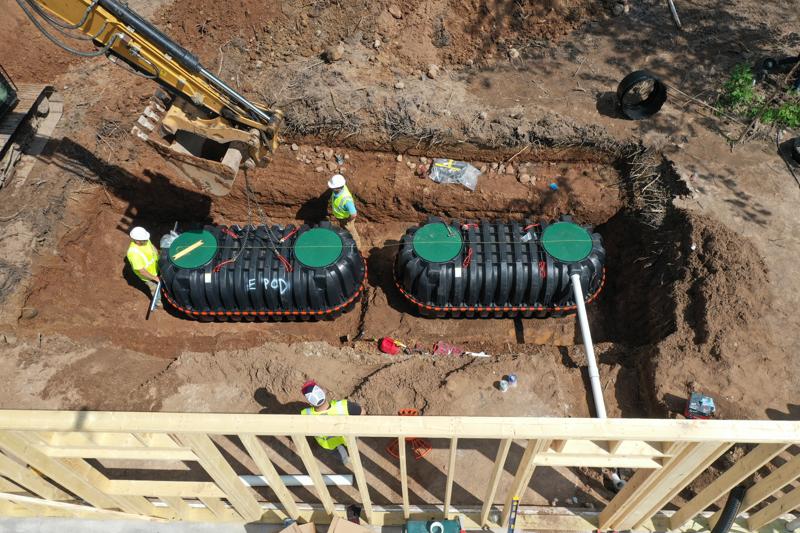

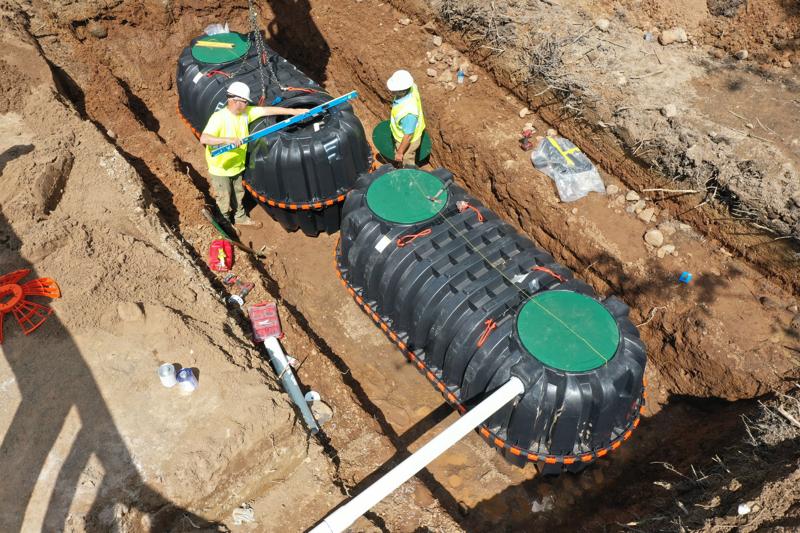

With septic tank installation, excavate site with a level base. Compact and backfill when installing the septic tank. Use bucket heel to compact. Can use a native soil type for backfilling, with Infiltrator’s IM Series tanks. Utilize lifts with bucket heel and walk in to compact. Position inlet tees, outlet tees, and risers at specific site. Topsoil to final grade for drainage with seeds for minimal erosion and divert surface water. Check Infiltrator IM Series Septic Tank General Installation Instructions in our Online Resource Center. Follow state and/or local regulations. Contact the local health department or permitting authority with questions or concerns regarding installation requirements.
