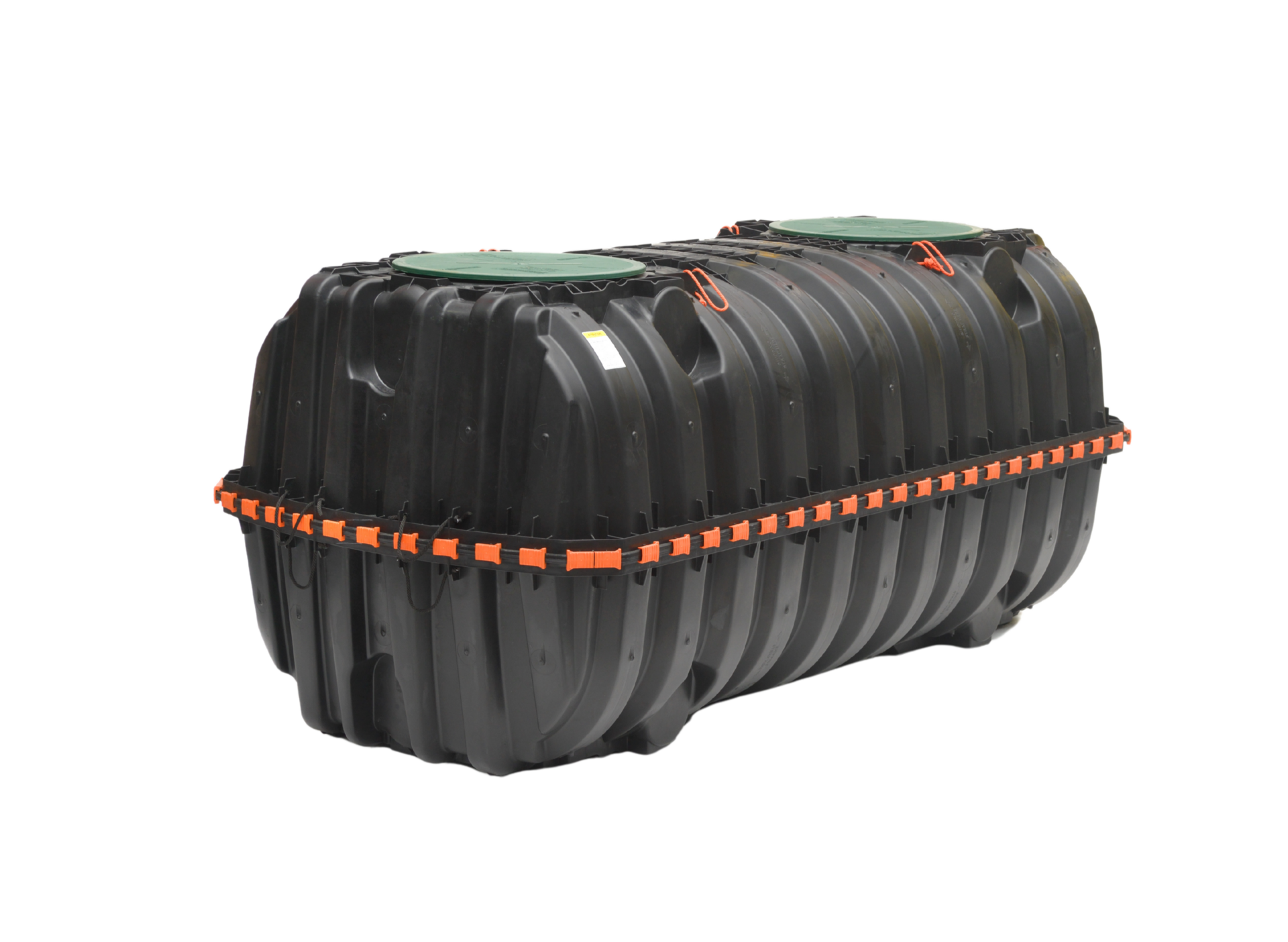

IM-1060 Tank
The Infiltrator IM-1060 is a lightweight strong and durable septic tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator injection molded tanks provide a revolutionary improvement in plastic septic tank design, offering long-term exceptional strength and watertightness.
Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.
All IM-1060 tanks are fully assembled and available through our network of certified Infiltrator distributors.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
IM-1060 Tank
| Size |
62.2"W x 127"L x 54.7"H (1580 mm x 3226 mm x 1389 mm) |
|---|---|
| Two Access Ports | Each 24" (610 mm) |
| Weight | 320 lbs (145 kg) |
| Total Capacity | 1287 gal (4872 L) |
| Working Capacity | 1094 gal (4141 L) |
| Burial Depth |
Minimum 6" (152 mm) Maximum 48" (1219 mm) |
Benefits:
- Strong injection molded polypropylene construction

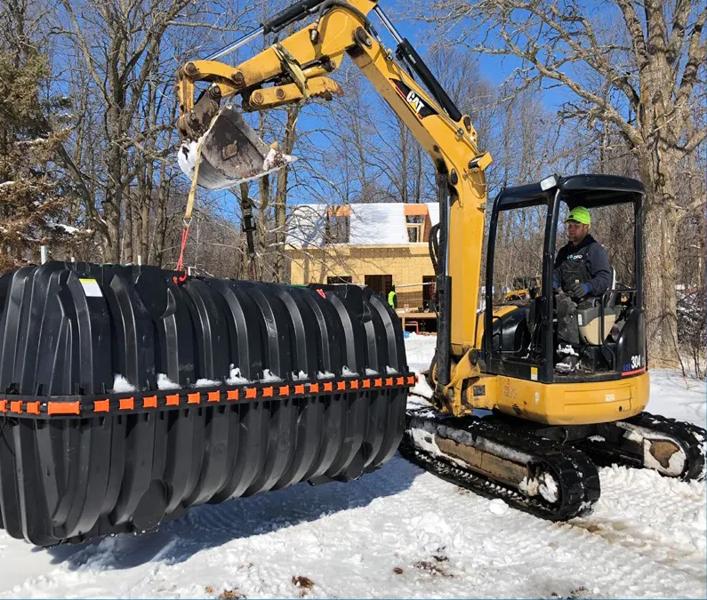

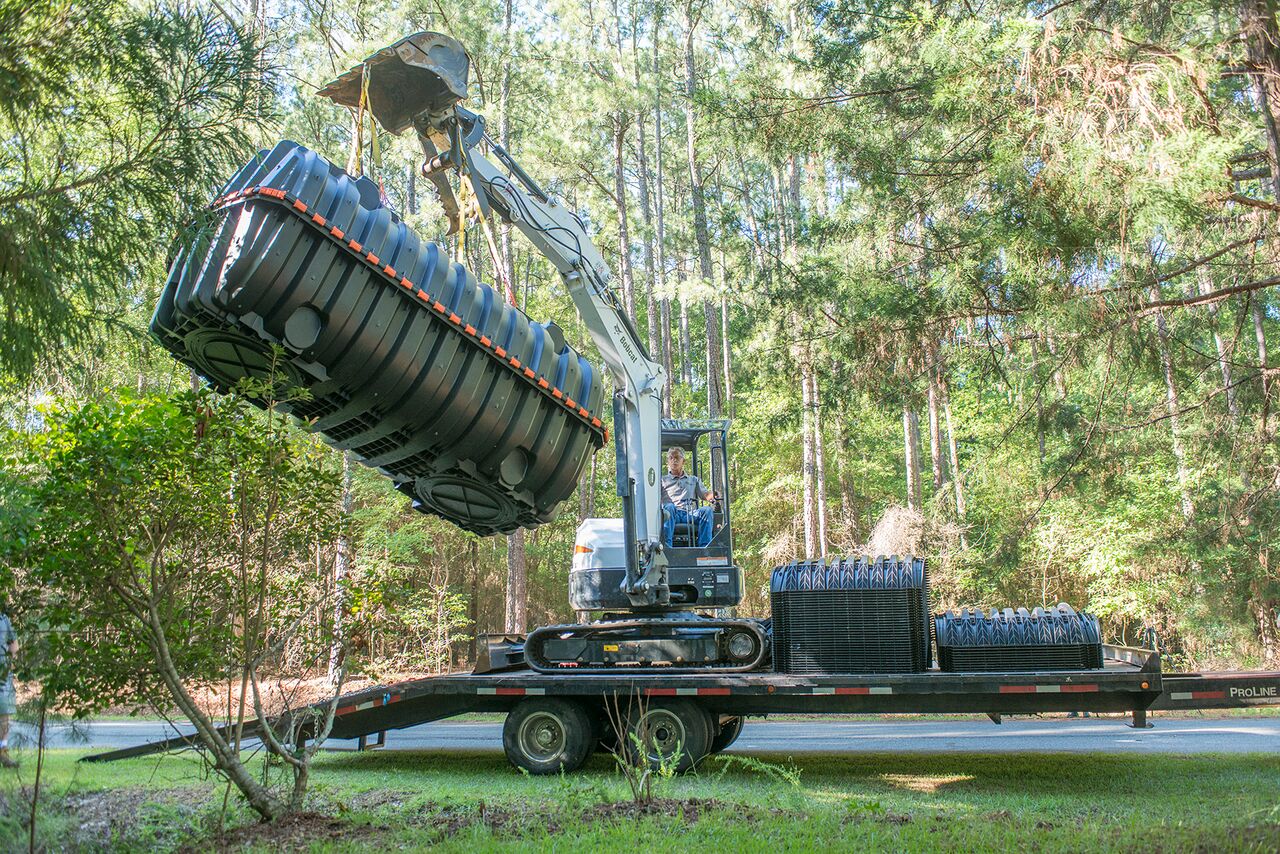

- Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
- Structurally reinforced access ports eliminate distortion during installation and pump-outs
- Reinforced structural ribbing and fiberglass bulkheads offer additional strength
- Can be installed with 6" to 48" of cover
- Can be pumped dry during pump-outs
- Suitable for use as a septic tank, pump tank, or rainwater (non-potable) tank
- No special installation, backfill or water filling procedures are required
- No special water filling requirements are necessary
- The tank may be backfilled with suitable native soil. See installation instructions for guidance.
Product Videos
Compatible Products
Case Studies
Infiltrator Septic Tanks and Aquaworx Used in System with High Water Table
Read Case Study
Infiltrator Products Used in Residential System Installation on Remote Island
Read Case Study

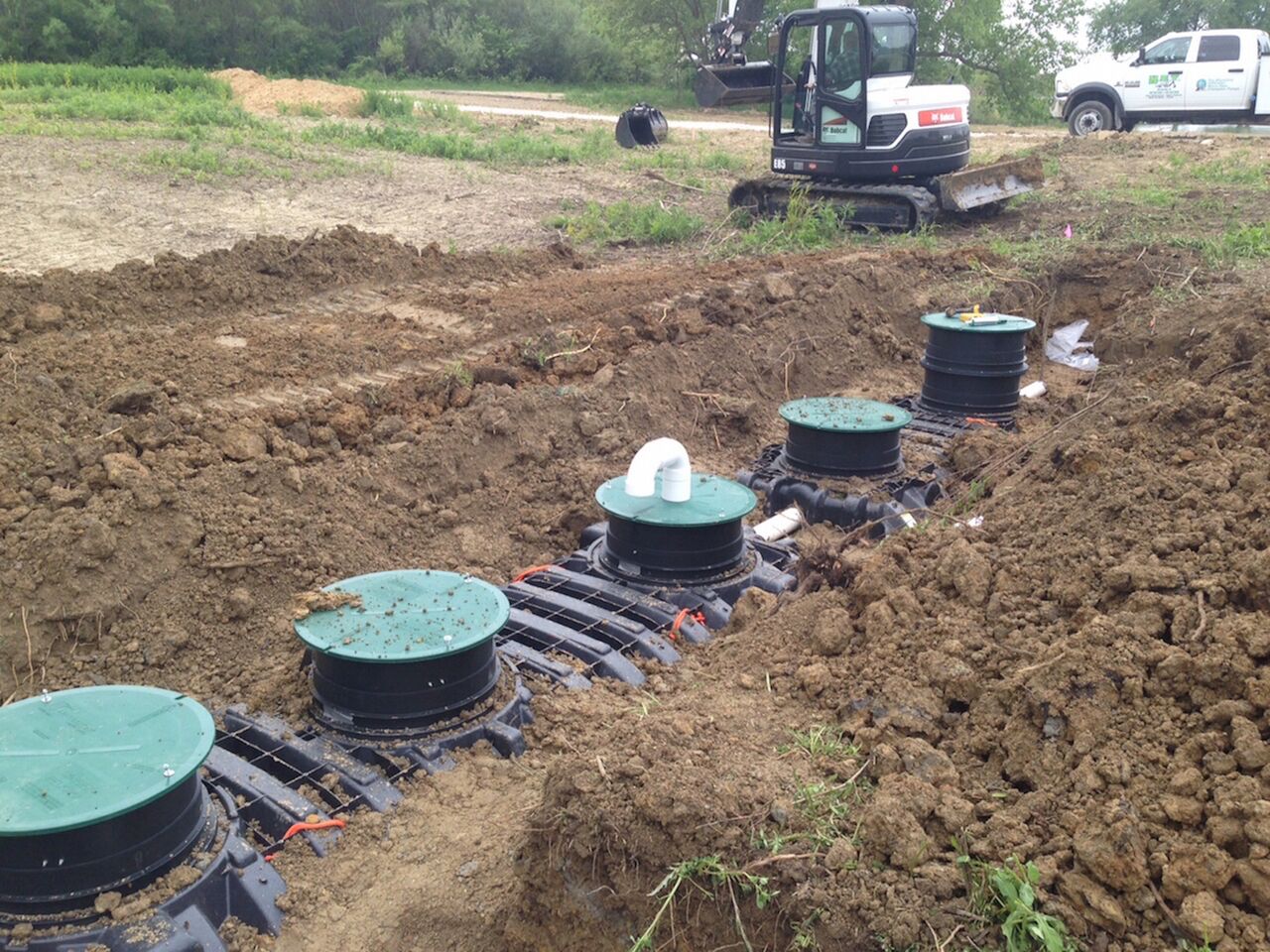

EZflow and IM-Series Tanks Used in System for New Recreational Resort
Read Case Study
IM-1060 Septic Tanks Used in Rural Municipal STEP System
Read Case StudySeptic Tank Installation Best Practices

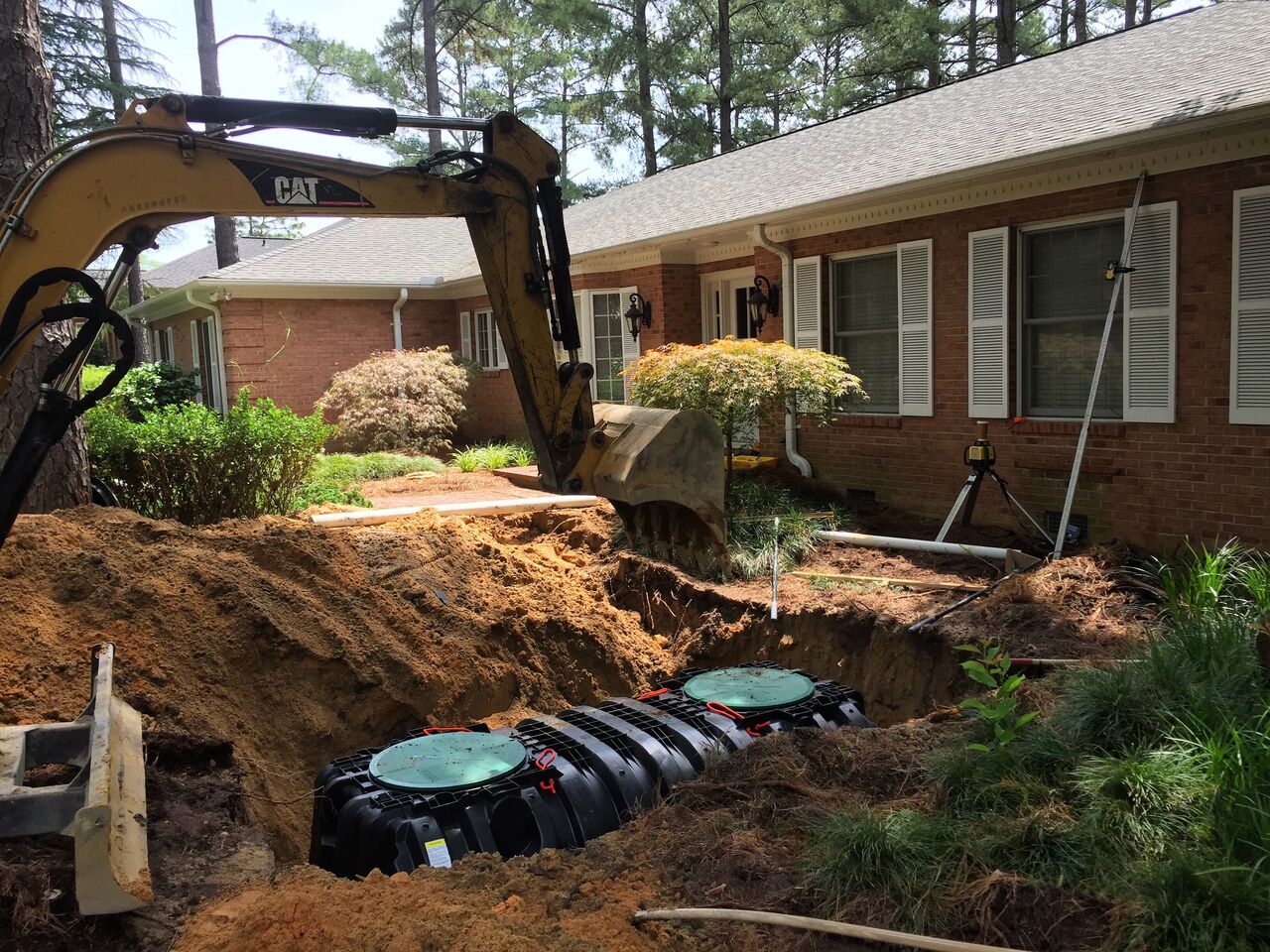

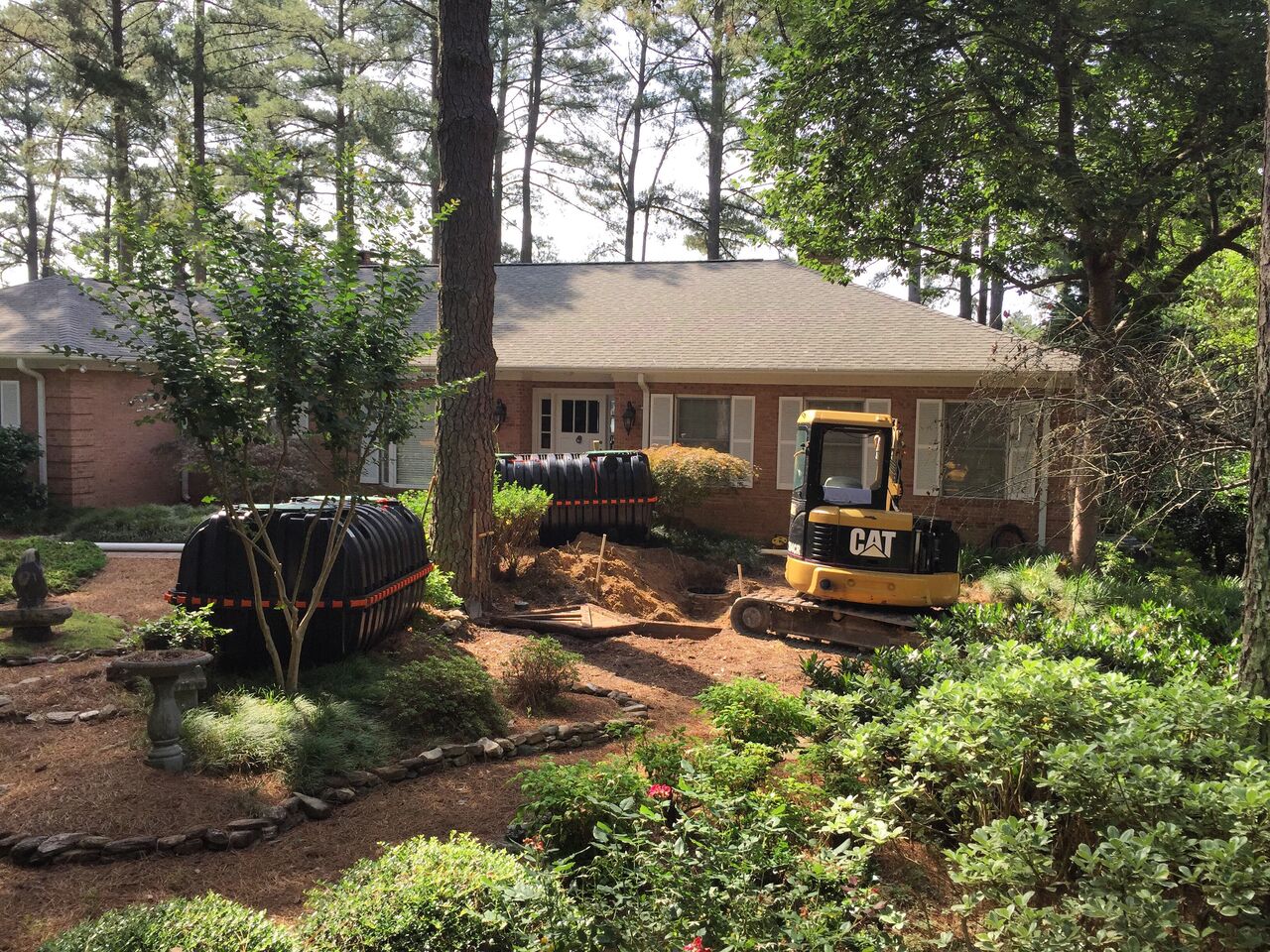

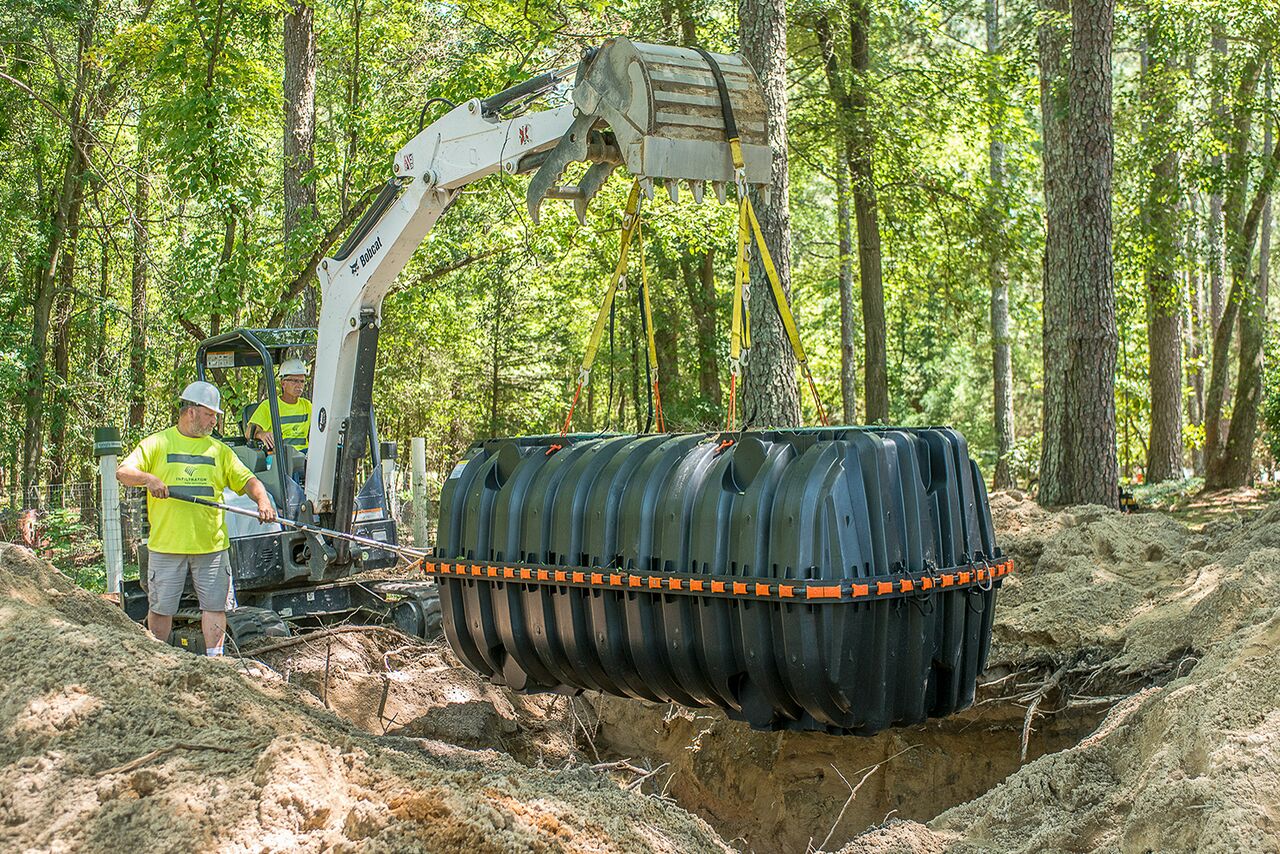

With septic tank installation, excavate site with a level base. Compact and backfill when installing the septic tank. Use bucket heel to compact. Can use a native soil type for backfilling, with Infiltrator’s IM Series tanks. Utilize lifts with bucket heel and walk in to compact. Position inlet tees, outlet tees, and risers at specific site. Topsoil to final grade for drainage with seeds for minimal erosion and divert surface water. Check Infiltrator IM Series Septic Tank General Installation Instructions in our Online Resource Center. Follow state and/or local regulations. Contact the local health department or permitting authority with questions or concerns regarding installation requirements.
