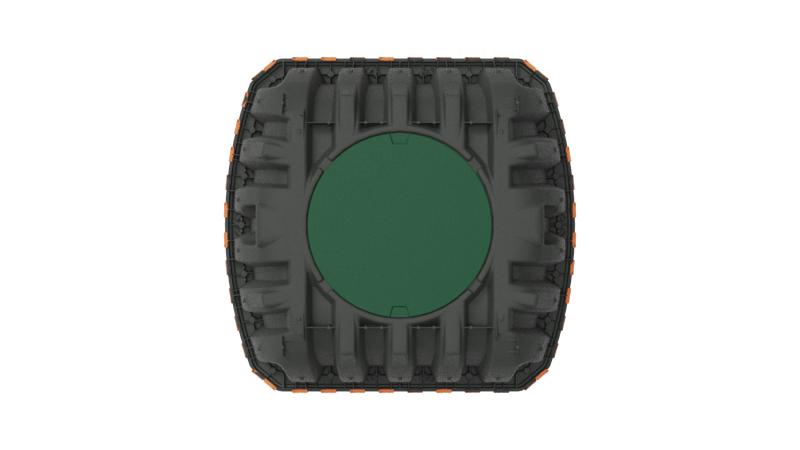

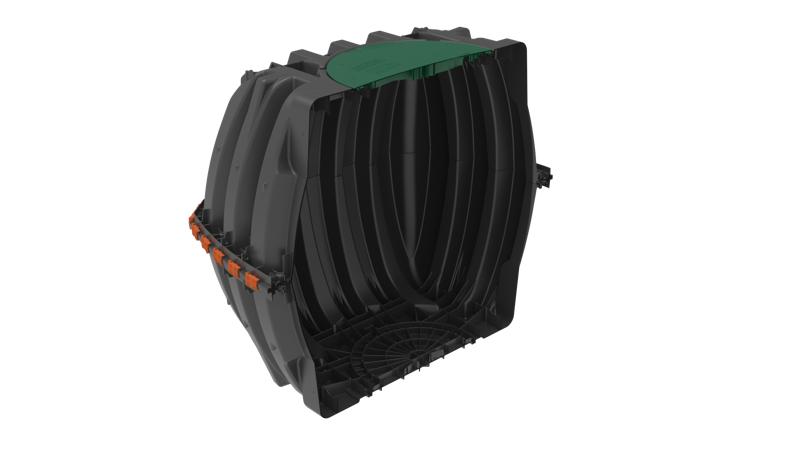

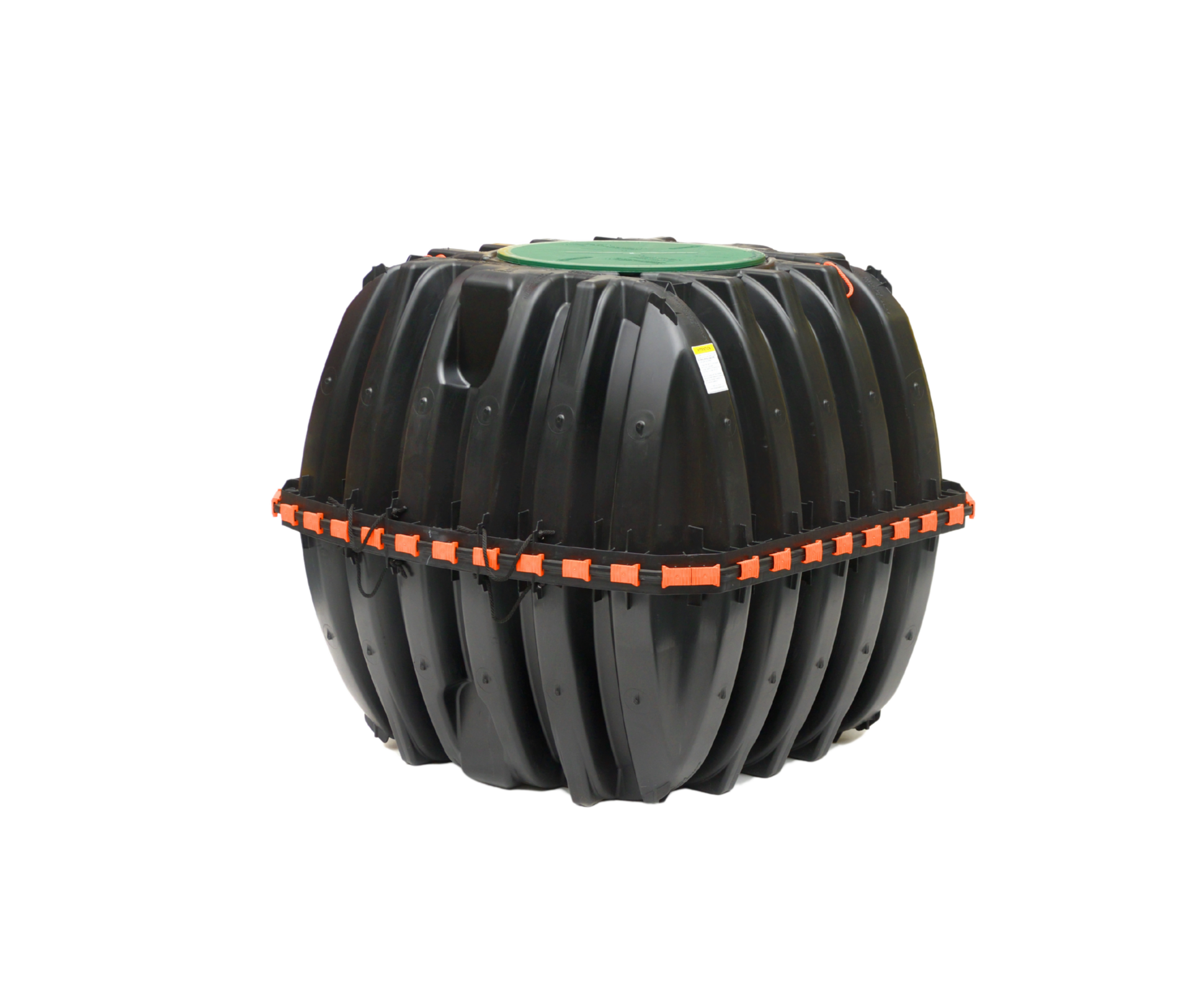

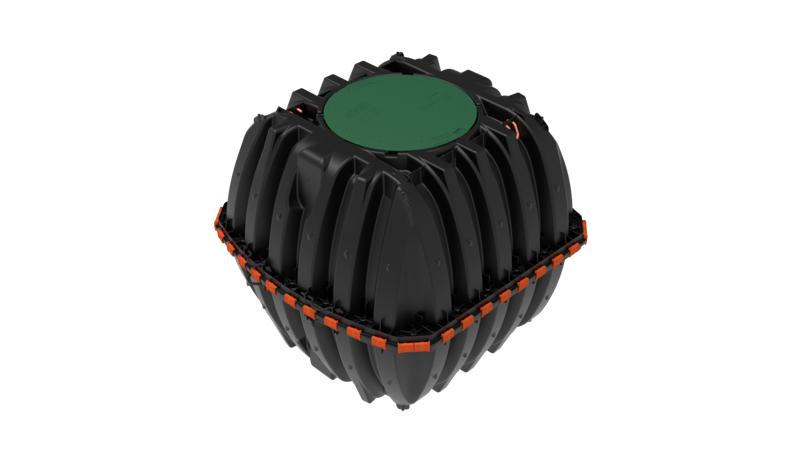

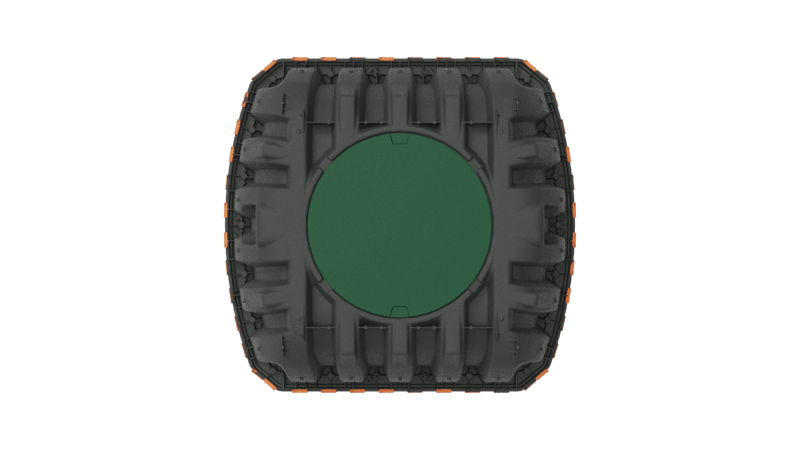

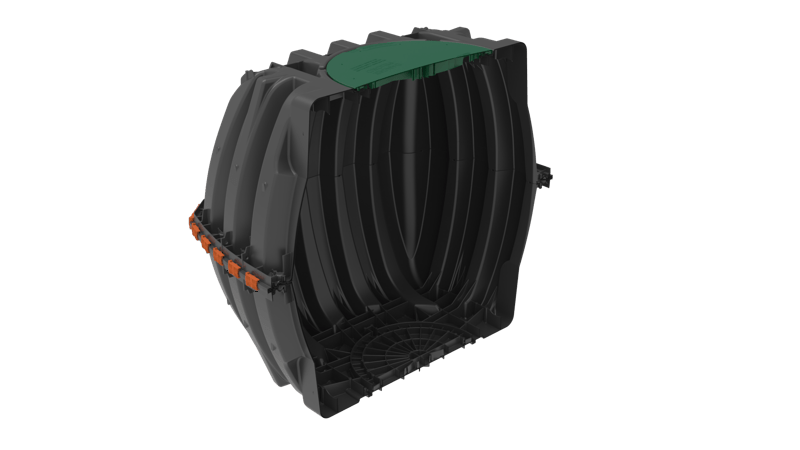

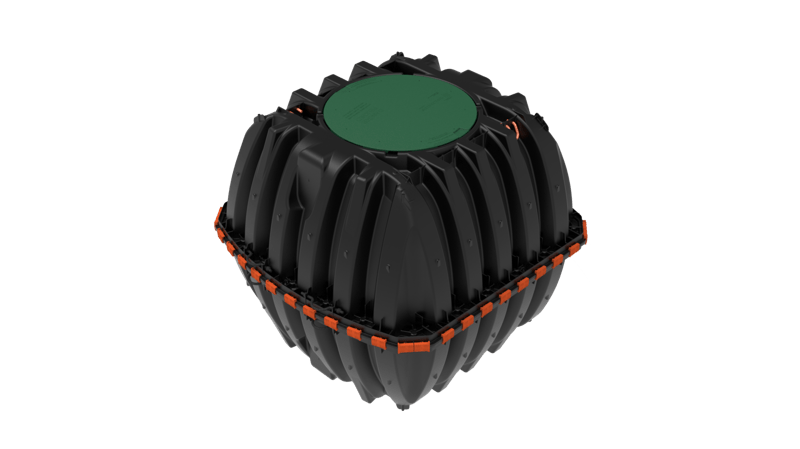

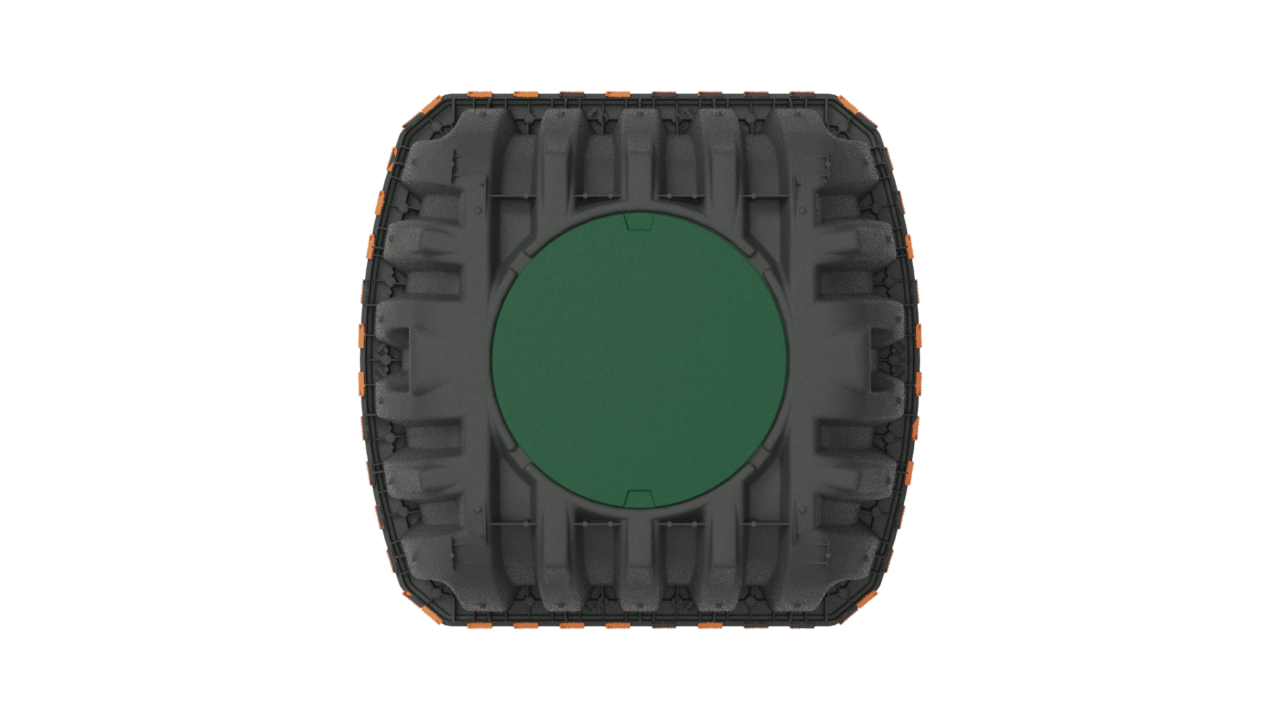

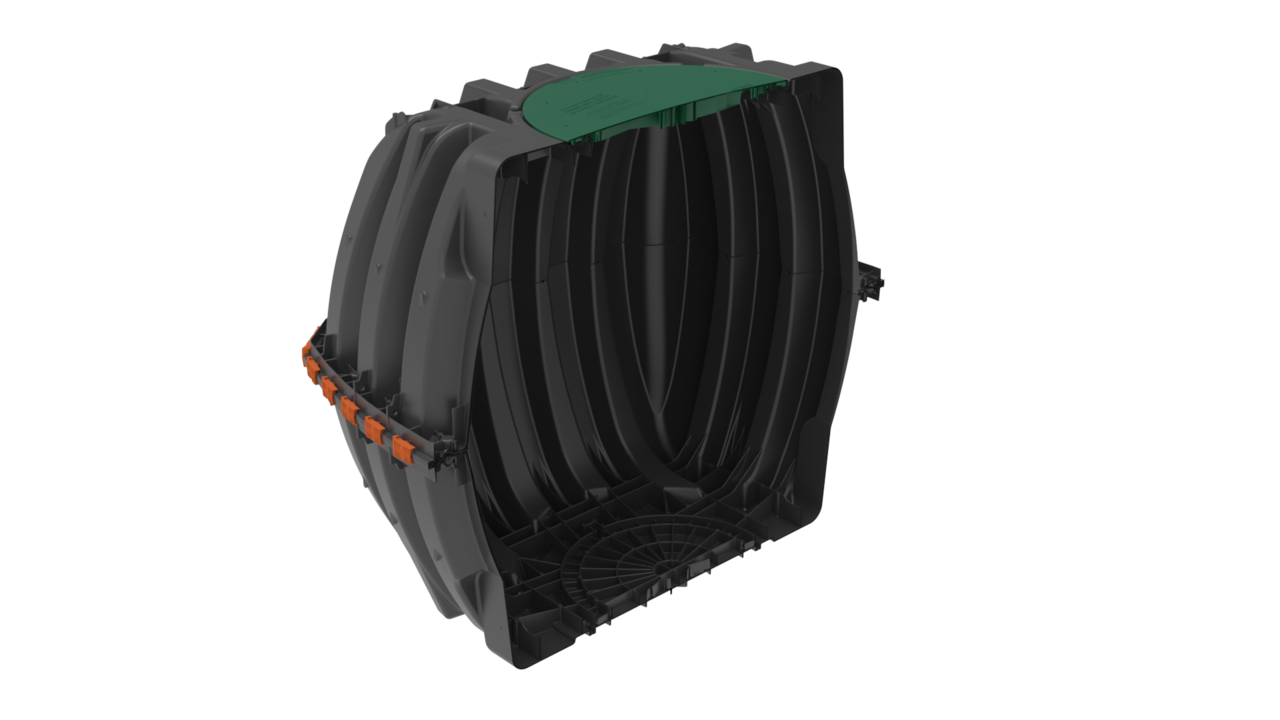

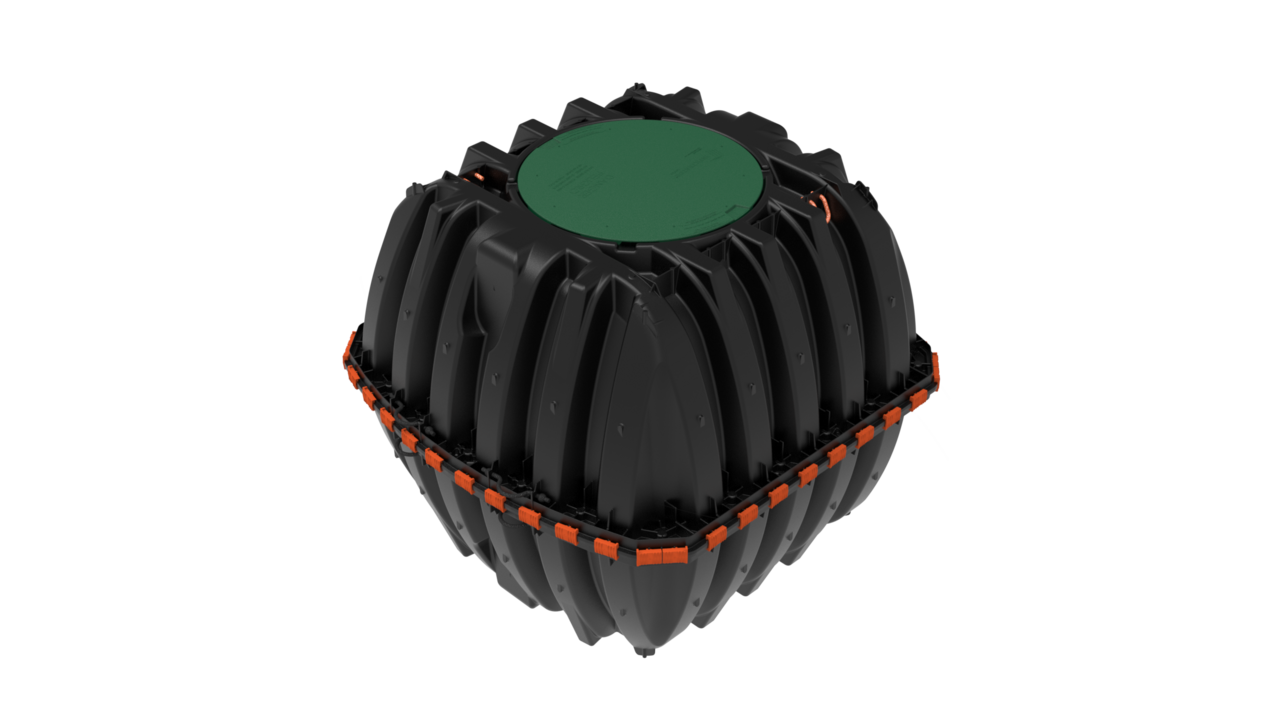

IM-540 Tank

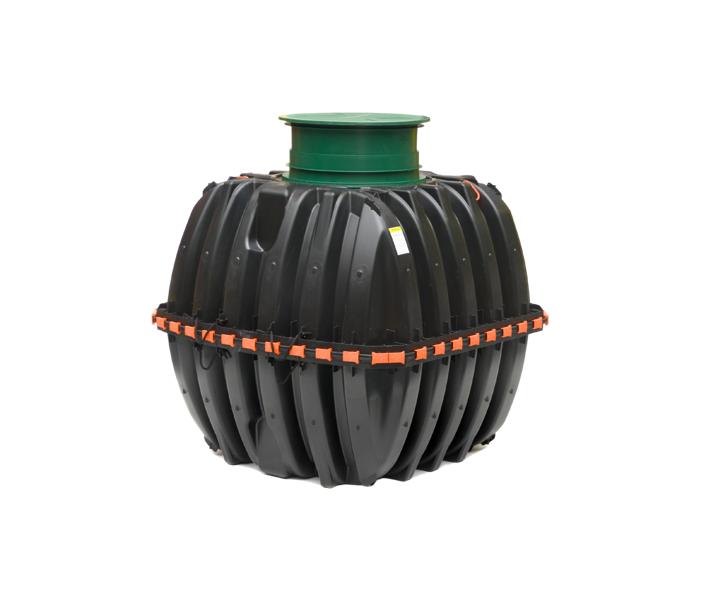

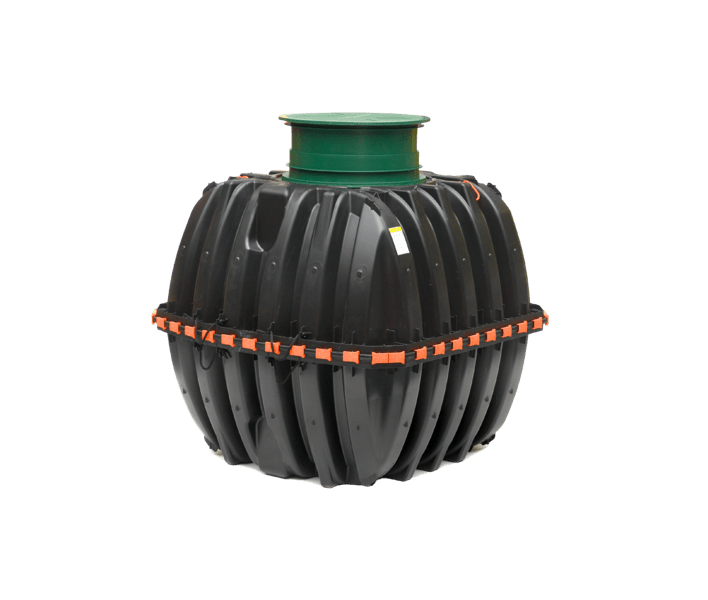

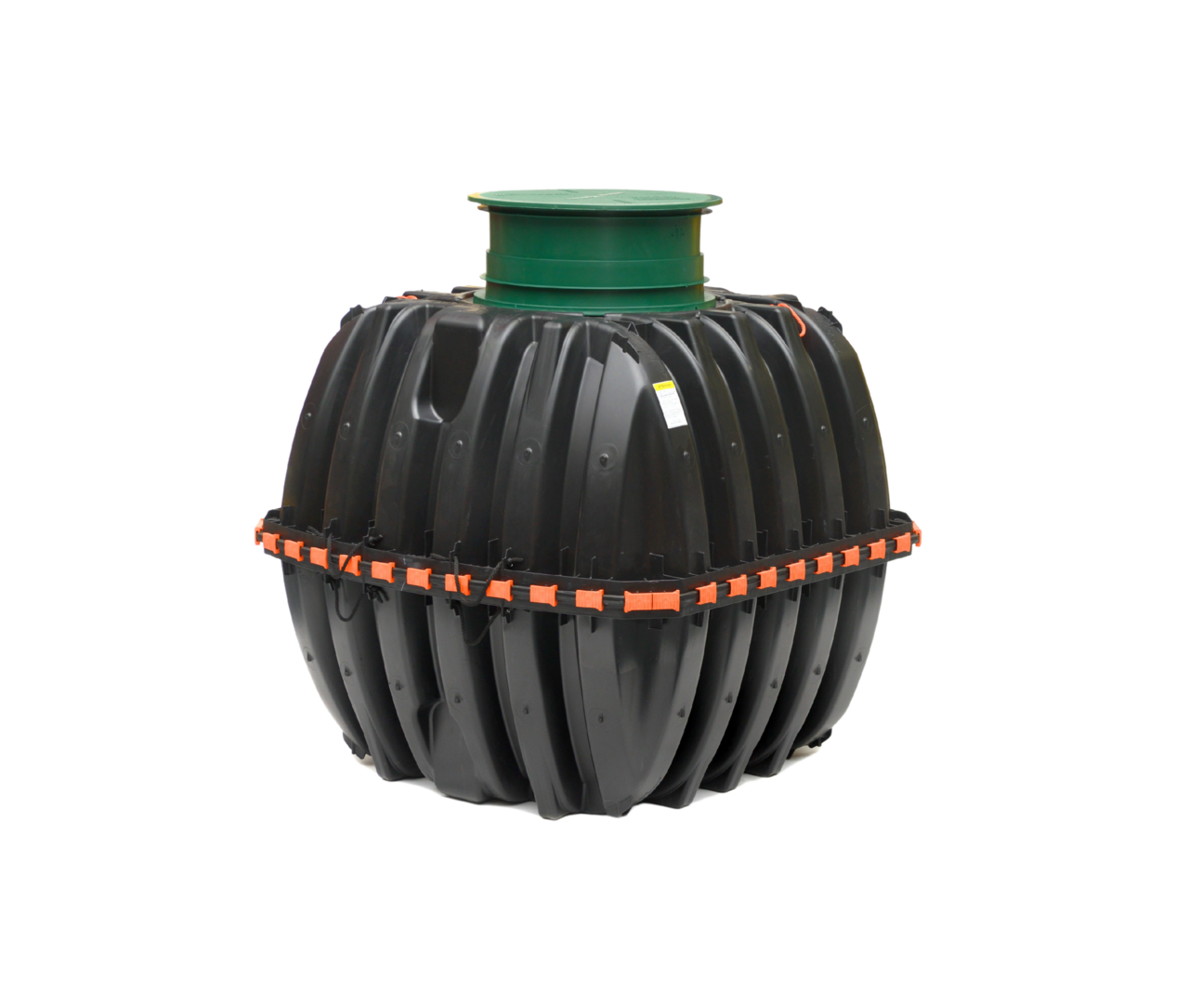

The Infiltrator IM-540 is a lightweight strong and durable septic/pump tank. This watertight tank design is offered with Infiltrator’s line of custom-fit risers and heavy-duty lids. Infiltrator injection molded tanks provide a revolutionary improvement in plastic tank design, offering long-term exceptional strength and watertightness.
Do not install the tank in vehicular traffic areas. The tank is designed for non-traffic applications.
All IM-540 tanks are fully assembled and available through our network of certified Infiltrator distributors.
Product Variations & Specifications
Product Specs
Product Benefits
Product Benefits
Documentation
Documentation
IM-540 Tank
| Size |
61.7"W x 64.9"L x 54.6"H (1567 mm x 1648 mm x 1387 mm) |
|---|---|
| Access Port | 24" (610 mm) |
| Weight | 169 lbs (77 kg) |
| Total Capacity | 552 gal (2090 L) |
| Burial Depth |
Minimum 6" (152 mm) Maximum 48" (1219 mm) |
Benefits:
- Strong injection molded polypropylene construction
- Lightweight plastic construction and inboard lifting lugs allow for easy delivery and handling
- Structurally reinforced access ports eliminate distortion during installation and pump-outs
- Reinforced structural ribbing offers additional strength
- Can be installed with 6" to 48" of cover
- Can be pumped dry during pump-outs
- Suitable for use as a pump tank or rainwater (non-potable) tank
- No special installation, backfill or water filling procedures are required
- No special water filling requirements are necessary
- The tank may be backfilled with suitable native soil. See installation instructions for guidance.
