NDS Square Catch Basins

9 in., 12 in., 18 in., 24 in. Square Catch Basins. The square catch basin works with a drain grate to capture stormwater runoff and standing water from lawns, landscaped areas, under downspouts, patios, and walkways and direct it to drain pipe to prevent property damage.

Where to Buy

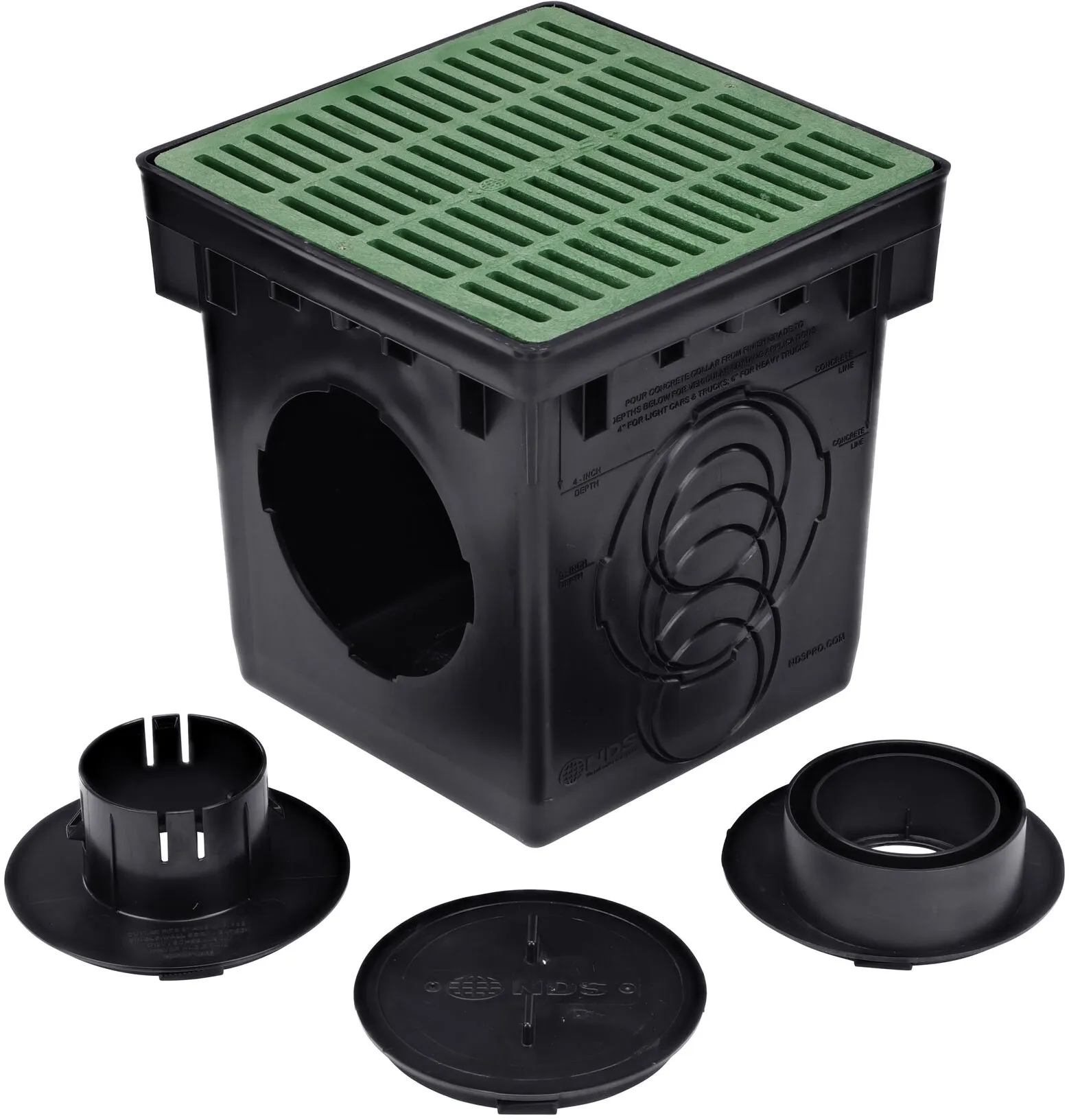

The unassembled NDS 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT) includes two adapters for both outlets
Where to Buy

Key Features

  • Keyed side opening locks outlet adapter in place for a soil-tight fit
  • Robust supporting ribs built underneath the grate seat for durability
  • Built-in sump area collects particles before they can enter the pipeline; makes it easier to clean
  • Available in 9, 12, 18, and 24 in. sizes
  • Grate options are available in a variety of colors, materials, and styles
  • The square catch basin is available in a kit which includes a basin, grate, outlet adapters, and plug

Applications

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Ideal for draining surface water from lawns, landscaped areas, under downspouts, patios, and walkways
  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream

Installation & Maintenance

  • Lightweight and easy to install
  • Catch basin works underground to capture excess stormwater from the surface and convey to drain pipe
  • Remove grate and clean sump area for easy maintenance

Materials & Sustainability

  • 9 and 12 in. catch basins are made of polypropylene (PP) treated with UV inhibitors
  • 18 and 24 in. catch basins are made of high-density polyethylene (HDPE) treated with UV inhibitors
  • Catch basins are made in the USA

Product Models

Filter results
Family
Color
Shape

84 products

    Part Number
    (click for more info)    		 Description
    1230ATBLKIT 12 in. Low-Profile Adapter Drain Kit with Low-Profile Adapter, Black Plastic Atrium Grate, Outlet Adapter
    1230GRKIT 12 in. Low-Profile Adapter Drain Kit with Low-Profile Adapter, Green Plastic Grate, Outlet Adapter
    1217 12 in. Riser with 2 Openings for 12 in. Catch Basin Drain and 12 in. Low-Profile Adapter Drain
    1200NGBKIT 12 in. Square Adjustable Outlet Catch Basin Drain Kit with Catch Basin with 2 Open Sides, 2 Open Outlet Slides
    1290 12 in. Square Atrium Catch Basin Drain Grate, Black Plastic
    1280 12 in. Square Atrium Catch Basin Drain Grate, Green Plastic
    1200FF 12 in. Square Catch Basin Drain Filter
    1211 12 in. Square Catch Basin Drain Grate, Black Plastic
    1230B 12 in. Square Catch Basin Drain Grate, Brass
    1218 12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Black Plastic
    1218CI 12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Cast Iron
    1218GY 12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Gray Plastic
    1218GR 12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Green Plastic
    1218S 12 in. Square Catch Basin Drain Grate, Decorative Botanical Design, Sand Plastic
    1224 12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Black Plastic
    1224CI 12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Cast Iron
    1224GY 12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Gray Plastic
    1224GR 12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Green Plastic
    1224S 12 in. Square Catch Basin Drain Grate, Decorative Wave Design, Sand Plastic
    1213 12 in. Square Catch Basin Drain Grate, Ductile Iron
    1215 12 in. Square Catch Basin Drain Grate, Galvanized Steel
    1210 12 in. Square Catch Basin Drain Grate, Gray Plastic
    1212 12 in. Square Catch Basin Drain Grate, Green Plastic
    1212S 12 in. Square Catch Basin Drain Grate, Sand Plastic
    1200BLKIT 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    1200MTLKIT 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Galv. Steel Grate, 2 Outlet Adapters, 1 Outlet Plug
    1200GRKIT 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    1200SKIT 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Sand Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    1200 12 in. Square Catch Basin Drain with 2 Openings
    1203 12 in. Square Catch Basin Drain with 3 Openings
    1204 12 in. Square Catch Basin Drain with 4 Openings
    1200DSG 12 in. Square Downspout Defender™ Catch Basin Drain Grate, Black Plastic
    1230 12 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)
    1222 12 in. Square Low-Profile Adapter Drain, Connects to 8 in. Drain Pipes
    1221 12 in. Square Low-Profile Adapter Drain, Connects to 8 in. Sewer and Drain Pipe
    1225 12 in. Square Sump Box
    1220 12 in. Square Sump Box Cover
    1800 18 in. Expandable Catch Basin Drain with 2 Openings
    1804 18 in. Expandable Catch Basin Drain with 4 Openings
    1881 18 in. Square Atrium Catch Basin Drain Grate, Black Plastic
    1891 18 in. Square Atrium Catch Basin Drain Grate, Green Plastic
    1811 18 in. Square Catch Basin Drain Grate, Black Plastic
    1813 18 in. Square Catch Basin Drain Grate, Cast Iron
    1815 18 in. Square Catch Basin Drain Grate, Galvanized Steel
    1810 18 in. Square Catch Basin Drain Grate, Gray Plastic
    1812 18 in. Square Catch Basin Drain Grate, Green Plastic
    1812S 18 in. Square Catch Basin Drain Grate, Sand Plastic
    1882BLKIT 18 in. Square Catch Basin Drain Kit with 2-Opening Basin, Black Plastic Grate, 2 Outlet Adapters, 2 Reducer Rings, Plug
    1882GRKIT 18 in. Square Catch Basin Drain Kit with 2-Opening Basin, Green Plastic Grate, 2 Outlet Adapters, 2 Reducer Rings, Plug
    1882 18 in. Square Catch Basin Drain with 2 Openings
    1884 18 in. Square Catch Basin Drain with 4 Openings
    1830 18 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)
    2411 24 in. Square Catch Basin Drain Grate, Black Plastic
    2413 24 in. Square Catch Basin Drain Grate, Cast Iron
    2415 24 in. Square Catch Basin Drain Grate, Galvanized Steel
    2412 24 in. Square Catch Basin Drain Grate, Green Plastic
    2400BLKIT 24 in. Square Catch Basin Drain Kit with 2-Opening Basin, Black Plastic Grate, 3 Outlet Adapters, 2 Reducer Rings, & Plug
    2400GRKIT 24 in. Square Catch Basin Drain Kit with 2-Opening Basin, Green Plastic Grate, 3 Outlet Adapters, 2 Reducer Rings, & Plug
    2400 24 in. Square Catch Basin Drain with 2 Openings
    2404 24 in. Square Catch Basin Drain with 4 Openings
    1216 6 in. Riser for 12 in. Square Catch Basin Drain and 12 in. Low-Profile Adapter Drain
    916 6 in. Riser for 9 in. Square Catch Basin Drain and Low-Profile Adapter Drain
    1816 8 in. Riser for 18 in. Square Catch Basin Drain & Low-Profile Adapter Drain
    2418 8 in. Riser for 24 in. Square Catch Basin Drain
    981 9 in. Square Atrium Catch Basin Drain Grate, Black Plastic
    991 9 in. Square Atrium Catch Basin Drain Grate, Green Plastic
    900FF 9 in. Square Catch Basin Drain Filter
    980 9 in. Square Catch Basin Drain Grate, Black Plastic
    930B 9 in. Square Catch Basin Drain Grate, Brass
    913 9 in. Square Catch Basin Drain Grate, Ductile Iron
    915 9 in. Square Catch Basin Drain Grate, Galvanized Steel
    999 9 in. Square Catch Basin Drain Grate, Gray Plastic
    990 9 in. Square Catch Basin Drain Grate, Green Plastic
    999S 9 in. Square Catch Basin Drain Grate, Sand Plastic
    900BLKIT 9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    900MTLKIT 9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Galv. Steel Grate, 2 Outlet Adapters, 1 Outlet Plug
    900GRKIT 9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    900SKIT 9 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Sand Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
    900 9 in. Square Catch Basin Drain with 2 Openings
    900-4 9 in. Square Catch Basin Drain with 4 Openings
    931 9 in. Square Deep-Housing Adapter, Connects to 4 in. Corrugated Drain Pipe
    900DSGKIT 9 in. Square Downspout Defender™ Kit with Black Plastic Catch Basin Drain Grate, Low-Profile Adapter, Outlet Adapter
    930 9 in. Square Low-Profile Adapter Drain, Connects to 3 in. to 8 in. Drain Pipes with Outlet Adapter (sold separately)
    932 9 in. Square Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe, and Fittings
