12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Green Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug

SKU: 1200GRKIT

Connect 3 in. corrugated pipe in the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)

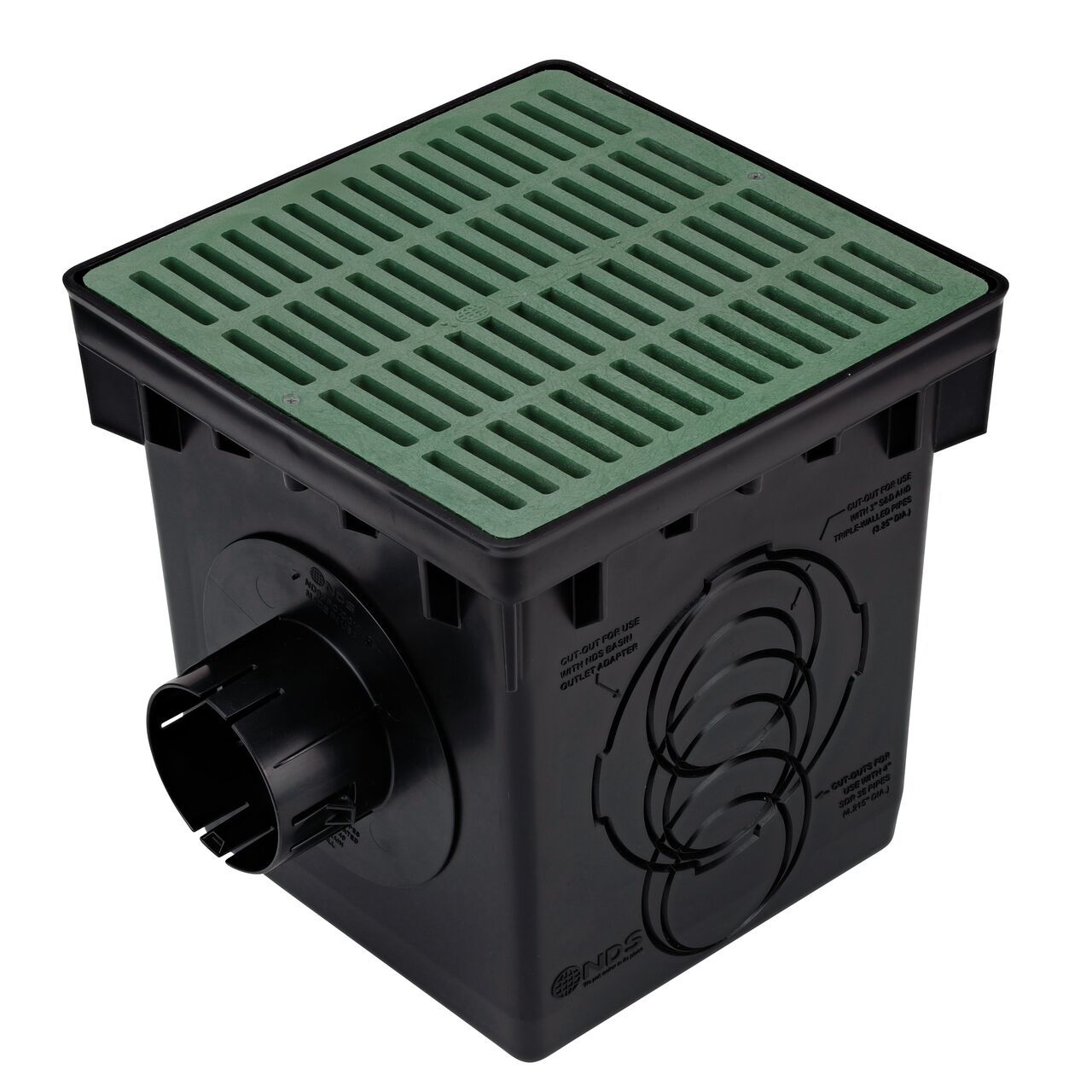

NDS black plastic 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT) drains water as it blocks pipe-clogging debris
Connect 4 in. corrugated pipe over the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Closeup view of the bottom of the 12 in. Square Catch Basin Drain with 2 Openings (NDS 1200) showing weep holes and cut out lines
Connect 4 in. sewer & drain pipe over the the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Build your drainage system with the 12 in. Catch Basin Drain (NDS 1200) using the outlet to connect outlet adapters and pipe to other parts of the drainage system
Connect 3 in. sewer & drain pipe to the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Use the locking tab outlet adapter (NDS 1243) with the 12 in. Catch Basin Drain (NDS 1200) to connect to 3 in. and 4 in. pipe
Bottom shot of the 12 in. Square Catch Basin Drain with 2 Openings (NDS 1200) showing weep holes and cut out lines

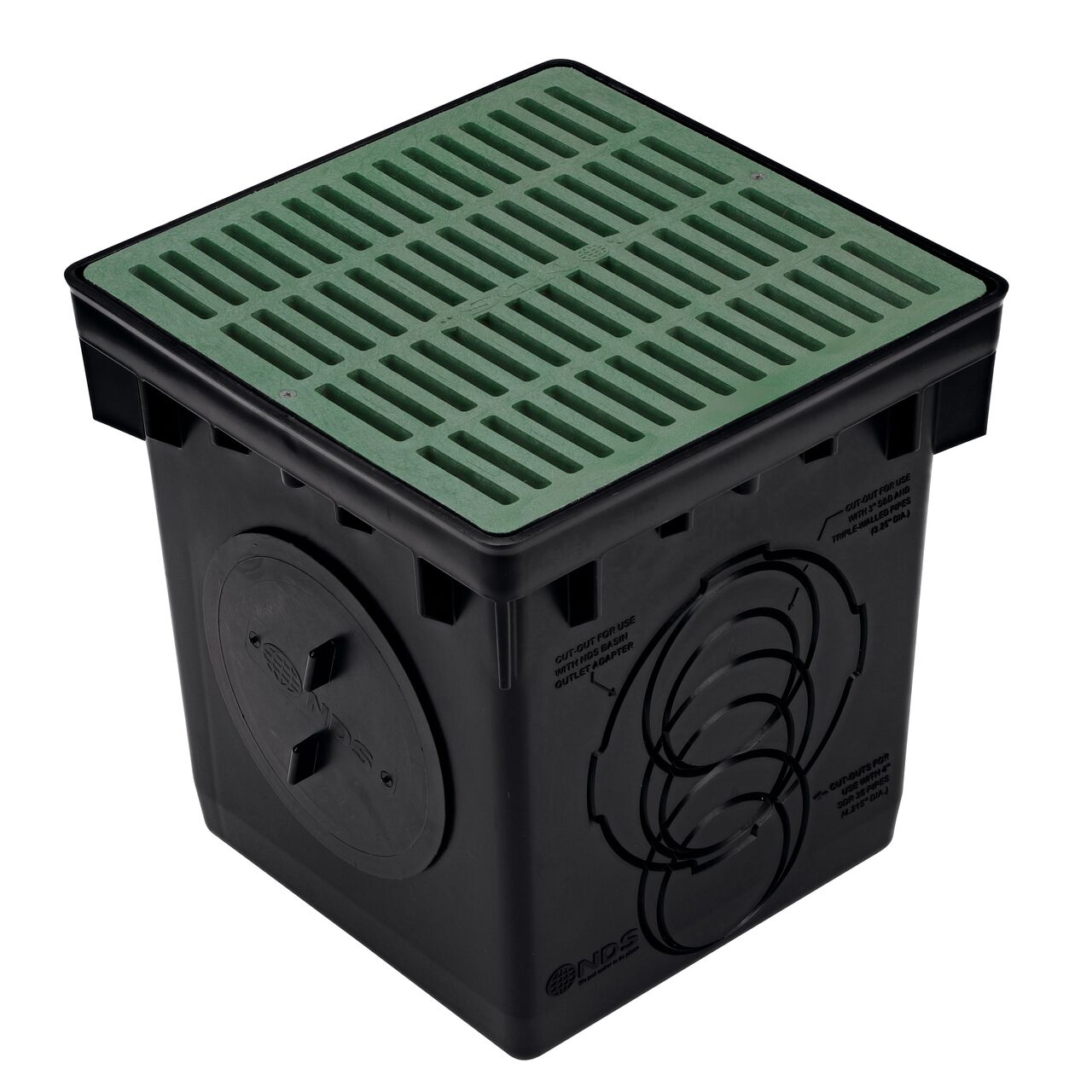

Use the outlet plug to block water flow in the NDS black plastic 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT)
The unassembled NDS 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT) includes two adapters for both outlets
Connect 3 in. corrugated pipe in the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
NDS black plastic 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT) drains water as it blocks pipe-clogging debris
Connect 4 in. corrugated pipe over the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Closeup view of the bottom of the 12 in. Square Catch Basin Drain with 2 Openings (NDS 1200) showing weep holes and cut out lines
Connect 4 in. sewer & drain pipe over the the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Build your drainage system with the 12 in. Catch Basin Drain (NDS 1200) using the outlet to connect outlet adapters and pipe to other parts of the drainage system
Connect 3 in. sewer & drain pipe to the locking tab outlet adapter (NDS 1243) on the 12 in. Catch Basin Drain (NDS 1200)
Use the locking tab outlet adapter (NDS 1243) with the 12 in. Catch Basin Drain (NDS 1200) to connect to 3 in. and 4 in. pipe
Bottom shot of the 12 in. Square Catch Basin Drain with 2 Openings (NDS 1200) showing weep holes and cut out lines
Use the outlet plug to block water flow in the NDS black plastic 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT)
The unassembled NDS 12 in. Catch Basin Drain Kit with green grate (NDS 1200GRKIT) includes two adapters for both outlets

Drain excess stormwater flooding lawns, patios, and landscaping before it lingers and leads to costly property damage. The 12 in. Square Catch Basin Drain Kit is ideal for handling heavy flows from lawns and landscaped areas, under downspouts, as well as patios and walkways. Kit includes a 2-opening catch basin drain, 1 square drain grate (also known as a drain cover), 2 locking outlet adapters, and 1 outlet plug. Catch basin connects to 3 in. & 4 in. sewer and drain, single-wall corrugated, triple-wall, and DWV/Sch. 40 pipes using the included locking outlet adapters. Polypropylene (PP) basin and high-density polyethylene (HDPE) grate are treated with UV inhibitors. Built-in sump is easy to access and clean.

Where to Buy Find a Pro

Applications:

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Ideal for draining heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways
  • The catch basin and grate, as part of a complete drainage system, connect to drain pipes to capture surface water and direct it away for proper release downstream

Features:

  • Keyed side openings lock outlet adapters in place
  • Robust supporting ribs built underneath the grate seat for durability
  • Locking outlet adapters snap onto pipe for a secure fit—no tape or glue required; included plug seals basin opening to direct flow of water
