12 in. Pro Series Channel™ Drains
Proven solution for capturing heavy flows of surface water from driveways, concrete and paver patios, courtyards, walkways, and sports facilities. Modular design features integrated joints. Channels available with shallow or deep profile.
Key Features
- Modular design with interlocking joints for a secure channel-to-channel connection—no couplings needed
- Thick channel walls and extended side ribs provide increased strength and durability
- Create a channel as long as you need, or cut as short as 4 in. long; easy to cut to size in 4 in. increments using saw guide

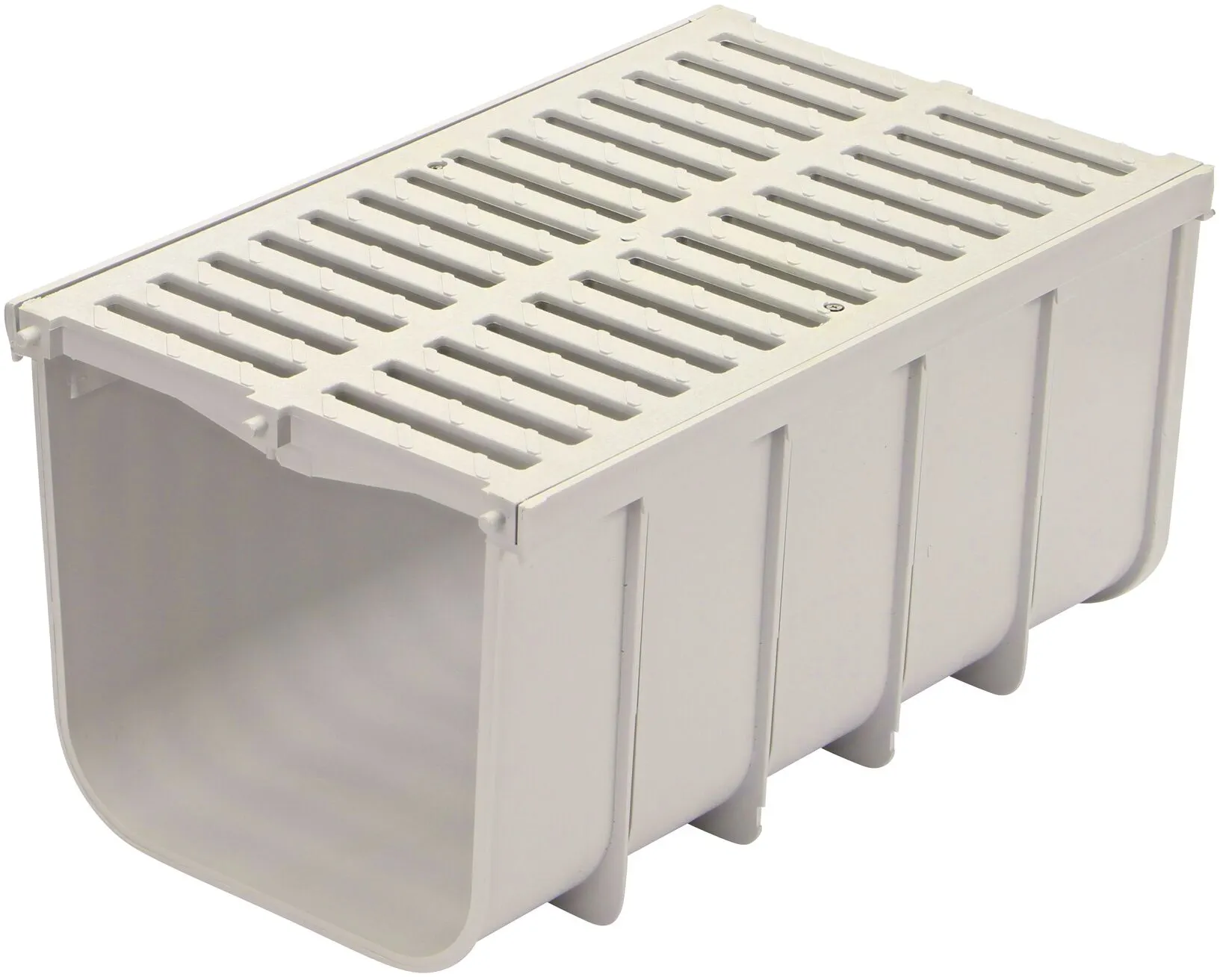

- Channels are available in deep profile (10-1/2 in. depth) and shallow profile (5-1/2 in. depth)
- Durable, flexible, and lightweight alternative to concrete drains
Channel & Trench Drains & Grates
Yes. Ductile iron grates are available.
There are no prefabricated accessories for the 12 in. Pro Series Channel to make bends, however, the channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
We recommend a 1/8 in. gap be left between grates during installation to allow for expansion of the grates.
First the Grate Security Clip (NDS part # 849) must be inserted into the slot on the side of the channel. The grate is then placed onto the clips and screwed into place.
Sections of 12 in. Pro Series Channel can be connected using the interlocking end joints.
The 12 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together.
The only way to drain from the 12 in. Pro Series Channel is out of the end of the channel. The end cap has a 4 in. sewer and drain spout.
The shallow channel manages 803 GPM at 1% slope. The deep channel handles 2002 GPM at 1% slope. Grate flow rate is between 142.86 to 210.99 GPM per LF.
The 12 in. Pro Series Channel is available in shallow and deep profile. Both profiles are available in 19-11/16 in. lengths. The channel can be easily cut to any length.
