Standing water on hardscapes can lead to slip hazards, pest breeding grounds, and erosion. These long and narrow drains intercept, collect, and convey runoff to drain pipes, ultimately reducing runoff on the property.
Channel & Trench Drains & Grates
No. The only grate available for the 3 in. Pro Series Channel a high impact PVC grate.
Yes. Galvanized Steel and Cast iron grates are available.
Yes. Ductile iron grates are available.
Satin brass and polished brass grates are available for the Mini Channel.
Yes, galvanized steel and cast iron grates are available for the Spee-D Channel.
Yes. The recommended method for installing the channel is to drive a piece of ½ in. or 5/8 in. rebar into the ground in the trench. Then drill small holes in the bottom flange of the channel. Next, insert tie wire into the hole and twist it onto the rebar such that the top of the channel sits 1/8 in. below the finished edge of the concrete.
Yes. Prefabricated 45°, 90°, and tees can be purchased. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
Yes. Prefabricated 45°, 90°, and tees can be purchased. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
There are no prefabricated accessories for the 12 in. Pro Series Channel to make bends, however, the channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
There are no prefabricated accessories for the 3 in. Pro Series Channel to make bends, however, the channel can be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
Yes. 90° and 45° elbows are available for the deep profile 5 in. Pro Series Channel. The new radius coupling (NDS part # PSRC-864) easily connects to the deep profile section to allow for bends as small as 30 in. radius. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
There are no prefabricated accessories for the 8 in. Pro Series Channel to make bends, however the channel can be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.

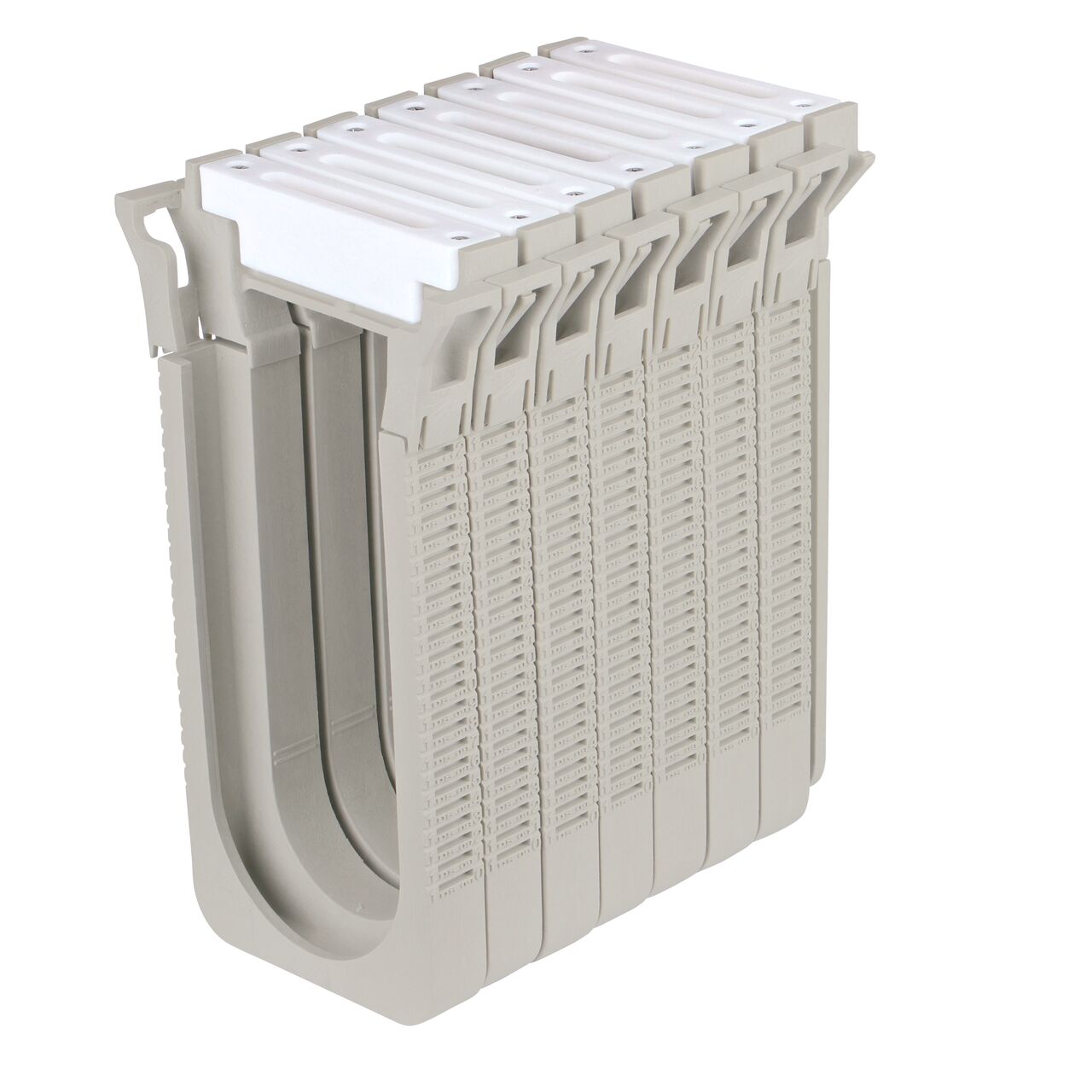

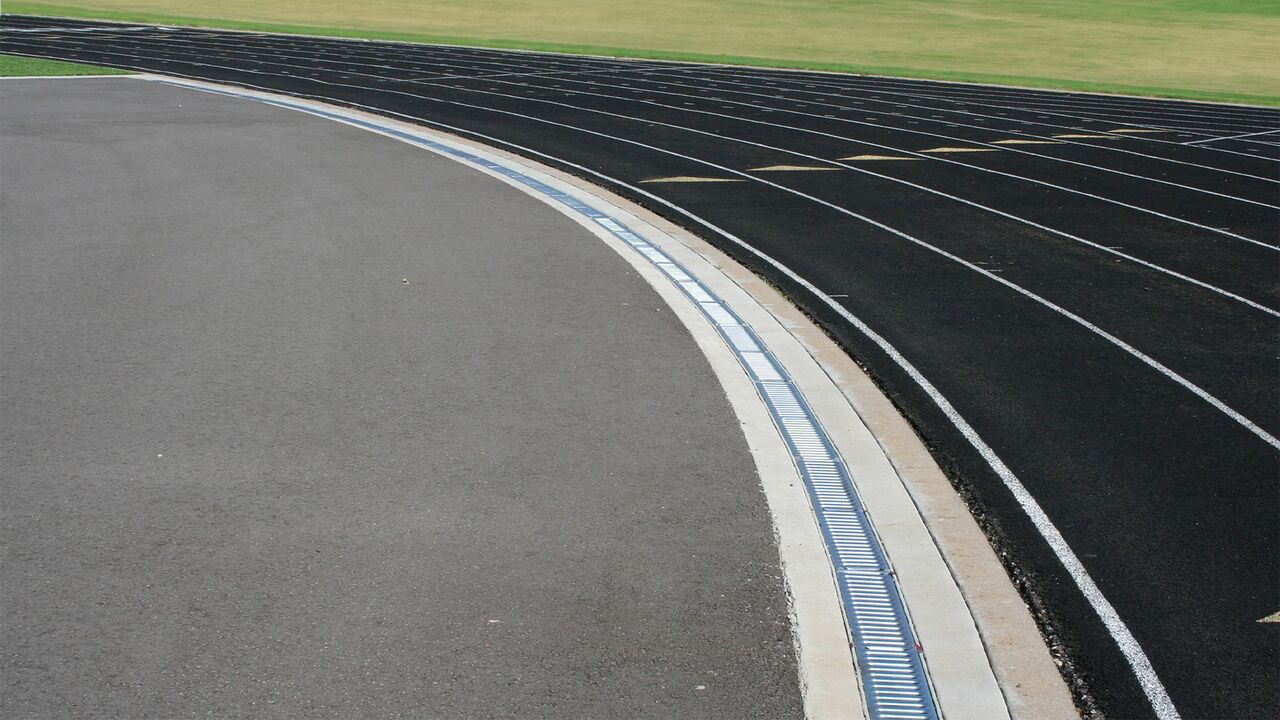

Yes. The Dura Slope Channel can make bends as small as a 30 in. radius using the Dura Slope Radius Couplings.
Yes. Prefabricated 45°, 90°, tees, and crosses can be purchased. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
No. The Micro Channel and grate are one integral part.
We recommend a 1/8 in. gap be left between grates during installation to allow for expansion of the grates.
Yes. All channel segments are clearly labeled with an NDS part number sticker. The channels must be installed in ascending numerical order starting with the smallest part number. The part number sticker also shows the number of the segment to be installed upstream and downstream of the segment.
No. The Micro Channel ships in 10-foot sections. Each section ships with 1 coupling. All other accessories are sold separately.
No. The Mini Channel ships in 6-foot sections. All accessories are sold separately.
The 12 in. Pro Series channels and accessories are sold individually.
The 3 in. Pro Series Channel can be purchased in a kit that includes the channel, 2 grates, an end cap, and an end cap with outlet (NDS part # 764). The channel, end caps, end cap with outlets, and grates can also be purchased separately.
The 5 in. Pro Series Channel (deep profile) can be purchased in a kit that includes the channel, 2 grates, an end cap, and an end cap with outlet (NDS part # 864). The channel, end caps, end cap with outlets, grates, and other accessories can also be purchased separately.
The 8 in. Pro Series channels and accessories are sold individually.
First the Grate Security Clip (NDS part # 849) must be inserted into the slot on the side of the channel. The grate is then placed onto the clips and screwed into place.

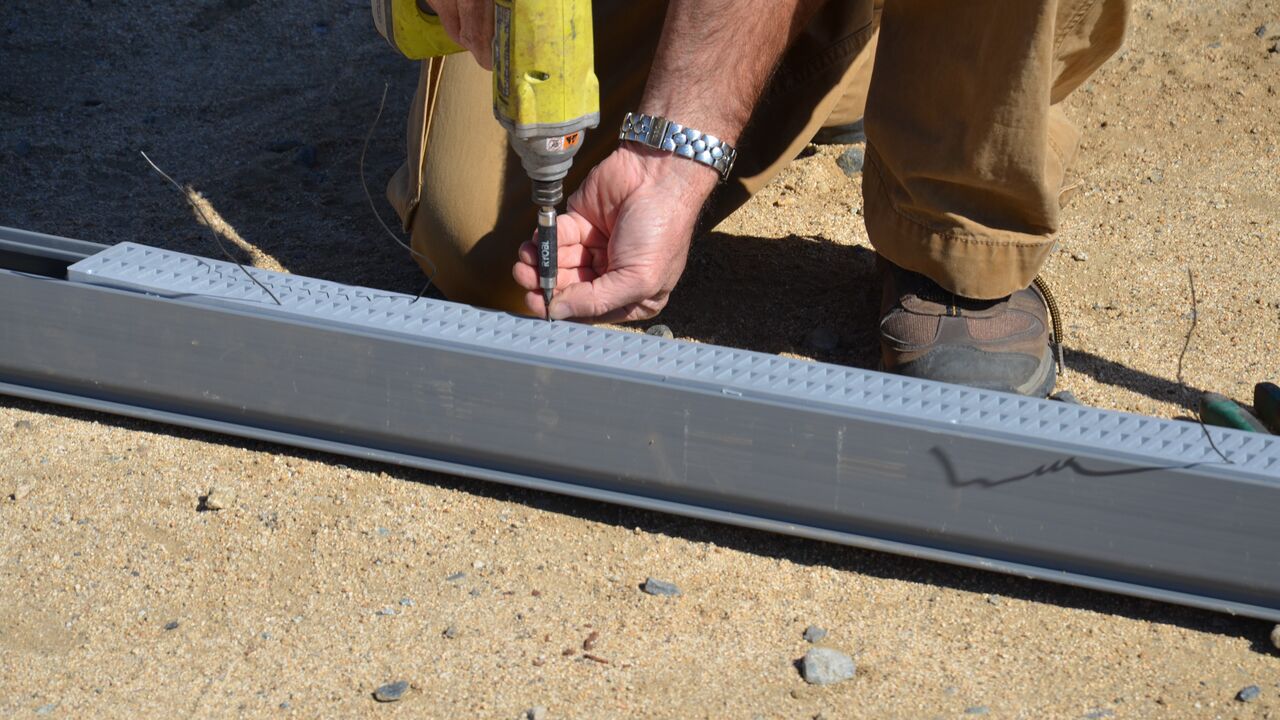

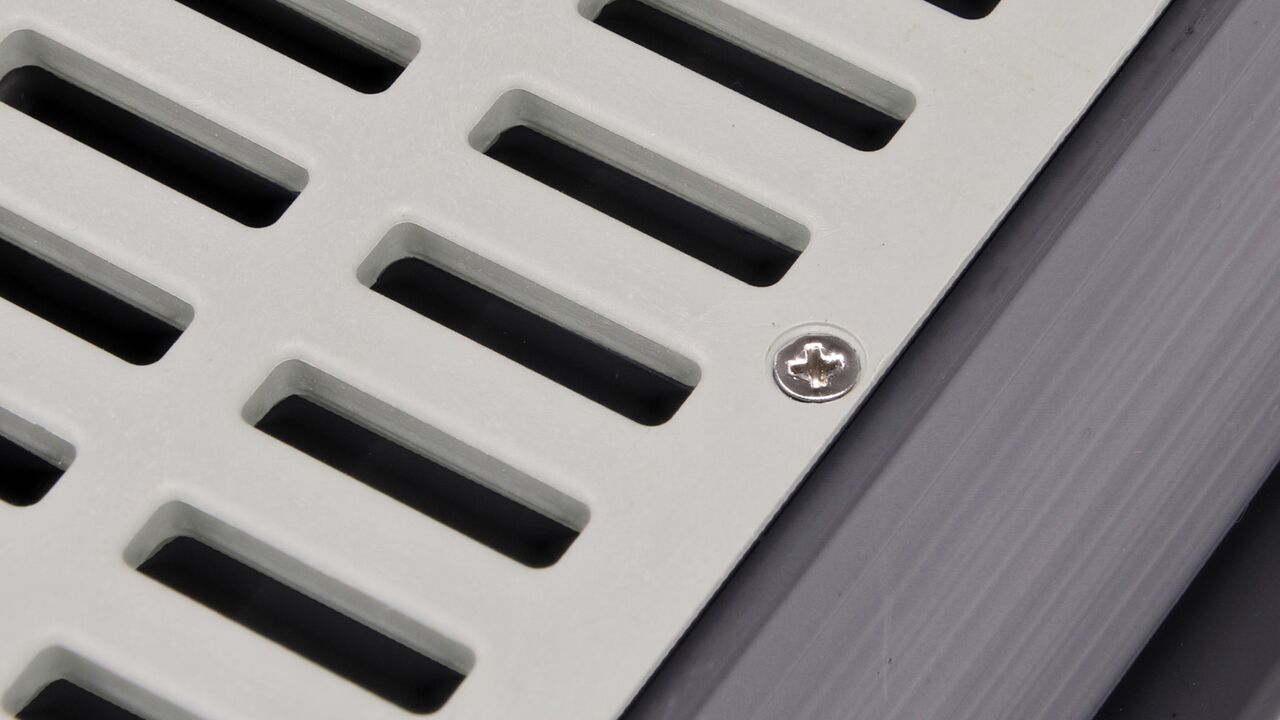

The grates can be screwed to the channel using NDS part # 229 – Stainless Steel Screws, Phillips Head #8 x 1 in. screws (screws sold separately).
The grates can be screwed to the channel using NDS part # 229 – Stainless Steel Screws, Phillips Head #8 x 1 in. screws (screws sold separately).
The grates can be screwed to the channel using NDS part # 229 – Stainless Steel Screws, Phillips Head #8 x 1 in. screws (screws sold separately).

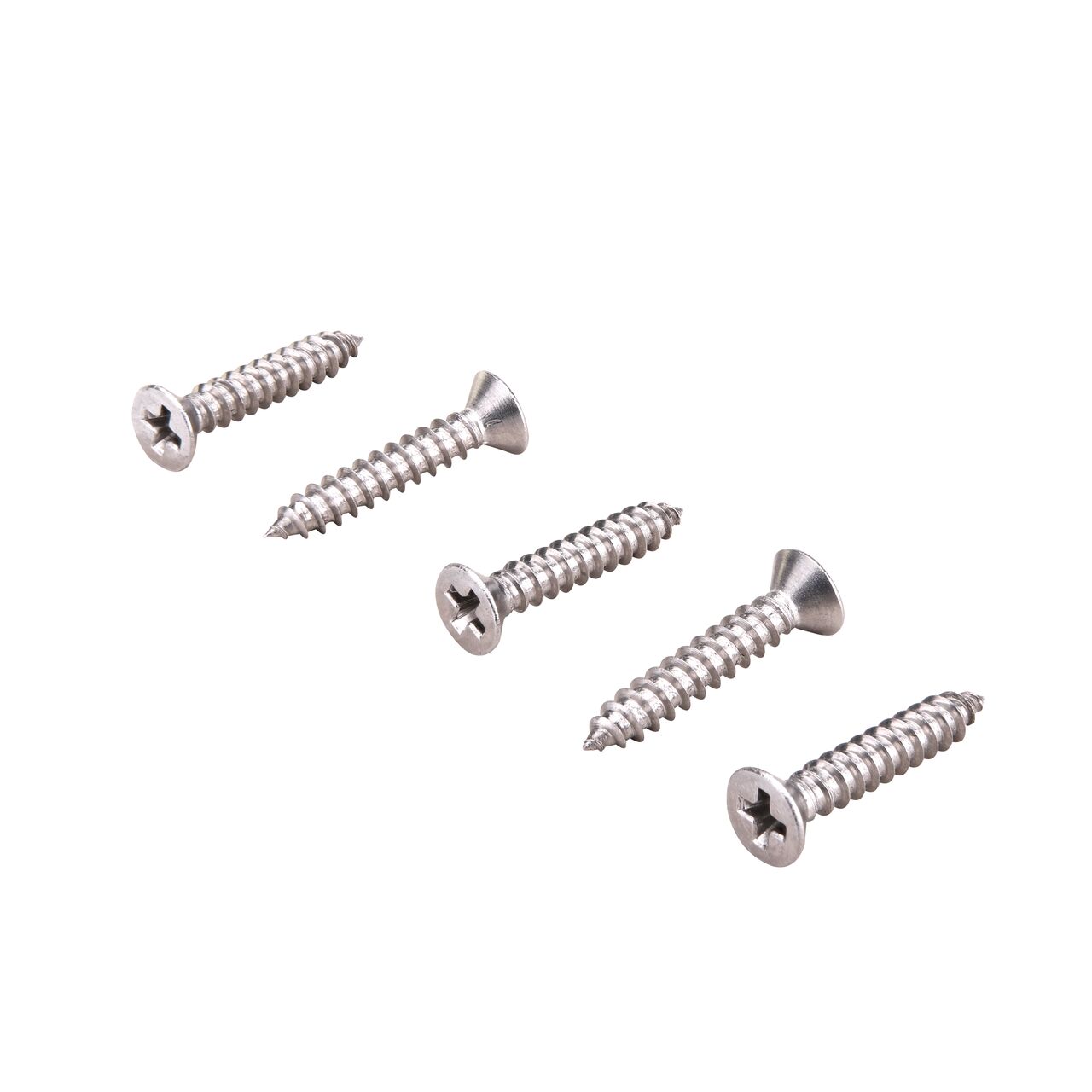

The grates can be screwed to the channel using NDS part # 529 – Stainless Steel Screws, Phillips Head #4 x 5/8 in. screws (screws sold separately).
The grates can be screwed to the channel using NDS part #229 stainless steel screws.
If adding to the upstream (female) end, slide the Universal End Cap or Universal End Outlet into the slot on the end of the channel. If adding to the downstream (male) end, NDS part #DS-123 Phillips head #6 x ¾ in. screws must be used to screw the Universal End Cap or Universal End Outlet to the Dura Slope Channel (screws sold separately).
A section of the Micro Channel Clean Out (part # 8651, 8652, or 8653) would have to be installed to clean out the inside of the channel. The top of the clean out can be removed to allow for debris to be cleaned from the channel.
Sections of 12 in. Pro Series Channel can be connected using the interlocking end joints.

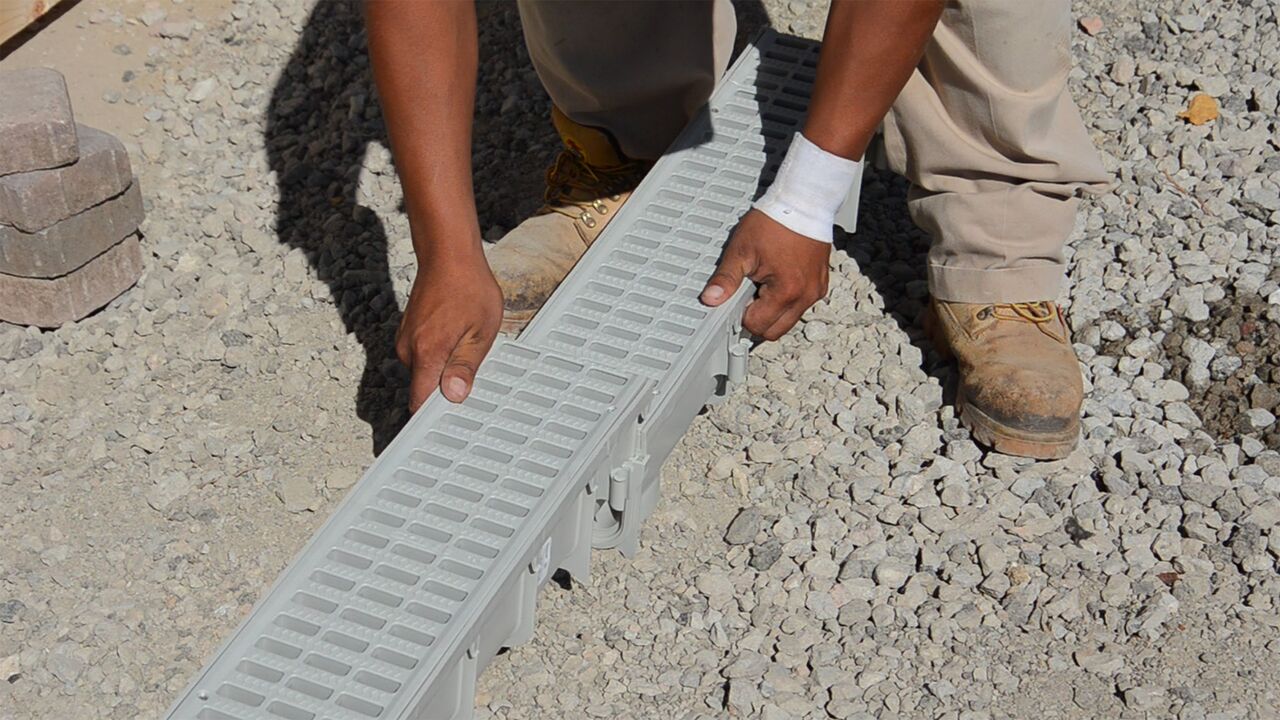

Sections of 3 in. Pro Series Channel can be connected using the interlocking end joints.
Sections of 5 in. Pro Series Channel can be connected using the interlocking end joints.
Sections of 8 in. Pro Series Channel can be connected using the interlocking end joints.
Sections of Micro Channel can be connected using the Micro Channel Coupling (NDS part # 8481).
Sections of Mini Channel can be connected using the Mini Channel Coupling (NDS part # 548).
Sections of Spee-D Channel can be connected using either the Channel Strainer Coupling (NDS part #245) or the Channel Coupling (NDS part #248).
If connecting to 4 in. sewer and drain (SDR35) pipe, cut out the bottom drain and insert the DS-126 Bottom Outlet Adapter. If using 4 in. schedule 40 pipes, connect NDS part #56-44 flexible coupling to the 4 in. pipe and then to the bottom drain of the channel. Tighten the clamps to secure in place. Other diameter pipes can be connected using the appropriate flexible coupling.
The 12 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together.
The 3 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together.
The shallow profile 5 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together. The deep profile 5 in. Pro Series Channel is made from HDPE. Welder contact adhesive by Homax Products Inc. can be used to glue the accessories to the deep profile.
The 8 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together.
The Mini Channel is made from PVC. PVC glue can be used to glue all pieces together.
All Dura Slope Channels come with a removable cover. Put tape over the slots and screws prior to pouring concrete. After concrete has been finished and cured, remove and discard the covers. The screws are used to secure the grates to the channel.
The only way to drain from the 12 in. Pro Series Channel is out of the end of the channel. The end cap has a 4 in. sewer and drain spout.
There are two options to drain the water out of the Spee-D Channel: the end of the channel or the bottom of the channel. There are two end caps that can be installed to the end of the channel. NDS part # 245 connects to 2 in. schedule 40 pipe and part # 249 connects to both 3 in. sewer and drainpipe and 4 in. sewer and drain fittings. The bottom drain channel comes with an atrium grate pre-inserted in the channel to prevent debris from entering the storm drain system. The bottom drain fits 3 in. or 4 in. sewer and drain fittings.
Shallow profile: End caps can be purchased that connect to a 1-1/2 in. schedule 40 spout. NDS part # 822 has knockouts that can be used to drain water out of the sides of the channel. The side outlets have 3 in. sewer and spout and the bottom has an 1-1/2 in. schedule 40 spout.
Deep profile: End caps can be purchased that connected to a 3 in. sewer and storm drain pipe hub or a 4 in. sewer and drain pipe fitting.
**Shallow profile:** End caps can be purchased that connects to a 3 in. sewer and drain pipe. NDS part # 832 has knockouts that can be used to drain water out of the sides of the channel. The side outlets have 3 in. sewer and spout and the bottom drain fits 4 in. sewer and drain pipe and 3 in. sewer and drain fittings. **Deep profile:** End caps can be purchased that has a 3 in. or 4 in. sewer and storm spout.

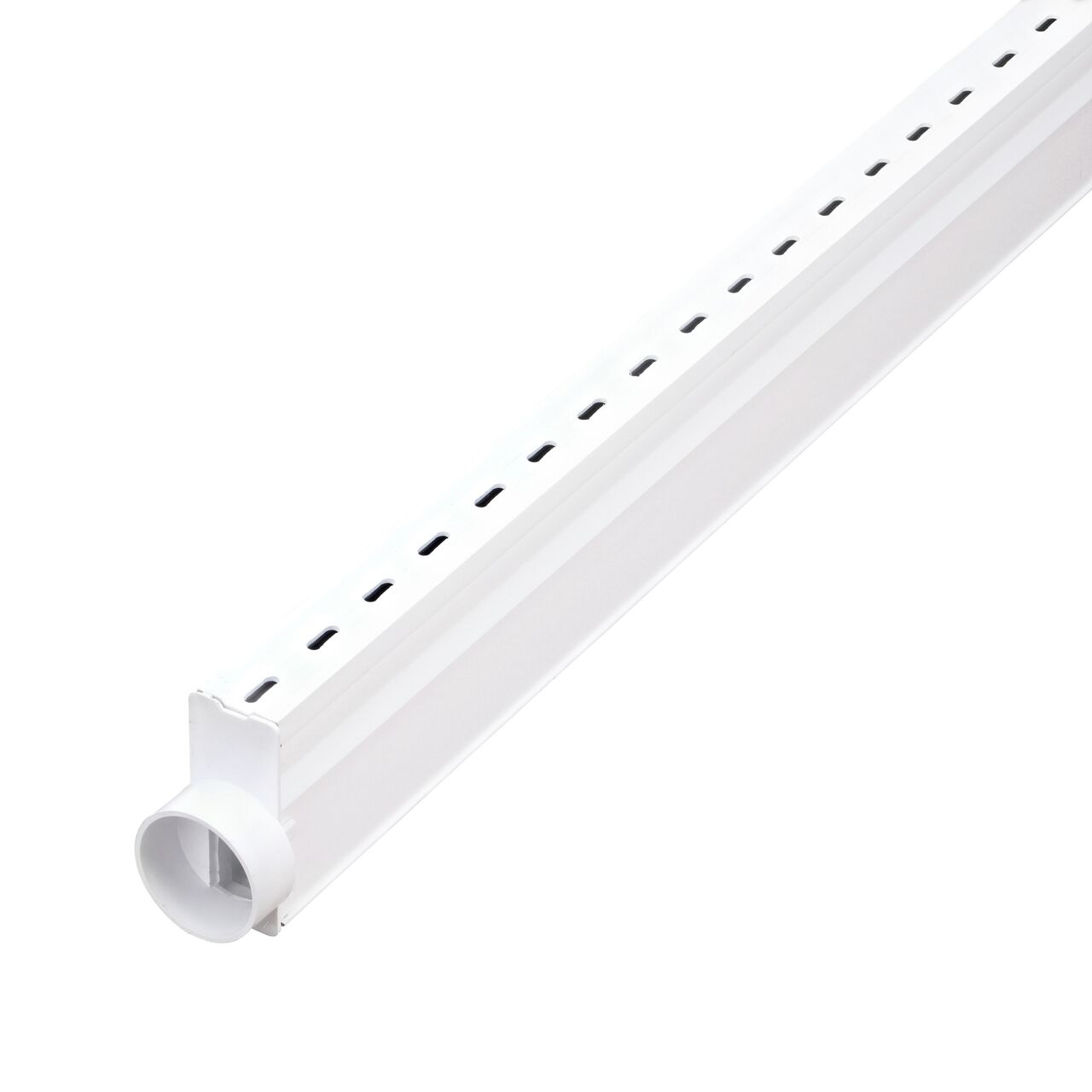

There are three options to drain the water out of the Micro Channel: the end of the channel, the bottom of the channel, or the side of the channel. Each outlet connects to 1-1/2 in. schedule 40 pipe. Drainage from the channel is limited by the outlets. The outlets have the same open area as a 1-1/4 in. pipe.
There are two options to drain the water out of the Mini Channel: the end of the channel or the bottom of the channel. Each outlet connects to a 2 in. schedule 40 pipe. The bottom drain channel comes with an atrium grate pre-inserted in the channel to prevent debris from entering the storm drain system.
There are two options to drain the water out of the Spee-D Channel: the end of the channel or the bottom of the channel.
The shallow channel manages 803 GPM at 1% slope. The deep channel handles 2002 GPM at 1% slope. Grate flow rate is between 142.86 to 210.99 GPM per LF.
The channel itself handles 97.8 GPM at 1% slope. Grate flow rate is 72.29 GPM per LF.
The shallow channel manages 63 GPM at 1% slope. The deep channel handles 193.0 GPM at 1% slope. Grate flow rate is between 14.87 to 76.85 GPM per LF.
The shallow channel manages 287 GPM at 1% slope. The deep channel handles 579 GPM at 1% slope. Grate flow rate is between 30.85 to 71.28 GPM per LF.
The Micro Channel has 2.5 square inches of open space per foot of channel. The channel itself can handle 3.06 Gallons per Minute per linear foot with ½ in. head pressure.
The channel itself will manage 62.8 GPM at 1% slope. Grate flow rate ranges between 15.08 to 30.29 GPM per linear foot depending on the style and grate opening.
The channel itself handles 94.3 GPM at 1% slope. Grate flow rate is between 23.70 to 59.04 GPM per linear foot.
Adding the DS-200 to the Dura Slope system increases the load capacity to 326-575 psi. This rating is suitable for heavy-duty hard tire forklifts at speeds less than 20 m.p.h. H-20 rated. DS-225 screws (sold separately) must be used to secure the grates.

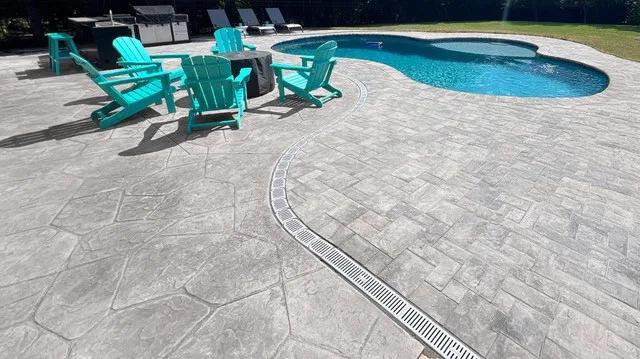

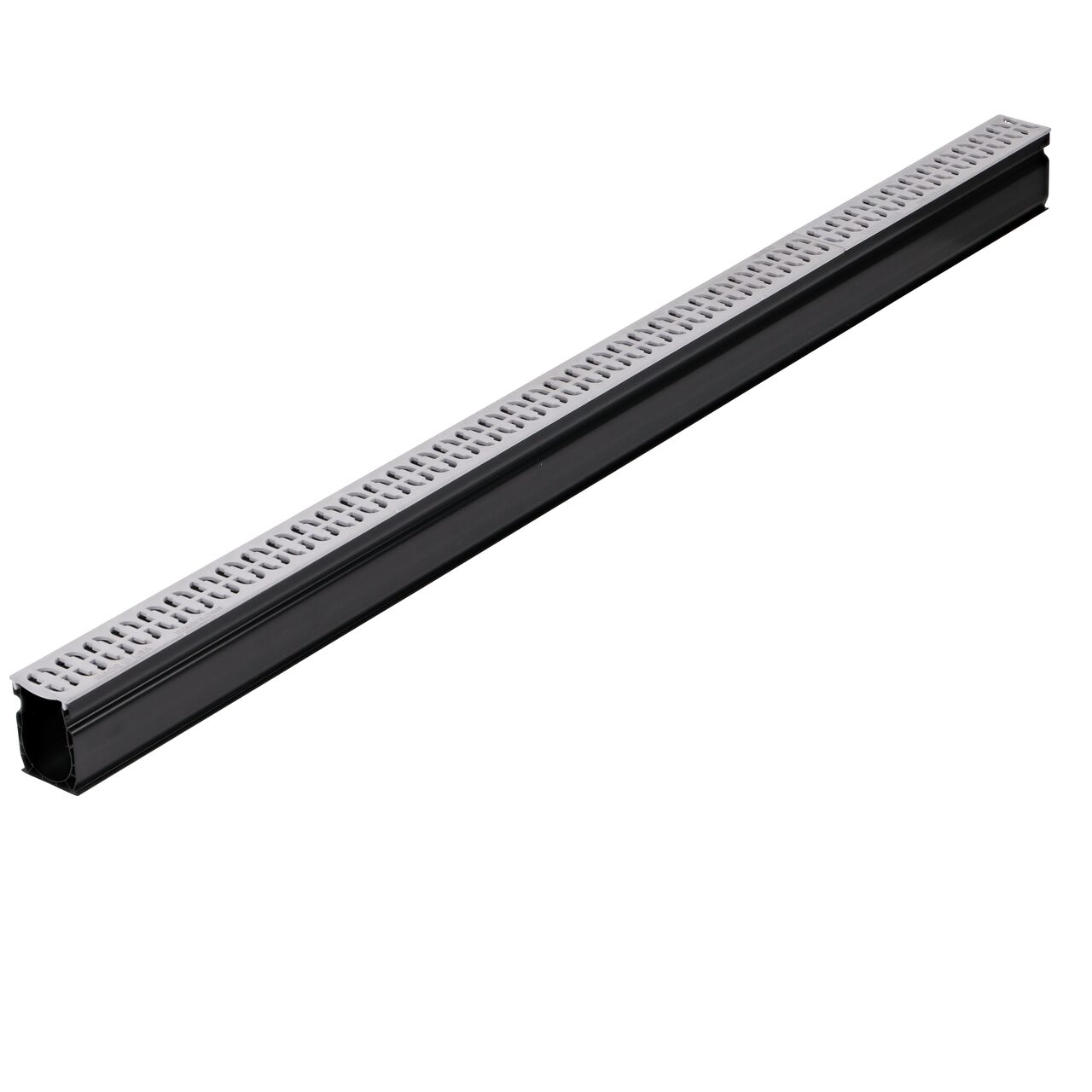

This channel drain solution is ideal for areas surrounding pool, spas, and patios.

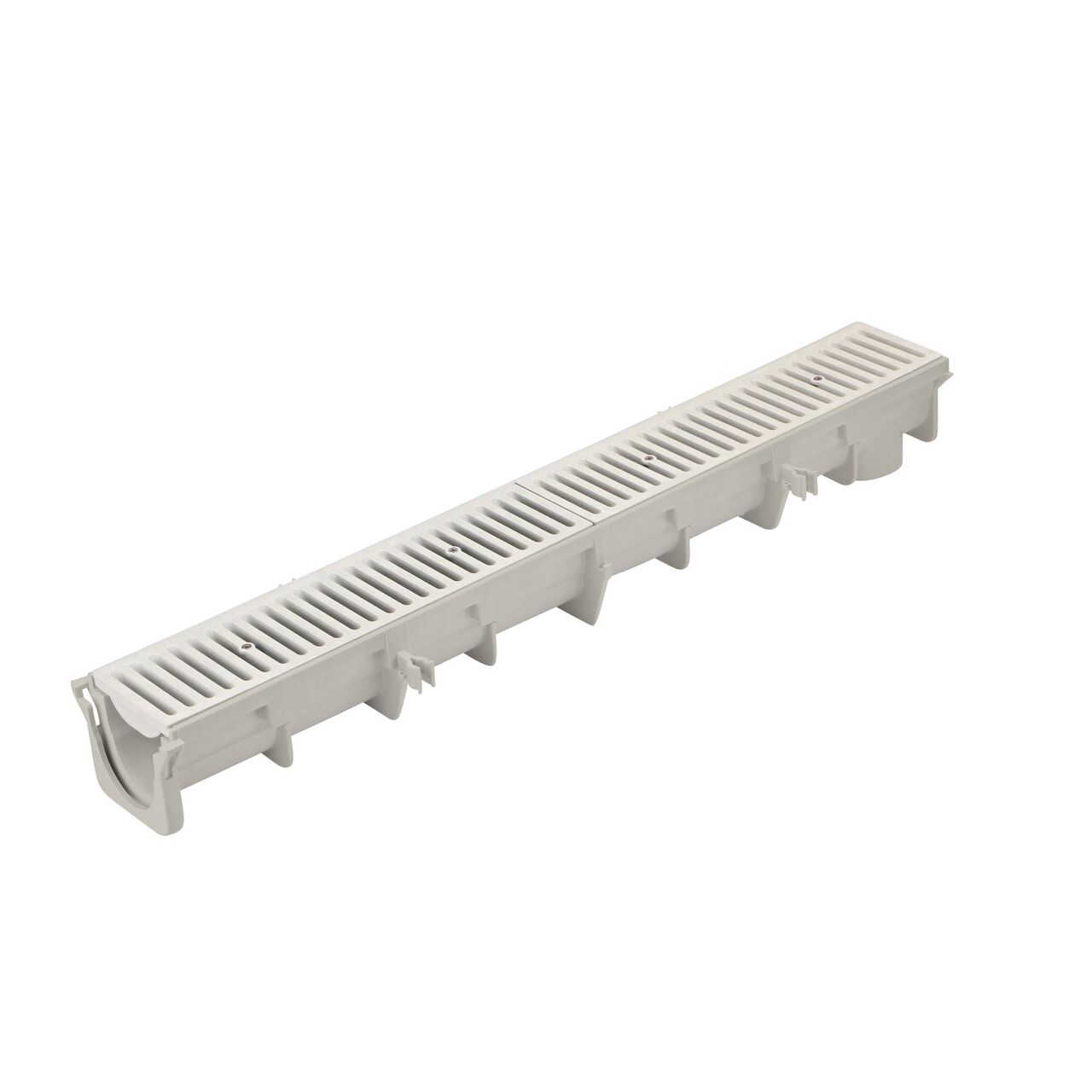

Each channel section is different. The shallowest channel is 3.99 in. from the bottom of the grate to the flow line in the channel. The deepest channel is 12.06 in. from the bottom of the grate to the flow line. All Dura Slope grates are ¾ in. thick.
Mini Channel grates are available in white, grey, green, black, sand, and brick red.
Spee-D Channel grates are available in white, grey, green, black, sand, and brick red.
The 12 in. Pro Series Channel plastic grate is available in grey.
The 3 in. Pro Series Channel grates are only available in light grey.
The 5 in. Pro Series Channel plastic grates are available in light grey, green, black, sand, brick red, and white.
The 8 in. Pro Series Channel plastic grates are available in light grey.
Micro Channel is available in white, sand and grey.
The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The ductile iron grate is rated to support heavy-duty pneumatic tire forklifts and tractor trailers (up to 325 psi) at speeds less than 20 m.p.h.
The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h.
The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The reinforced nylon grate is rated to support heavy-duty pneumatic tire forklifts and tractor trailers (up to 325 psi) at speeds less than 20 m.p.h. The cast iron grate is rated to support heavy-duty hard tire forklifts (up to 575 psi) at speeds less than 20 m.p.h.
The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The reinforced nylon grate is rated to support heavy-duty pneumatic tire forklifts and tractor trailers (up to 325 psi) at speeds less than 20 m.p.h. The ductile iron grate is rated to support heavy-duty hard tire forklifts (up to 575 psi) at speeds less than 20 m.p.h.
The fall in each sloped section of Dura Slope channel is 0.34 in. Each section comes with a built-in 0.7% slope. The neutral sections have flat bottoms.
The Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 19580) test methods by an independent AASHTO accredited lab. The channel's strength exceeds the standards set forth by these tests. This rating is suitable for loads of 61-175 psi including medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
Without the use of neutral sections (no bottom slope), the maximum length run is 96 feet. With the use of one neutral section in its designed place, the maximum length run is 132 feet. There will be 8.07 in. of fall in these runs. The channel can be lengthened by adding additional neutral sections. We do not recommend connecting more than 4 consecutive neutral segments together to allow for proper flow and prevent standing water in the channel.

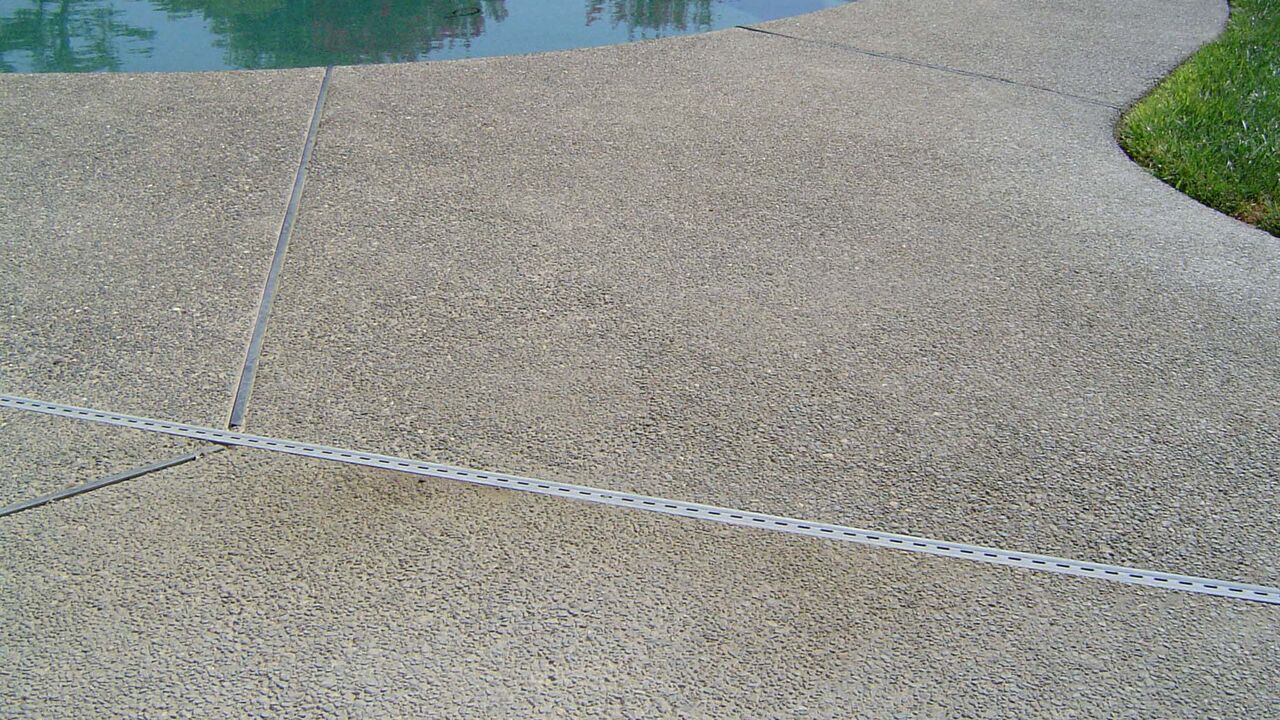

Micro Channel is rated for pedestrian traffic (up to 60 psi) only.
The plastic grates are rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The brass grates are rated for pedestrian traffic (up to 60 psi).
The plastic grates are rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h.

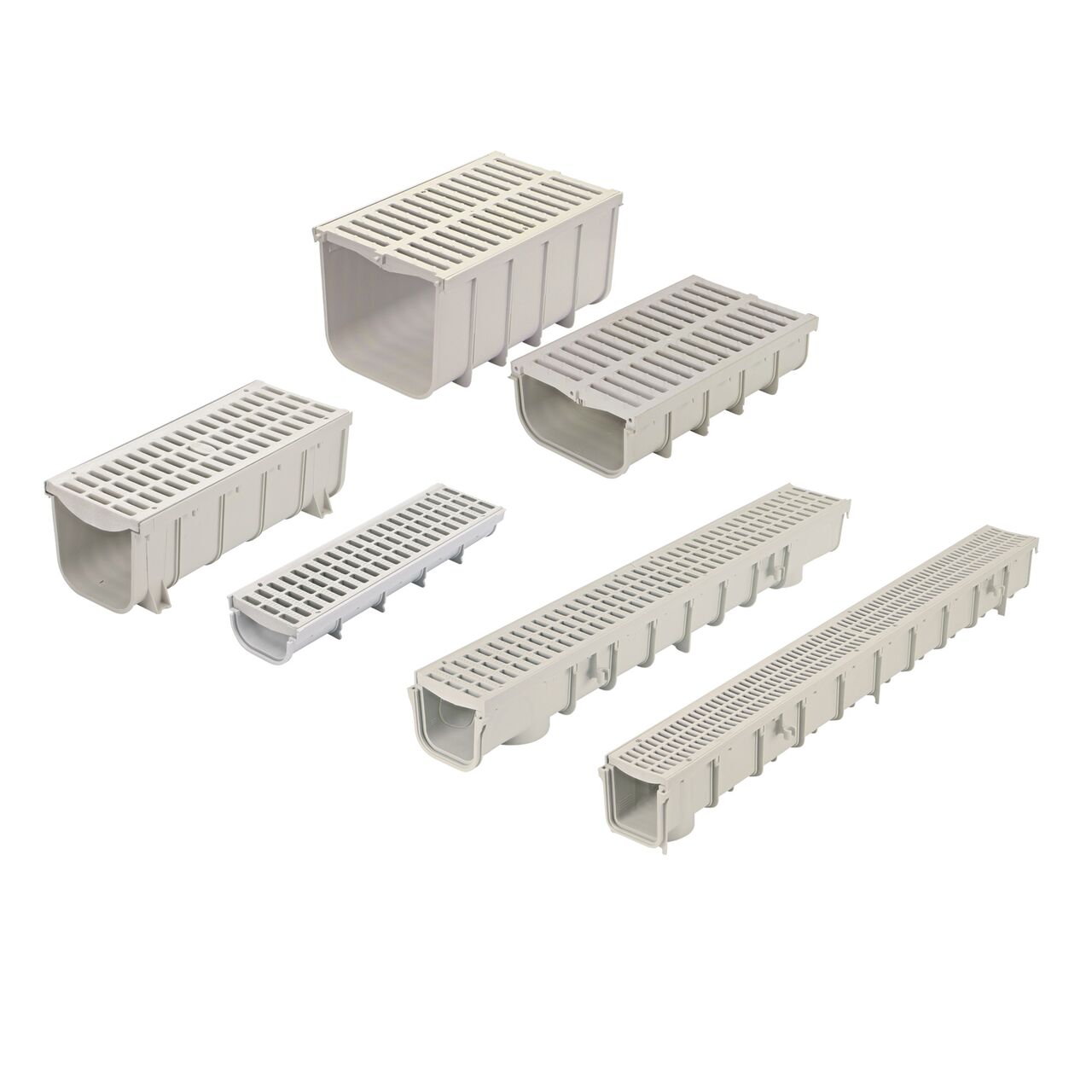

The 12 in. Pro Series Channel is available in shallow and deep profile. Both profiles are available in 19-11/16 in. lengths. The channel can be easily cut to any length.
The 3 in. Pro Series Channel is only available in 39-3/8 in. (3.28 ft.) sections. The channel can be easily cut to any length.
The 5 in. Pro Series Channel is available in shallow and deep profile. The shallow profile is 19- 11/16 in. and the deep profile is 39-3/8 in. The channel can be easily cut to any length.
The 8 in. Pro Series Channel is available in shallow and deep profile. Both profiles are available in 19-11/16 in. lengths. The channel can be easily cut to any length.
Micro Channel is only available in 10 ft. sections. The channel can be easily cut to any length.

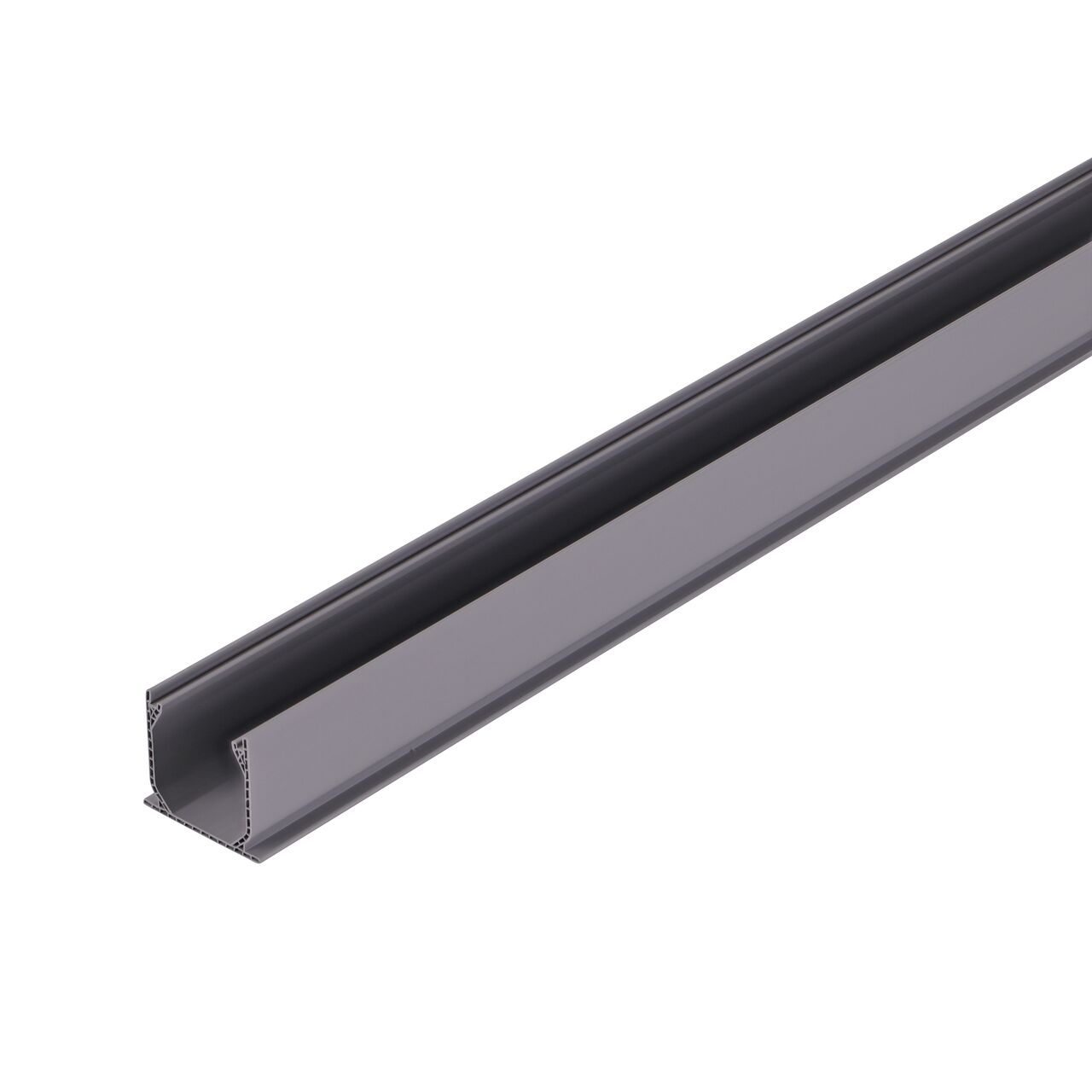

The Mini Channel is only available in 6 ft. sections. The channel can be easily cut to any length.

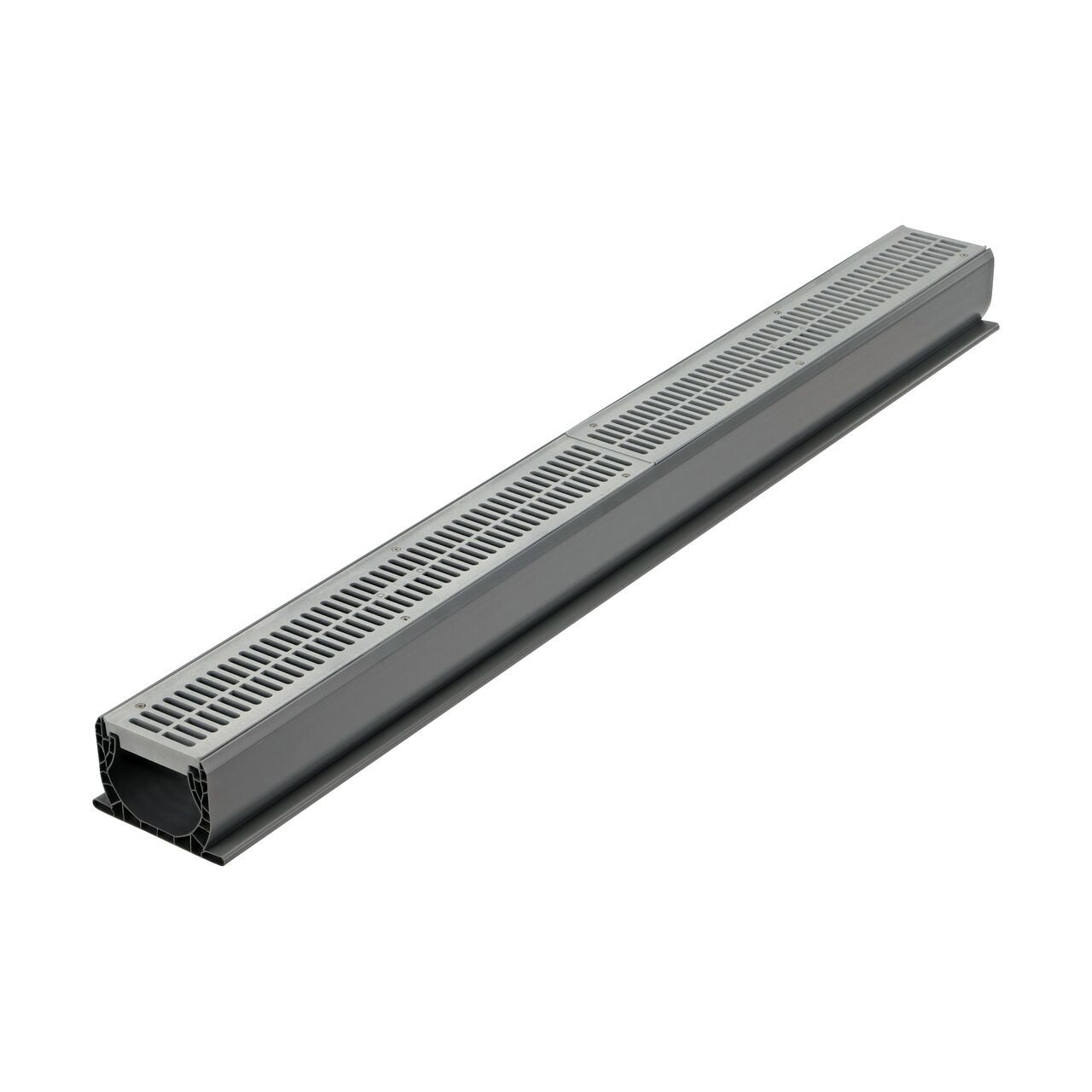

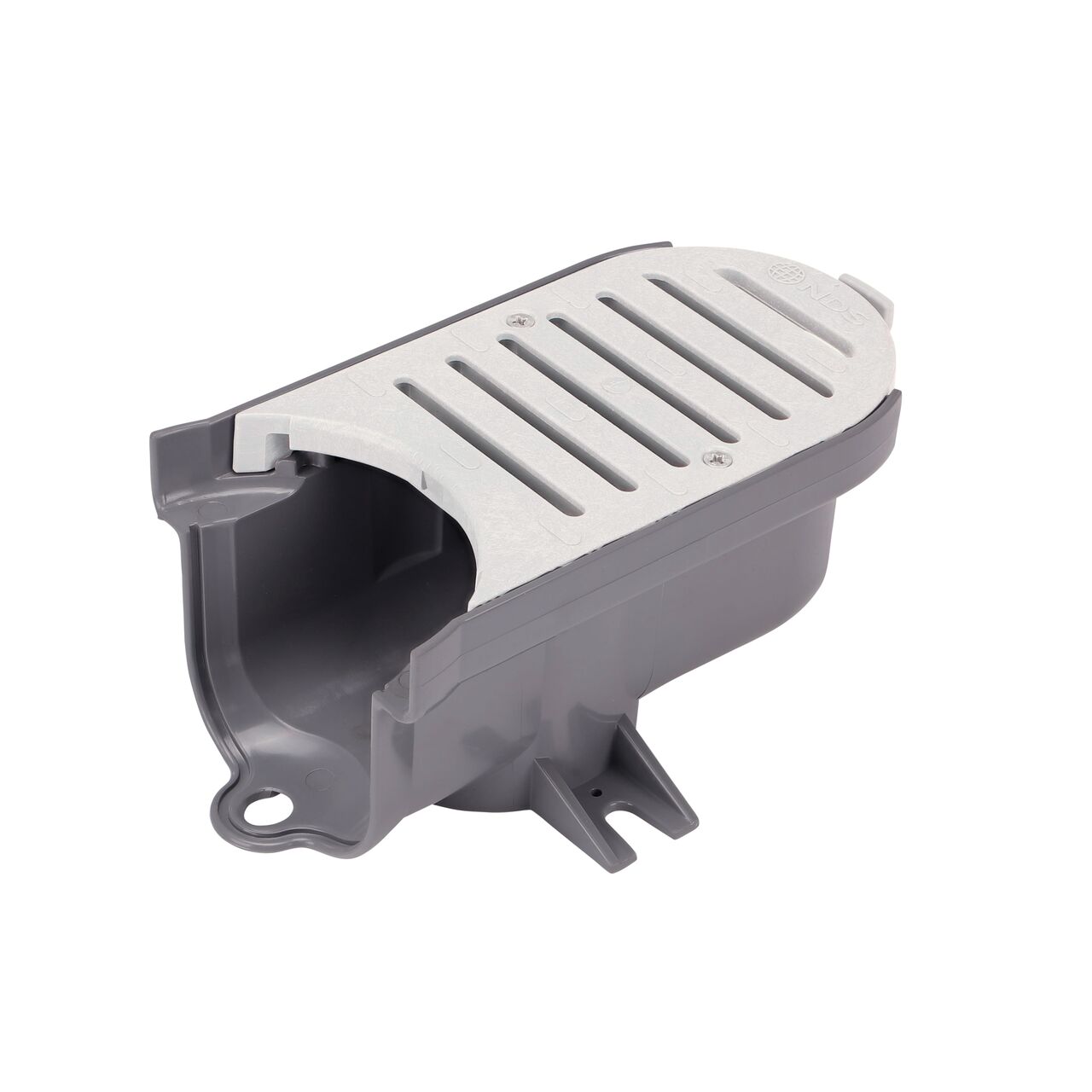

The Spee-D Channel is available in 4 foot and 10-foot sections. The channel can be easily cut to any length.
