Slim Channel Drains

This attractive drainage solution for outdoor spaces is compatible with a variety of grate designs to complement its surroundings. Available in 6 ft. kits and 9 ft. assembly to make installation easier.

Where to Buy

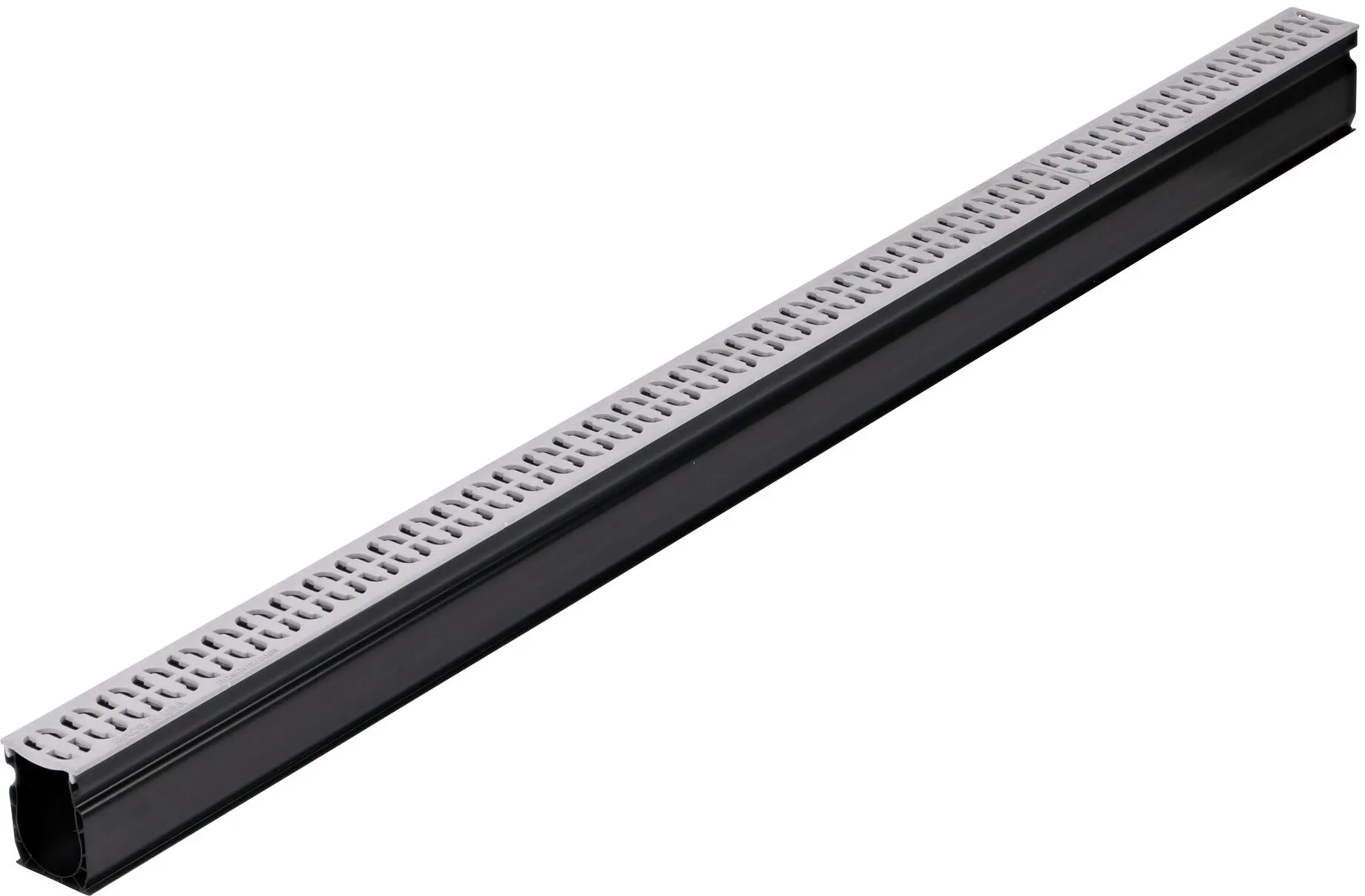

Slim Channel™ Gray Decorative Chain Design Drain Grate (NDS 9263) installed on a Slim Channel™ Drain
Where to Buy
Unassembled Slim Channel™ Drain Kit, 2-1/4 in. wide X 6 ft. long with Channel, Sand Grates, End Caps, Outlets, Coupling & Anchor Clips (NDS 9206SKITRTL, NDS 9206SKIT) for pool and spa decks, concrete and paver patios, and walkways
The smooth contour inside the NDS Slim™ Channel Drain allows water to move freely through the drain (NDS 9209)
Top Down Closeup View of NDS Dura Slope galvanized steel slot top channel drain grate (NDS DS-ST2) showing the slim 1/2 inch profile design
Top down view of the Slim Channel™ Gray Decorative Chain Design Drain Grate (NDS 9263)
Top down view of the Slim Channel™ Gray Decorative Square Design Drain Grate (NDS 9253)

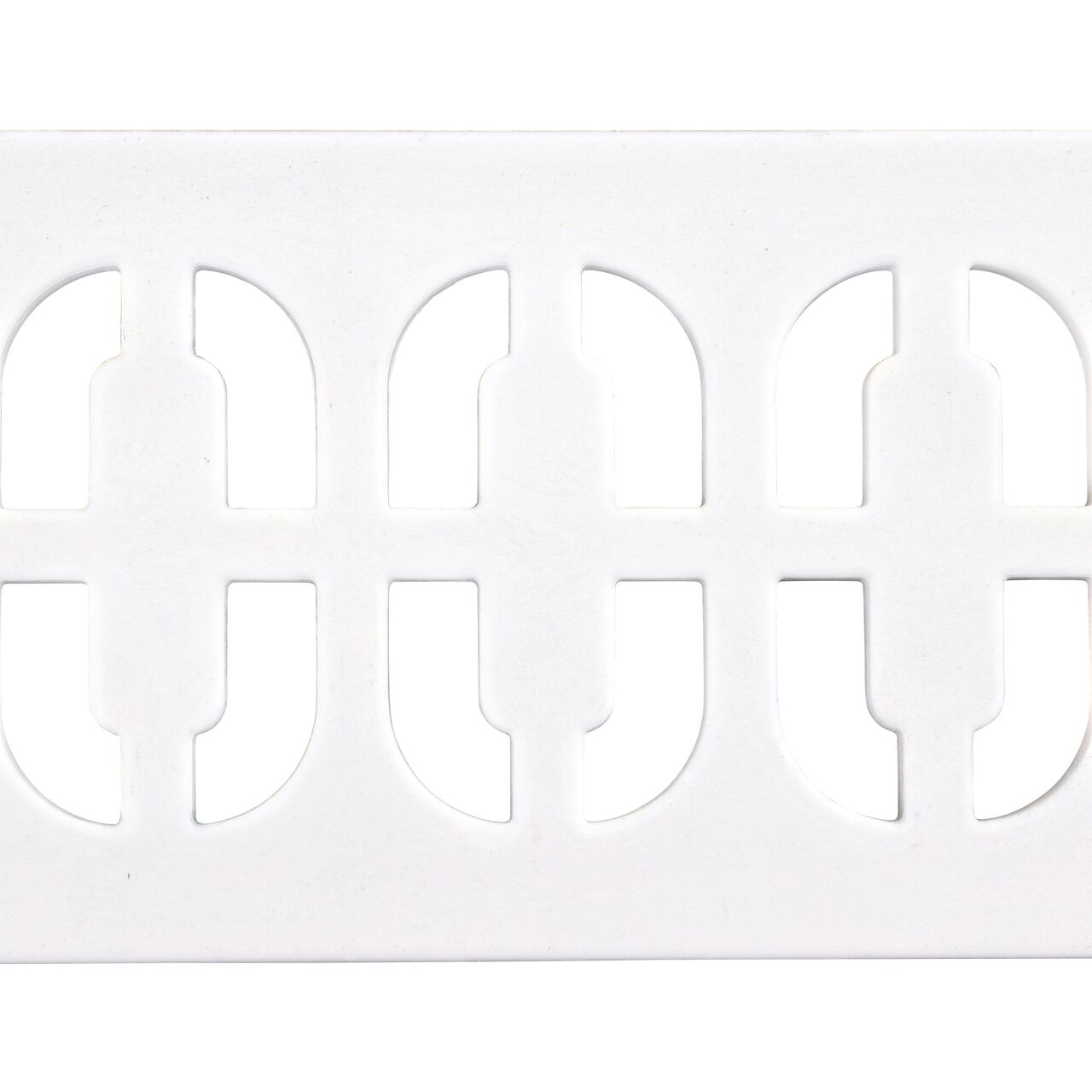

Top down view of the Slim Channel™ White Decorative Chain Design Drain Grate (NDS 9261)
Top down view of the Slim Channel™ Sand Decorative Square Design Drain Grate (NDS 9252)

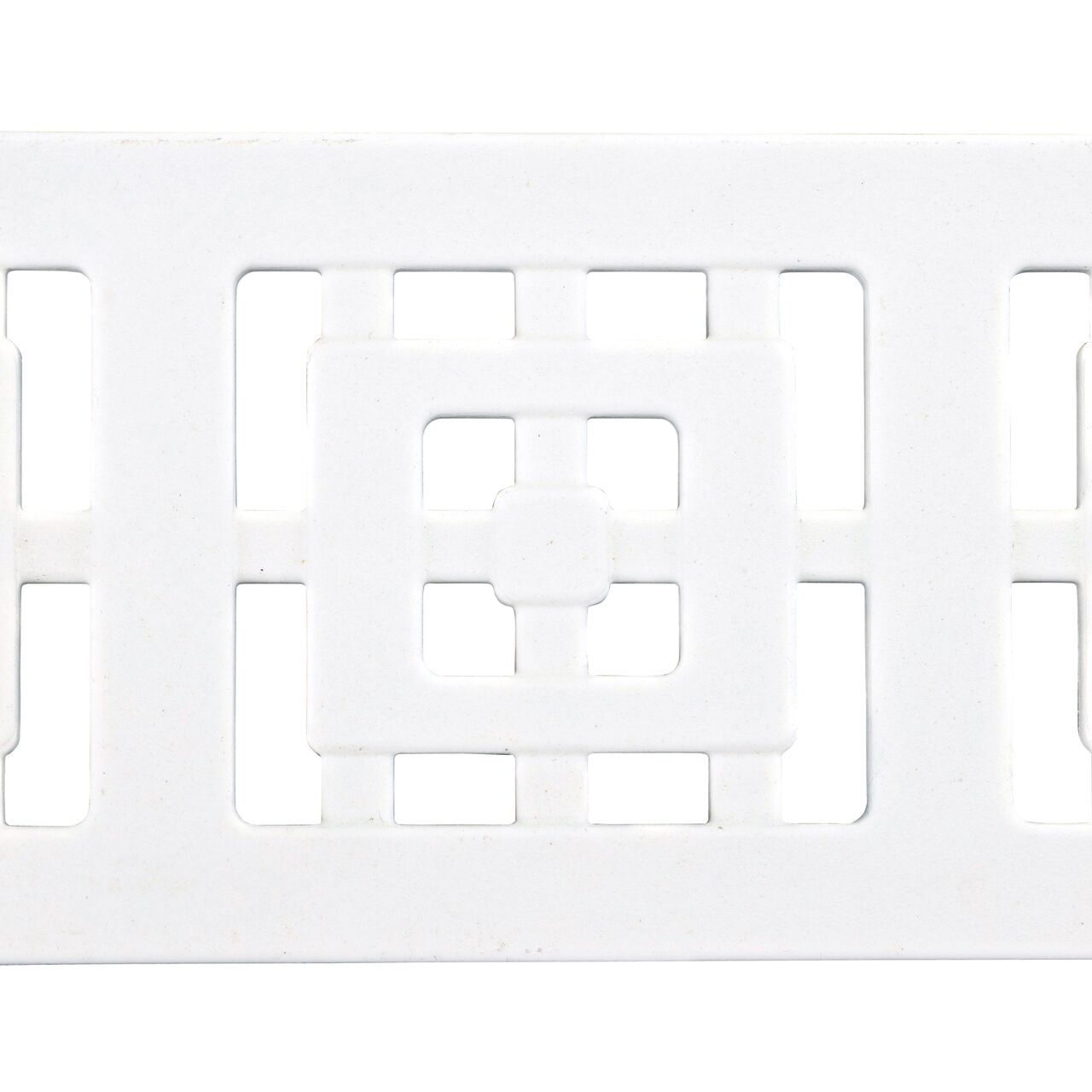

Top down view of the Slim Channel™ White Decorative Square Design Drain Grate (NDS 9251)

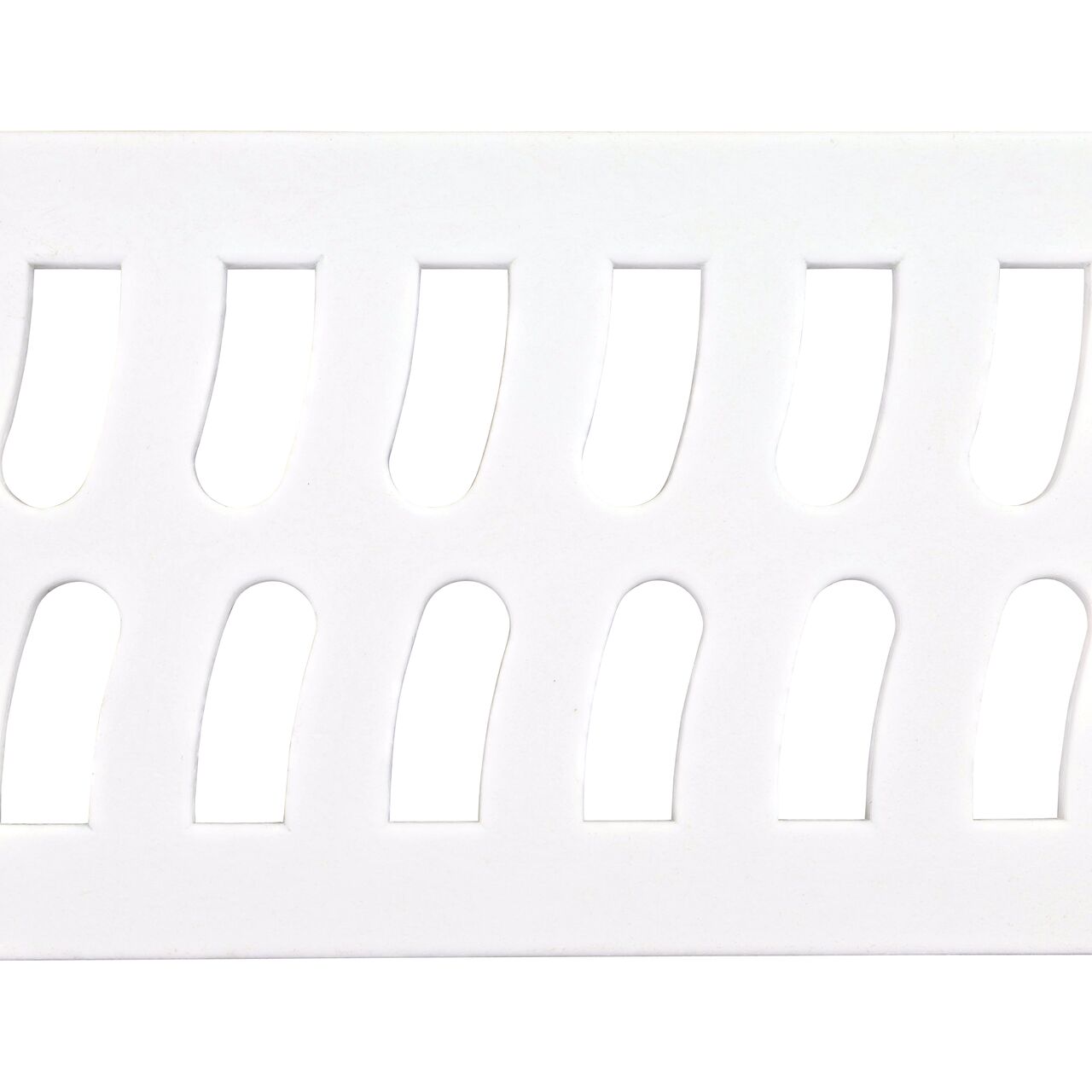

Top down view of the Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, White Plastic
Unassembled Slim Channel™ Drain Kit, 2-1/4 in. wide X 6 ft. long with Channel, Sand Grates, End Caps, Outlets, Coupling & Anchor Clips (NDS 9206SKITRTL, NDS 9206SKIT) for pool and spa decks, concrete and paver patios, and walkways
The smooth contour inside the NDS Slim™ Channel Drain allows water to move freely through the drain (NDS 9209)
Top Down Closeup View of NDS Dura Slope galvanized steel slot top channel drain grate (NDS DS-ST2) showing the slim 1/2 inch profile design
Top down view of the Slim Channel™ Gray Decorative Chain Design Drain Grate (NDS 9263)
Top down view of the Slim Channel™ Gray Decorative Square Design Drain Grate (NDS 9253)
Top down view of the Slim Channel™ White Decorative Chain Design Drain Grate (NDS 9261)
Top down view of the Slim Channel™ Sand Decorative Square Design Drain Grate (NDS 9252)
Top down view of the Slim Channel™ White Decorative Square Design Drain Grate (NDS 9251)
Top down view of the Slim Channel™ Drain Grate, 2-1/4 in. wide X 3 ft. long, White Plastic

Key Features

  • Slim Channel drains are 2-1/4 in. wide, 3 in. high, and 6 ft. long; length can be cut to size with a saw
  • Available in preassembled kits and assemblies
  • Variety of grates and accessories to customize system design
  • Slim Channel Drain made of polyvinyl chloride (PVC)
  • Treated with UV inhibitors to prevent fading and cracking


Applications

  • Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • The Slim Channel Drain system collects light flows of water from pool & spa areas, concrete and paver patios, and walkways and directs to drain pipes for proper release downstream
  • Works with Slim Channel Drain components, part of the NDS Profile Channel series

Installation & Maintenance

  • Use solvent-weld PVC glue to create a water-tight channel-to-channel connection and between the outlet and pipe; use anchor clips (sold separately) to secure channel to base for easier installation.
  • Install with removable snap-in grates (sold separately), making it easy to clean debris from channel for maintenance

Materials & Sustainability

  • Made in USA
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Filter results
Family
Color
Shape

23 products

    Part Number
    (click for more info)    		 Description
    230 6 in. Profile Channel Installation Stakes, Pack of 24
    9209GRAY Slim™ Channel Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened Gray Plastic Grates
    9209SAND Slim™ Channel Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened Sand Plastic Grates
    9209WHITE Slim™ Channel Assembly, 2-1/4 in. wide X 9 ft. long, with Channel and Prefastened White Plastic Grates
    9303 Slim™ Channel Drain 45° Elbow and Grate, Gray Plastic
    9302 Slim™ Channel Drain 45° Elbow and Grate, Sand Plastic
    9383 Slim™ Channel Drain 90° Elbow and Grate, Gray Plastic
    9382 Slim™ Channel Drain 90° Elbow and Grate, Sand Plastic
    9270 Slim™ Channel Drain Anchor Clip
    9250 Slim™ Channel Drain Bottom Outlet
    9248 Slim™ Channel Drain Coupling
    9247 Slim™ Channel Drain End Cap/Outlet, Connects to 1-1/2 in. Drain Pipe, Black Plastic
    9263 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Chain Design, Gray Plastic
    9262 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Chain Design, Sand Plastic
    9253 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Square Design, Gray Plastic
    9252 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Decorative Square Design, Sand Plastic
    9243 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Gray Plastic
    9242 Slim™ Channel Drain Grate, 2-1/4 in. wide X 3 ft. long, Sand Plastic
    9206GKIT Slim™ Channel Drain Kit, 2-1/4 in. X 6 ft. with Channel, Gray Grates, End Caps/Outlets, Coupling, Anchor Clips
    9206SKIT Slim™ Channel Drain Kit, 2-1/4 in. X 6 ft. with Channel, Sand Grates, End Caps/Outlets, Coupling, Anchor Clips
    9373 Slim™ Channel Drain Tee and Grate, Gray Plastic
    9372 Slim™ Channel Drain Tee and Grate, Sand Plastic
    9206 Slim™ Channel Drain, 2-1/4 in. wide X 6 ft. long

    Specifications & Documents
