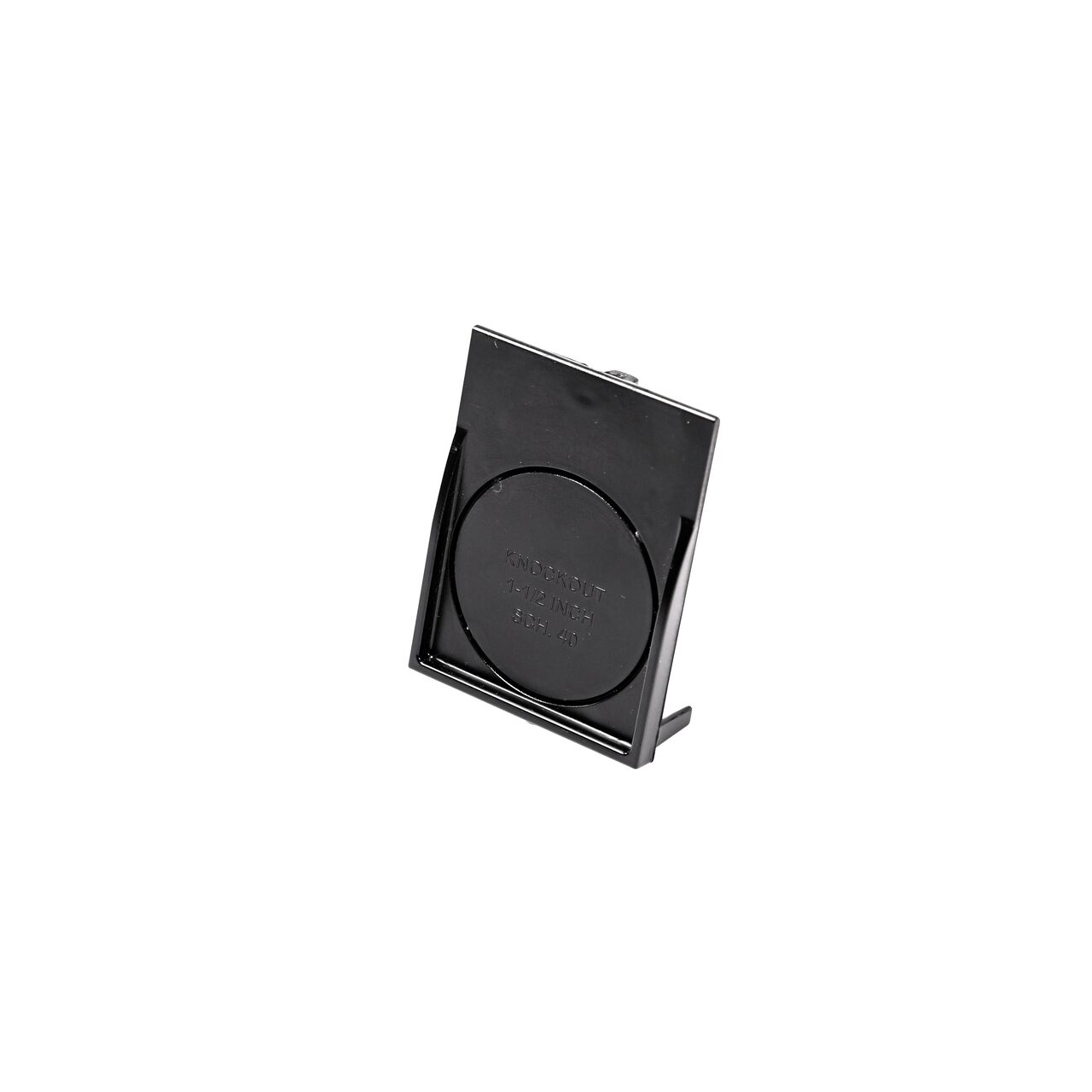

Slim™ Channel Drain End Cap/Outlet, Connects to 1-1/2 in. Drain Pipe, Black Plastic
SKU: 9247
Need to seal off one end of the channel drain? Check. Need to make the connection from channel drain to drain pipe? Check. The versatile Slim™ Channel Drain End Cap/Outlet can do both. It works as an end cap when left intact, and has a convenient knockout which becomes an outlet and connects to 1.5 in. Sch. 40 pipe. The component is made of black polyvinyl chloride and can be solvent welded with PVC glue. Slim Channels are part of the NDS Profile Series™ Channel, and ideal for capturing light water flows from pool and spa areas, concrete and paver patios, and walkways.
Applications:
- Closes either end of Slim Channel Drain when used as an end cap, connects Slim Channel Drain to 1-1/2 in. Sch. 40 pipe when used as end outlet
- The Slim Channel Drain system collects light flows of water from pool & spa areas, concrete & paver patios, and walkways, Channel drains and trench drains prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
- Use with the Slim Channel Drain, part of the NDS Profile Channel series
Features:
- Leave it intact to use as an end cap, knockout turns it into an end outlet
