Spee-D® Channel Drains

The bestselling channel drain in the USA! This lightweight alternative to traditional concrete channel drains features the patented flying buttress design for load-bearing support. Works in linear and contour applications.

Where to Buy

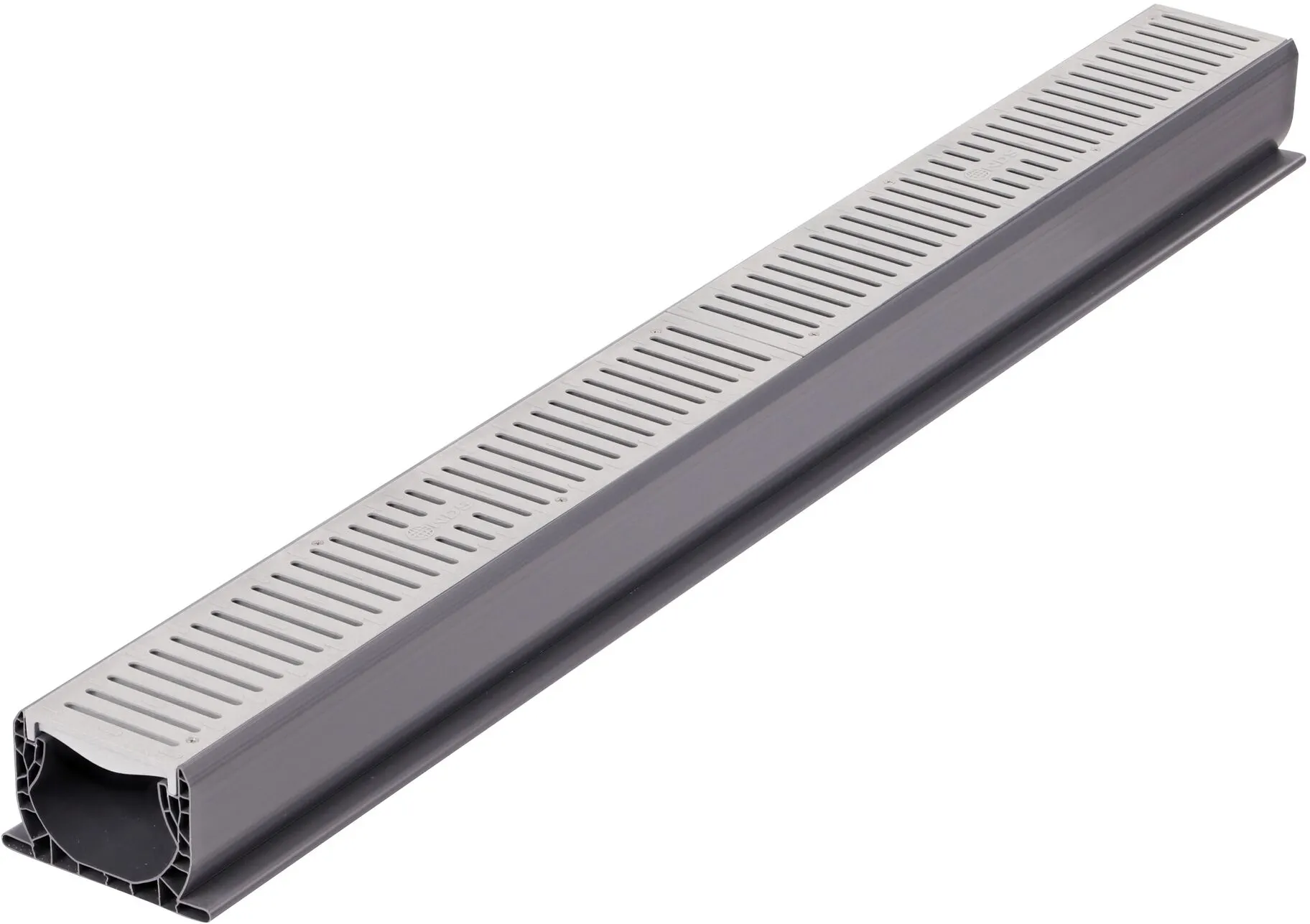

The NDS Spee-D® Channel Drain Grate in Gray Plastic (NDS 241) fits on the NDS Spee-D® Channel Drain
Where to Buy

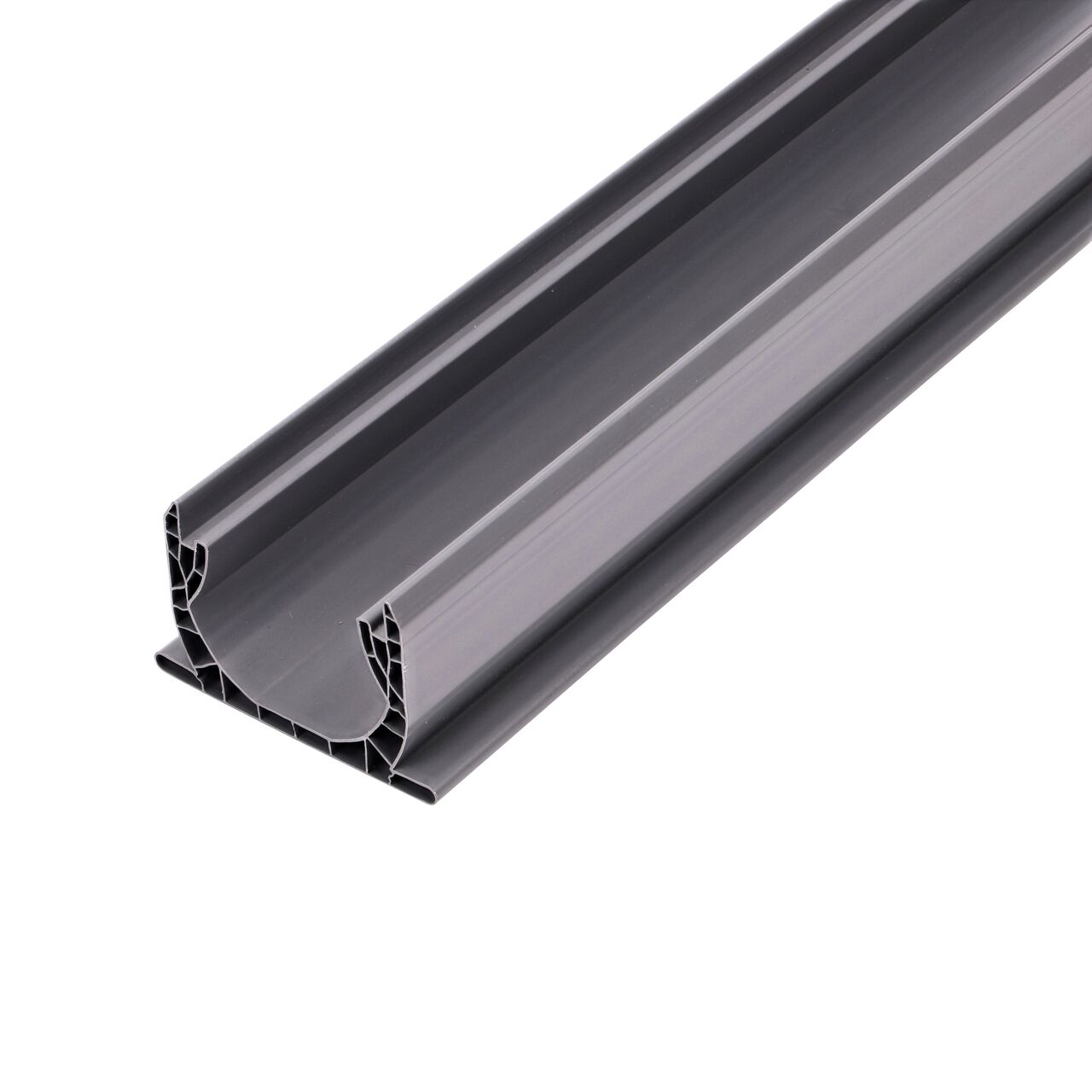

Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways

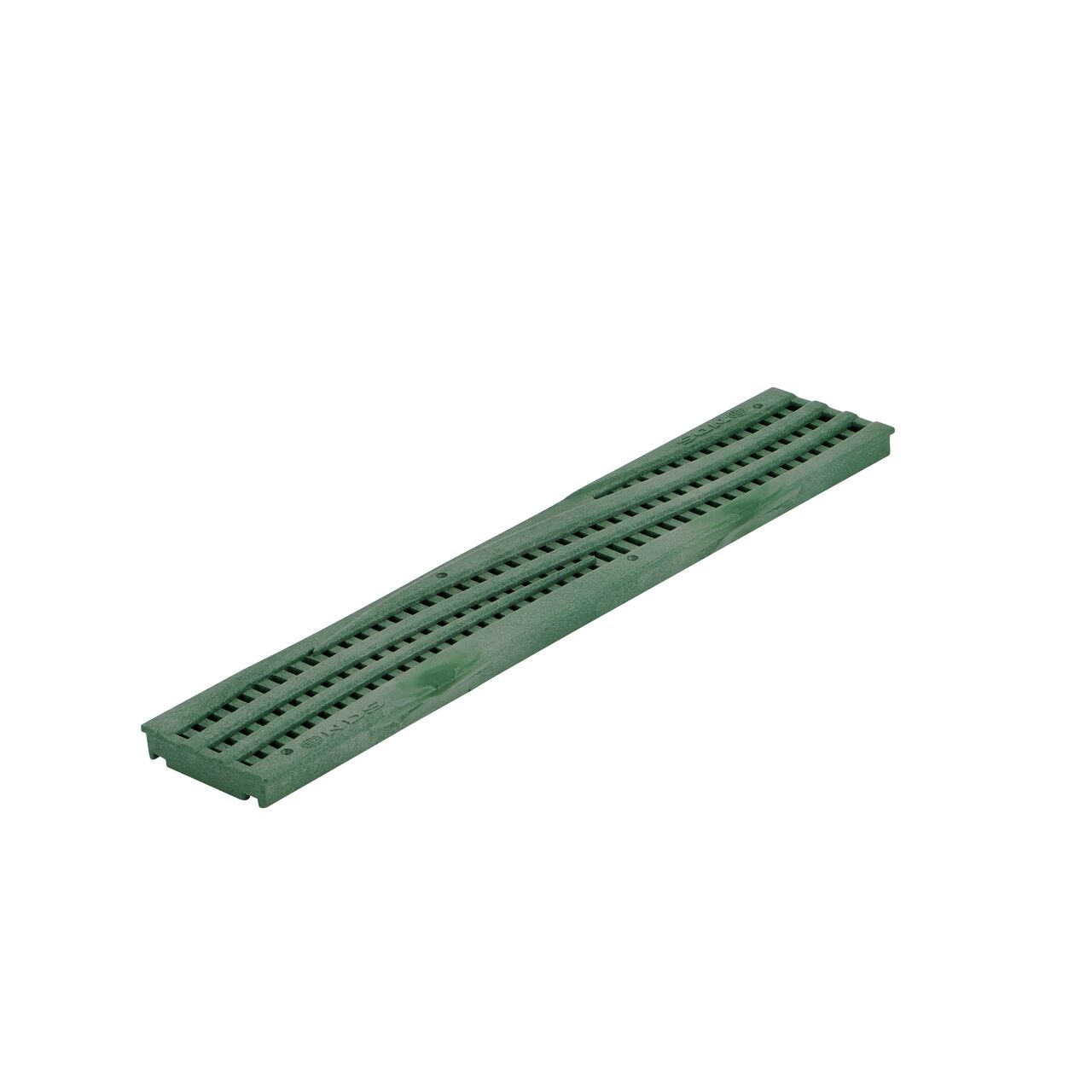

Green NDS Spee-D® Channel Drain Grate in Decorative Wave Design fits Spee-D Channel Drain (NDS 253GR) and drains water from your yard

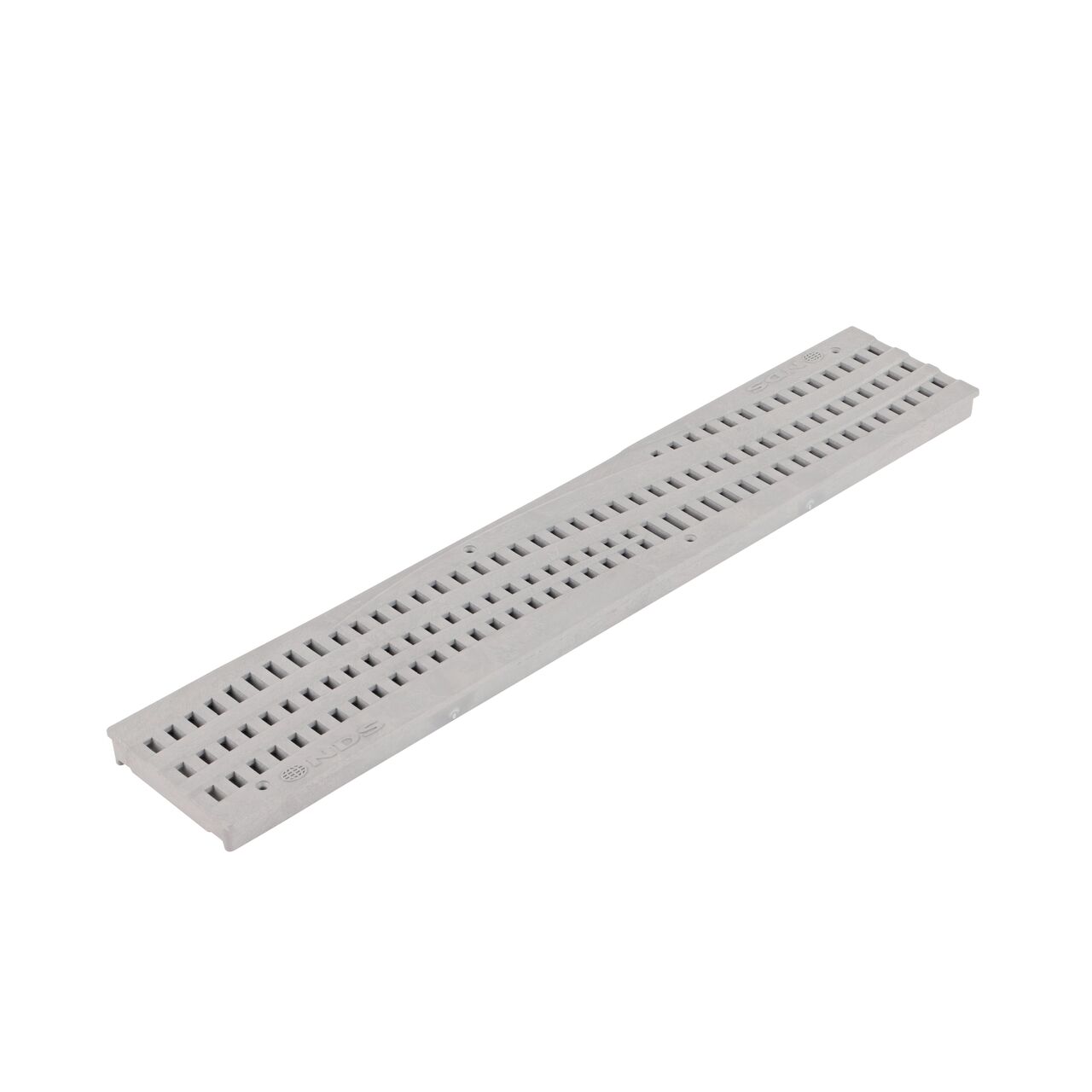

NDS Spee-D® Channel Drain Grate, Decorative Wave Design in Gray Plastic fits Spee-D Channel Drain (NDS 253GYRTL, NDS 253GY)

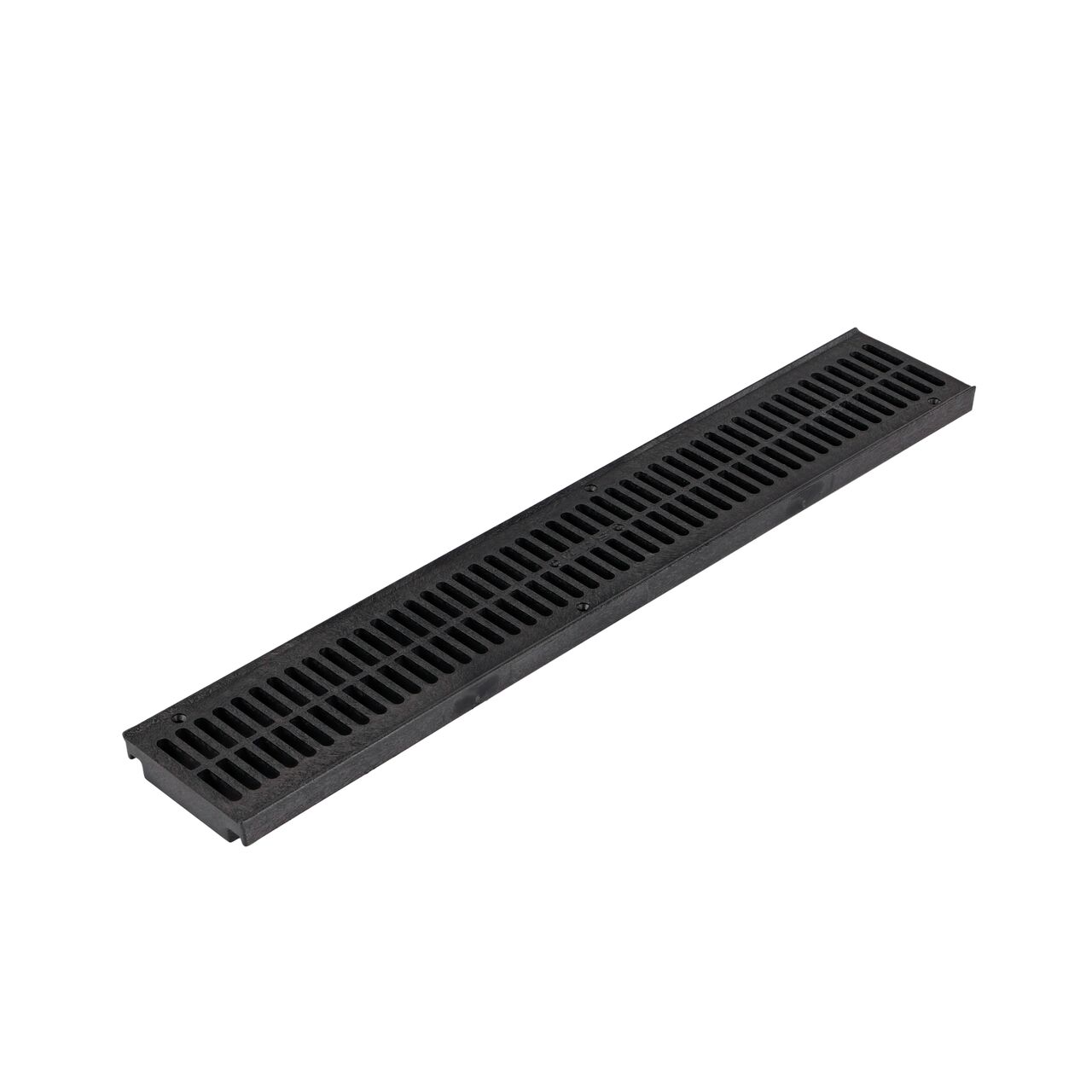

NDS Black Spee-D® Channel Drain Grate (NDS 243-1*) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain; retail

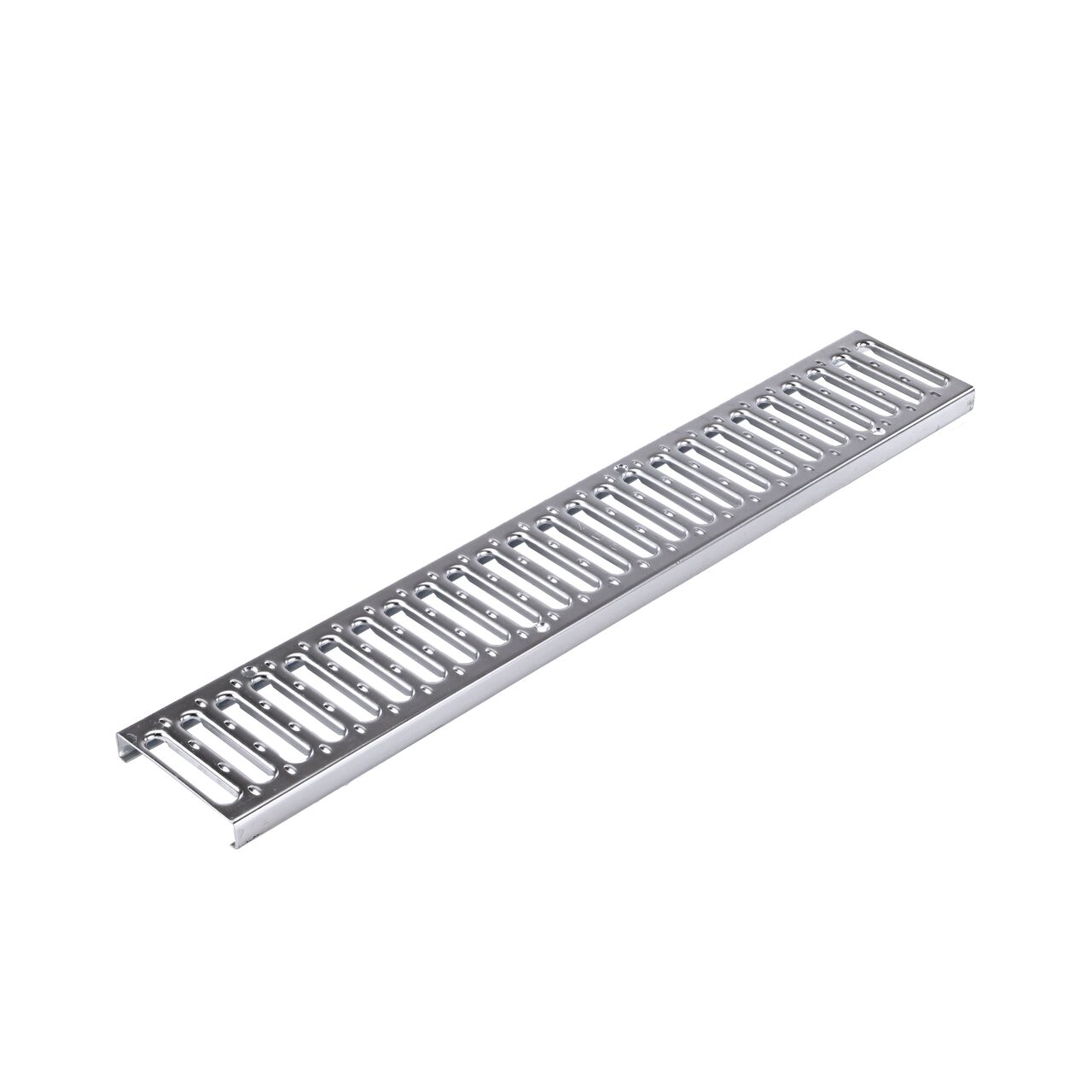

NDS Spee-D® Galvanized Steel Channel Drain Grate (NDS 254) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain

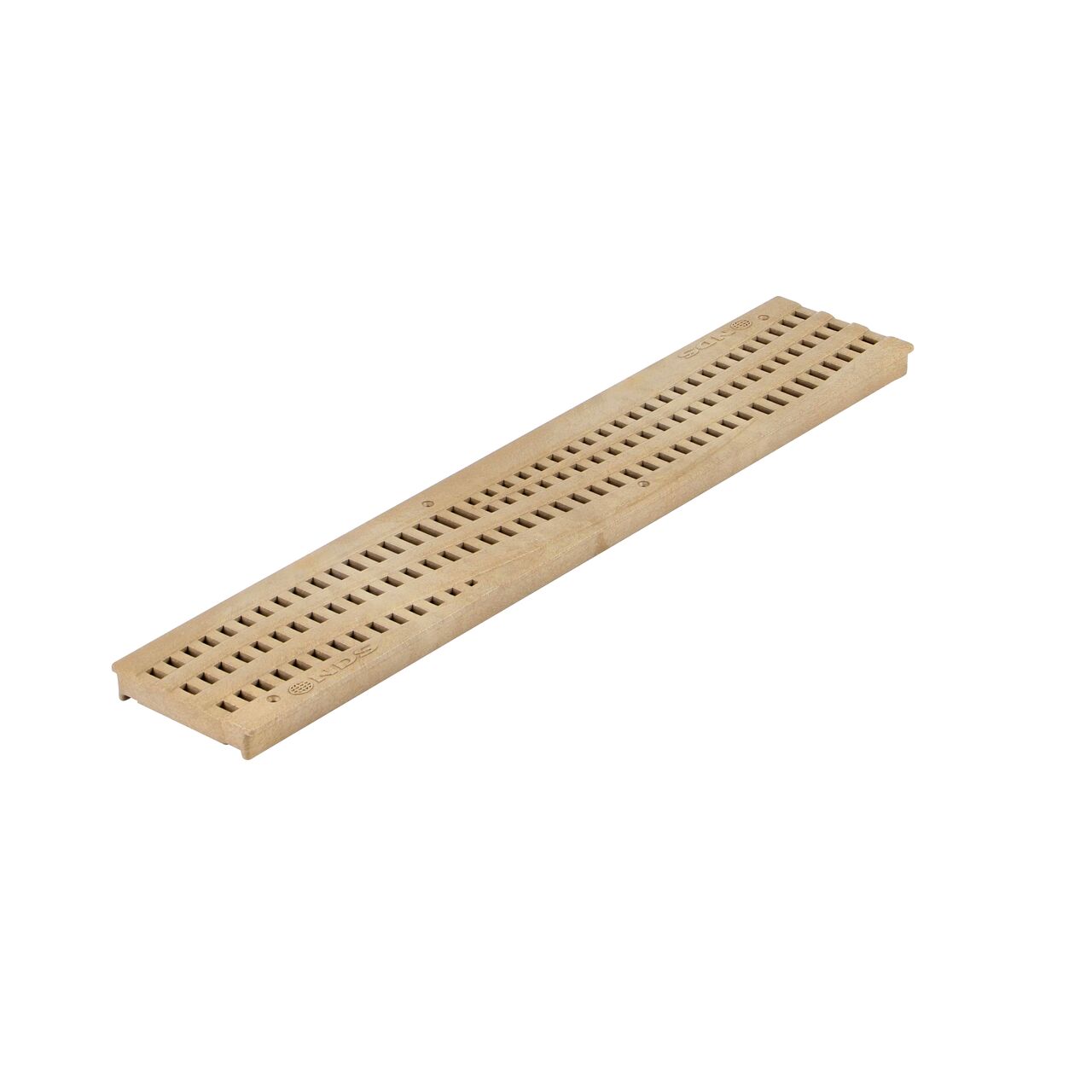

NDS Spee-D® Channel Drain Grate, Decorative Wave Design in Sand Plastic fits Spee-D Channel Drain (NDS 253S)
NDS Spee-D® Channel Drain Grate, Decorative Botanical Design in Gray Plastic fits Spee-D Channel Drain (NDS 252GY)

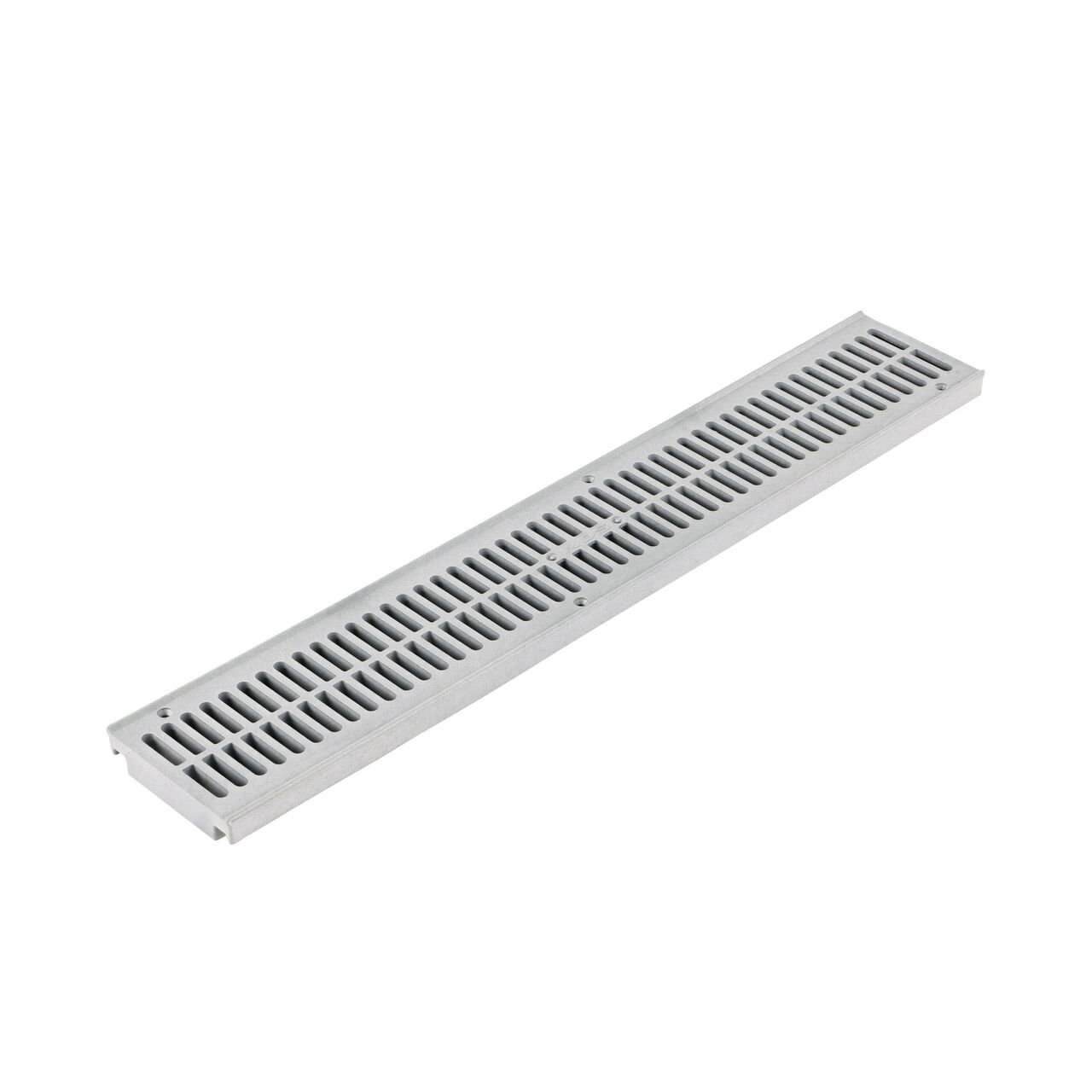

NDS Gray Spee-D® Channel Drain Grate (NDS 241-1*) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain; retail

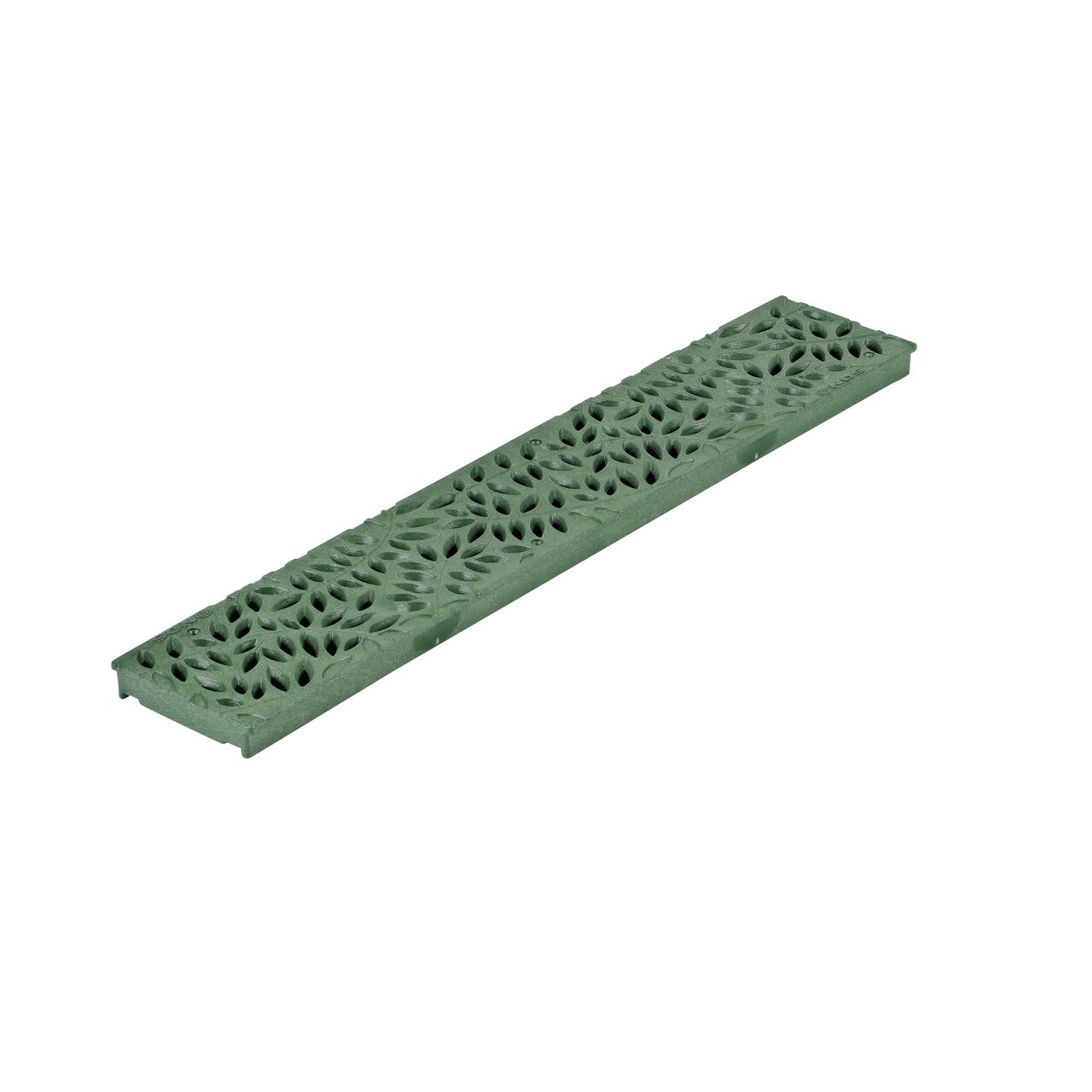

NDS Spee-D® Channel Drain Grate, Decorative Botanical Design in Green Plastic fits Spee-D Channel Drain (NDS 252GR)

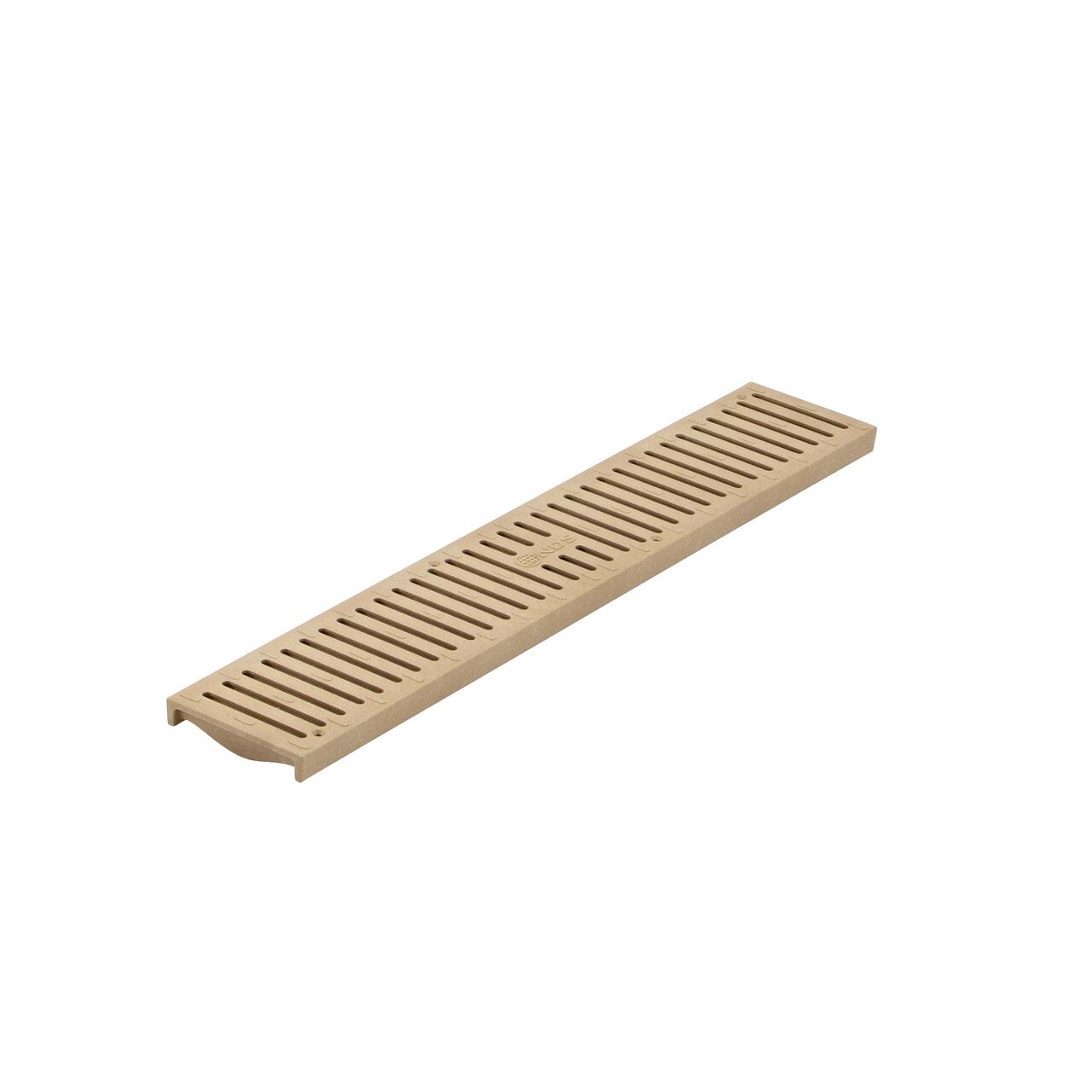

NDS Spee-D® Channel Drain Grate in Sand Plastic fits Spee-D Channel Drain (NDS 244)

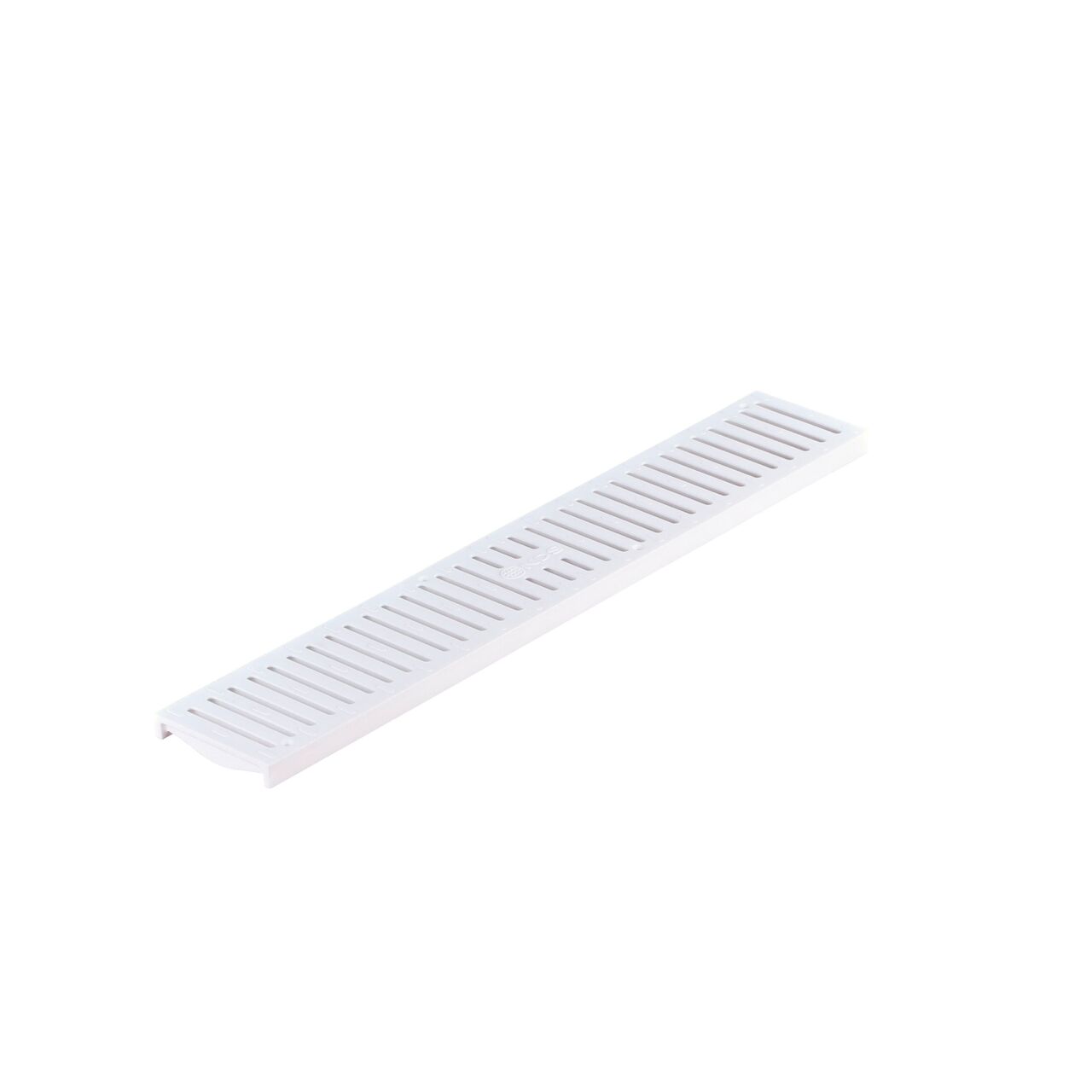

NDS Spee-D® Channel Drain Grate in White Plastic fits Spee-D Channel Drain (NDS 240)

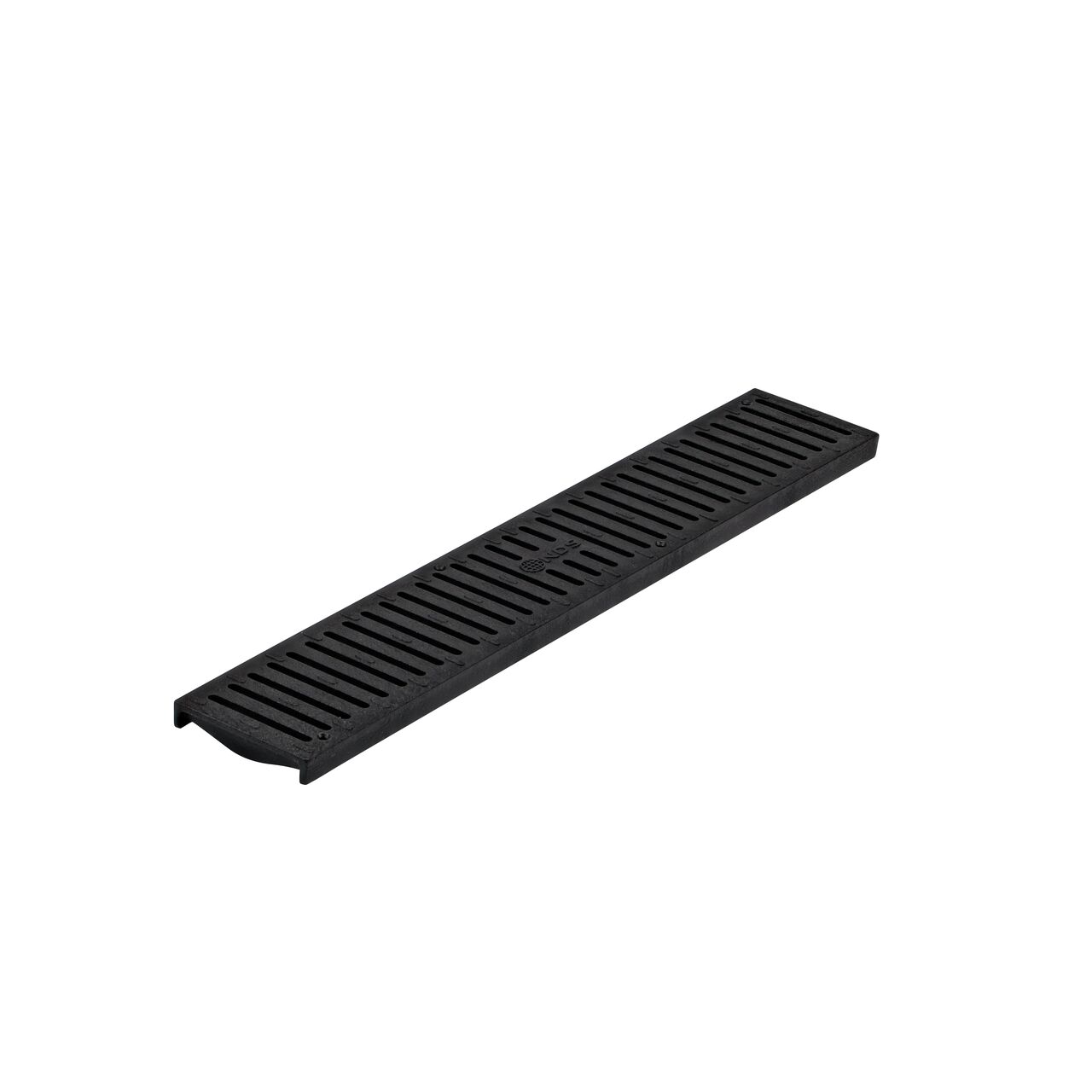

NDS Spee-D® Channel Drain Grate in Black Plastic fits Spee-D Channel Drain (NDS 243)
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
Green NDS Spee-D® Channel Drain Grate in Decorative Wave Design fits Spee-D Channel Drain (NDS 253GR) and drains water from your yard
NDS Spee-D® Channel Drain Grate, Decorative Wave Design in Gray Plastic fits Spee-D Channel Drain (NDS 253GYRTL, NDS 253GY)
NDS Black Spee-D® Channel Drain Grate (NDS 243-1*) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain; retail
NDS Spee-D® Galvanized Steel Channel Drain Grate (NDS 254) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain
NDS Spee-D® Channel Drain Grate, Decorative Wave Design in Sand Plastic fits Spee-D Channel Drain (NDS 253S)
NDS Spee-D® Channel Drain Grate, Decorative Botanical Design in Gray Plastic fits Spee-D Channel Drain (NDS 252GY)
NDS Gray Spee-D® Channel Drain Grate (NDS 241-1*) for driveways, concrete patios, pool areas, and walkways fits Spee-D Channel Drain; retail
NDS Spee-D® Channel Drain Grate, Decorative Botanical Design in Green Plastic fits Spee-D Channel Drain (NDS 252GR)
NDS Spee-D® Channel Drain Grate in Sand Plastic fits Spee-D Channel Drain (NDS 244)
NDS Spee-D® Channel Drain Grate in White Plastic fits Spee-D Channel Drain (NDS 240)
NDS Spee-D® Channel Drain Grate in Black Plastic fits Spee-D Channel Drain (NDS 243)

Key Features

  • Spee-D Channel Drains are 4-3/4 in. wide, 3-3/4 in. high, and 4 ft. long; length can be cut to size with a saw
  • Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
  • Unique flanges on the bottom of the channel provide an anchoring lip for straight installation and prevents floating
  • Customize system design with a variety of accessories
  • Grates available in an assortment of colors, materials, and styles

Applications

  • Manages moderate water flows from driveways, concrete and paver patios, pool areas, courtyards, and walkways
  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • The Spee-D Channel Drain and grate, as part of a complete drainage system, captures excess surface water and directs water away to connected drain pipes for proper release downstream or to an infiltration device

Installation & Maintenance

  • Use solvent-weld PVC glue to create a water-tight connection between the outlet and pipe glue
  • Removable drain grates make it easier to clean debris from the channel for maintenance

Materials & Sustainability

  • Channels are made in the USA
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Filter results
Family
Color
Shape

35 products

    Part Number
    (click for more info)    		 Description
    230 6 in. Profile Channel Installation Stakes, Pack of 24
    2301 Spee-D® Channel Drain 45° Elbow and Grate, Gray Plastic
    2381 Spee-D® Channel Drain 90° Elbow and Grate, Gray Plastic
    400-10MTL Spee-D® Channel Drain Assembly, 4-3/4 in. wide X 10 ft. long with Channel & Prefastened Galv. Steel Grates
    400-10WH Spee-D® Channel Drain Assembly, 4-3/4 in. wide X 10 ft. long with Channel & Prefastened Gray Plastic Grates
    2351 Spee-D® Channel Drain Bottom Outlet Assembly, 4-3/4 in. X 7 in. with Channel and Prefastened Gray Plastic Grate
    2350 Spee-D® Channel Drain Bottom Outlet, Connects to 3 in. & 4 in. Sewer and Drain Fittings
    248 Spee-D® Channel Drain Coupling
    2361 Spee-D® Channel Drain Cross and Grate, Gray Plastic
    247 Spee-D® Channel Drain End Cap
    246 Spee-D® Channel Drain End Outlet, Fits 2 in. Fittings
    243 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Black Plastic
    251 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Brick Red Plastic
    252CI Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Decorative Botanical Design, Cast Iron
    253CI Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Decorative Wave Design, Cast Iron
    254 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Galv. Steel
    241 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Gray Plastic
    242 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Green Plastic
    244 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, Sand Plastic
    240 Spee-D® Channel Drain Grate, 4-1/8 in. wide X 2 ft. long, White Plastic
    252 Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Botanical Design, Black Plastic
    252GY Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Botanical Design, Gray Plastic
    252GR Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Botanical Design, Green Plastic
    252S Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Botanical Design, Sand Plastic
    253 Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Wave Design, Black Plastic
    253GY Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Wave Design, Gray Plastic
    253S Spee-D® Channel Drain Grate, 4-7/16 in. wide X 2 ft. long, Decorative Wave Design, Sand Plastic
    249 Spee-D® Channel Drain Offset End Outlet, Connects to 3 in. Drain Pipe and 4 in. Drain Fittings
    245 Spee-D® Channel Drain Strainer Coupling
    2371 Spee-D® Channel Drain Tee and Grate, Gray Plastic
    234 Spee-D® Channel Drain with Bottom Outlet, 4-3/4 in. X 2 ft., Connects to 3 in. and 4 in. Drain Fittings
    400-10 Spee-D® Channel Drain, 4-3/4 in. wide X 10 ft. long
    400 Spee-D® Channel Drain, 4-3/4 in. wide X 4 ft. long
    400-ACSE-WH Spee-D® Contour™ Channel Drain Kit with Start and End Sections, 4-3/4 in. Wide X 6 in. Long, Two Channels with Gray Grates, 4 SS Grate Screws
    400-ACM-WH Spee-D® Contour™ Channel Drain Middle Section and Gray Grate, 4-3/4 in. Wide X 6 in. Long, 2 SS Grate Screws

    Specifications & Documents

    Channel & Trench Drains & Grates

    Yes, galvanized steel and cast iron grates are available for the Spee-D Channel.

    Yes. Prefabricated 45°, 90°, tees, and crosses can be purchased. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.

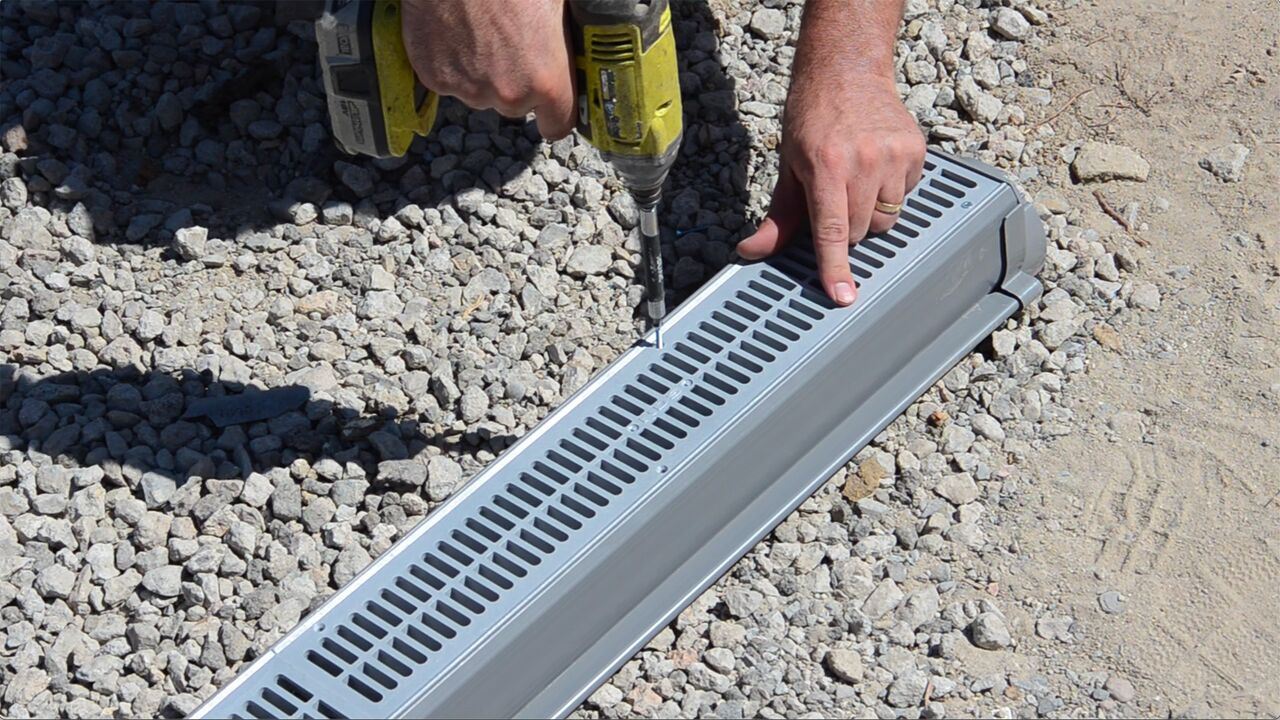

    The grates can be screwed to the channel using NDS part #229 stainless steel screws.

    Sections of Spee-D Channel can be connected using either the Channel Strainer Coupling (NDS part #245) or the Channel Coupling (NDS part #248).

    There are two options to drain the water out of the Spee-D Channel: the end of the channel or the bottom of the channel.

    The channel itself handles 94.3 GPM at 1% slope. Grate flow rate is between 23.70 to 59.04 GPM per linear foot.

    Spee-D Channel grates are available in white, grey, green, black, sand, and brick red.

    The plastic grates are rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h.

    The Spee-D Channel is available in 4 foot and 10-foot sections. The channel can be easily cut to any length.
