Spee-D® Channel Drain, 4-3/4 in. wide X 10 ft. long

SKU: 400-10

Connect one end of the NDS Spee-D® Channel Drain and Grate with 45° Elbow, Gray Plastic (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

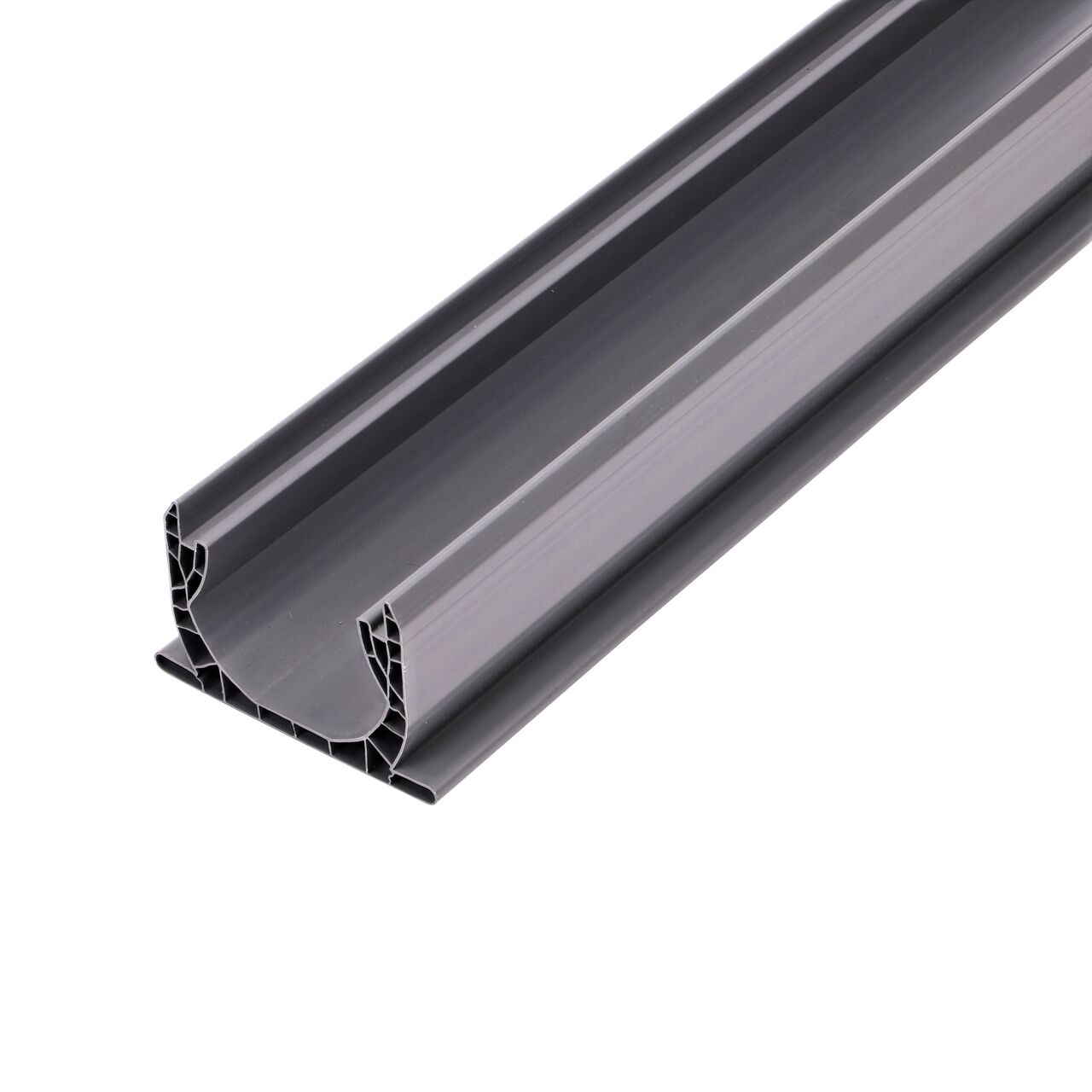

Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
Closeup of the NDS Spee-D® Channel Drain End Cap (NDS 247) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) connects to Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the NDS Spee-D® Channel Drain Offset End Outlet (NDS 249) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) securely connects two Spee-D® Channel Drains (NDS 400, NDS 400-10)
Connect the other end of the gray NDS Spee-D® Channel Drain and Grate with 45° Elbow (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system
Connect one end of the NDS Spee-D® Channel Drain and Grate with 45° Elbow, Gray Plastic (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
Closeup of the NDS Spee-D® Channel Drain End Cap (NDS 247) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) connects to Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the NDS Spee-D® Channel Drain Offset End Outlet (NDS 249) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) securely connects two Spee-D® Channel Drains (NDS 400, NDS 400-10)
Connect the other end of the gray NDS Spee-D® Channel Drain and Grate with 45° Elbow (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

The 10 ft. long Spee-D® Channel Drain made of polyvinyl chloride is easy to install and ideal for collecting and conveying moderate flows of runoff from driveways, concrete and paver patios, pool areas, courtyards, and walkways to your drainage system. The Spee-D Channel Drain features patented honeycomb reinforced walls and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating. Channels connect with a coupling. Spee-D Channels are made of polyvinyl chloride (PVC) treated with UV inhibitors, and part of the NDS Profile Channel series.

Where to Buy Find a Pro

Applications:

  • Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
  • Spee-D Channel Drain system collects light to moderate water flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways, and directs it to drain pipes for proper release downstream
  • Works with Spee-D Channel Drain components, part of the NDS Profile Channel series

Features:

  • Spee-D Channel Drains are 4-3/4 in. wide, 3-3/4 in. high, and 10 ft. long, length can be cut to size with a saw
  • Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
  • Bottom flanges provide an anchoring lip for straight installation and prevents floating
  • Patented honeycomb reinforced walls provide durability
