Spee-D® Channel Drain Bottom Outlet Assembly, 4-3/4 in. X 7 in. with Channel and Prefastened Gray Plastic Grate

SKU: 2351

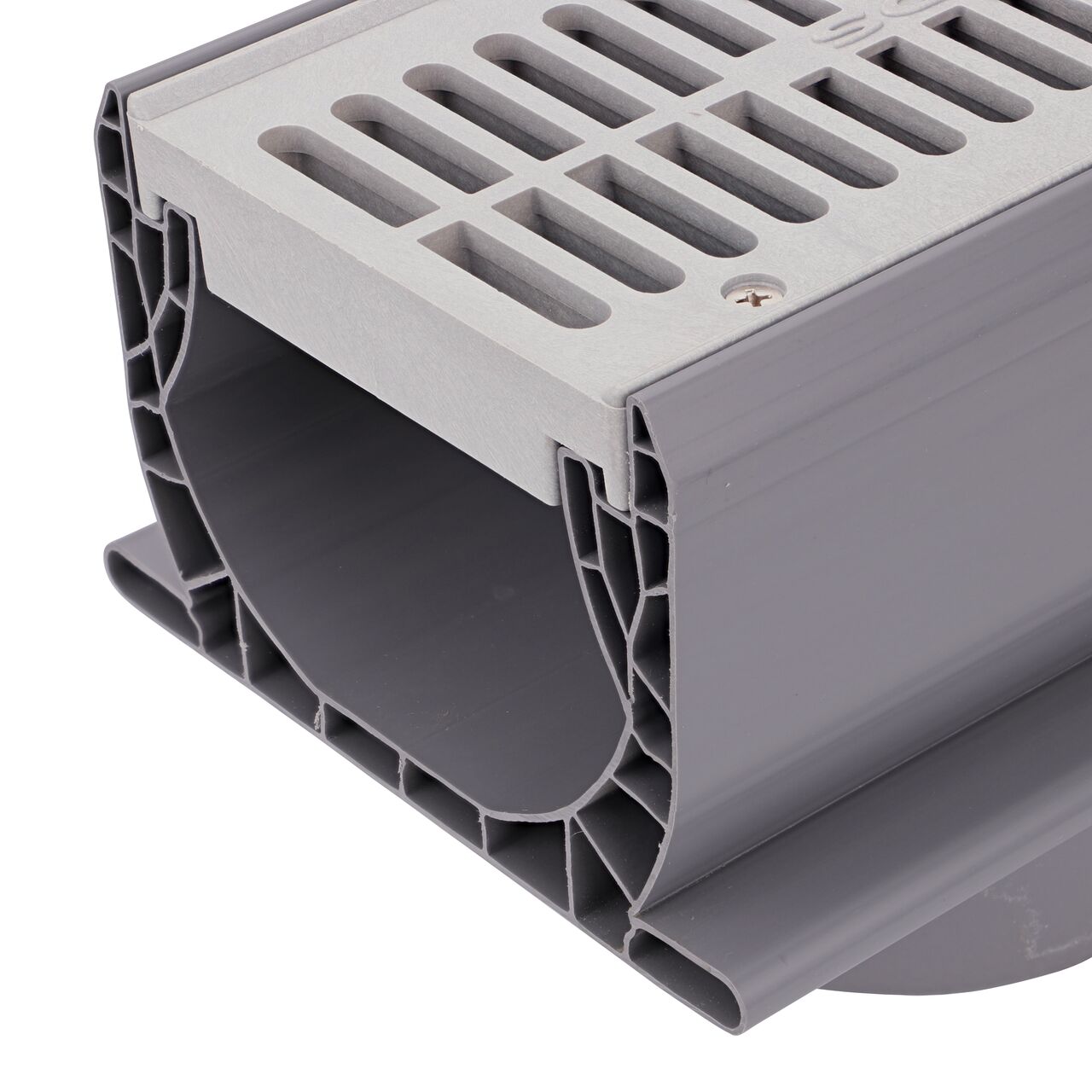

Closeup view of one end of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351)

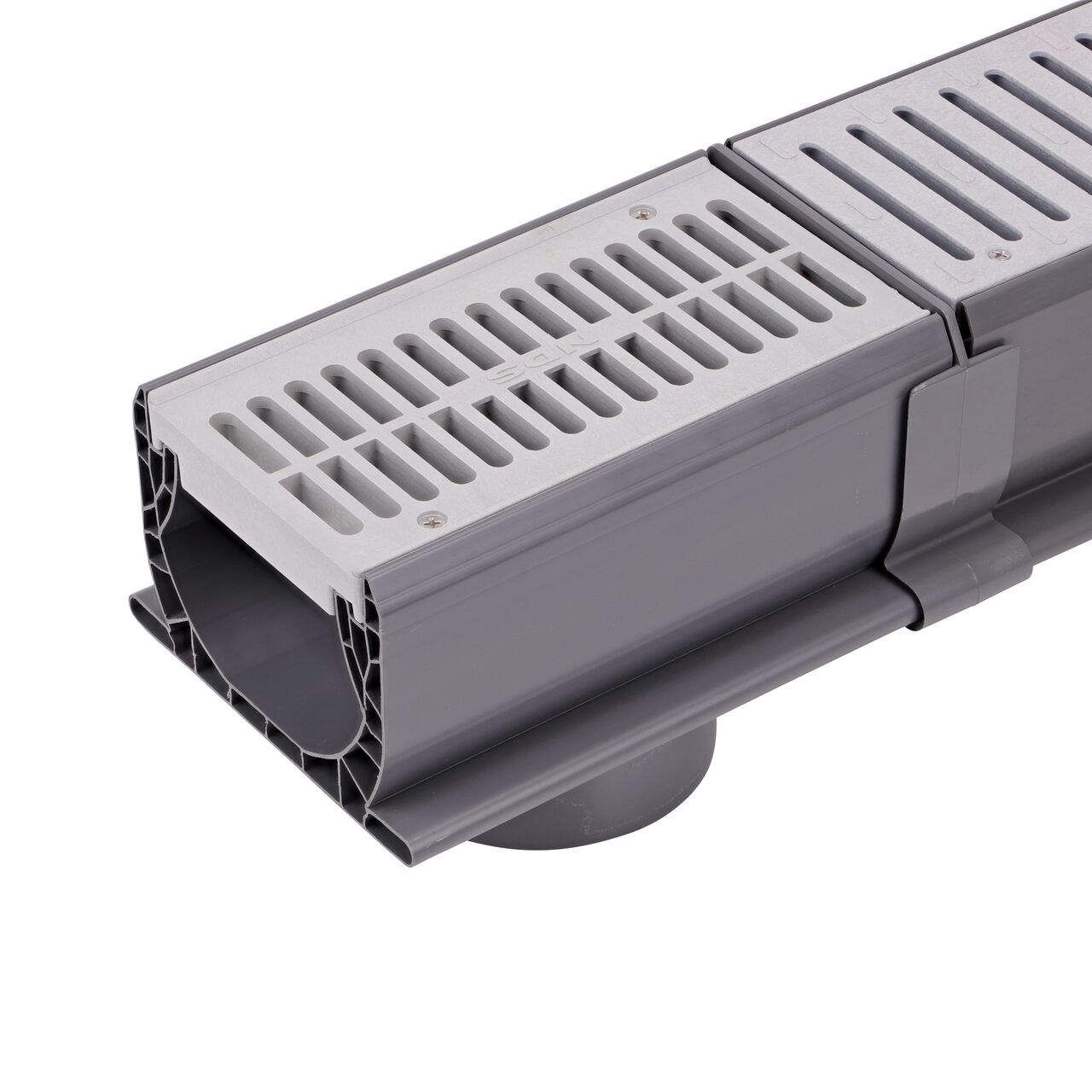

The Spee-D® Channel Drain Bottom Outlet Assembly can attach to any Spee-D® Channel Drain on either end (NDS 2351)

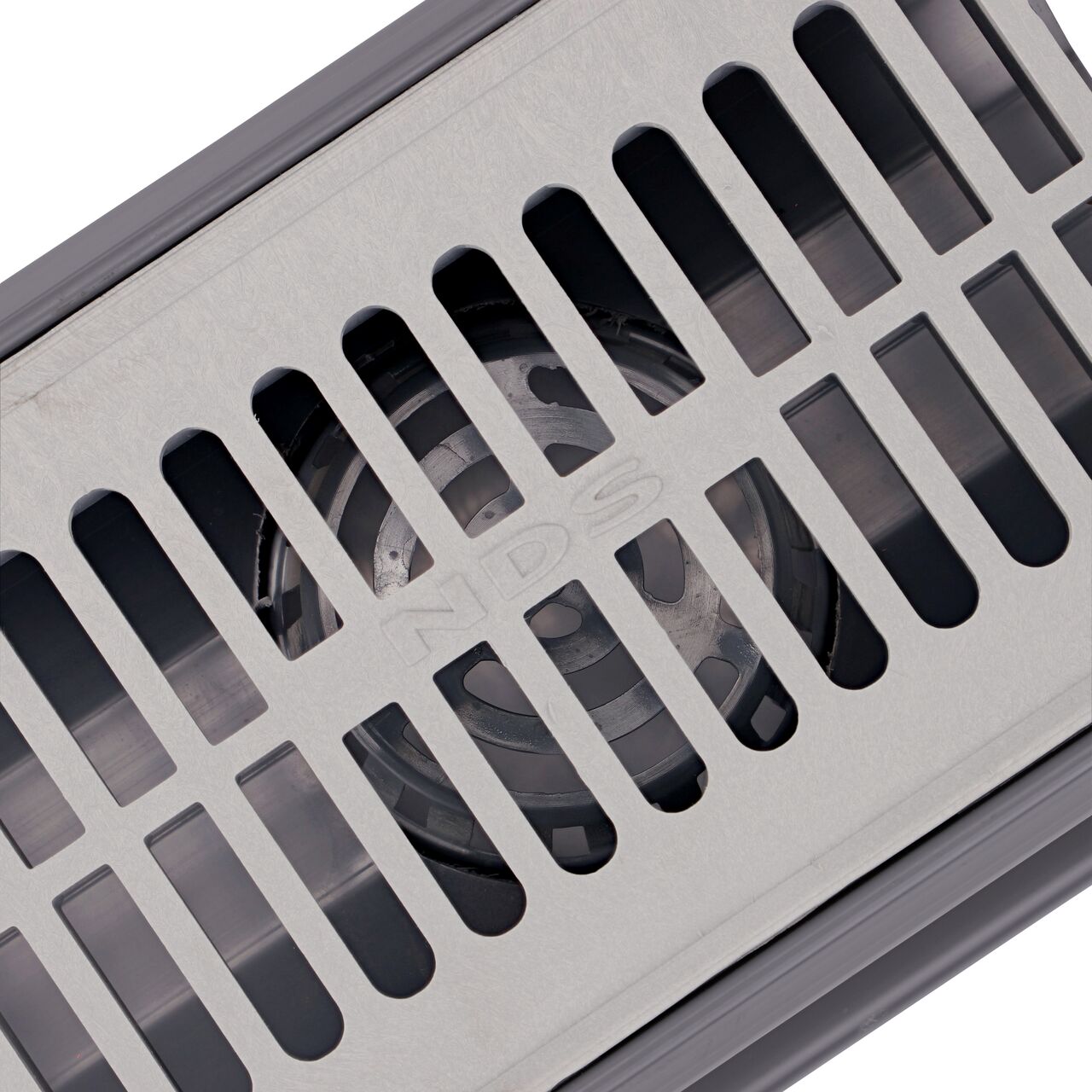

Top down inside view of the grate inside the Spee-D® Channel Drain Bottom Outlet Assembly which connects to drainage pie in the bottom of the drain (NDS 2351*, NDS 2351)

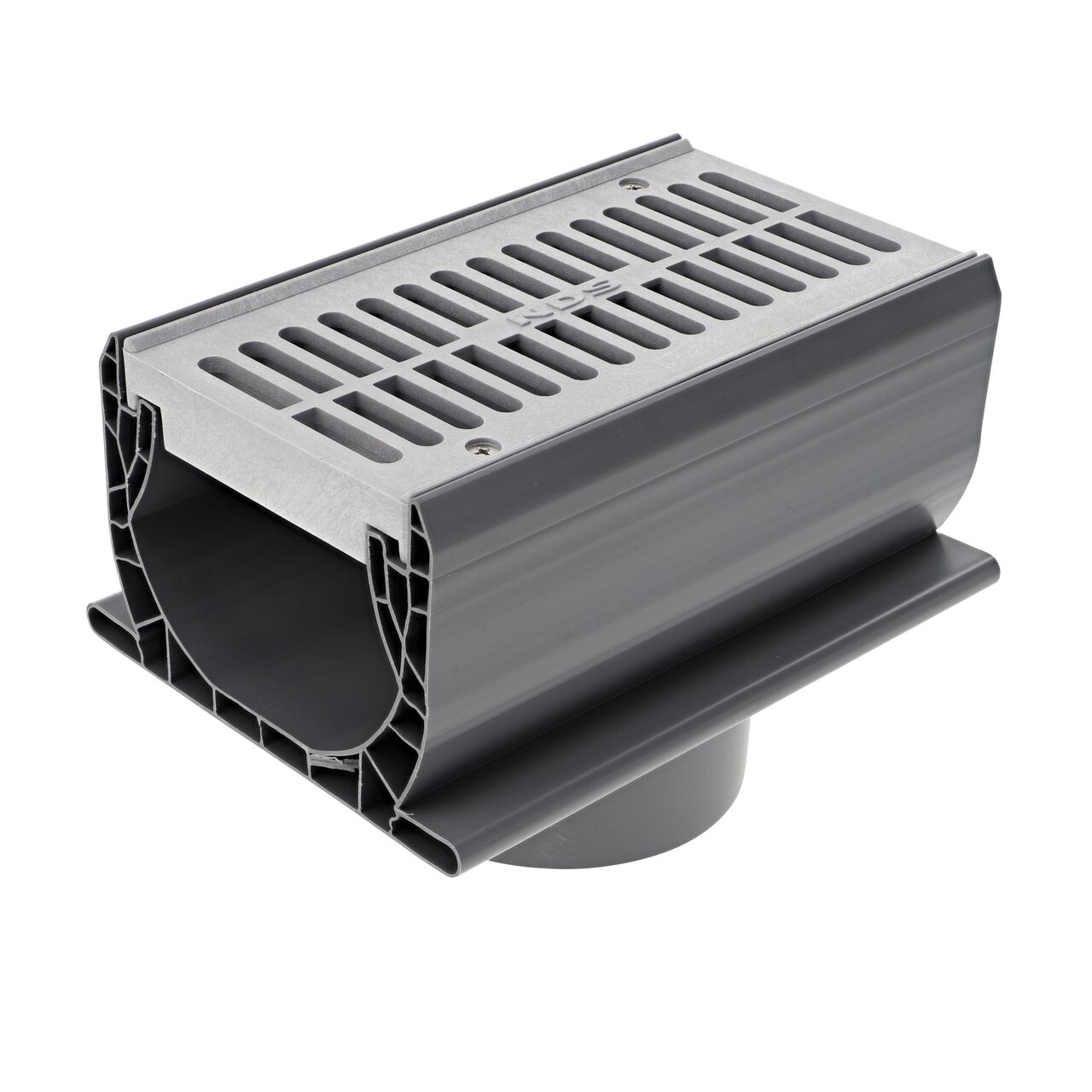

Spee-D® Channel Drain Bottom Outlet Assembly works with the Spee-D Channel Drain System and connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)

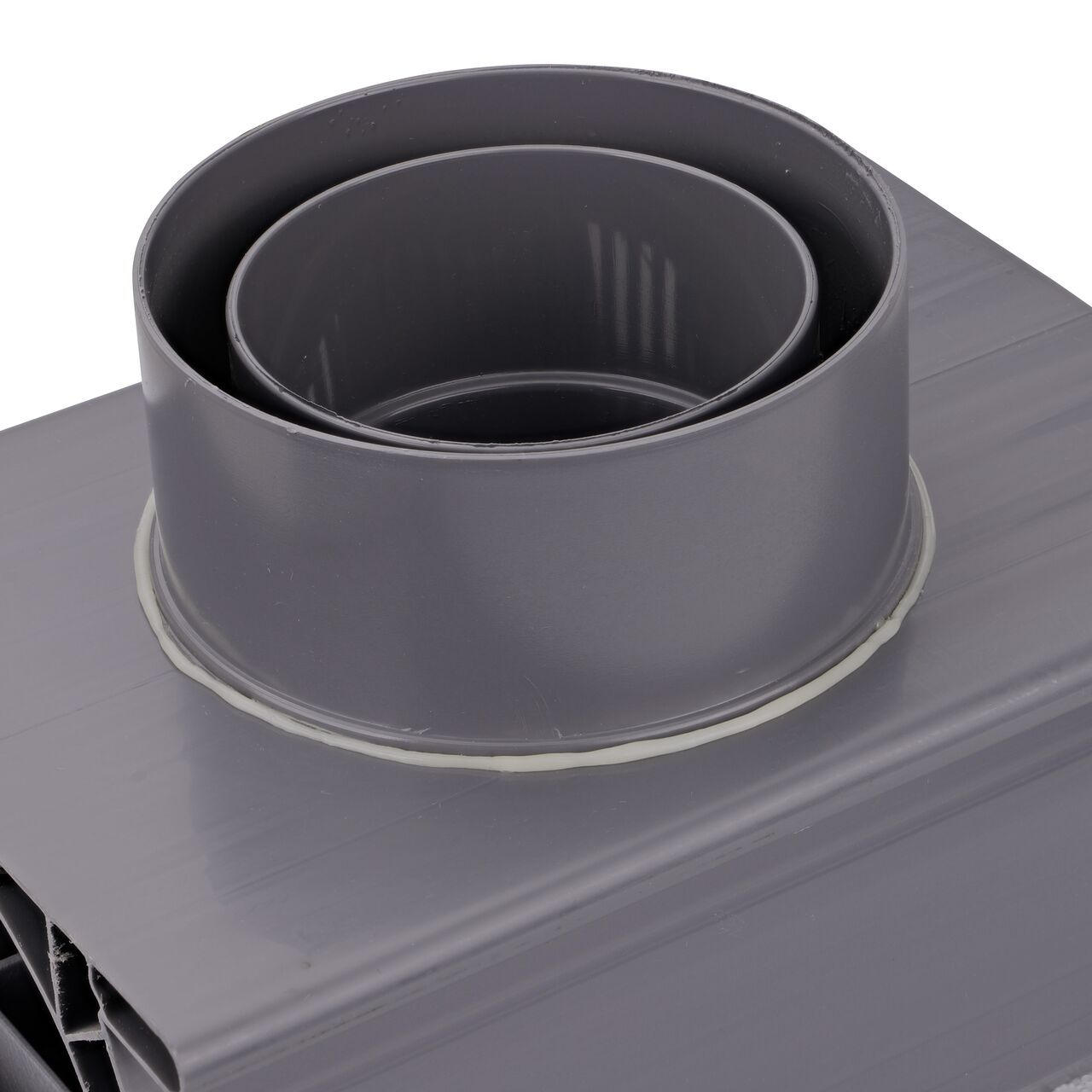

Closeup view of the 3 inch and 4 inch pipe connection end on the bottom of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351)

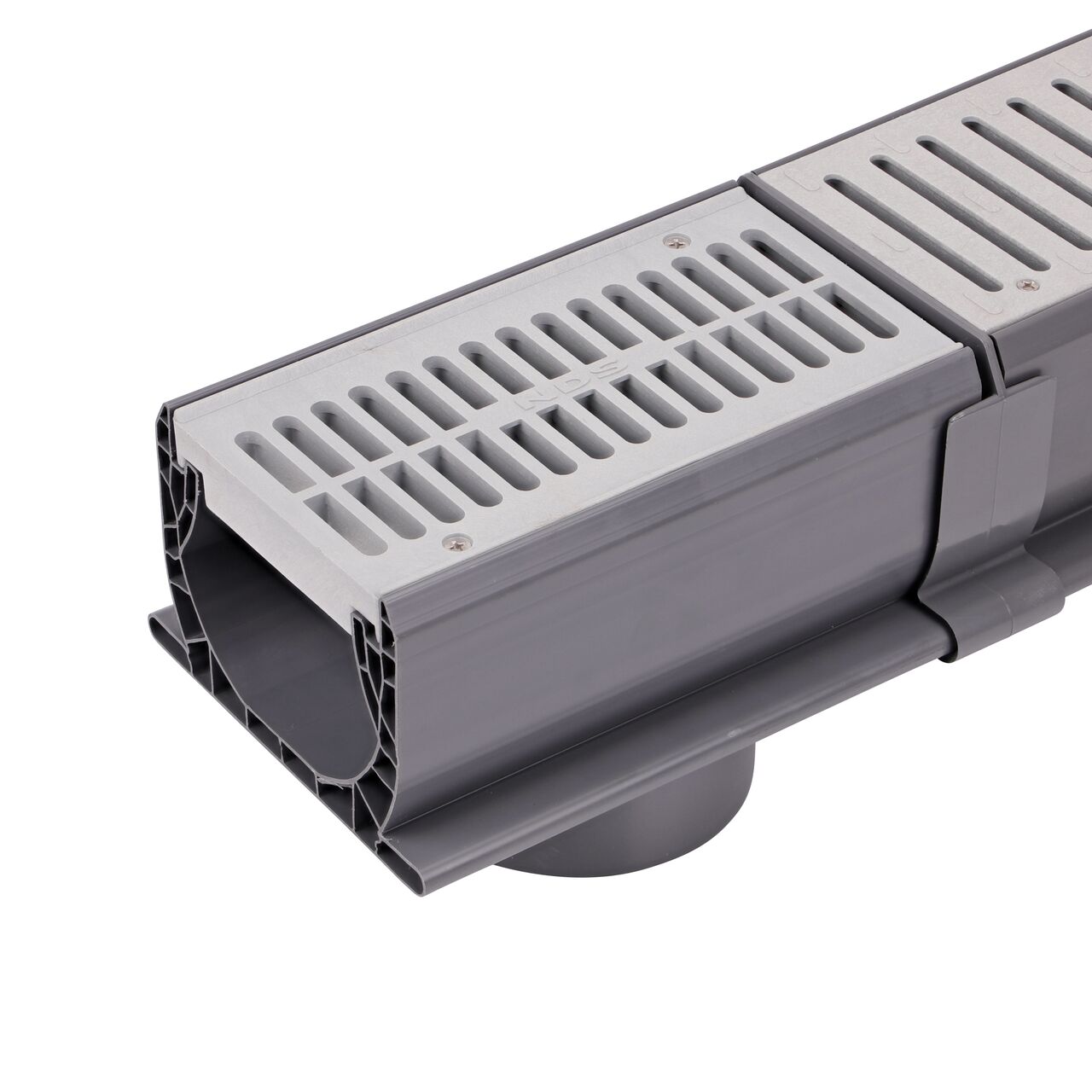

The Spee-D® Channel Drain Bottom Outlet Assembly can attach to any Spee-D® Channel Drain on either end using the Spee-D® Channel Drain Coupling (NDS 2351, NDS 248)

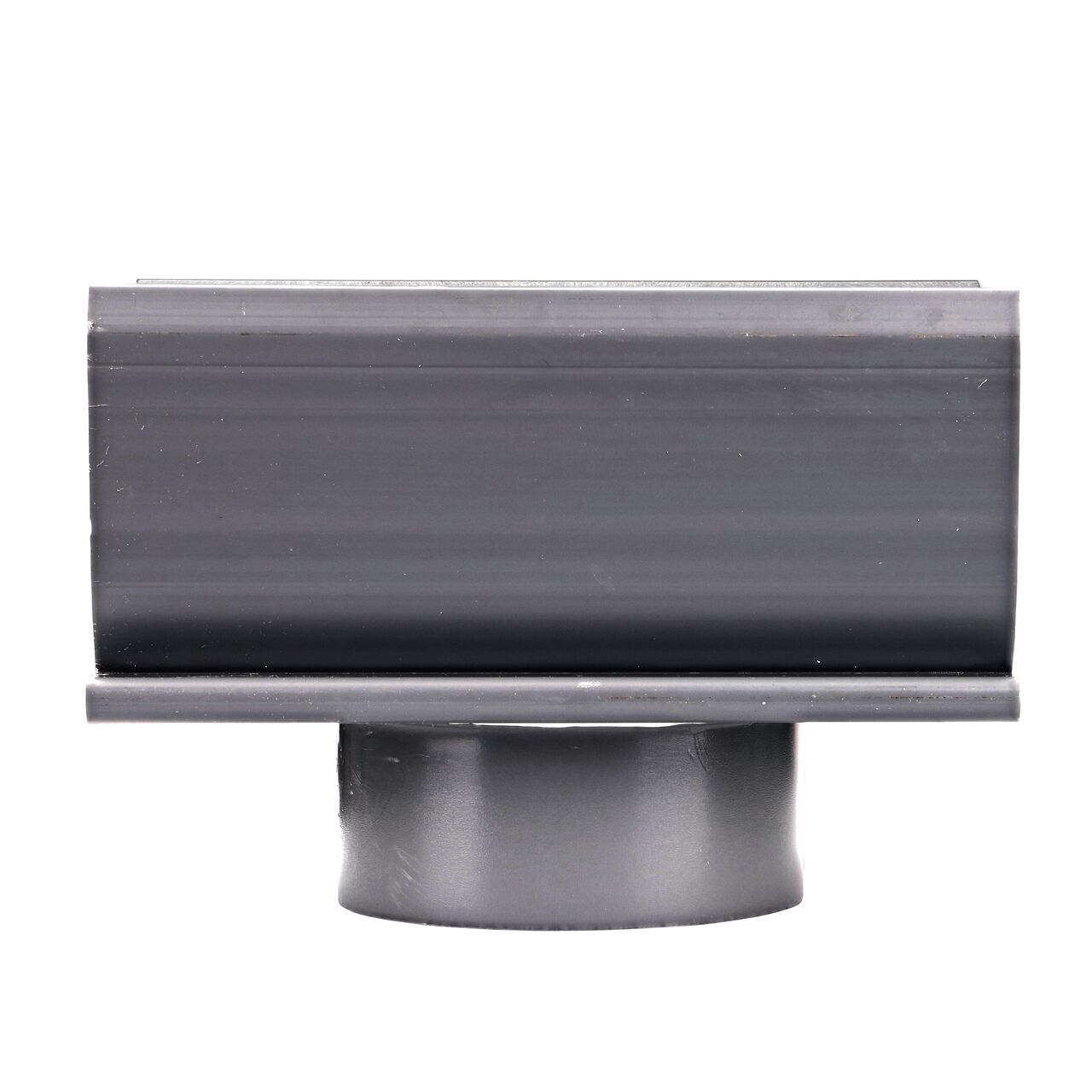

Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the length of the drain accessory for the Spee-D Channel Drain System and the outside of the bottom outlet (NDS 2351*, NDS 2351)

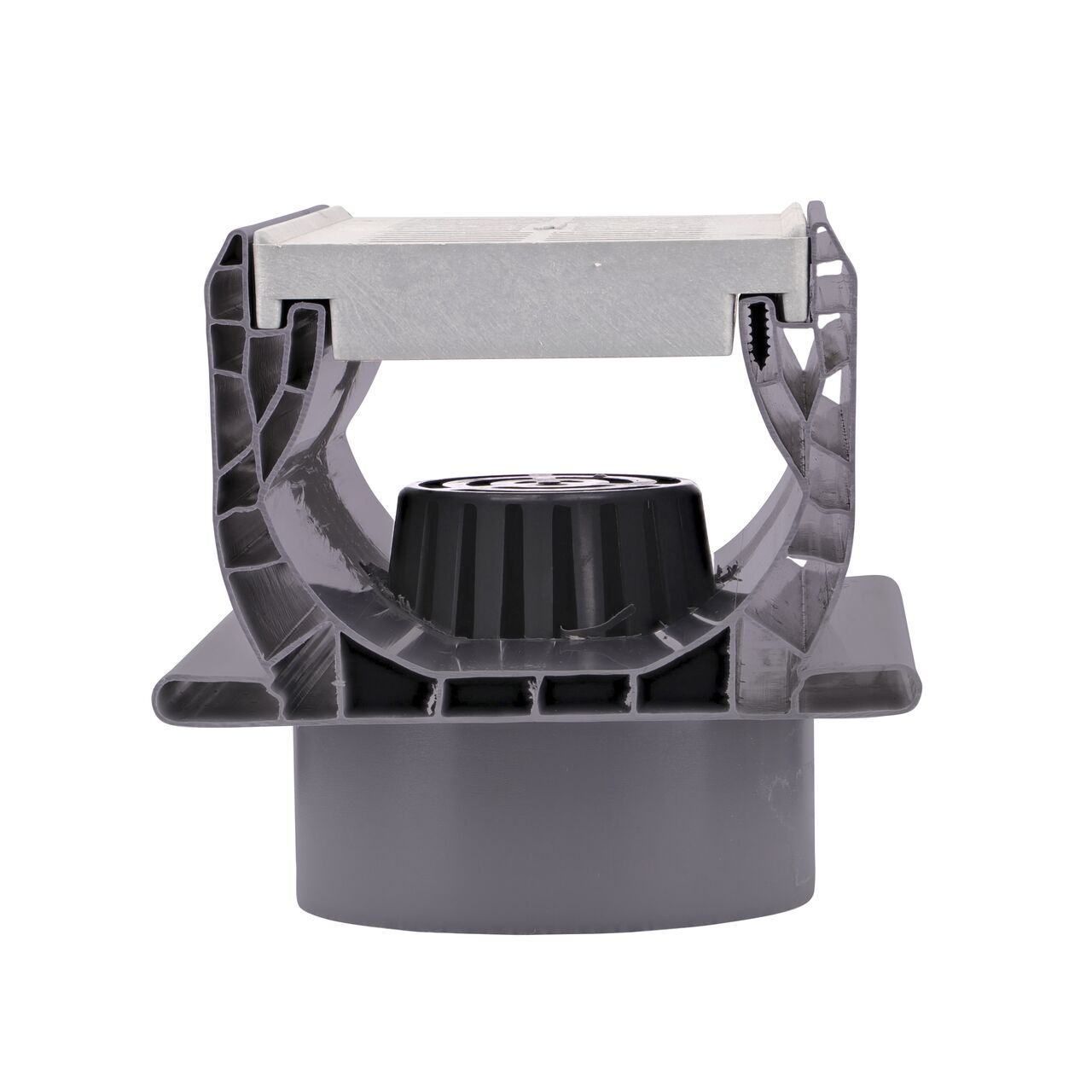

Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the connection with the Spee-D Channel Drain System and the inside drain that connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)

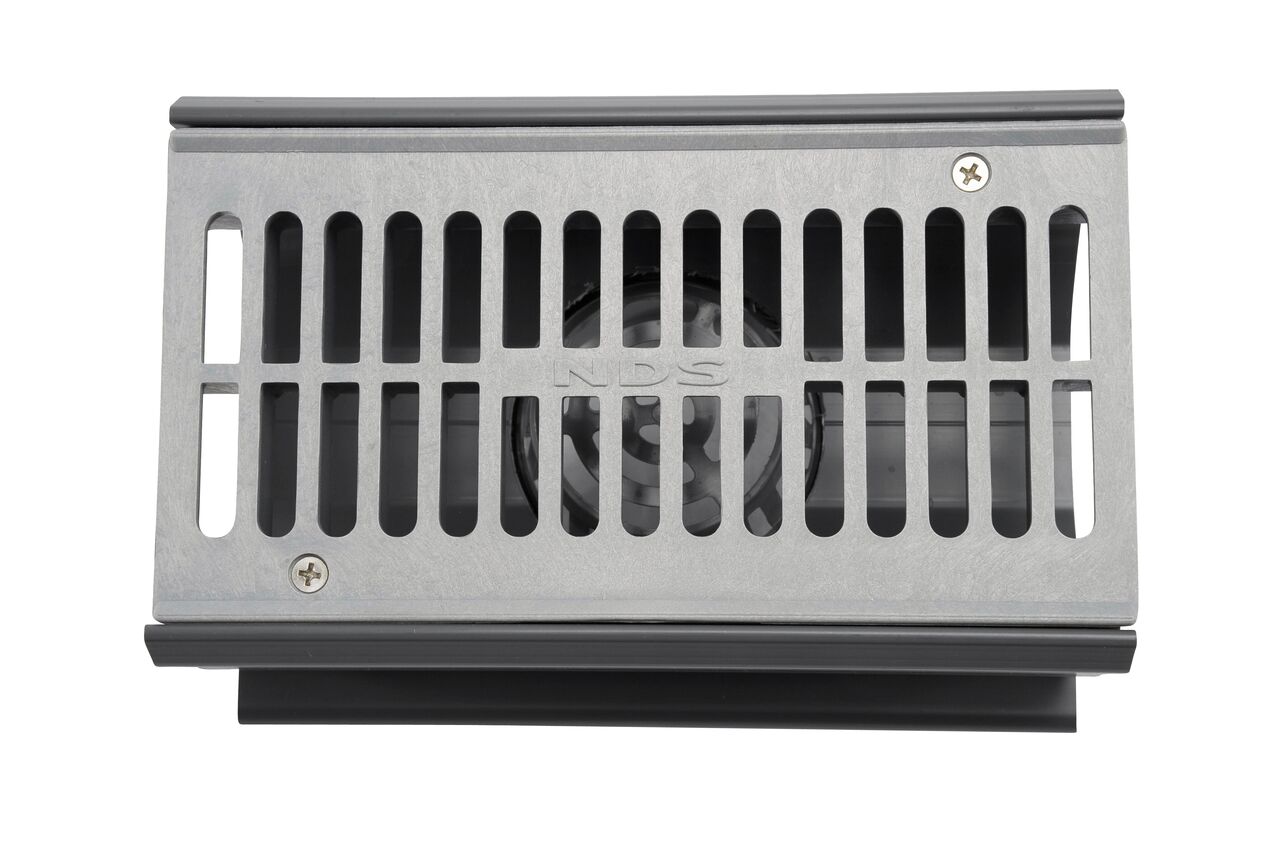

See the grate design and the bottom pipe connection of the Spee-D® Channel Drain Bottom Outlet Assembly which works with the Spee-D Channel Drain System and connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)

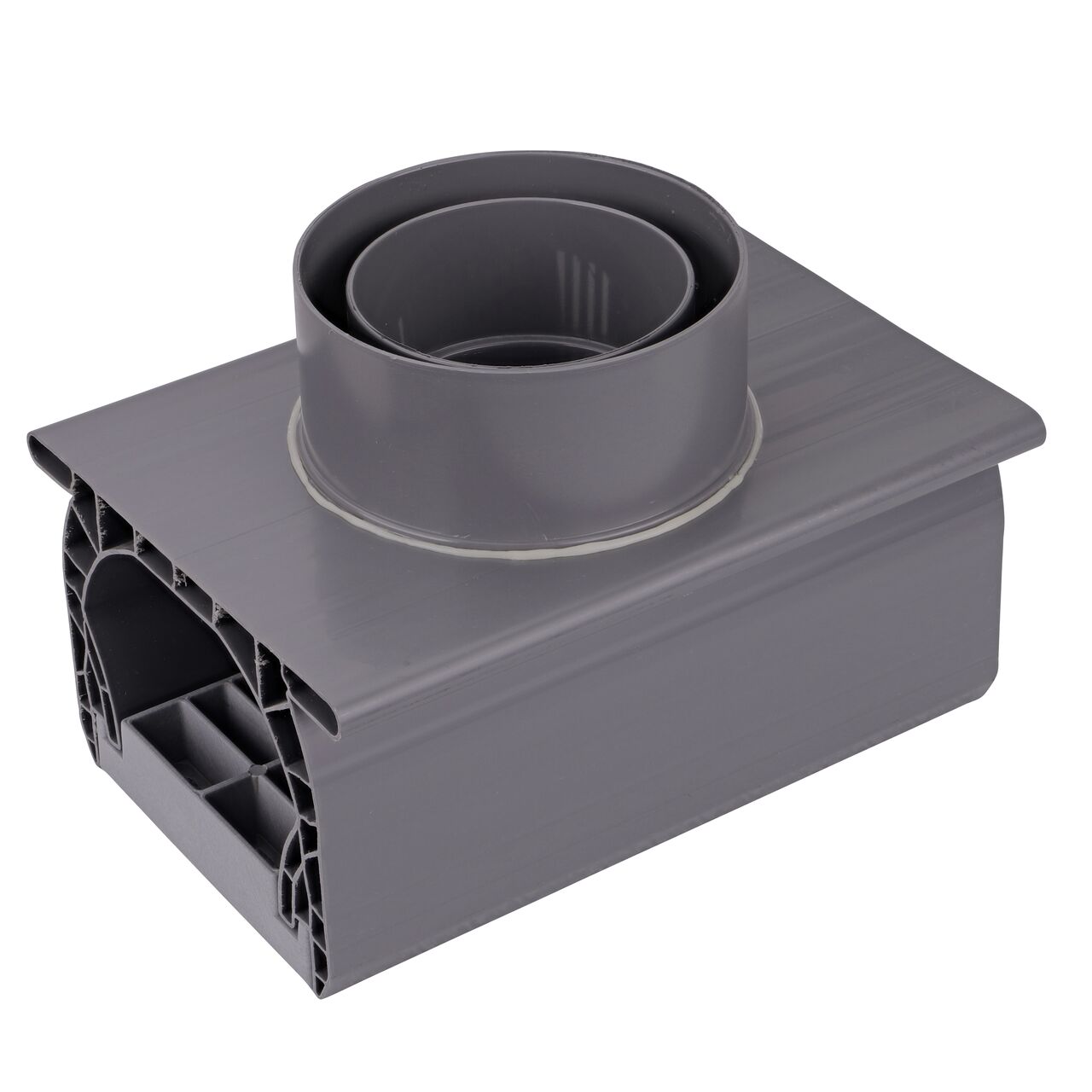

Bottom view of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351) shows fitting connection point to connect to 3 inch or 4 inch drain pipe

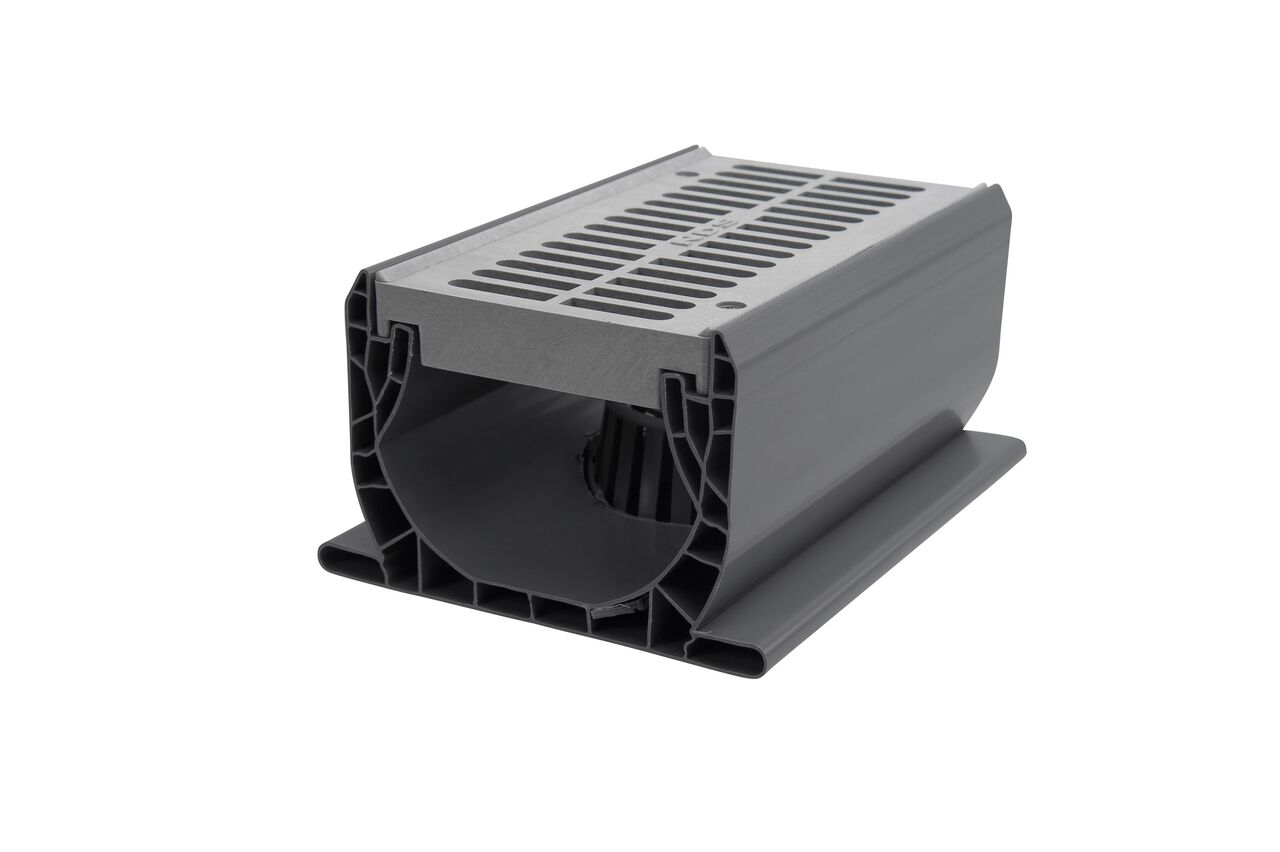

Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the connection with the Spee-D Channel Drain System and the inside drain that connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)
Closeup view of one end of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351)
The Spee-D® Channel Drain Bottom Outlet Assembly can attach to any Spee-D® Channel Drain on either end (NDS 2351)
Top down inside view of the grate inside the Spee-D® Channel Drain Bottom Outlet Assembly which connects to drainage pie in the bottom of the drain (NDS 2351*, NDS 2351)
Spee-D® Channel Drain Bottom Outlet Assembly works with the Spee-D Channel Drain System and connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)
Closeup view of the 3 inch and 4 inch pipe connection end on the bottom of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351)
The Spee-D® Channel Drain Bottom Outlet Assembly can attach to any Spee-D® Channel Drain on either end using the Spee-D® Channel Drain Coupling (NDS 2351, NDS 248)
Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the length of the drain accessory for the Spee-D Channel Drain System and the outside of the bottom outlet (NDS 2351*, NDS 2351)
Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the connection with the Spee-D Channel Drain System and the inside drain that connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)
See the grate design and the bottom pipe connection of the Spee-D® Channel Drain Bottom Outlet Assembly which works with the Spee-D Channel Drain System and connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)
Bottom view of the Spee-D® Channel Drain Bottom Outlet Assembly (NDS 2351*, NDS 2351) shows fitting connection point to connect to 3 inch or 4 inch drain pipe
Side view of the Spee-D® Channel Drain Bottom Outlet Assembly showing the connection with the Spee-D Channel Drain System and the inside drain that connects to drainage pipe in the bottom of the drain (NDS 2351*, NDS 2351)

Capture and convey stormwater to drain pipe while blocking leaves and debris with the all-in-one Spee-D® Channel Drain Bottom Outlet Assembly. Installation time is cut down using the 7 in. channel drain with a prefastened channel drain grate. Bottom outlet, with built-in strainer, connects to 3 in. & 4 in. sewer and drain fittings. The Spee-D Channel Drain Bottom Outlet Assembly comes with a channel drain made of polyvinyl chloride (PVC) and channel drain grate made of high-density polyethylene (HDPE), treated with UV inhibitors. Spee-D Channels are part of the NDS Profile Channel series, and ideal for capturing moderate flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways.

Where to Buy Find a Pro

Applications:

  • Use the Spee-D Channel Drain Bottom Outlet Assembly anywhere along the channel run to outlet water to drain pipe, channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
  • Spee-D Channel Drain system collects moderate water flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways, and directs it to drain pipes for proper release downstream
  • Works with Spee-D Channel Drain system, part of the NDS Profile Channel series

Features:

  • Spee-D Channel with fabricated grate and bottom outlet measures 4 in. wide and 7 in. long, channel comes preassembled with removable grate
  • Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
  • Bottom flanges provide an anchoring lip for straight installation and prevents floating
