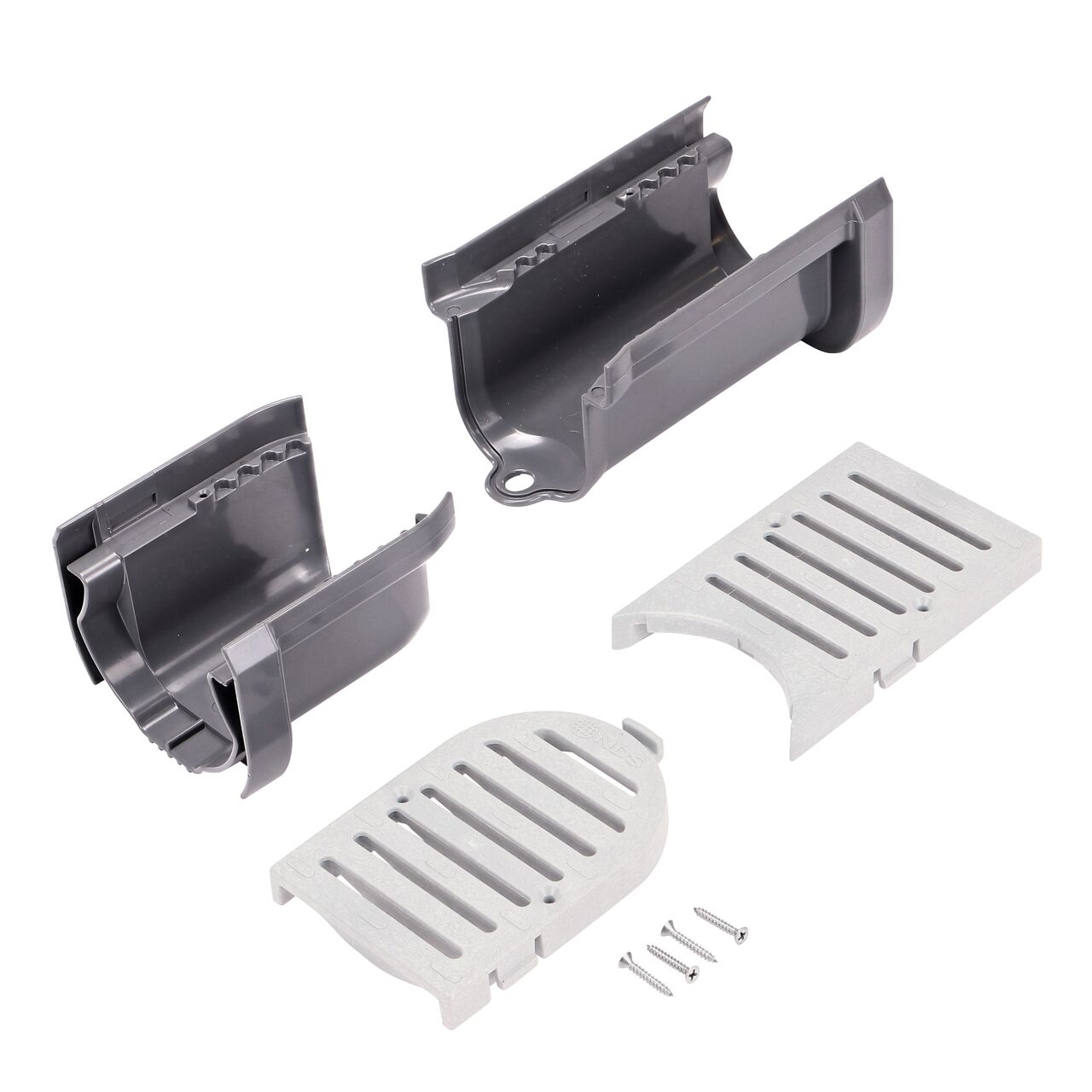

Spee-D® Contour™ Channel Drain Kit with Start and End Sections, 4-3/4 in. Wide X 6 in. Long, Two Channels with Gray Grates, 4 SS Grate Screws
SKU: 400-ACSE-WH

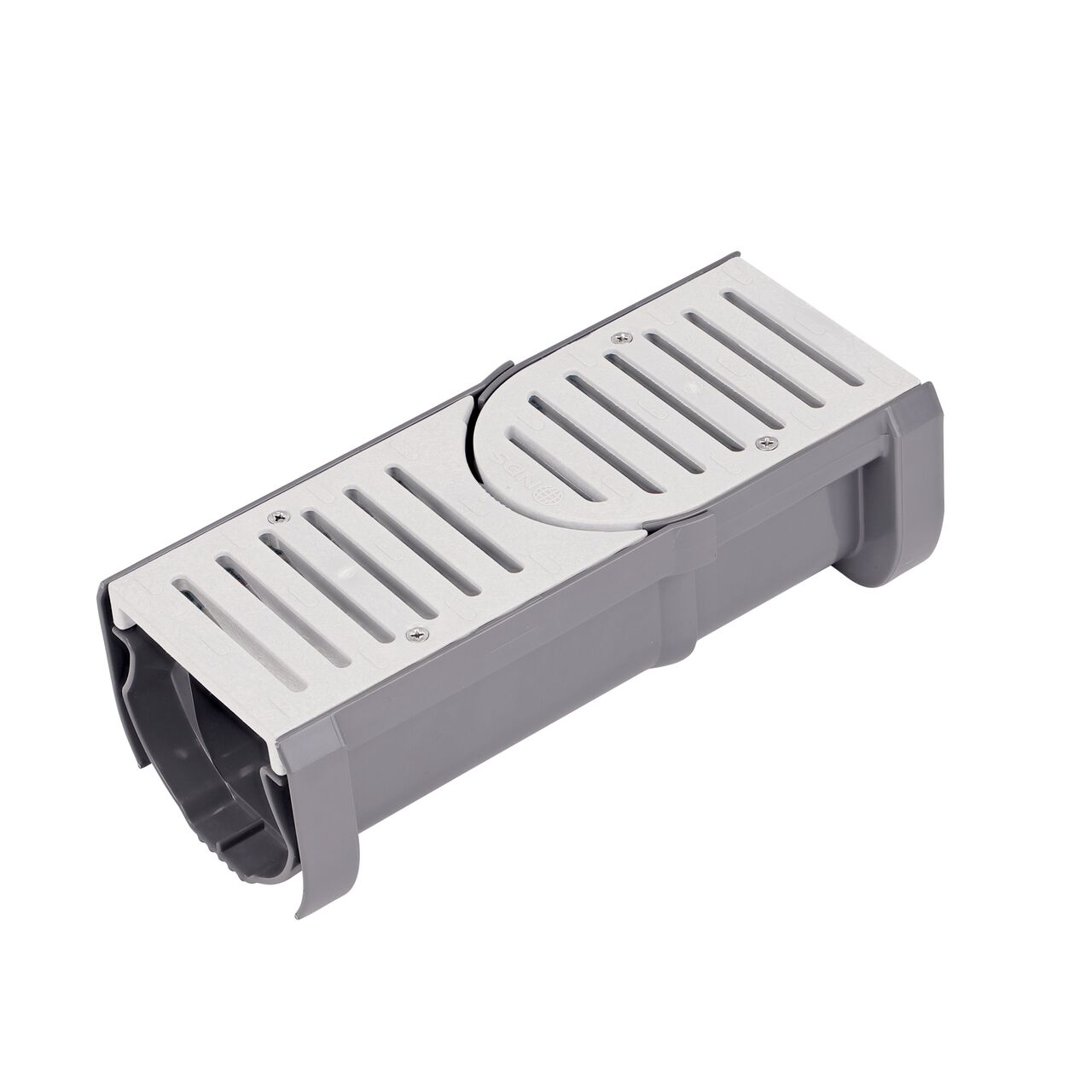

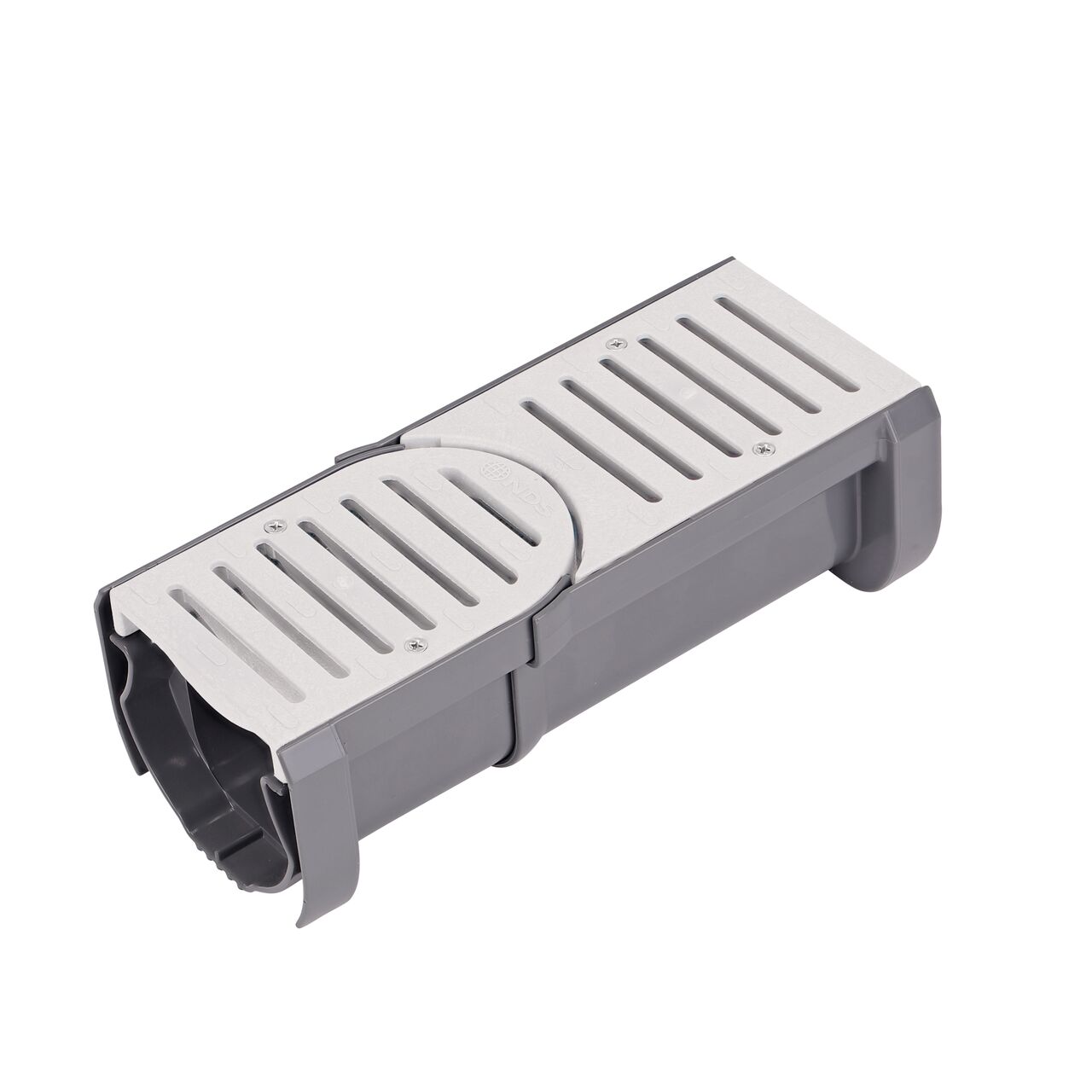

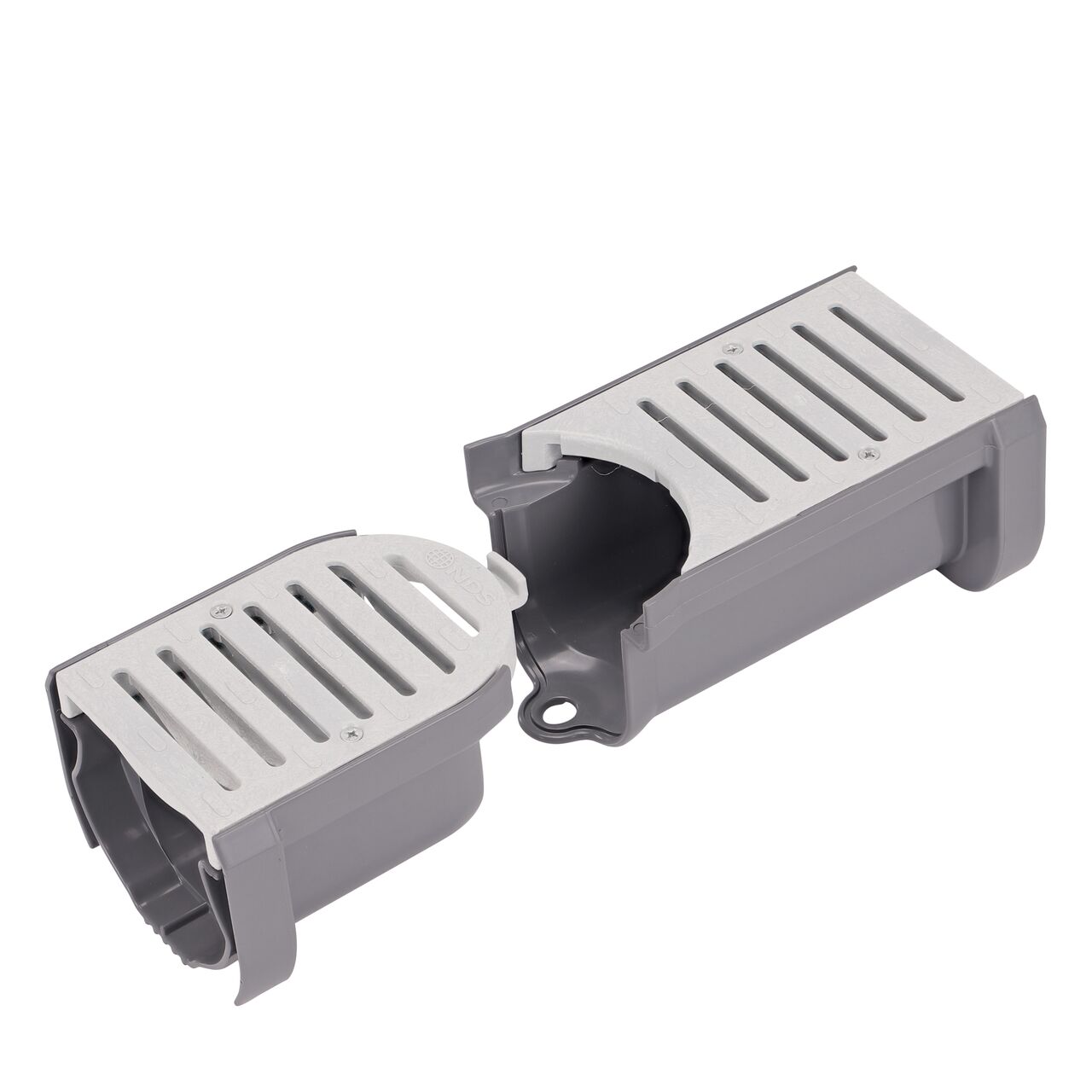

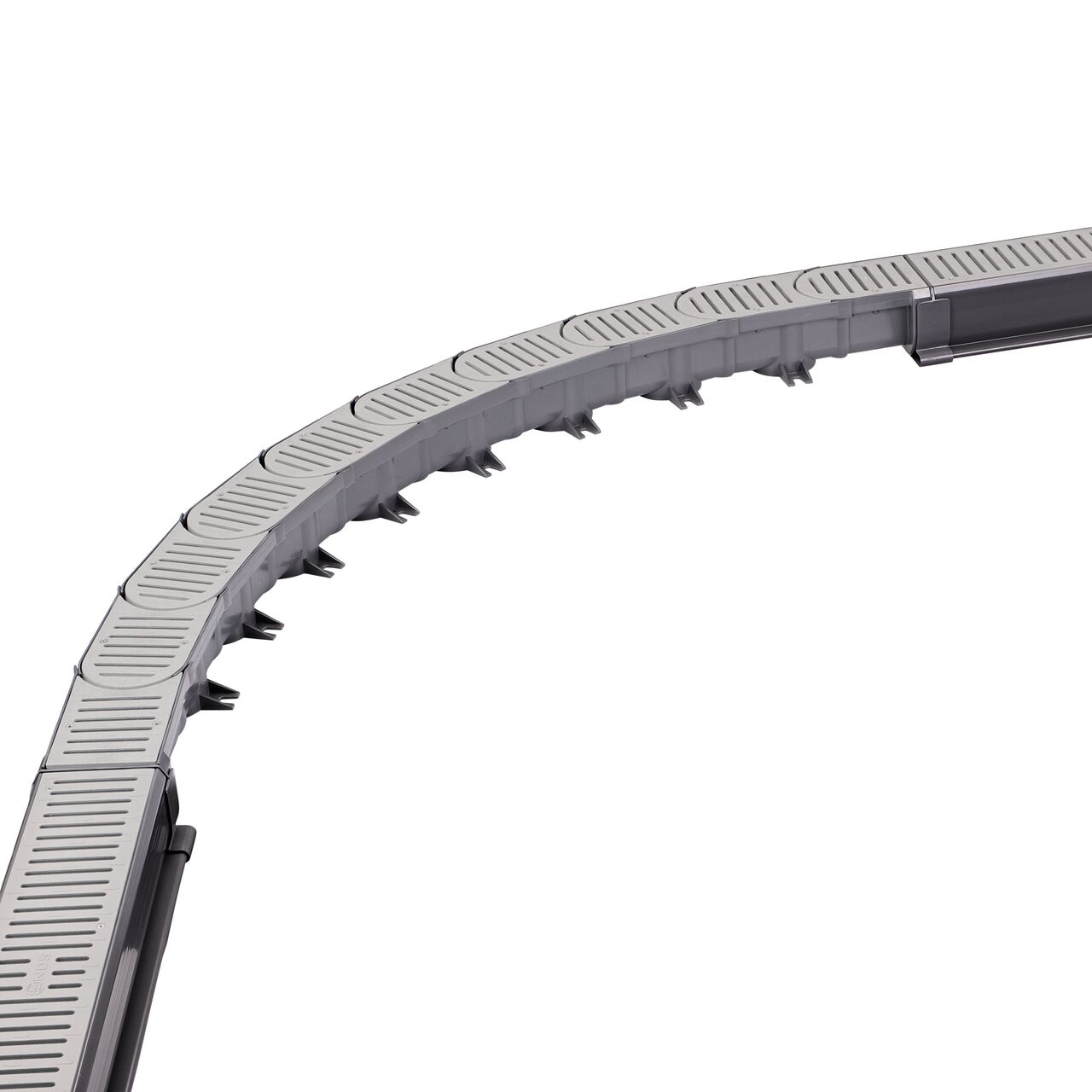

The innovative Spee-D® Contour™ channel drain system creates natural curved channel drain designs. The Spee-D Contour Start and End Kit connects to the start and end of the middle section run to transition curved channel drains to straight channel drains with ease. The flexible patented design promotes ease of assembly. Use a Spee-D coupling to connect Start and End sections to straight Spee-D channel drain. Once assembled, sections create a pivot joint that provides 0 to 9 degrees of angular motion. Start and end sections are part of the Spee-D Contour channel drain system which is compatible with Spee-D channel drains and accessories. Rated for NDS Class Load B rating when properly installed, treated with UV inhibitors to prevent fading and cracking. Channel is made of PVC. Grate is made of HDPE.
Applications:

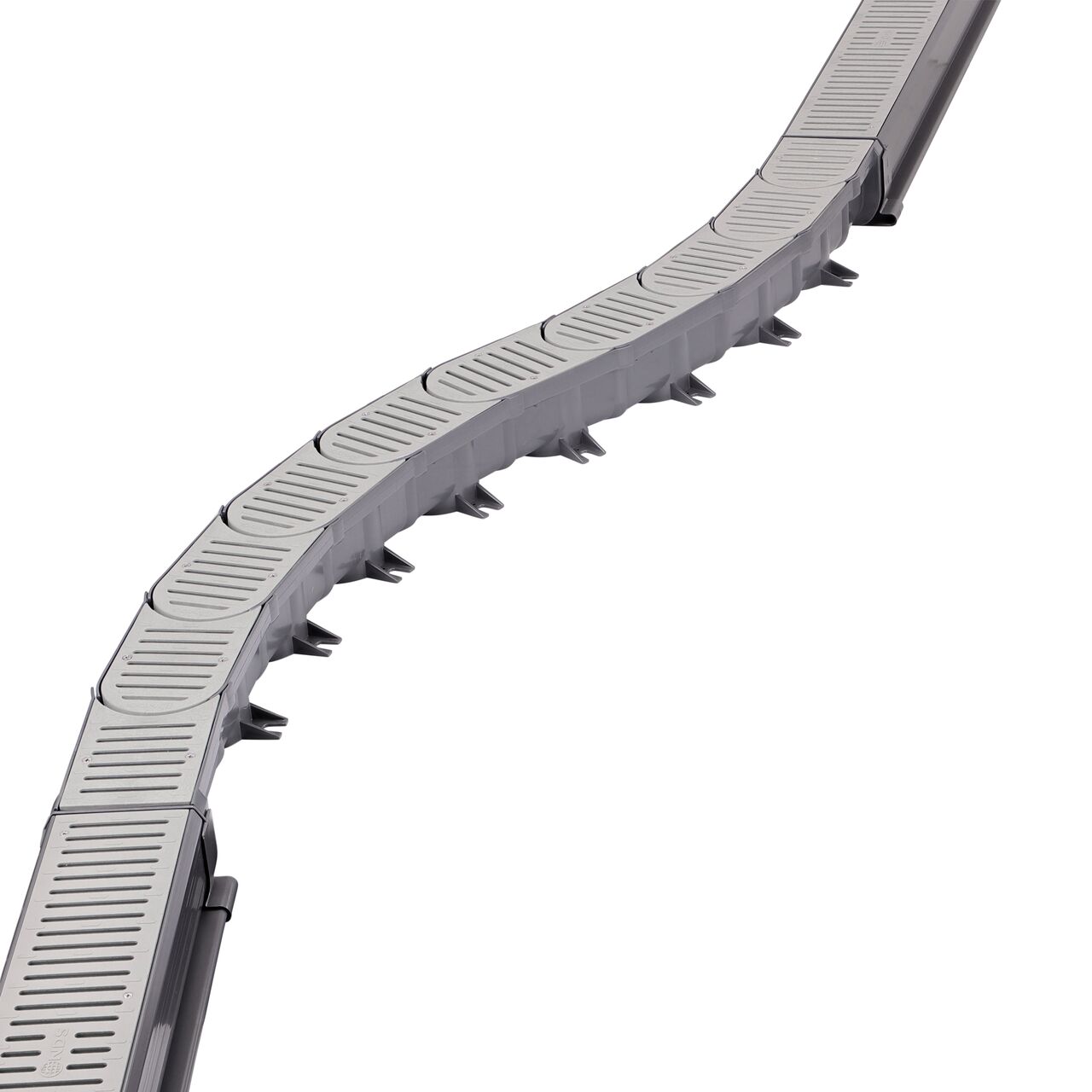

- Make natural curves in your channel drain system that are quick and easy to install along irregular or curved hardscapes
- Ideal for following contours of free-form pool decks and patios, fountains, splash pads, fire pits, and similar hardscape areas

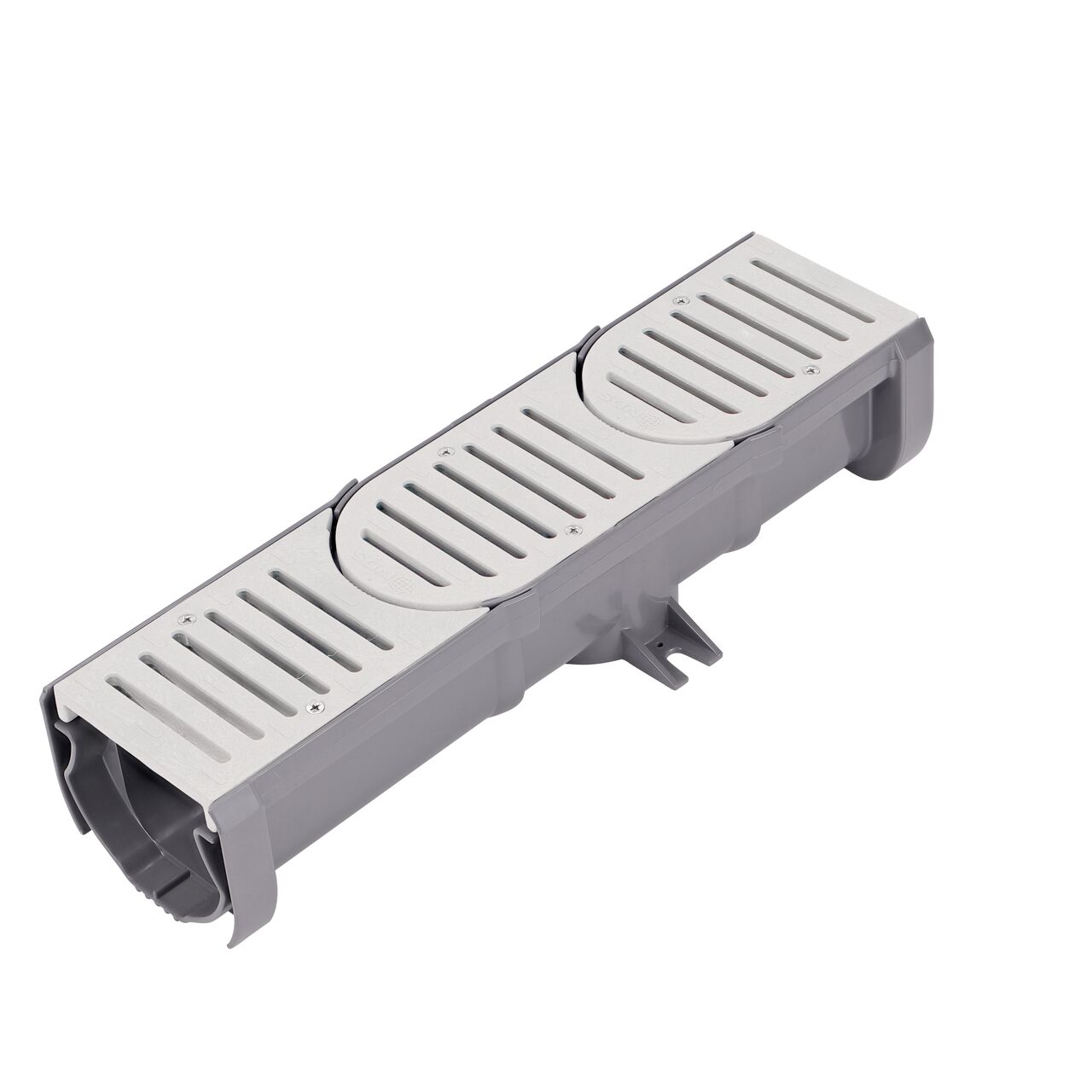

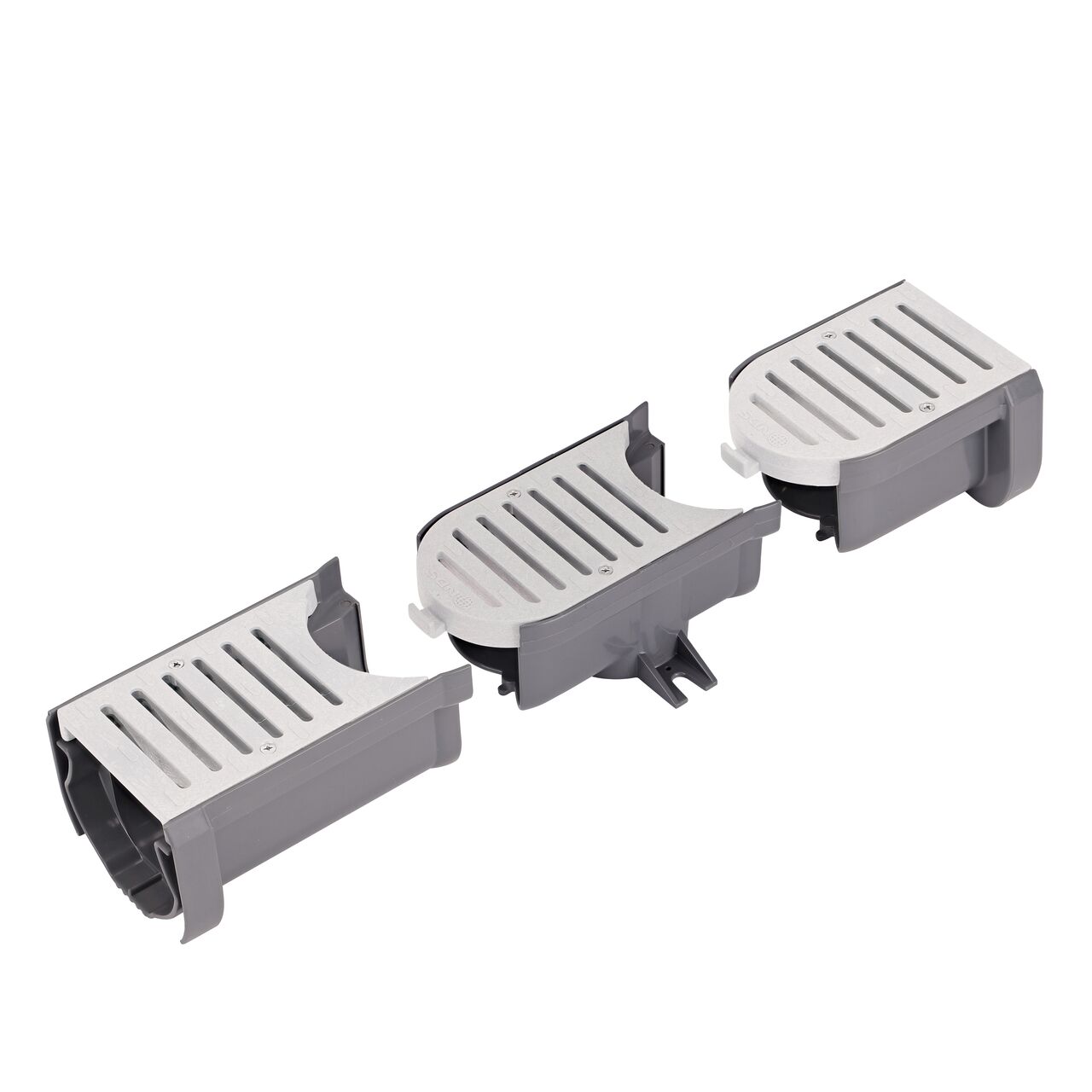

- As part of a complete drainage system, the Spee-D® Contour start and end sections integrate seamlessly with the Spee-D Contour middle sections, connect to the Spee-D channel drain with a coupling, works with other Spee-D channel accessories such as the end cap and end outlet
Features:

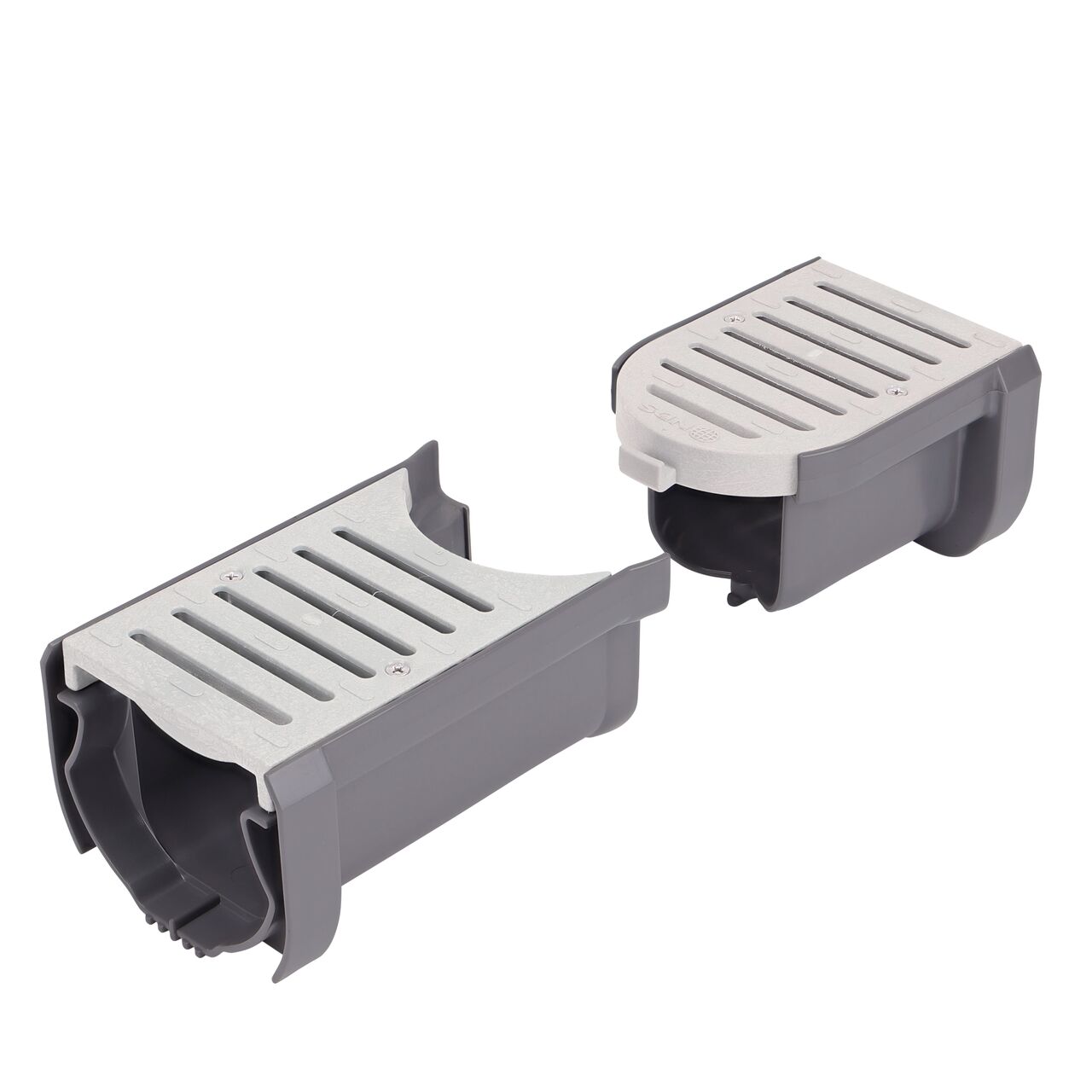

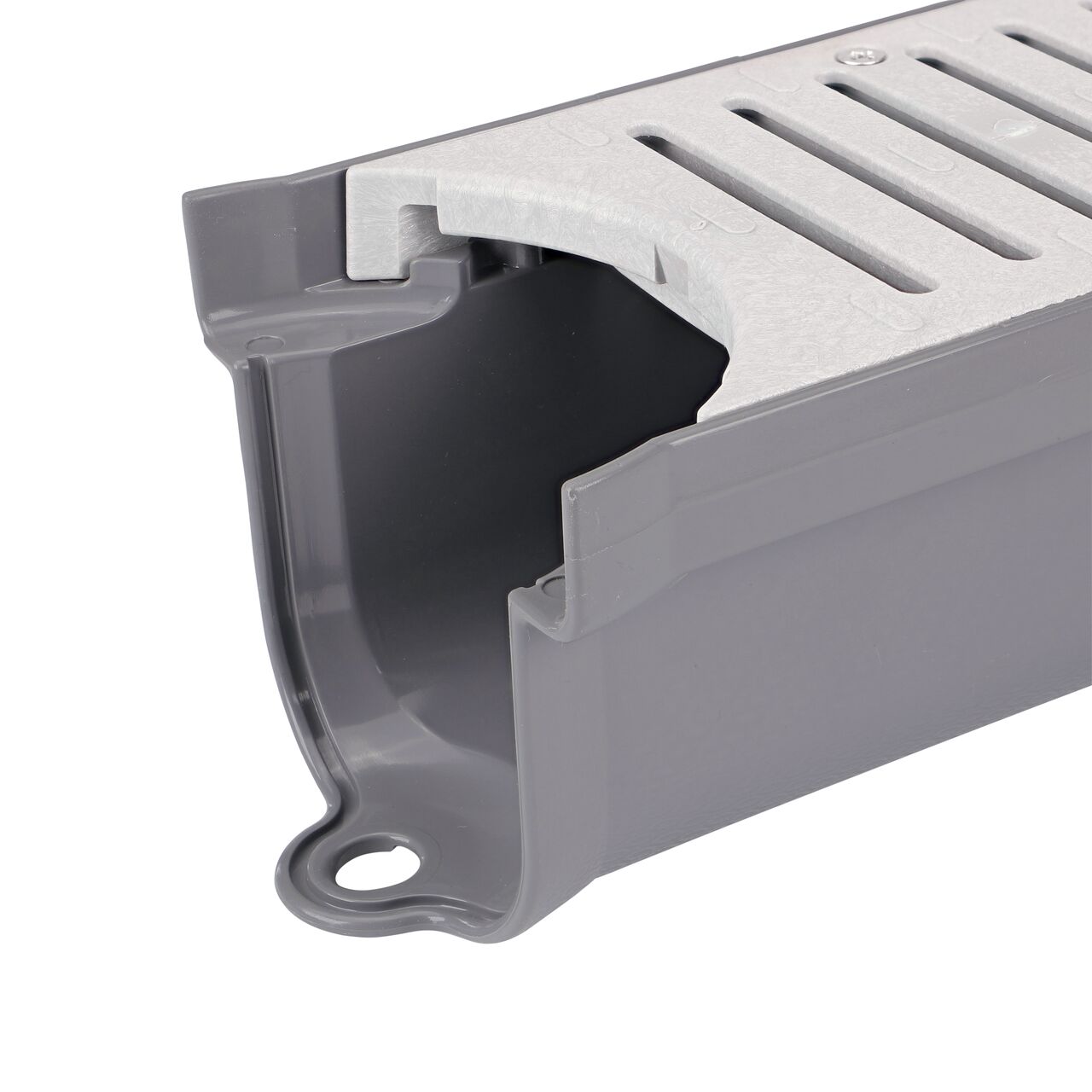

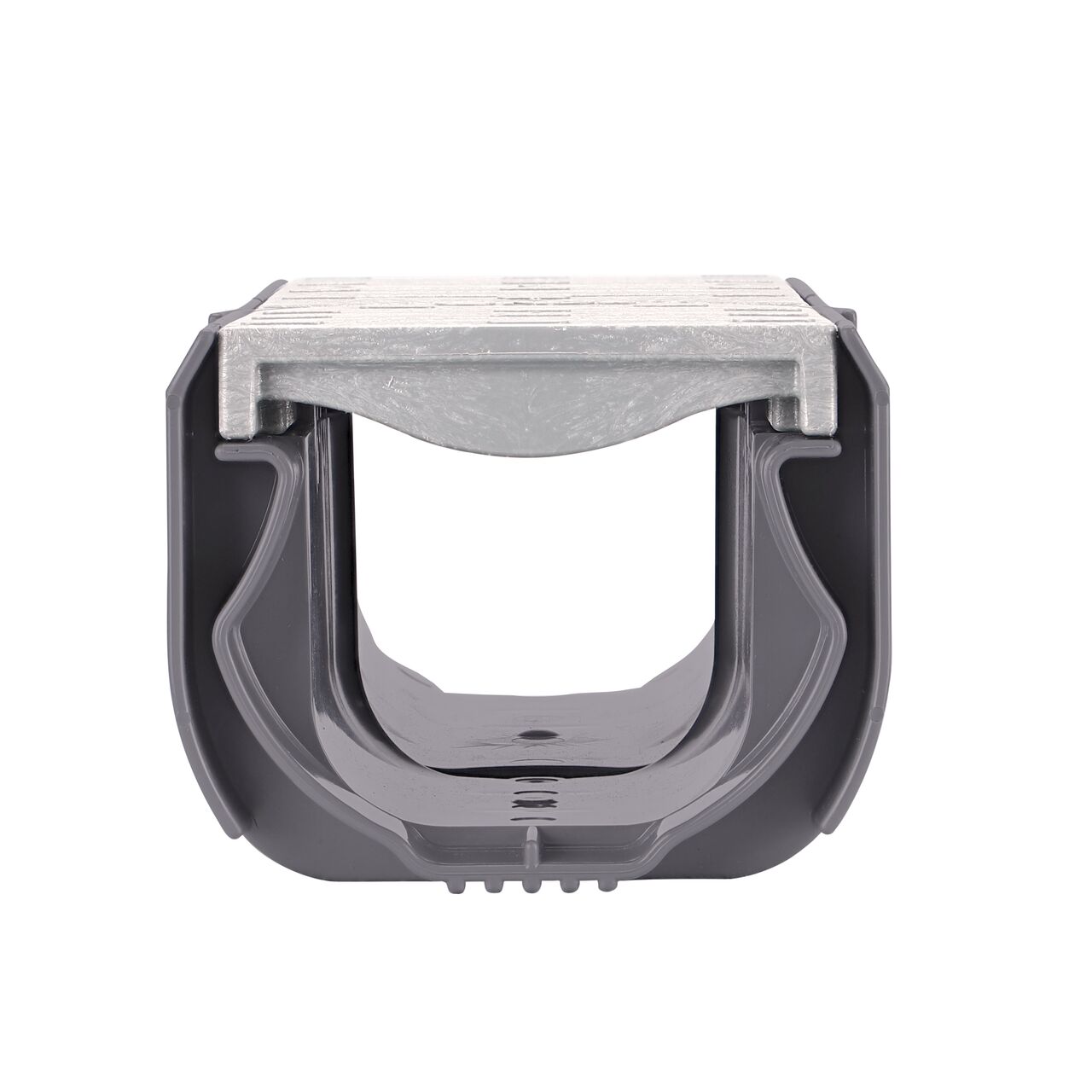

- Connects to middle sections to transition from the Spee-D® Contour™ channel drain to the straight Spee-D channel drain, Start & End kit is not required for closed loop drainage designs

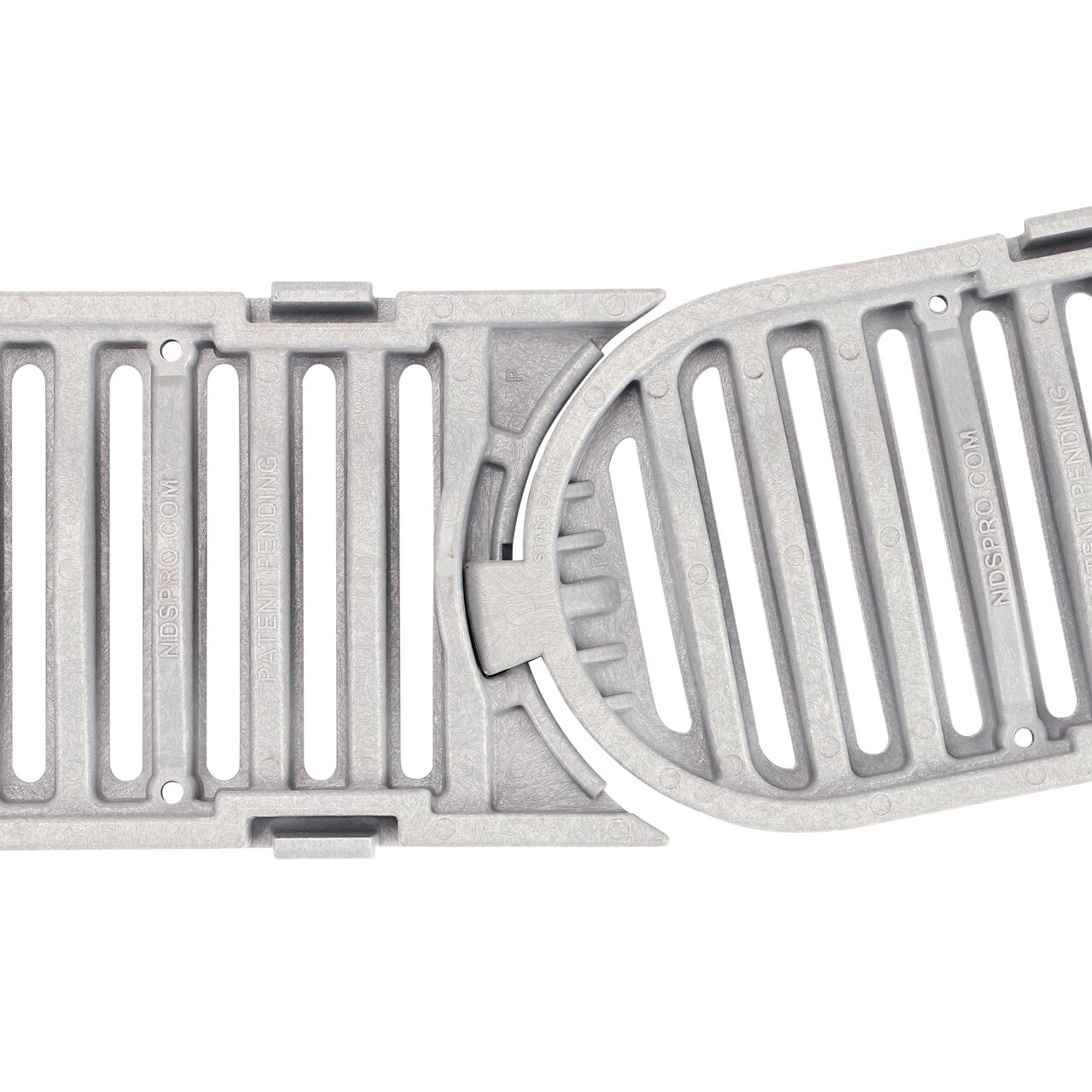

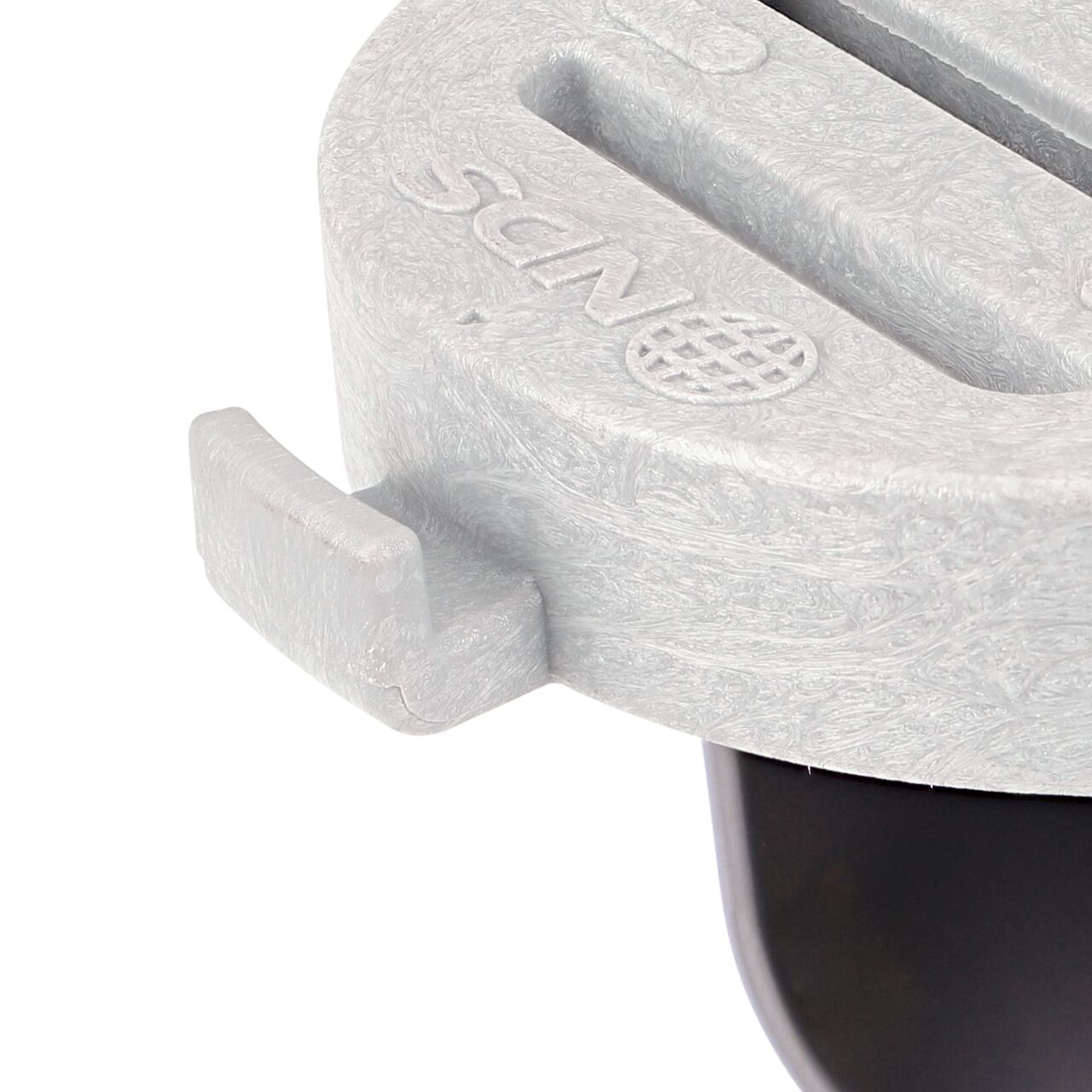

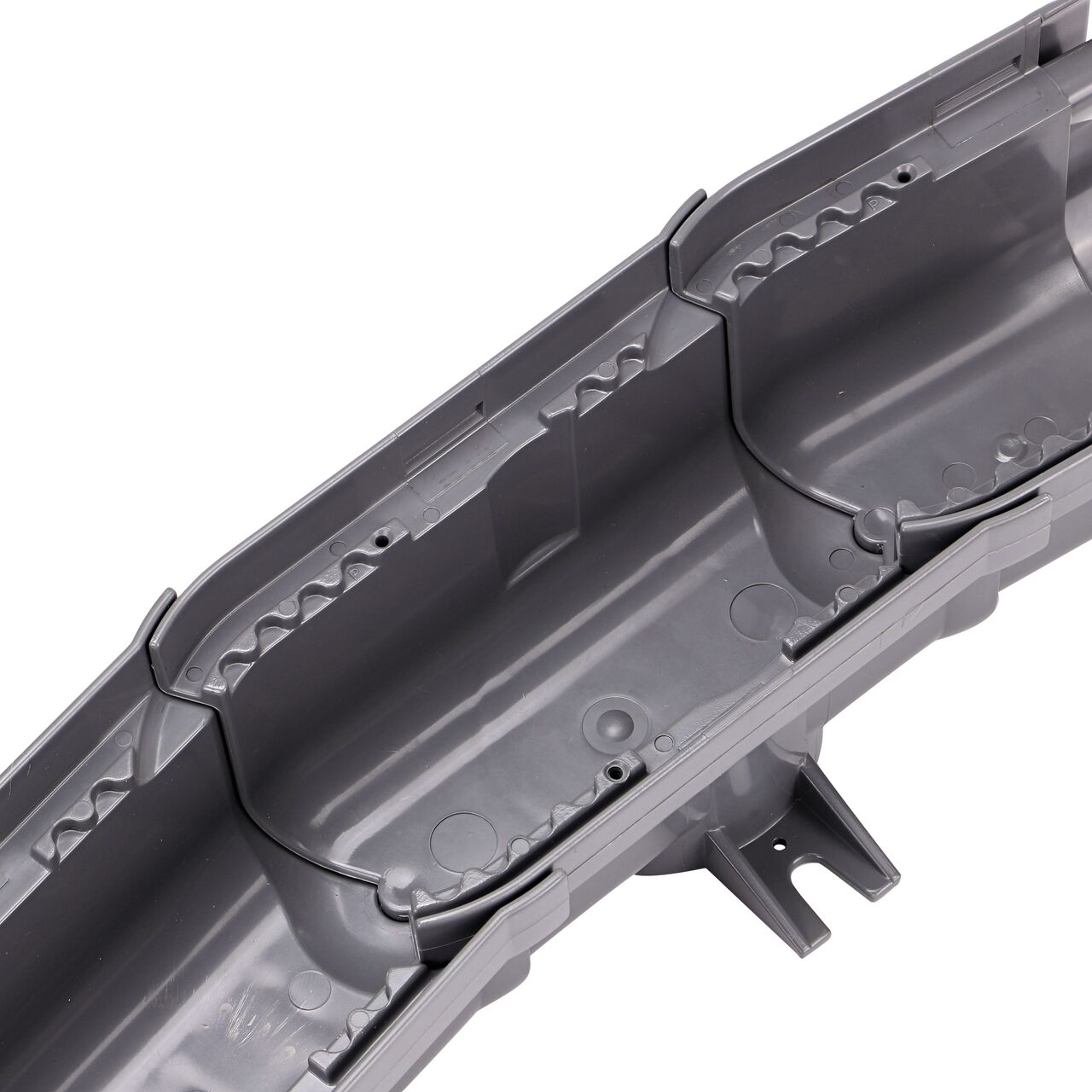

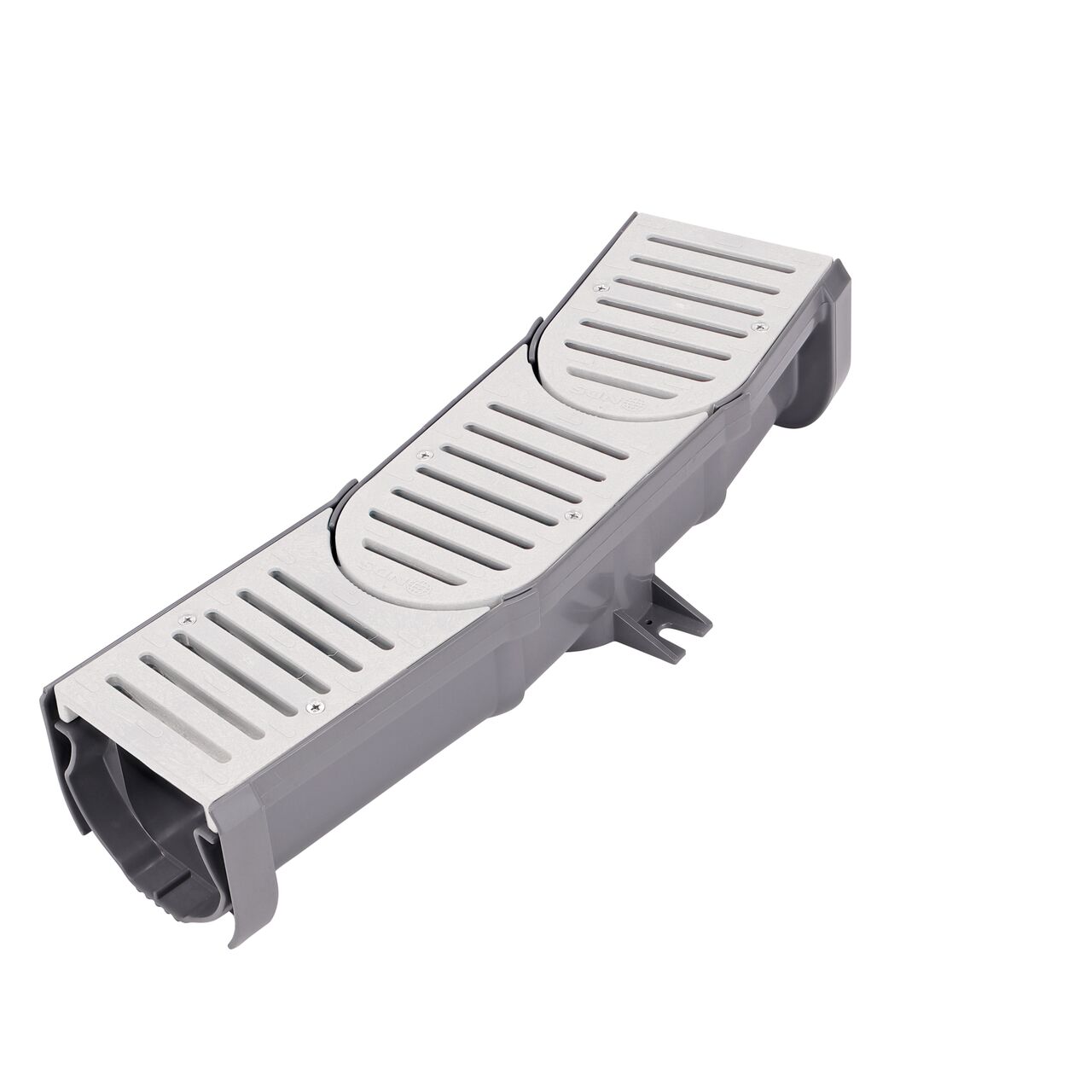

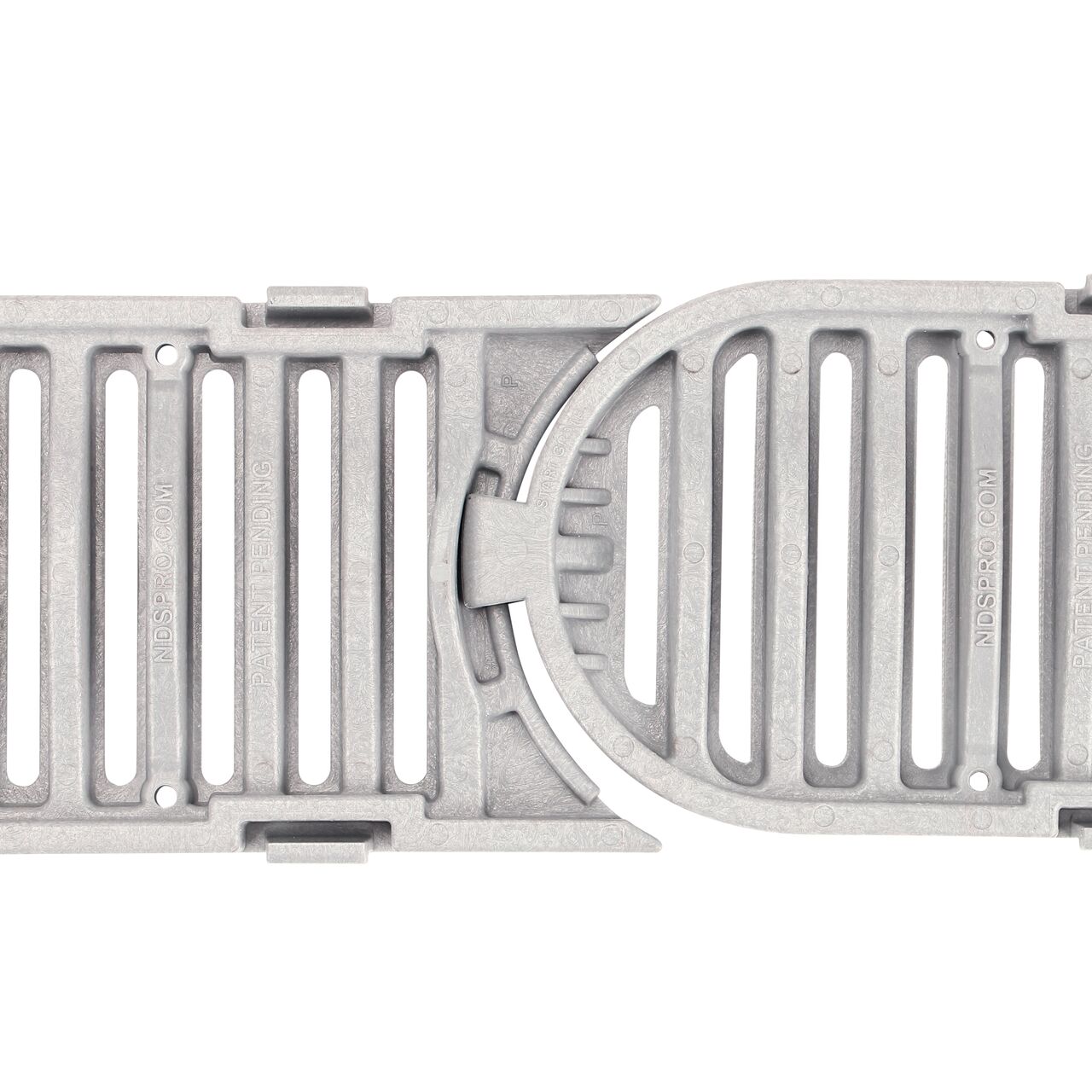

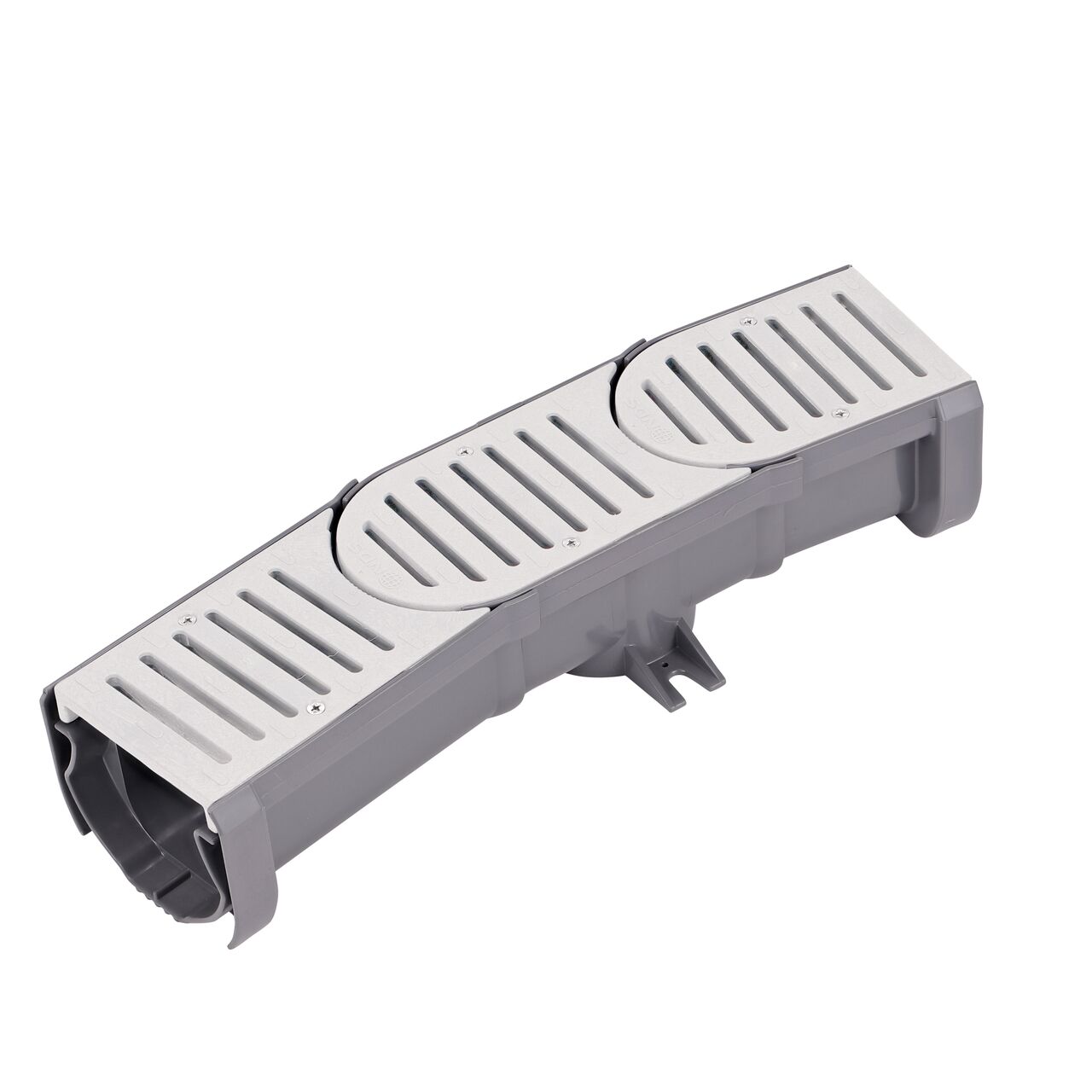

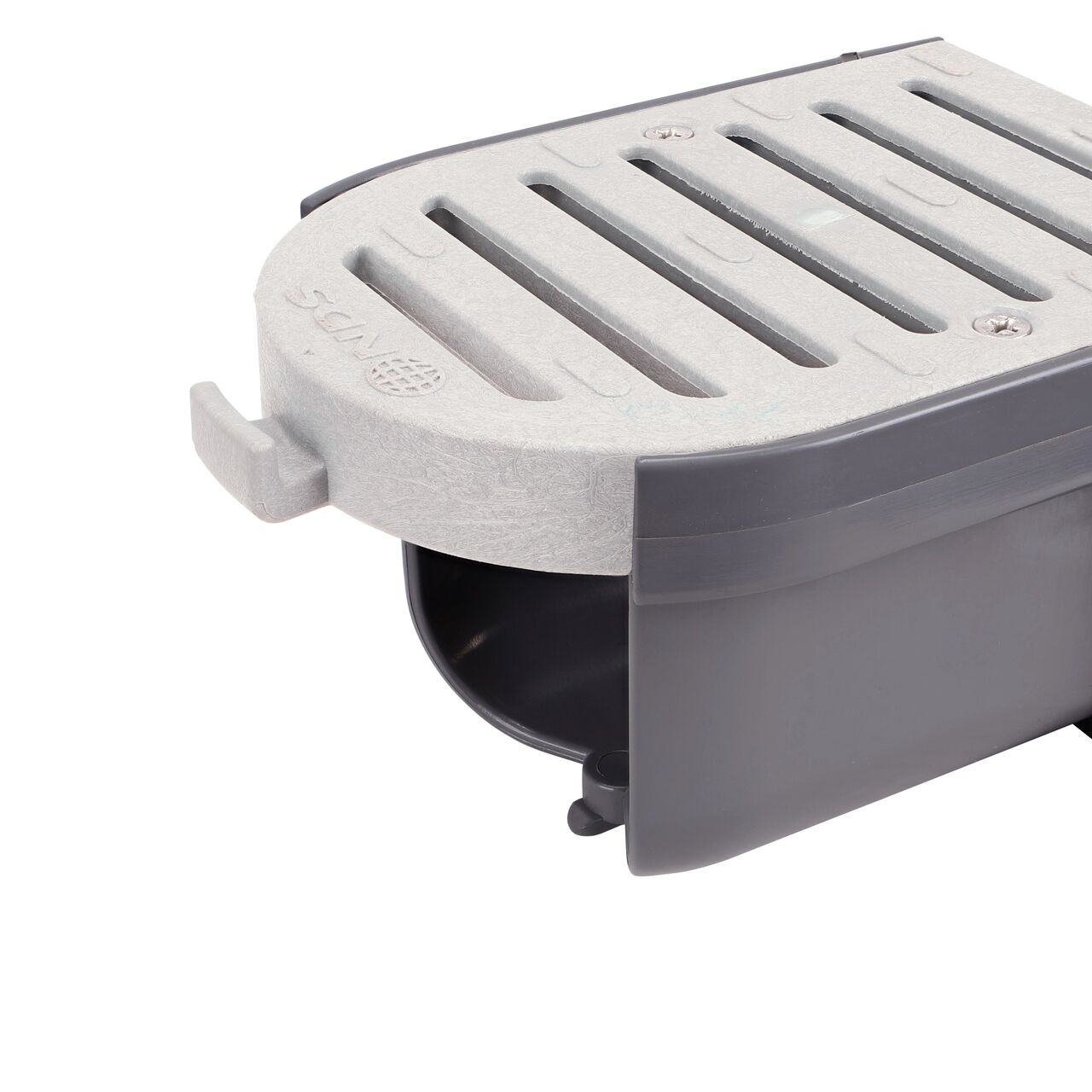

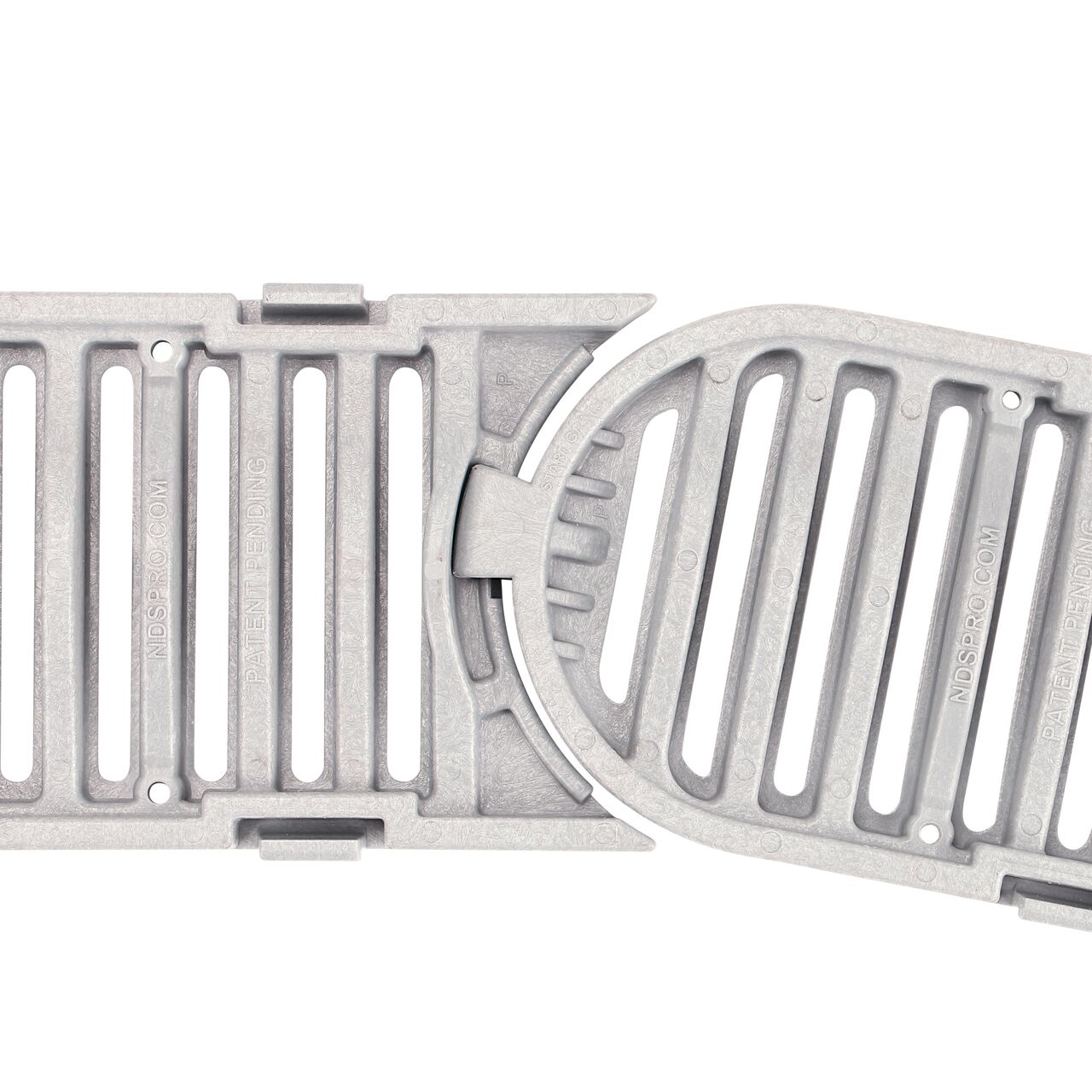

- Precise turns - Once assembled, sections create a pivot joint that provides 0 to 9 degrees of angular motion to rotate sections to the desired angle

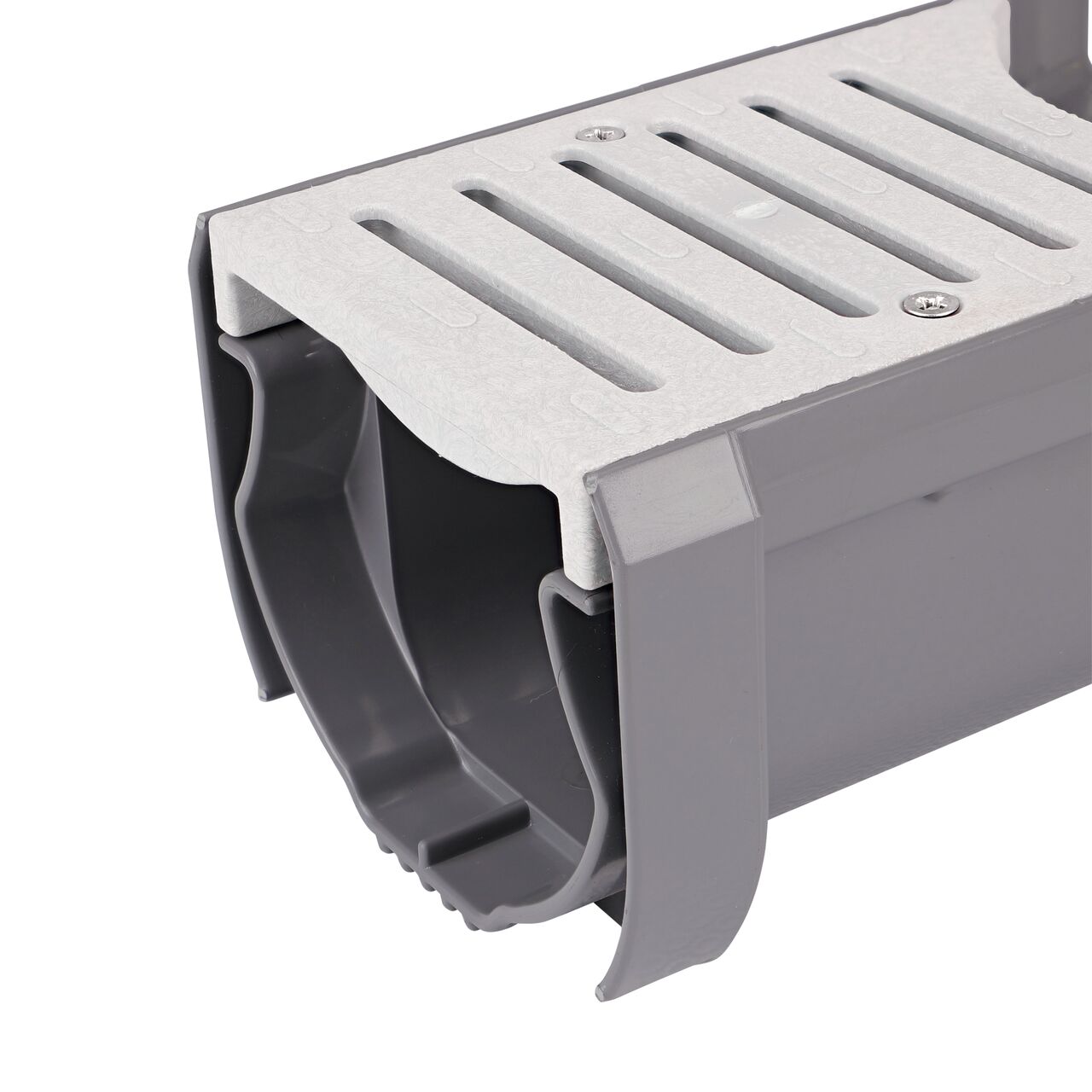

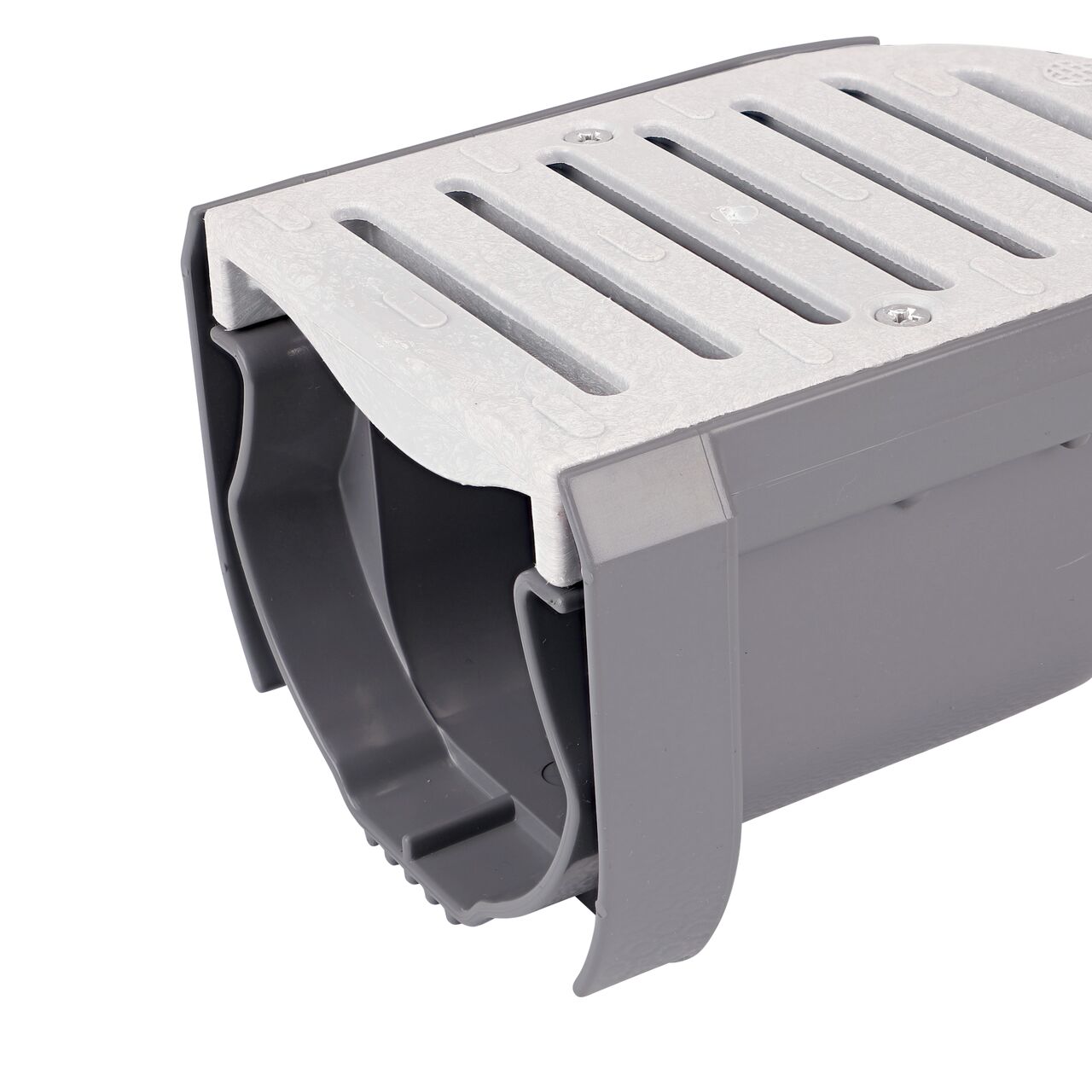

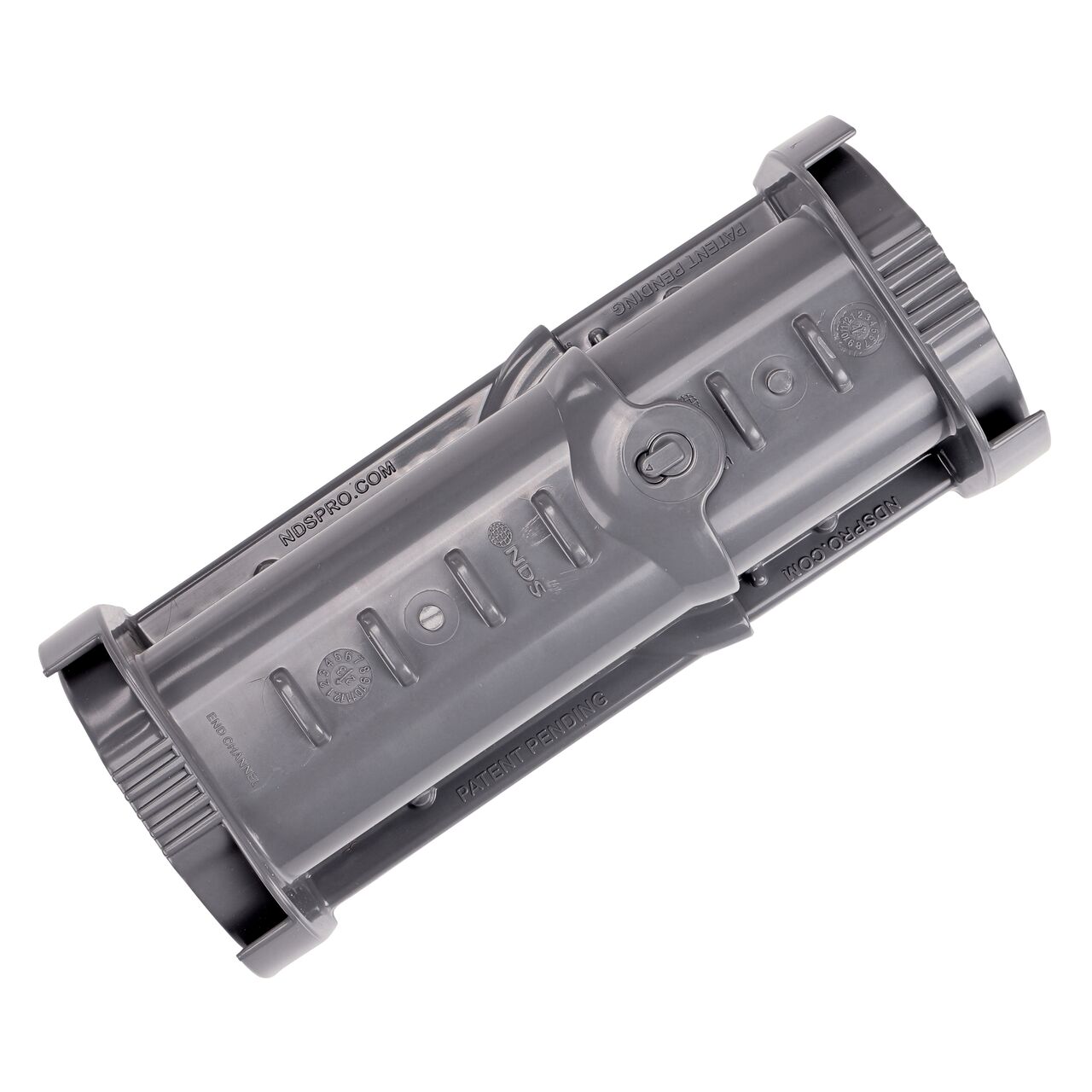

- Smooth install - Patented design makes channel assembly easy,use couplings to connect Spee-D® Contour™ start and end sections to the Spee-D channel drain, middle sections connect to start and end sections without couplings
- Compatible with Spee-D® channel drain and accessories for smooth transitions from curved to straight channel drains, works with wide array of Spee-D® accessories such as the end cap, end outlet, offset end outlet, coupling, strainer coupling, channel with bottom outlet
- Rated for NDS Class B loads (up to 175 psi) when properly installed—recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph, ADA compliant, treated with UV inhibitors to prevent fading and cracking
