Spee-D® Channel Drain Assembly, 4-3/4 in. wide X 10 ft. long with Channel & Prefastened Gray Plastic Grates

SKU: 400-10WH

Connect one end of the NDS Spee-D® Channel Drain and Grate with 45° Elbow, Gray Plastic (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

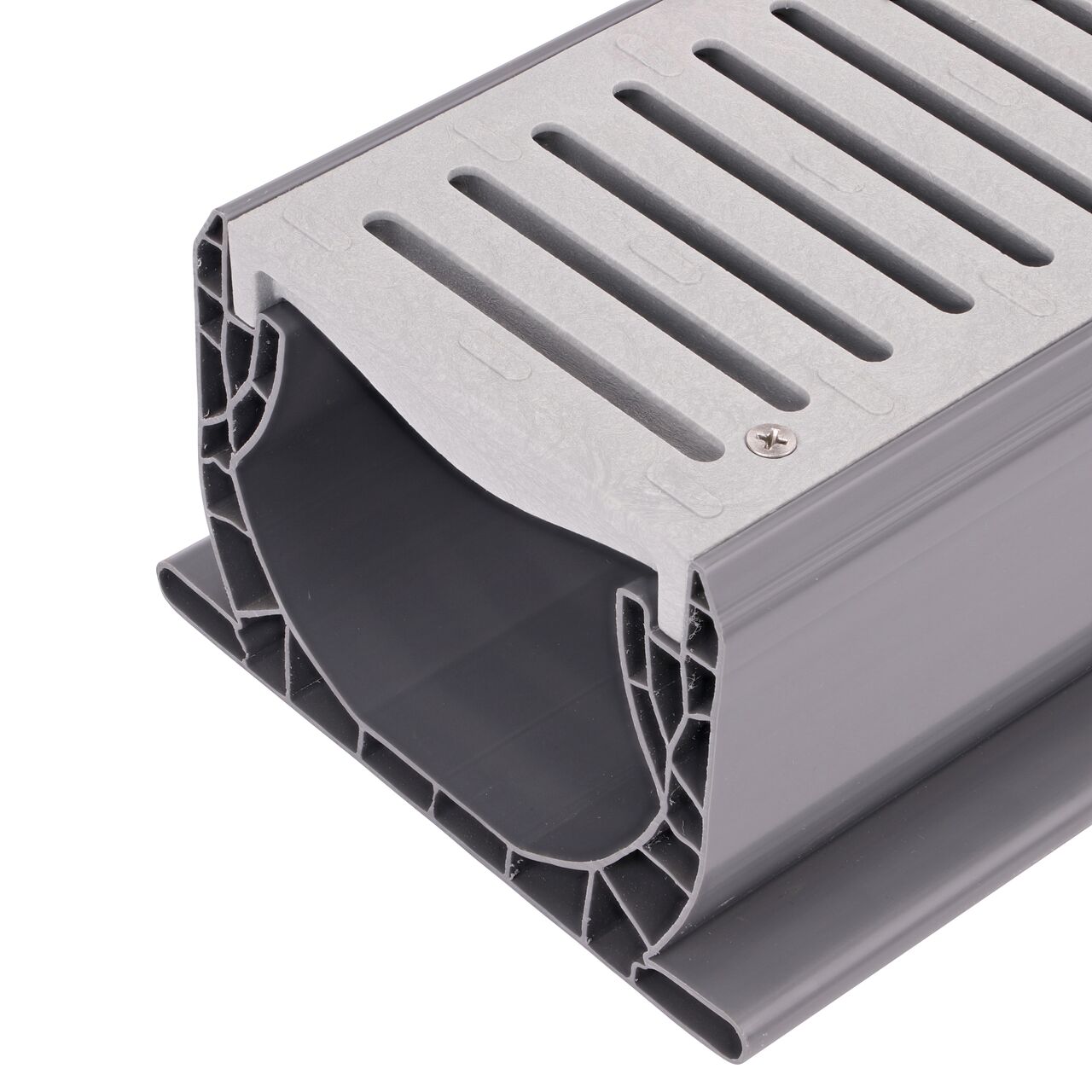

Closeup View of the Spee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10WH)

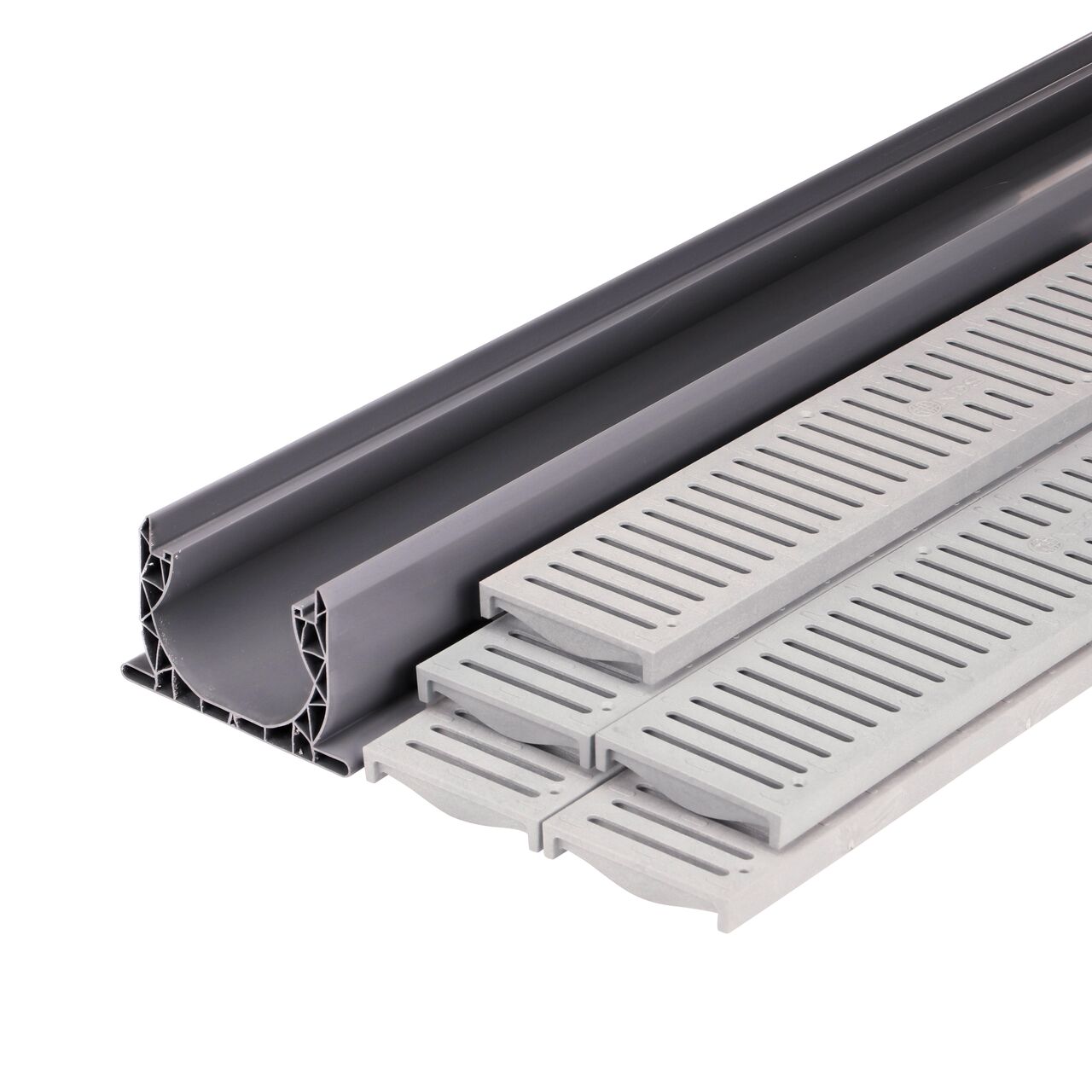

Unassembled view of the NDS pee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10RTL)
Closeup of the NDS Spee-D® Channel Drain End Cap (NDS 247) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the NDS Spee-D® Channel Drain Offset End Outlet (NDS 249) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways

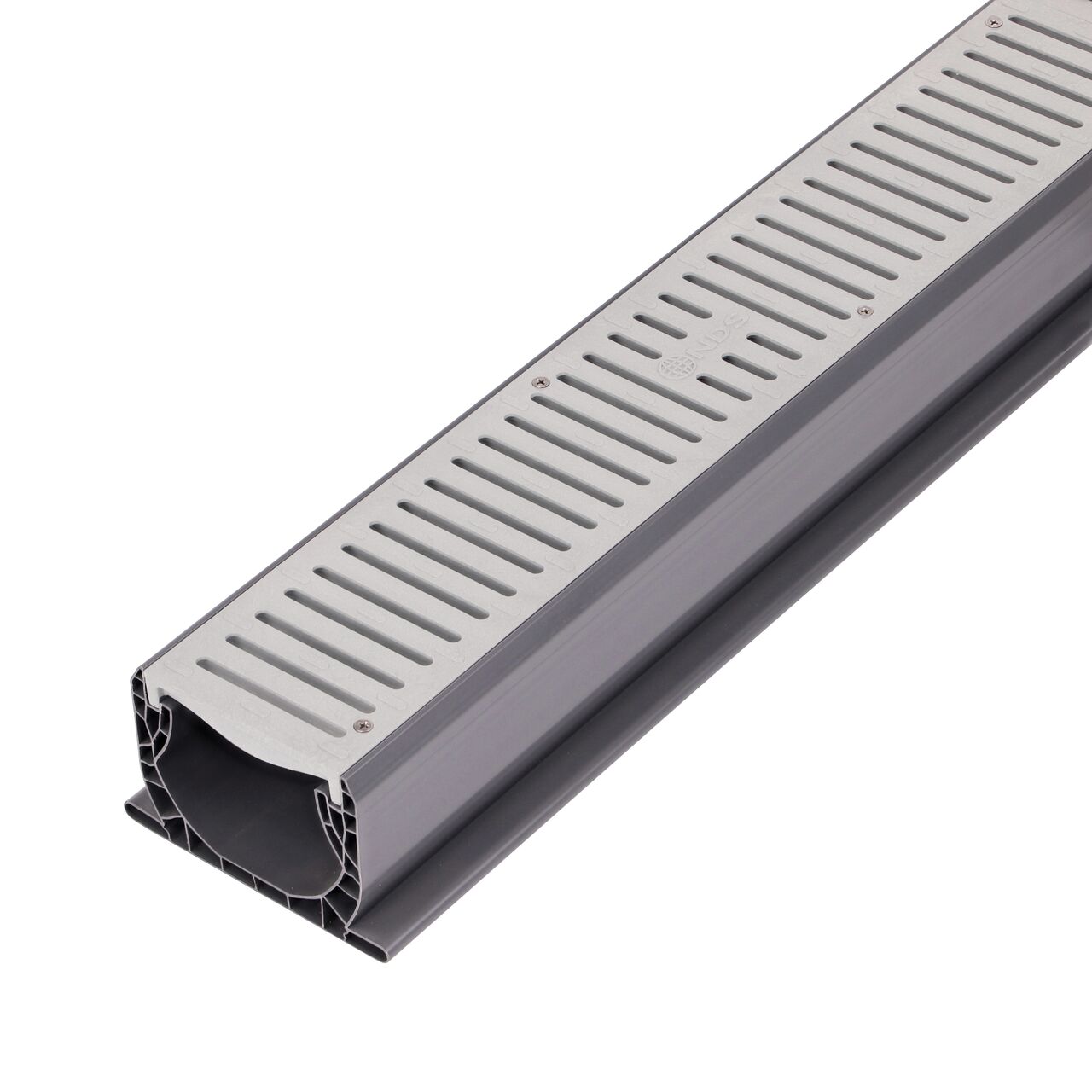

Hero shot of the Spee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10WH)
Connect the other end of the gray NDS Spee-D® Channel Drain and Grate with 45° Elbow (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system
Connect one end of the NDS Spee-D® Channel Drain and Grate with 45° Elbow, Gray Plastic (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system
Closeup View of the Spee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10WH)
Unassembled view of the NDS pee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10RTL)
Closeup of the NDS Spee-D® Channel Drain End Cap (NDS 247) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the NDS Spee-D® Channel Drain Offset End Outlet (NDS 249) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)
Closeup of the 10 foot NDS Spee-D® Channel Drain (NDS 400-10) for driveways, concrete patios, pool areas, and walkways
Hero shot of the Spee-D® Channel Drain Assembly with Channel & Prefastened Gray Plastic Grates (NDS 400-10WH)
Connect the other end of the gray NDS Spee-D® Channel Drain and Grate with 45° Elbow (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

Standing water on hardscape surfaces is not only a slip hazard—it can lead to mildew growth, concrete staining, and costly structural damage. Take care of the drainage problem with the 10 ft. Spee-D® Channel Drain Assembly. Polyvinyl chloride channel comes with prefastened gray polypropylene grates for a quicker install. Ideal for draining moderate water flows from driveways, patios, courtyards, and walkways. Find out more about the #1 bestselling channel drain in the USA. The Spee-D Channel Drain features patented honeycomb reinforced walls and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating. Channels connect with a coupling. Channel is made of polyvinyl chloride (PVC), drain grates are made of high-density polyethylene (HDPE), channel and grates are treated with UV inhibitors. Spee-D Channels are part of the NDS Profile Channel series.

Where to Buy Find a Pro

Applications:

  • Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
  • Spee-D Channel Drain system collects moderate water flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways, and directs it to drain pipes for proper release downstream
  • Works with Spee-D Channel Drain components, part of the NDS Profile Channel series

Features:

  • Spee-D Channel Drains are 4-3/4 in. wide, 3-3/4 in. high, and 10 ft. long, length can be cut to size with a saw
  • Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
  • Bottom flanges provide an anchoring lip for straight installation and prevents floating
  • Patented honeycomb reinforced walls provide durability
