Spee-D® Channel Drain, 4-3/4 in. wide X 4 ft. long

SKU: 400

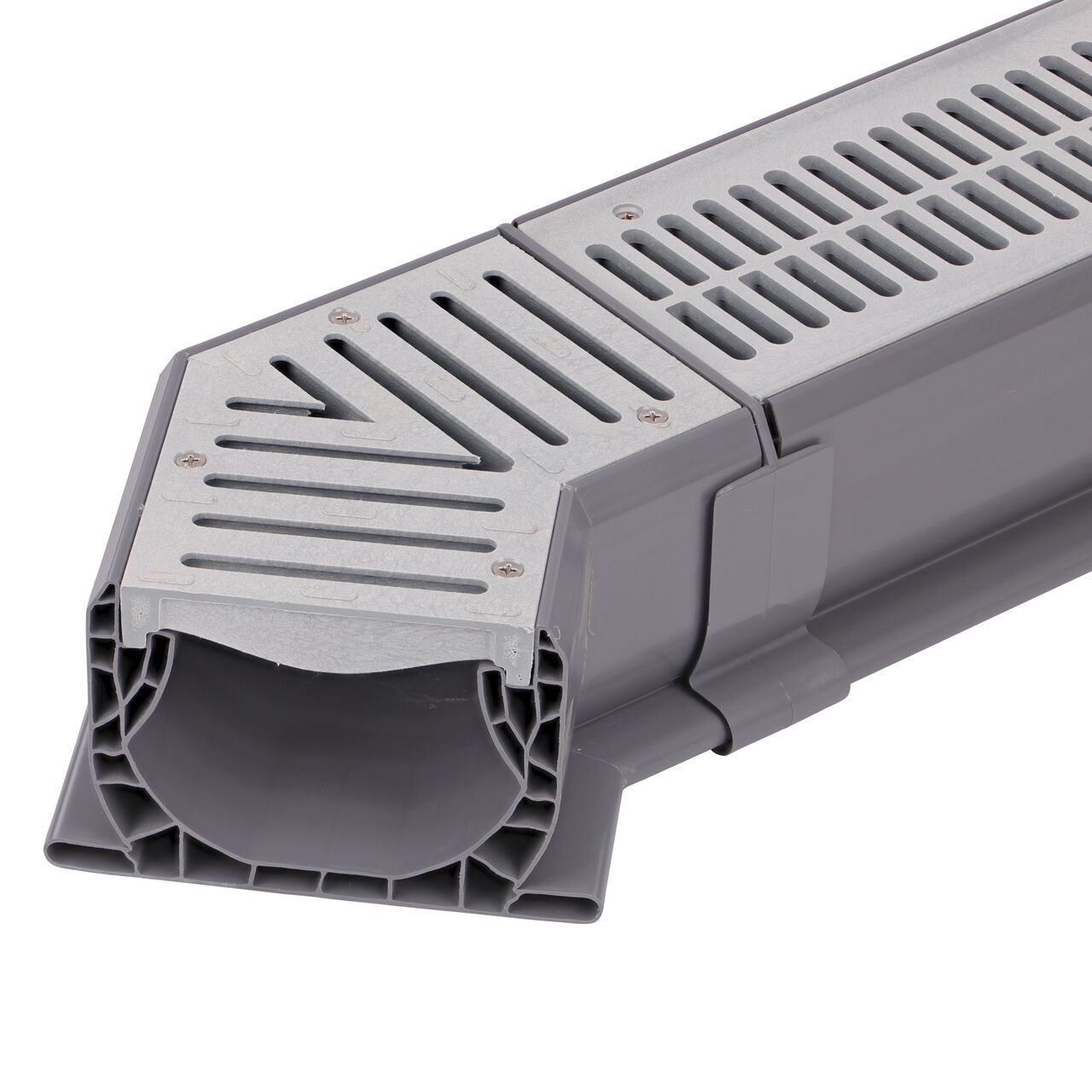

Connect one end of the NDS Spee-D® Channel Drain and Grate with 45° Elbow, Gray Plastic (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

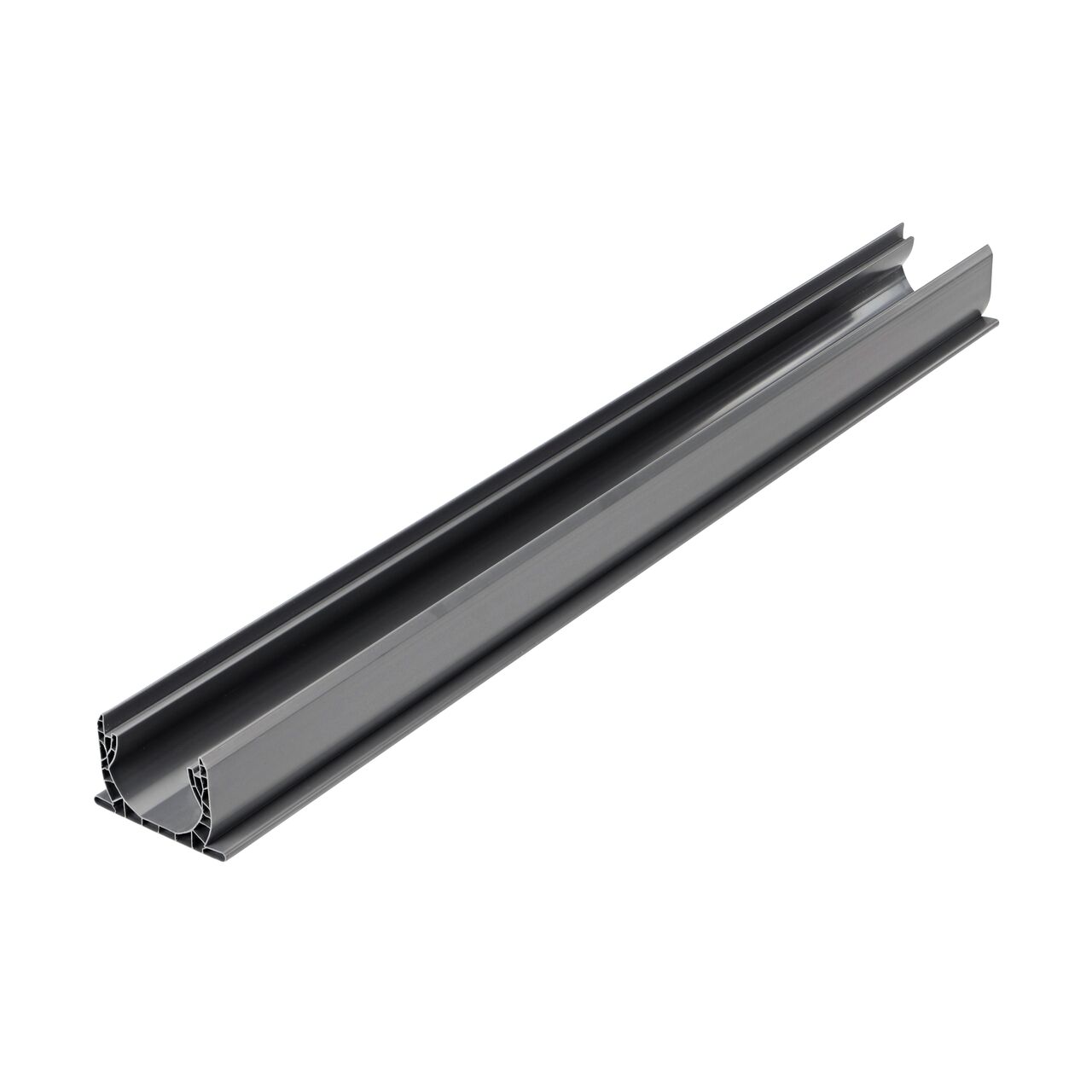

NDS Spee-D® Channel Drain (NDS 400) for driveways, concrete patios, pool areas, and walkways

Closeup of the NDS Spee-D® Channel Drain End Cap (NDS 247) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)

NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) connects to Spee-D® Channel Drain (NDS 400, NDS 400-10)

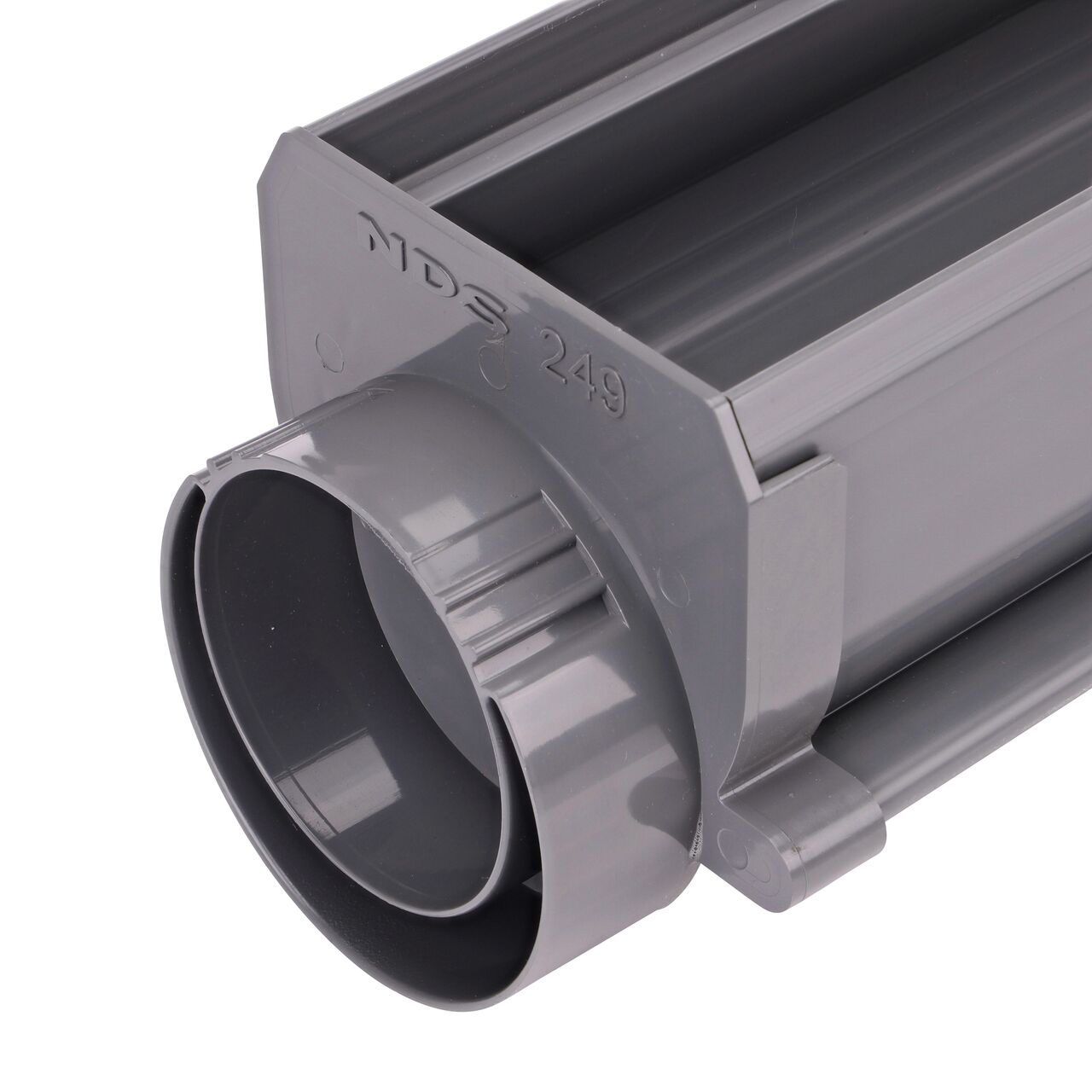

Closeup of the NDS Spee-D® Channel Drain Offset End Outlet (NDS 249) connected to a Spee-D® Channel Drain (NDS 400, NDS 400-10)

NDS Spee-D® Channel Drain End Cap (NDS 247*, NDS 247) connected to a Spee-D® Channel Drain (NDS 400)

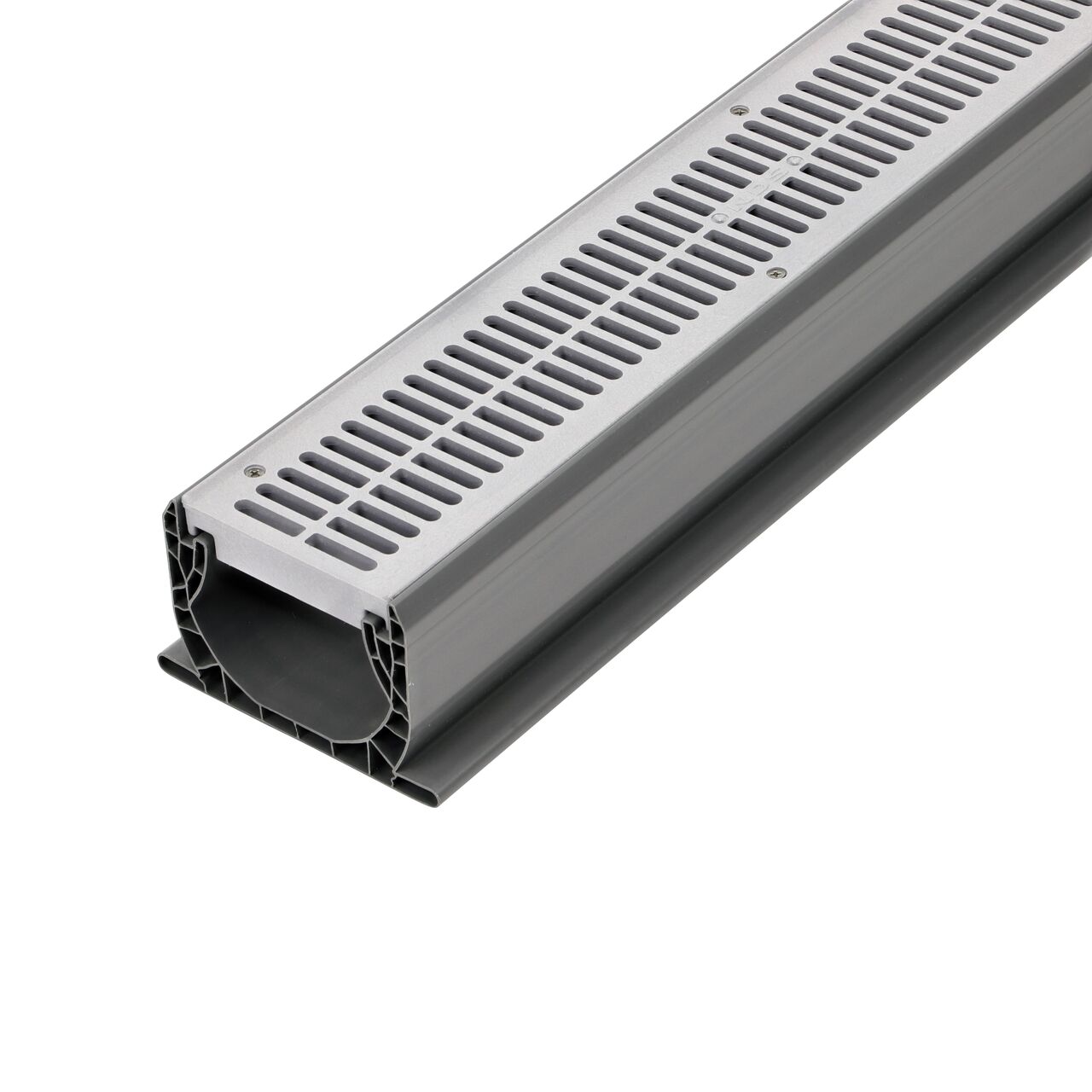

Closeup of the NDS Spee-D® Channel Drain (NDS 400) with Retail Gray Grate (NDS 241-1*) installed for driveways, concrete patios, pool areas, and walkways

NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) securely connects two Spee-D® Channel Drains (NDS 400, NDS 400-10)

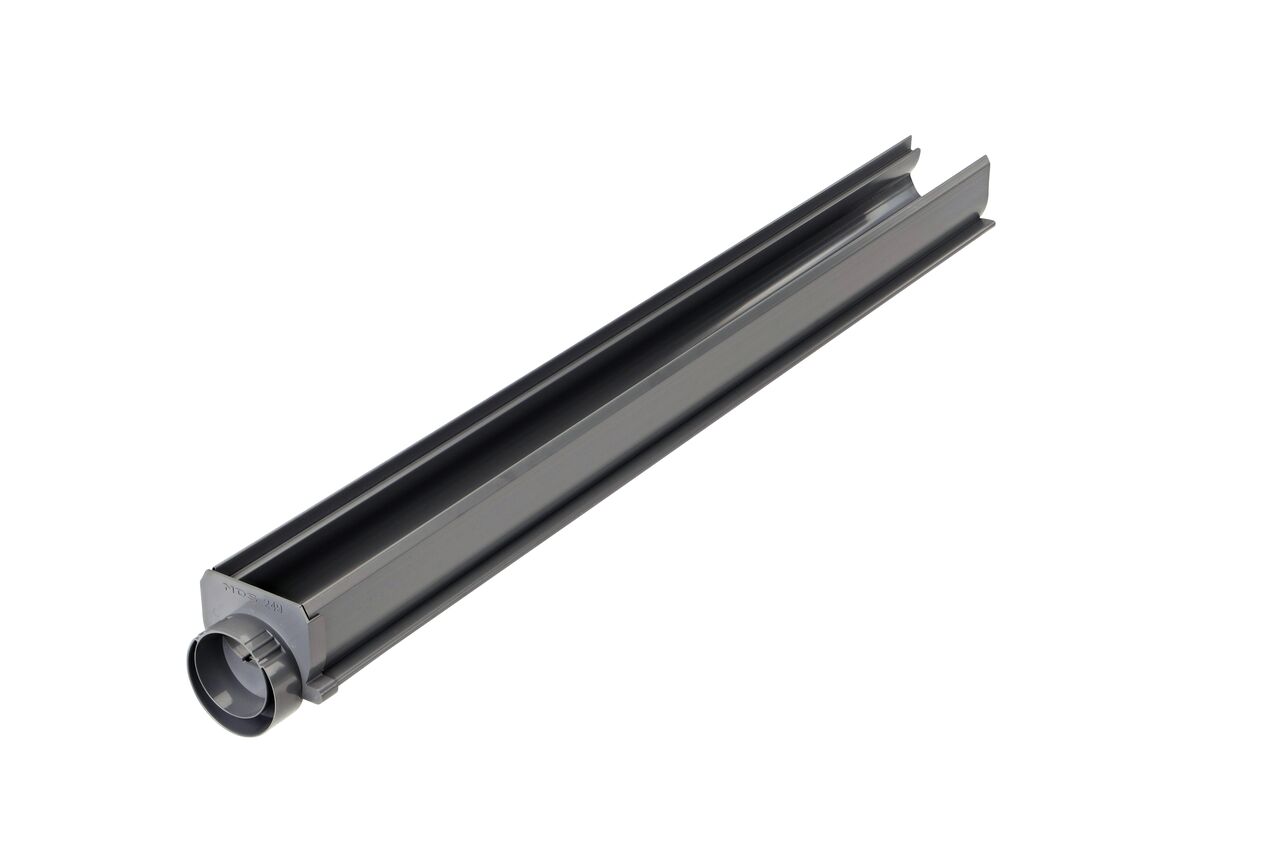

NDS Spee-D® Channel Drain Offset End Outlet (NDS 249*, NDS 249) connects to Spee-D® Channel Drain (NDS 400)

Long shot of the 4 ft. Spee-D Channel Drain with a coupling (NDS 248*, NDS 248) attached on one end

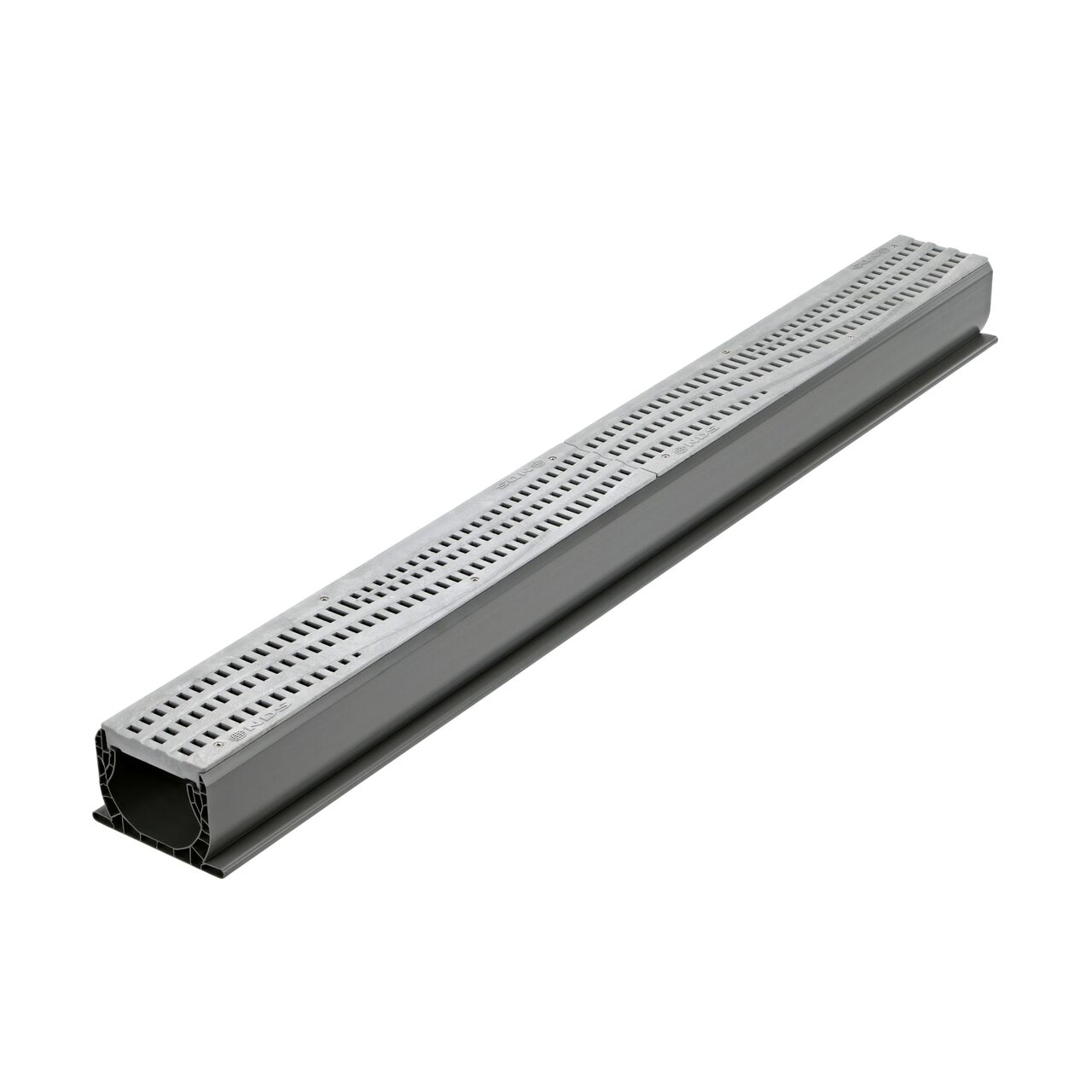

NDS Spee-D® Channel Drain Grate, Decorative Wave Design in Gray Plastic (NDS 253GYRTL, NDS 253GY) installed on a Spee-D Channel Drain (NDS 400)

NDS Spee-D® Channel Drain and Retail Gray Plastic Grates (NDS 400-10RTL, NDS 400, NDS 241-1RTL), for driveways, concrete patios, pool areas, and walkways. Channel drain comes in 4 ft. & 10 ft. lengths

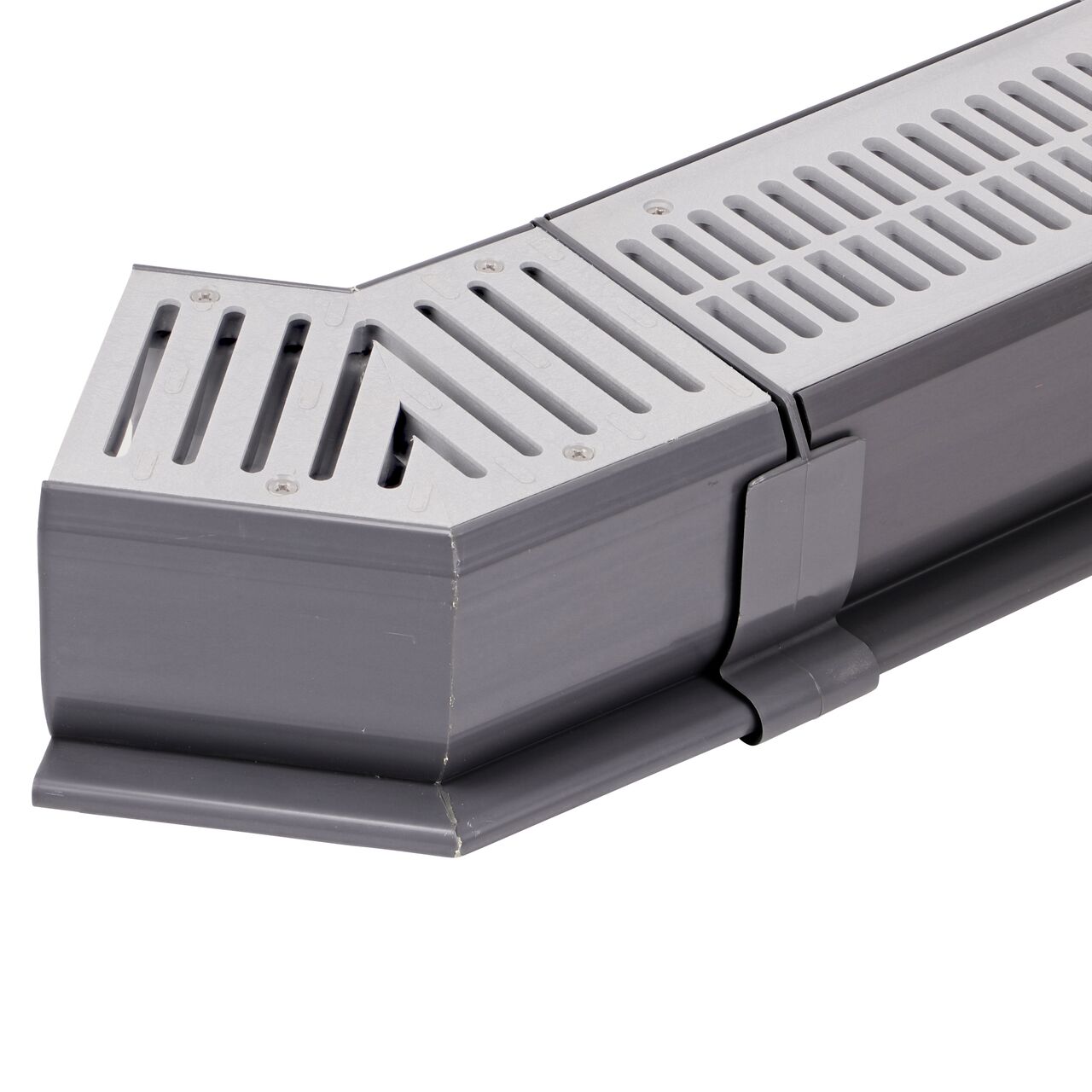

Connect the other end of the gray NDS Spee-D® Channel Drain and Grate with 45° Elbow (NDS 2301*) to a Spee-D® Channel Drain and Grate (NDS 241-1*) with the Spee-D® Channel Drain Coupling (NDS 248*) to make a bend in your channel drain system

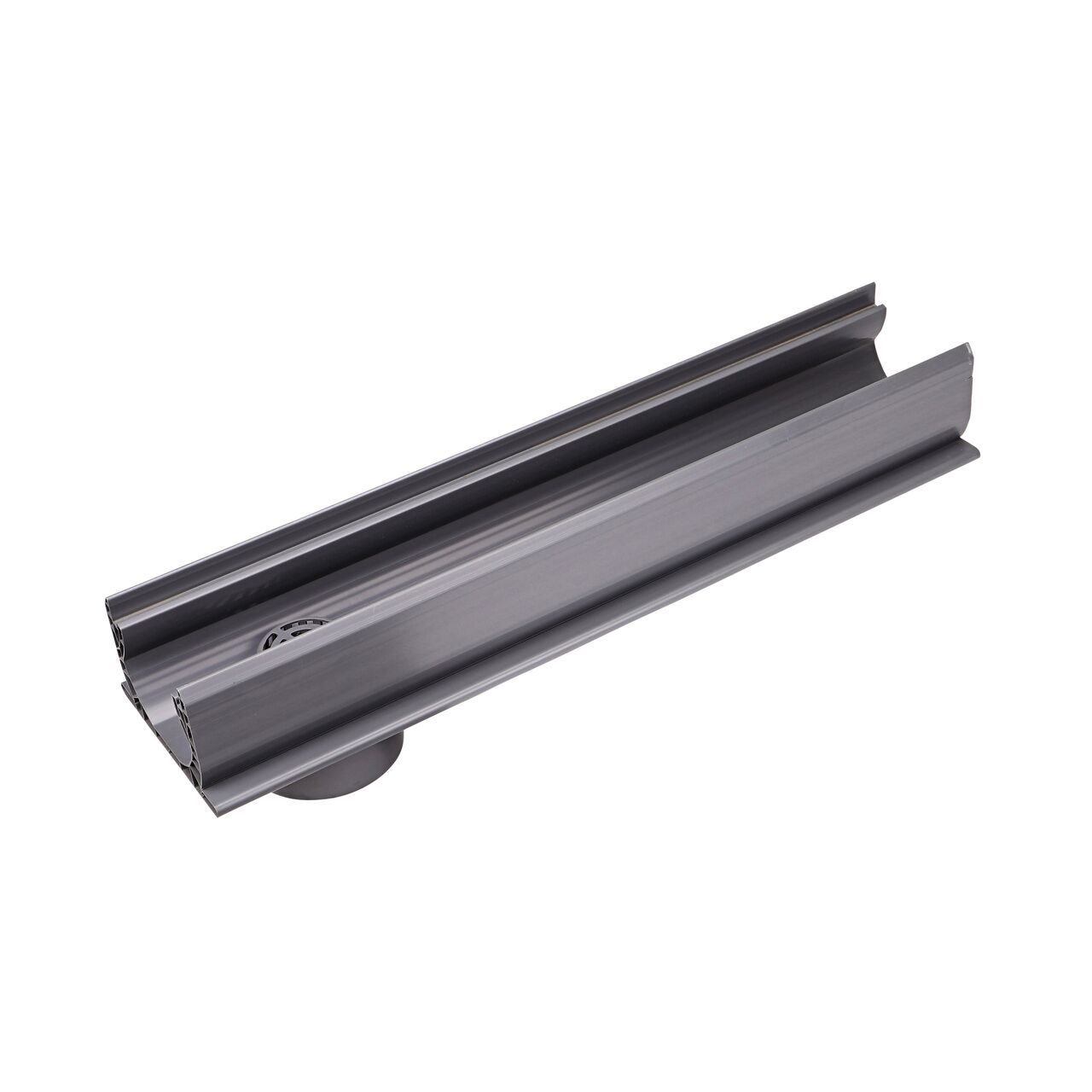

NDS Spee-D® Channel Drain with Bottom Outlet (NDS 234) installed with the NDS Spee-D® Channel Drain (NDS 400) and Spee-D® Channel Drain Grates (NDS 241-1) which collects and conveys stormwater away for proper release downstream

The 4 ft. long Spee-D® Channel Drain made of polyvinyl chloride is easy to install and ideal for collecting and conveying moderate flows of runoff from driveways, concrete and paver patios, pool areas, courtyards, and walkways to your drainage system. Find out more about the #1 bestselling channel drain in the USA. The Spee-D Channel Drain features patented honeycomb reinforced walls and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating. Channels connect with a coupling. Spee-D Channels are made of polyvinyl chloride (PVC) treated with UV inhibitors, and part of the NDS Profile Channel series.

Where to Buy Find a Pro

Applications:

Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
Spee-D Channel Drain system collects light to moderate water flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways, and directs it to drain pipes for proper release downstream
Works with Spee-D Channel Drain components, part of the NDS Profile Channel series

Features:

Spee-D Channel Drains are 4-3/4 in. wide, 3-3/4 in. high, and 4 ft. long, length can be cut to size with a saw
Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
Bottom flanges provide an anchoring lip for straight installation and prevents floating
Patented honeycomb reinforced walls provide durability
