Spee-D® Contour™ Channel Drains

Create Stunning Curves with Ease & Speed

Create custom curves around pools, patios, and driveways, and closed loops around fire pits and splash pads with this flexible, cost-effective alternative.

Where to Buy

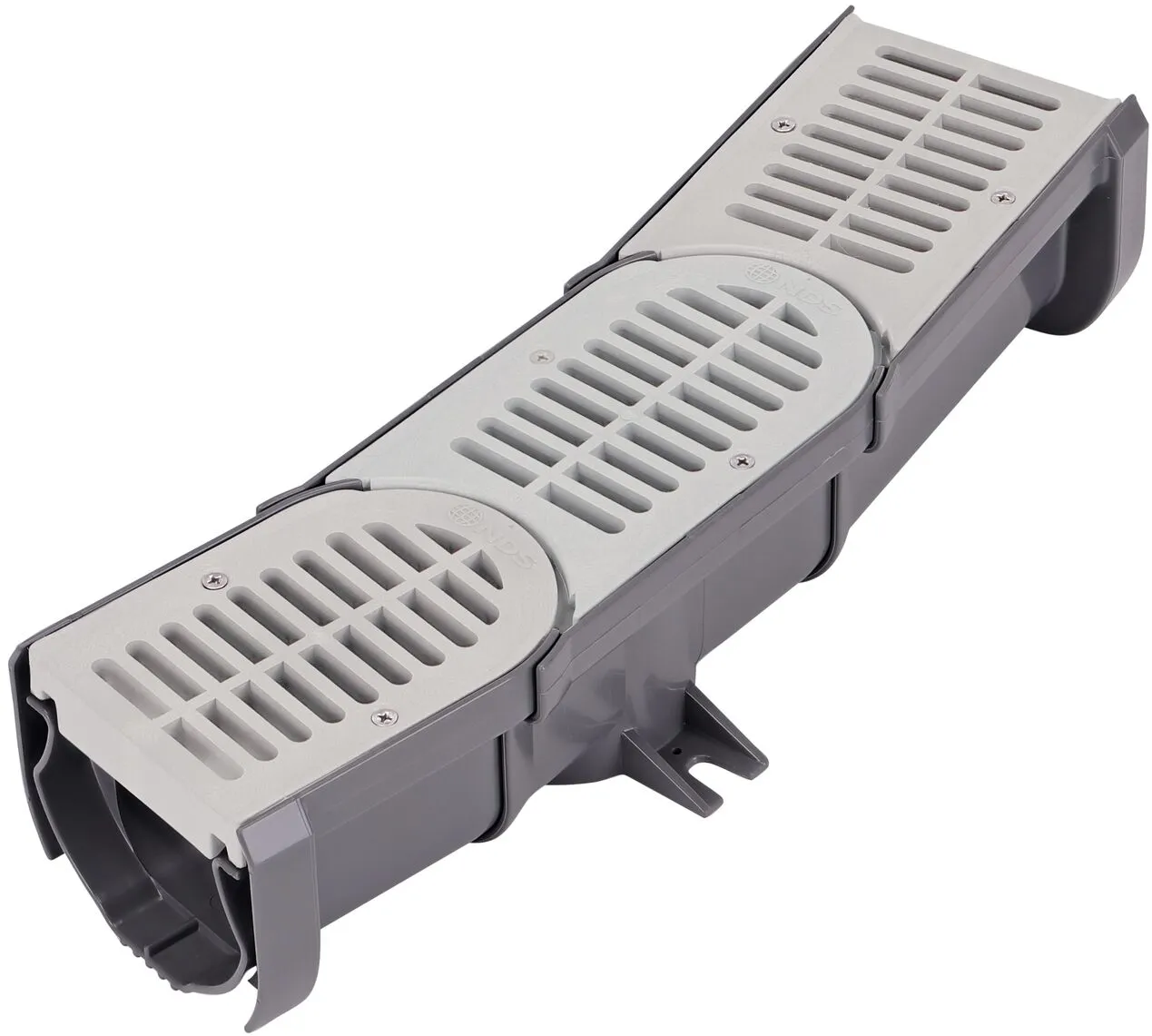

Once assembled, the NDS Spee-D® Contour™ Channel Drain (NDS 400-ACSE-RTL, NDS 400-ACM-RTL) sections create a pivot joint that provides 0 to 9 degrees of angular motion to rotate sections to the desired angle in either direction
Where to Buy

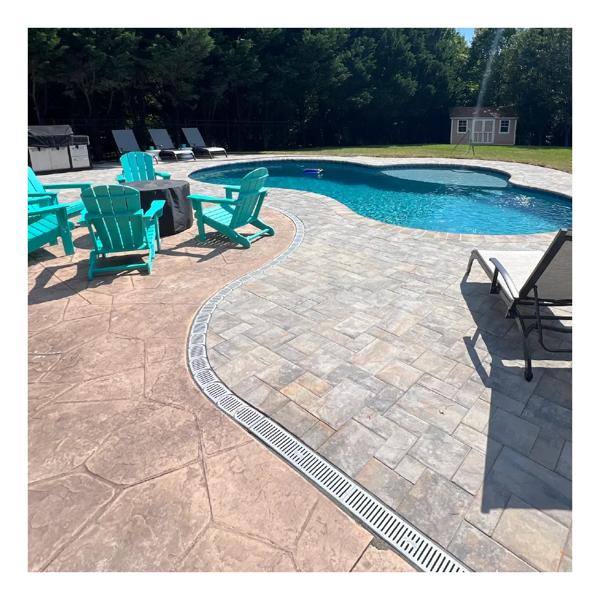

Lifestyle view of the new NDS Spee-D® Contour™ Channel Drain System (NDS 400-ACSE-WH, NDS 400-ACM-WH) which make natural curves in your channel drain system that are quick and easy to install along irregular or curved hardscapes

Key Features

  • CUSTOM CURVES: Provides 0 to 9 degrees of deflection at each joint
  • TIGHT TURNS: Bends to create a tight 6 ft.-2 in. diameter circle
  • HIGH FLOW CAPACITY: Delivers the highest flow capacity on the market today
  • VEHICLE LOAD RATED: NDS Class B when properly installed
  • SEAMLESS INTEGRATION: Compatible with the Spee-D channel drain and accessories
  • Patented design for ease of assembly
  • 0-9 degrees of deflection
  • Part of the Spee-D® channel drain family

  • For irregular or curved hardscapes
  • Withstands cars and light trucks
  • For use with 3 in. and 4 in. S&D pipe and fittings

Installation & Maintenance

  • Pieces snap together for a secure fit
  • Lowers installation time and labor costs
  • No couplings required

Materials & Sustainability

  • Channels are made in the USA
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

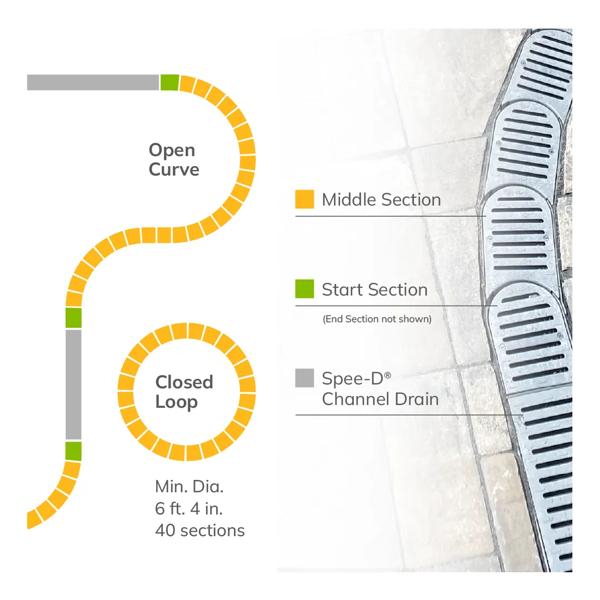

The new NDS Spee-D® Contour™ Channel Drain System (NDS 400-ACSE-WH, NDS 400-ACM-WH) connects to the NDS Spee-D Channel Drain system to form organic curves and bends in the channel drain run or to form a closed loop
Text Infographic for the NDS Spee-D® Contour™ Channel Drain System (NDS 400-ACSE-RTL, NDS 400-ACM-RTL) explaining the features and benefits of using this product to form organic curves and bends in the channel drain run or to form a closed loop

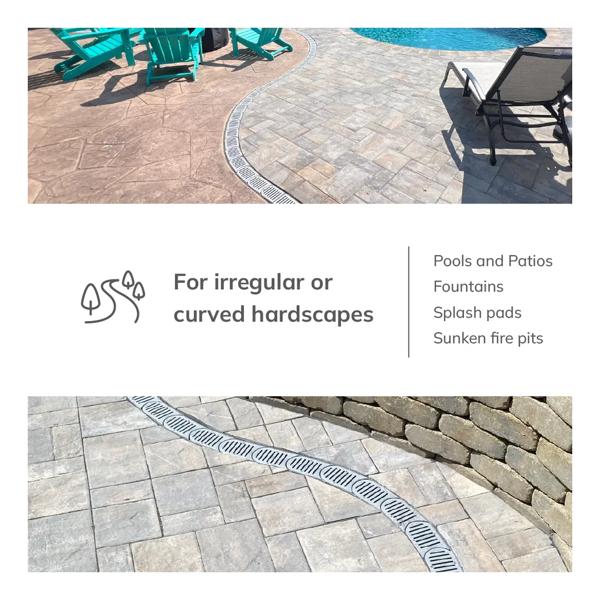

The new NDS Spee-D® Contour™ Channel Drain System (NDS 400-ACSE-WH, NDS 400-ACM-WH) make natural curves in your channel drain system that are quick and easy to install along irregular or curved hardscapes
