Dura Slope® Channel Drains

Engineered for superior performance, versatility, and ease of installation. Available with built-in slope or neutral channel sections, and designed for easier handling and installation, engineered to maintain optimal flow rates.

Where to Buy

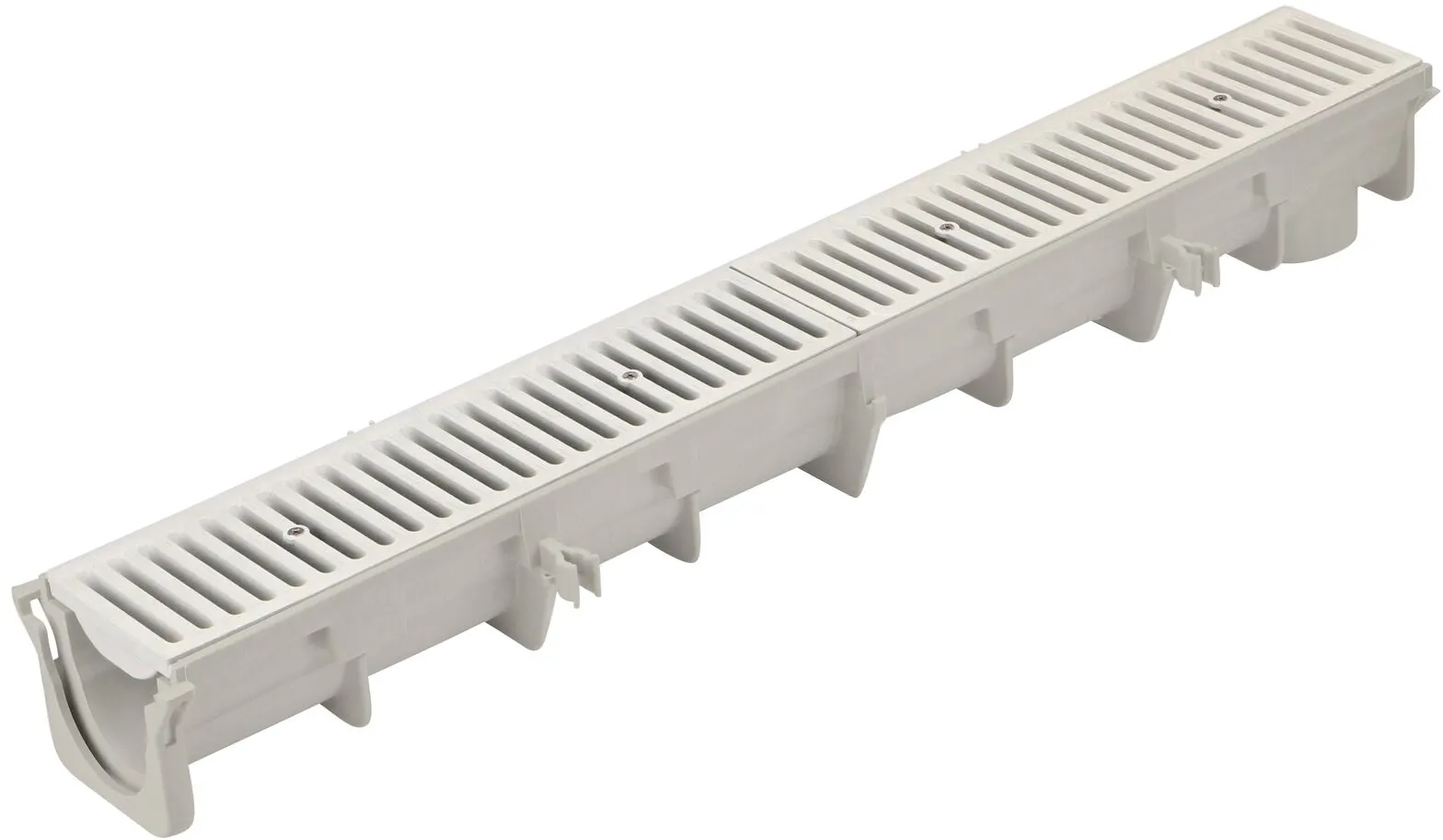

The NDS 3.99 in. Deep Neutral Dura Slope Channel (NDS DS-090N) with the Standard Dura Slope Light Gray Grate installed (NDS 661LG)

Where to Buy

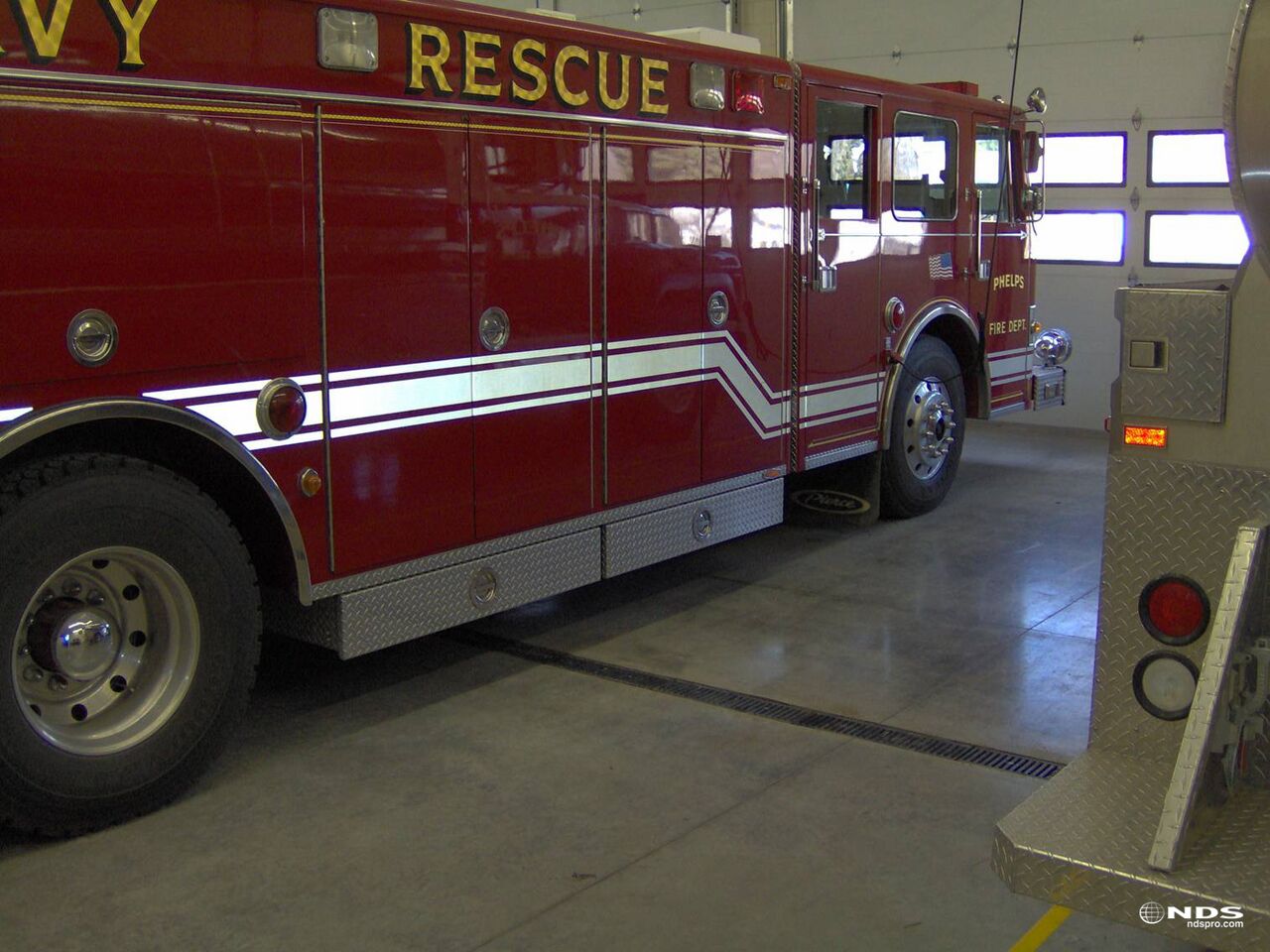

LS-duraslope-phelps-new-york-firehall-A2

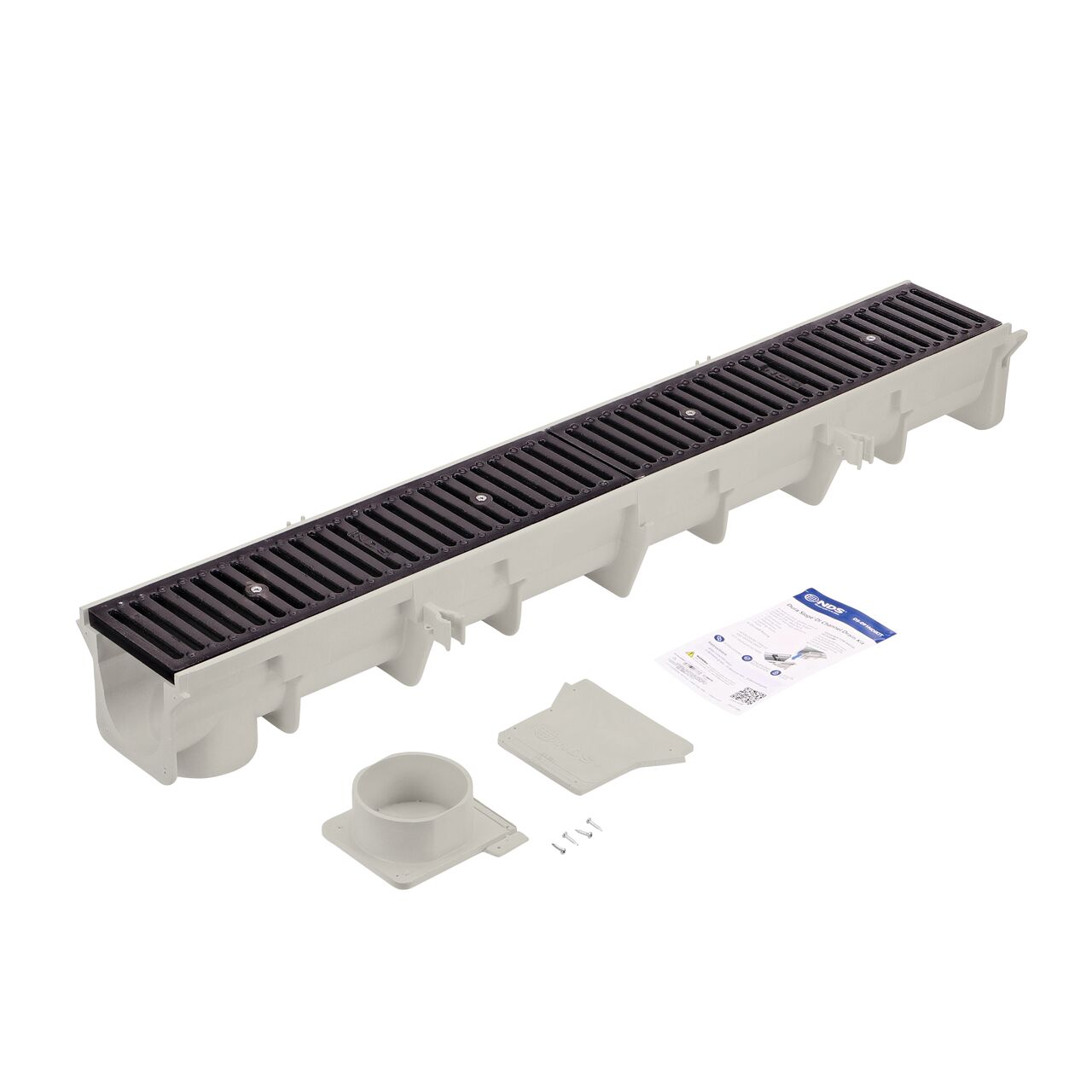

The NDS Neutral Dura Slope Channel Drain Kit includes a 4.3 in. deep neutral channel drain section with the ProFit™ locking system that locks the grates to the integral frame installed, along with two ductile iron grates already installed into this locking system, an end cap and end outlet pre-cut to fit this size drain, and screws to completely assemble one kit (NDS DS-091NDIKIT)

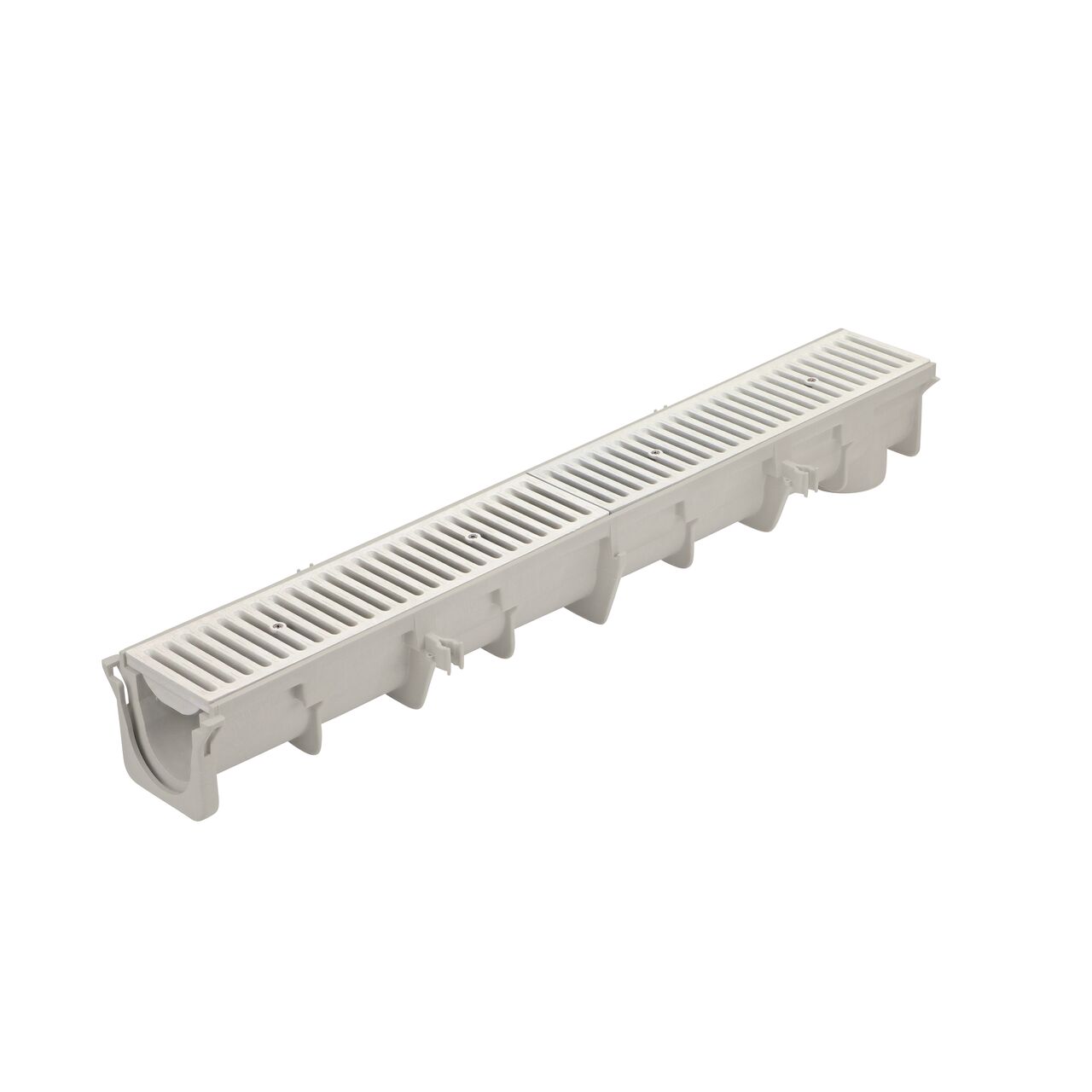

The NDS 4.34 To 4.67 in. Deep Dura Slope Channel (NDS DS-092) with the Standard Duraslope Light Gray Grate installed (NDS 661LG)

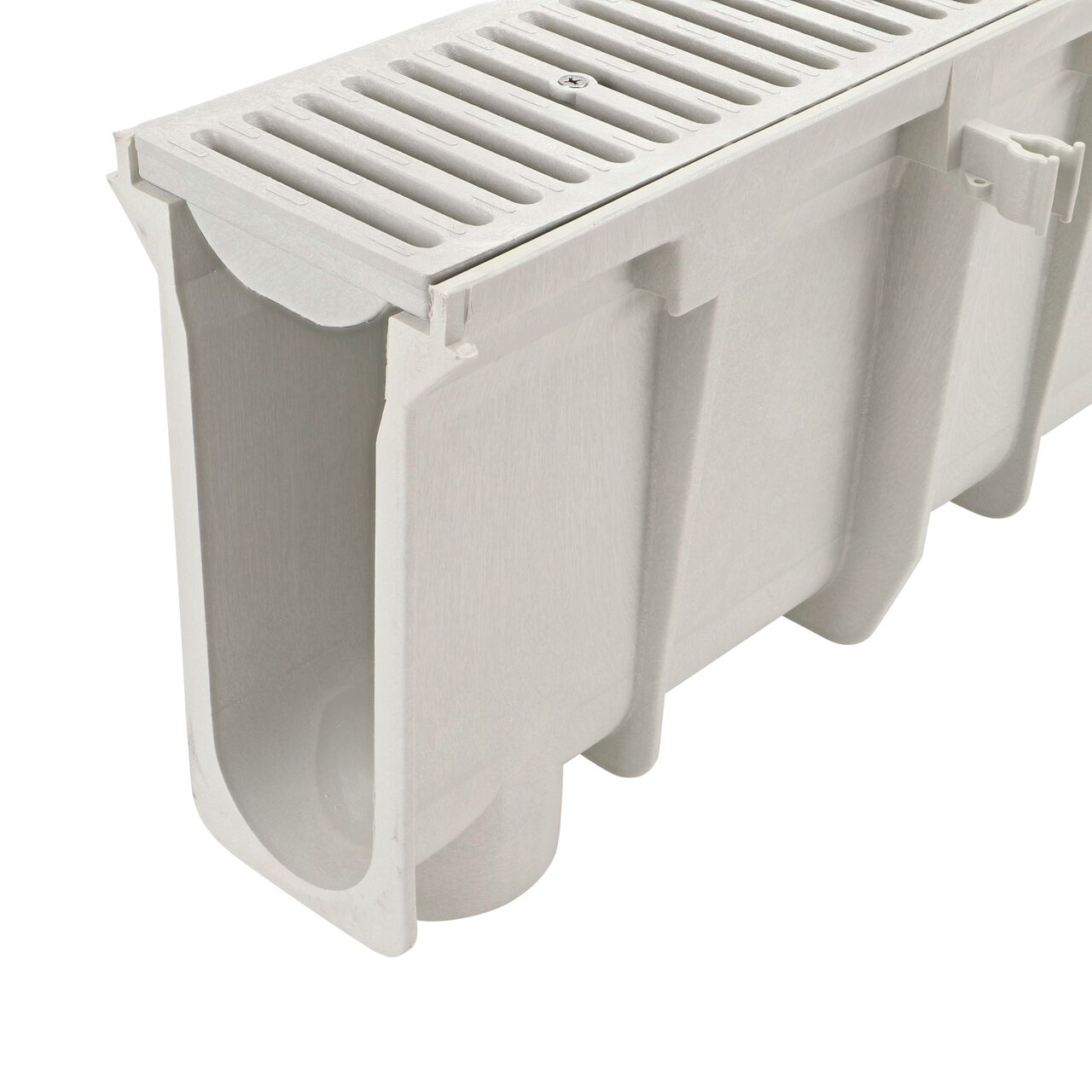

Closeup tongue (male) side of the NDS 11.05 in.to 11.39 in. Deep Dura Slope Channel (NDS DS-112) with the Standard Dura Slope Light Gray Grate installed (NDS 661LG)

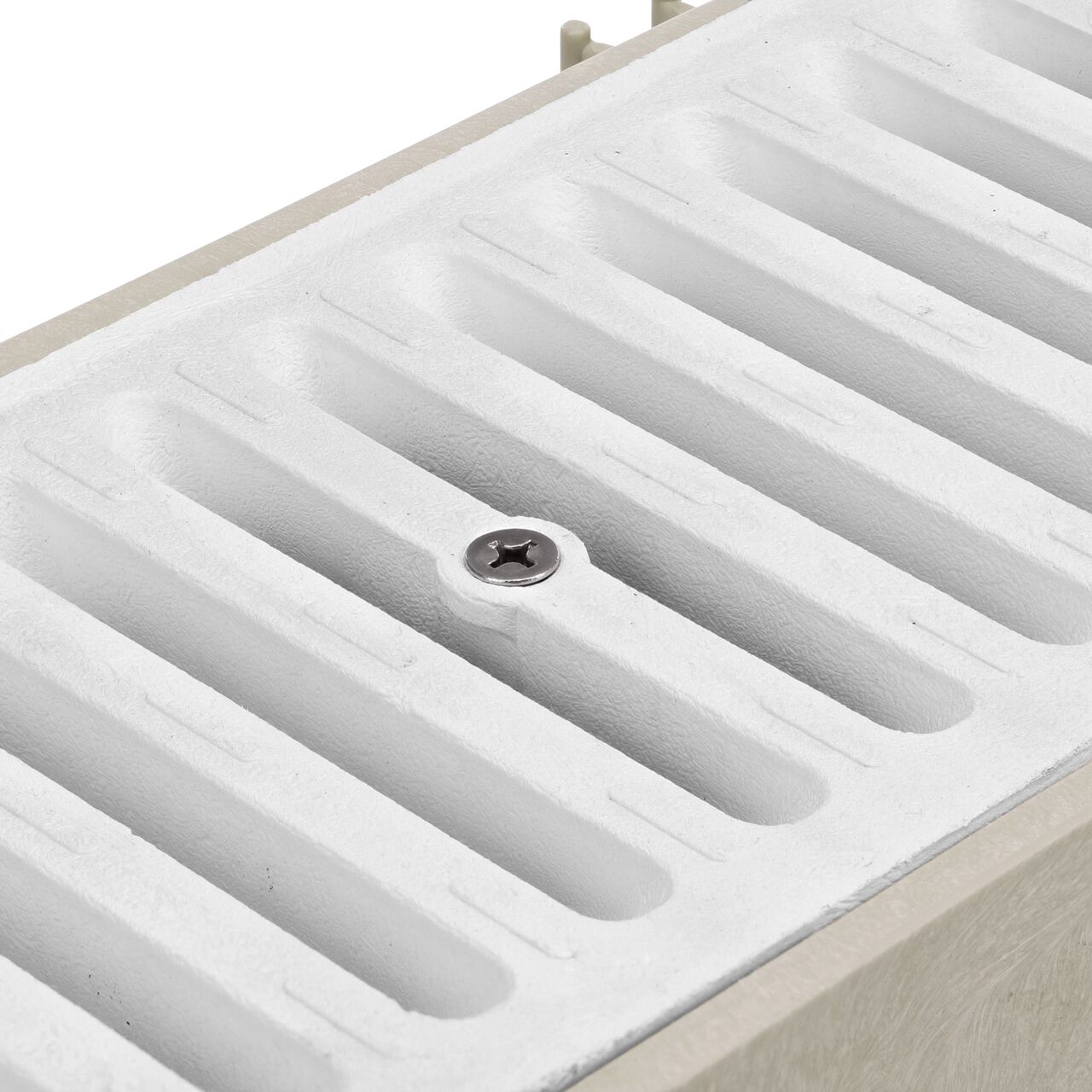

The shorter length 1/4 in. Phillips Flat Head Screw (NDS 629) secures any standard plastic Dura Slope Grate to the Dura Slope channel drain via the ProFit Grate Lock to prevent displacement from heavy runoff flows, pedestrian and vehicular traffic, and to deter potential theft and vandalism

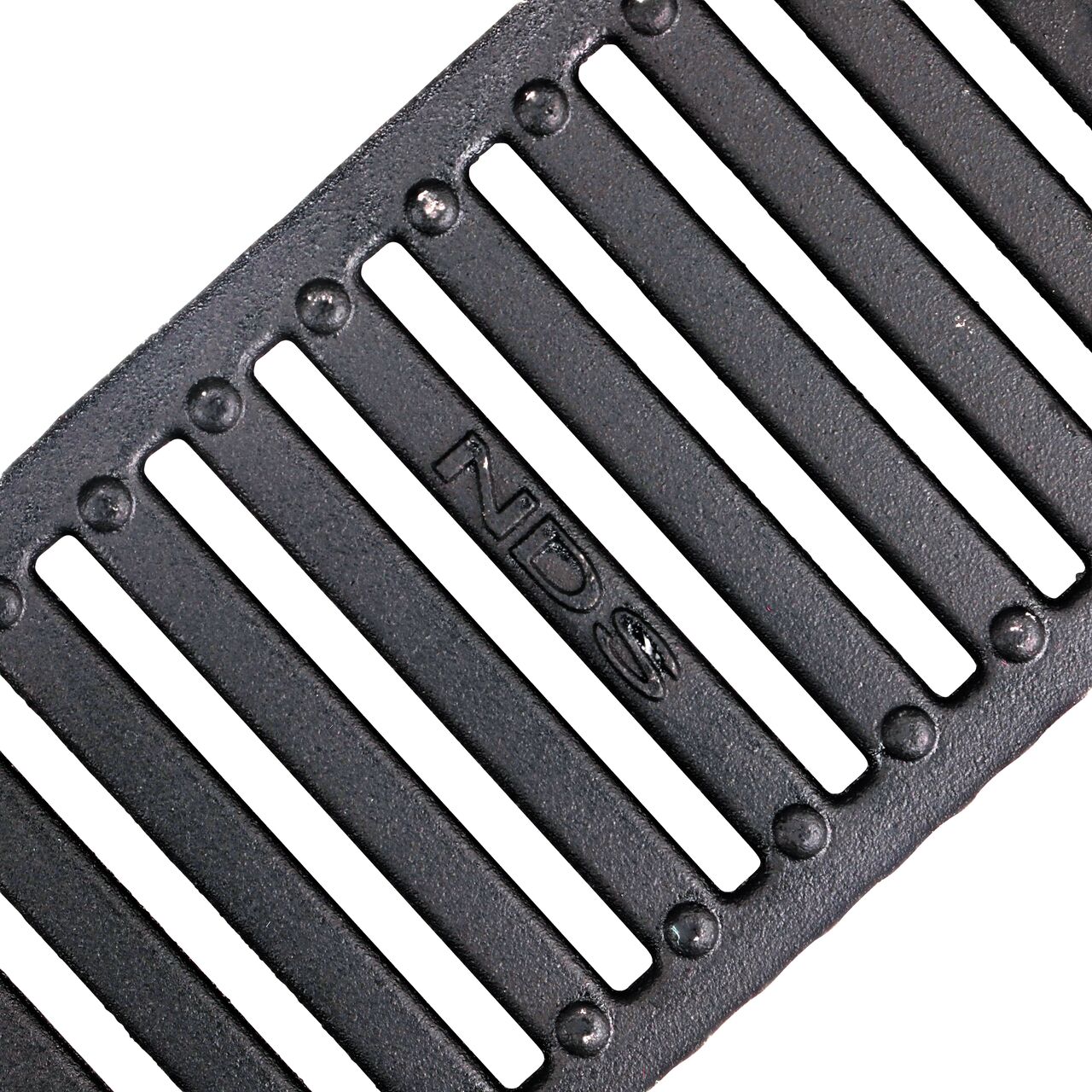

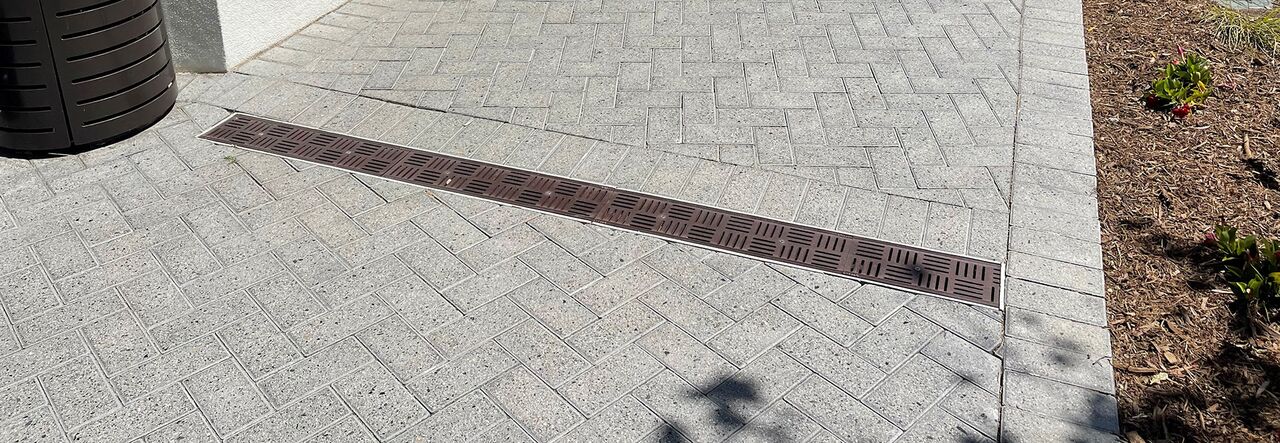

Angled Closeup View of the grate design on the NDS Dura Slope Heavy Duty Cast Iron Channel Grate (NDS-231)

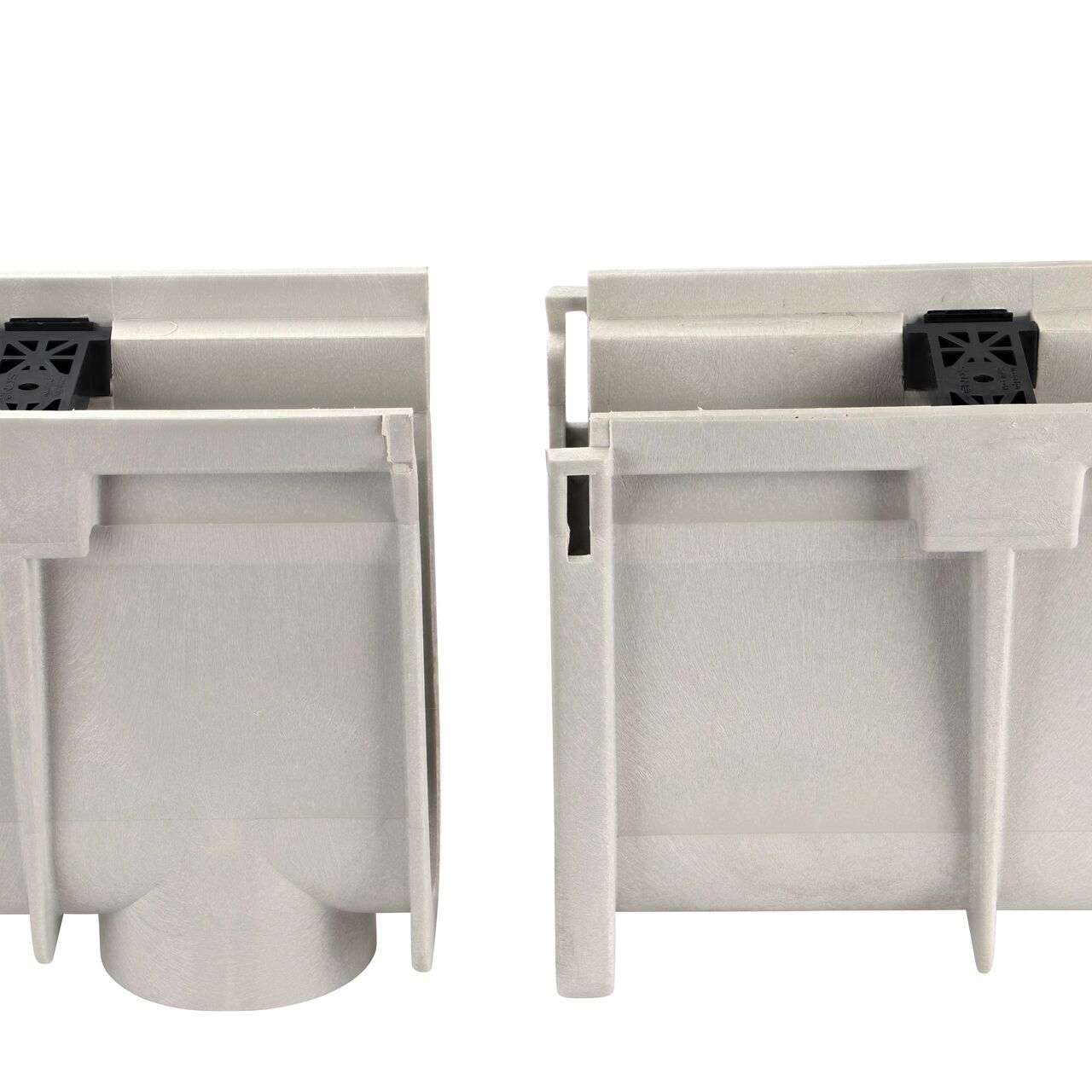

To install two larger size Dura Slope™ Channel Drains align the male and female end of two drains in succession order (NDS DS-103, NDS DS-103N, NDS DS-104, NDS DS-105, NDS DS-106, NDS DS-106N, NDS DS-107, NDS DS-108, NDS DS-109, NDS DS-109N, NDS DS-110, NDS DS-111, NDS DS-112, NDS DS-112N, NDS DS-113, NDS DS-114)

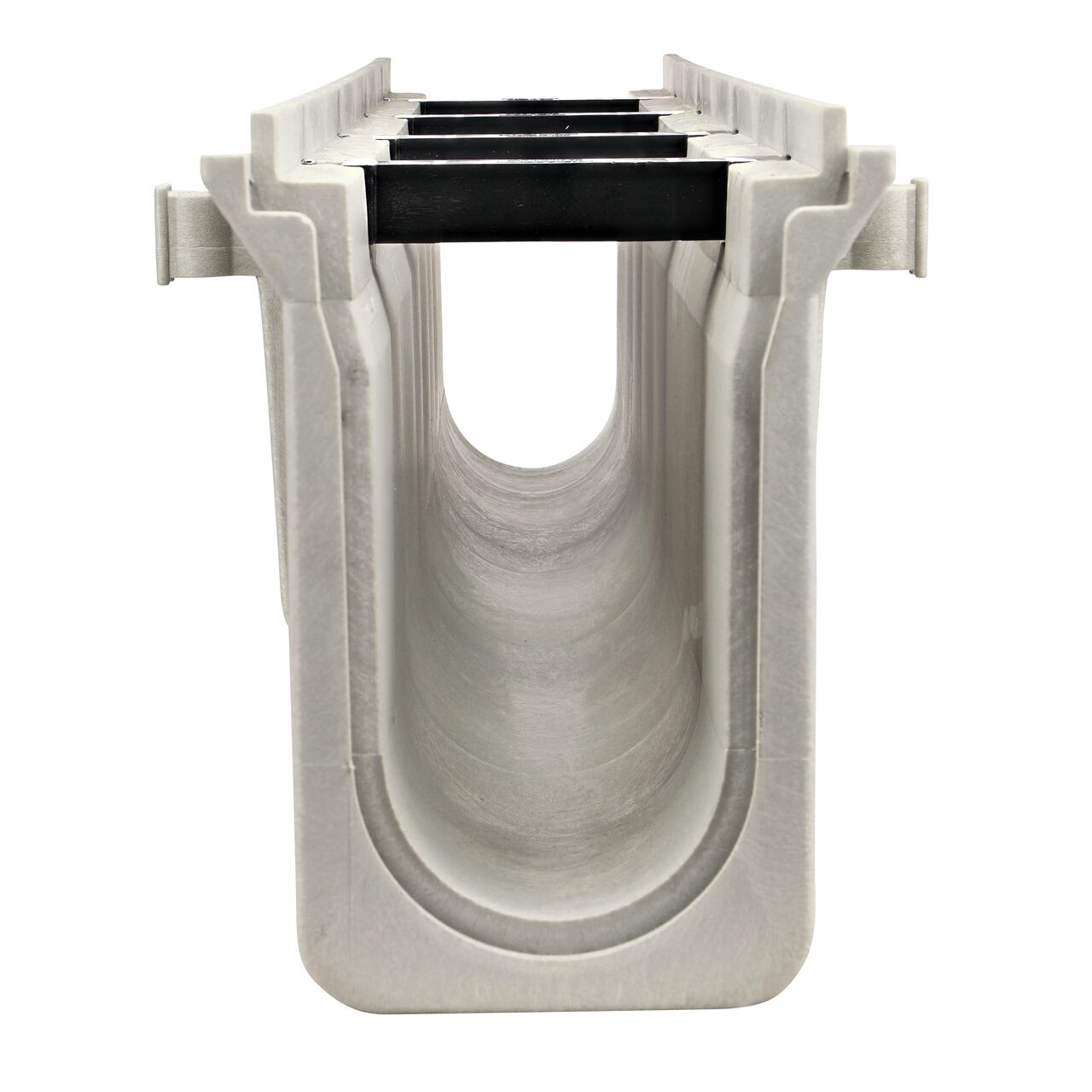

Inside view from female end of the NDS 8.37 in. Deep Neutral Dura Slope Channel Drain (NDS DS-103N)

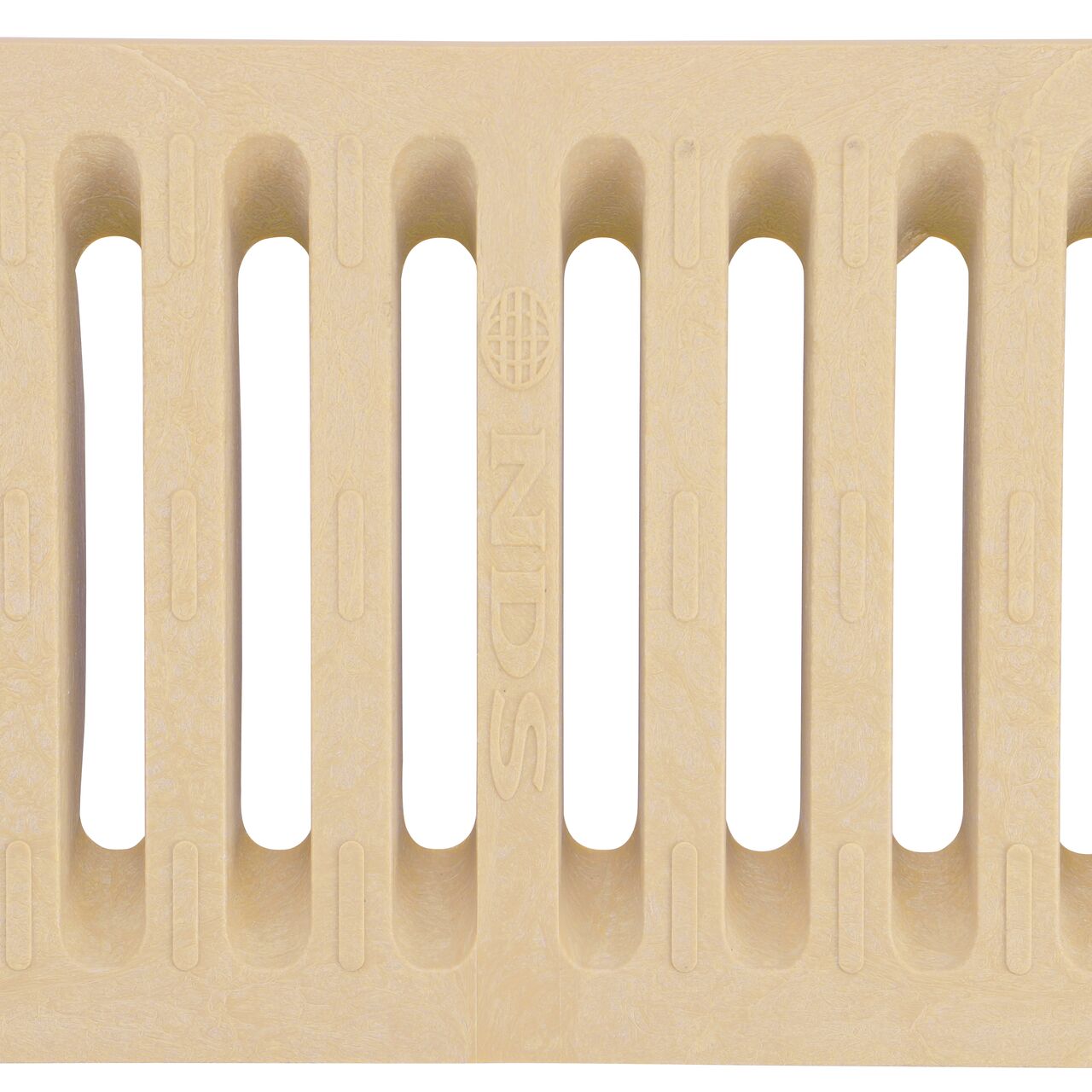

Top Down View of the sand Plastic Dura Slope™ Channel Drain Grate (NDS 664) perforated design

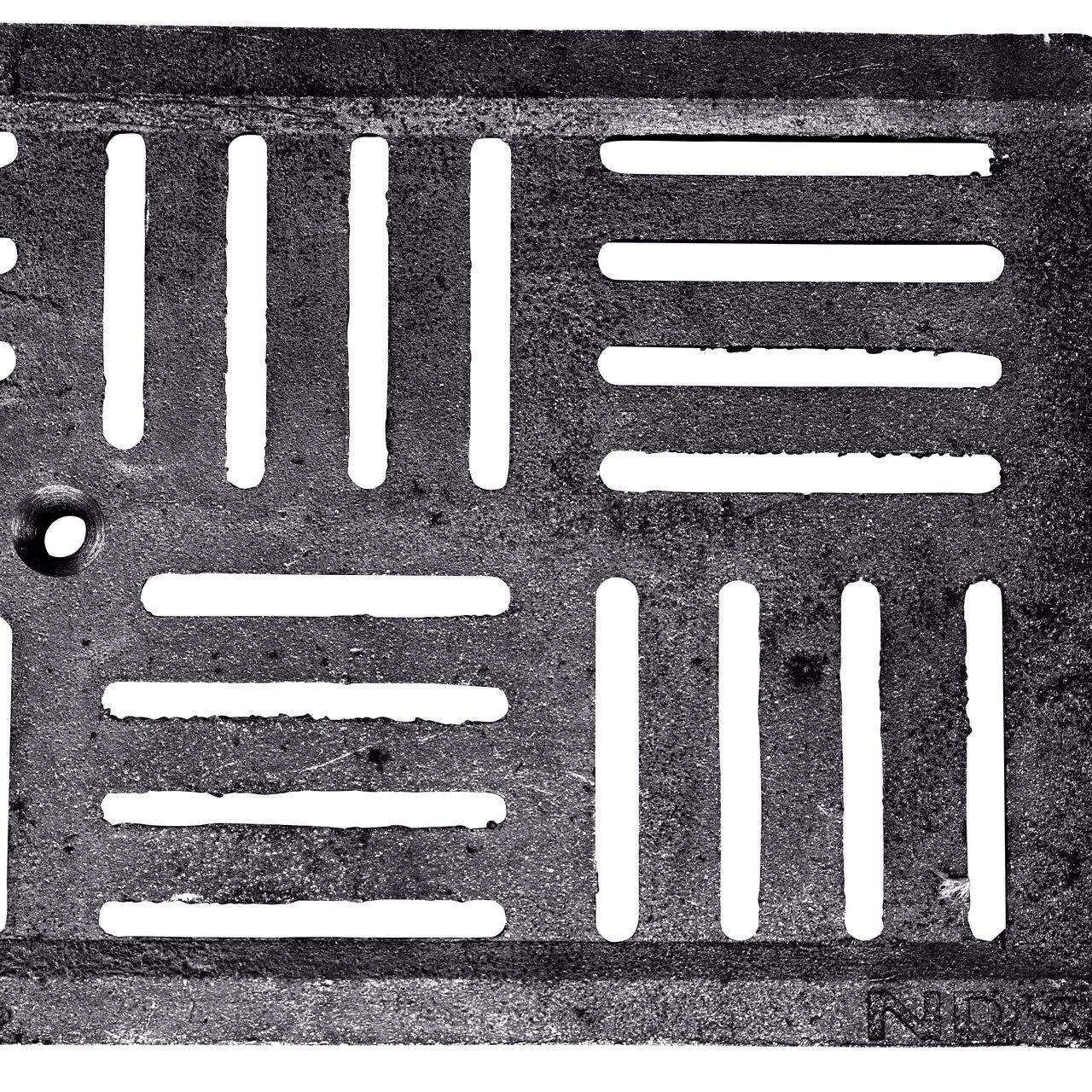

Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) deco slot design

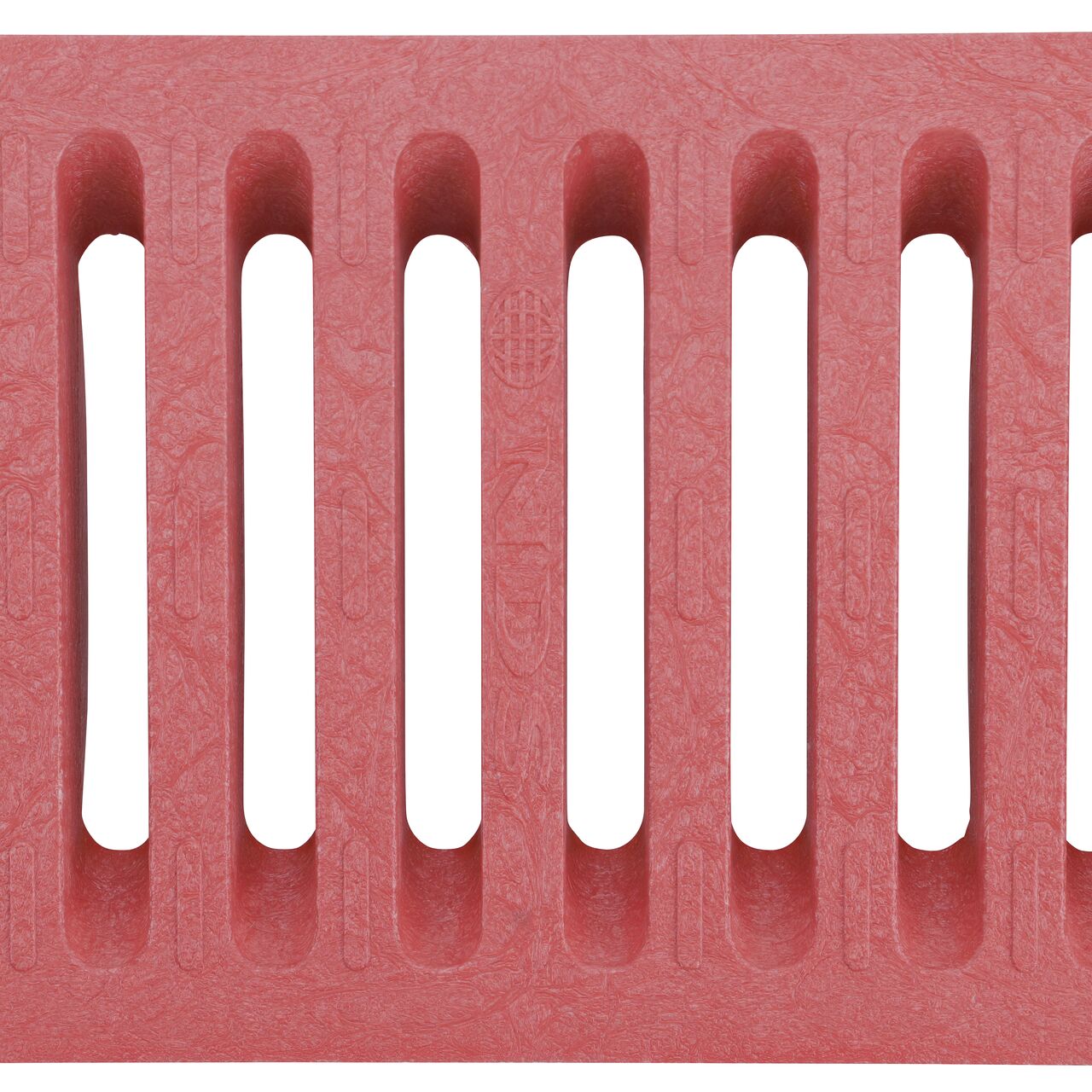

Top Down View of the brick red Plastic Dura Slope™ Channel Drain Grate (NDS 665) perforated design

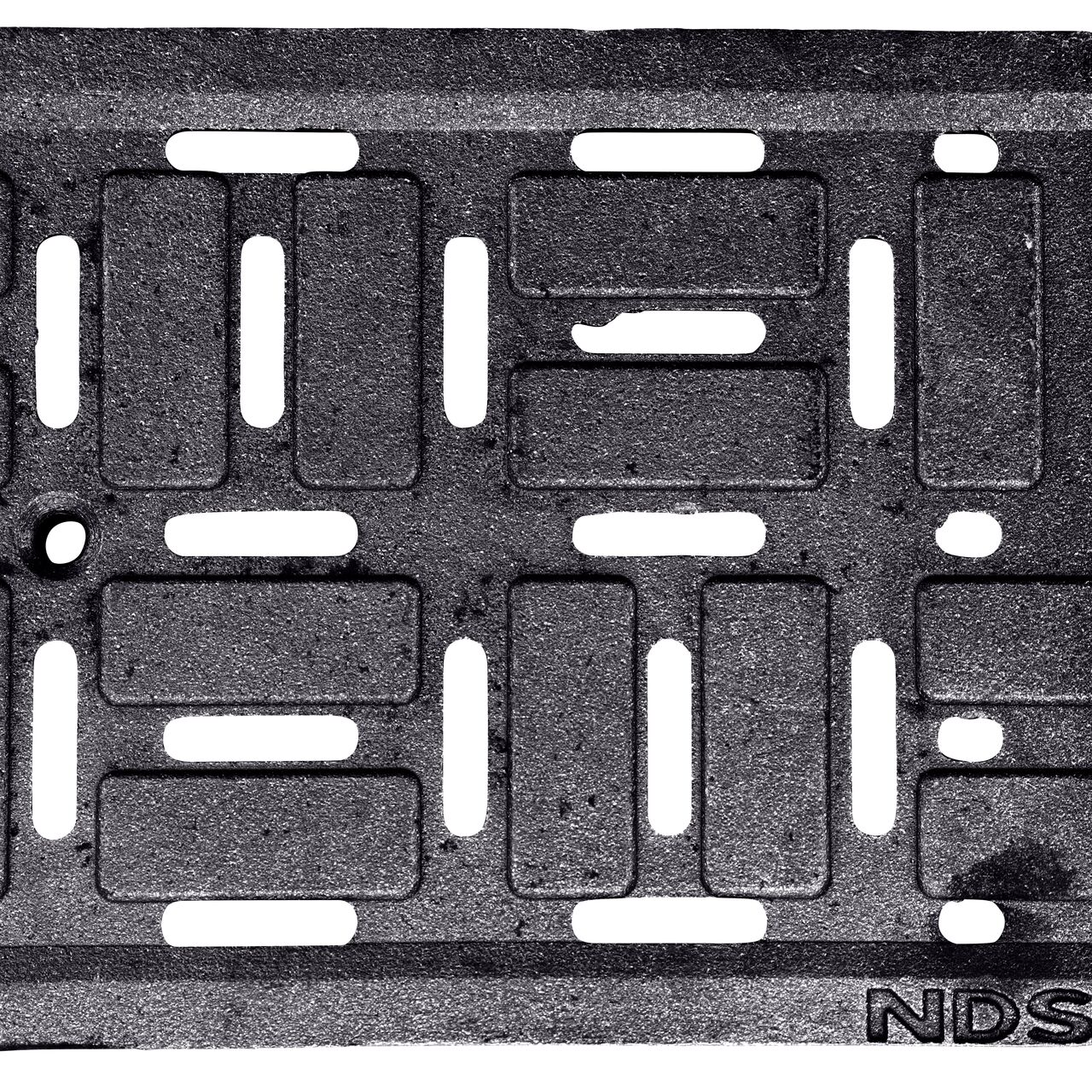

Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative brick pattern design

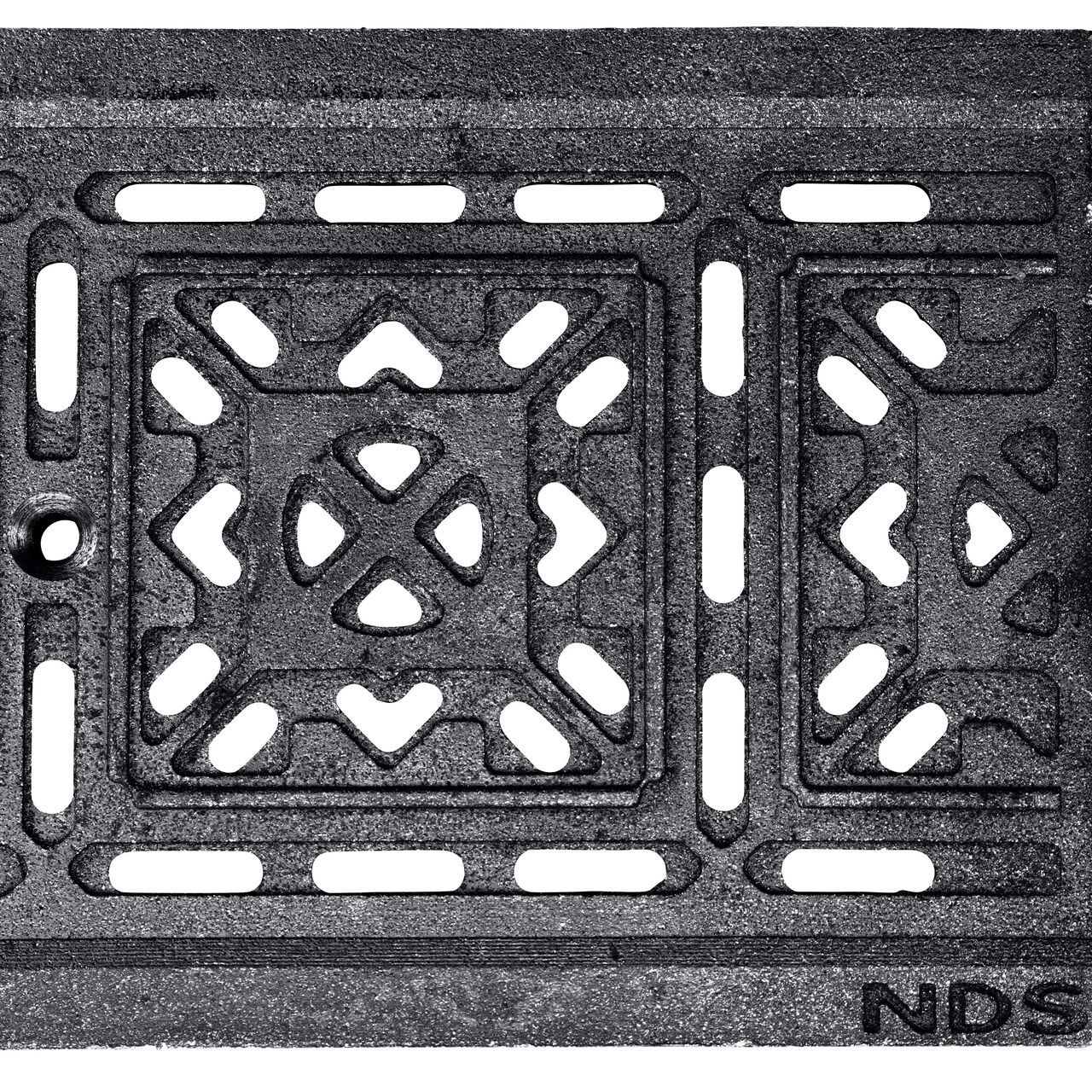

Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative tile pattern design

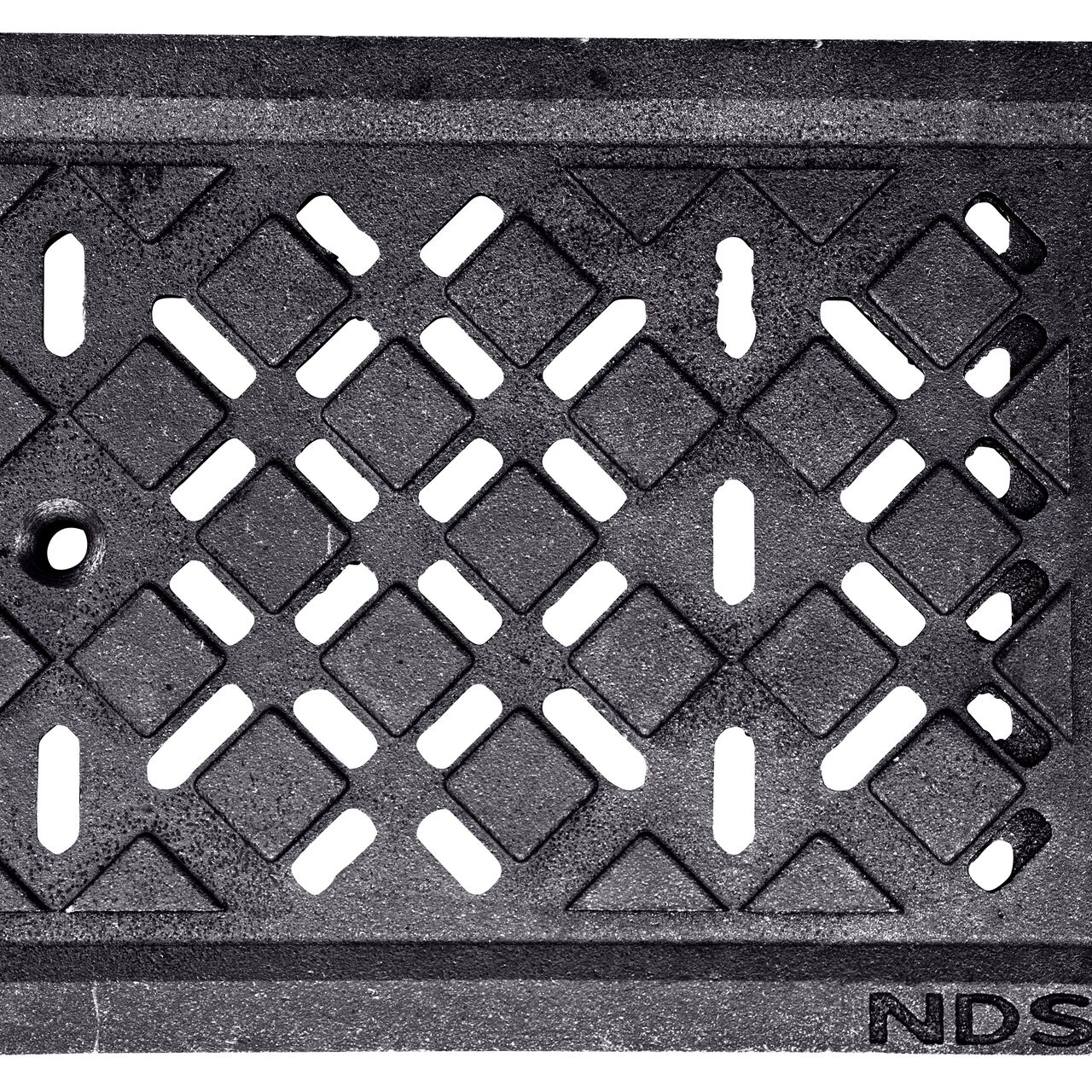

Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-602) decorative diamond pattern design

Key Features

Modular sections snap together with interlocking tongue and groove joints and secures alignment
Lightweight yet durable for lower freight costs compared to traditional concrete channel drains as well as easier handling and installation
Channel invert depths range from 4.75 to 12.81 in.; comes with blank grate inserts to protect channel from debris during installation
Customize with a selection of grate materials and styles such as slot tops, perforated, and decorative designs
Save time and effort on installation with the Dura Slope Channel Drain Kit, which includes a neutral channel drain section, ductile iron grates, grate locks, end outlet, and end cap

Applications

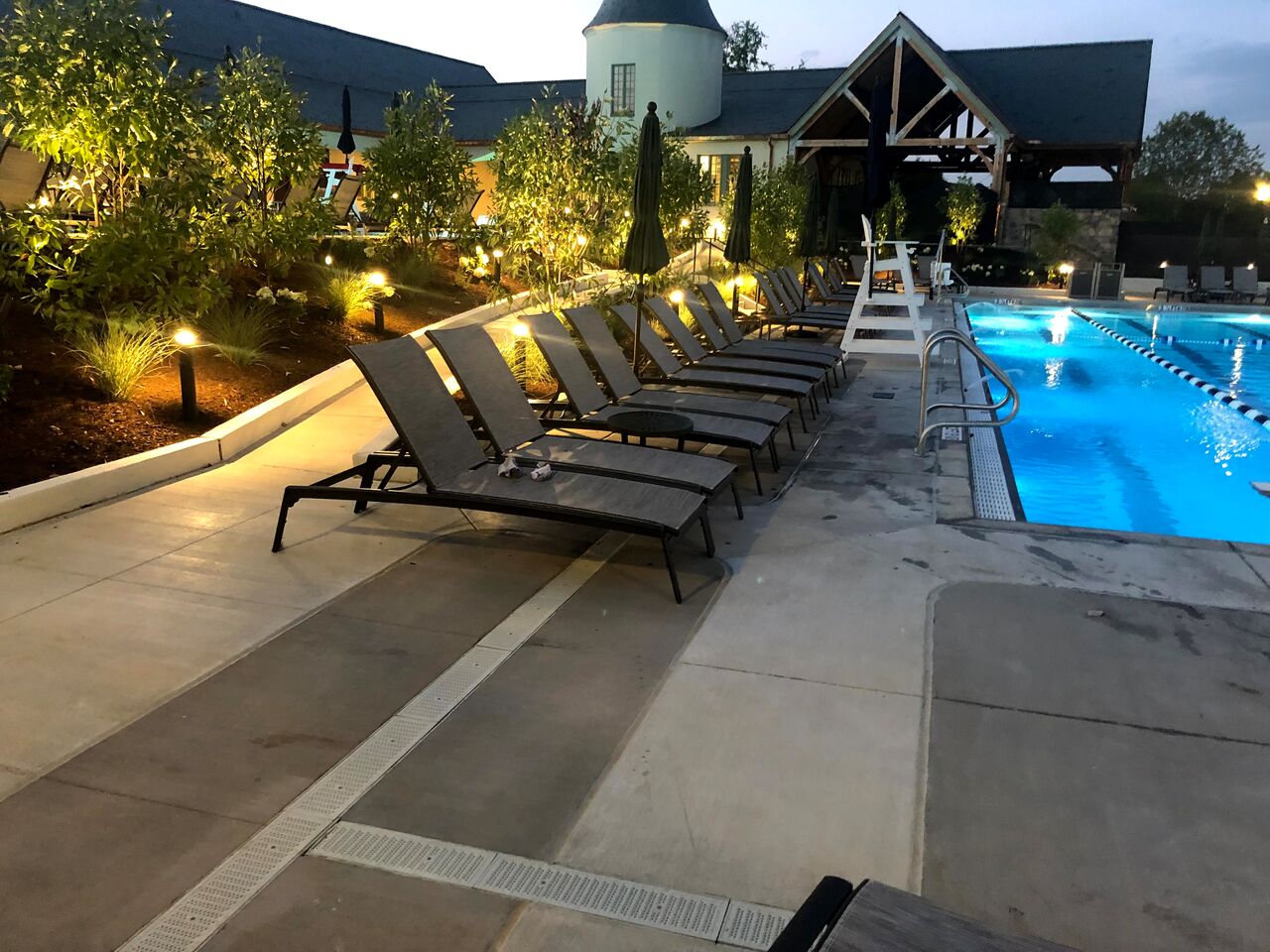

Ideal for driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces; provides a solution for residential, commercial, industrial, and municipal drainage needs
Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
The Dura Slope Channel Drain, as part of a complete channel drainage system, works with drain grates to capture stormwater runoff and convey it to drain pipe for proper release downstream or to an infiltration device

Installation & Maintenance

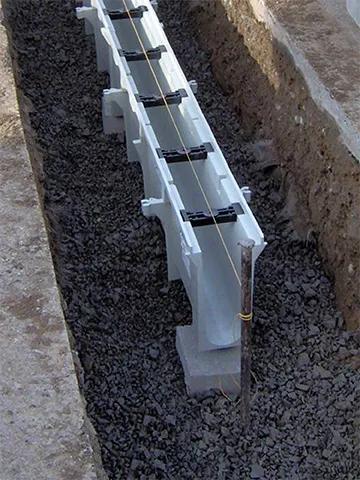

Sections snap together with interlocking tongue and groove joints; tabs hold and clip channels together; rebar clips hold channels in place during installation; for detailed instructions refer to the Dura Slope Installation Manual
Check the drain grate and clear debris from grate openings; remove grate to inspect inside the channel drain; check drain pipes connected to the channel drain for obstructions

Materials & Sustainability

Channels made of high-density polyethylene (HDPE) containing UV inhibitors
Grates made from plastic, galvanized & stainless steel, or cast & ductile iron
Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Need more flexibility to handle the curves? Click here to learn more about Dura Slope® EZ-Track™ Radius Coupling and Grates.

Part Number (click for more info)	Description
DS-126	Dura Slope® Channel Drain Bottom Outlet Adapter
DS-224	Dura Slope® Channel Drain End Cap
DS-227	Dura Slope® Channel Drain End Cap/Outlet
DS-200H	Dura Slope® Channel Drain Frame, 6-3/8 in. Wide X 2 ft. Long, Ductile Iron

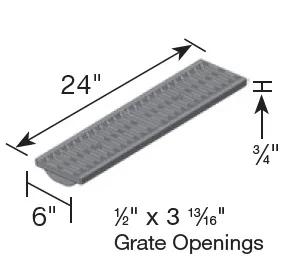

663	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Black Plastic
665	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Brick Red Plastic
DS-231	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Cast Iron
661	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Dark Gray Plastic
DS-604	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Brick Design, Raw Iron
DS-602	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Diamond Design, Raw Iron
DS-610-KIARO	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Kiaro Slot Design, Ductile Iron
DS-609	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Slot Design, Raw Iron
DS-603	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Tile Design, Raw Iron
DS-611-VIA	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Via Slot Design, Ductile Iron
DS-612-VILLE	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Ville Slot Design, Ductile Iron
DS-601	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Weave Design, Raw Iron
DS-232	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Ductile Iron
DS-221	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Galvanized Steel
662	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Green Plastic
661LG	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Light Gray Plastic
DS-228	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Galvanized Steel

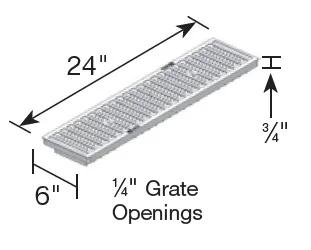

DS-670	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Light Gray Plastic

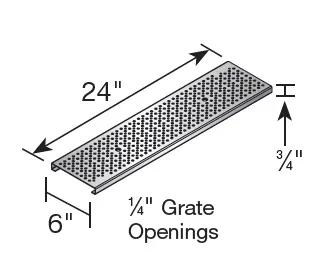

DS-226	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Stainless Steel
DS-671	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, White Plastic
664	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Sand Plastic
DS-SS-ST500	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Slot Top, Asymmetric, Stainless Steel
660	Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, White Plastic
DS-SS-ST1000	Dura Slope® Channel Drain Grate, 6 in. Wide X 4 ft. Long, Slot Top, Asymmetric, Stainless Steel
DS-340	Dura Slope® Channel Drain Inline Catch Basin Kit with 2-outlet Catch Basin, 1 Adapter Plug, 2 Grate Screws
DS-091NDIKIT	Dura Slope® Channel Drain Kit, 4.3 in. Invert Depth Neutral Channel, 6 in. Wide X 4 ft. Long X 6.1 in. Deep, Ductile Iron Grates, End Outlet, End Cap
DS-122	Dura Slope® Channel Drain ProFit™ Grate Lock
DS-STMAINT	Dura Slope® Channel Drain Slot Top Maintenance Unit, 6 in. Wide X 2 ft. Long, Asymmetric, Galvanized Steel
DS-SS-STMAINT	Dura Slope® Channel Drain Slot Top Maintenance Unit, 6 in. Wide X 2 ft. Long, Asymmetric, Stainless Steel
DS-240	Dura Slope® Channel Drain Trash Bucket, Zinc-plated Steel
DS-109	Dura Slope® Channel Drain, 10.1 in. to 10.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.8 in. Deep
DS-109N	Dura Slope® Channel Drain, 10.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 12.2 in. Deep
DS-110	Dura Slope® Channel Drain, 10.4 in. to 10.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.2 in. Deep
DS-111	Dura Slope® Channel Drain, 10.7 in. to 11.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.5 in. Deep
DS-112	Dura Slope® Channel Drain, 11.1 in. to 11.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.8 in. Deep
DS-112N	Dura Slope® Channel Drain, 11.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 13.2 in. Deep
DS-113	Dura Slope® Channel Drain, 11.4 in. to 11.7 in. Deep, 6 in. Wide X 4 ft. Long X 13.2 in. Deep
DS-114	Dura Slope® Channel Drain, 11.7 in. to 12.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 13.5 in. Deep
DS-090N	Dura Slope® Channel Drain, 4.0 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 5.8 in. Deep
DS-091	Dura Slope® Channel Drain, 4.0 in. to 4.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 5.8 in. Deep
DS-091N	Dura Slope® Channel Drain, 4.3 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 6.1 in. Deep
DS-092	Dura Slope® Channel Drain, 4.3 in. to 4.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 6.1 in. Deep
DS-093	Dura Slope® Channel Drain, 4.7 in. to 5.00 Invert Depth, 6 in. Wide X 4 ft. Long X 6.4 in. Deep
DS-094	Dura Slope® Channel Drain, 5.0 in. to 5.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 6.8 in. Deep
DS-094N	Dura Slope® Channel Drain, 5.3 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 7.1 in. Deep
DS-095	Dura Slope® Channel Drain, 5.3 in. to 5.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.1 in. Deep
DS-096	Dura Slope® Channel Drain, 5.7 in. to 6.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.5 in. Deep
DS-097	Dura Slope® Channel Drain, 6.0 in. to 6.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.8 in. Deep
DS-097N	Dura Slope® Channel Drain, 6.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 8.1 in. Deep
DS-098	Dura Slope® Channel Drain, 6.4 in. to 6.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.1 in. Deep
DS-099	Dura Slope® Channel Drain, 6.7 in. to 7.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.5 in. Deep
DS-100	Dura Slope® Channel Drain, 7.0 in. to 7.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.8 in. Deep
DS-100N	Dura Slope® Channel Drain, 7.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 9.1 in. Deep
DS-101	Dura Slope® Channel Drain, 7.4 in. to 7.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.1 in. Deep
DS-102	Dura Slope® Channel Drain, 7.7 in. to 8.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.5 in. Deep
DS-103	Dura Slope® Channel Drain, 8.0 in. to 8.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.8 in. Deep
DS-103N	Dura Slope® Channel Drain, 8.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 10.1 in. Deep
DS-104	Dura Slope® Channel Drain, 8.4 in. to 8.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.1 in. Deep
DS-105	Dura Slope® Channel Drain, 8.7 in. to 9.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.5 in. Deep
DS-106	Dura Slope® Channel Drain, 9.0 in. to 9.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.8 in. Deep
DS-106N	Dura Slope® Channel Drain, 9.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 11.1 in. Deep
DS-107	Dura Slope® Channel Drain, 9.4 in. to 9.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.1 in. Deep
DS-108	Dura Slope® Channel Drain, 9.7 in. to 10.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.5 in. Deep

Specifications & Documents

Channel & Trench Drains & Grates

Yes. The Dura Slope Channel can make bends as small as a 30 in. radius using the Dura Slope Radius Couplings.

Yes. All channel segments are clearly labeled with an NDS part number sticker. The channels must be installed in ascending numerical order starting with the smallest part number. The part number sticker also shows the number of the segment to be installed upstream and downstream of the segment.

If adding to the upstream (female) end, slide the Universal End Cap or Universal End Outlet into the slot on the end of the channel. If adding to the downstream (male) end, NDS part #DS-123 Phillips head #6 x ¾ in. screws must be used to screw the Universal End Cap or Universal End Outlet to the Dura Slope Channel (screws sold separately).

Adding the DS-200 to the Dura Slope system increases the load capacity to 326-575 psi. This rating is suitable for heavy-duty hard tire forklifts at speeds less than 20 m.p.h. H-20 rated. DS-225 screws (sold separately) must be used to secure the grates.

Each channel section is different. The shallowest channel is 3.99 in. from the bottom of the grate to the flow line in the channel. The deepest channel is 12.06 in. from the bottom of the grate to the flow line. All Dura Slope grates are ¾ in. thick.

The fall in each sloped section of Dura Slope channel is 0.34 in. Each section comes with a built-in 0.7% slope. The neutral sections have flat bottoms.

The Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 19580) test methods by an independent AASHTO accredited lab. The channel's strength exceeds the standards set forth by these tests. This rating is suitable for loads of 61-175 psi including medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.

Without the use of neutral sections (no bottom slope), the maximum length run is 96 feet. With the use of one neutral section in its designed place, the maximum length run is 132 feet. There will be 8.07 in. of fall in these runs. The channel can be lengthened by adding additional neutral sections. We do not recommend connecting more than 4 consecutive neutral segments together to allow for proper flow and prevent standing water in the channel.
