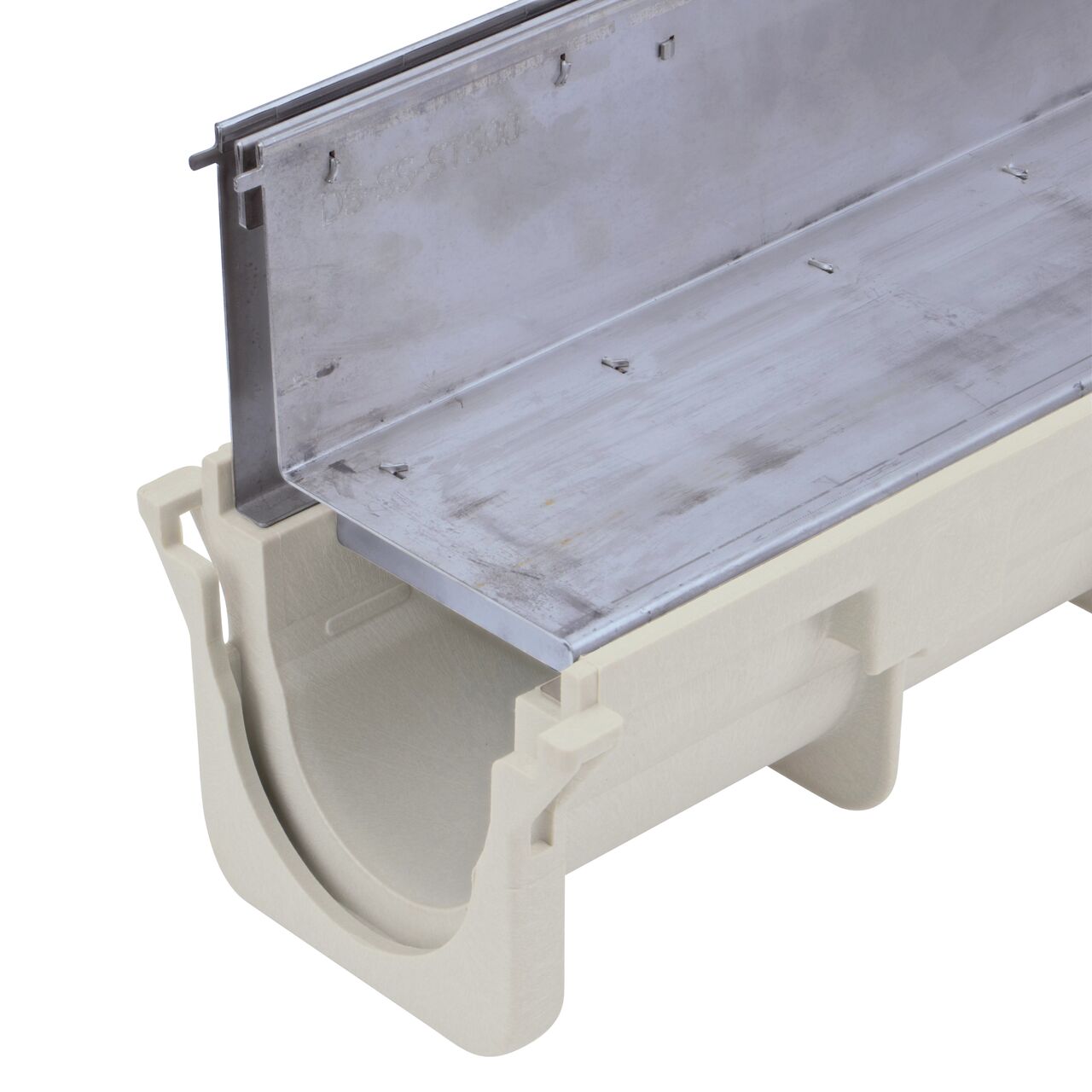

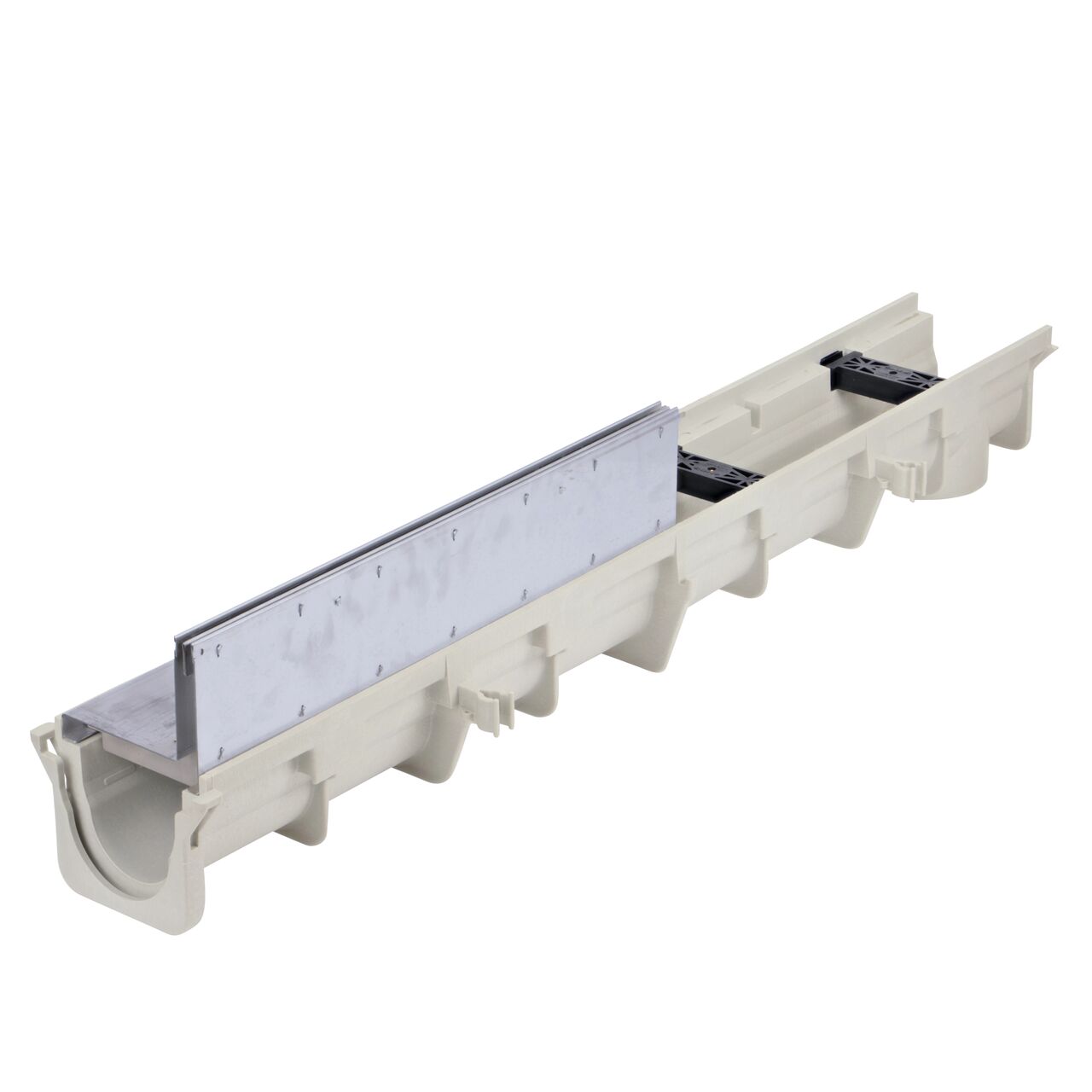

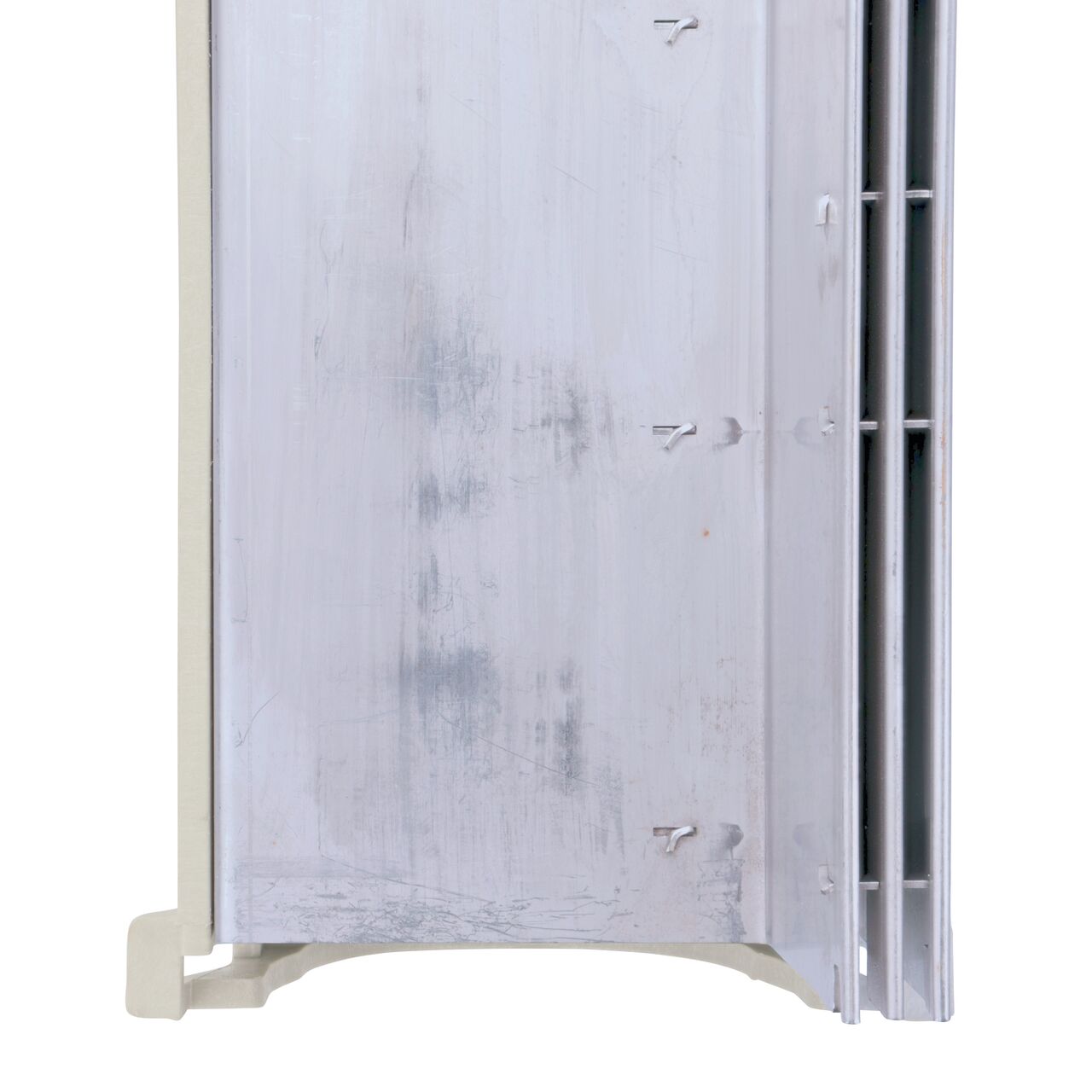

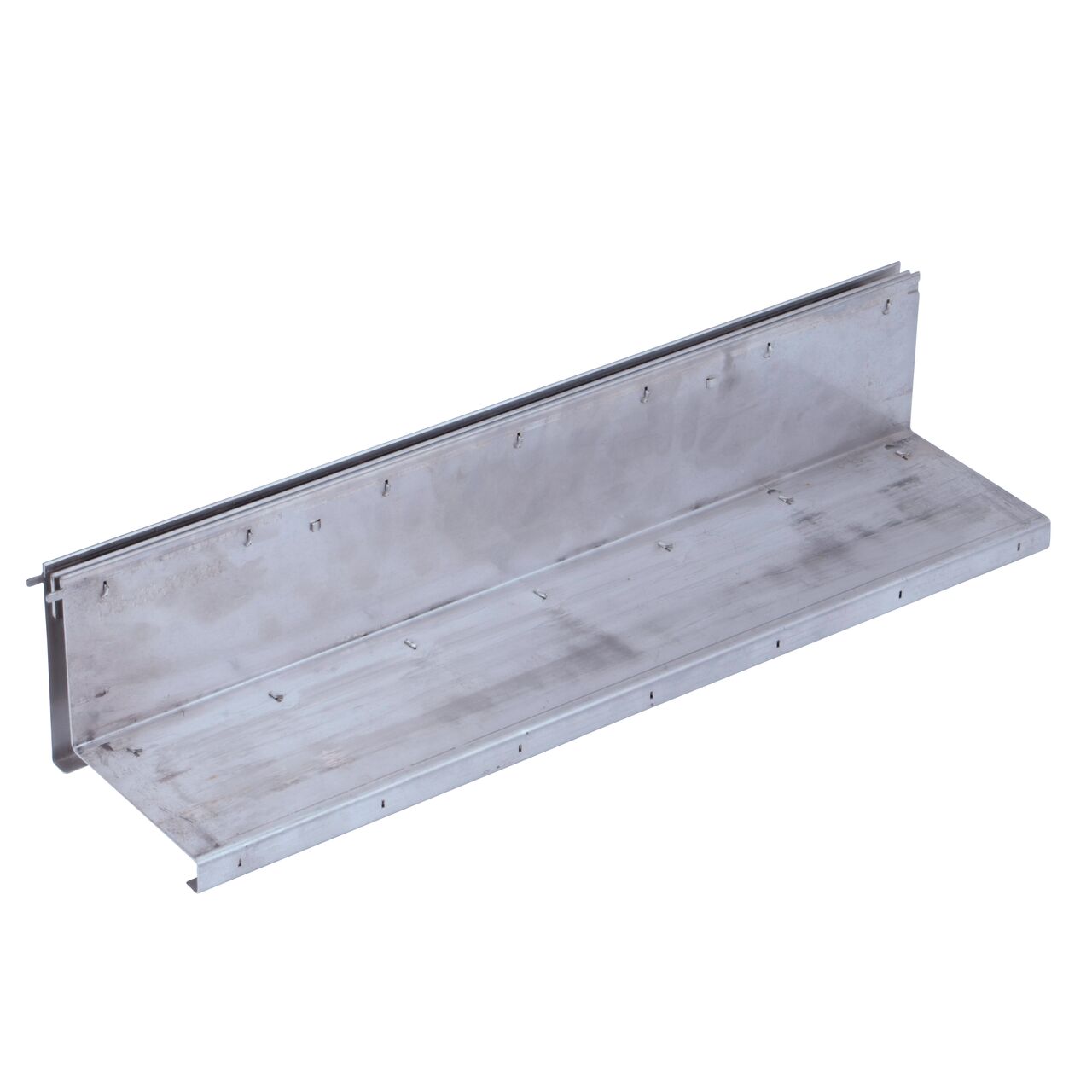

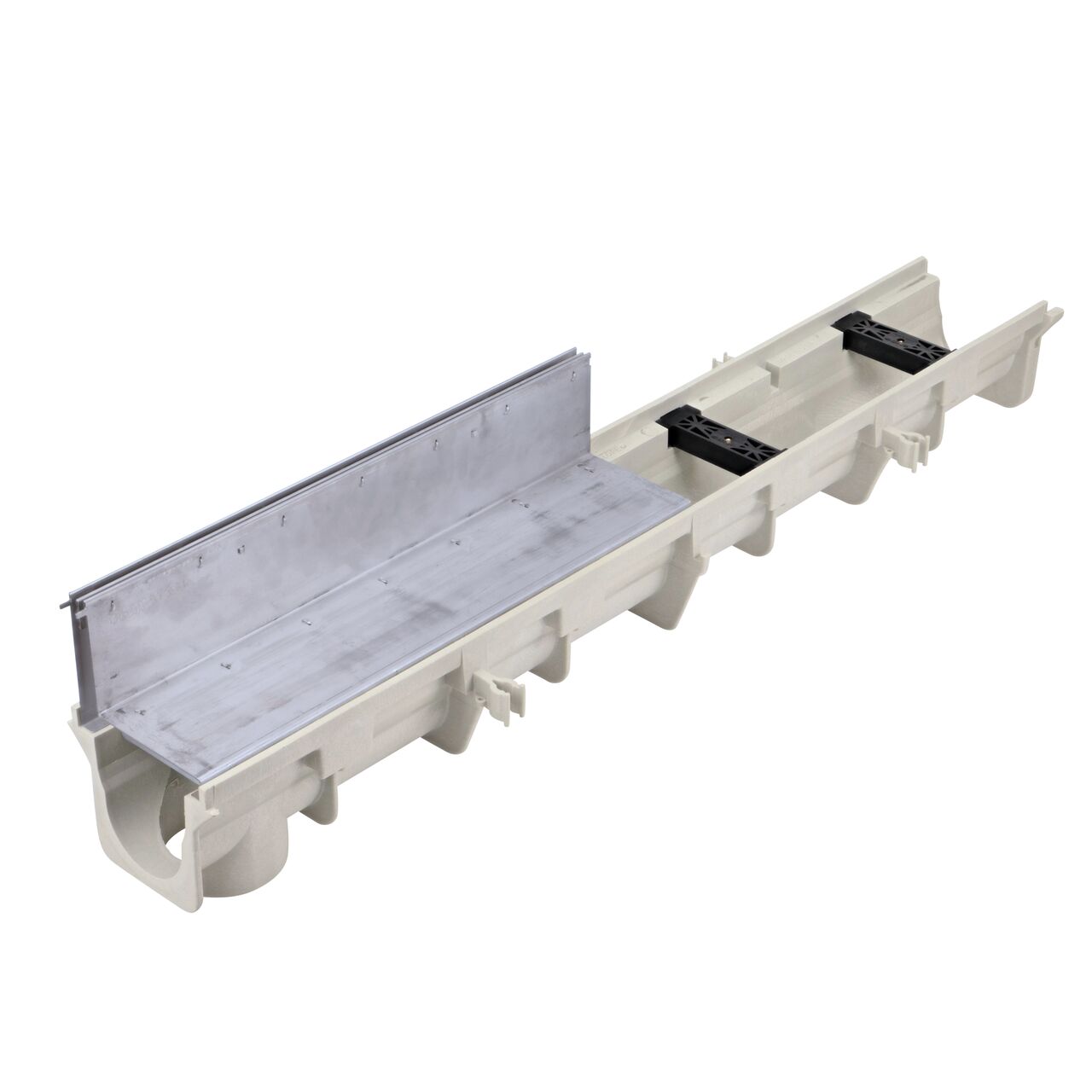

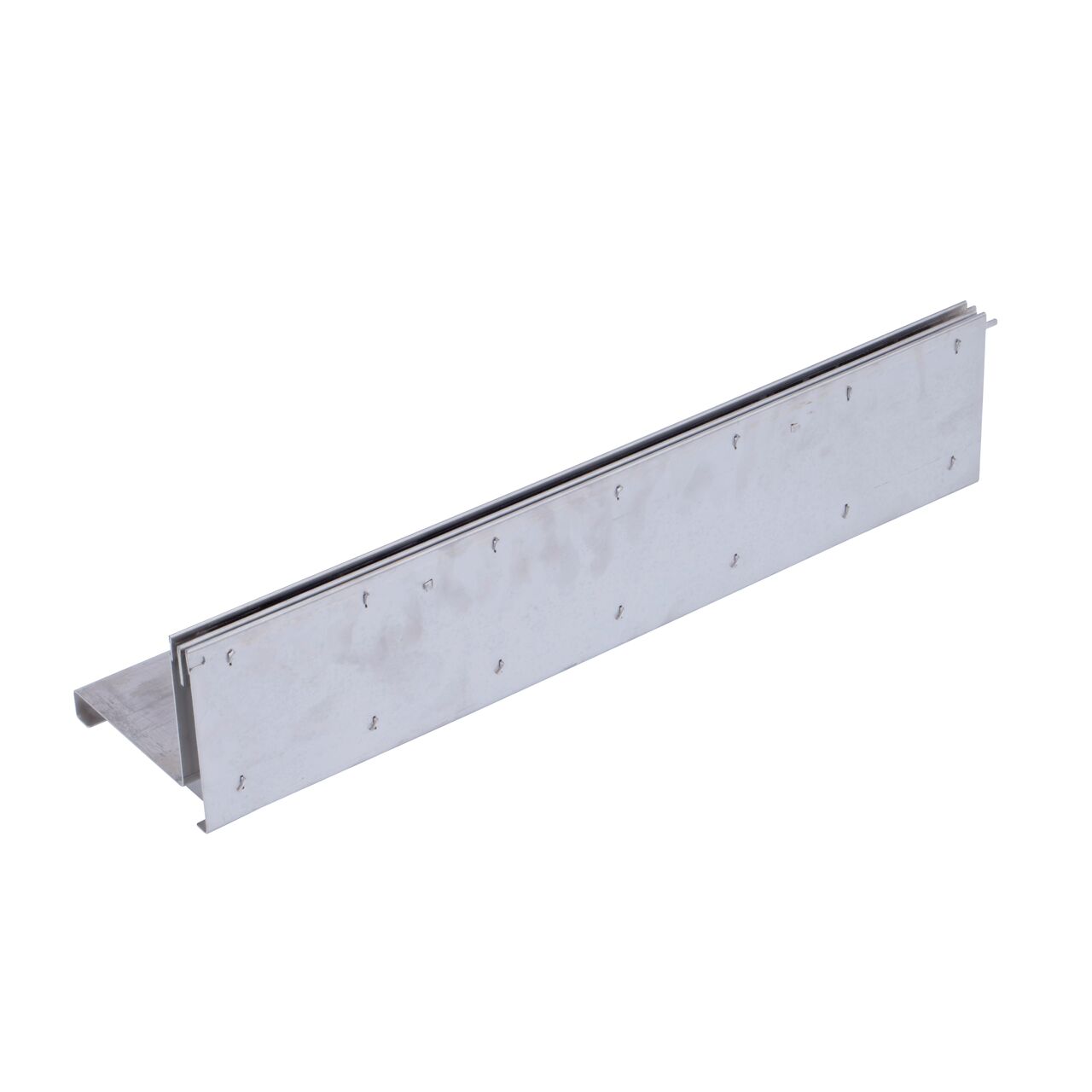

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Slot Top, Asymmetric, Stainless Steel
SKU: DS-SS-ST500
The slim-profile Dura Slope® Slope Top Channel Drain Grate combines aesthetic appeal with high performance, safety, and versatility. This durable drain grate with thin reveal blends into its surroundings so you hardly know it's there. It works with the Dura Slope Channel Drain and is ideal for capturing runoff from impervious surfaces such as pool and fountain areas and driveways. The 1/2 in. slot with integrated rail is heel-proof and ADA compliant. This stainless steel grate features an open surface area of 5.76 sq. in. per linear ft. and flow rate of 17.65 GPM per linear ft. Rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed.
Applications:
- Slim profile design blends into its surroundings, captures surface runoff into channel drain
- Use with the Dura Slope Channel Drain to collect water flows from driveways, pools, kennels, sports fields, and other impervious surfaces

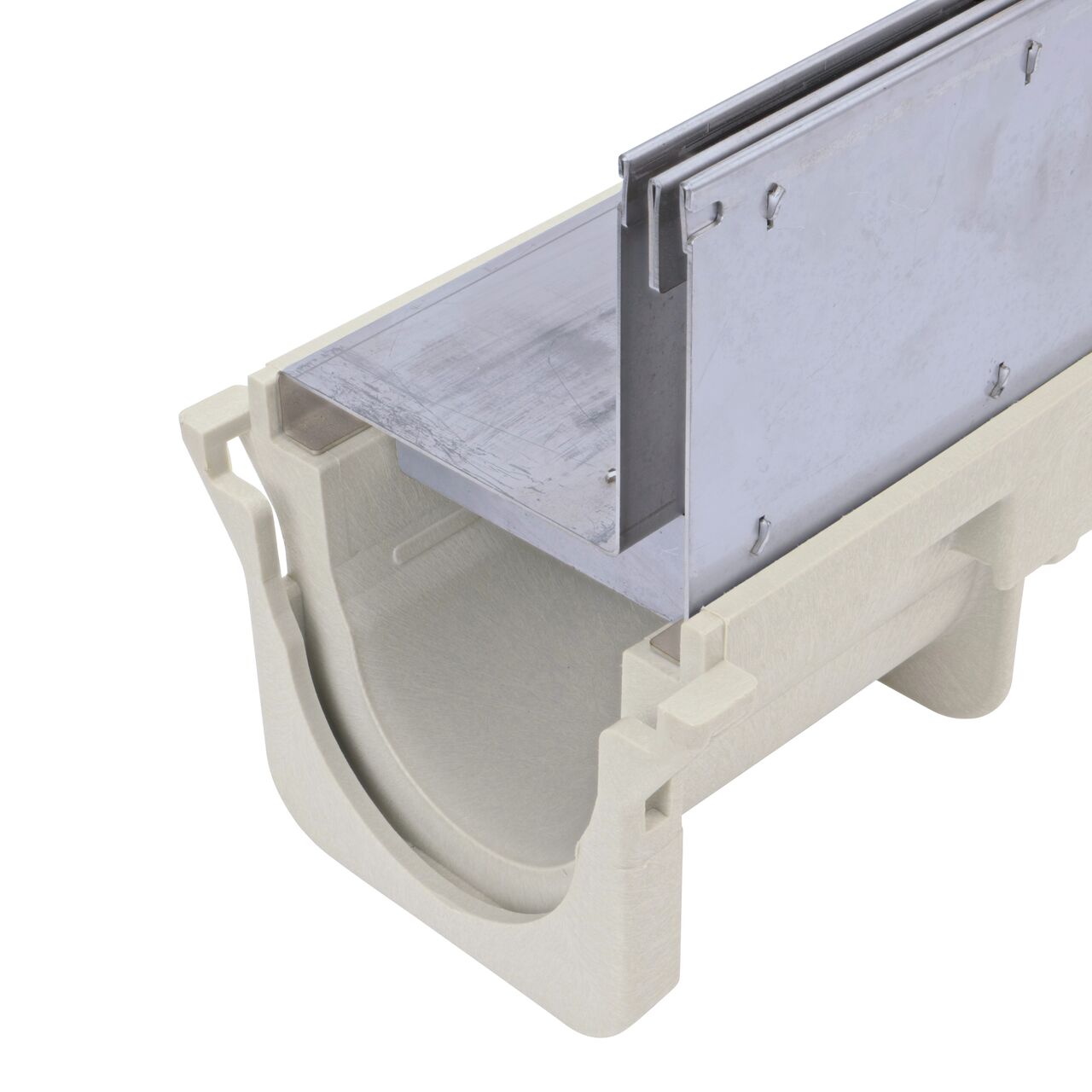

- As part of a complete drainage system, the Dura Slope Slot Top and Dura Slope channel drain work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Thin reveal minimizes visual impact, combines aesthetics with high performance, safety, and versatility

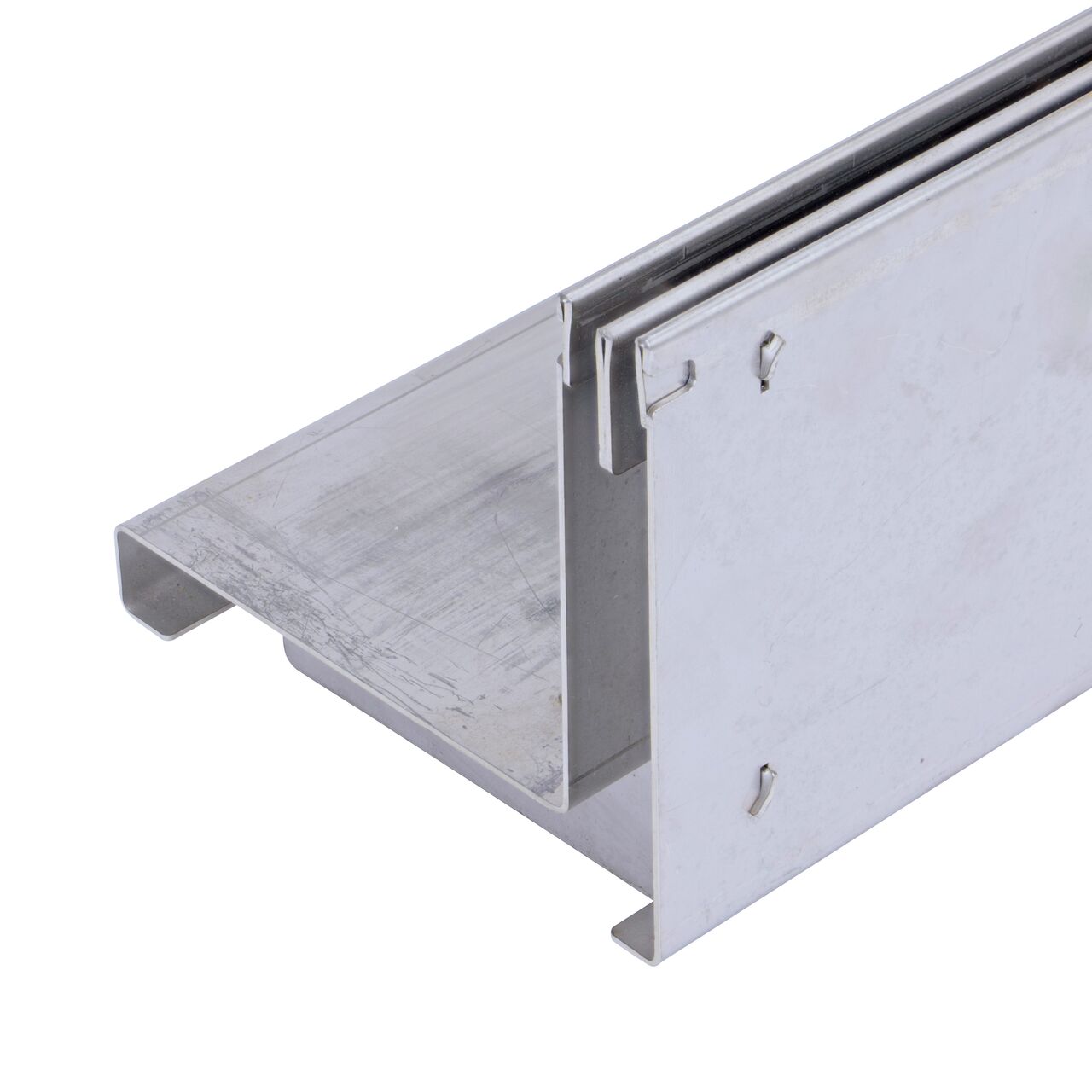

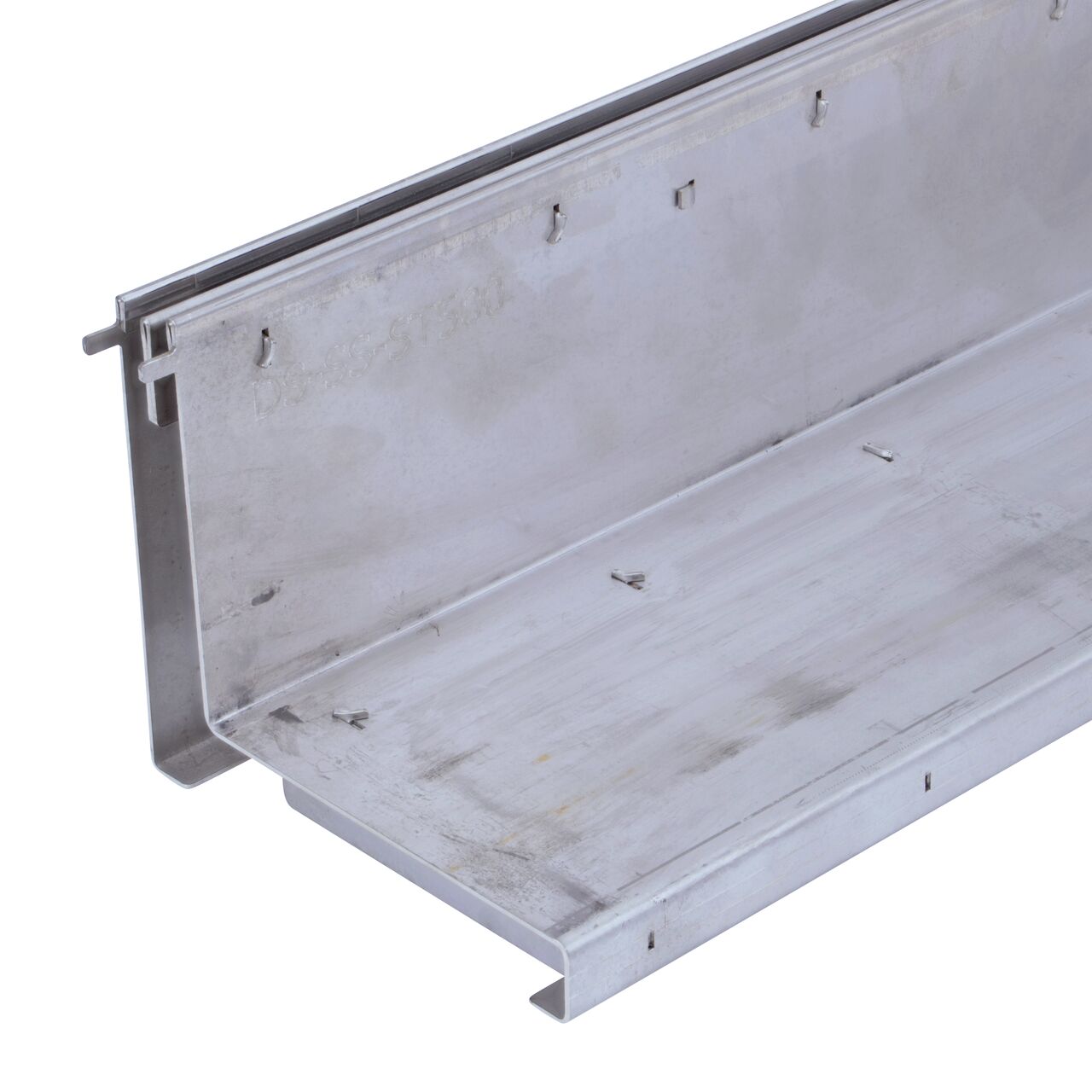

- 1/2 in. slot with integrated rail, asymmetric drain is on one side
- Meets ADA and heel-proof standards
