Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Tile Design, Raw Iron

SKU: DS-603

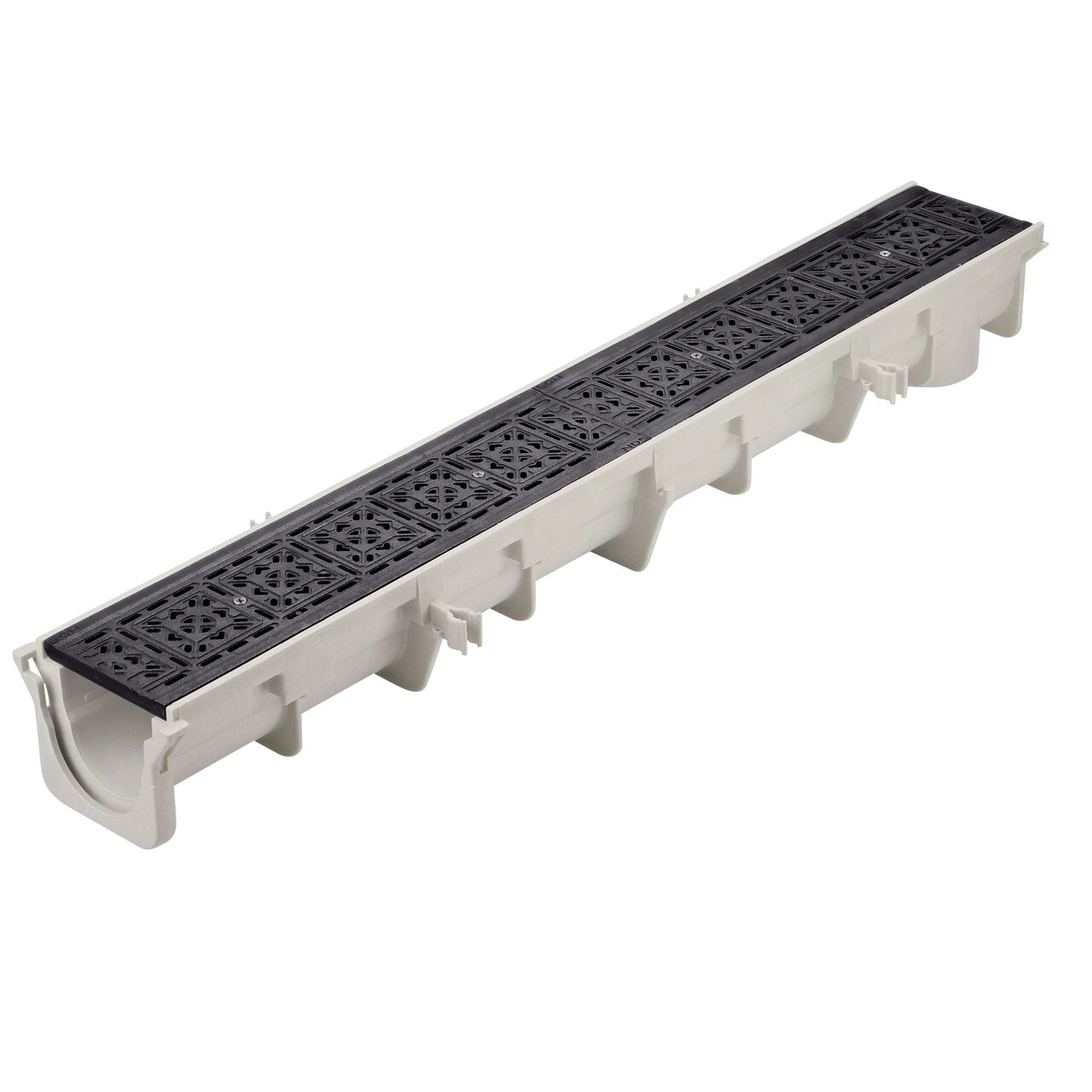

Two ductile iron decorative tile pattern Dura Slope™ Channel Drain Grates (NDS DS-603) fit on one Dura Slope Channel Drain (NDS DS-091)

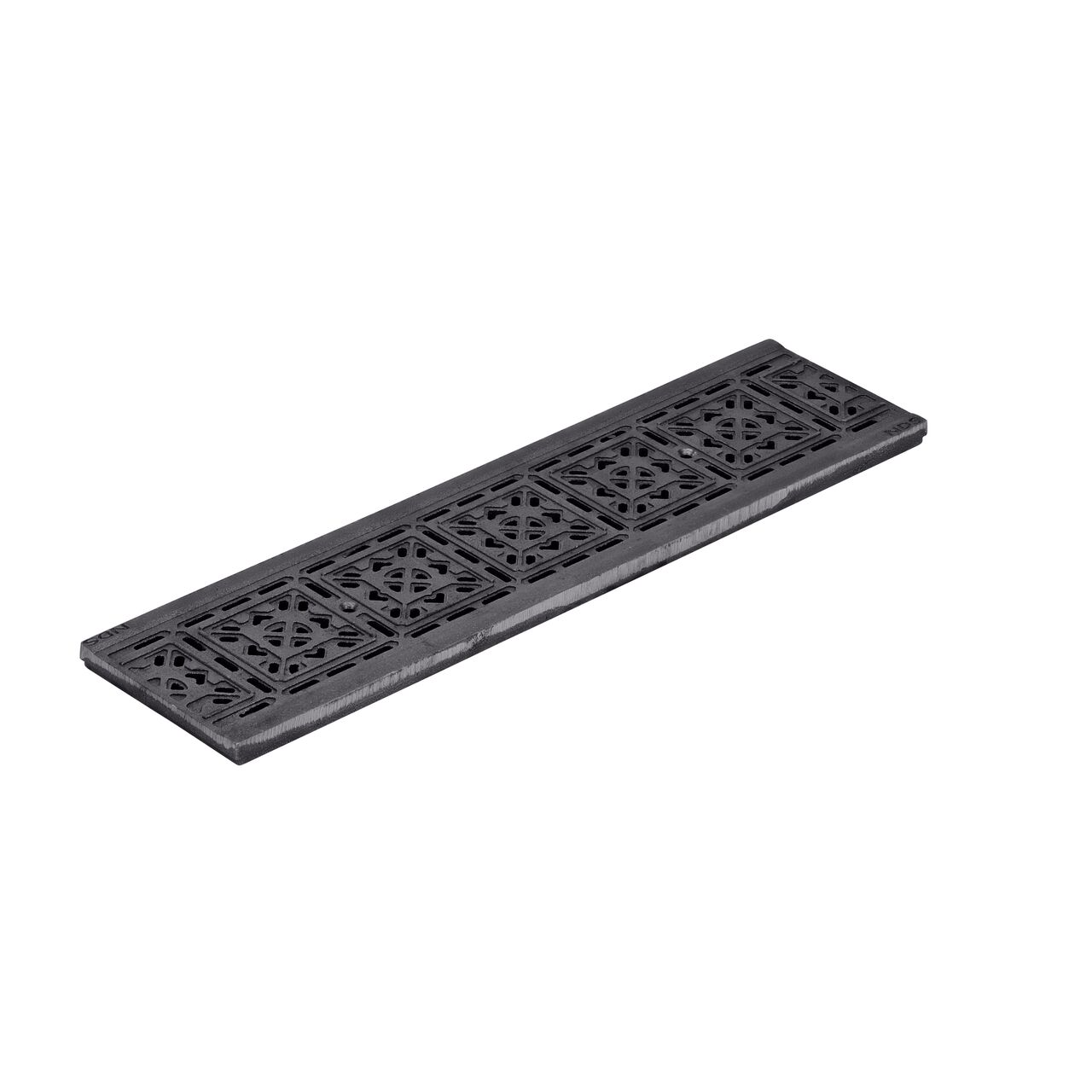

The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) is 6 in. wide and 2 ft. long and comes in a decorative tile pattern design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative tile pattern design

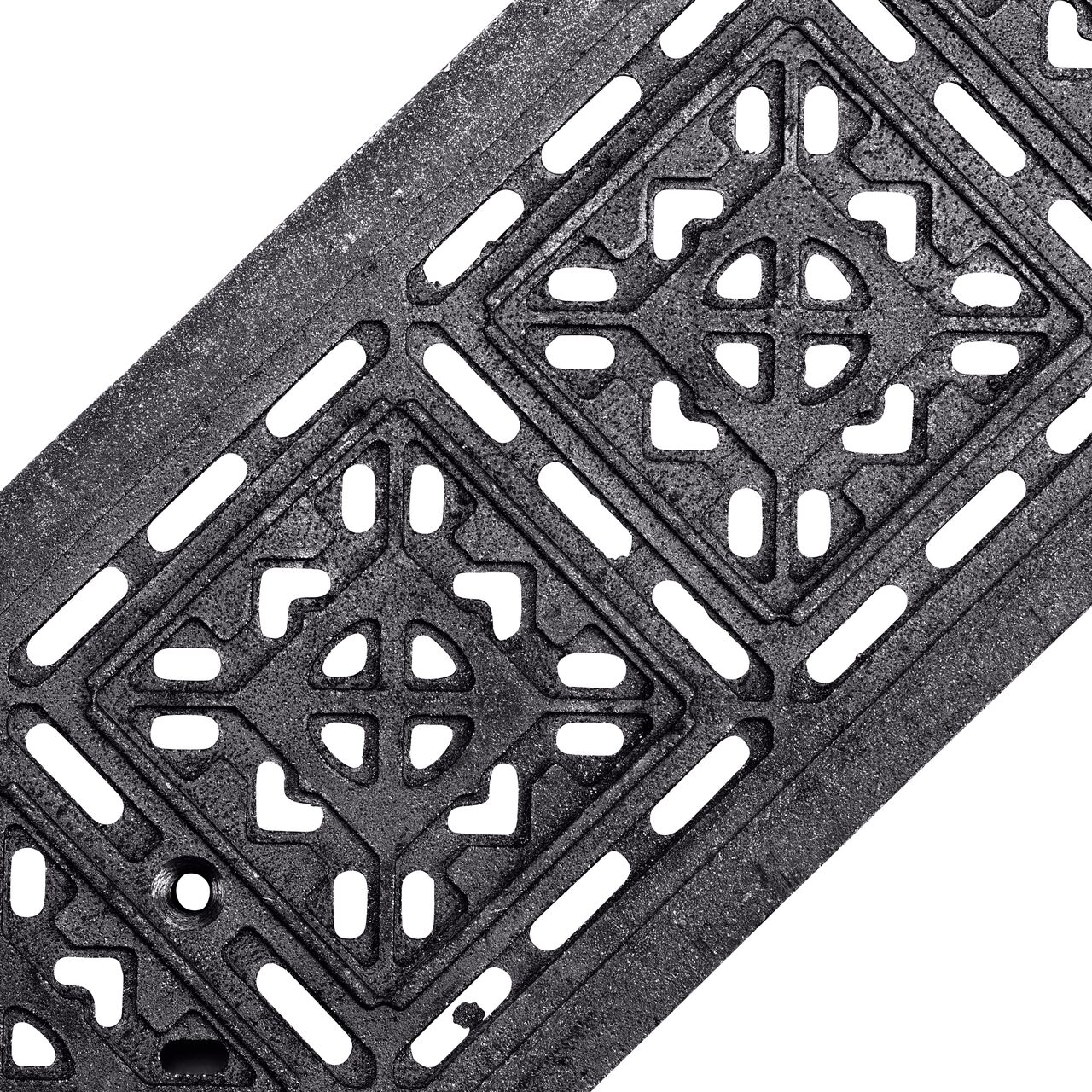

Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative tile pattern design

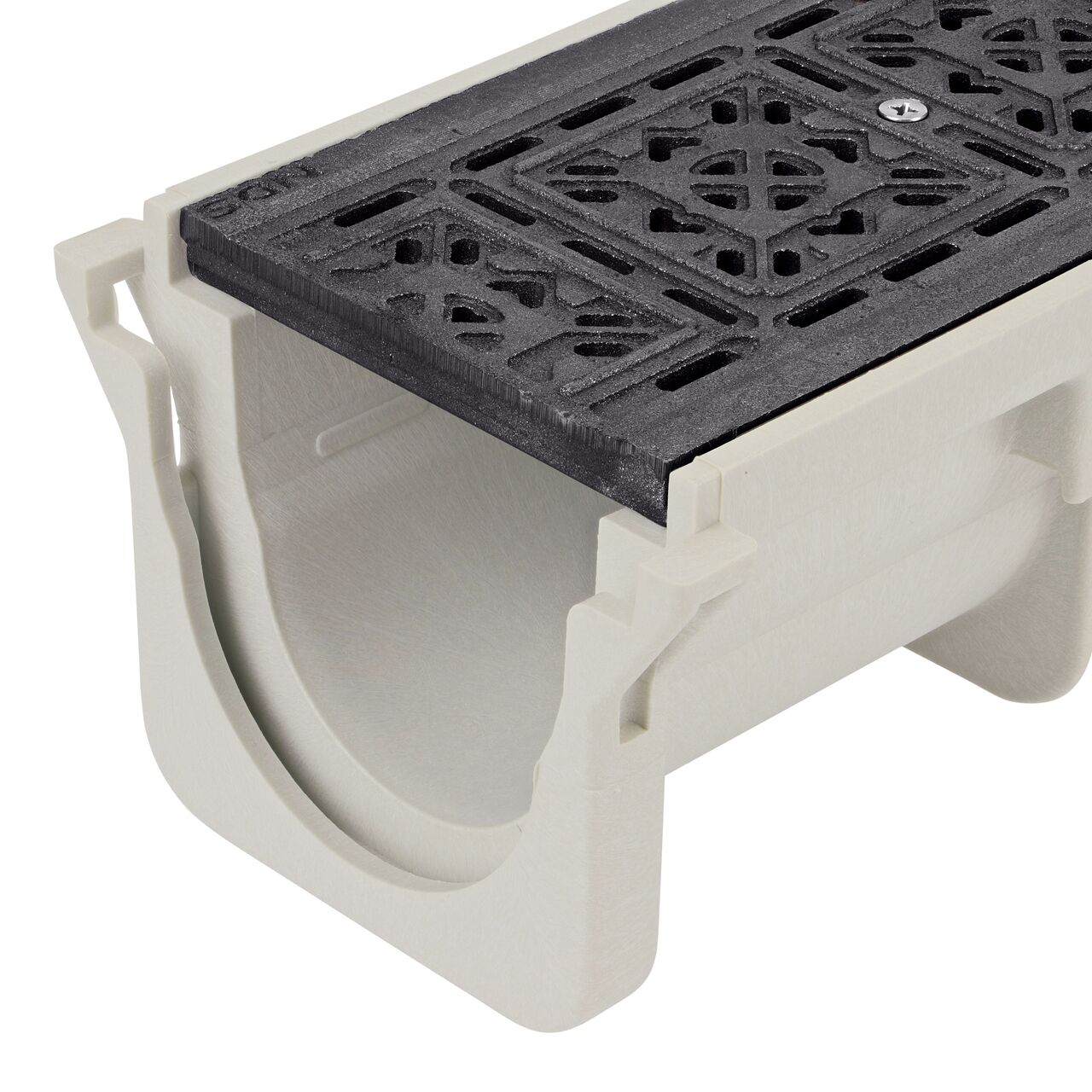

Closeup View of the ductile iron decorative tile pattern Dura Slope™ Channel Drain Grate (NDS DS-603) installed on the Dura Slope Channel Drain (NDS DS-091)
Two ductile iron decorative tile pattern Dura Slope™ Channel Drain Grates (NDS DS-603) fit on one Dura Slope Channel Drain (NDS DS-091)
The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) is 6 in. wide and 2 ft. long and comes in a decorative tile pattern design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative tile pattern design
Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative tile pattern design
Closeup View of the ductile iron decorative tile pattern Dura Slope™ Channel Drain Grate (NDS DS-603) installed on the Dura Slope Channel Drain (NDS DS-091)

Enhance the look of outdoor spaces with decorative drain grates on the channel drain system. The Dura Slope® Channel Drain Grate with classic tile design prevents leaves and debris from entering and potentially clogging drain pipes as water flows in. Adds a stylish look to driveways, pool areas, walkways, and other hardscapes. The decorative grate has an open surface area of 7.95 sq. in. per linear ft. and flow rate of 24.32 GPM per linear ft. Rated for NDS Class C Loads (up to 325 PSI) when properly installed, rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed with the Ductile Iron Frame (DS-200H), ADA compliant and heel-proof. Made of raw iron, the grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.

Applications:

  • Prevents leaves and debris from entering the pipeline and potentially clogging the drainage system with a look that enhances its surroundings
  • Ideal for driveways, pools, walkways, and other areas
  • Use with the Dura Slope Channel Drain as part of a complete drainage system to collect and direct runoff to drain pipes for proper release downstream

Features:

  • Grate is 24 in. long, 6 in. wide and 1/4 in. high
  • Uncoated raw iron will develop a rust patina over time
  • Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
