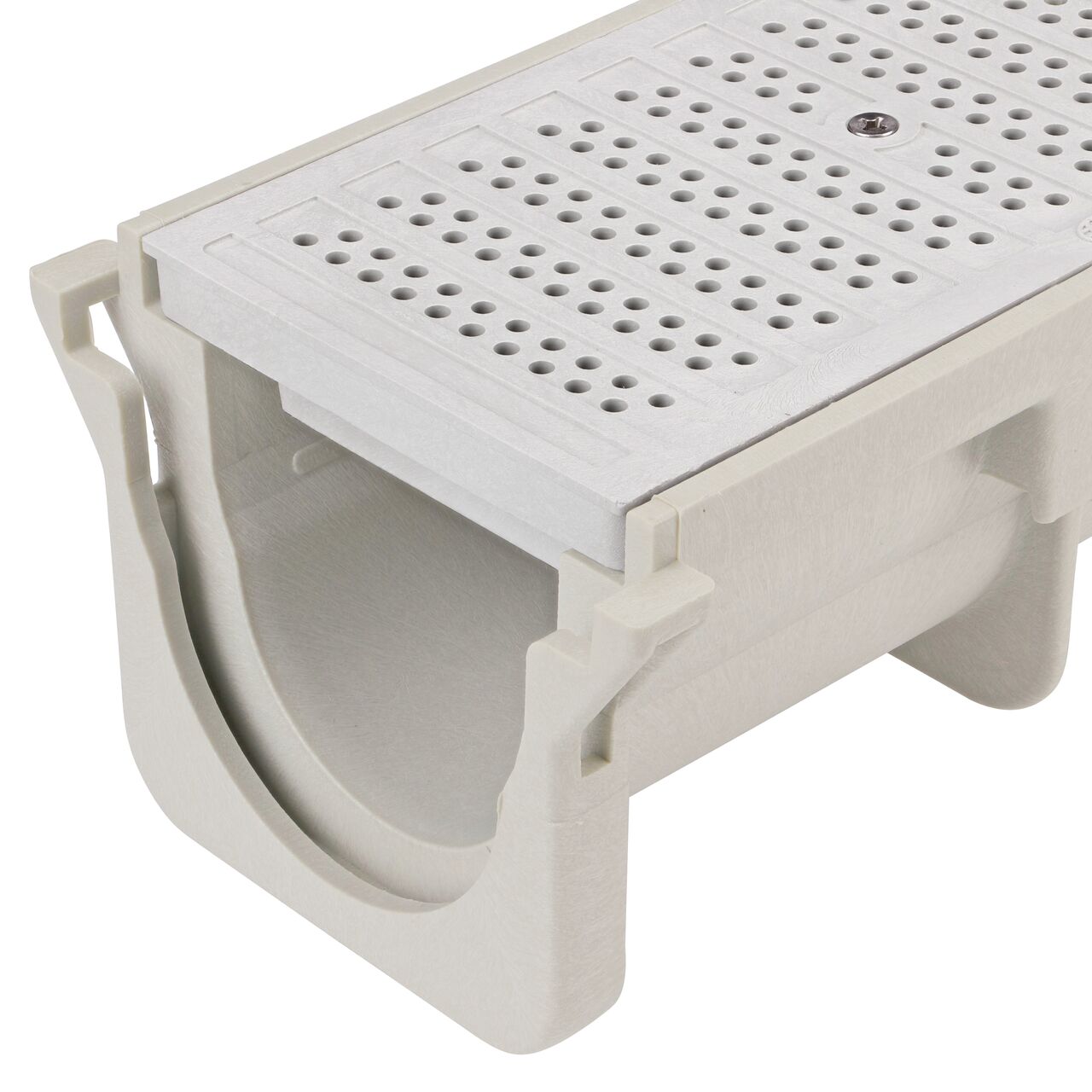

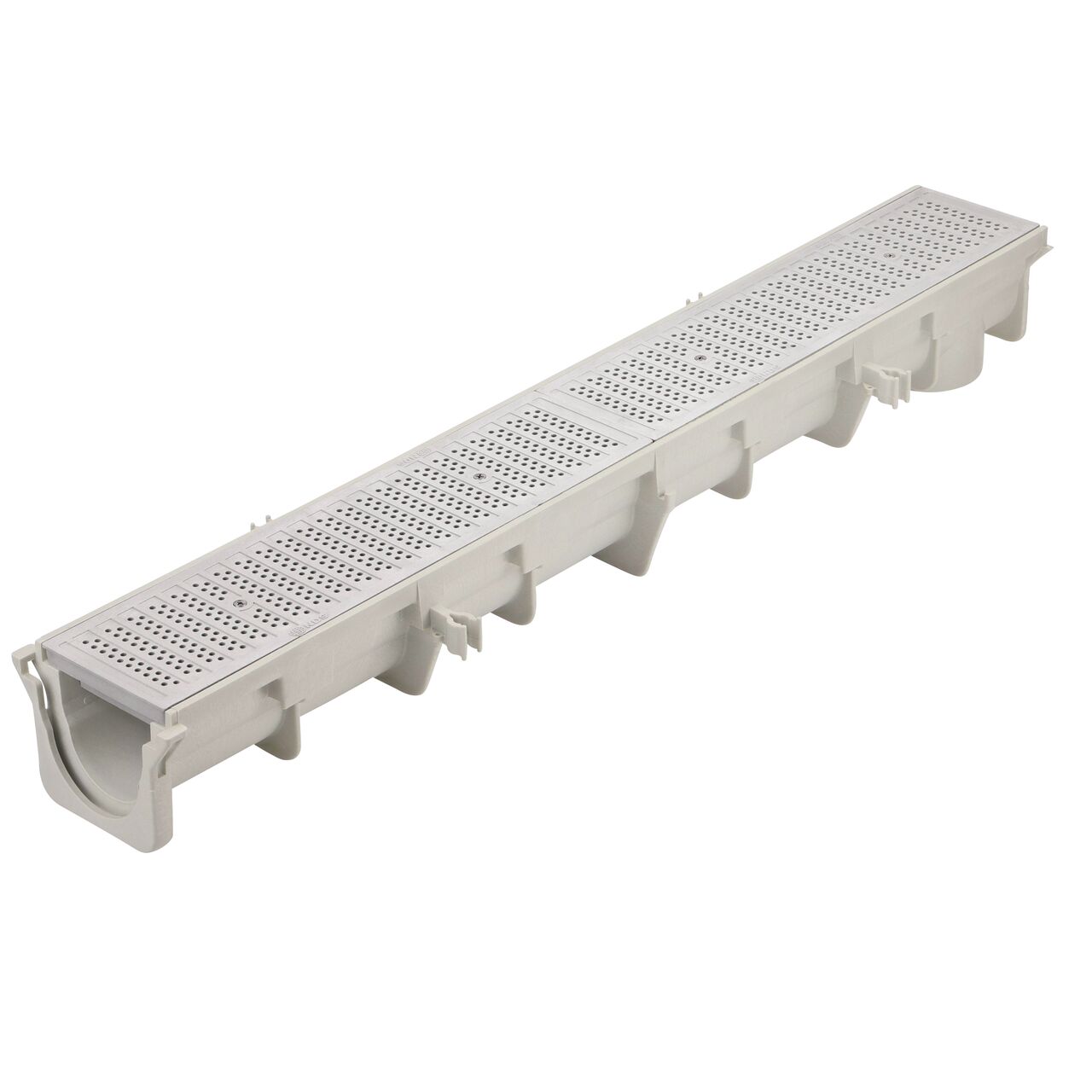

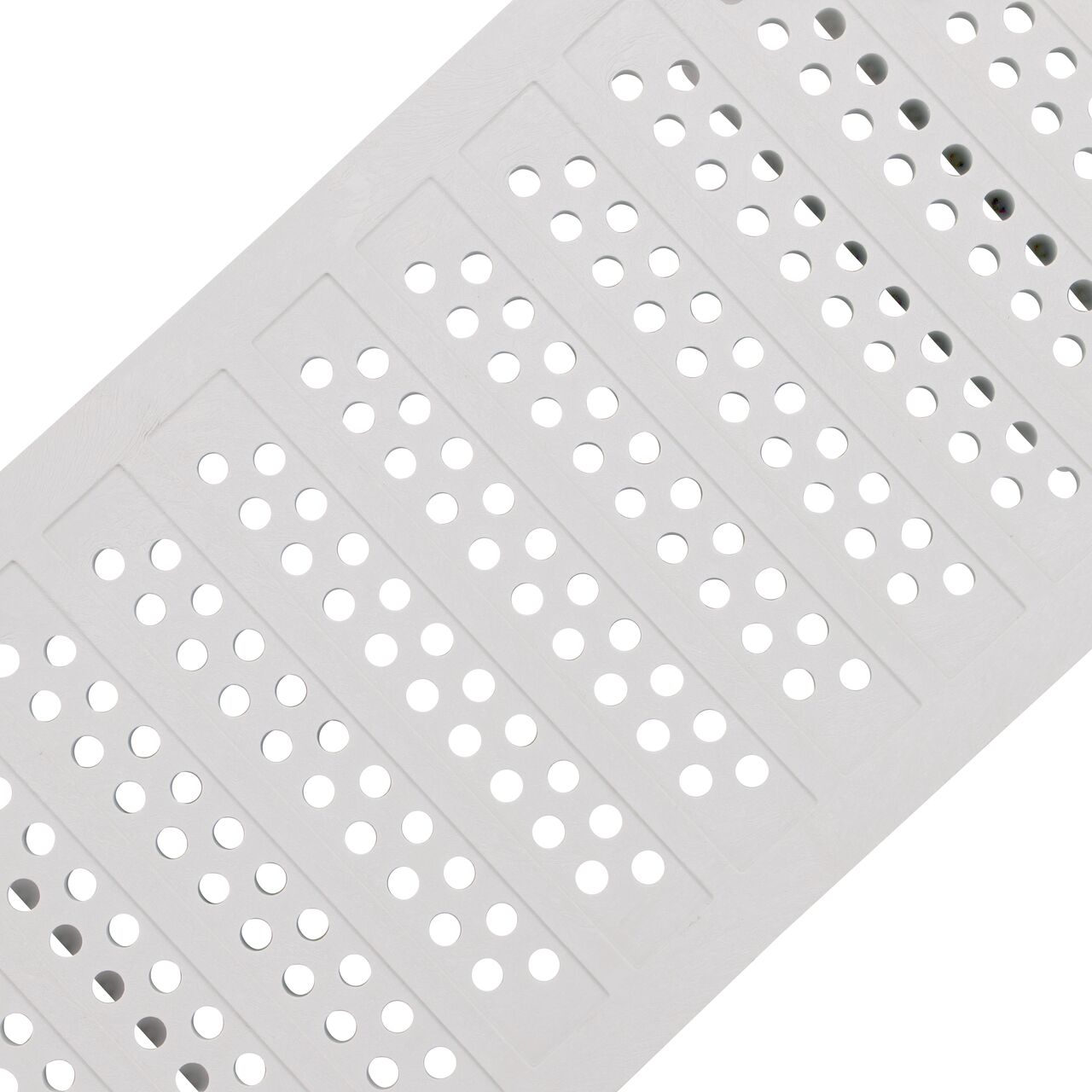

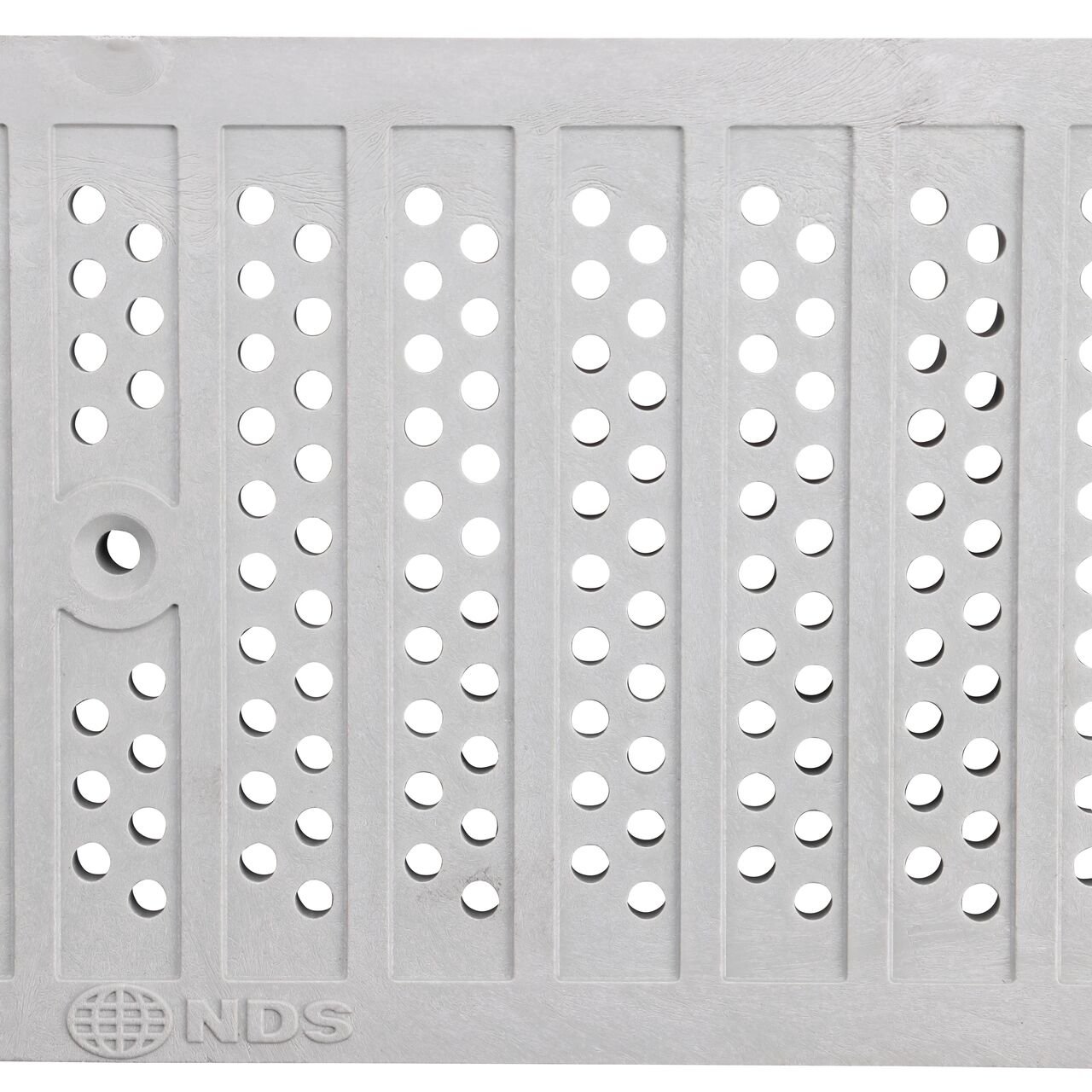

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Light Gray Plastic
SKU: DS-670
Prevent leaves and debris from clogging the drainage system by putting the Dura Slope® Channel Drain Grate in place. The drain grate is used with the Dura Slope Channel Drain to collect water flows from impervious surfaces while keeping leaves and debris in the water from entering the channel and potentially blocking drain pipes. The perforated grate is heel-proof and ADA compliant. Also known as a drain cover, it features an open surface area of 8.75 sq. in. per linear ft. and flow rate of 26.77 GPM per linear ft. Made of high-density polyethylene (HDPE) containing UV inhibitors. Rated for NDS Class B loads (up to 175 PSI) when properly installed.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system
- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

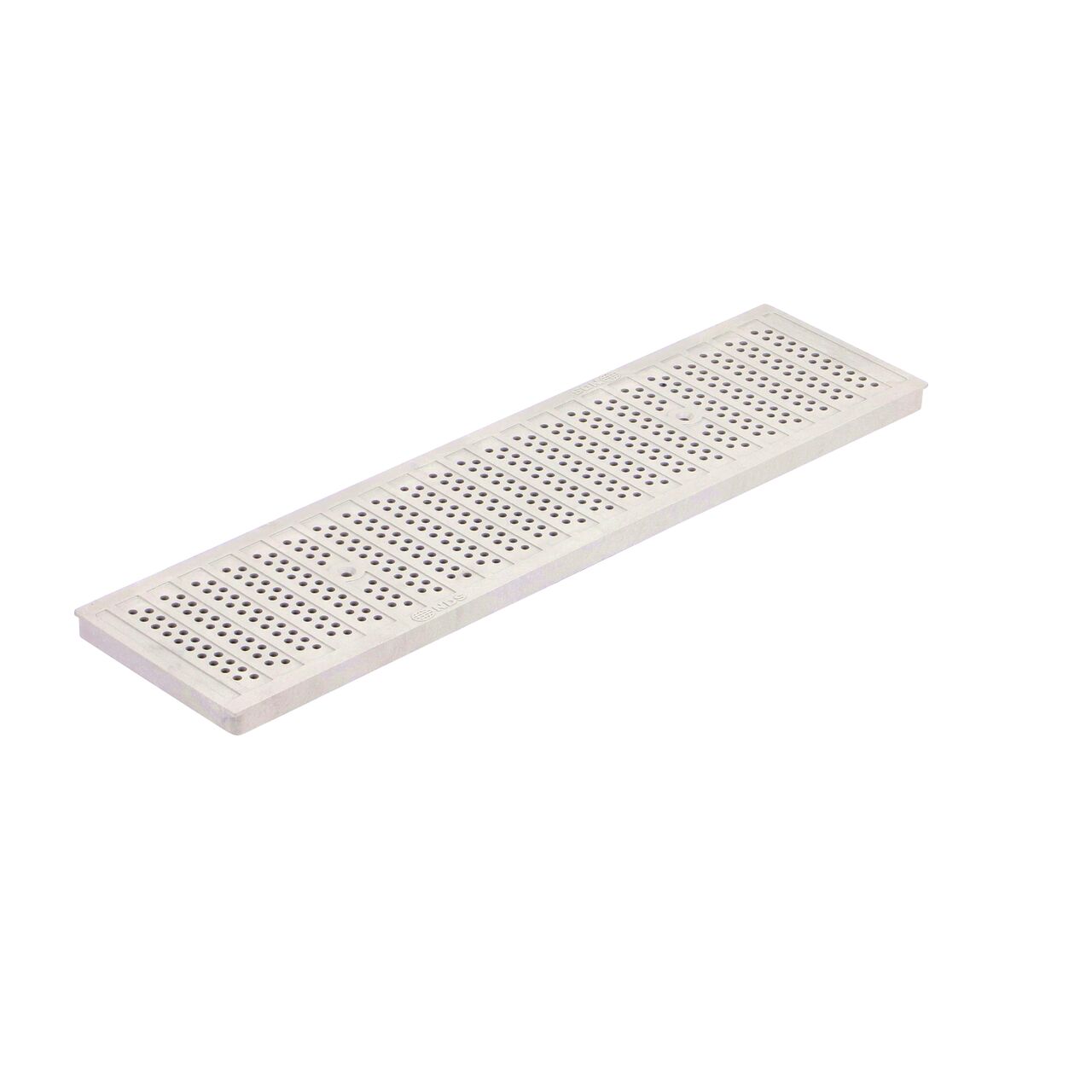

- Grate is 24 in. long, 6 in. wide and 3/4 in. high
- Grate openings are 1/4 in
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
