Dura Slope® EZ-Track™ Radius Couplings & Grates

Add curved sections to the channel drain run easily, eliminating the need to measure and make angled cuts and miter pieces together. The patented U-shaped component features a 2.4° range of angular motion for flexibility. Couplings connect together to create tight curves and also connect to the Dura Slope® channel drains.

Where to Buy
Seven Dark Gray Slotted Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-661MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC) with no bend
Where to Buy

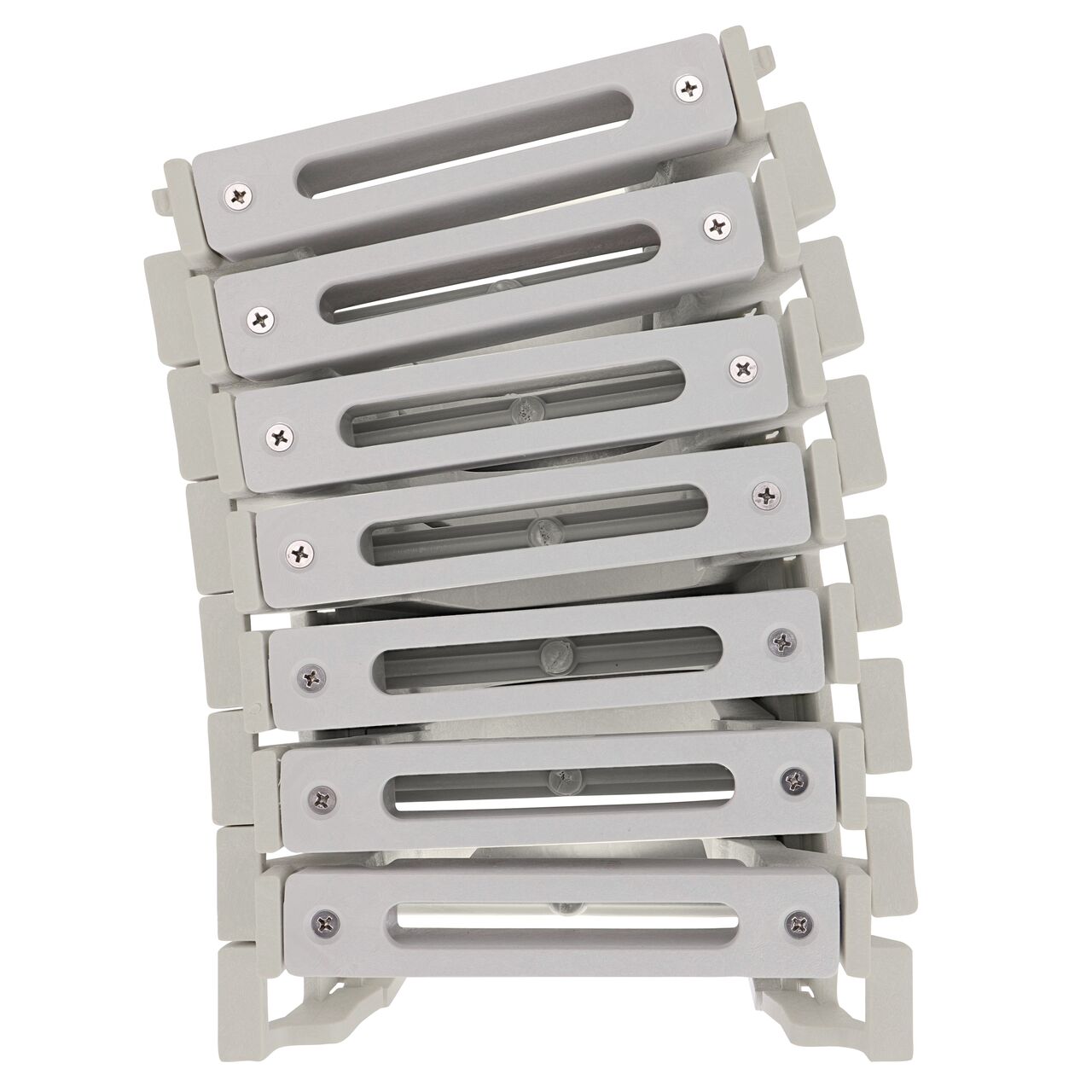

Top down view of 3 degree bend in Seven Light Gray Slotted Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-661LGMG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC)

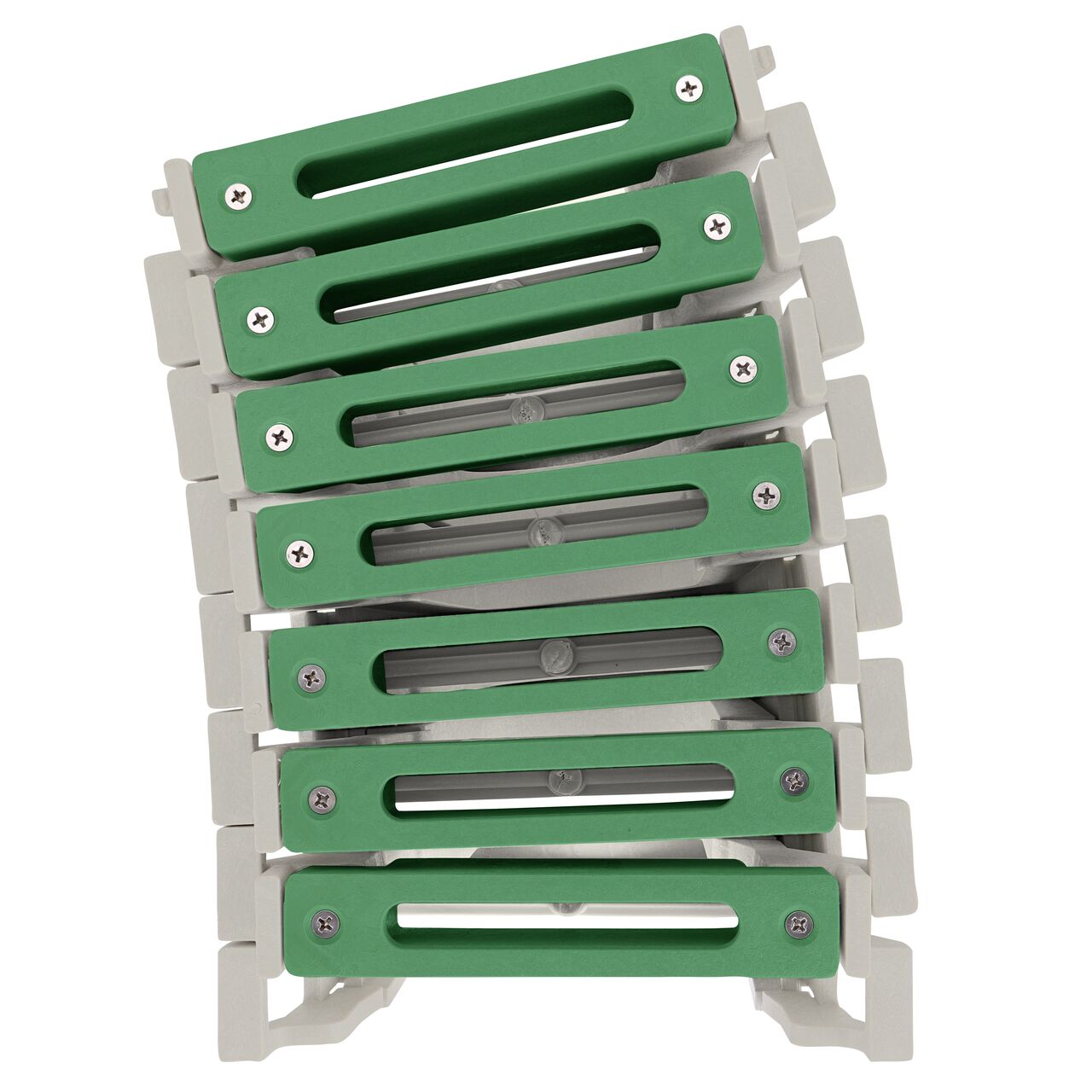

Top down view of 3 degree bend in Seven Green Slotted Plastic Dura Slope® Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-662MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC)

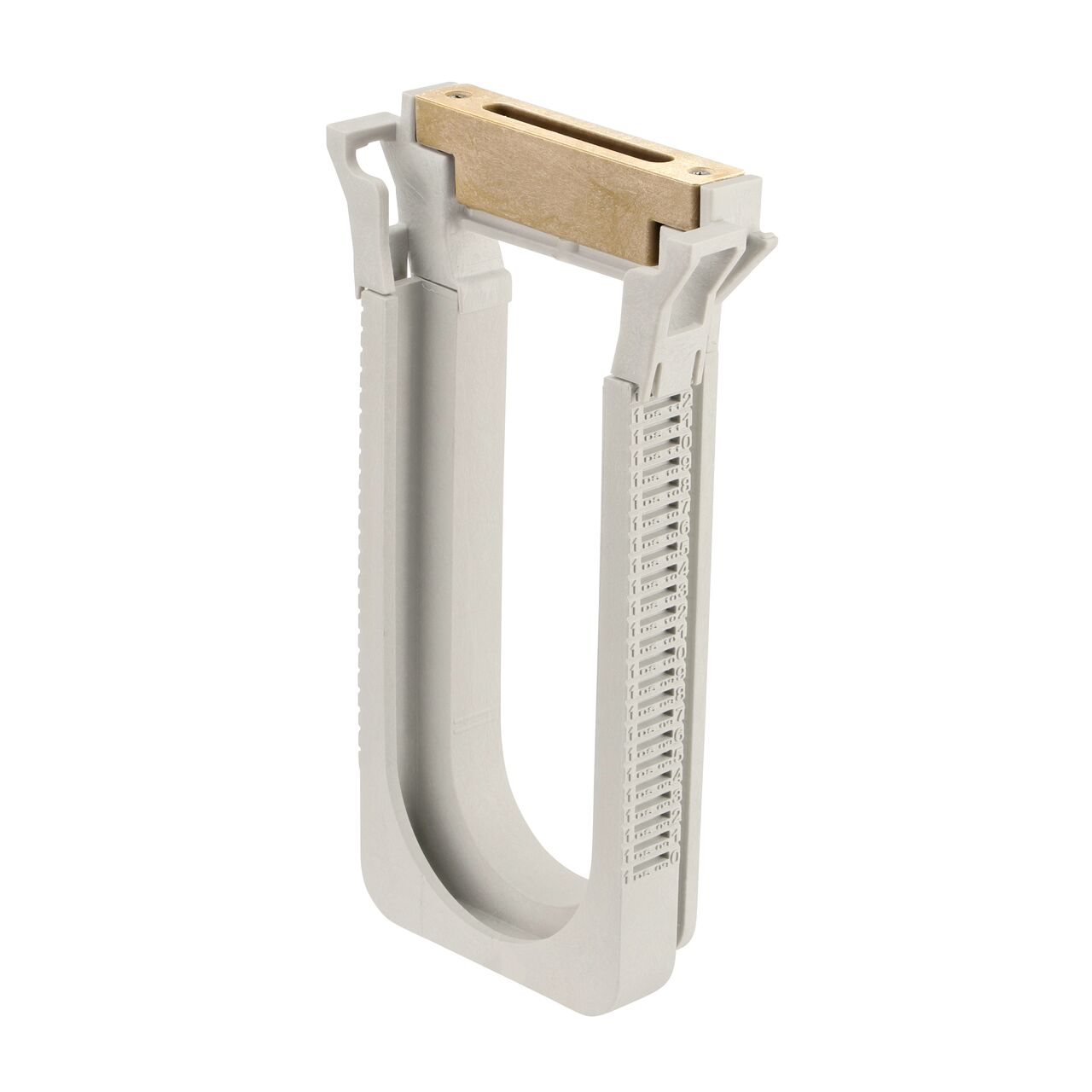

One Sand Slotted Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grate (NDS DS-664MG) installed on one Dura Slope EZ-Track Radius Coupling (NDS DSRC)

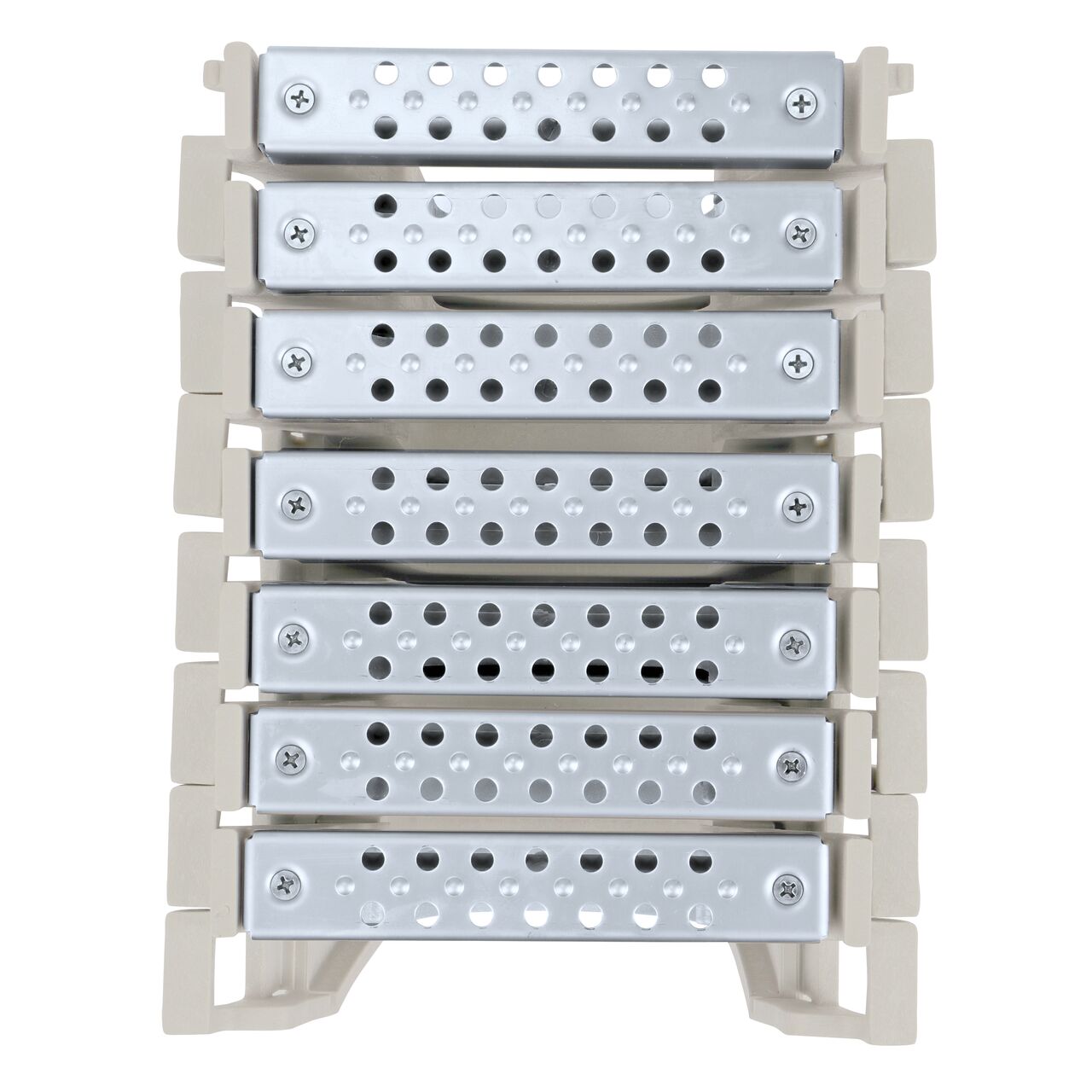

Top down view of Seven Stainless Steel Perforated Design Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-226MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC) without any turn

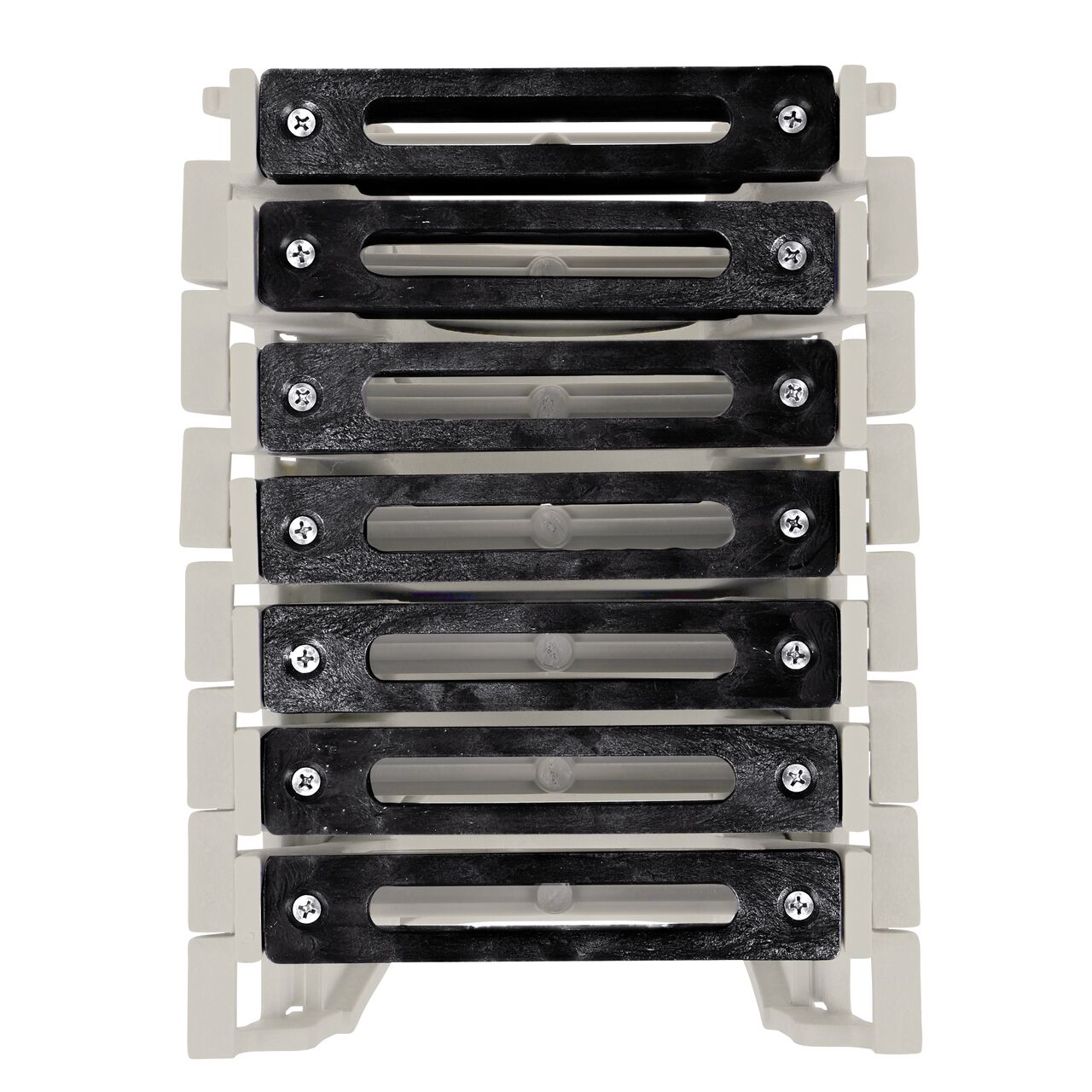

Top down view of Seven Slotted Black Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-663MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC) without any turn
Top down view of 3 degree bend in Seven Light Gray Slotted Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-661LGMG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC)
Top down view of 3 degree bend in Seven Green Slotted Plastic Dura Slope® Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-662MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC)
One Sand Slotted Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grate (NDS DS-664MG) installed on one Dura Slope EZ-Track Radius Coupling (NDS DSRC)
Top down view of Seven Stainless Steel Perforated Design Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-226MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC) without any turn
Top down view of Seven Slotted Black Plastic Dura Slope™ Channel Drain EZ-Track™ Radius Coupling Grates (NDS DS-663MG) installed on seven Dura Slope EZ-Track Radius Couplings (NDS DSRC) without any turn

Key Features

  • Patented flexible radius coupling works with Dura Slope channel sections to add curved sections in the channel drain run
  • 2.4 degrees of maximum deflection
  • Interlocking components snap smoothly in place
  • Couplings can connect together to make tighter curves
  • Grates available in a variety of materials, colors, and styles

Applications

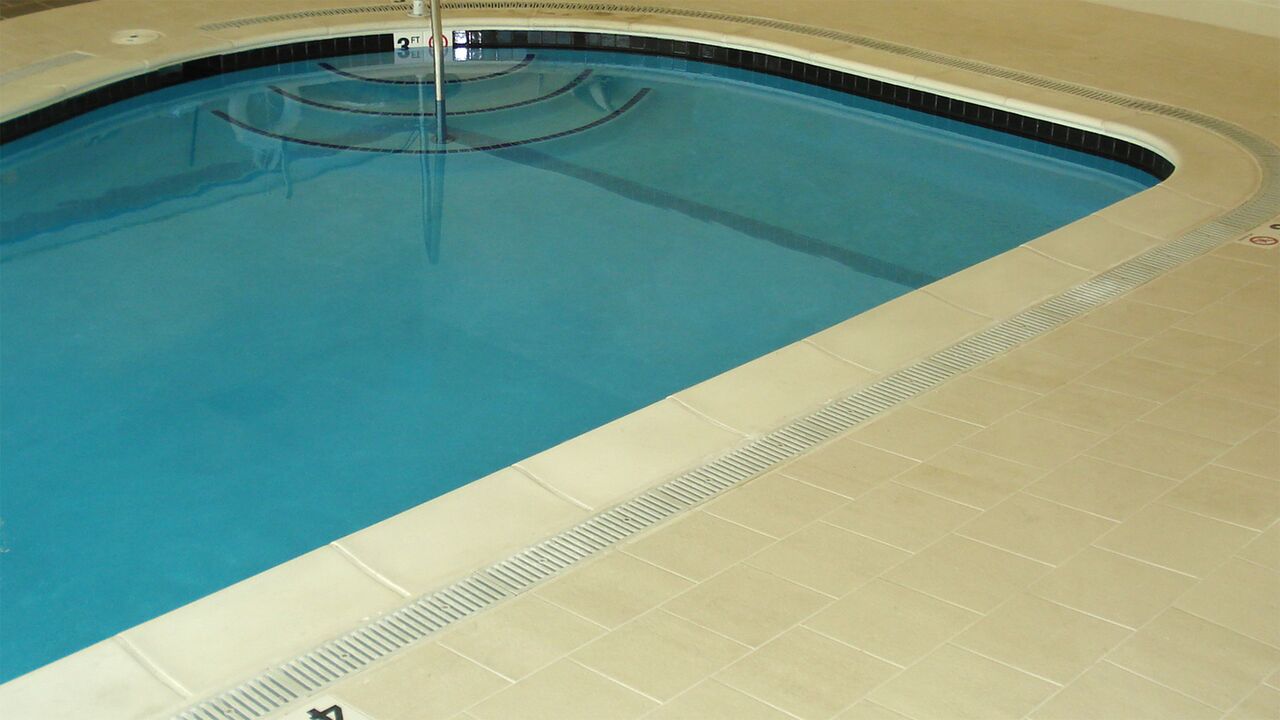

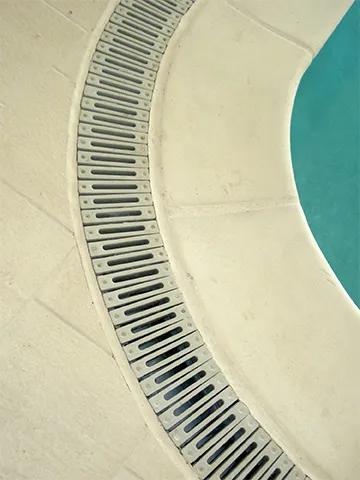

  • Ideal for driveways, concrete and paver patios, courtyards, walkways, sports facilities, pool and spa areas, and fountains
  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
  • The Dura Slope EZ-Track Radius Couplings and Grates work with Dura Slope Channel Drains as part of a coplete channel drain system to collect and direct water to drain pipes for proper release downstream or to an infiltration device

Installation & Maintenance

  • Connect to Dura Slope channels to make 2.4° bends; connect individual couplings together for tighter curves
  • Remove radius coupling grate to access area for cleaning and maintenance

Materials & Sustainability

  • Channels made of high-density polyethylene (HDPE) containing UV inhibitors
  • Grates made from plastic, galvanized & stainless steel, or cast & ductile iron
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Filter results
Family
Color
Shape

15 products

    Part Number
    (click for more info)    		 Description
    DS-221MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Grate with Rounded Edges, Galvanized Steel, Pack of 6
    DS-226MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Grate, Perforated Design, Stainless Steel, Pack of 6
    DS-663MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Black Plastic, Pack of 6
    DS-665MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Brick Red Plastic, Pack of 6
    DS-661MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Dark Gray Plastic, Pack of 6
    DS-232MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Ductile Iron, Pack of 6
    DS-662MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Green Plastic, Pack of 6
    DS-661LGMG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Light Gray Plastic, Pack of 6
    DS-664MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Sand Plastic, Pack of 6
    DS-660MG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Slotted Grate, White Plastic, Pack of 6
    DS-681LGMG Dura Slope® Channel Drain EZ-Track™ Radius Coupling Solid Grate, Light Gray Plastic, Pack of 6
    DSRC-097 Dura Slope® Channel Drain EZ-Track™ Radius Coupling, 6.35 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
    DSRC-100 Dura Slope® Channel Drain EZ-Track™ Radius Coupling, 7.36 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
    DSRC-103 Dura Slope® Channel Drain EZ-Track™ Radius Coupling, 8.37 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
    DSRC Dura Slope® Channel Drain EZ-Track™ Radius Coupling, Fits Channel Drains from DS-091 to DS-114, Neutral, 3° Bend, Pack of 6
