Dura Slope® Channel Drain EZ-Track™ Radius Coupling, Fits Channel Drains from DS-091 to DS-114, Neutral, 3° Bend, Pack of 6
SKU: DSRC

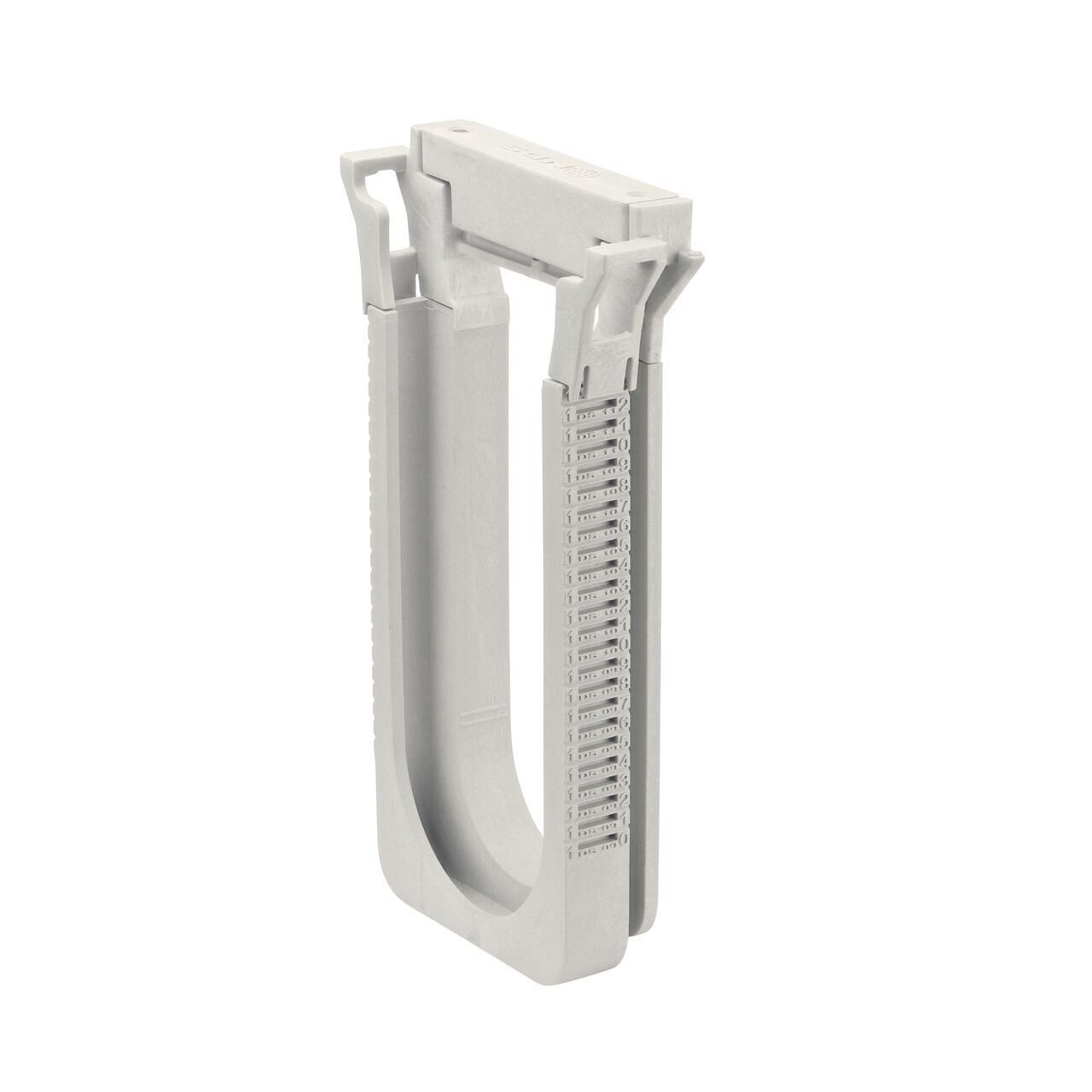

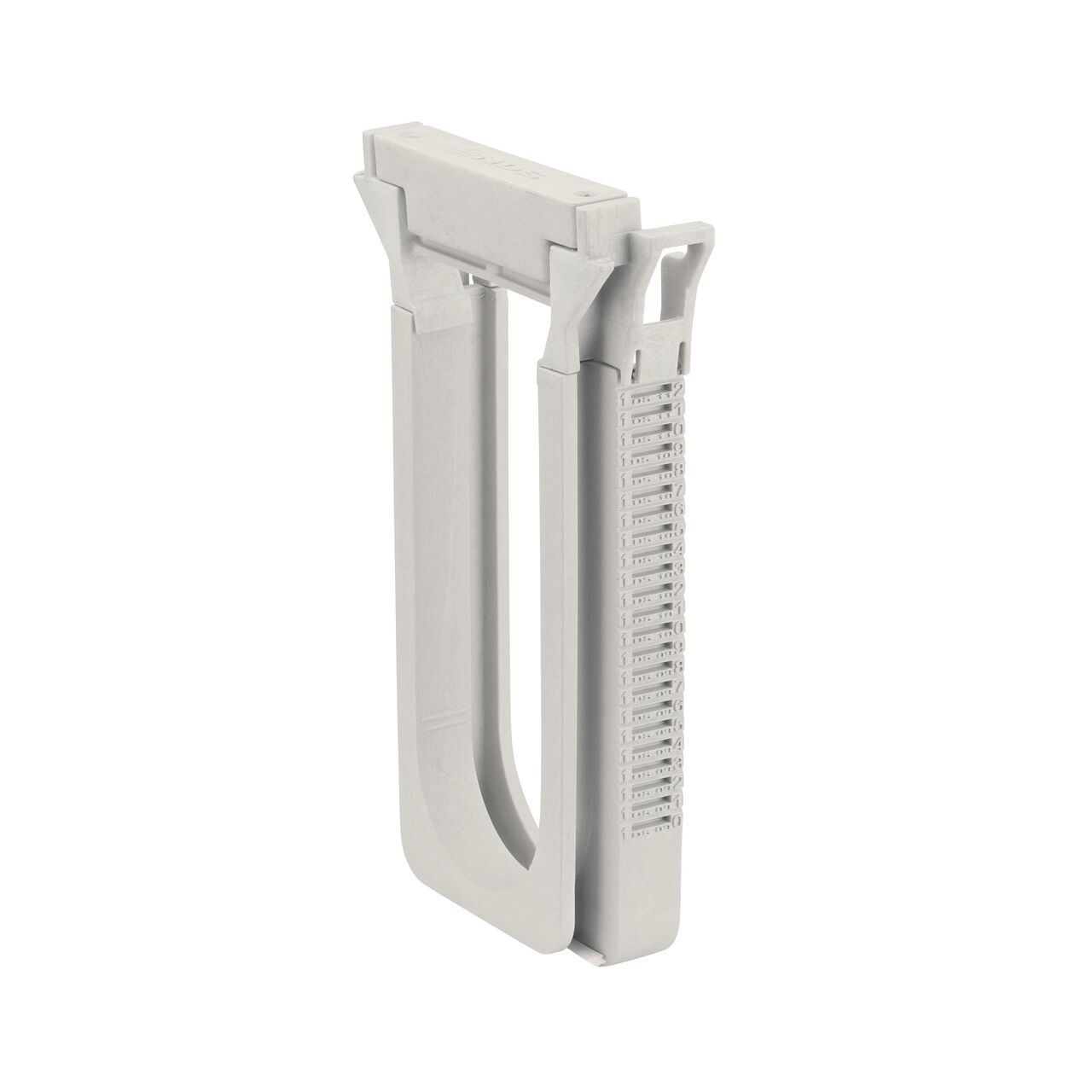

Capture runoff and add curved sections to the channel drain run with the Dura Slope® Channel Drain EZ-Track™ Radius Coupling. The patented U-shaped component features a +/- 3 degree range of angular motion for flexibility. EZ-Track radius couplings connect together to create tight curves, and also connect to Dura Slope Channel Drains. The customizable coupling can accommodate Dura Slope Channels from DS-091 (3.99 in. to 4.33 in. deep) to DS-114 (11.72 in. to 12.06 in. deep). The interlocking components snap into place to save time and labor with installation. Eliminates the need to measure angled cuts, saw, and miter pieces together. Made of high-density polyethylene (HDPE) containing UV inhibitors.
Applications:
- Adds curves to the channel drain run using interlocking components without the hassle of having to measure angled cuts, saw, and miter pieces together
- Ideal for driveways, concrete and paver patios, courtyards, walkways, sports facilities, pool and spa areas, fountains
- As part of a complete drainage system, the Dura Slope EZ-Track Radius Couplings and Grates work with Dura Slope Channel Drains to collect and direct water to drain pipes for proper release downstream
Features:
- Patented flexible radius coupling works with Dura Slope channel sections to add curved sections in the channel drain run
- 3 degrees of maximum deflection
- Interlocking components snap smoothly in place

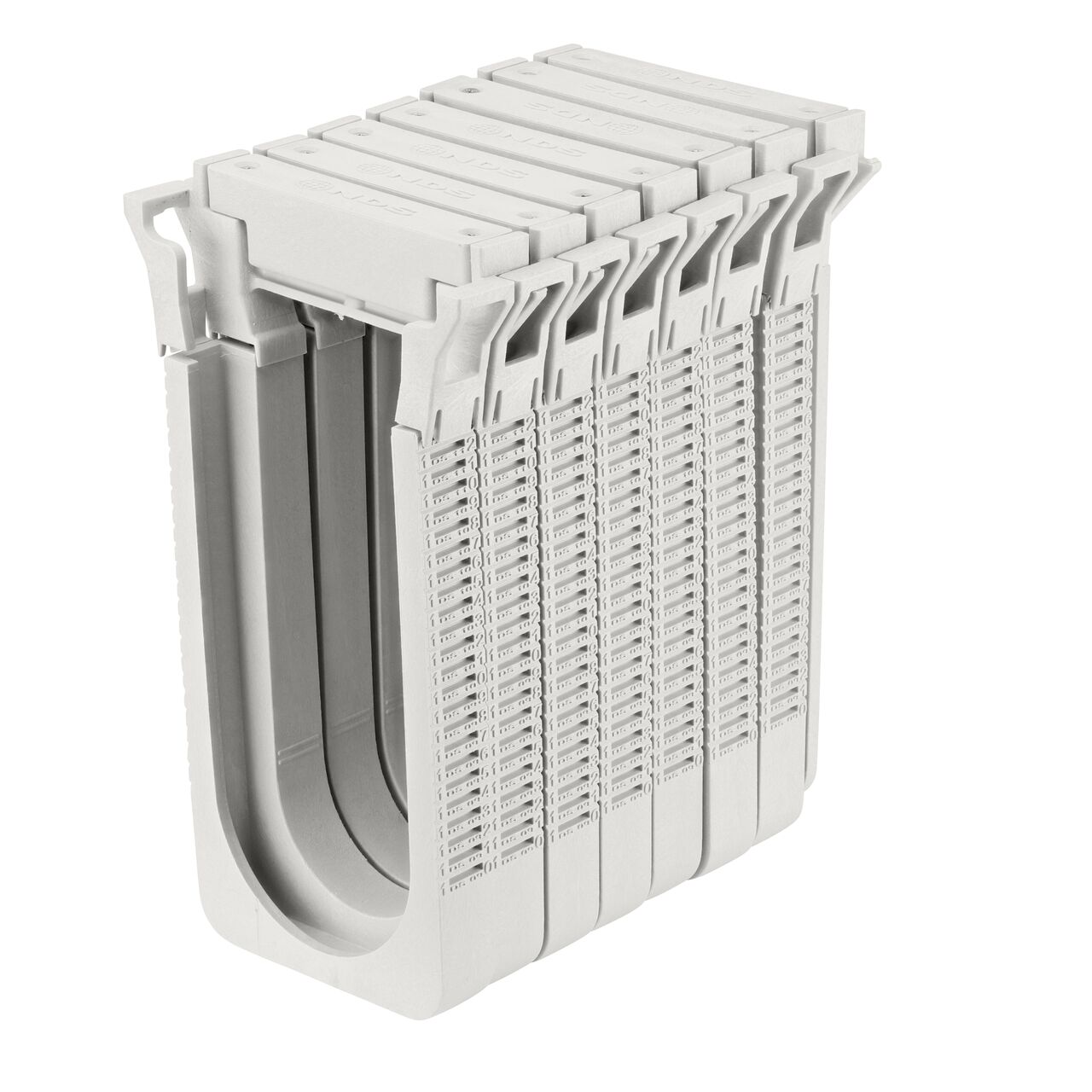

- Couplings can connect together to make tighter curves
- Cut at guide lines to match channel size
