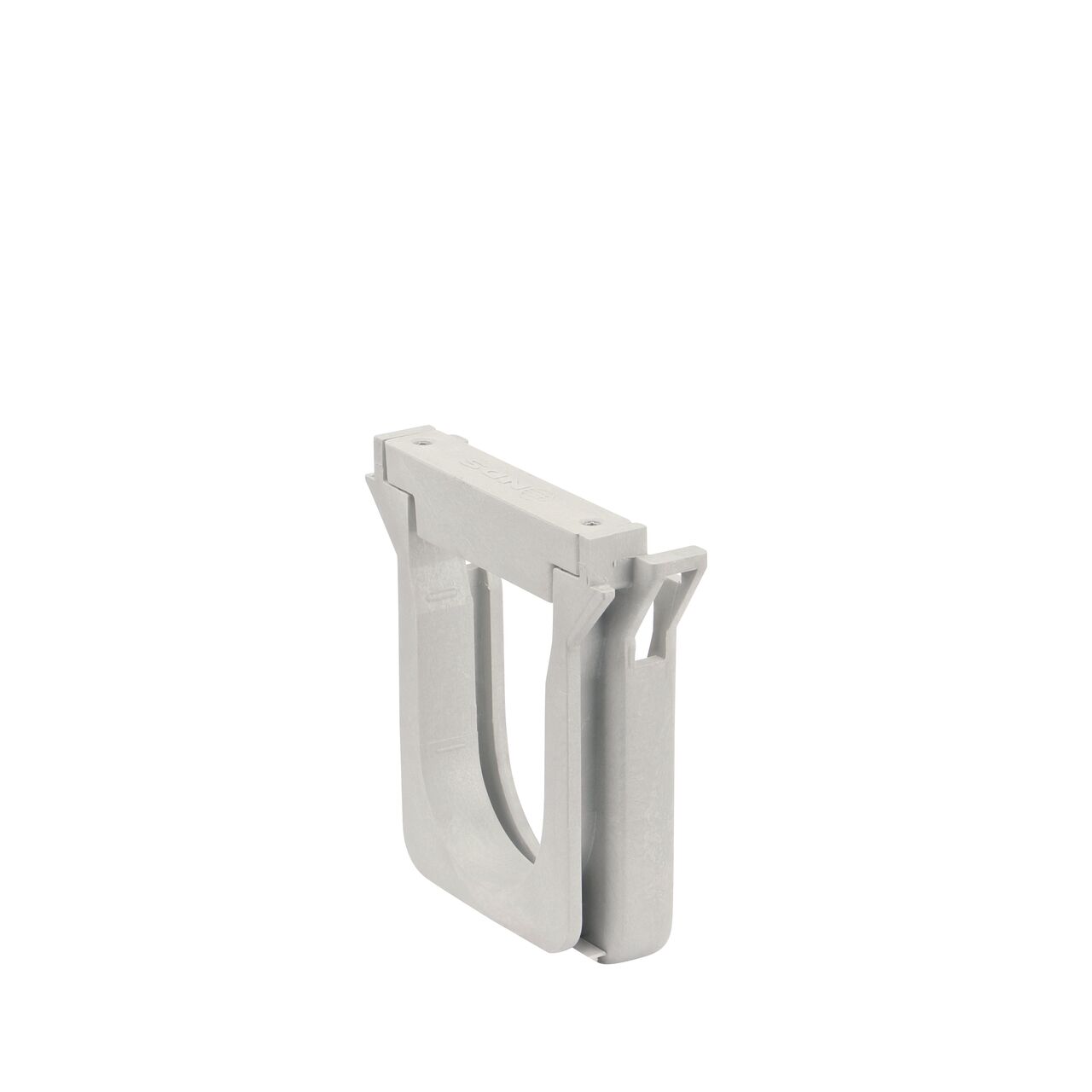

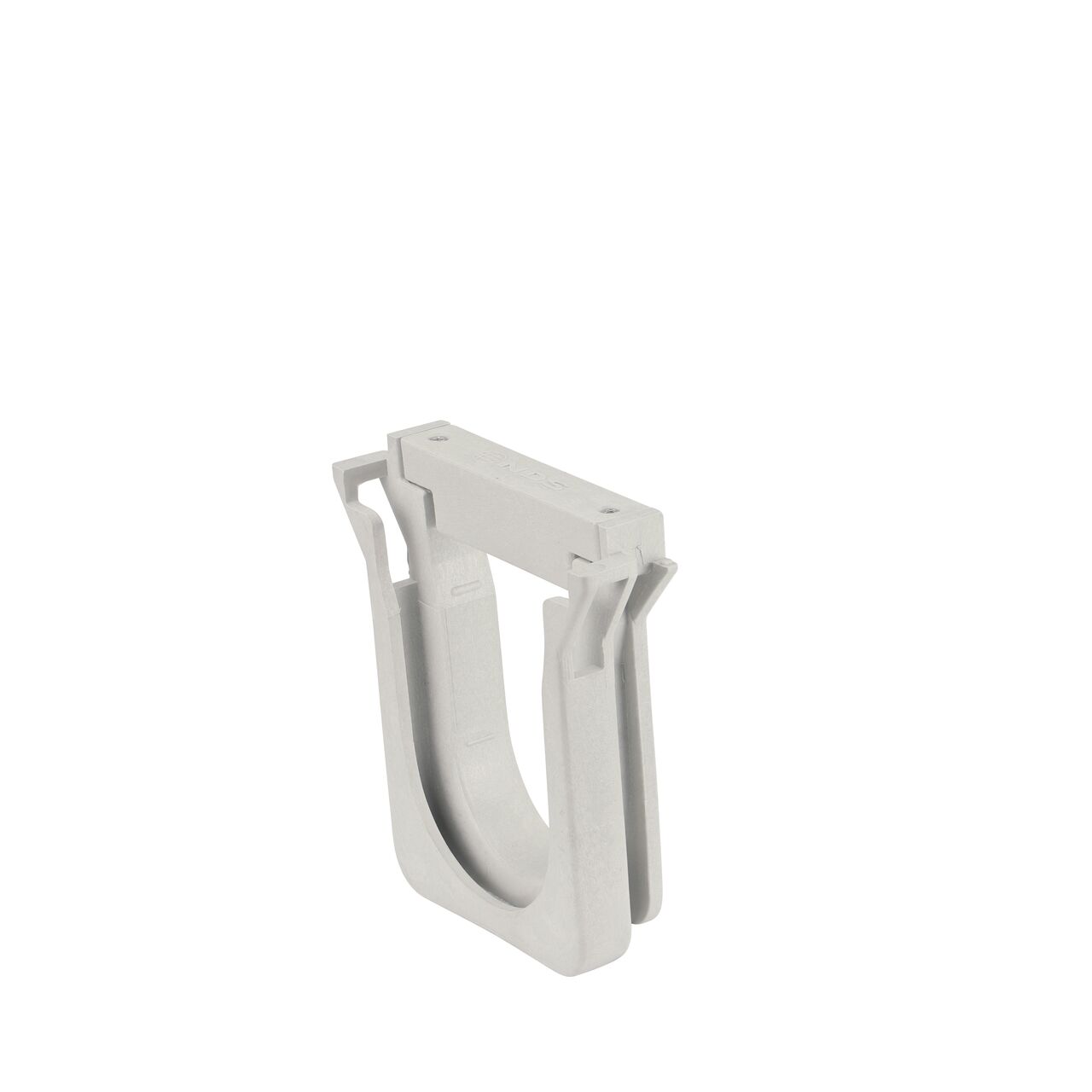

Dura Slope® Channel Drain EZ-Track™ Radius Coupling, 6.35 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
SKU: DSRC-097
Add turns to the channel drain run easily using the Dura Slope® Channel Drain EZ-Track™ Radius Coupling. The patented component works with the Dura Slope Channel Drain to work around areas with curved edges such as patios, fountains, pools, and spas. No need to measure angled cuts, saw, and miter pieces together. The interlocking components snap into place to save time and labor with installation. The flexible coupling can bend up to 3°. Interlocking tongue-and-groove ends connect to channel drain sections, also connects together to create tighter curves. Made of high-density polyethylene (HDPE) containing UV inhibitors. Available with inner depths of 6.35 in., 7.36 in., 8.37 in., and 9.37 in. to connect to respective neutral channel drain sections.
Applications:
- Adds curves to the channel drain run using interlocking components without the hassle of having to measure angled cuts, saw, and miter pieces together
- Ideal for driveways, concrete and paver patios, courtyards, walkways, sports facilities, pool and spa areas, fountains
- As part of a complete drainage system, the Dura Slope EZ-Track Radius Couplings and Grates work with Dura Slope Channel Drains to collect and direct water to drain pipes for proper release downstream
Features:

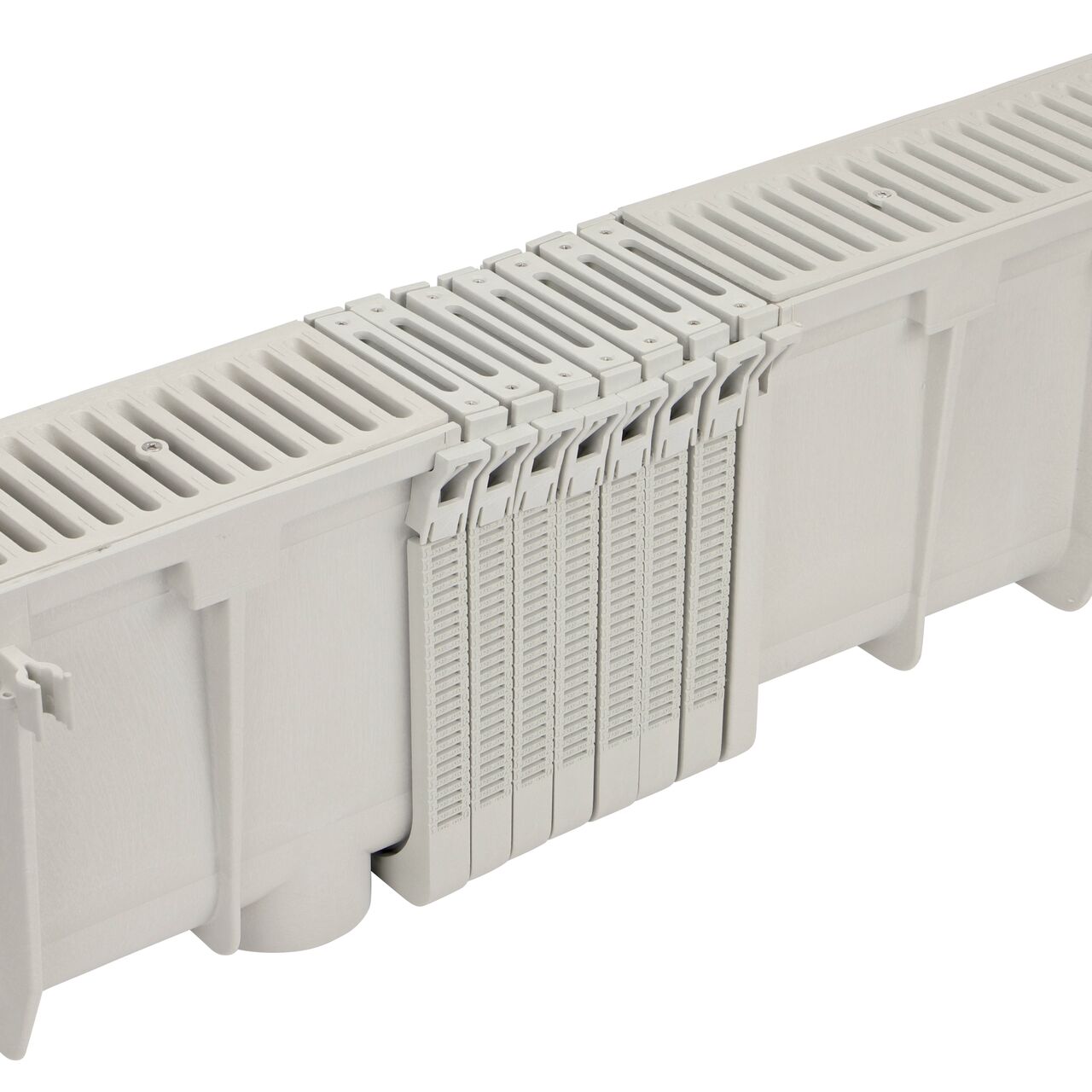

- Patented flexible radius coupling works with Dura Slope channel sections to add curved sections in the channel drain run

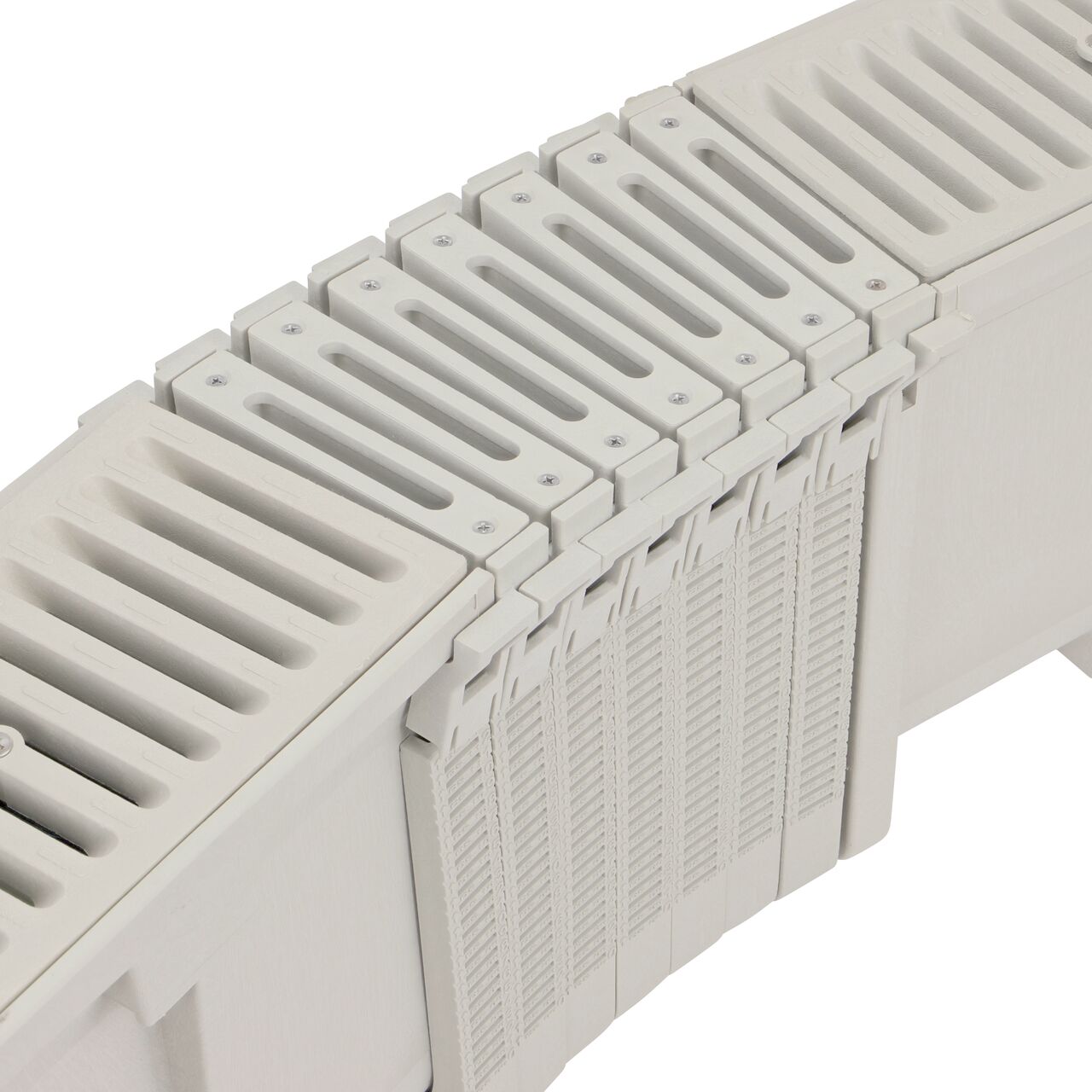

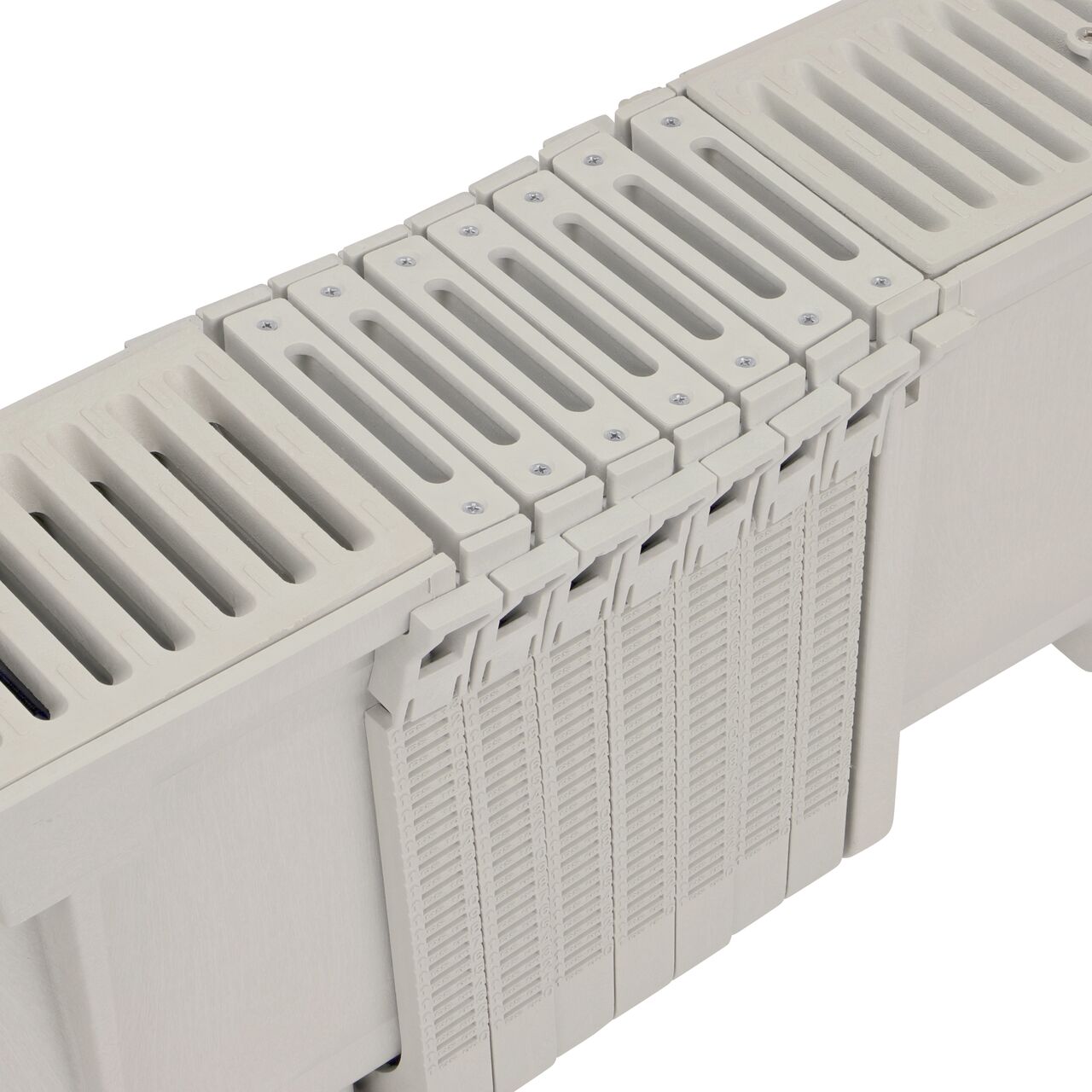

- 3 degrees of maximum deflection
- Interlocking components snap smoothly in place

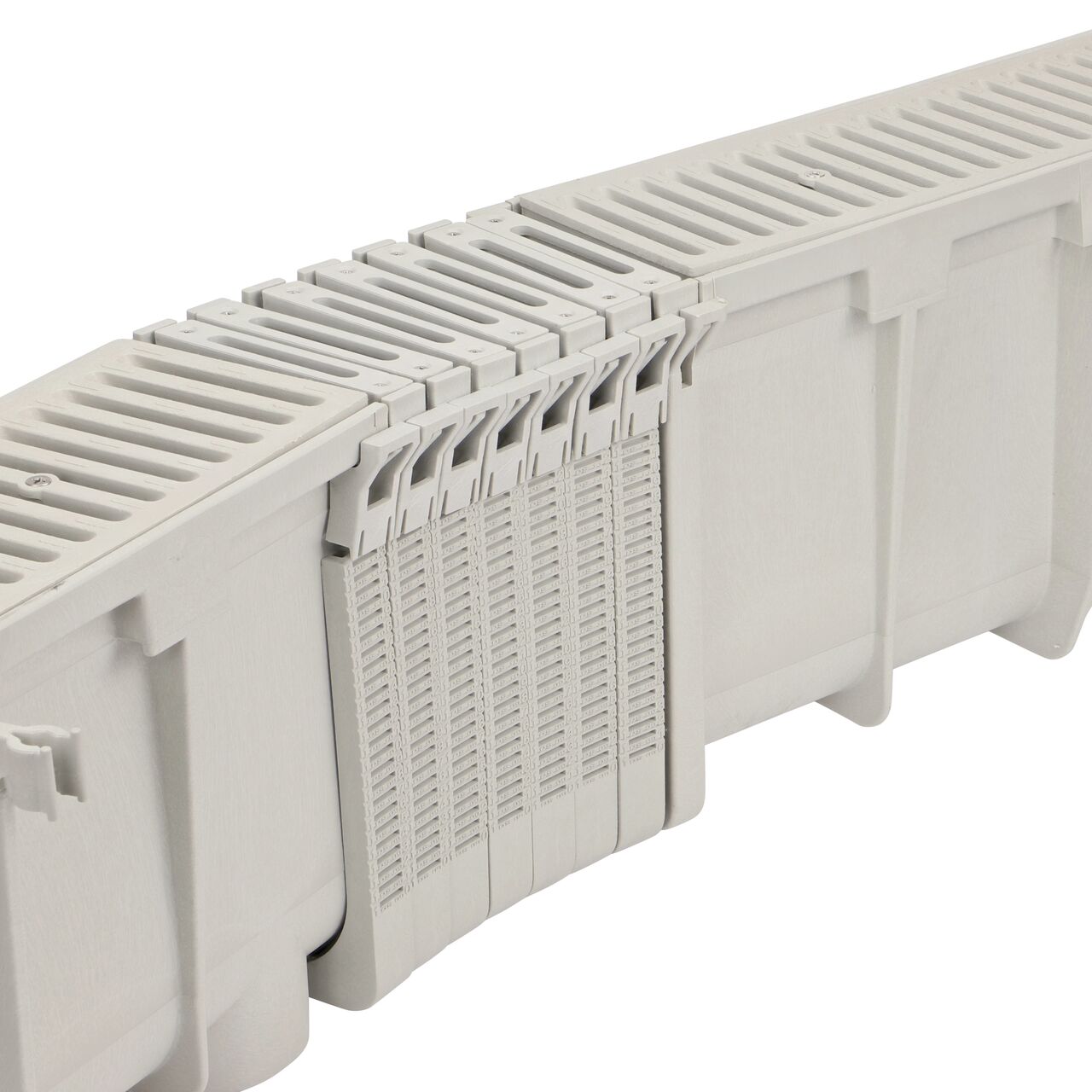

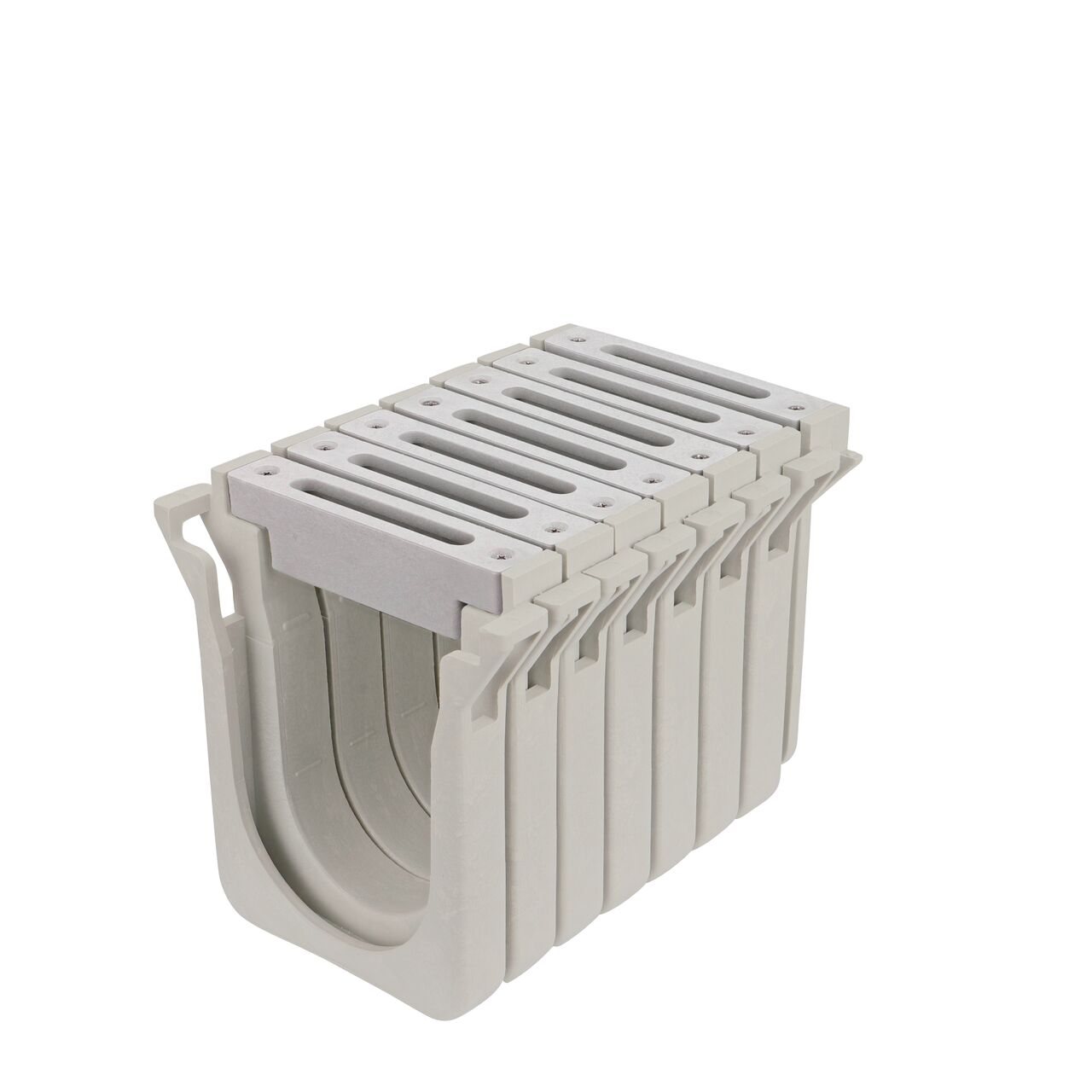

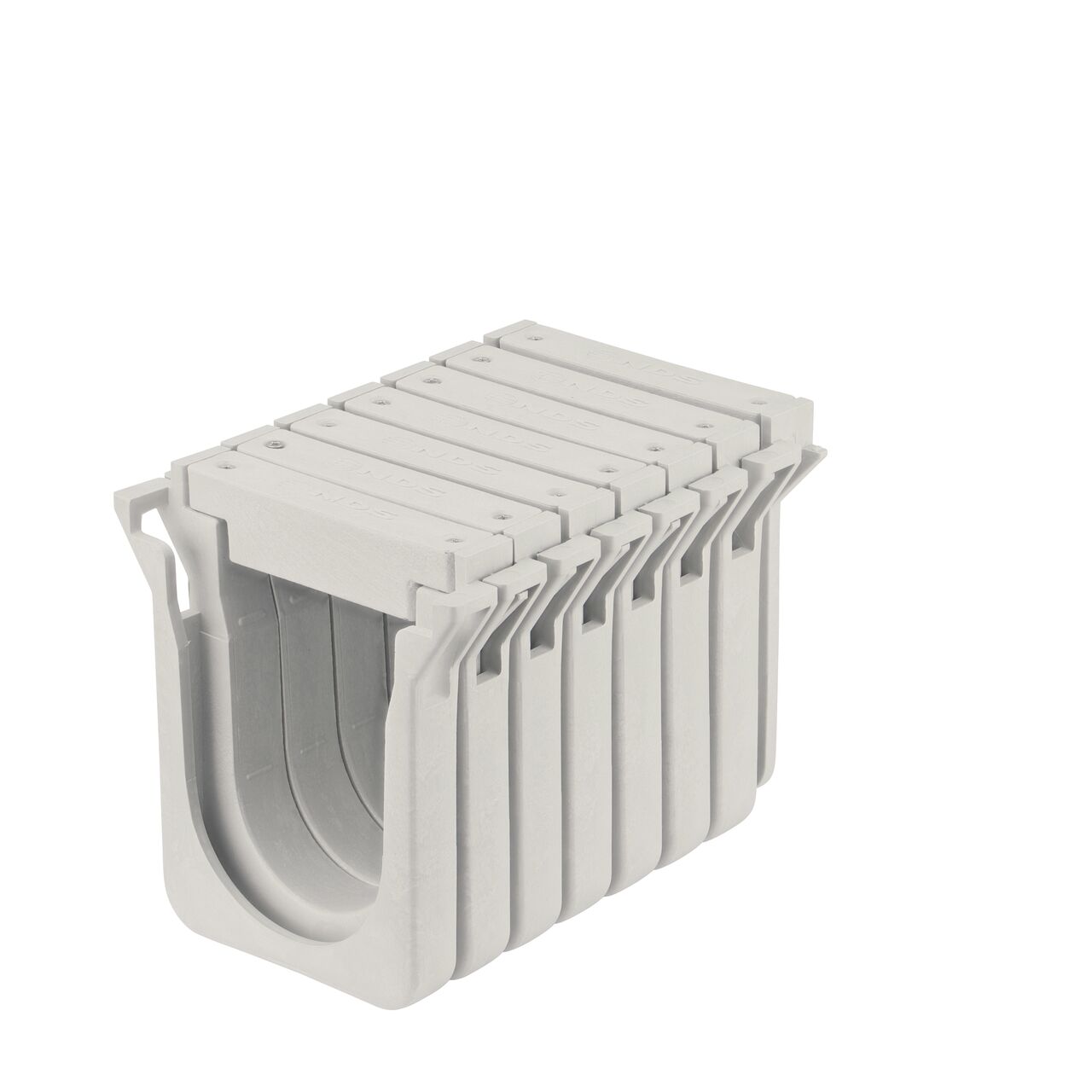

- Couplings can connect together to make tighter curves
- Cut at guide lines to match channel size
