Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Weave Design, Raw Iron

SKU: DS-601

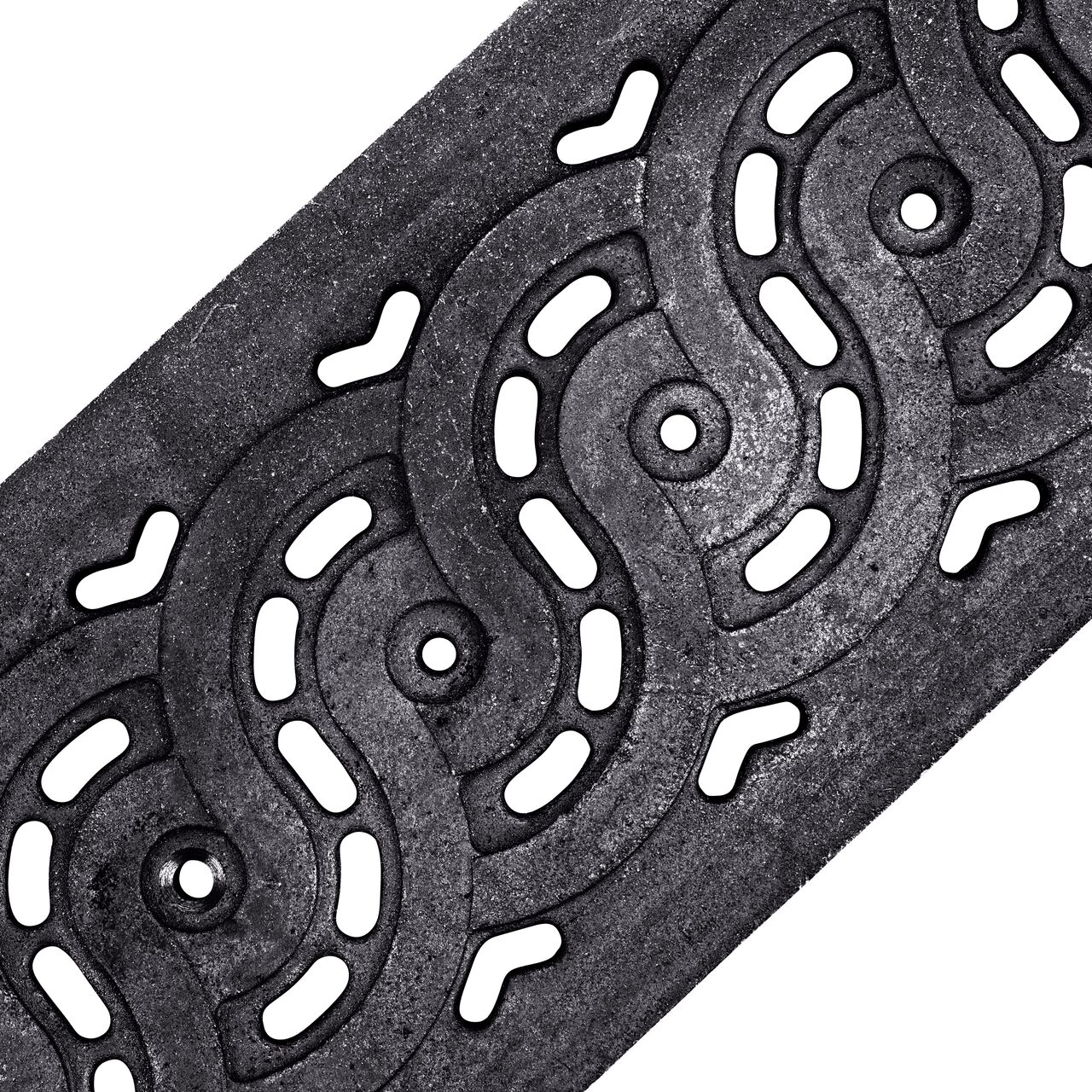

Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) decorative weave design

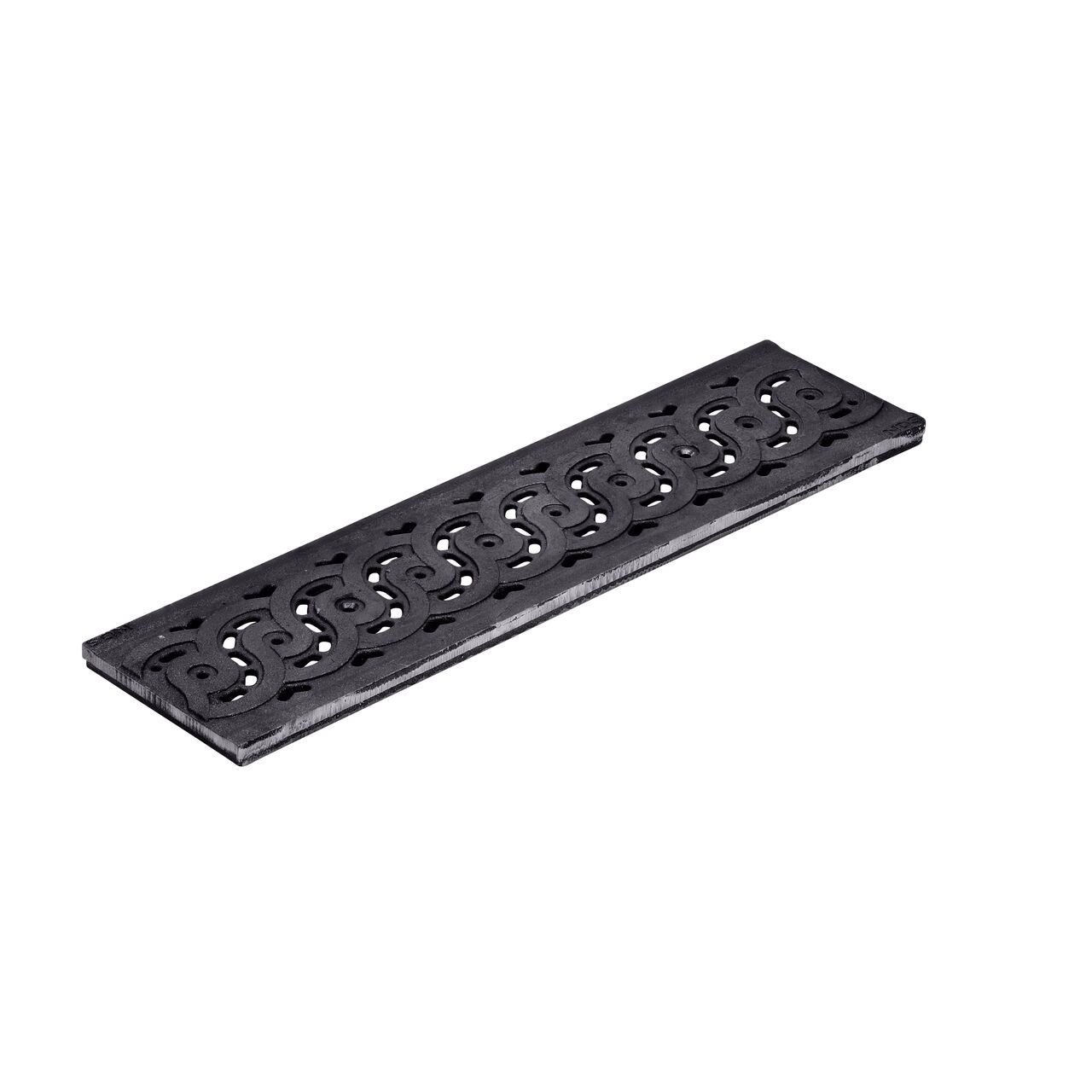

The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) is 6 in. wide and 2 ft. long and comes in a decorative weave pattern design

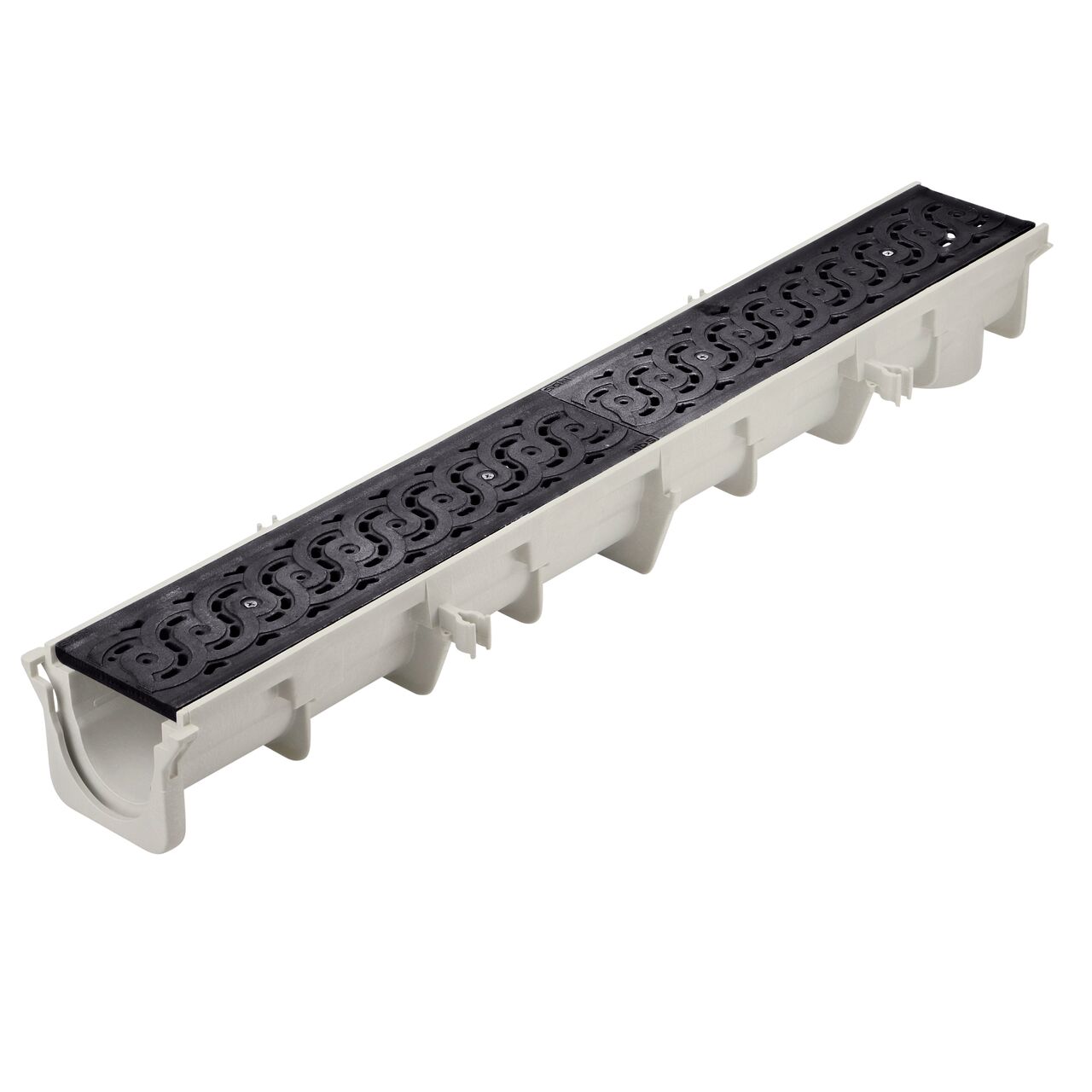

Two ductile iron decorative weave design Dura Slope™ Channel Drain Grates (NDS DS-601) fit on one Dura Slope Channel Drain (NDS DS-091)

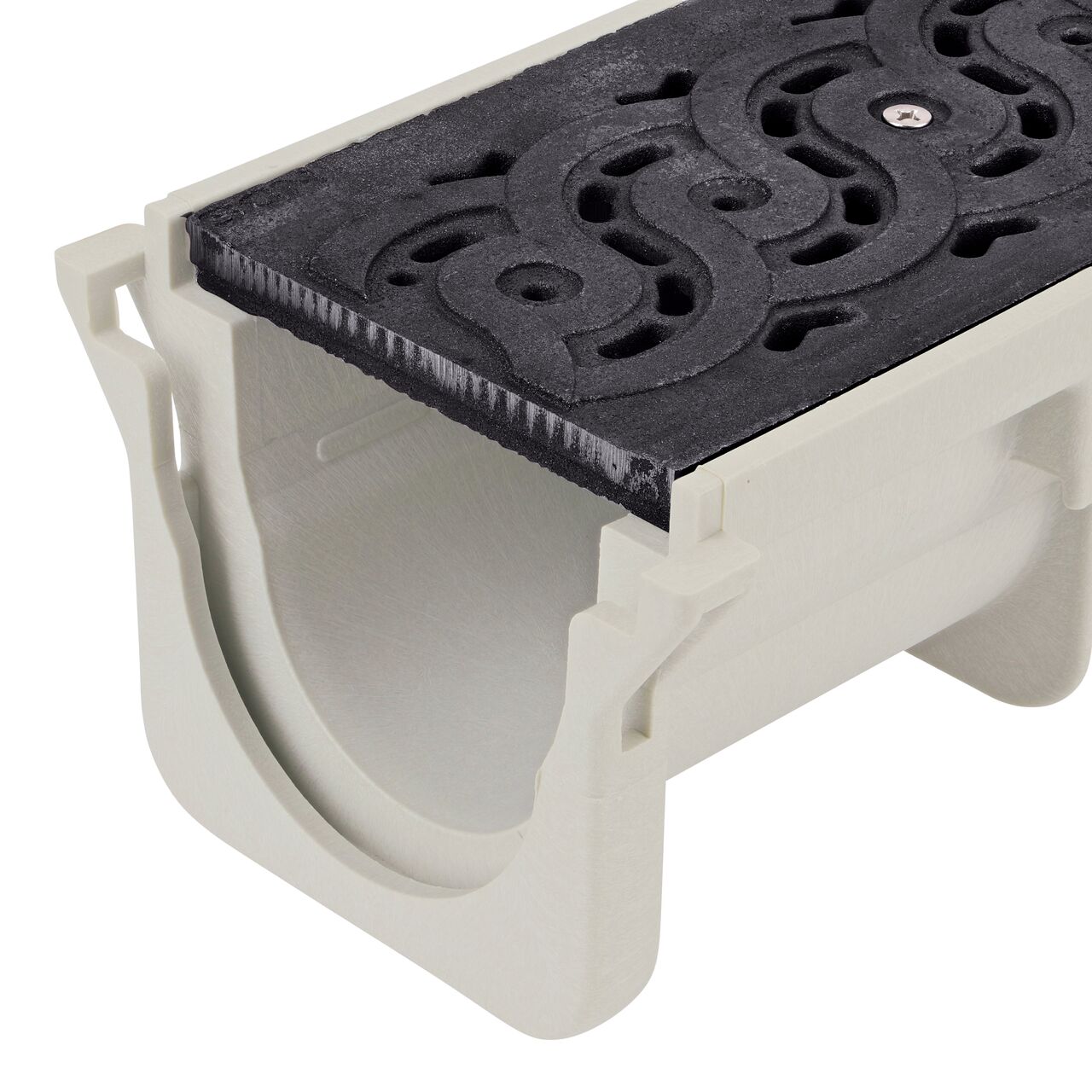

Closeup View of the ductile iron decorative weave design Dura Slope™ Channel Drain Grate (NDS DS-601) installed on the Dura Slope Channel Drain (NDS DS-091)

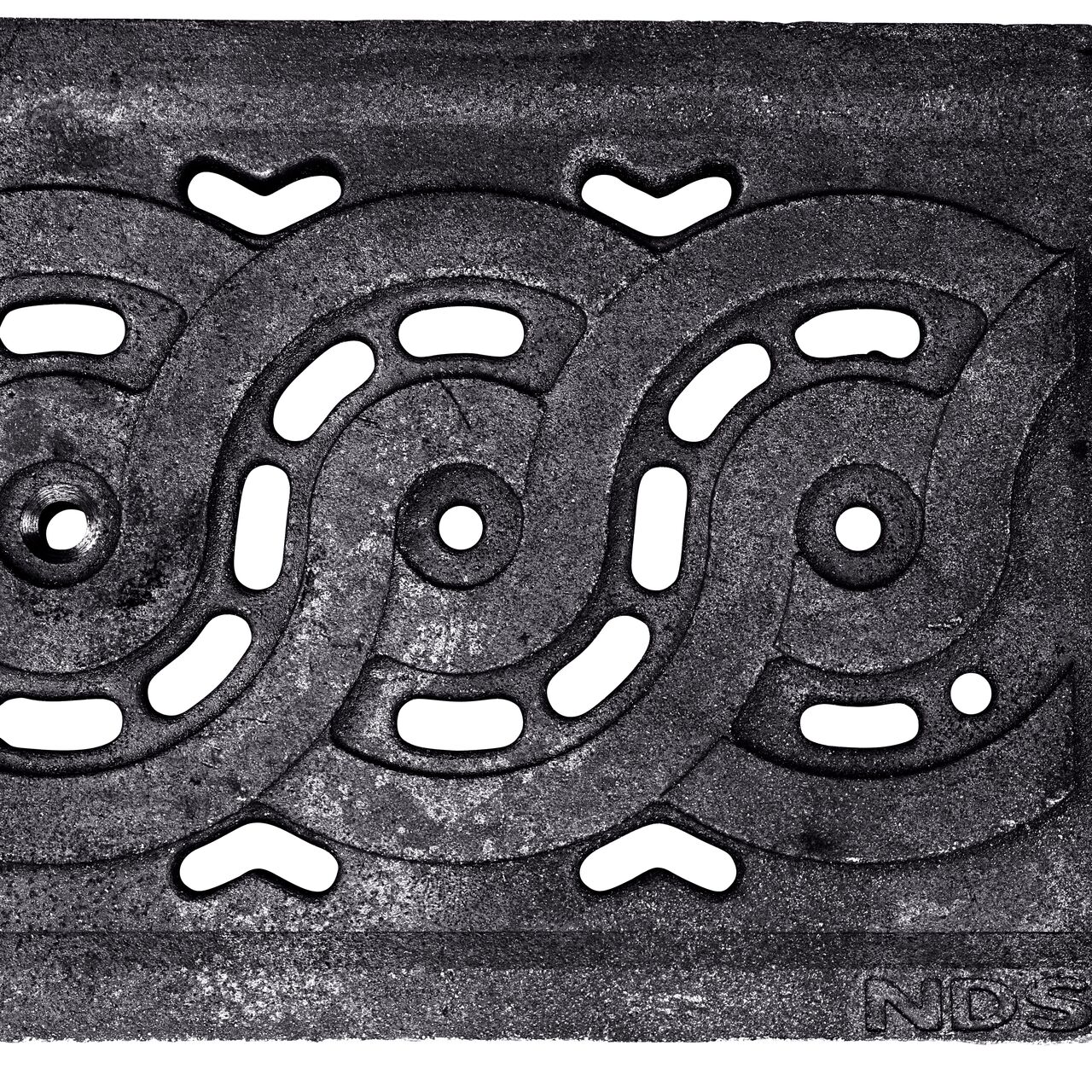

Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) decorative weave design
Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) decorative weave design
The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) is 6 in. wide and 2 ft. long and comes in a decorative weave pattern design
Two ductile iron decorative weave design Dura Slope™ Channel Drain Grates (NDS DS-601) fit on one Dura Slope Channel Drain (NDS DS-091)
Closeup View of the ductile iron decorative weave design Dura Slope™ Channel Drain Grate (NDS DS-601) installed on the Dura Slope Channel Drain (NDS DS-091)
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-601) decorative weave design

Add a stylish touch to hardscape drainage with the decorative Dura Slope® Channel Drain Grate. Featuring an ornamental weave design, the drain cover blocks leaves and debris from entering and potentially clogging the pipeline as water flows in. Ideal for driveways, pools, walkways, and other areas. The decorative grate with weave pattern has an open surface area of 6.75 sq. in. per linear ft. and flow rate of 20.65 GPM per linear ft. Rated for NDS Class C Loads (up to 325 PSI) when properly installed, rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed with the Ductile Iron Frame (DS-200H), ADA compliant and heel-proof. Made of raw iron, the grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.

Applications:

  • Prevents leaves and debris from entering the pipeline and potentially clogging the drainage system with a look that enhances its surroundings
  • Ideal for driveways, pools, walkways, and other areas
  • Use with the Dura Slope Channel Drain as part of a complete drainage system to collect and direct runoff to drain pipes for proper release downstream

Features:

  • Grate is 24 in. long, 6 in. wide and 1/4 in. high
  • Uncoated raw iron will develop a rust patina over time
  • Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
