Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, White Plastic
SKU: 660

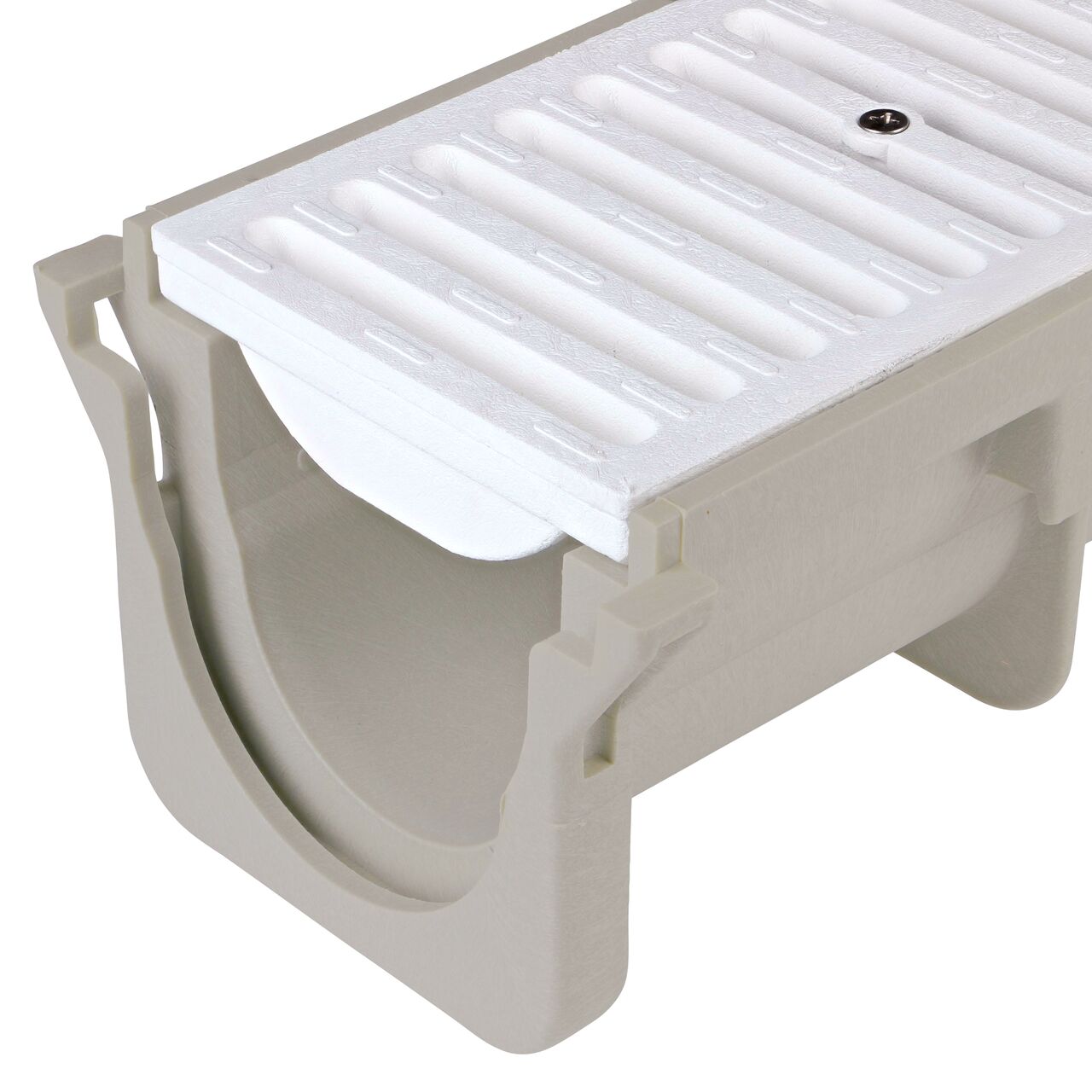

Protect your drainage system from clogging with the Dura Slope® Channel Drain Grate. The drain grate works with the Dura Slope Channel Drain to capture water flows from hardscapes while blocking leaves and debris in the water from entering the channel and potentially obstructing drain pipes. The drain cover has an open surface area of 25.40 sq. in. per linear ft. and flow rate of 27.00 GPM per linear ft. Made of high-density polyethylene (HDPE) containing UV inhibitors. Rated for NDS Class B loads (up to 175 PSI) when properly installed and ADA compliant.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system
- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces

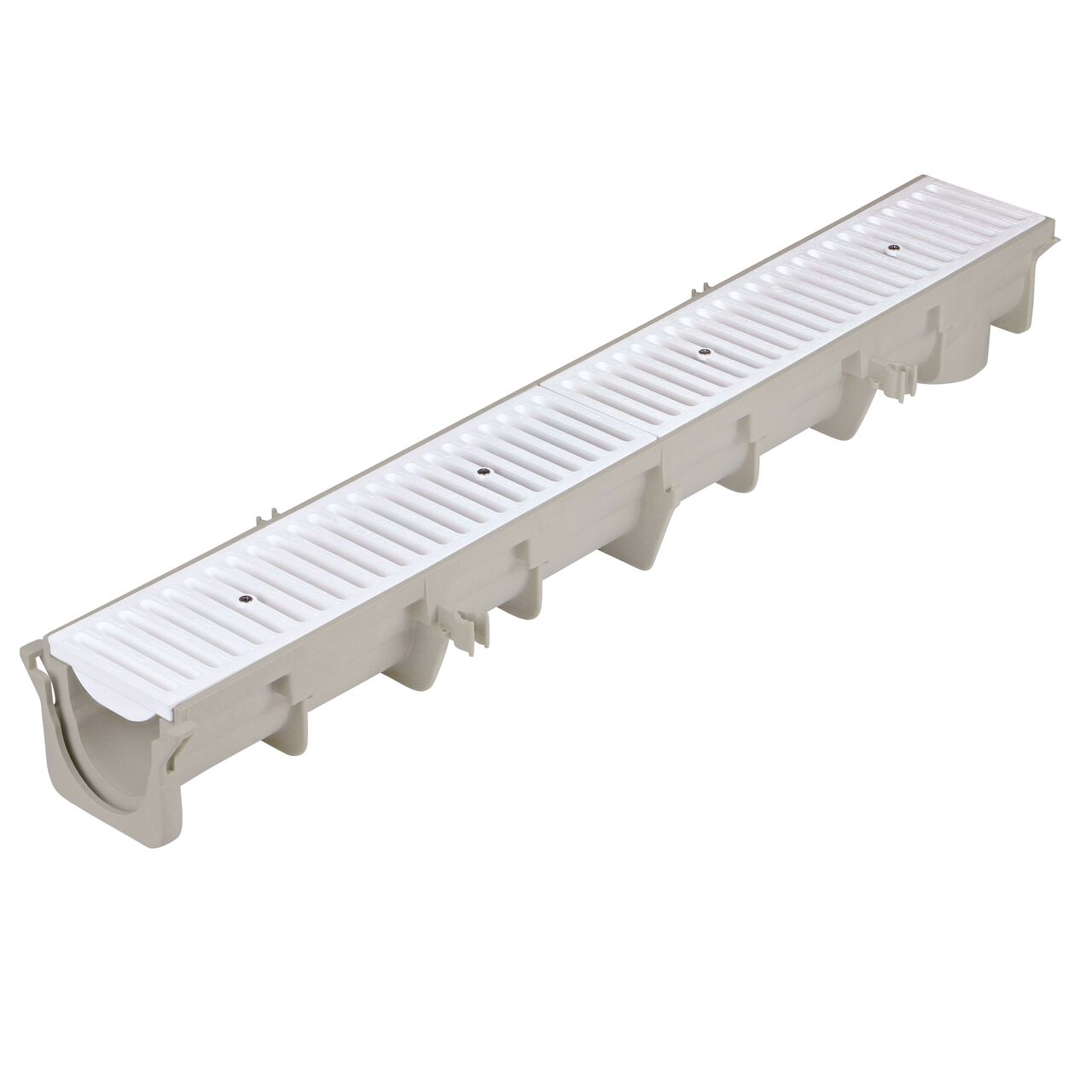

- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:

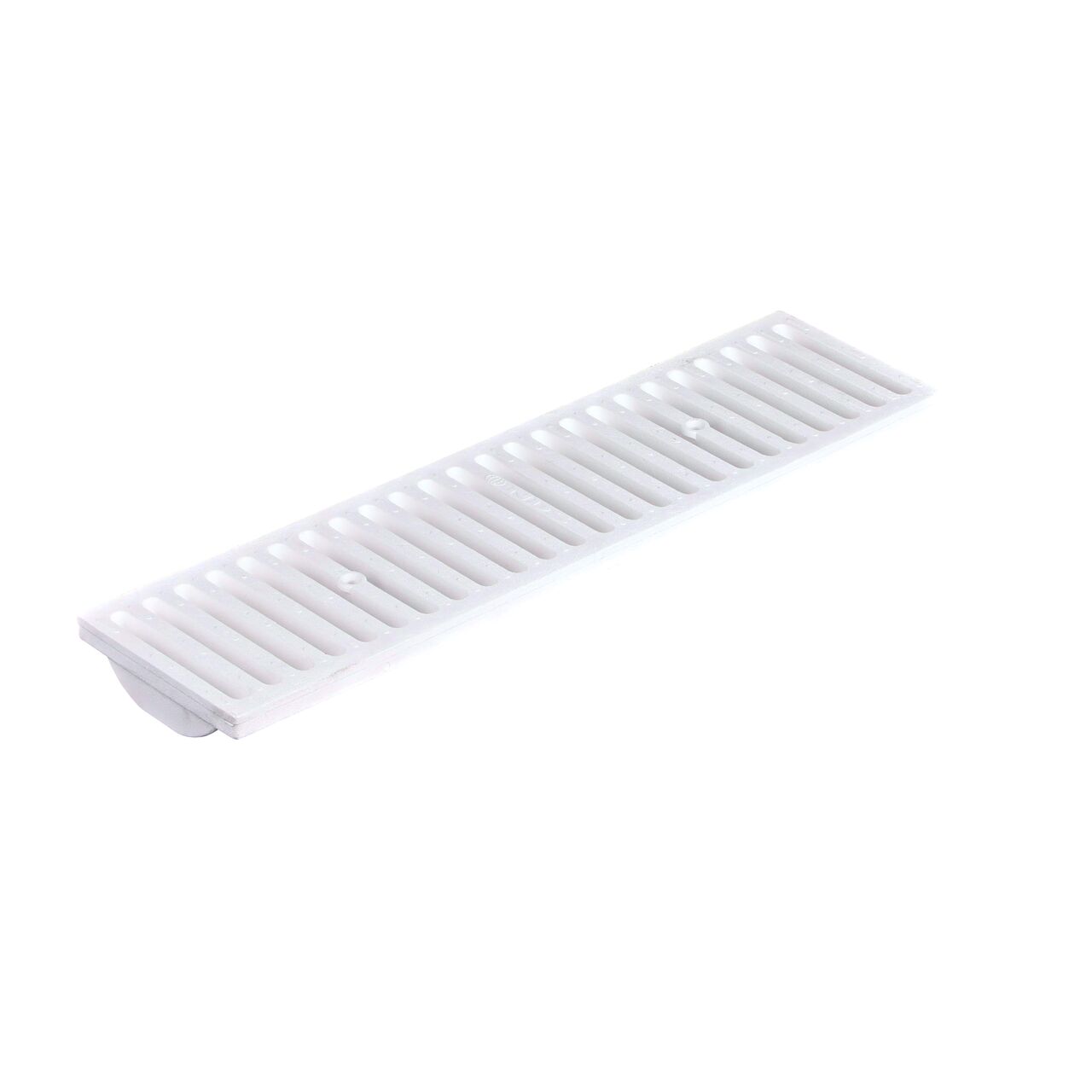

- Grate is 24 in. long, 6 in. wide and 3/4 in. high

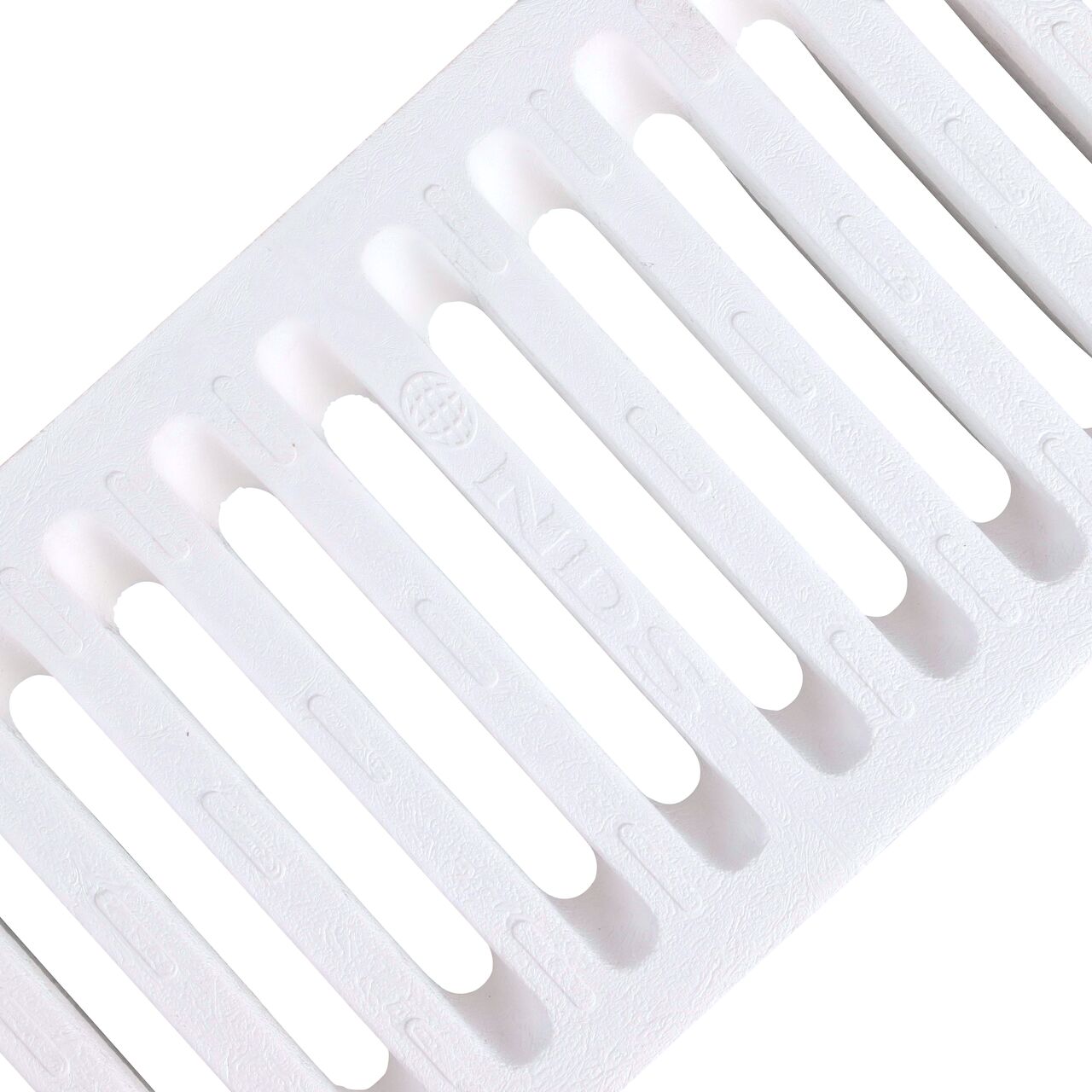

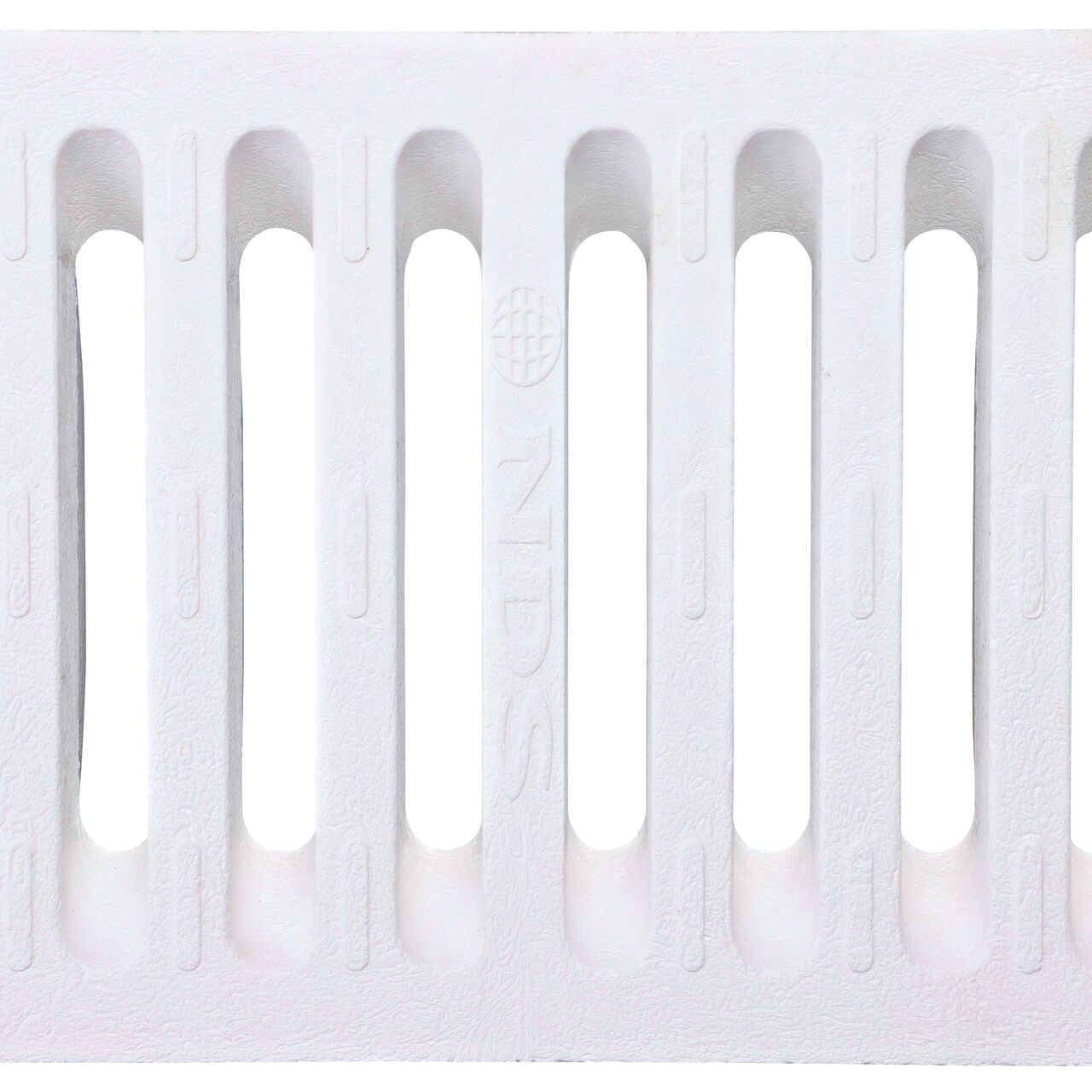

- Grate openings are 1/2 in. X 3-13/16 in.
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
