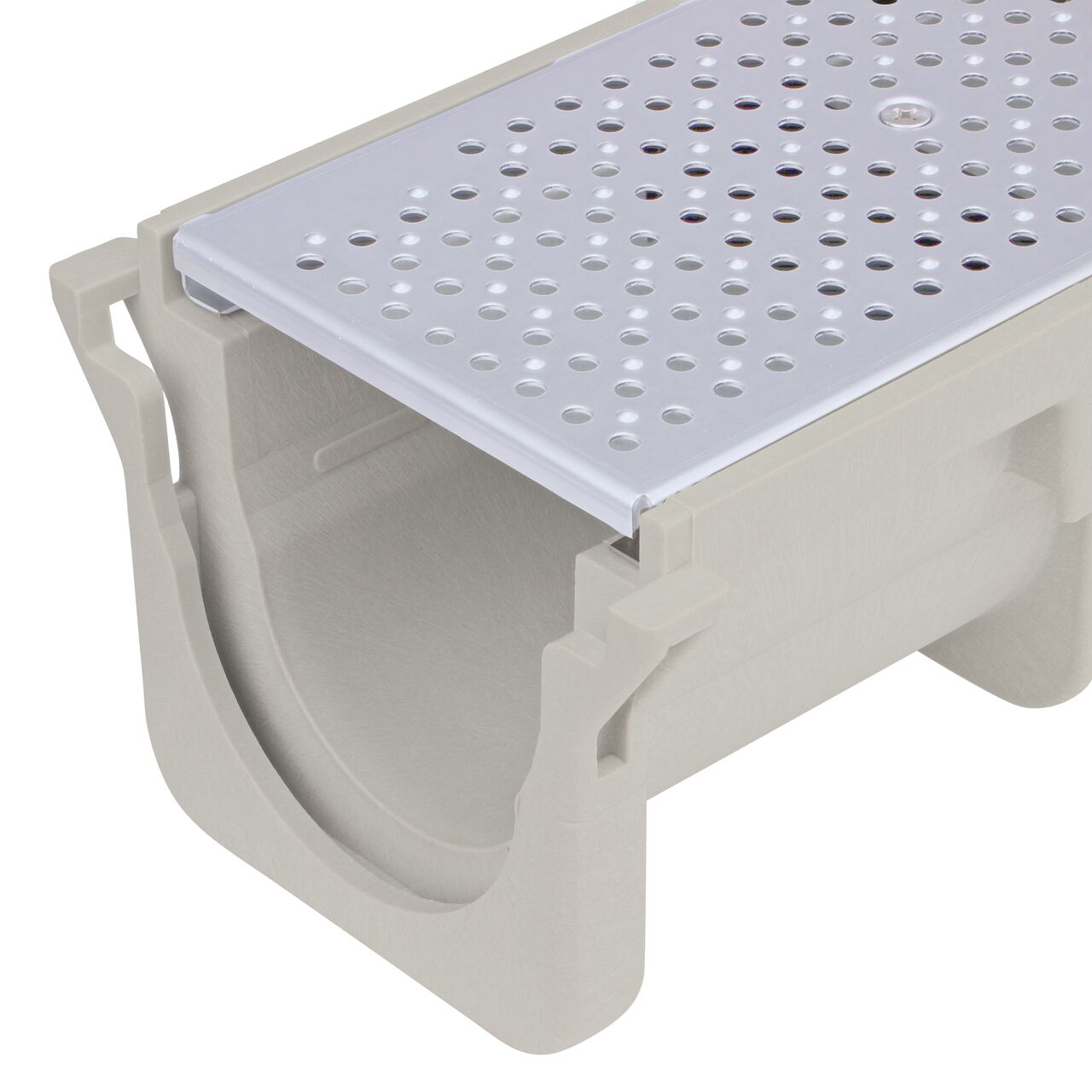

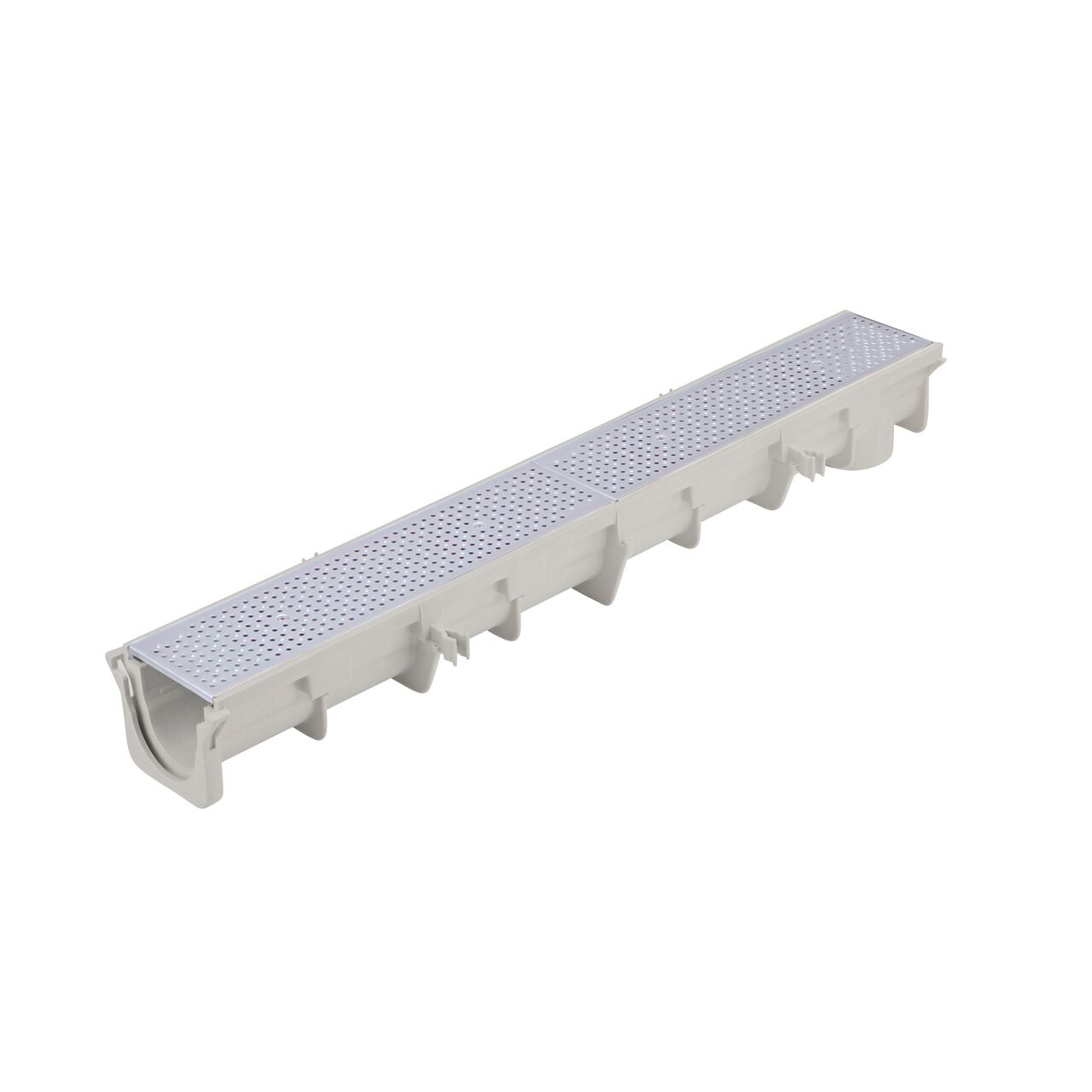

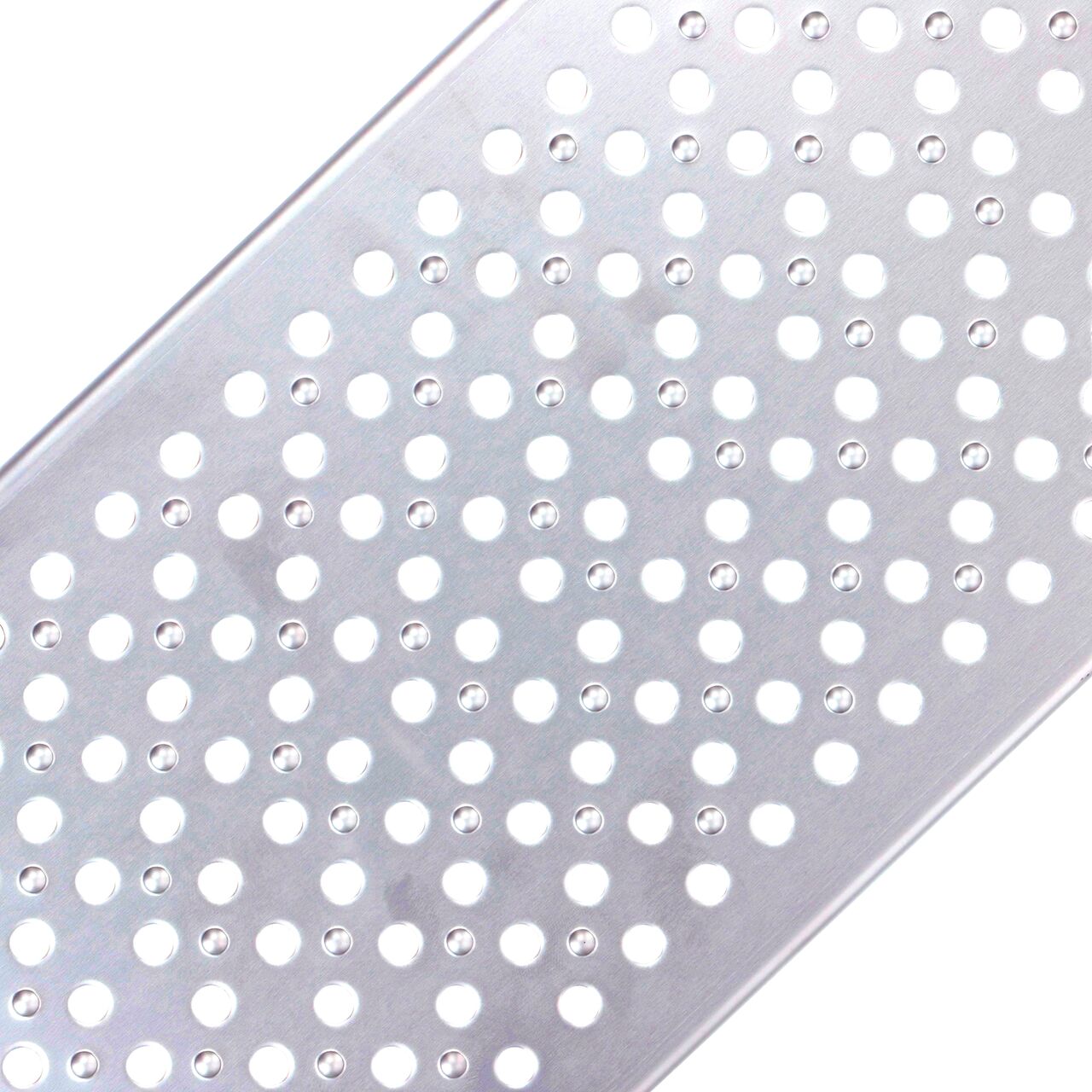

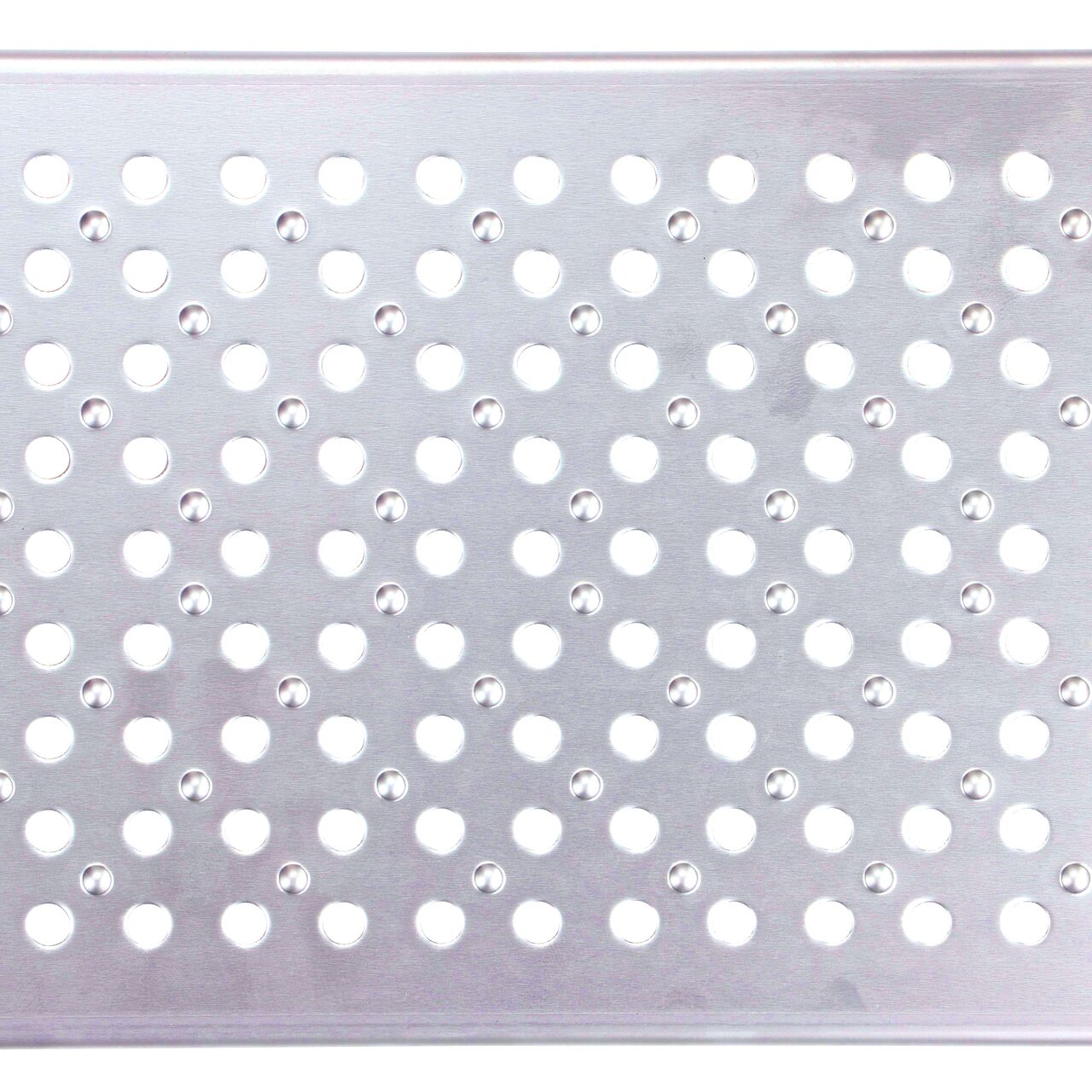

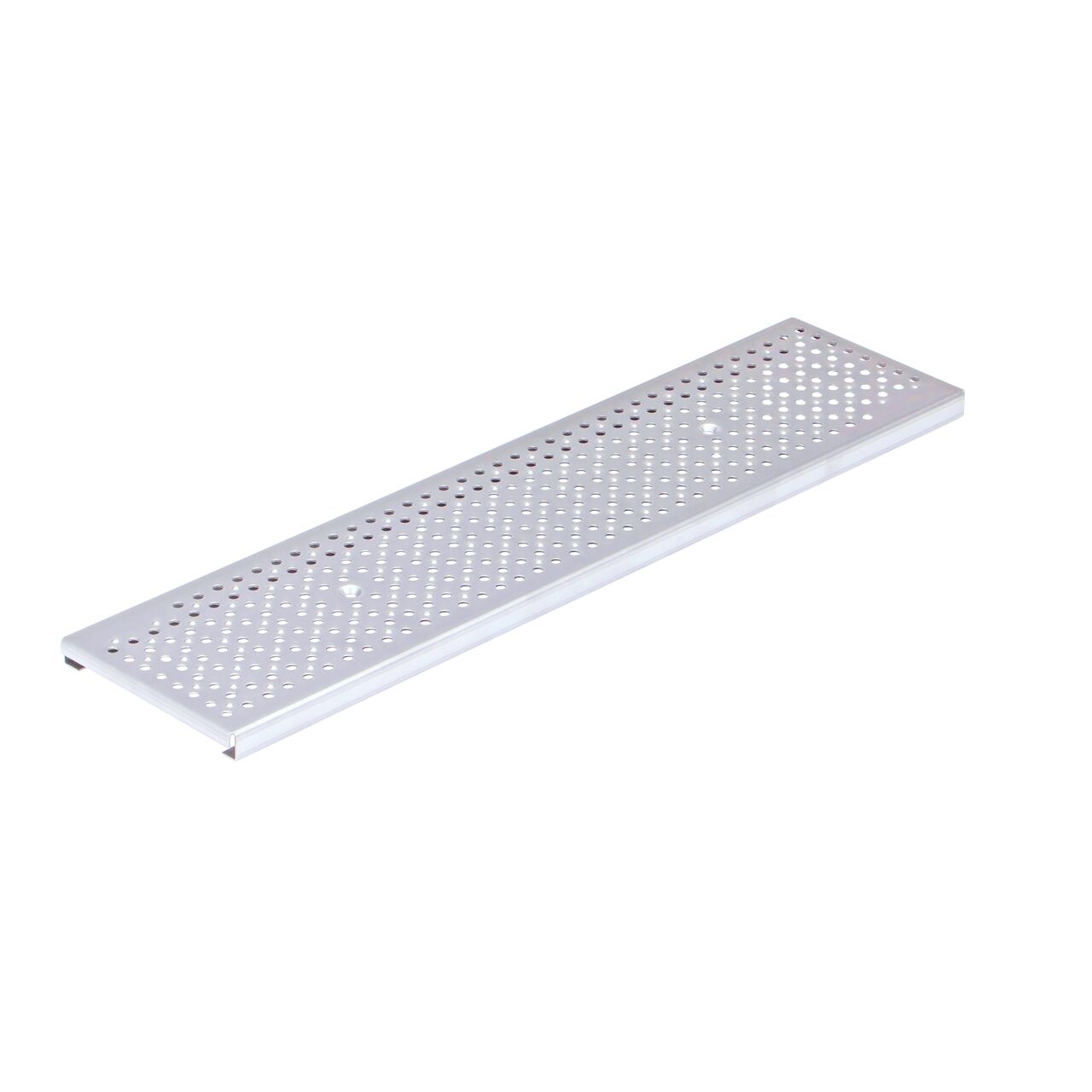

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Stainless Steel
SKU: DS-226
Block leaves and debris from entering and potentially cloggging the drainage system with the Dura Slope® Channel Drain Grate. Use the drain grate (also known as a drain cover) with the Dura Slope Channel Drain to capture water flows from hardscapes. The grate features a perforated design and is heel-proof and ADA compliant. It has an open surface area of 7.63 sq. in. per linear ft. and flow rate of 23.34 GPM per linear ft. Made of stainless steel. Rated for NDS Class A loads (up to 60 PSI) when properly installed.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system
- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Grate is 24 in. long, 6 in. wide and 3/4 in. high
- Grate openings are 1/4 in
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
