Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Brick Design, Raw Iron

SKU: DS-604

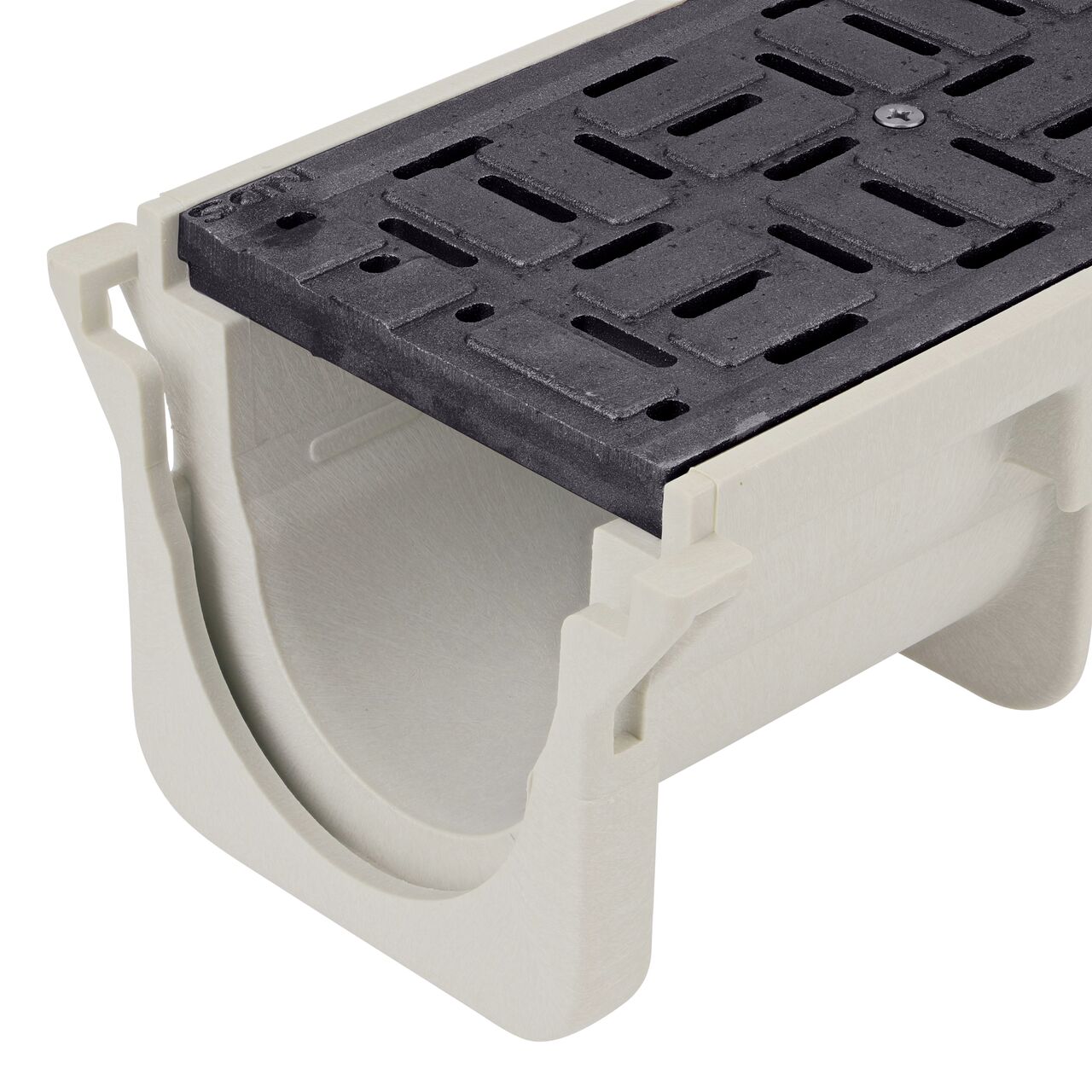

Closeup View of the ductile iron brick pattern Dura Slope™ Channel Drain Grate (NDS DS-604) installed on the Dura Slope Channel Drain (NDS DS-091)

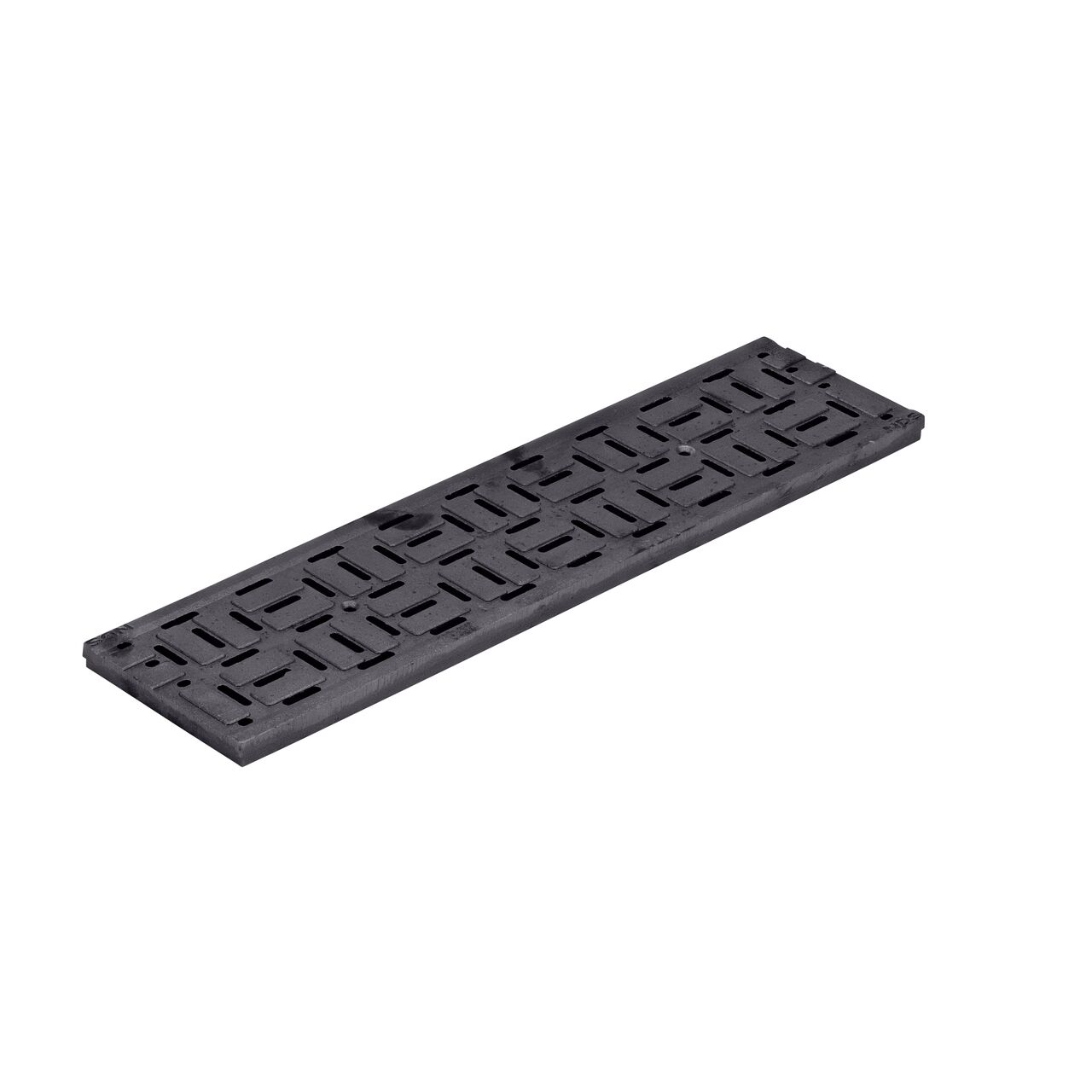

The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-604) is 6 in. wide and 2 ft. long and comes in a decorative brick pattern design

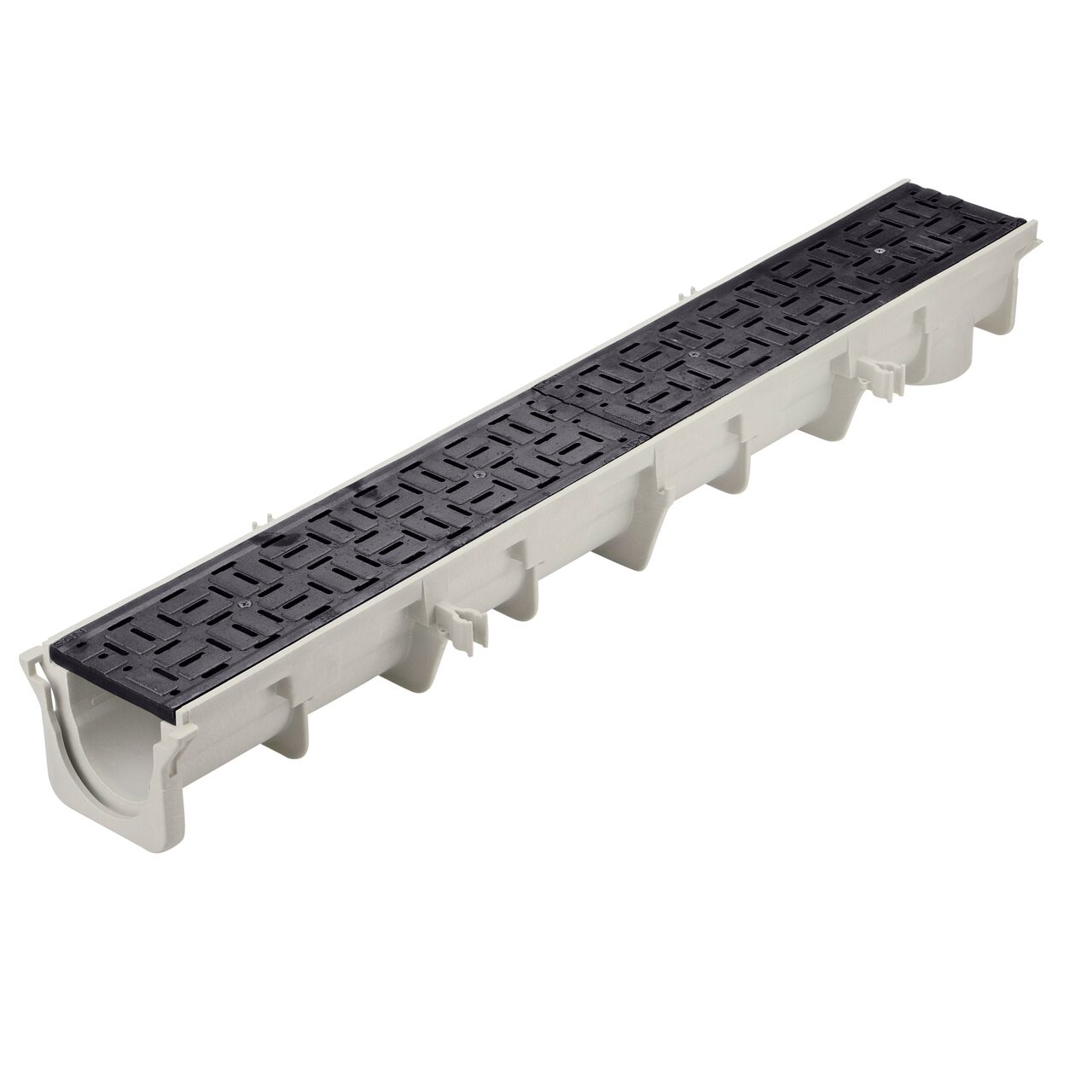

Two ductile iron brick pattern Dura Slope™ Channel Drain Grates (NDS DS-604) fit on one Dura Slope Channel Drain (NDS DS-091)

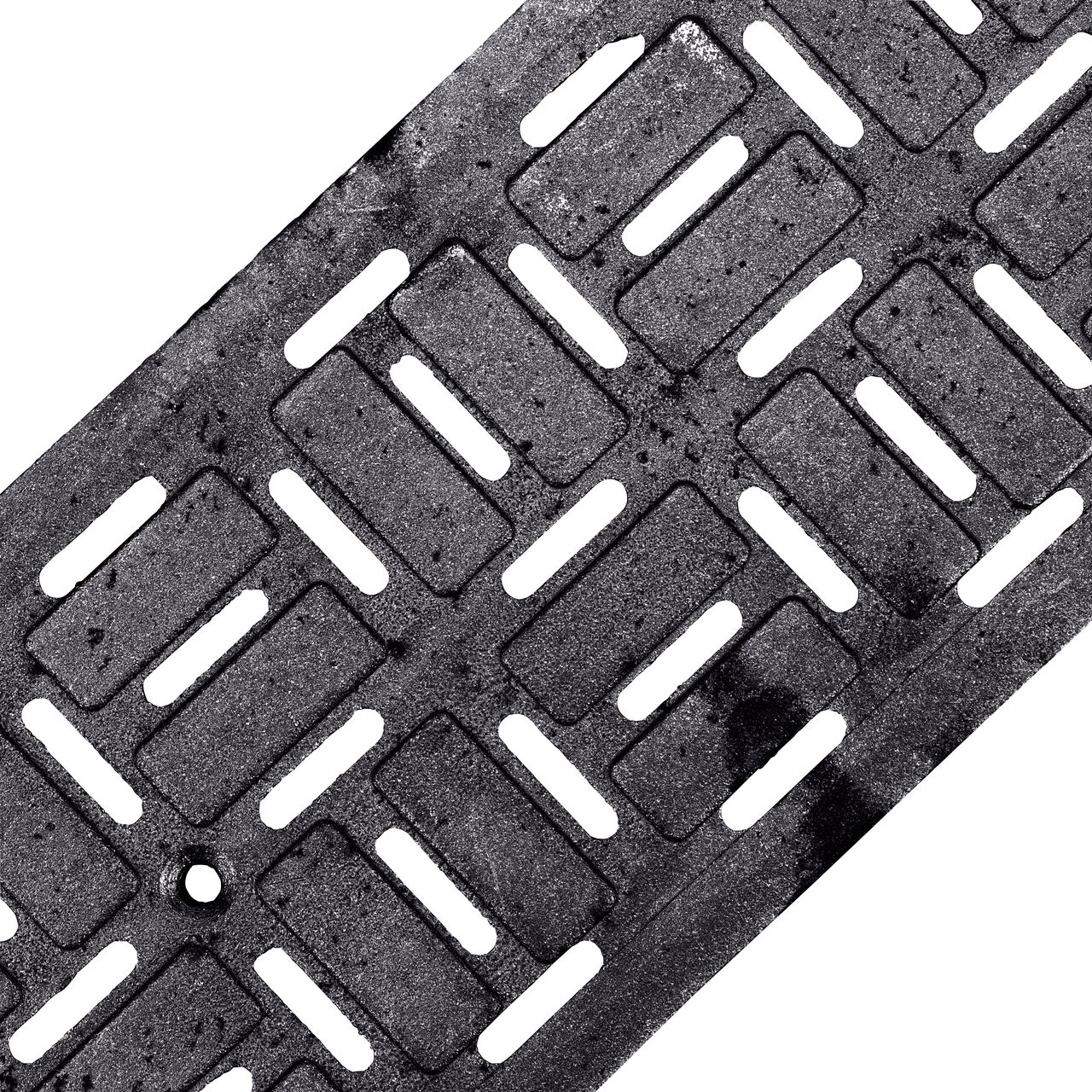

Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-604) decorative brick pattern design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative brick pattern design
Closeup View of the ductile iron brick pattern Dura Slope™ Channel Drain Grate (NDS DS-604) installed on the Dura Slope Channel Drain (NDS DS-091)
The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-604) is 6 in. wide and 2 ft. long and comes in a decorative brick pattern design
Two ductile iron brick pattern Dura Slope™ Channel Drain Grates (NDS DS-604) fit on one Dura Slope Channel Drain (NDS DS-091)
Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-604) decorative brick pattern design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-603) decorative brick pattern design

Spruce up outdoor spaces with decorative drain grates as part of the drainage system. Stylish and functional, the Dura Slope® Channel Drain Grate has a timeless brick design prevents leaves and debris from entering and potentially clogging drain pipes as water flows into the channel. Ideal for driveways, pool and patio areas, walkways, and other hardscapes. The decorative grate has an open surface area of 11.35 sq. in. per linear ft. and flow rate of 34.73 GPM per linear ft. Rated for NDS Class C Loads (up to 325 PSI) when properly installed, rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed with the Ductile Iron Frame (DS-200H), ADA compliant and heel-proof. Made of raw iron, the grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.

Applications:

  • Prevents leaves and debris from entering the pipeline and potentially clogging the drainage system with a look that enhances its surroundings
  • Ideal for driveways, pools, walkways, and other areas
  • Use with the Dura Slope Channel Drain as part of a complete drainage system to collect and direct runoff to drain pipes for proper release downstream

Features:

  • Grate is 24 in. long, 6 in. wide and 1/4 in. high
  • Uncoated raw iron will develop a rust patina over time
  • Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
