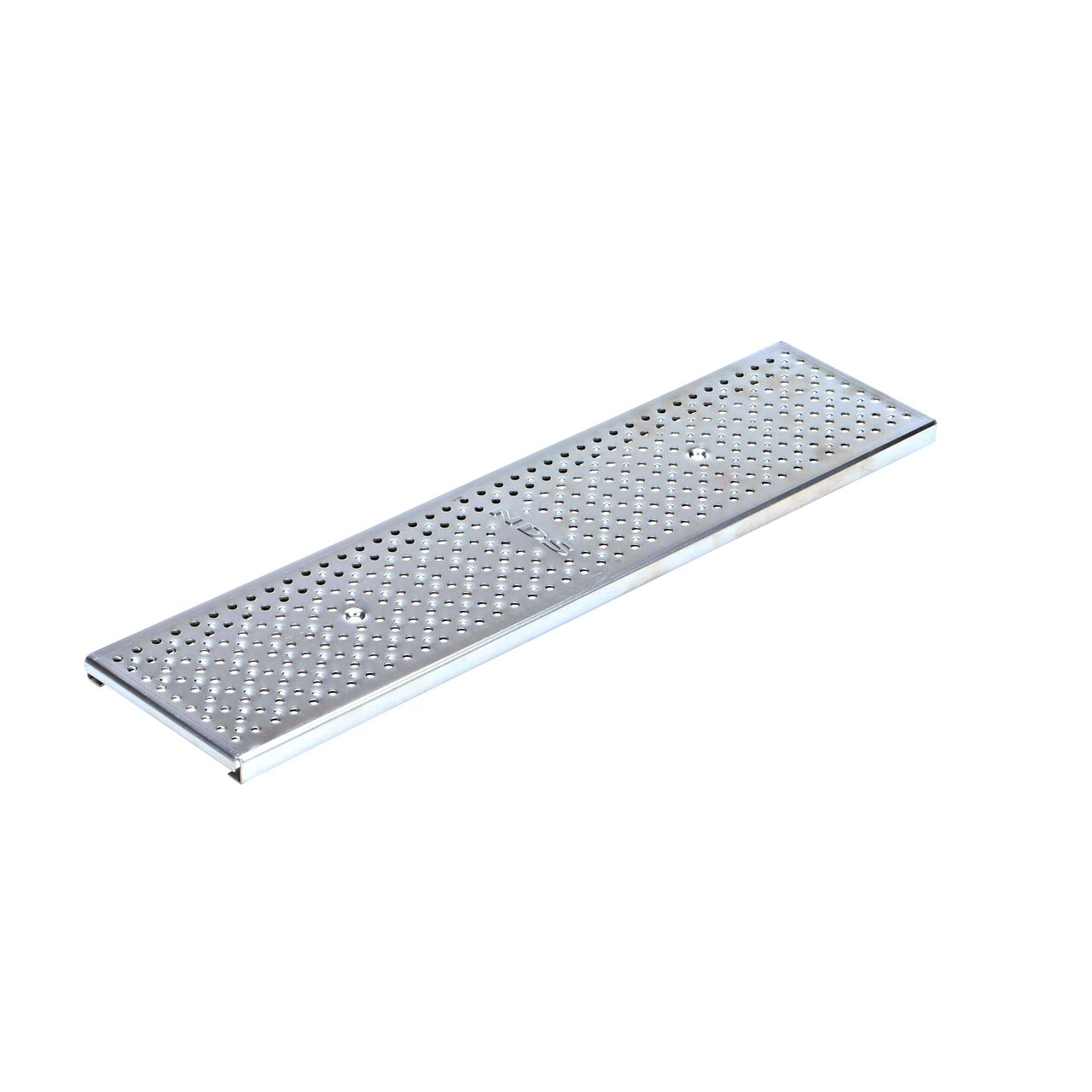

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Galvanized Steel
SKU: DS-228

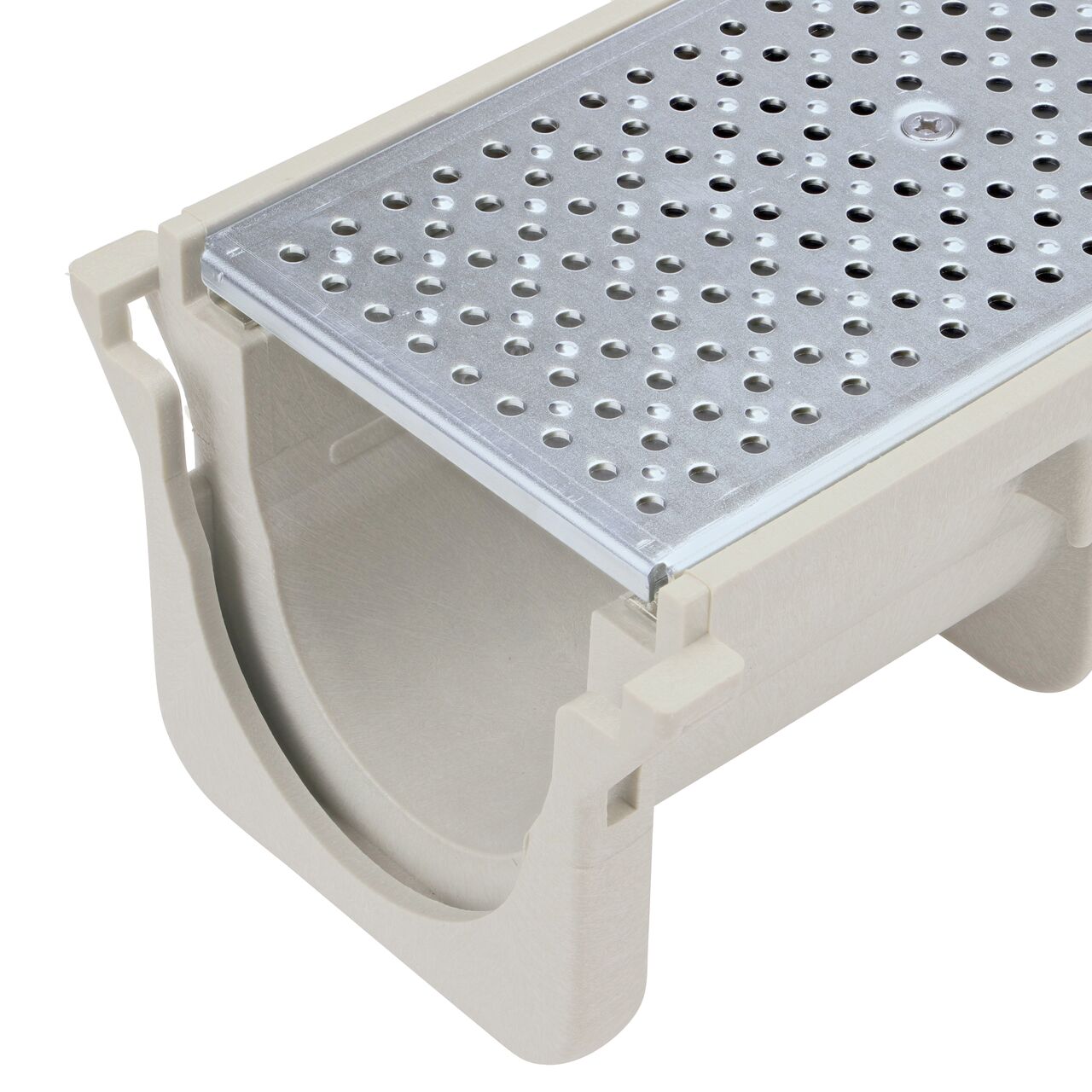

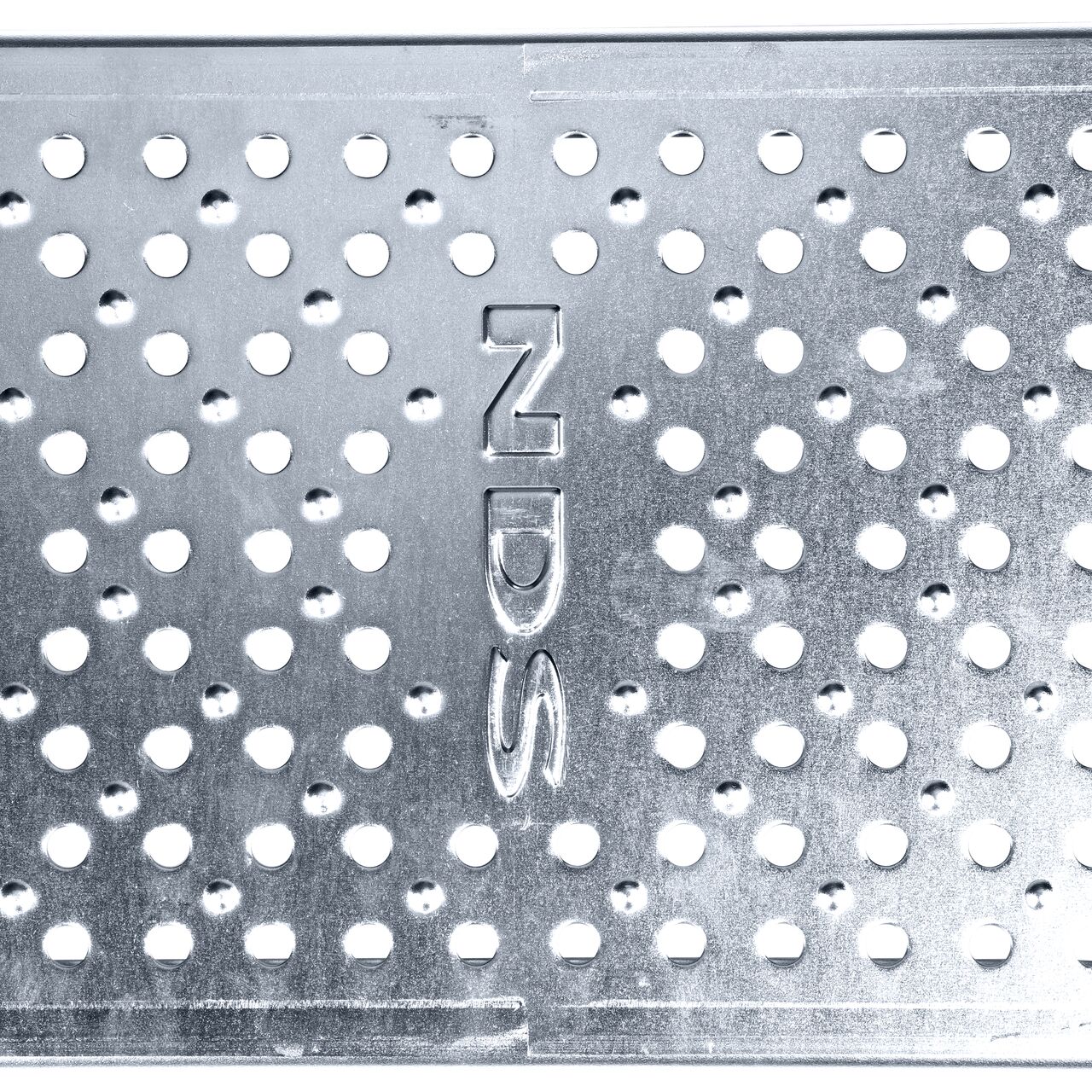

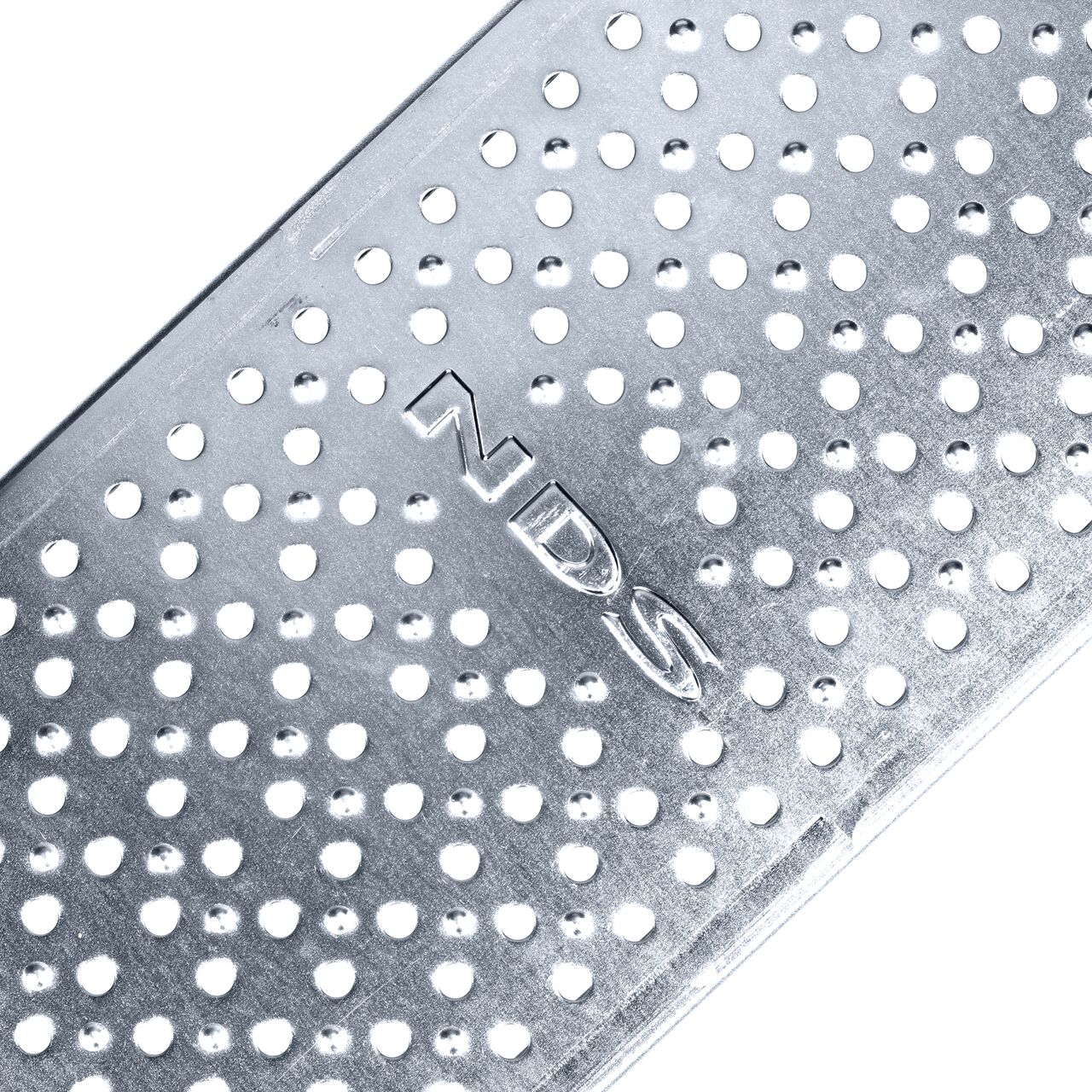

Keep pipe-clogging leaves and debris out of the drainage system with the Dura Slope® Channel Drain Grate. The drain grate works with the Dura Slope Channel Drain to collect water flows from impervious surfaces. Also known as a drain cover, it features a perforated design and is heel-proof and ADA compliant. Grate has an open surface area of 7.63 sq. in. per linear ft. and flow rate of 23.34 GPM per linear ft. Made of galvanized steel. Rated for NDS Class A loads (up to 60 PSI) when properly installed.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system

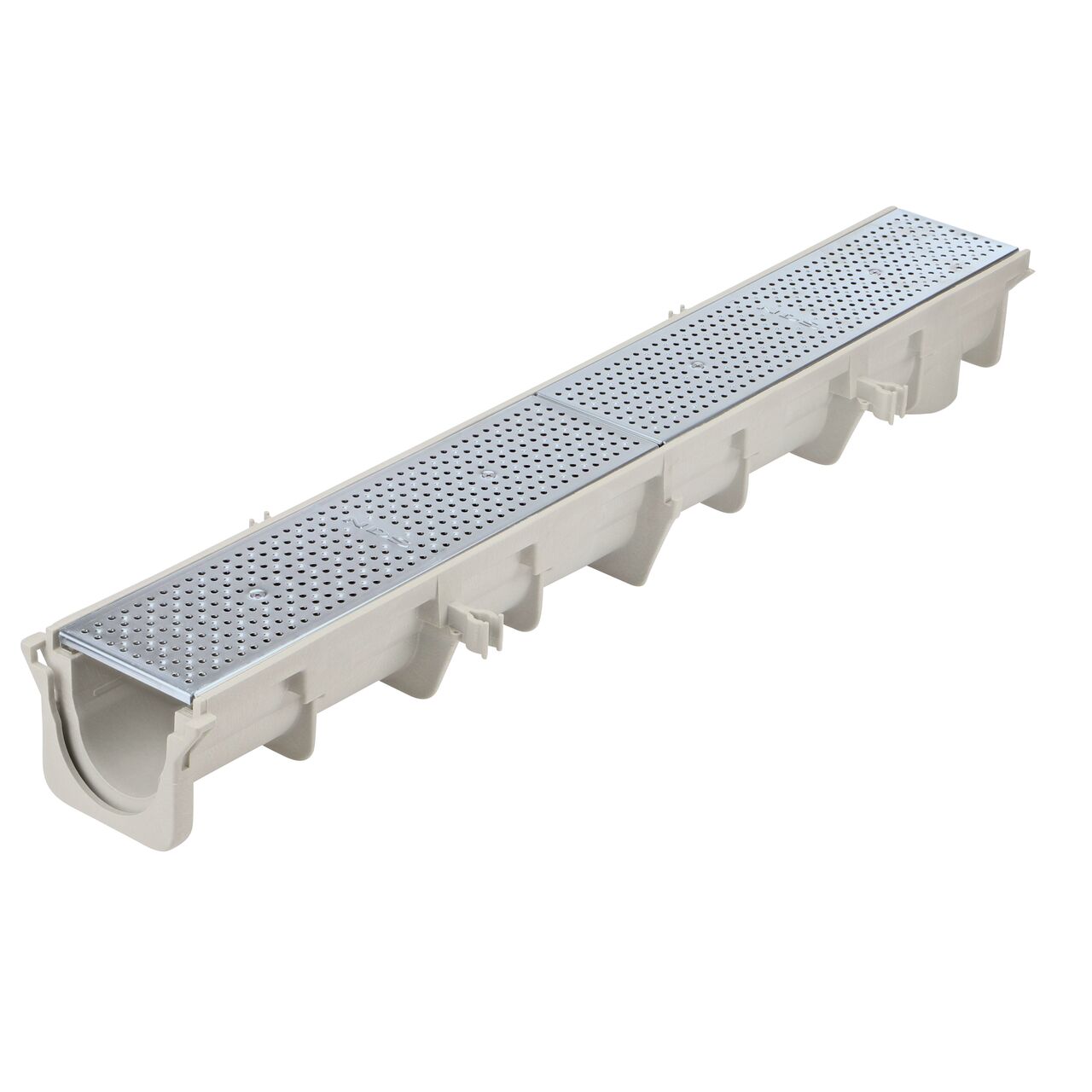

- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Grate is 24 in. long, 6 in. wide and 3/4 in. high
- Grate openings are 1/4 in
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
