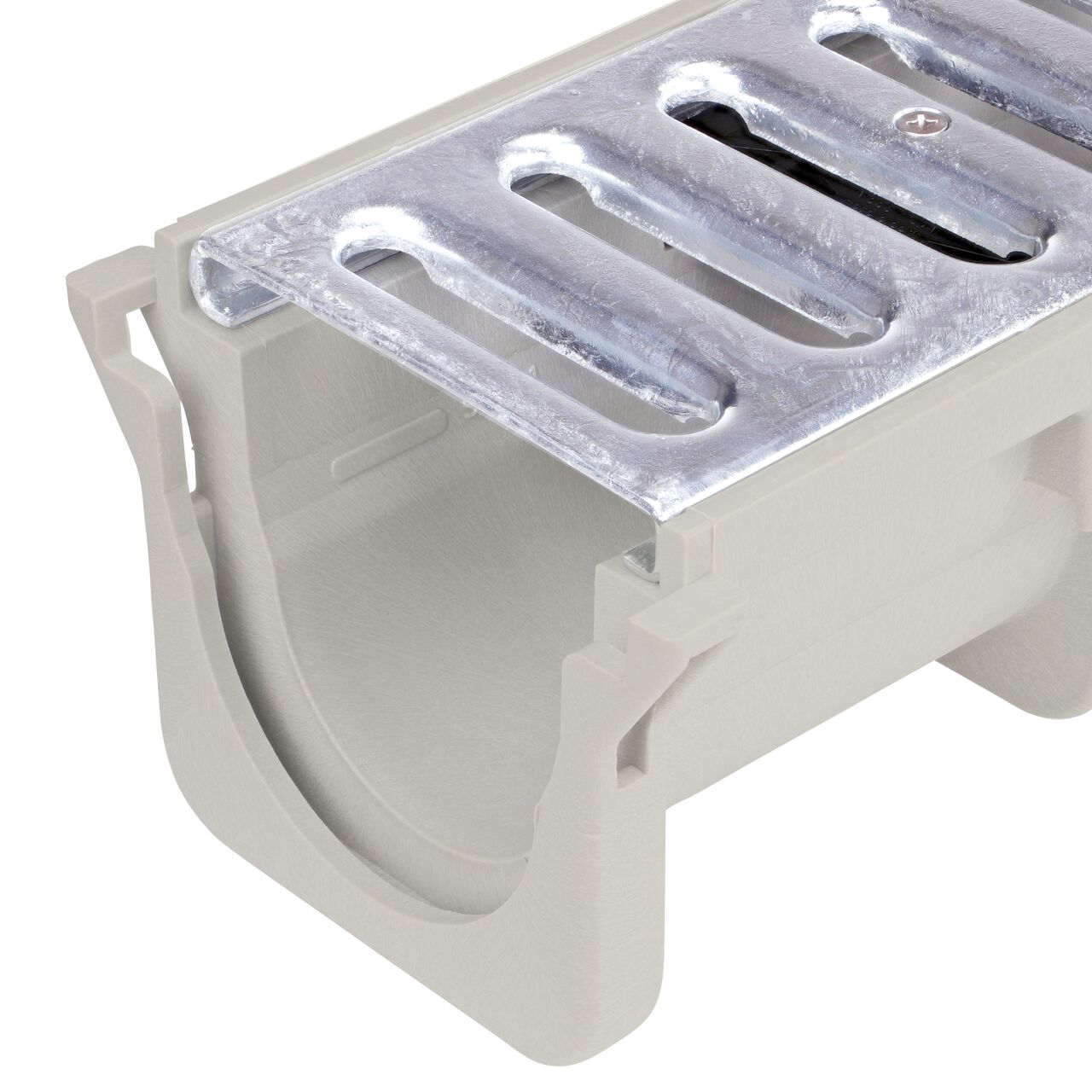

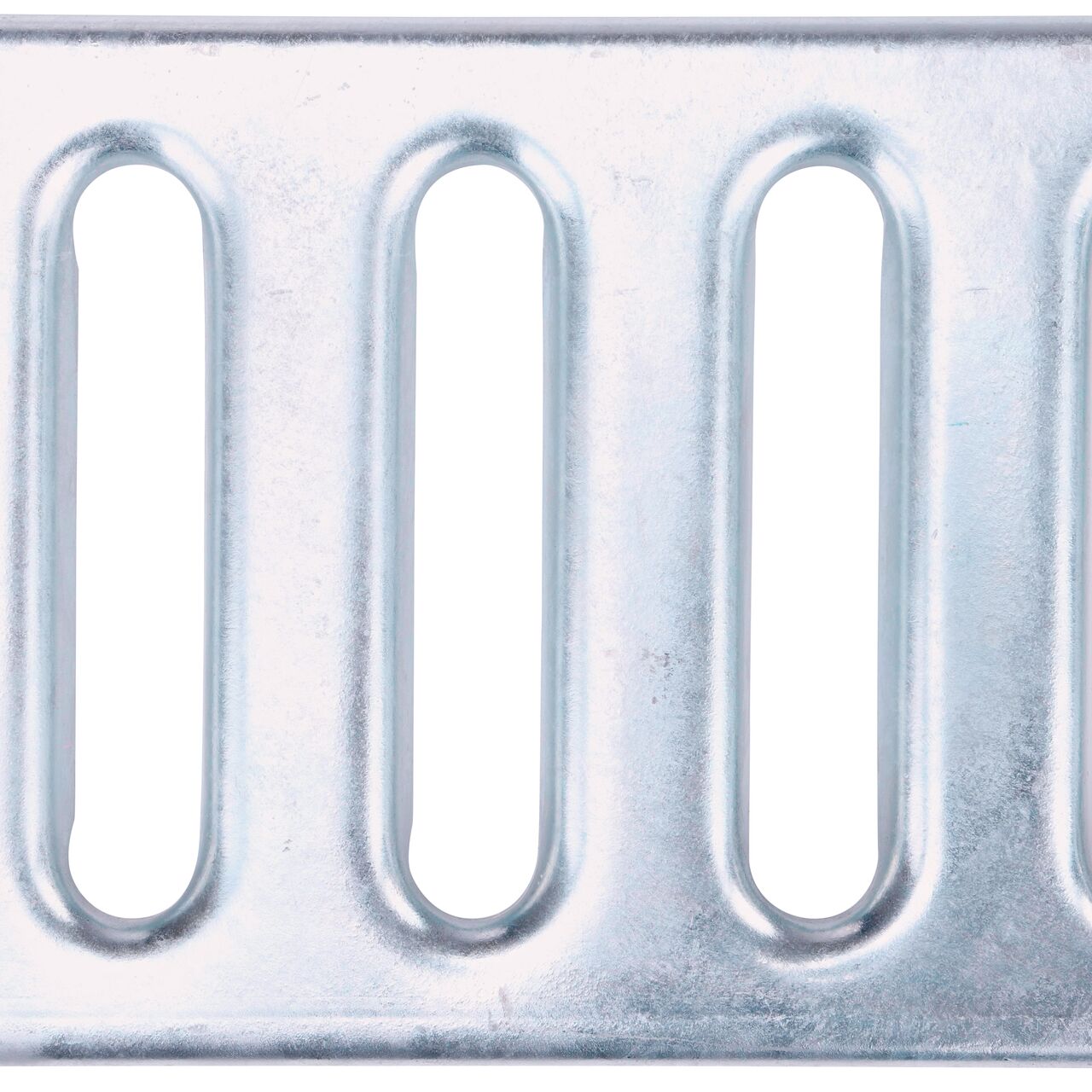

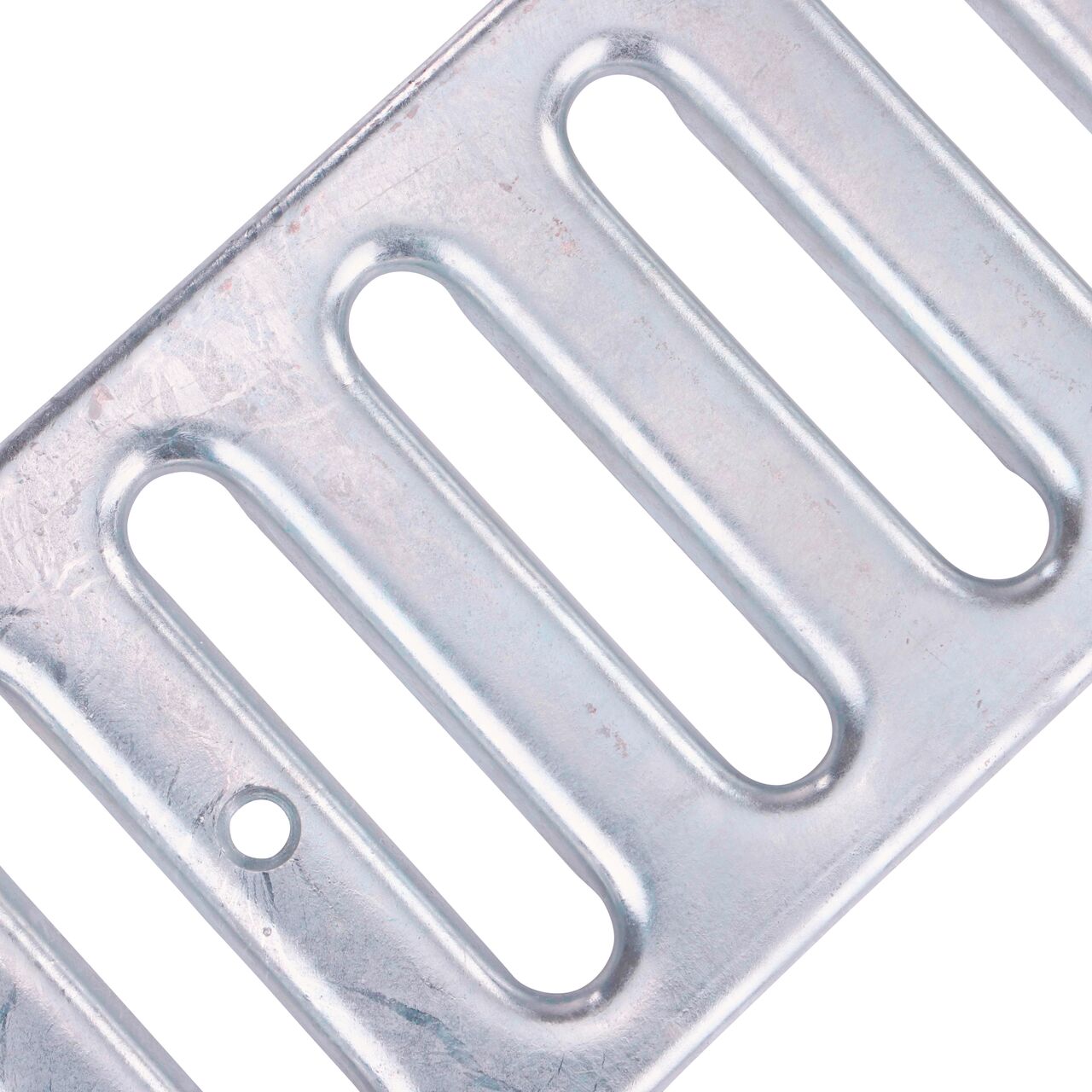

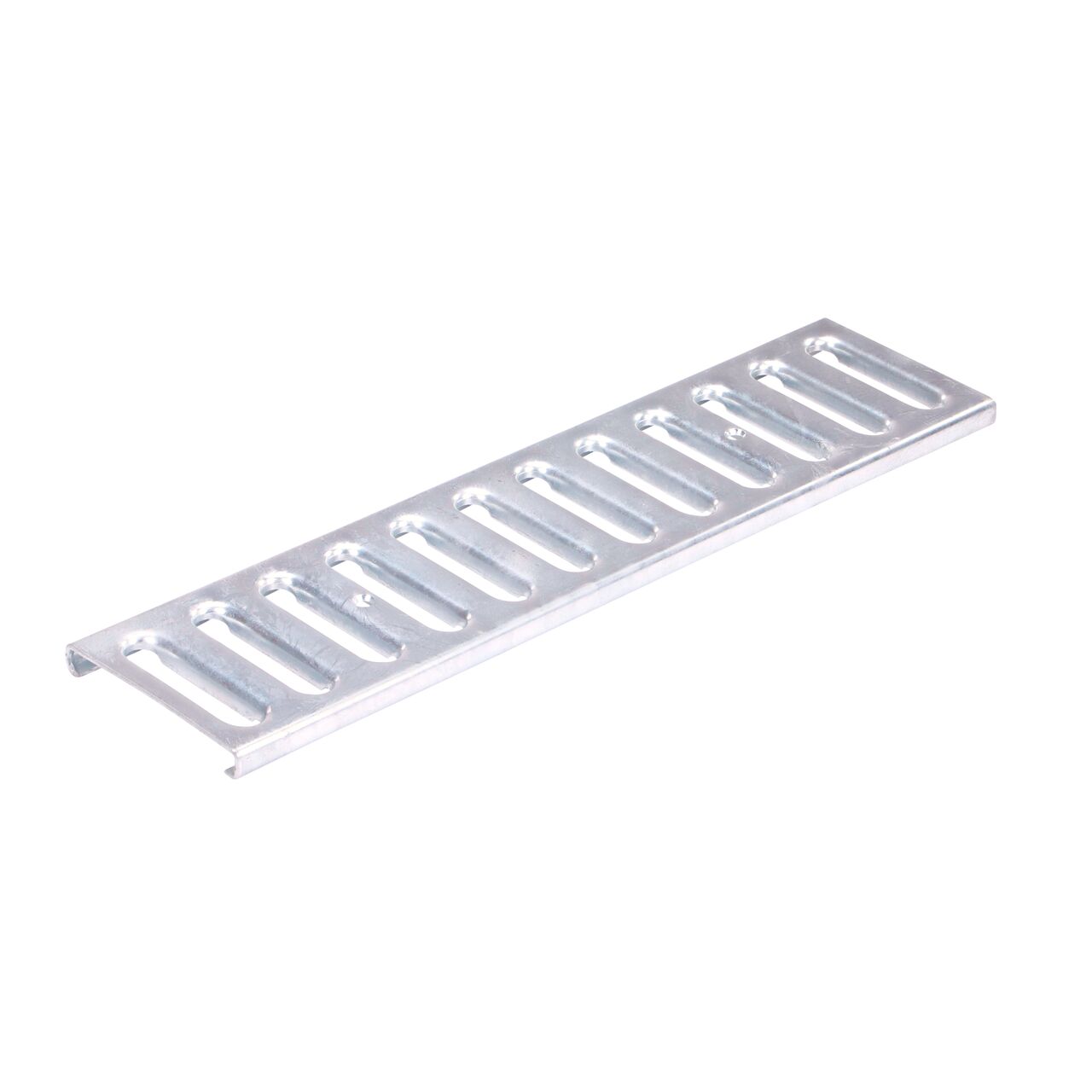

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Galvanized Steel
SKU: DS-221
Defend your drainage system with the Dura Slope® Channel Drain Grate. Made of tough, weather-resistant galvanized steel, the drain grate prevents leaves and other debris from entering and potentially clogging drain pipes. Works with the Dura Slope Channel Drain to capture runoff from hardscapes. The grate, also known as a drain cover, has an open surface of 23.09 sq. in. per linear ft. and flow rate of 70.64 GPM per linear ft. Rated for NDS Class C loads (up to 325 PSI) when properly installed.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system

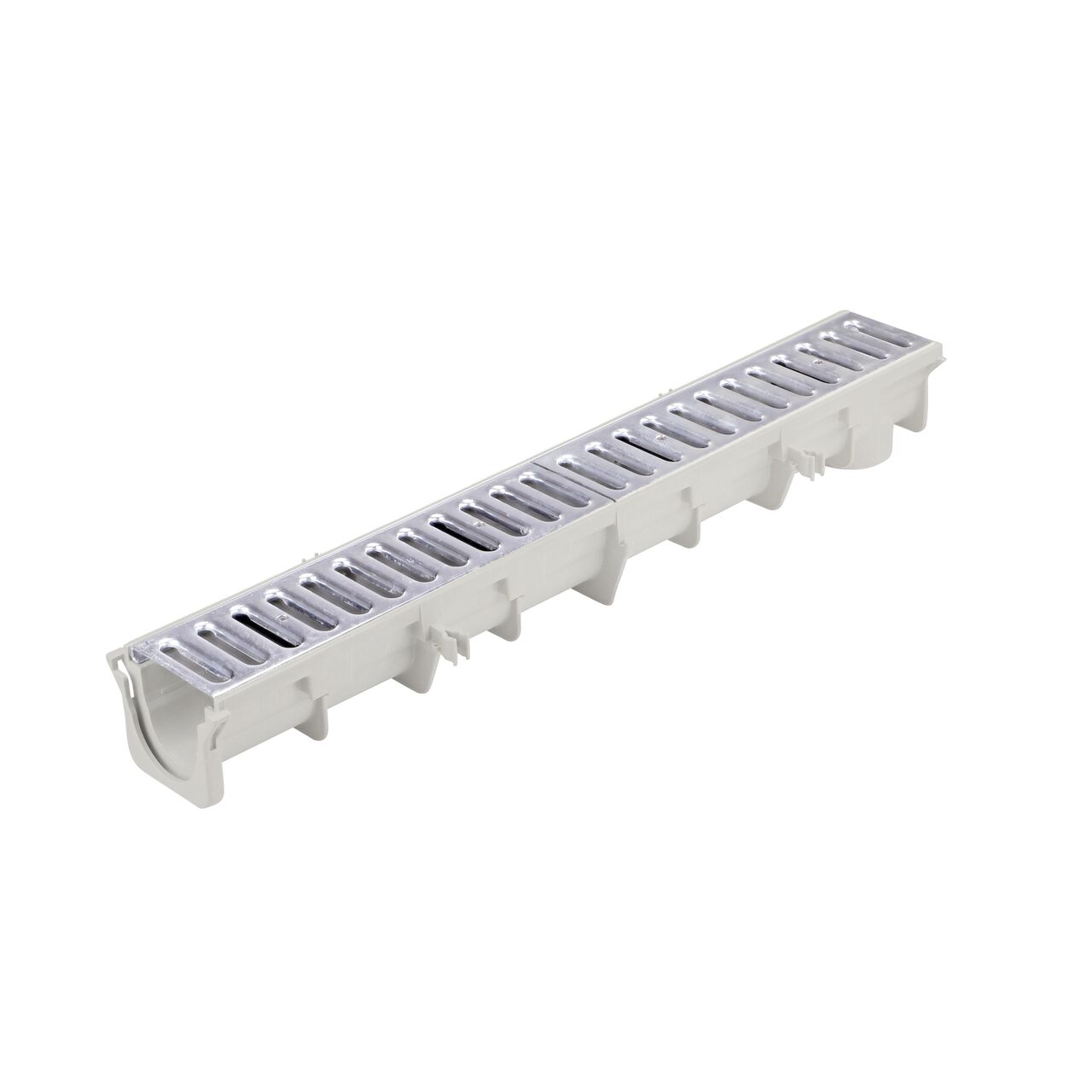

- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Grate is 24 in. long, 6 in. wide and 3/4 in. high
- Grate openings are 3/4 in. X 4-7/16 in
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
