Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Decorative Slot Design, Raw Iron

SKU: DS-609

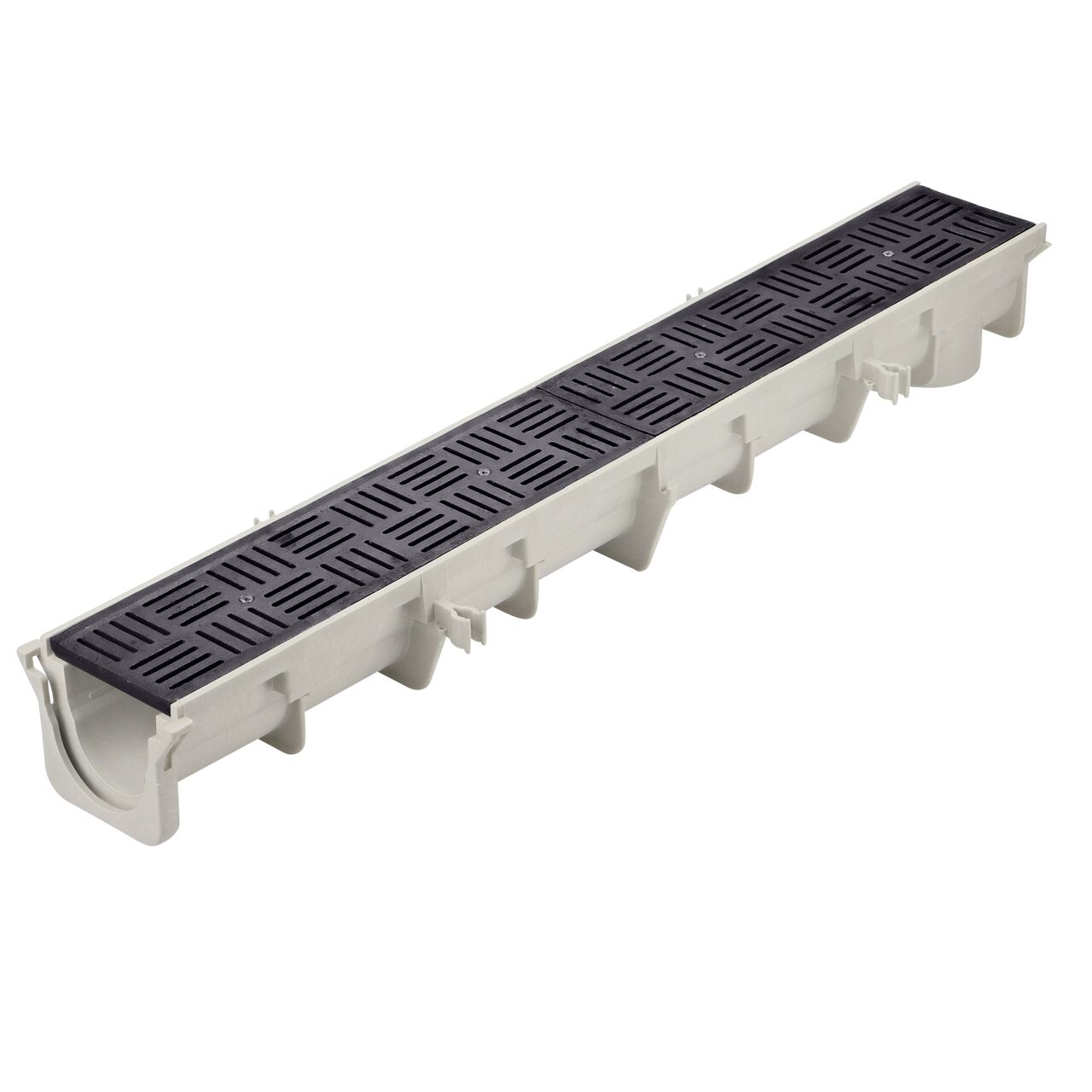

Two ductile iron deco slot design Dura Slope™ Channel Drain Grates (NDS DS-609) fit on one Dura Slope Channel Drain (NDS DS-091)

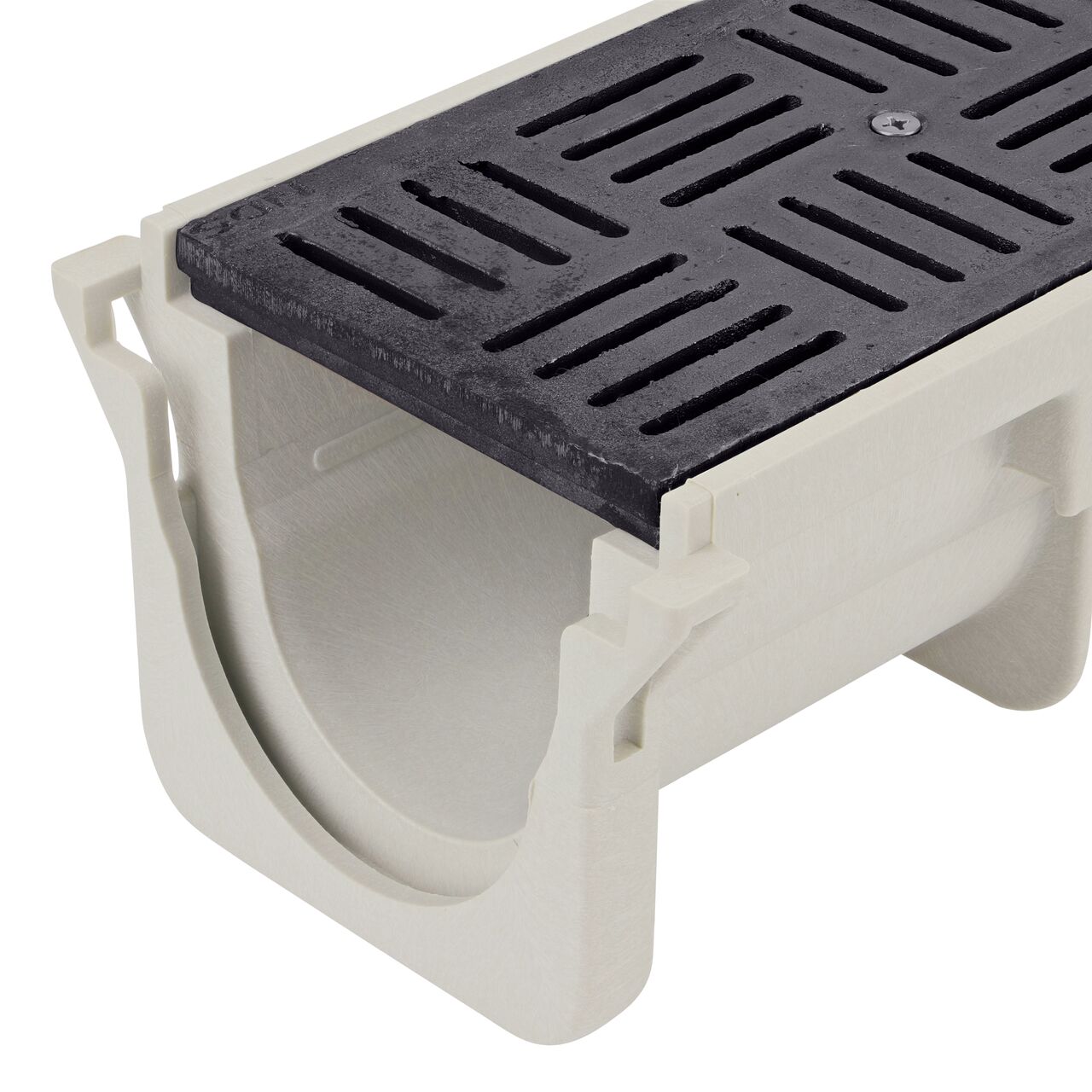

Closeup View of the ductile iron deco slot design Dura Slope™ Channel Drain Grate (NDS DS-609) installed on the Dura Slope Channel Drain (NDS DS-091)

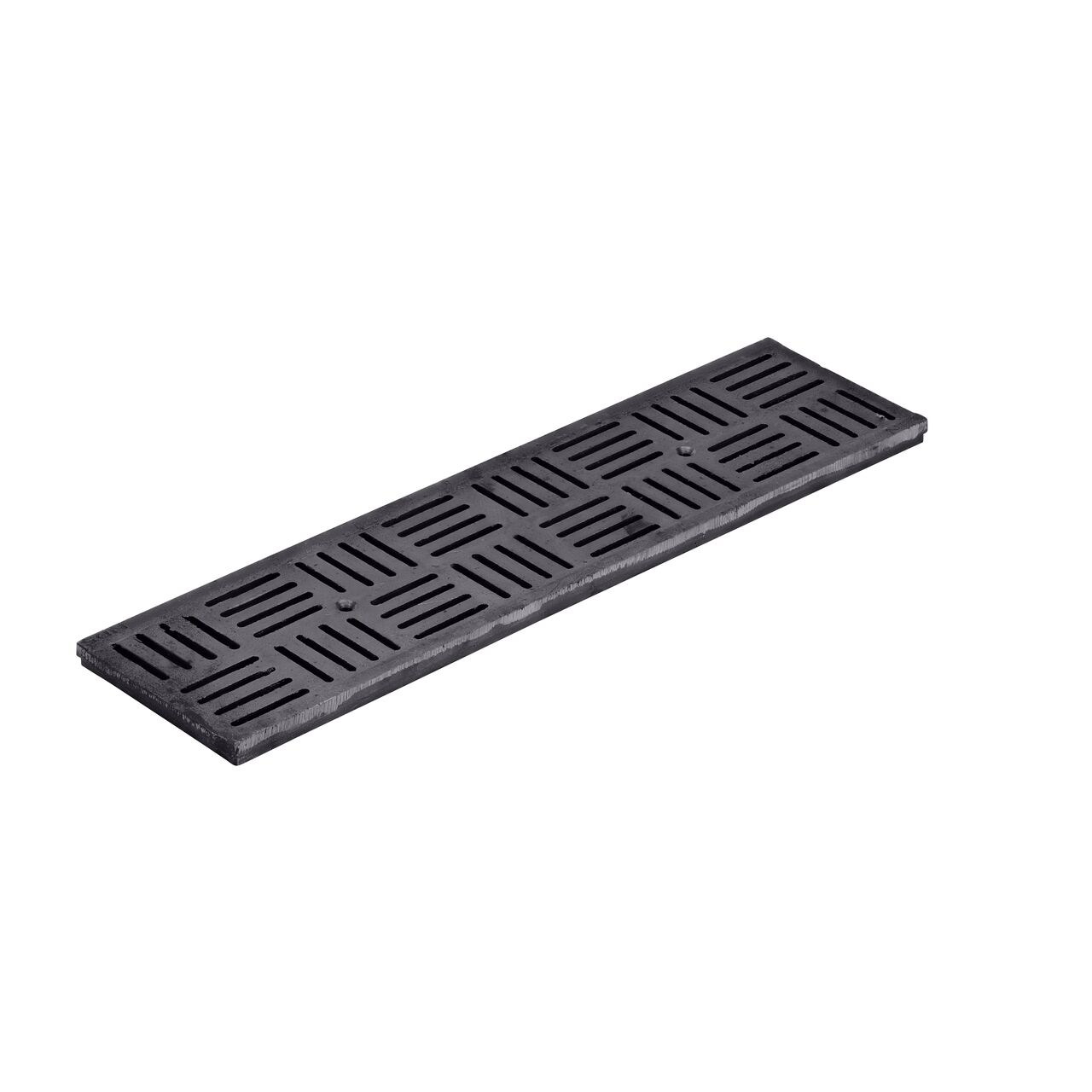

The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) is 6 in. wide and 2 ft. long and comes in a deco slot pattern design

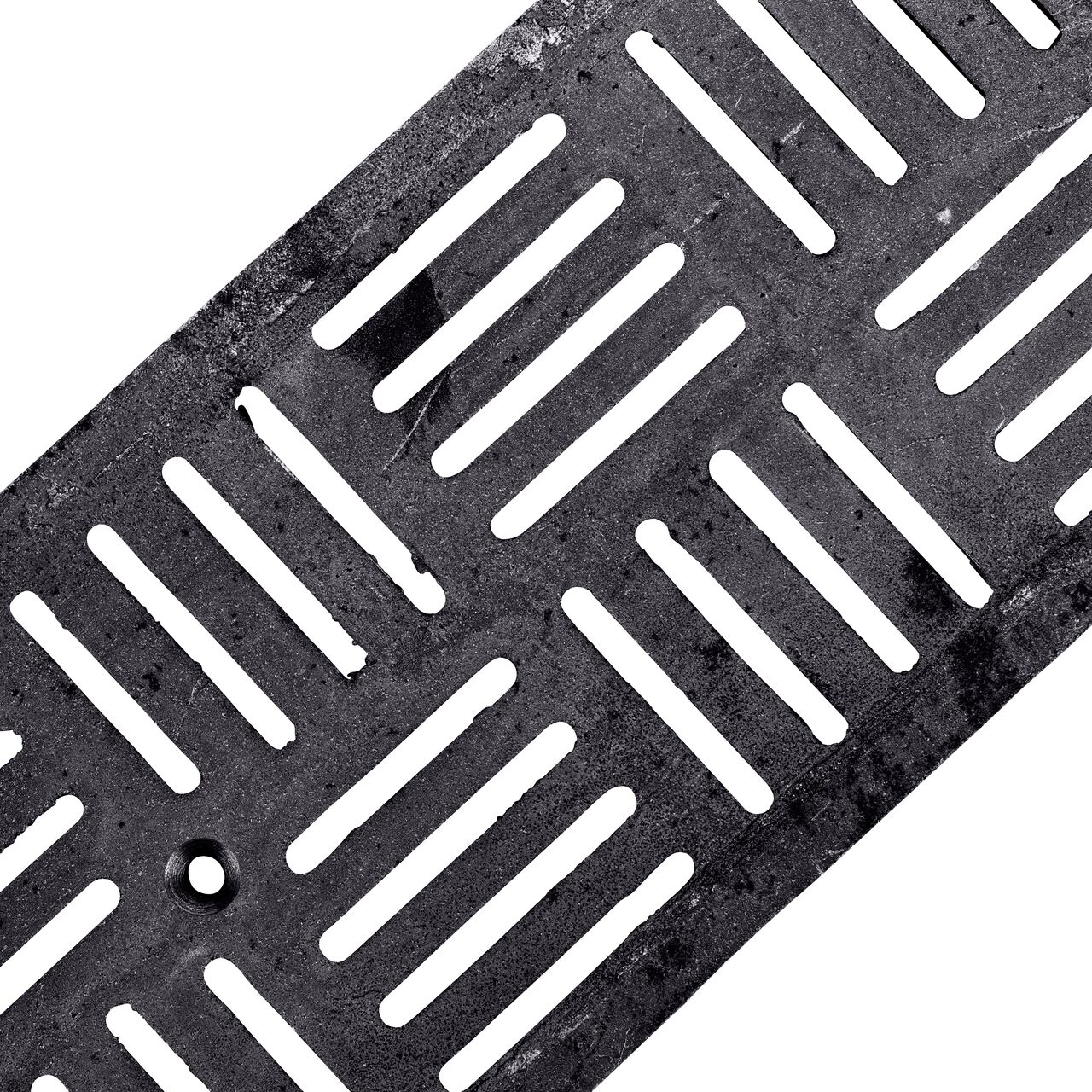

Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) deco slot design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) deco slot design
Two ductile iron deco slot design Dura Slope™ Channel Drain Grates (NDS DS-609) fit on one Dura Slope Channel Drain (NDS DS-091)
Closeup View of the ductile iron deco slot design Dura Slope™ Channel Drain Grate (NDS DS-609) installed on the Dura Slope Channel Drain (NDS DS-091)
The ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) is 6 in. wide and 2 ft. long and comes in a deco slot pattern design
Angled View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) deco slot design
Top Down View of the ductile iron Dura Slope™ Channel Drain Grate (NDS DS-609) deco slot design

Drainage doesn't have to be drab. Stylish and functional, the decorative Dura Slope® Channel Drain Grate with slot design complements its surroundings while stopping leaves and debris from entering and potentially clogging the drainage system. Adds a beautiful touch to driveways, pool and patio areas, walkways, and other hardscapes. The decorative grate has an open surface area of 17.46 sq. in. per linear ft. and flow rate of 53.50 GPM per linear ft. Rated for NDS Class C Loads (up to 325 PSI) when properly installed, rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed with the Ductile Iron Frame (DS-200H), ADA compliant and heel-proof. Made of raw iron, the grates will rust over time forming a protective iron-oxide patina that begins red-orange and ages to a deep, rich brown.

Applications:

  • Prevents leaves and debris from entering the pipeline and potentially clogging the drainage system with a look that enhances its surroundings
  • Ideal for driveways, pools, walkways, and other areas
  • Use with the Dura Slope Channel Drain as part of a complete drainage system to collect and direct runoff to drain pipes for proper release downstream

Features:

  • Grate is 24 in. long, 6 in. wide and 1/4 in. high
  • Uncoated raw iron will develop a rust patina over time
  • Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
