Dura Slope® Channel Drain, 7.0 in. to 7.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.8 in. Deep

SKU: DS-100

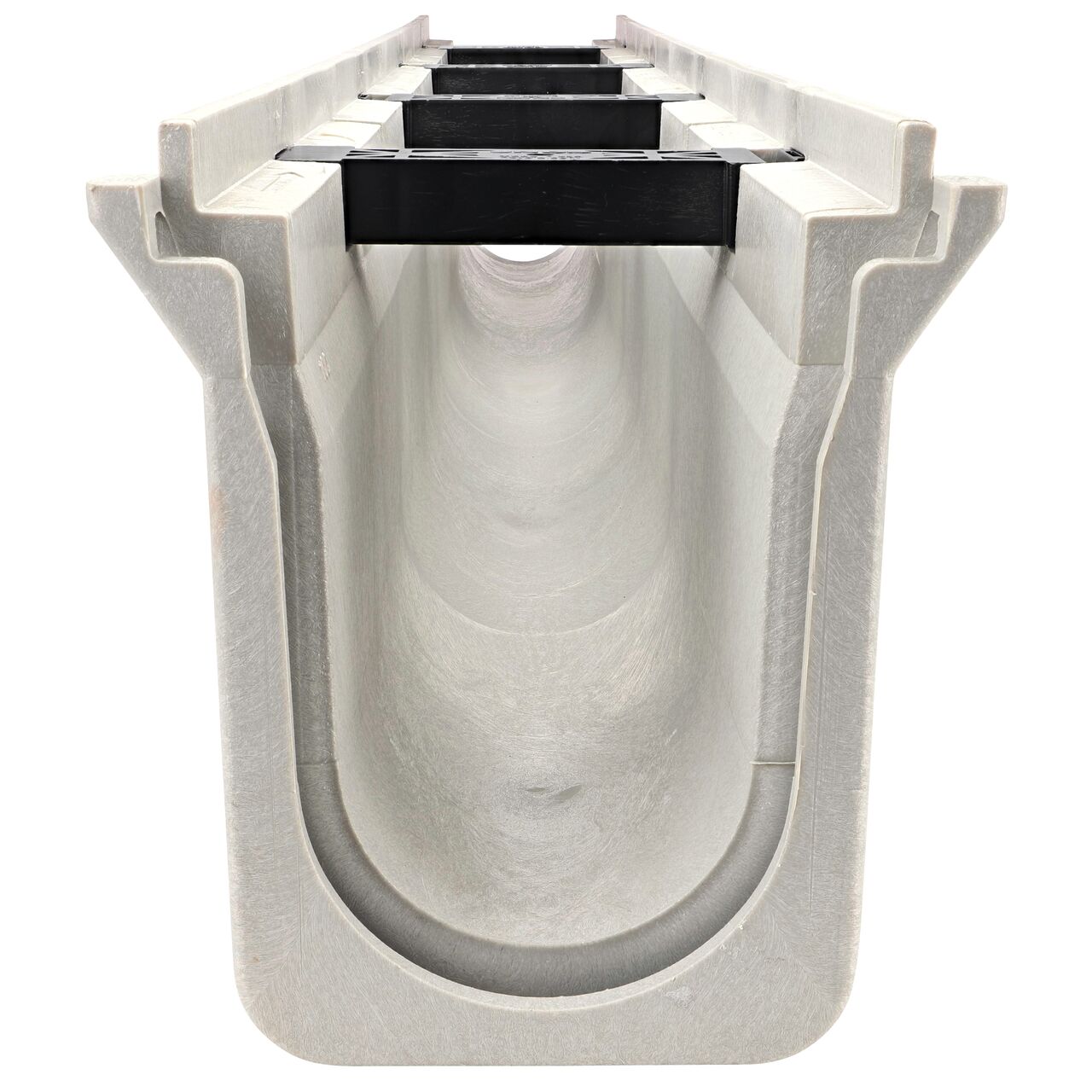

Inside view from female end of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100)
To install two Dura Slope™ Channel Drains & Grates, align the male and female end of two drains with grates installed in succession order (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)

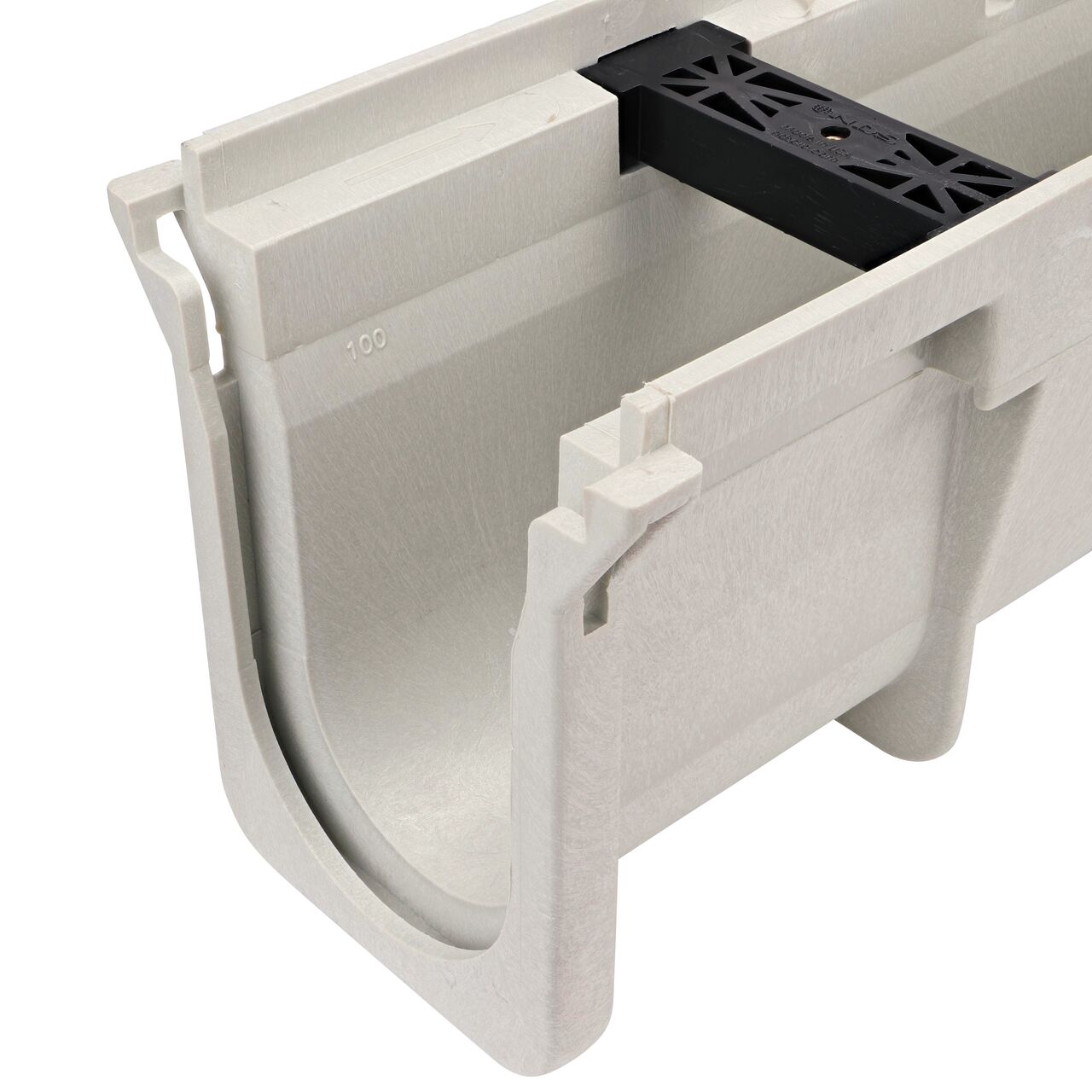

Closeup view of the Dura Slope Channel, 7.02 in. to 7.36 in. Deep, with groove joints facing camera (NDS DS-100)

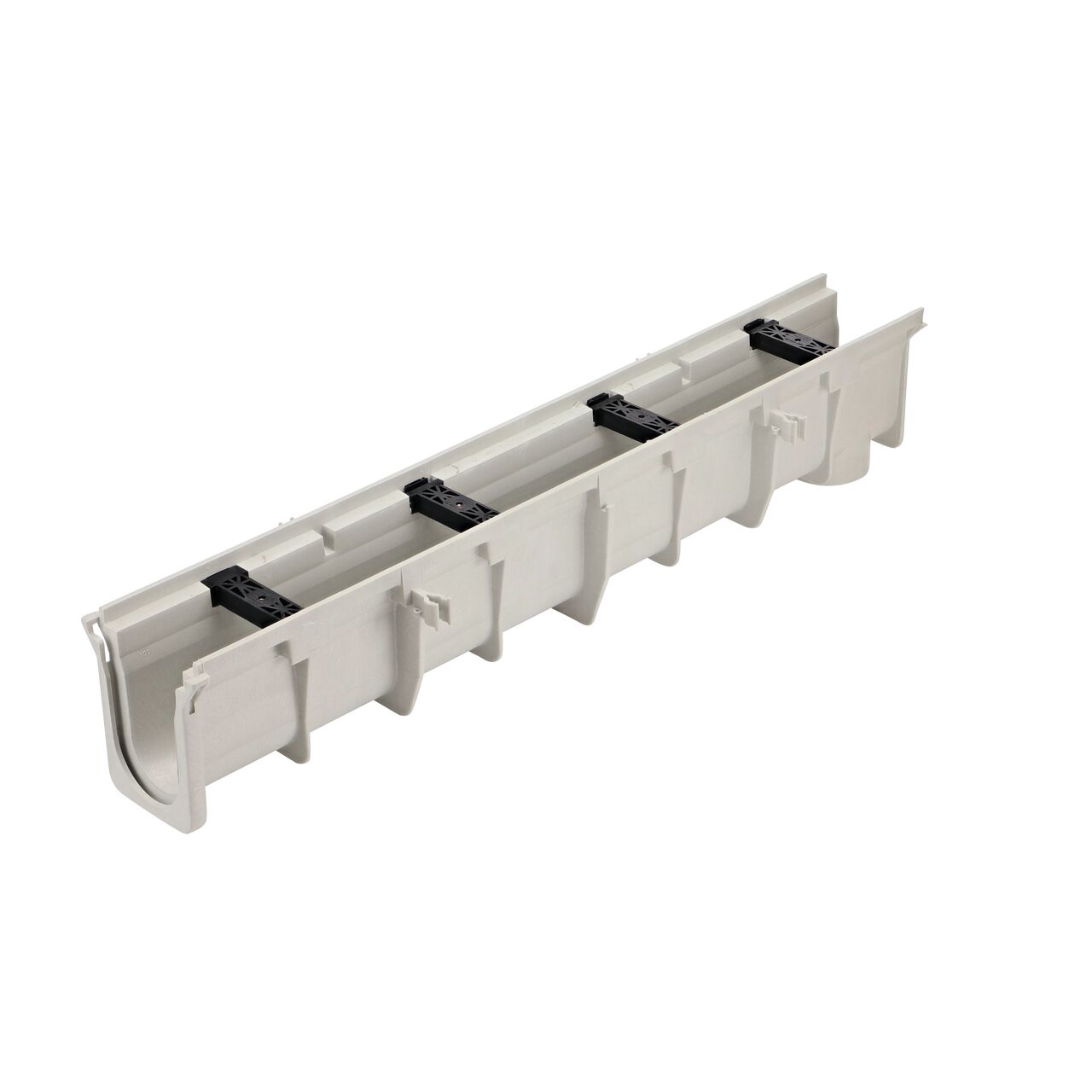

Dura Slope Channel,7.02 in. to 7.36 in. Deep, with groove joints facing camera (NDS DS-100)

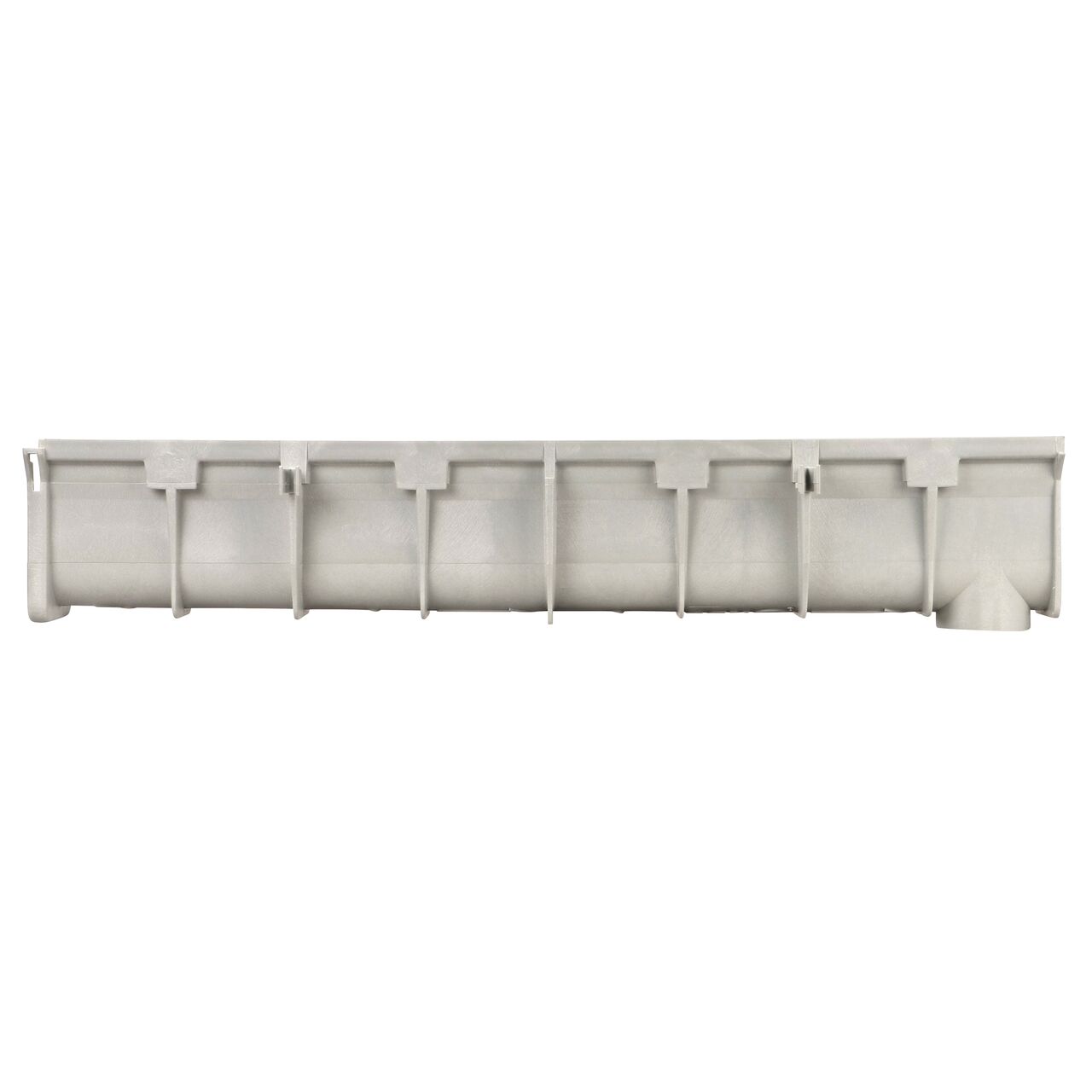

Side to Side View of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100), end to end

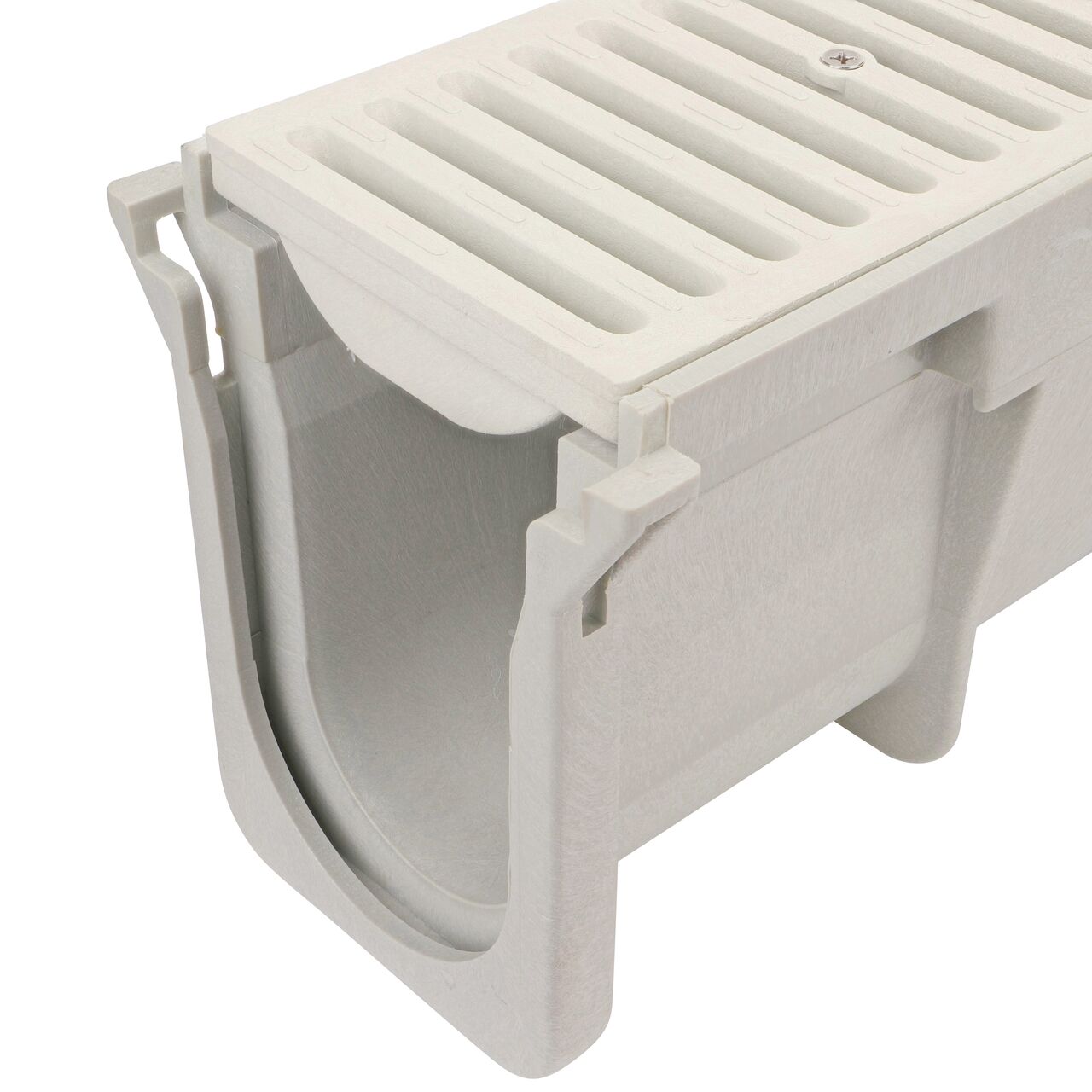

Closeup groove (female) side of the NDS 7.02 in. to 7.36 in. Deep Dura Slope Channel (NDS DS-100) with the Standard Duraslope Light Gray Grate installed (NDS 661LG)
To install two Dura Slope™ Channel Drains align the male and female end of two drains in succession order (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)
Securely lock the male end on the channel into the female end of the next size channel of the Dura Slope™ Channel Drain system (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)
The rebar clip levels channel and grips re-bar and is included on every Dura Slope Channel Drain (NDS DS-097N)
Securely lock the male end on the smaller channel into the female end of the larger channel of the Dura Slope™ Channel Drain system shown with grates already installed (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)

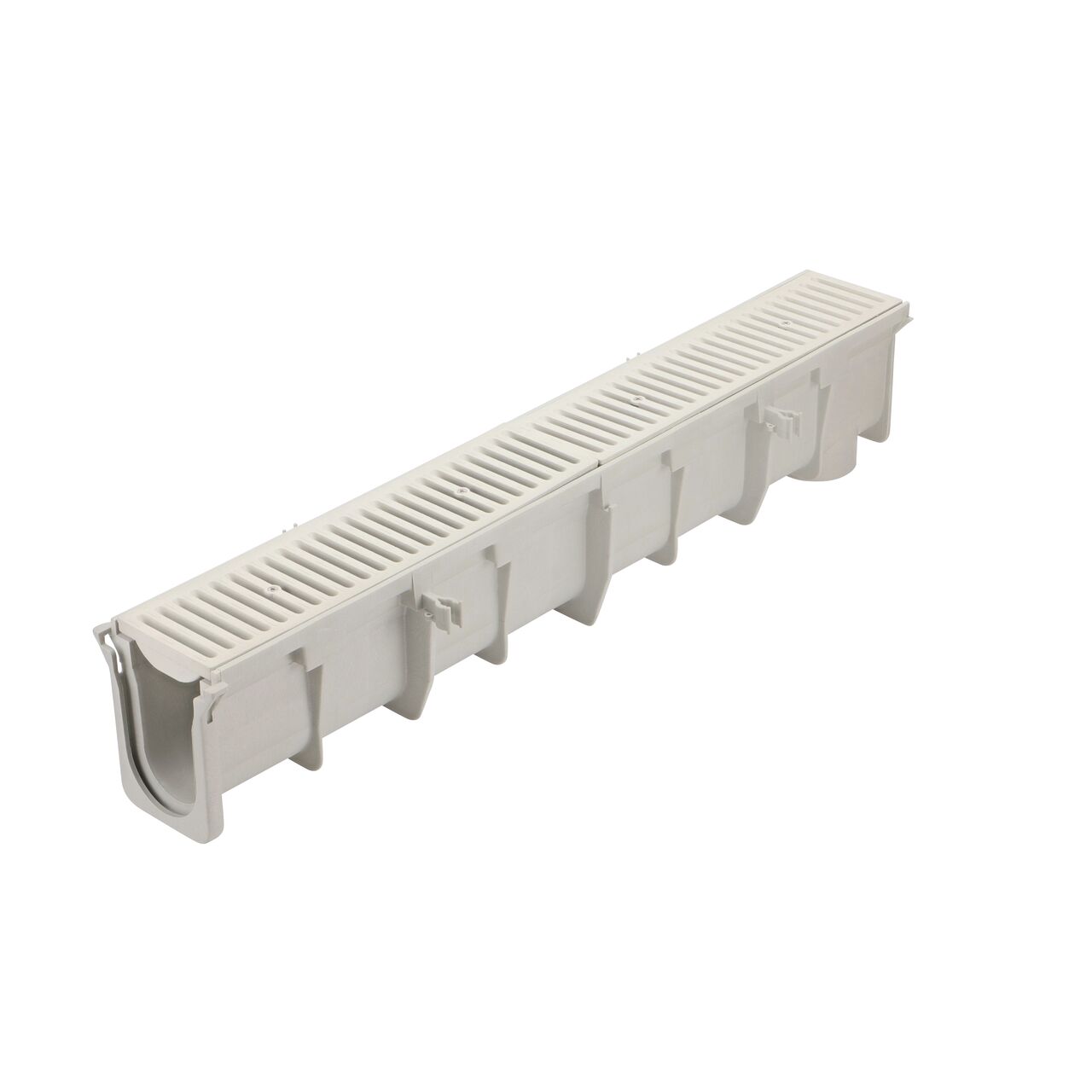

The NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100) with two Standard Duraslope Light Gray Grate installed (NDS 661LG)
Closeup view of the grate locking system on the NDS Dura Slope Channel Drain, which locks grate to the integral frame (NDS DS-097N)

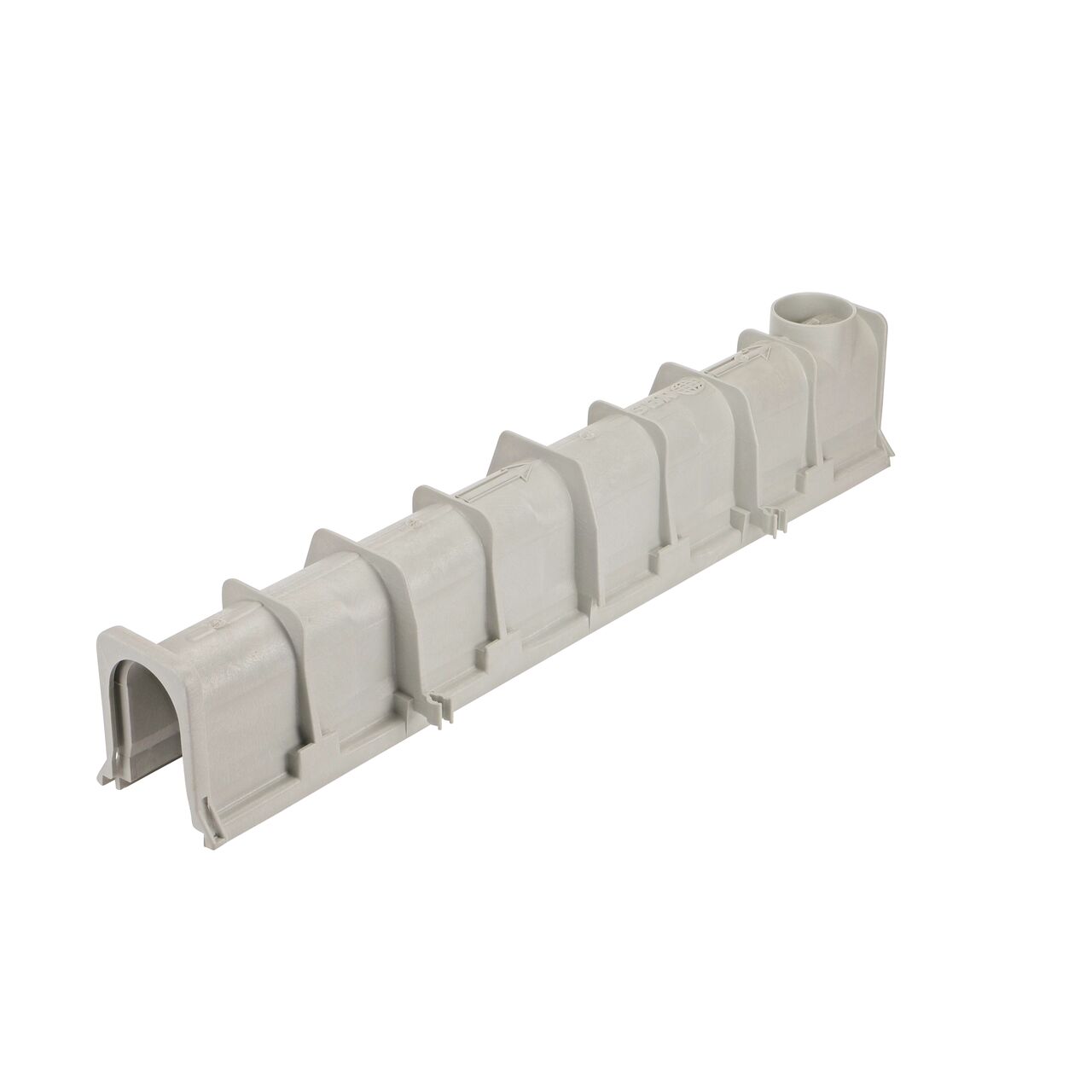

Bottom shot of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100) shows bottom outlet
Lift the male end on the smaller channel to lock into the female end of the larger channel of the Dura Slope™ Channel Drain system shown with grates already installed (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)
Closeup view of the grooved interior on the NDS Dura Slope Channel Drain, which supports and secures grates with the grate locking system (NDS DS-097N)

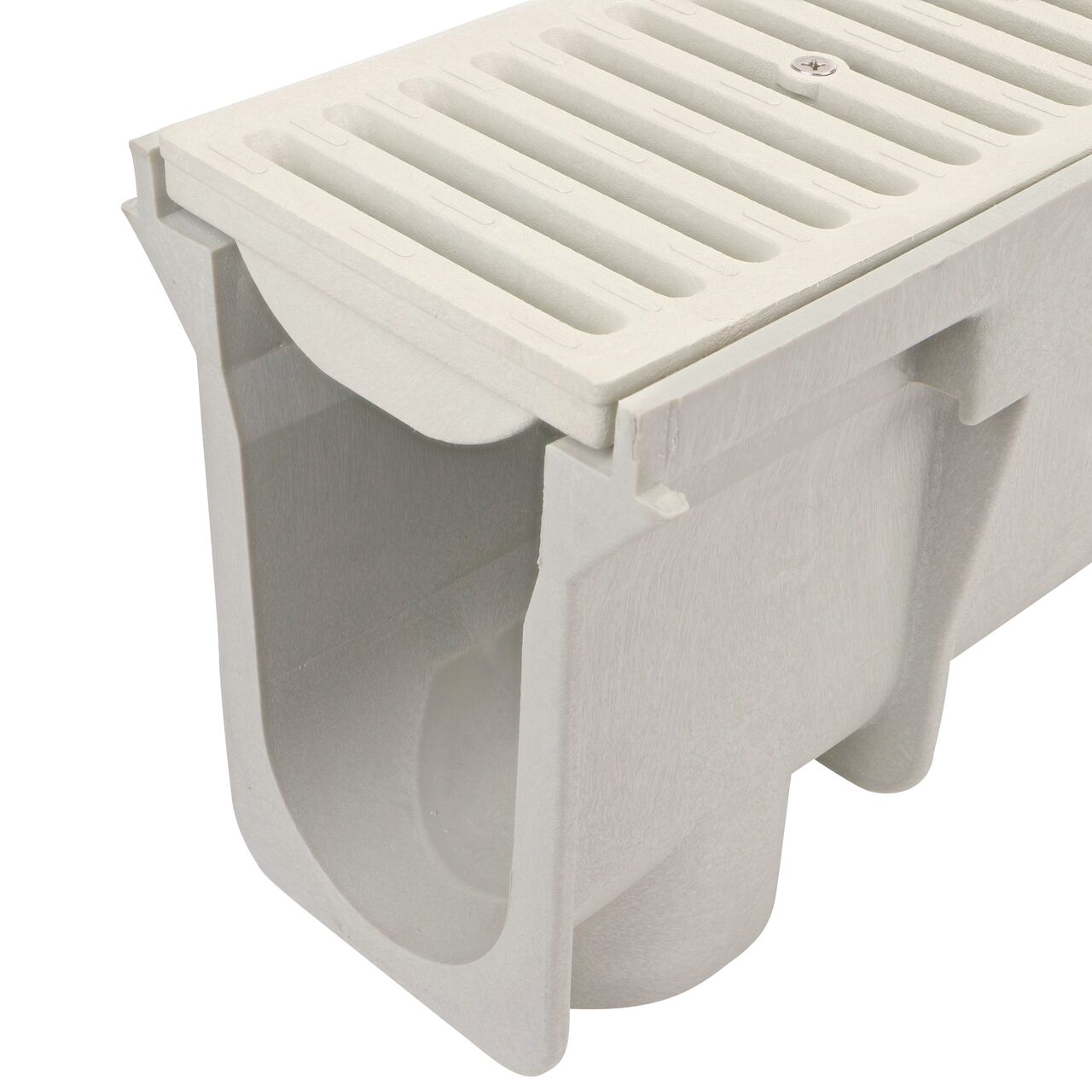

Closeup tongue (male) side of the NDS 7.02 in. to 7.36 in. Deep Dura Slope Channel (NDS DS-100) with the Standard Duraslope Light Gray Grate installed (NDS 661LG)

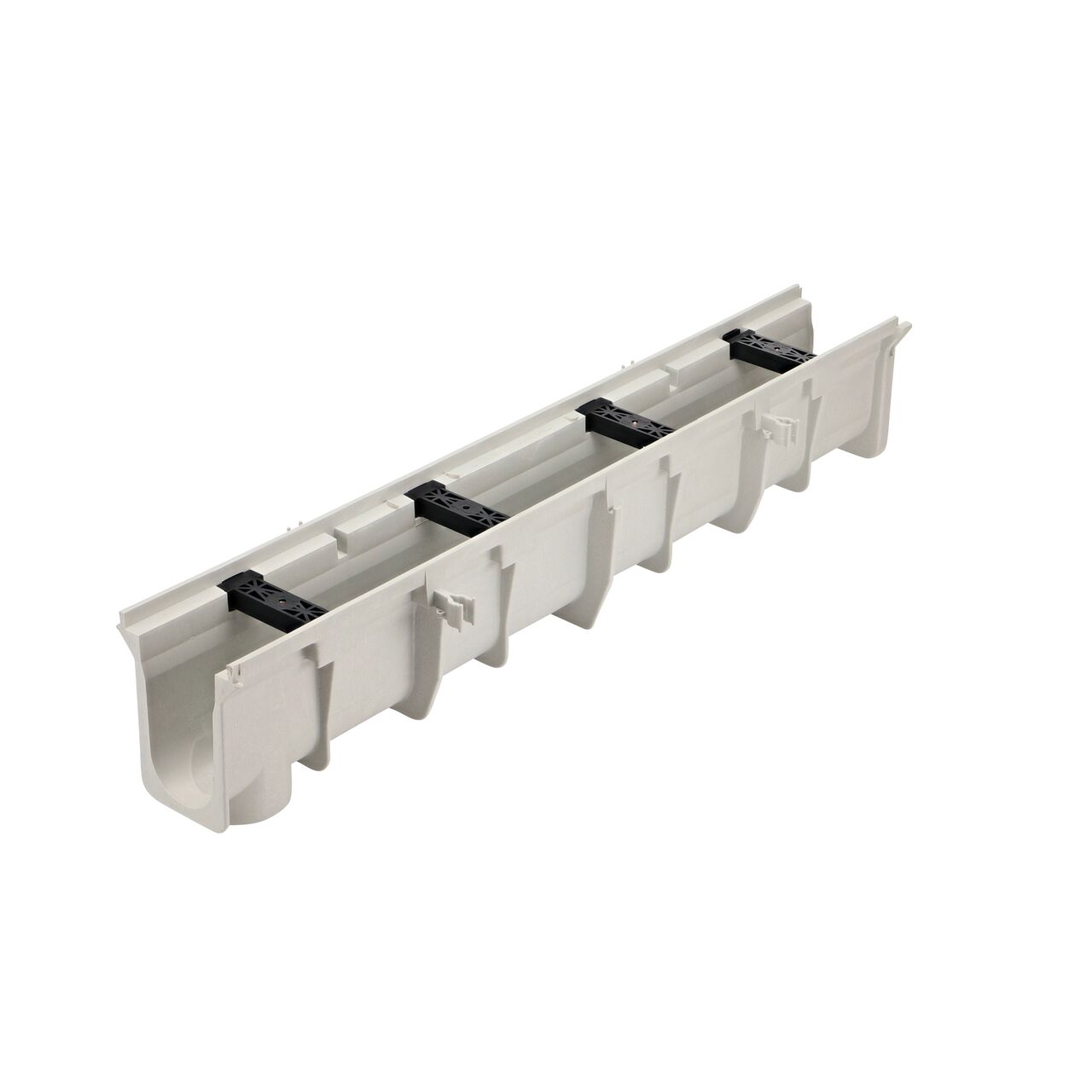

NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100), with tongue joints facing camera

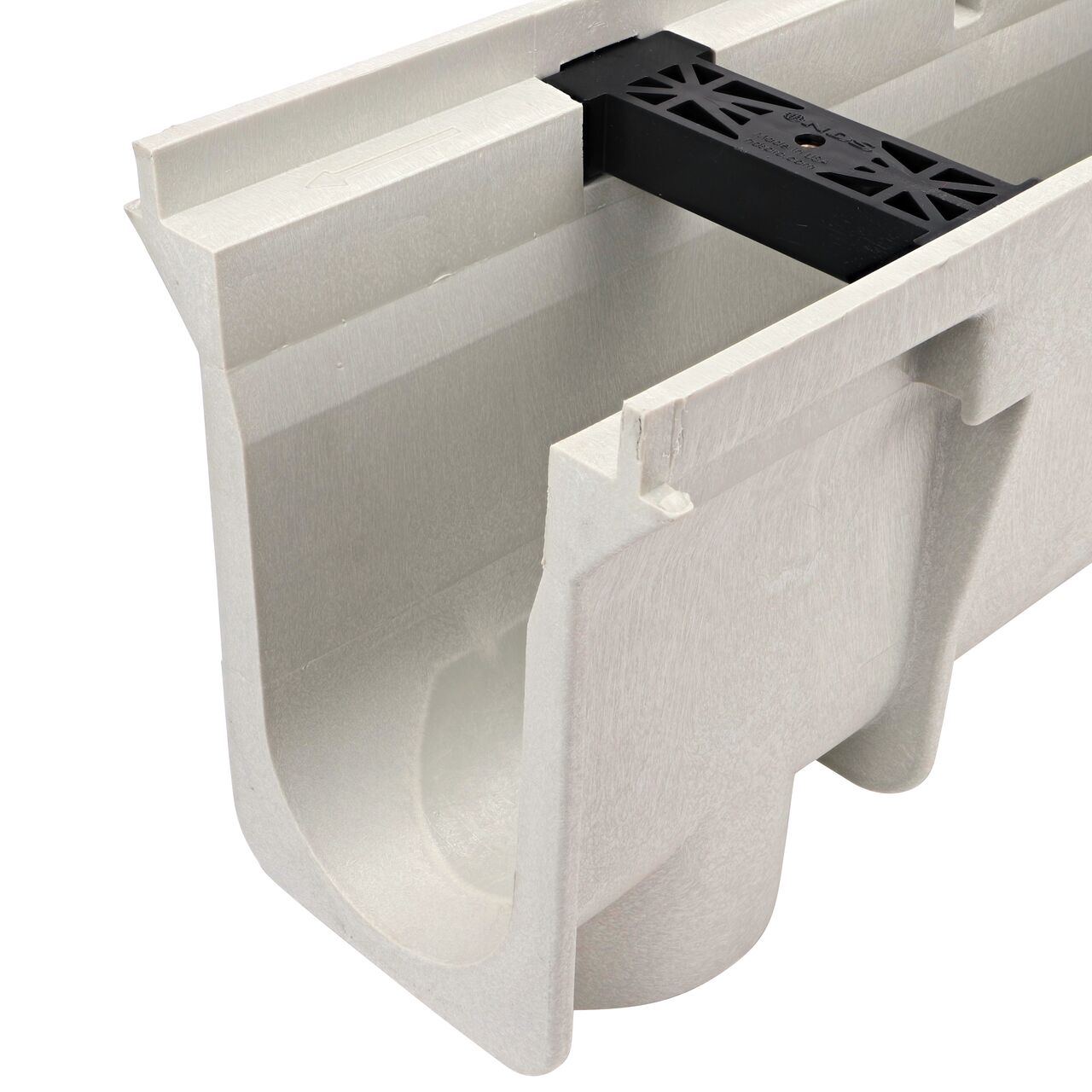

Closeup View of the NDS Dura Slope Channel,7.02 in. to 7.36 in. Deep, with tongue joints facing camera (NDS DS-100)
Lift the male end on the smaller channel to lock into the female end of the larger channel of the Dura Slope™ Channel Drains system (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)
Inside view from female end of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100)
To install two Dura Slope™ Channel Drains & Grates, align the male and female end of two drains with grates installed in succession order (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)
Closeup view of the Dura Slope Channel, 7.02 in. to 7.36 in. Deep, with groove joints facing camera (NDS DS-100)
Dura Slope Channel,7.02 in. to 7.36 in. Deep, with groove joints facing camera (NDS DS-100)
Side to Side View of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100), end to end
Closeup groove (female) side of the NDS 7.02 in. to 7.36 in. Deep Dura Slope Channel (NDS DS-100) with the Standard Duraslope Light Gray Grate installed (NDS 661LG)
To install two Dura Slope™ Channel Drains align the male and female end of two drains in succession order (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)
Securely lock the male end on the channel into the female end of the next size channel of the Dura Slope™ Channel Drain system (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)
The rebar clip levels channel and grips re-bar and is included on every Dura Slope Channel Drain (NDS DS-097N)
Securely lock the male end on the smaller channel into the female end of the larger channel of the Dura Slope™ Channel Drain system shown with grates already installed (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)
The NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100) with two Standard Duraslope Light Gray Grate installed (NDS 661LG)
Closeup view of the grate locking system on the NDS Dura Slope Channel Drain, which locks grate to the integral frame (NDS DS-097N)
Bottom shot of the NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100) shows bottom outlet
Lift the male end on the smaller channel to lock into the female end of the larger channel of the Dura Slope™ Channel Drain system shown with grates already installed (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102, NDS 661LG)
Closeup view of the grooved interior on the NDS Dura Slope Channel Drain, which supports and secures grates with the grate locking system (NDS DS-097N)
Closeup tongue (male) side of the NDS 7.02 in. to 7.36 in. Deep Dura Slope Channel (NDS DS-100) with the Standard Duraslope Light Gray Grate installed (NDS 661LG)
NDS Dura Slope Channel 7.02 in. to 7.36 in. Deep (NDS DS-100), with tongue joints facing camera
Closeup View of the NDS Dura Slope Channel,7.02 in. to 7.36 in. Deep, with tongue joints facing camera (NDS DS-100)
Lift the male end on the smaller channel to lock into the female end of the larger channel of the Dura Slope™ Channel Drains system (NDS DS-090N, NDS DS-091, NDS DS-092, NDS DS-093, NDS DS-094, NDS DS-094N, NDS DS-095, NDS DS-096, NDS DS-097, NDS DS-097N, NDS DS-098, NDS DS-099, NDS DS-100, NDS DS-101, NDS DS-102)

Capture heavy sheet flow runoff with the Dura Slope® Channel Drain. This channel drain section has a built-in 0.7% slope with depths from 7.02 in. to 7.36 in. and is made of high-density polyethylene (HDPE) containing UV inhibitors. Channel comes with recyclable blank grate inserts to protect the channel from debris during installation, eliminating the need for using plywood. A durable alternative to concrete drains, the lightweight Dura Slope channel drainage system has lower freight costs compared to concrete, and is designed for easier handling and installation. The modular system consists of pre-sloped and neutral sections that snap together for secure alignment and minimal joint movement during installation. Each channel features a bottom outlet, rebar clips, and grate locking system.

Where to Buy Find a Pro

Applications:

  • Captures surface runoff and conveys to connected drain pipe to prevent costly property damage and mildew growth which can lead to slip hazards and concrete staining
  • Ideal for driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces, provides a solution for residential, commercial, industrial, and municipal drainage needs
  • As part of a complete drainage system, the Dura Slope channel drain works with drain grates to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features:

  • Modular sections snap together with interlocking tongue and groove joints and secures alignment
  • Lightweight yet durable for lower freight costs compared to traditional concrete channel drains, easier handling and installation, channel comes with blank grate inserts to protect channel from debris during installation
  • DuraLoc™ integral joint lock prevents joint movement during installation
  • LeveLoc™ rebar clips with integral protruding knob levels channel and grips rebar
  • ProFit™ locking system locks grate to integral frame
