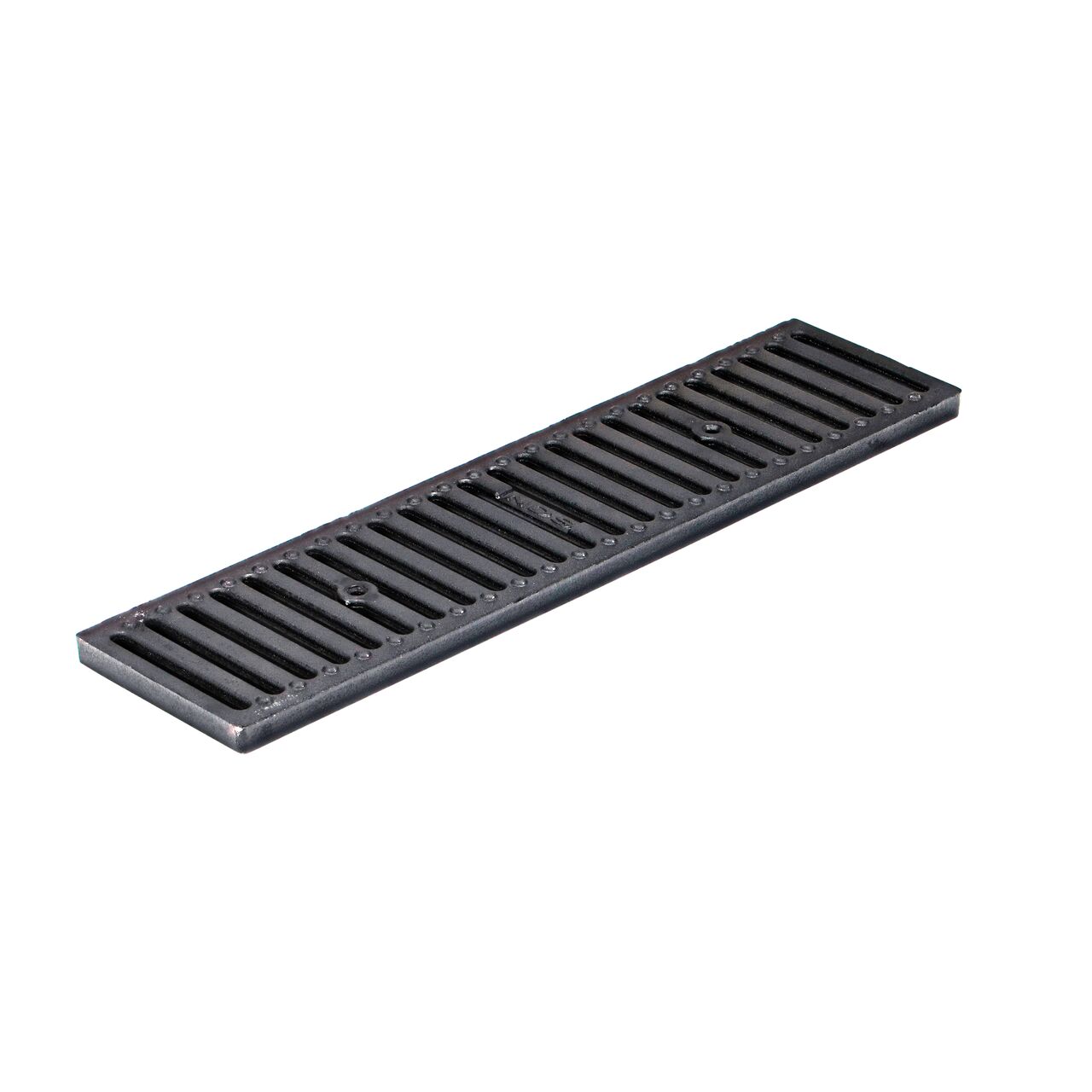

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Ductile Iron
SKU: DS-232
Keep leaves and debris out of your drainage system with the Dura Slope® Channel Drain Grate. Works with the Dura Slope Channel Drain to capture sheet flows from impervious surfaces. Also known as a drain cover, the ductile iron grates are painted black to inhibit rust and over time form a protective iron-oxide patina. Grate has an open surface area of 20.85 sq. in. per linear ft. and flow rate of 63.78 GPM per linear ft. Rated for NDS Class C Loads (up to 325 PSI) when properly installed, rated for NDS Class D loads (up to 575 PSI) and H-20 rated when properly installed with the Ductile Iron Frame (DS-200H), ADA compliant.
Applications:
- Prevent leaves and debris from entering the channel drain and clogging the drainage system

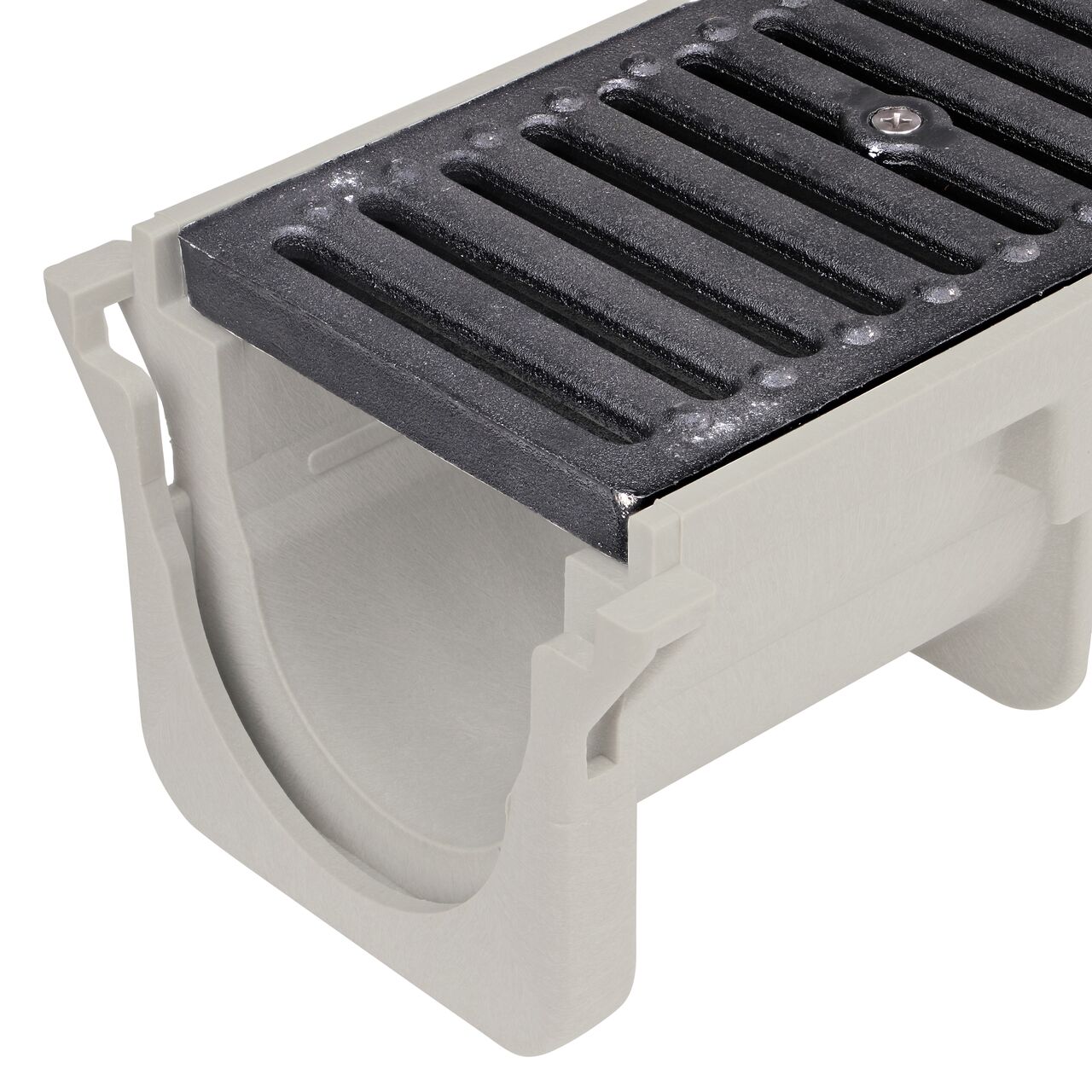

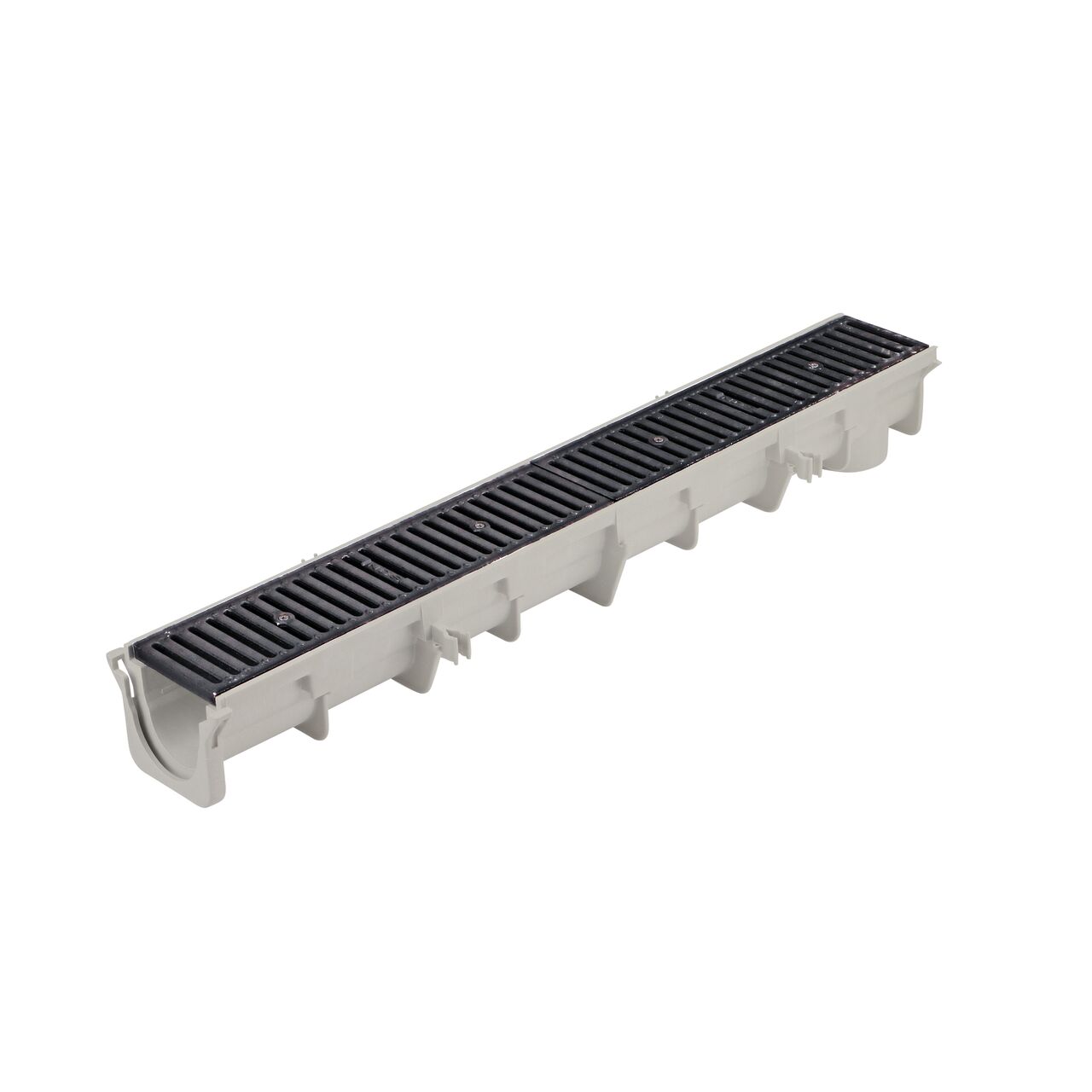

- Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
- As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream
Features:
- Grate is 24 in. long, 6 in. wide and 3/4 in. high

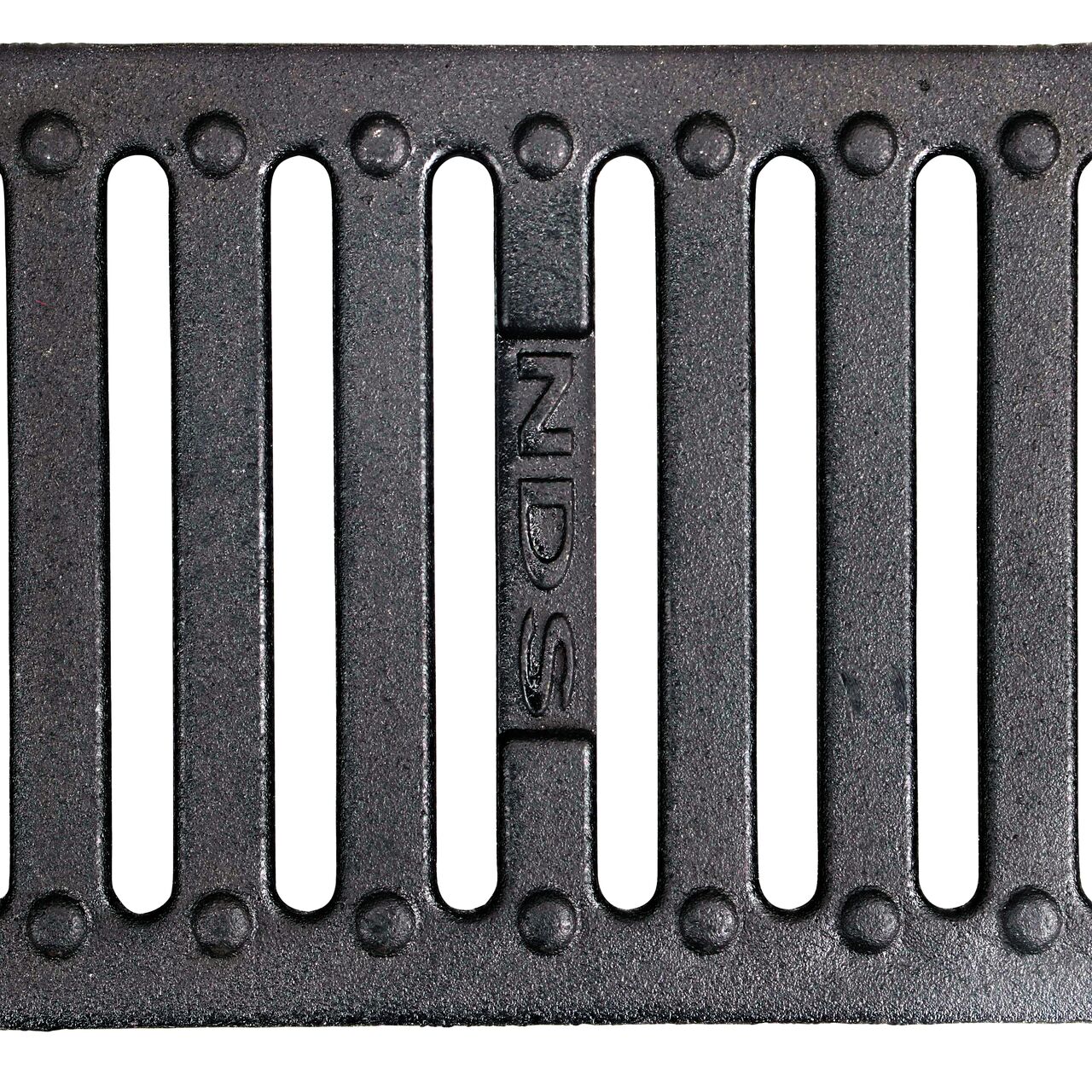

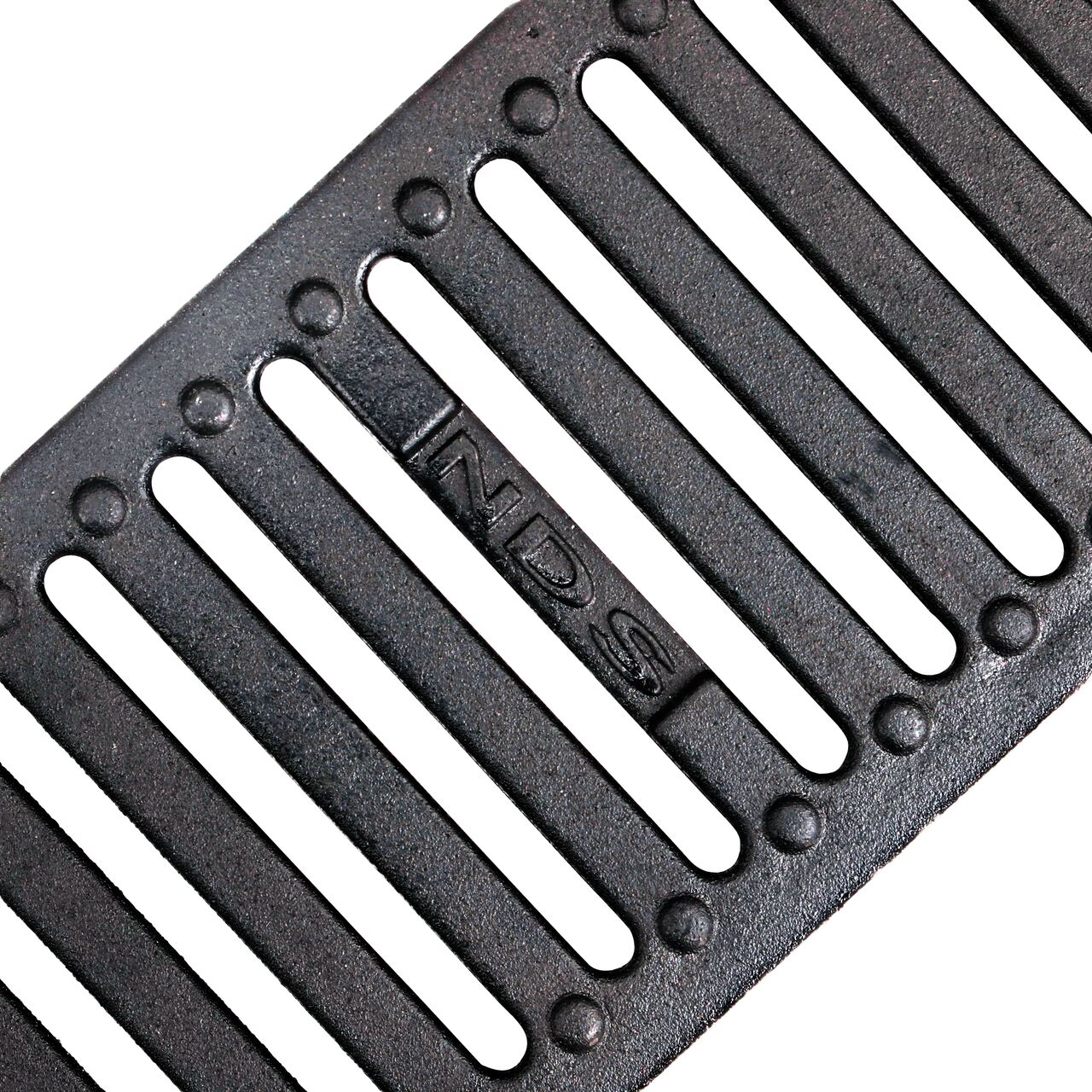

- Grate openings are 1/4 in
- Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
