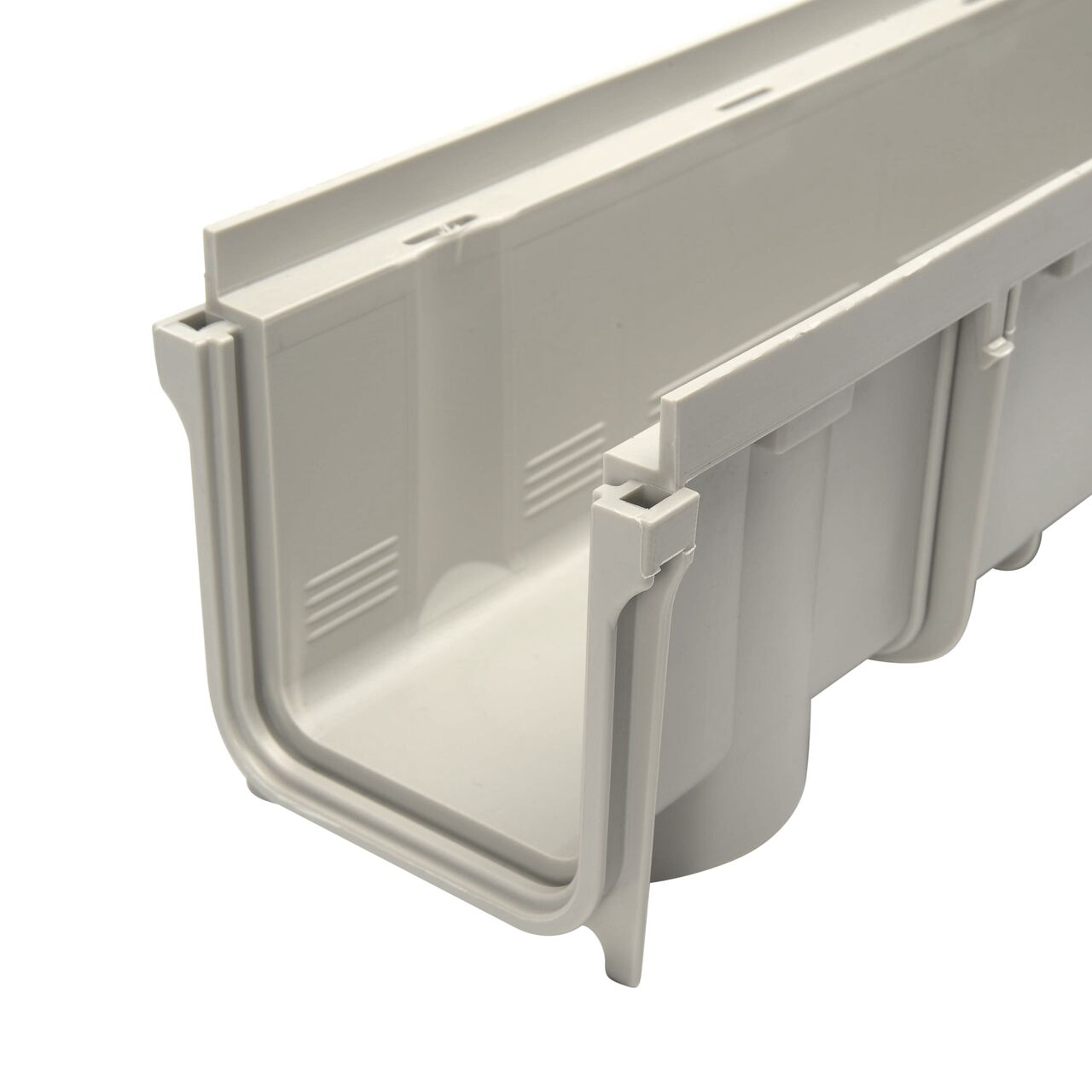

3 in. Pro Series™ Channel Drain, 4-1/16 in. wide X 39-3/8 in. long
SKU: 710
When rainfall floods your hardscape and the excess surface water lingers, here’s how to solve the drainage problem. Use the 3 in. Pro Series™ Channel Drain with integrated bottom outlet to capture moderate water flows from driveways, concrete and paver patios, courtyards, and walkways, and direct the water to drain pipe. The 3 in. Pro Series Channel Drain features interlocking joints for easy connections—no couplings required. Channels can be cut to 4 in. sections as short as 4 in., and join together for longer runs. Bottom outlet connects to 3 in. sewer and drain fittings.
Applications:
- Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
- 3 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and directs it to drain pipes for proper release downstream

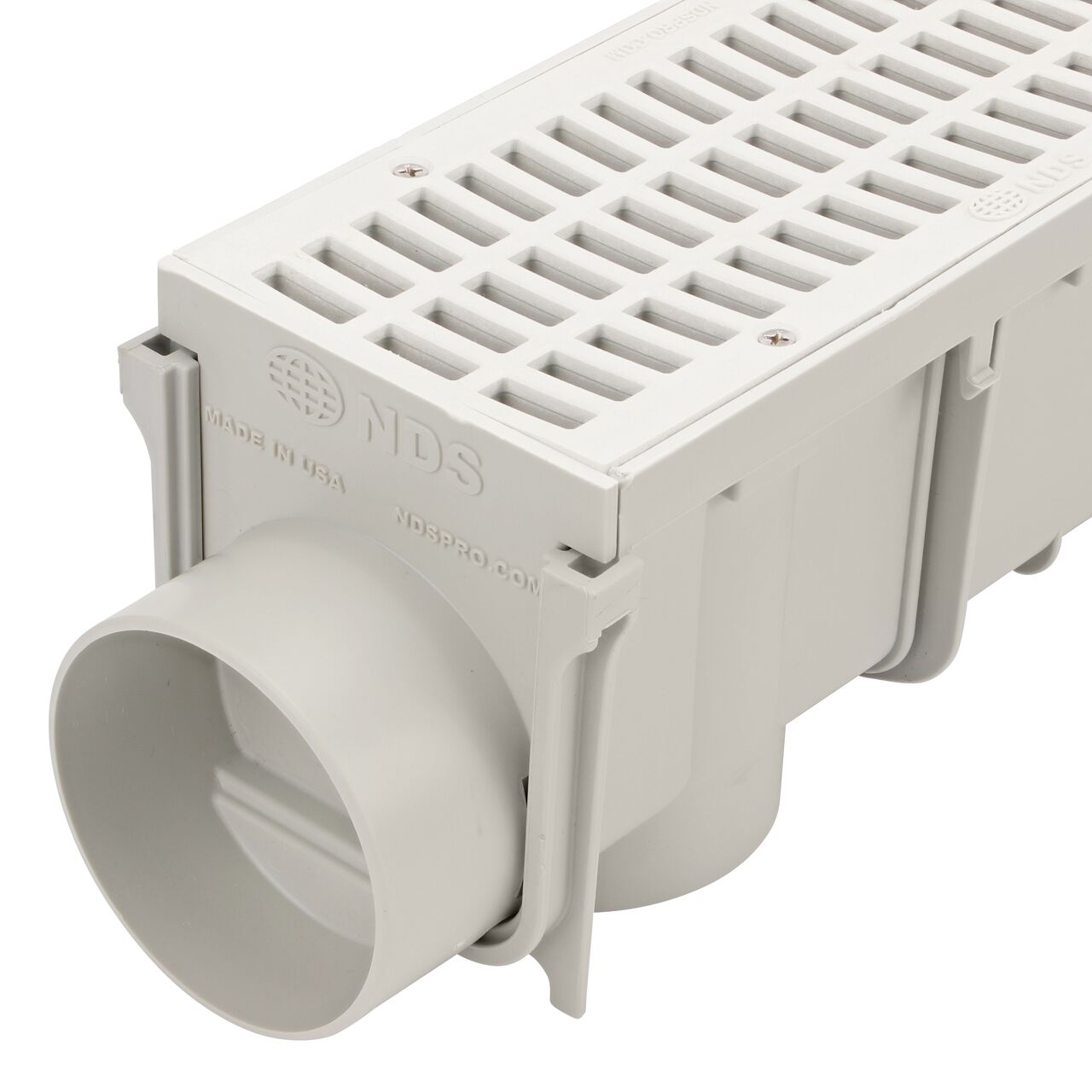

- Works with 3 in. Pro Series Channel Drain components
Features:

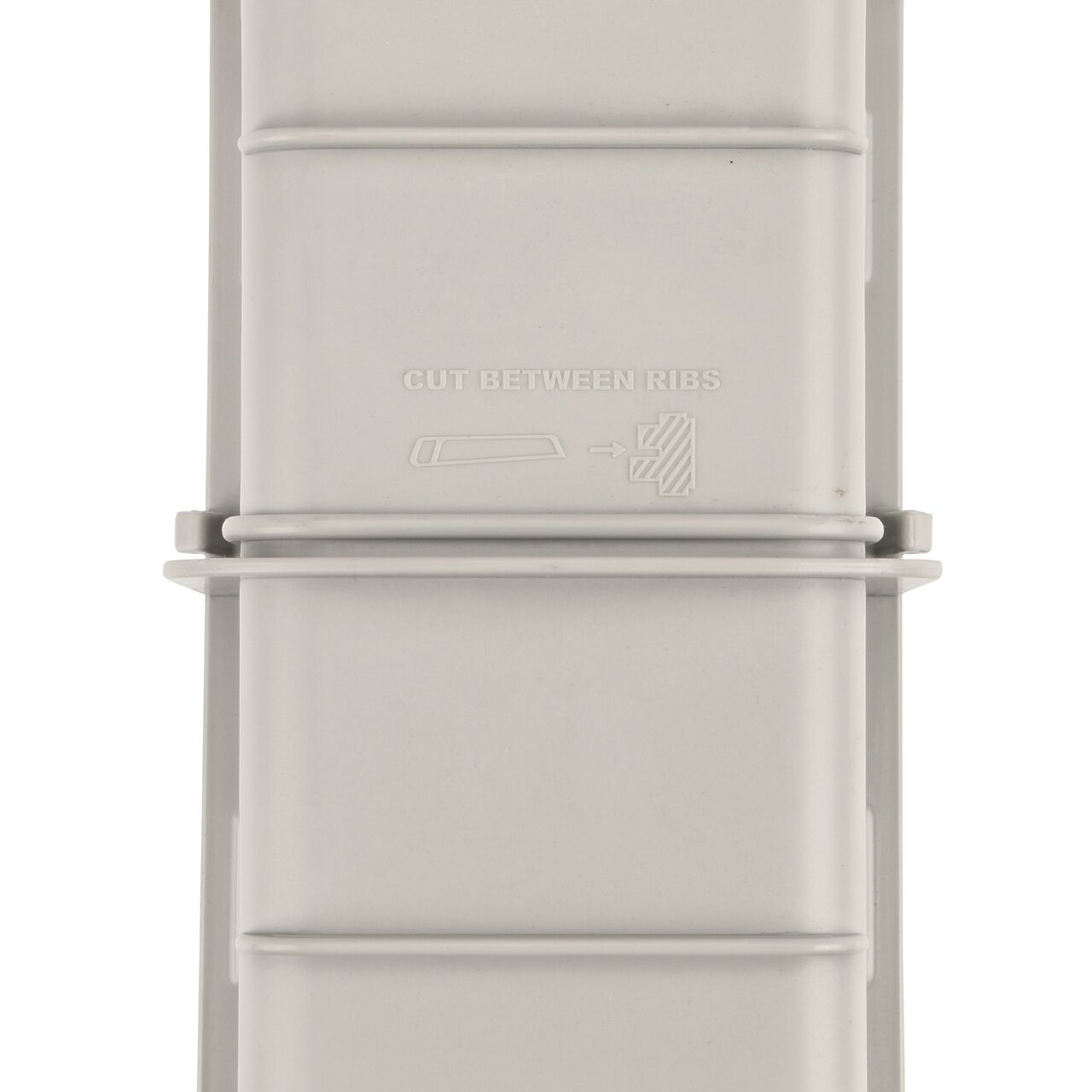

- 3 in. Pro Series Channel Drain is 4-1/8 in. deep, features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required, easy to cut to size in 4 in. increments using saw guide

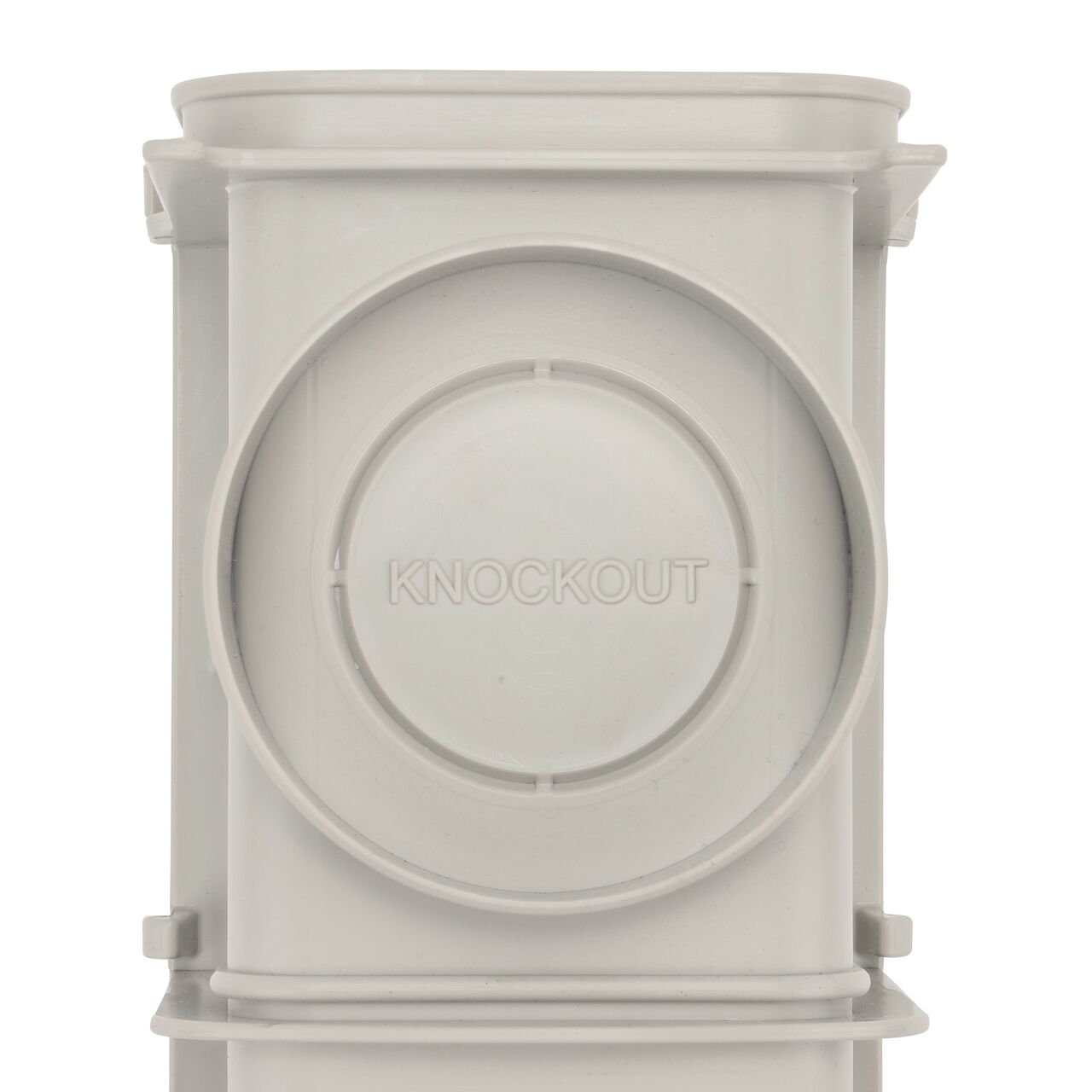

- Channel section includes a built-in bottom knock-out outlet which connects to 3 in. sewer and drain fittings
- Channel-to-channel clips reduce motion during installation, rebar clips instead of lower mount clips make installation easier
- Thick channel walls and extended side ribs provide increased strength and durability
- Lay-flat design stabilizes channel during installation
