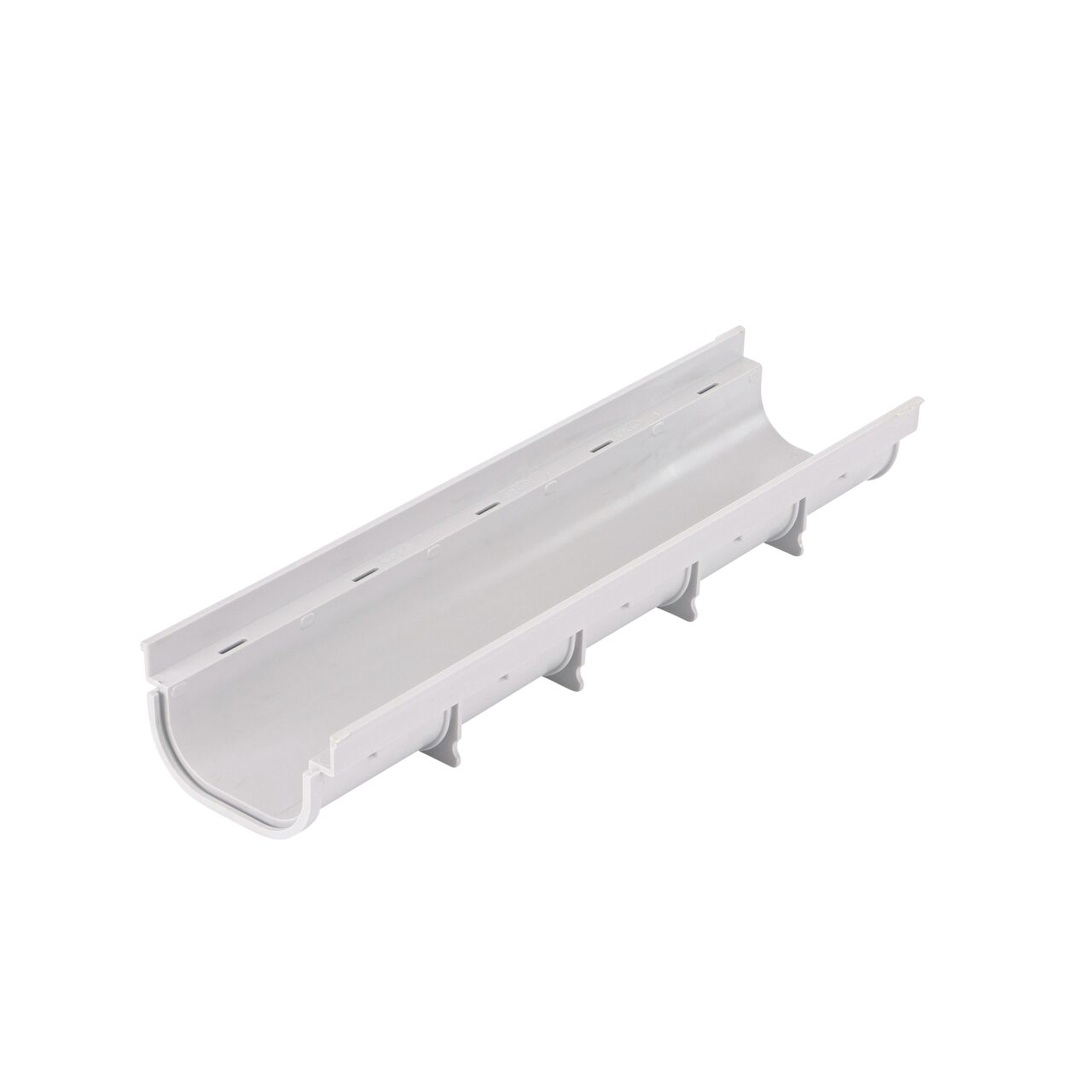

5 in. Pro Series™ Channel Drain, Shallow Profile, 5-1/2 in. wide X 19-11/16 in. long
SKU: 820
Collect and convey excess surface water covering your hardscape with the 5 in. Pro Series™ Channel Drain. Ideal for draining moderate water flows from driveways, concrete & paver patios, courtyards, walkways, and sports facilities. The Shallow Profile works in areas with slabs or where little fall depth is available. The 5 in. Shallow Profile channel is 2-5/8 in. deep (also available is the 5 in. Deep Profile channel, which is 4-3/4 in. deep). Made of polyvinyl chloride treated with UV inhibitors.
Applications:
- Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
- 5 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and sports facilities, and directs it to drain pipes for proper release downstream
- Works with 5 in. Pro Series Channel Drain components
Features:

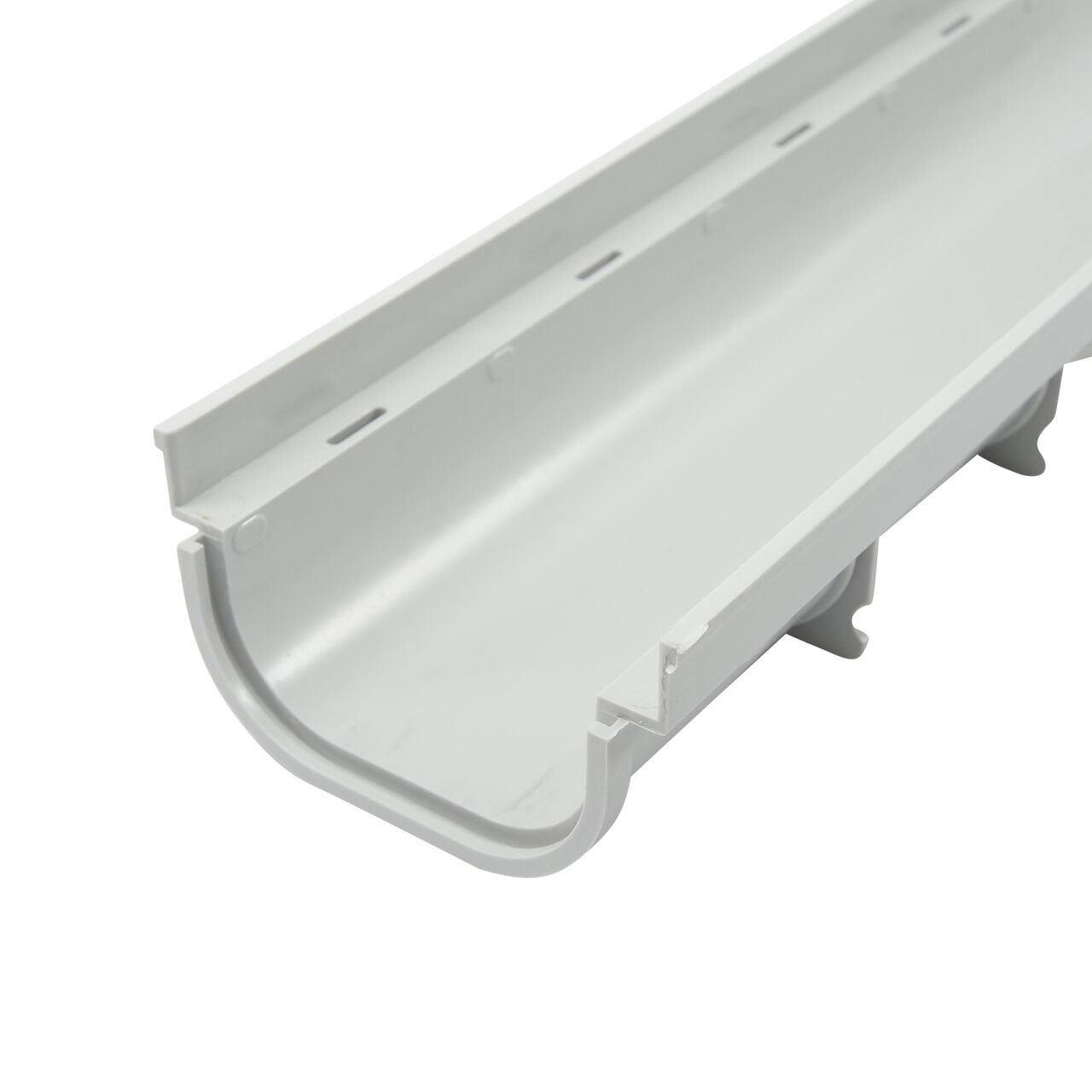

- The 5 in. Pro Series Channel Drain, Shallow Profile, is 2-5/8 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required, easy to cut to size in 4 in. increments
- Channel-to-channel clips reduce motion during installation, rebar clips instead of lower mount clips make installation easier

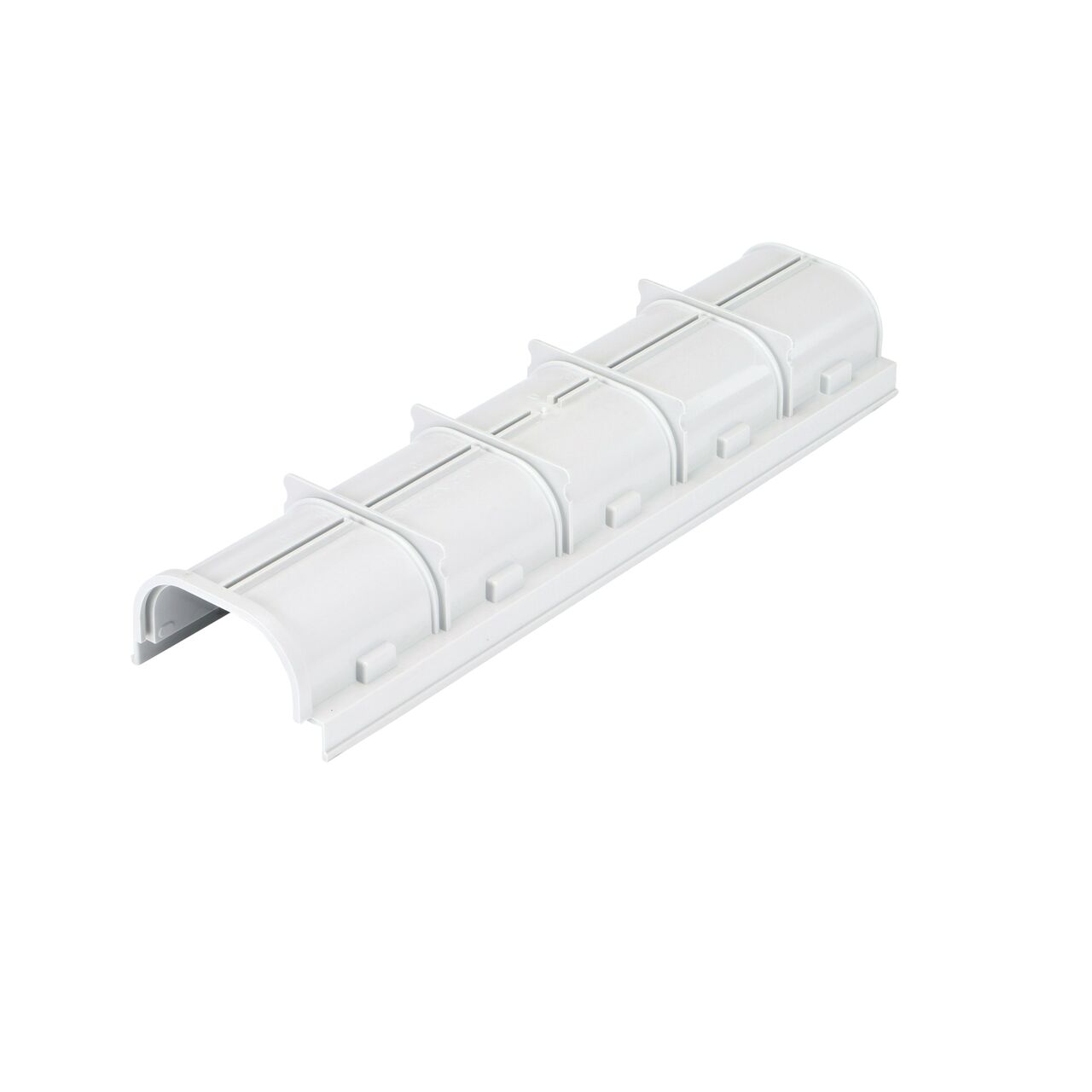

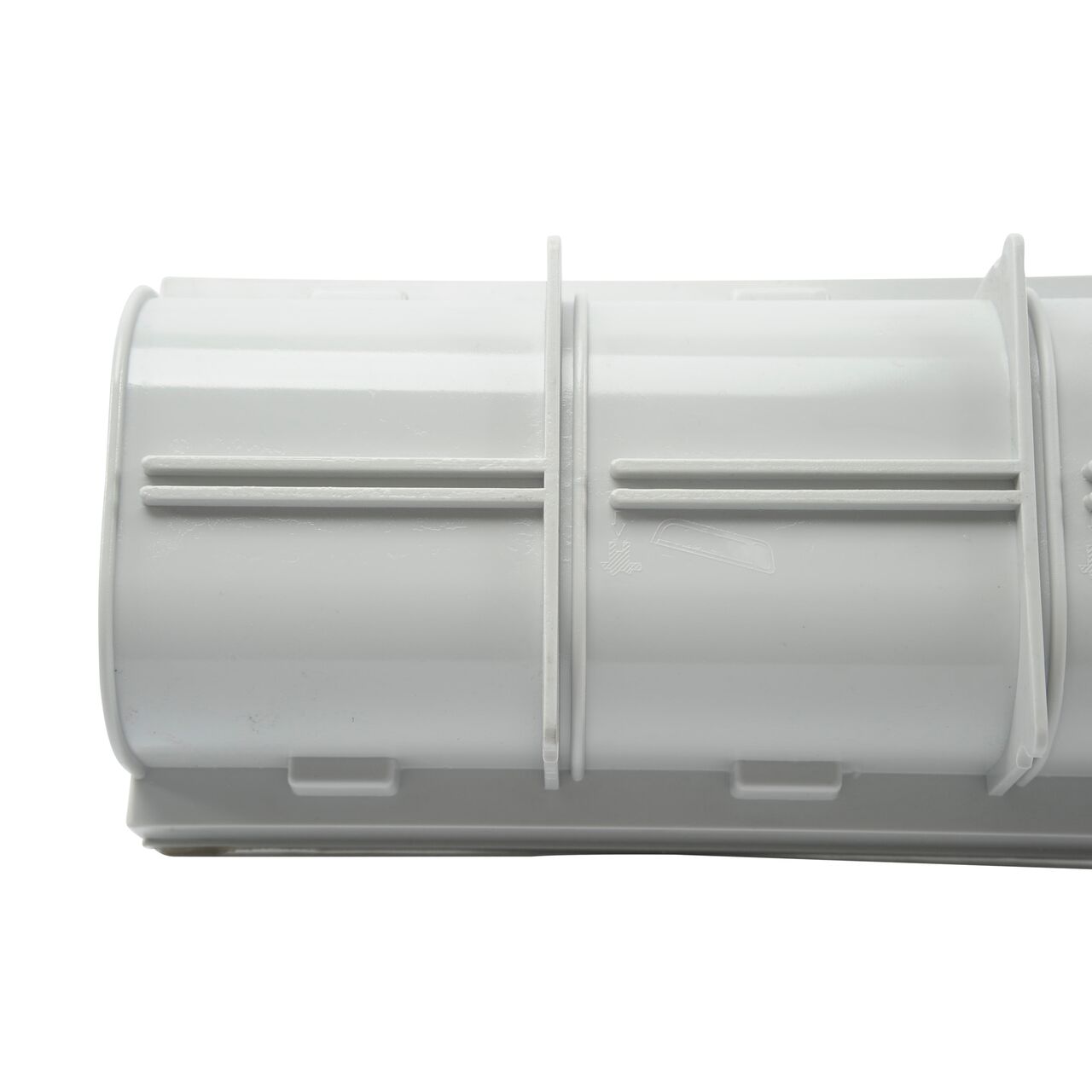

- Thick channel walls and extended side ribs provide increased strength and durability
- Channels can be cut to size as short as 4 in. long for smaller sections, use built-in cut guide to reduce length in increments
