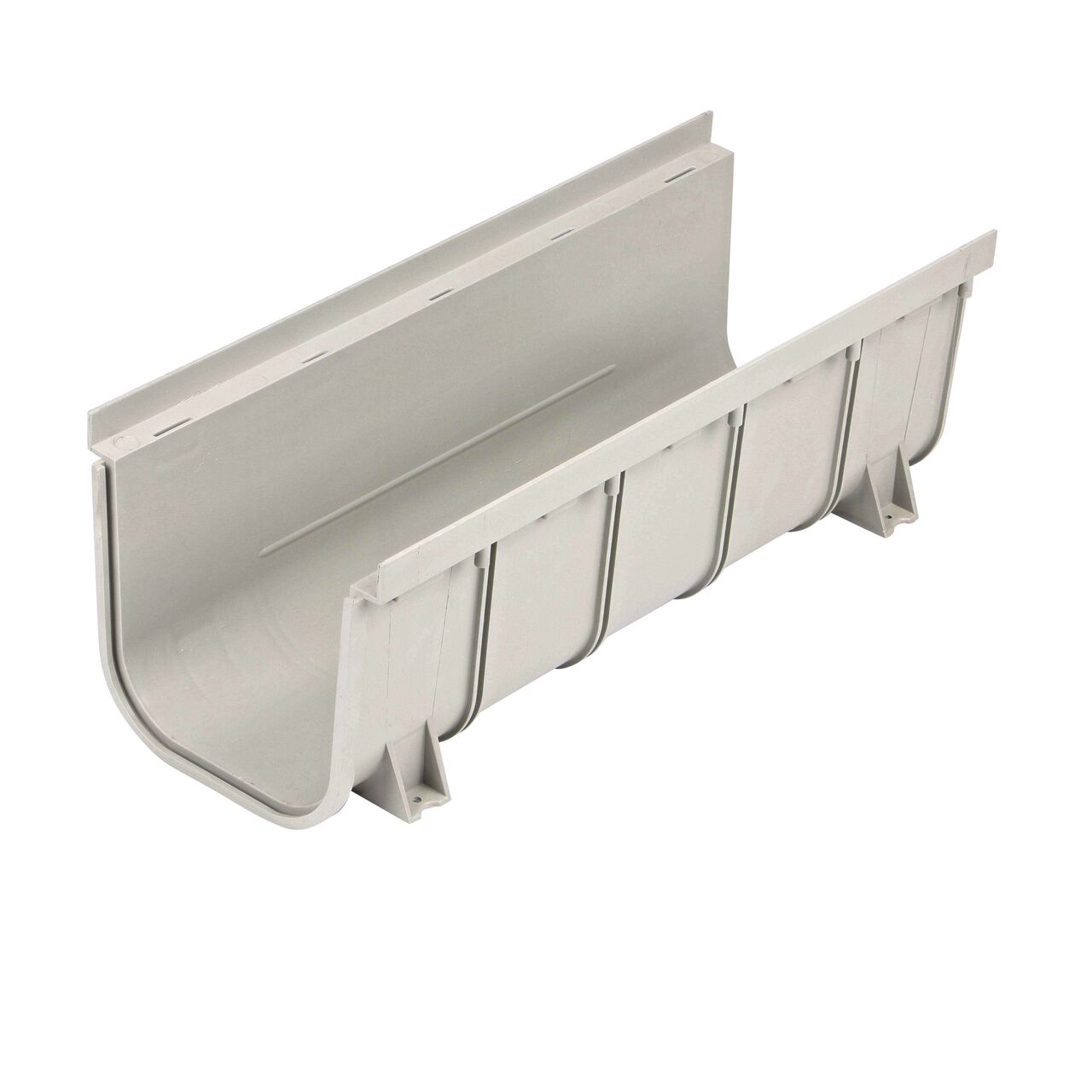

8 in. Pro Series™ Channel Drain, Deep Profile, 8-1/4 in. wide X 19-11/16 in. long
SKU: 833

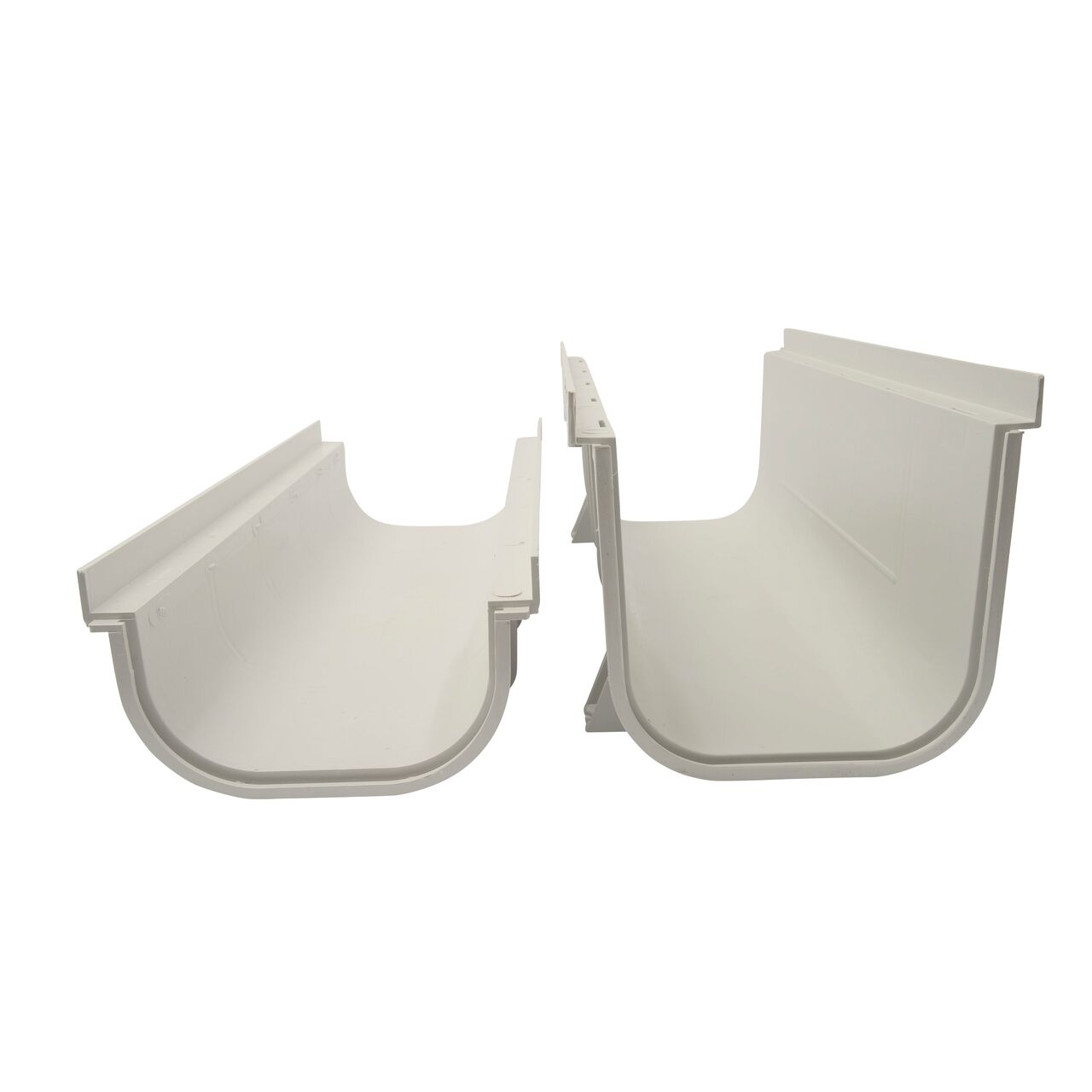

When hardscapes are flooded with surface water, the water needs a better way to drain. Take care of the problem before it leads to costly structural damage with the 8 in. Pro Series™ Channel Drain. The Deep Profile is ideal for collecting heavy flows from driveways, concrete & paver patios, courtyards, walkways, and sport facilities and directing the water to drain pipe. The 8 in. Deep Profile channel is 7-1/4 in. deep (the 8 in. Shallow Profile channel is 4-1/2 in. deep). Made of polyvinyl chloride treated with UV inhibitors.
Applications:
- Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
- 8 in. Pro Series Channel Drain system collects heavy flows from hardscape surfaces such as driveways, patios, courtyards, walkways, and sports facilities, and directs the water to drain pipe for proper release downstream
- Works with 8 in. Pro Series Channel Drain components
Features:

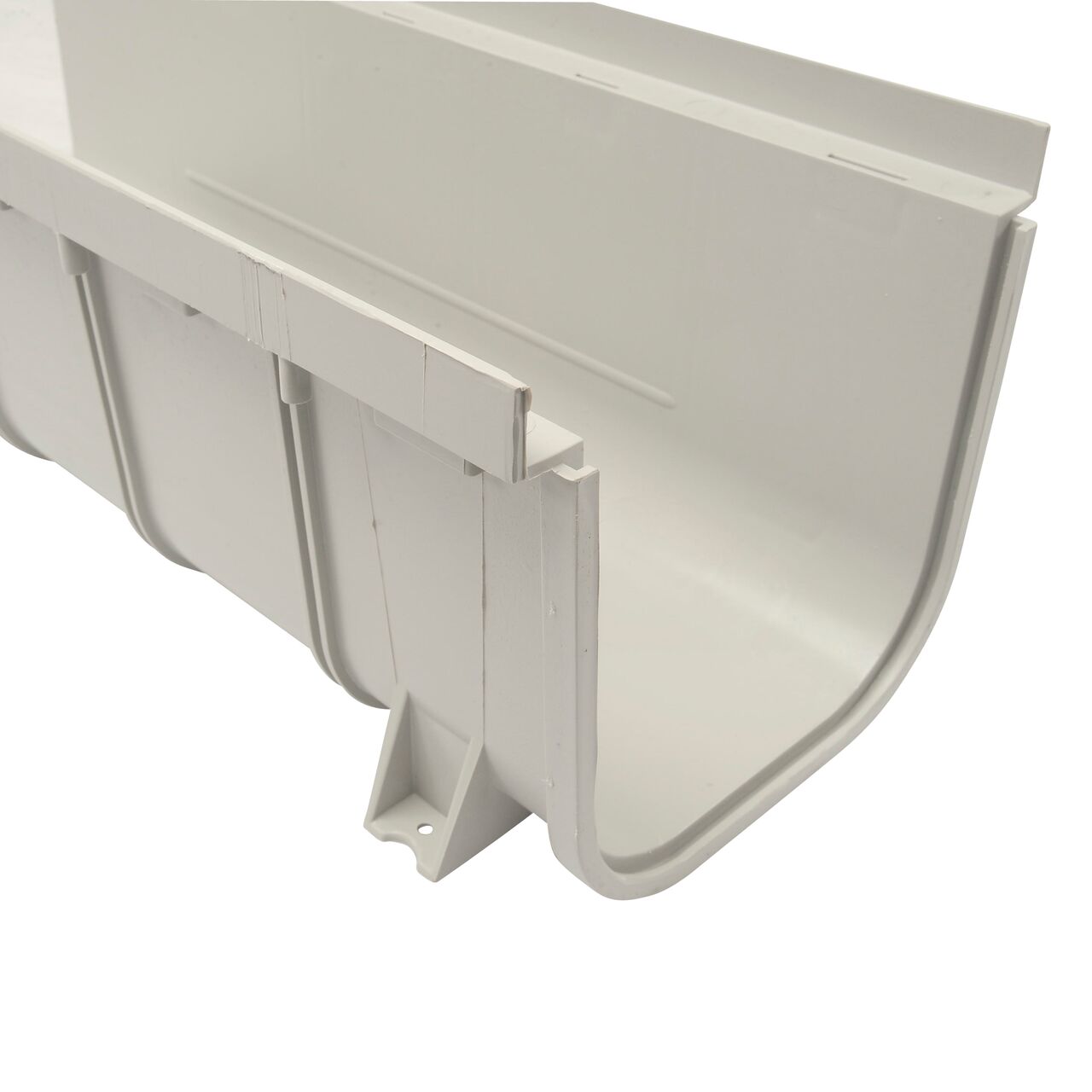

- The 8 in. Pro Series Channel Drain, Deep Profile, is 7-1/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required, can be cut to size as short as 4 in. long for smaller sections

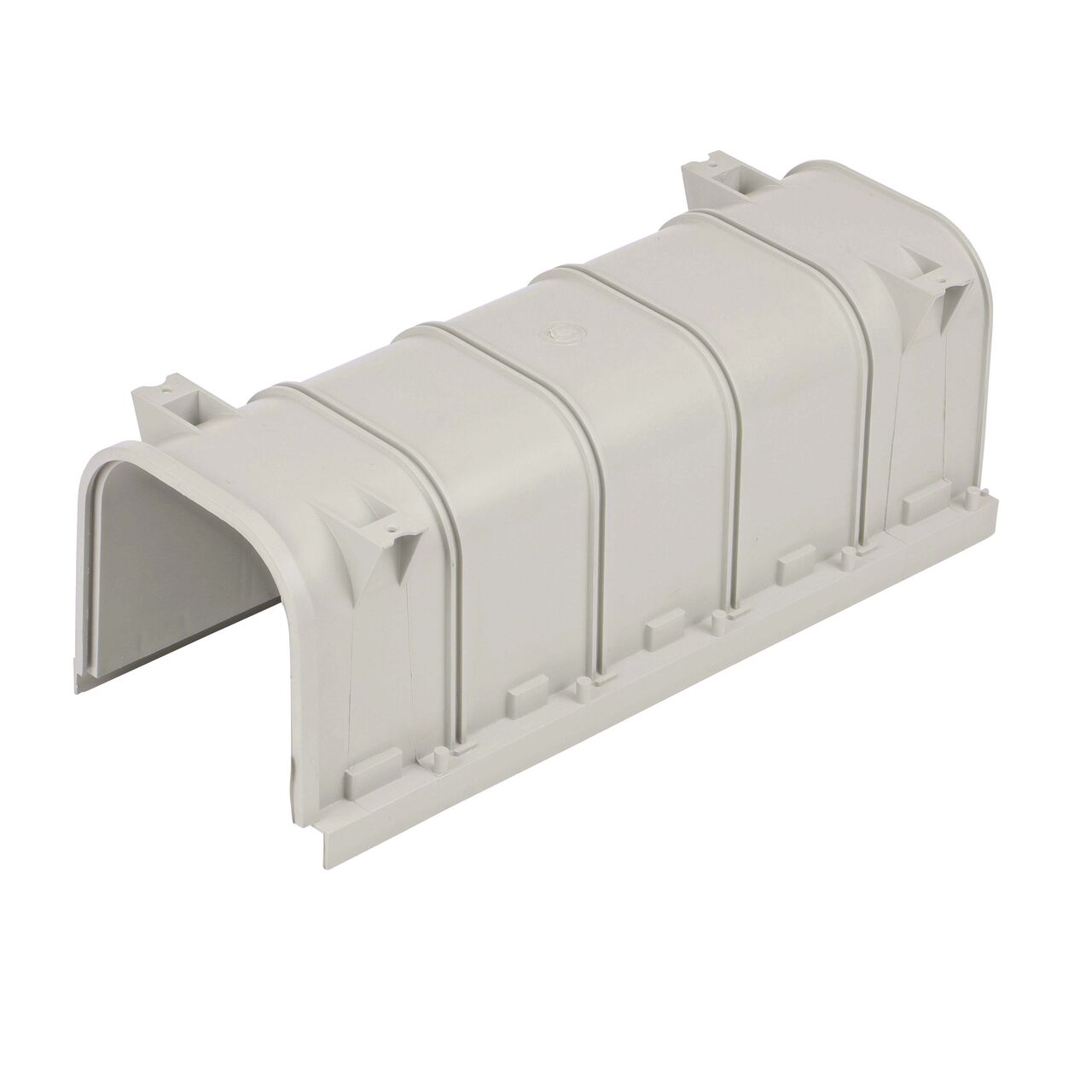

- Thick channel walls and extended side ribs provide increased strength and durability
