StormChamber® Accessories

StormChamber® accessories are used as part of installation and maintenance. They include the SedimenTrap™ capture device, non-woven filter fabric, woven stabilization fabric, 10 in. frame and lid, 30 in. X 20 in. and 24 in. X 12 in. corrugated pipe.

Where to Buy

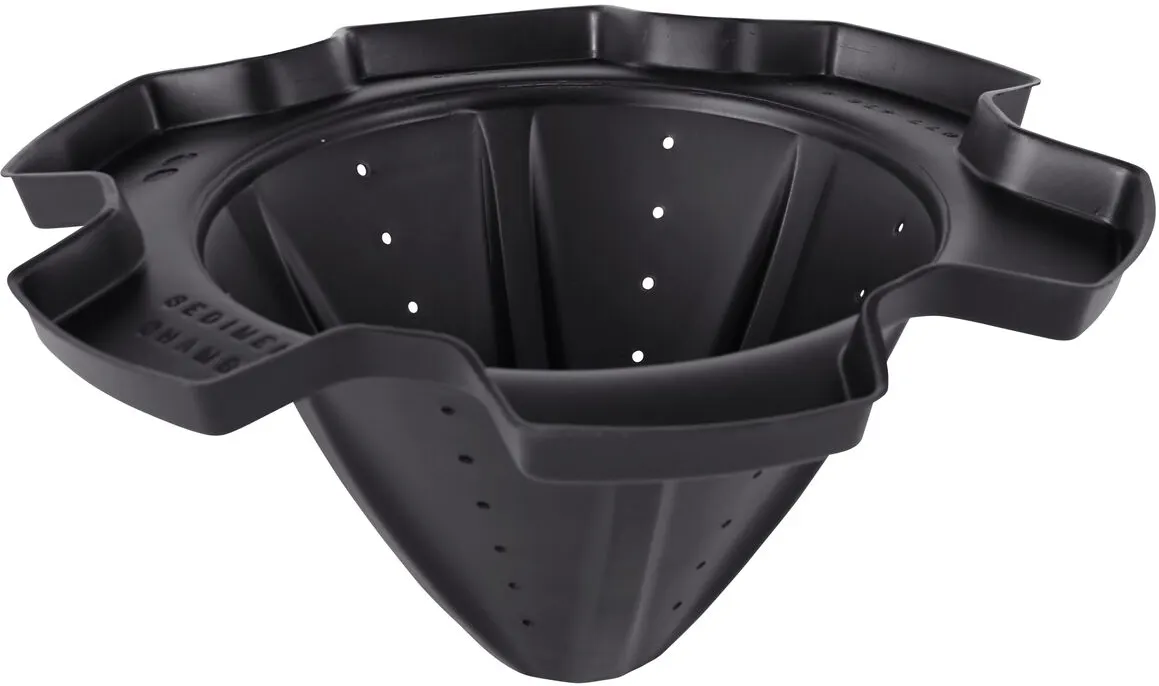

The NDS SedimenTrap sediment capture devices work with the StormChamber® stormwater system (NDS SC-ST)
Where to Buy

Key Features

  • SedimenTrap™ capture device has a patented filtration system and intercepts debris in stormwater runoff that can potentially harm the local ecology
  • Non-woven filter fabric is used to line the trench walls and bottom, and to wrap around the inflow row of chambers
  • Woven stabilization fabric is used to stabilize the soil base for the entire inflow row of chambers as well as the adjacent overflow unit
  • The 10 in. frame and lid is used to protect the opening of the cleanout riser pipe used in StormChamber® systems
  • The 30 in. X 20 in. corrugated pipe comes connected to the SedimenTrap™ device used with the SC-34 and SC-44 StormChamber® systems
  • The 24 in. X 12 in. corrugated pipe comes connected to the SedimenTrap™ device used with the SC-18 StormChamber® system

Applications

  • The SedimenTrap™ device intercepts sediments that enter the StormChamber® system, and the corrugated pipe enables the SedimenTrap device to be installed deep underground
  • The non-woven fabric prevents sediments from entering the StormChamber® system while allowing water to drain through
  • The woven fabric creates a stable foundation for installation of the inflow row of StormChamber units and adjacent overflow unit
  • As part of a complete stormwater management system, the StormChamber® accessories are used during installation and maintenance to protect the system from debris

Installation & Maintenance

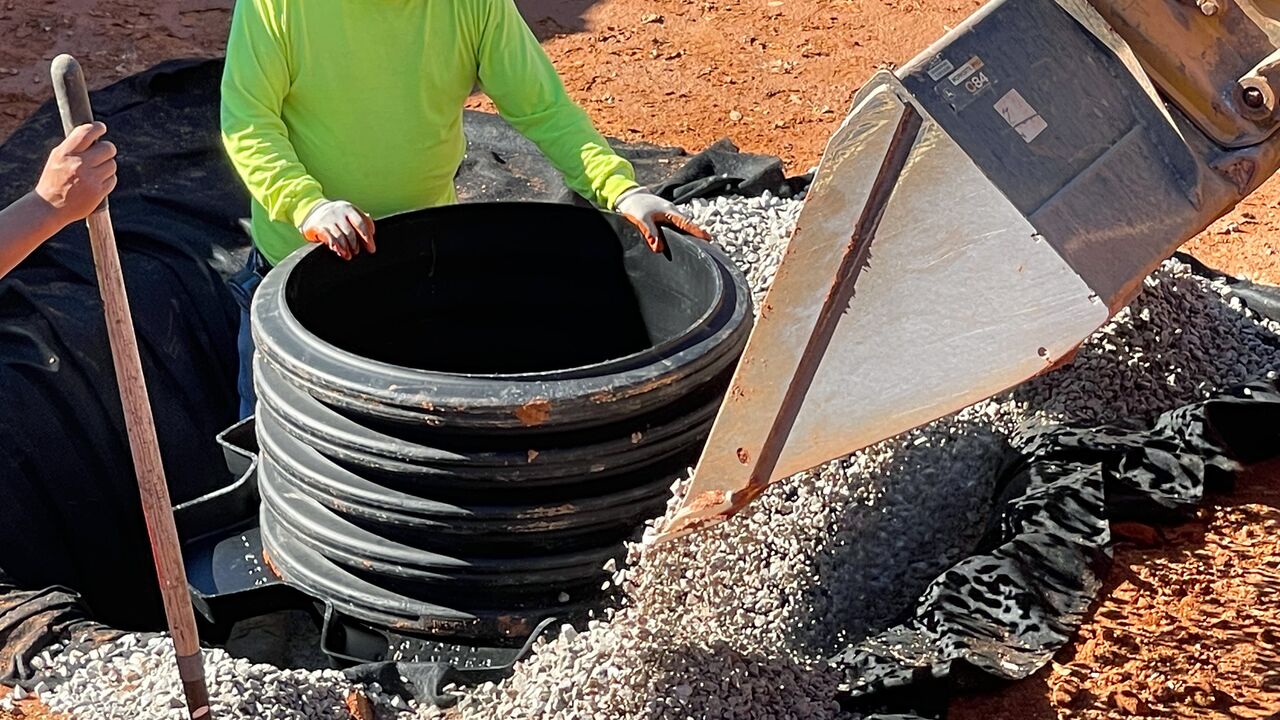

  • StormChamber® accessories are installed with the StormChamber units and work deep underground

Materials & Sustainability

  • SedimenTrap® device is made of high-density polyethylene (HDPE)
  • Non-woven filter fabric is made of high-tenacity polypropylene
  • Woven filter fabric is made of polypropylene
  • 10 in. frame and lid are made of cast iron
  • Corrugated pipe is made of high-density polyethylene (HDPE)
  • StormChamber® accessories are made in the USA

Product Models

Filter results
Family

6 products

    Part Number
    (click for more info)    		 Description
    SC-FL-10 10 in. Frame and Lid for StormChamber® Systems
    SC-2412P HDPE Corrugated Pipe, 24 in. X 12 in., Black
    SC-3020P HDPE Corrugated Pipe, 30 in. X 20 in., Black
    SC-NWFF-500 Non-woven Filter Fabric, 500 sq. ft., Black
    SC-ST SedimenTrap™ Sediment Capture Device for StormChamber® Systems, Black
    SC-WFF-75 Woven Stabilization Fabric, 562.25 sq. ft., Black
