SedimenTrap™ Sediment Capture Device for StormChamber® Systems, Black

SKU: SC-ST

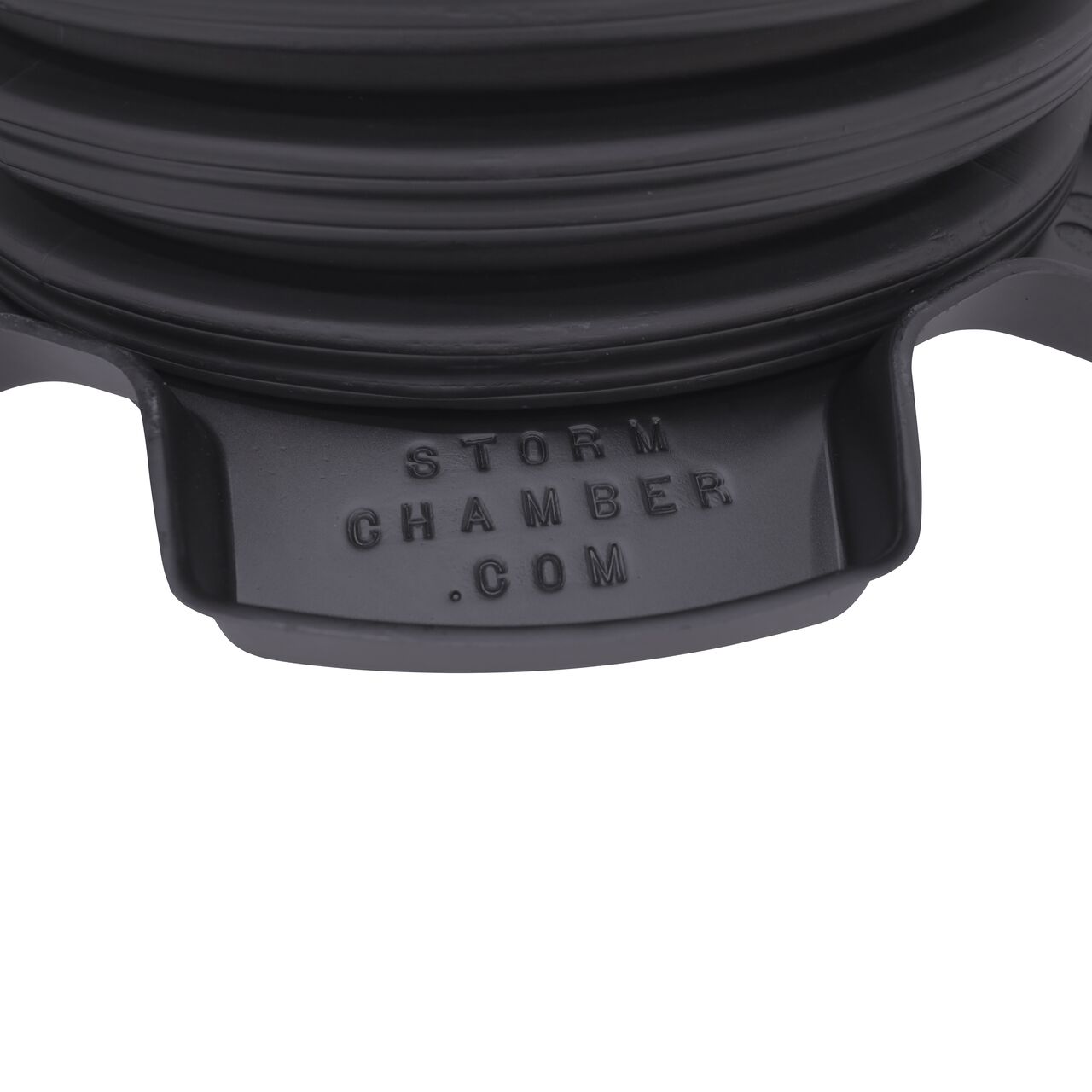

Closeup of the corrugated pipe of the NDS SedimenTrap where the pipe meets the cone end (NDS SC-ST)

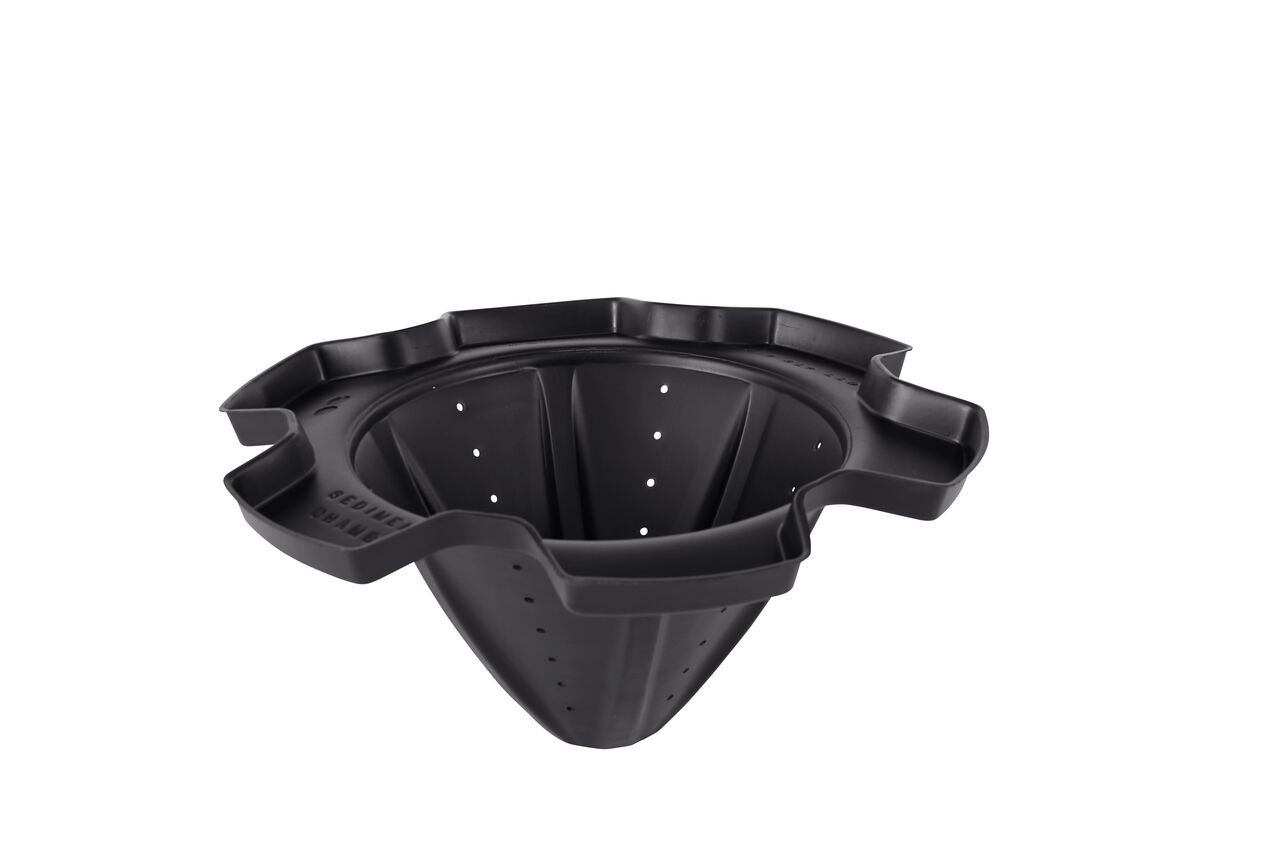

The NDS SedimenTrap sediment capture devices work with the StormChamber® stormwater system (NDS SC-ST)

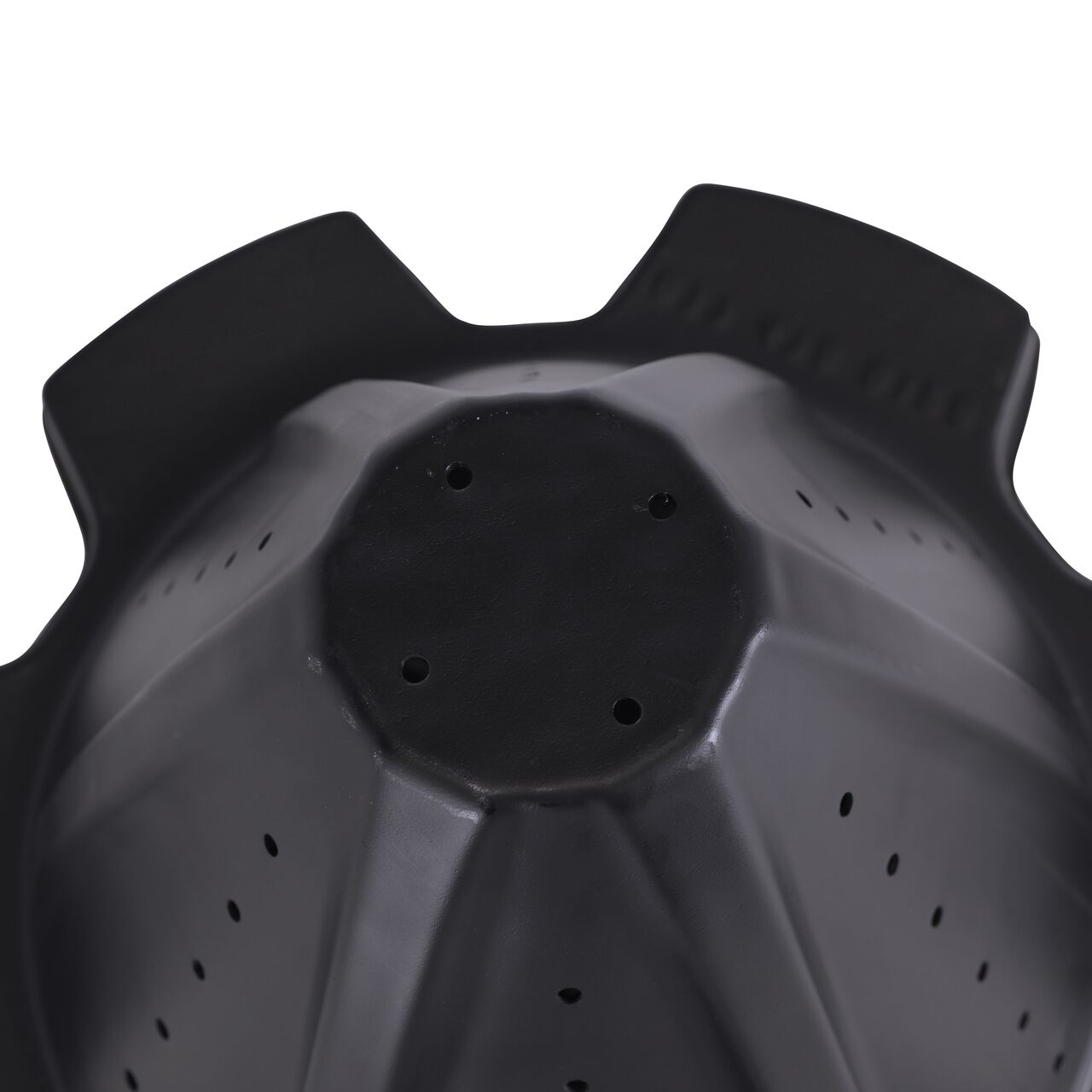

Closeup of thebottom outlet side of the  NDS SedimenTrap (NDS SC-ST)

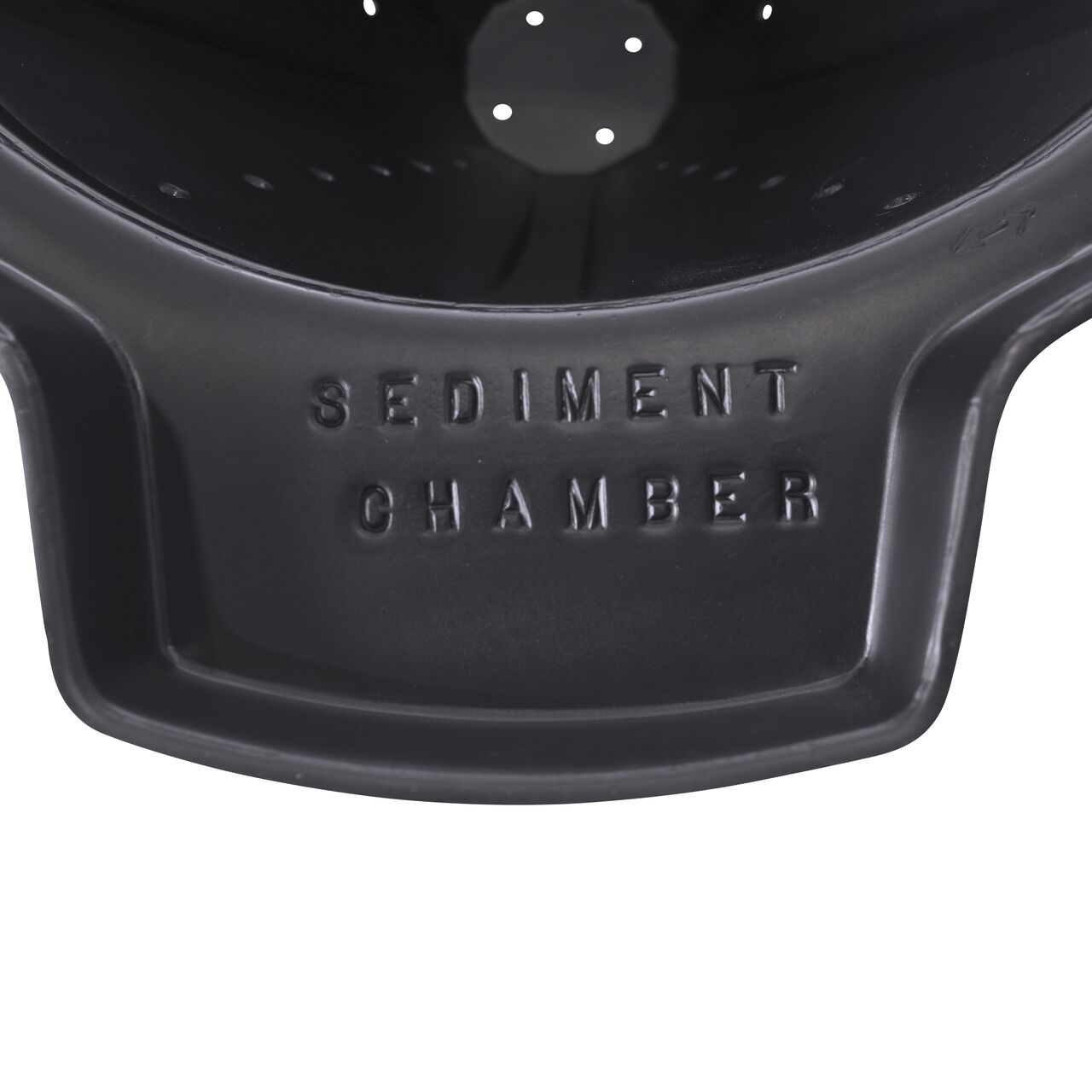

Closeup of the branding and lettering on the NDS SedimenTrap (NDS SC-ST)

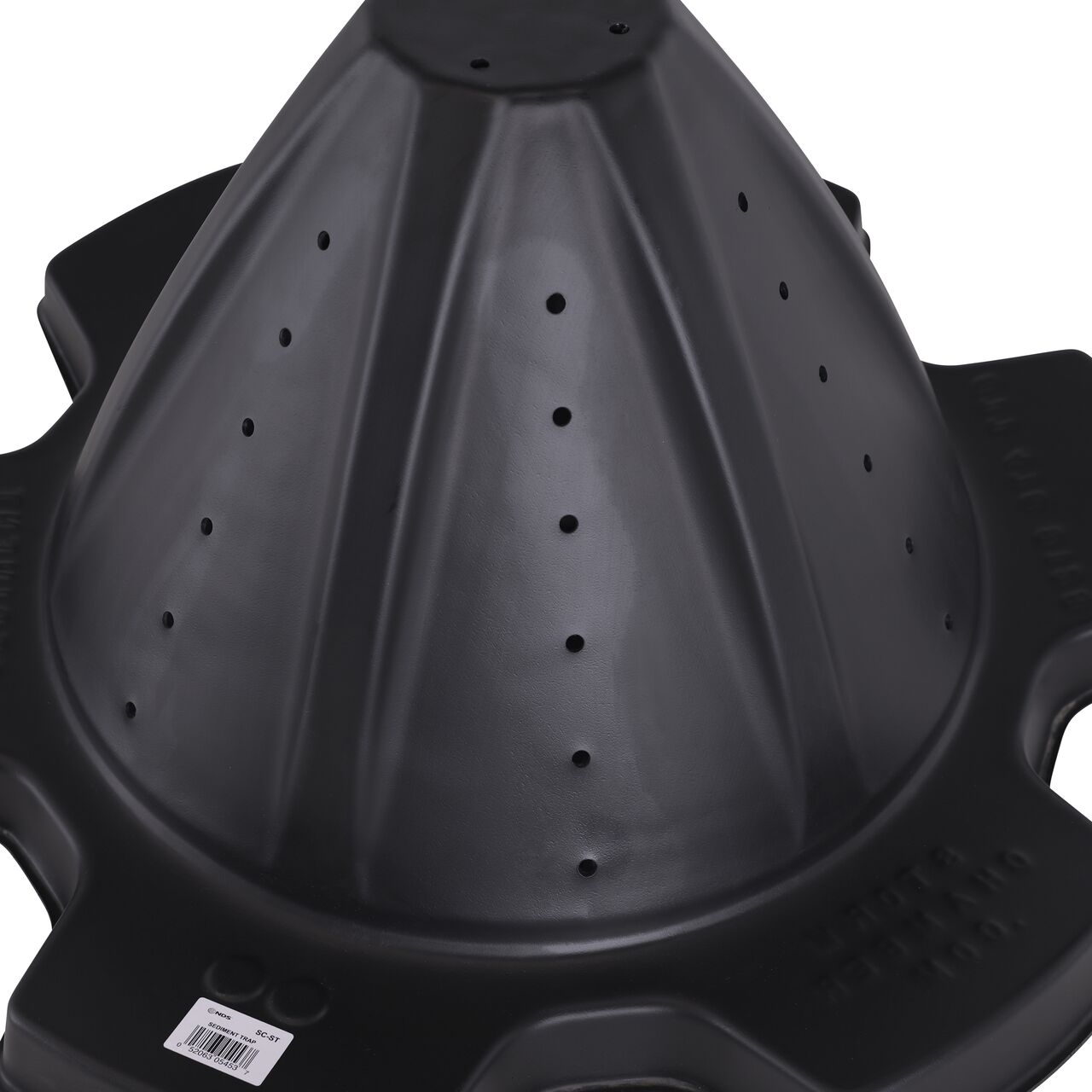

Closeup of the reinforced ribs and the holes around the cone of the NDS SedimenTrap (NDS SC-ST)

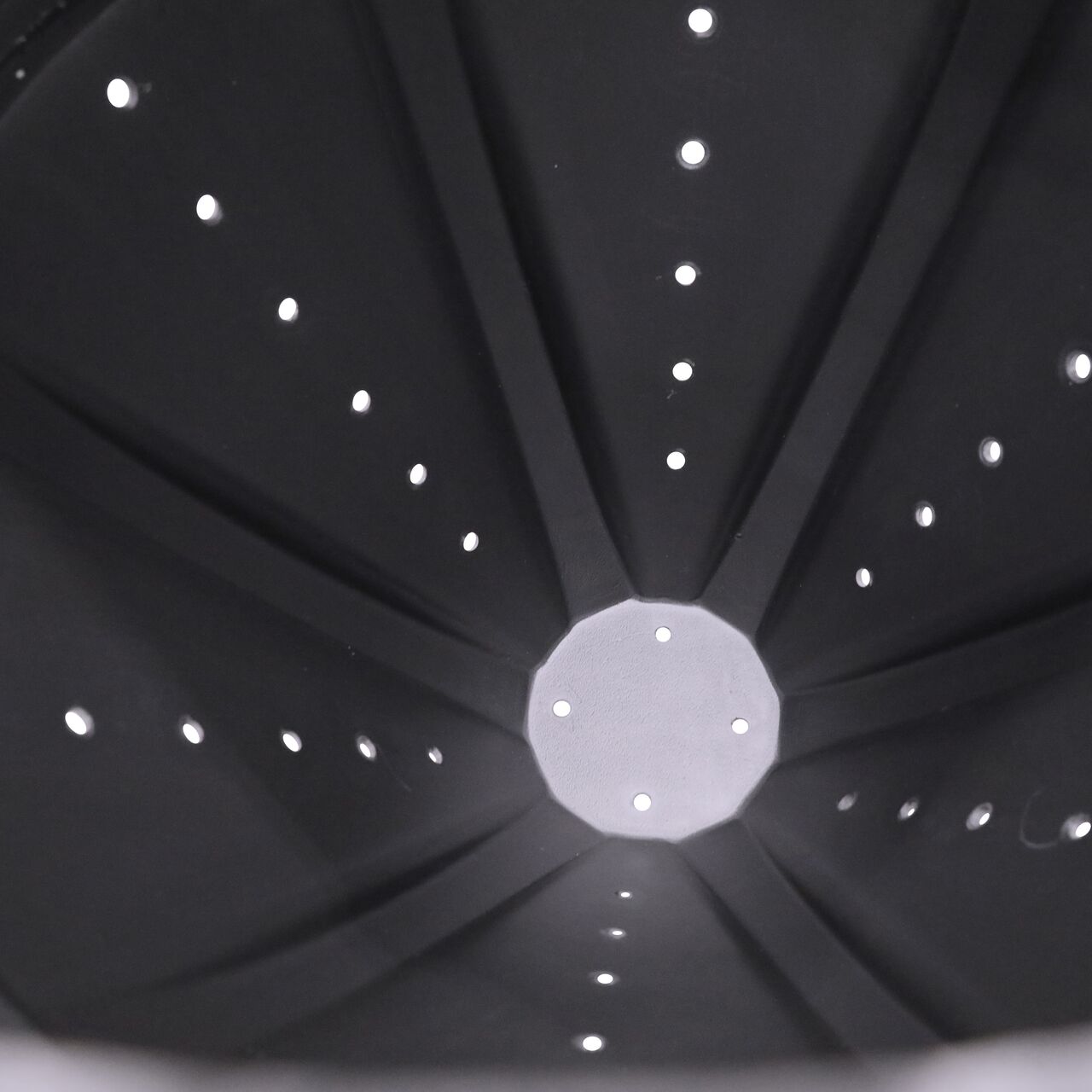

Top Down closeup of the inside of the SeidmenTrap (NDS SC-ST)

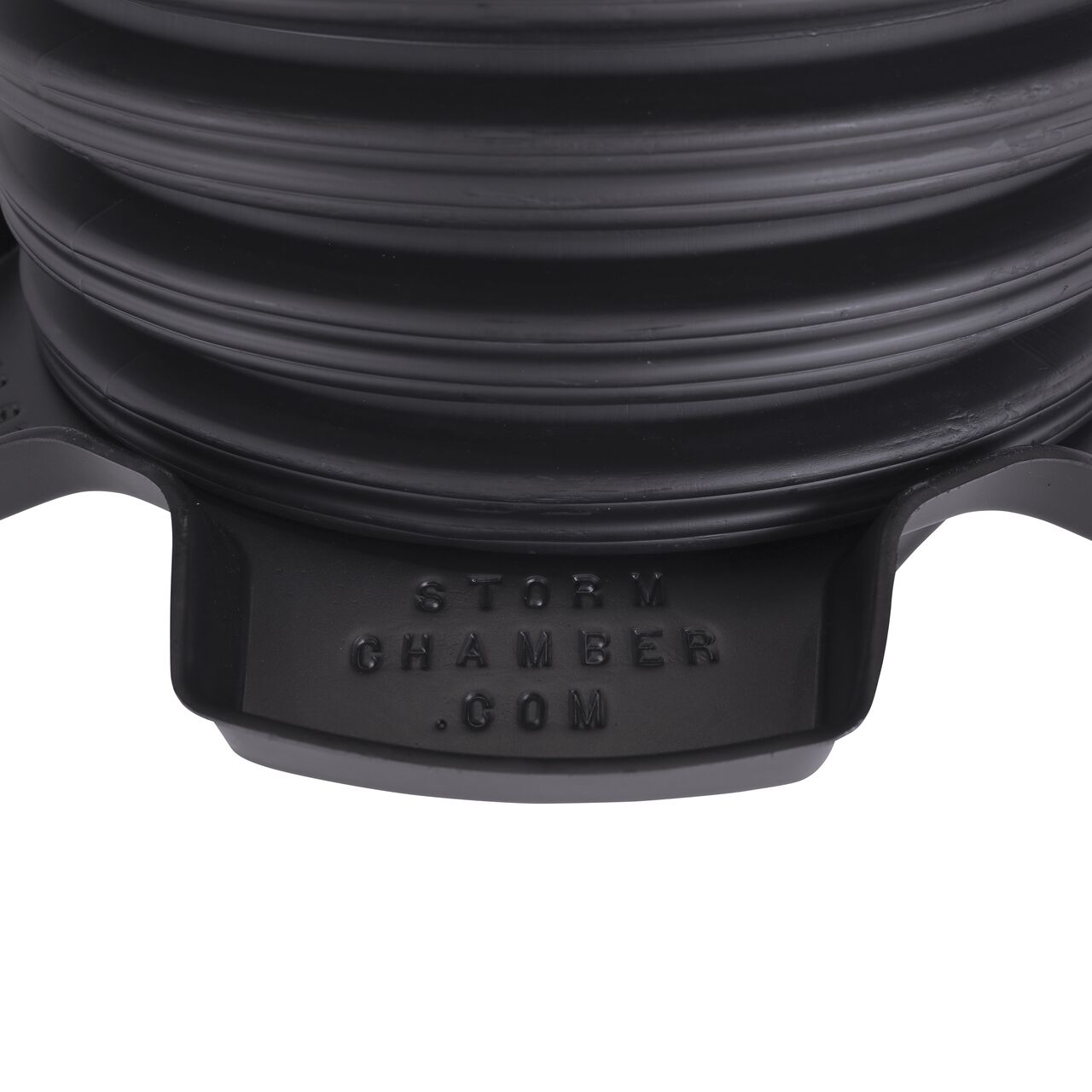

Closeup of the corrugated pipe of the SedimenTrap (NDS SC-ST) showing it's opening including the outside wall of pipe

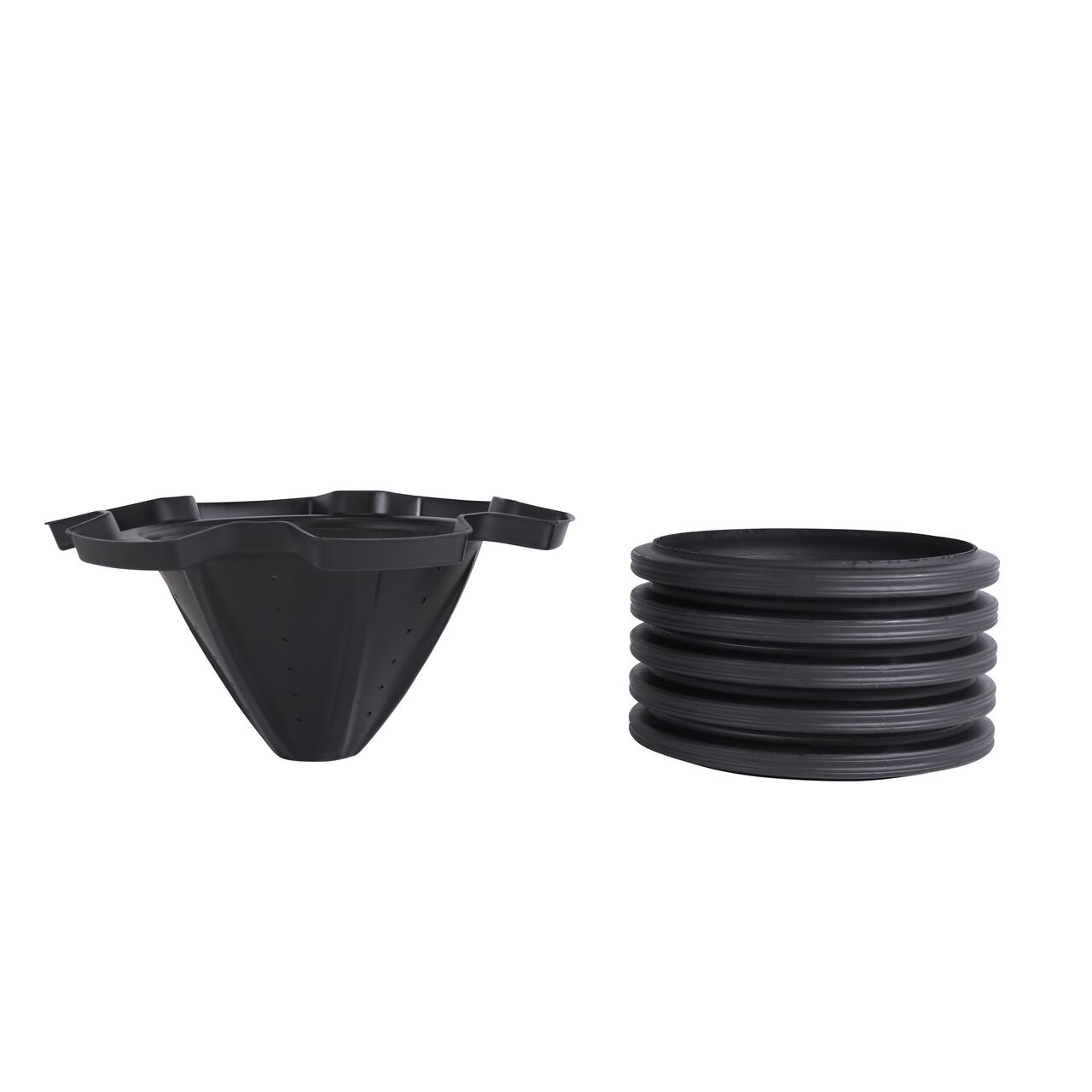

Side view of the NDS SedimenTrap showing the cone tip feature that filters out any debris (NDS SC-ST)
Alternate view of the SedimenTrap upside down to show how the underside looks (NDS SC-ST)

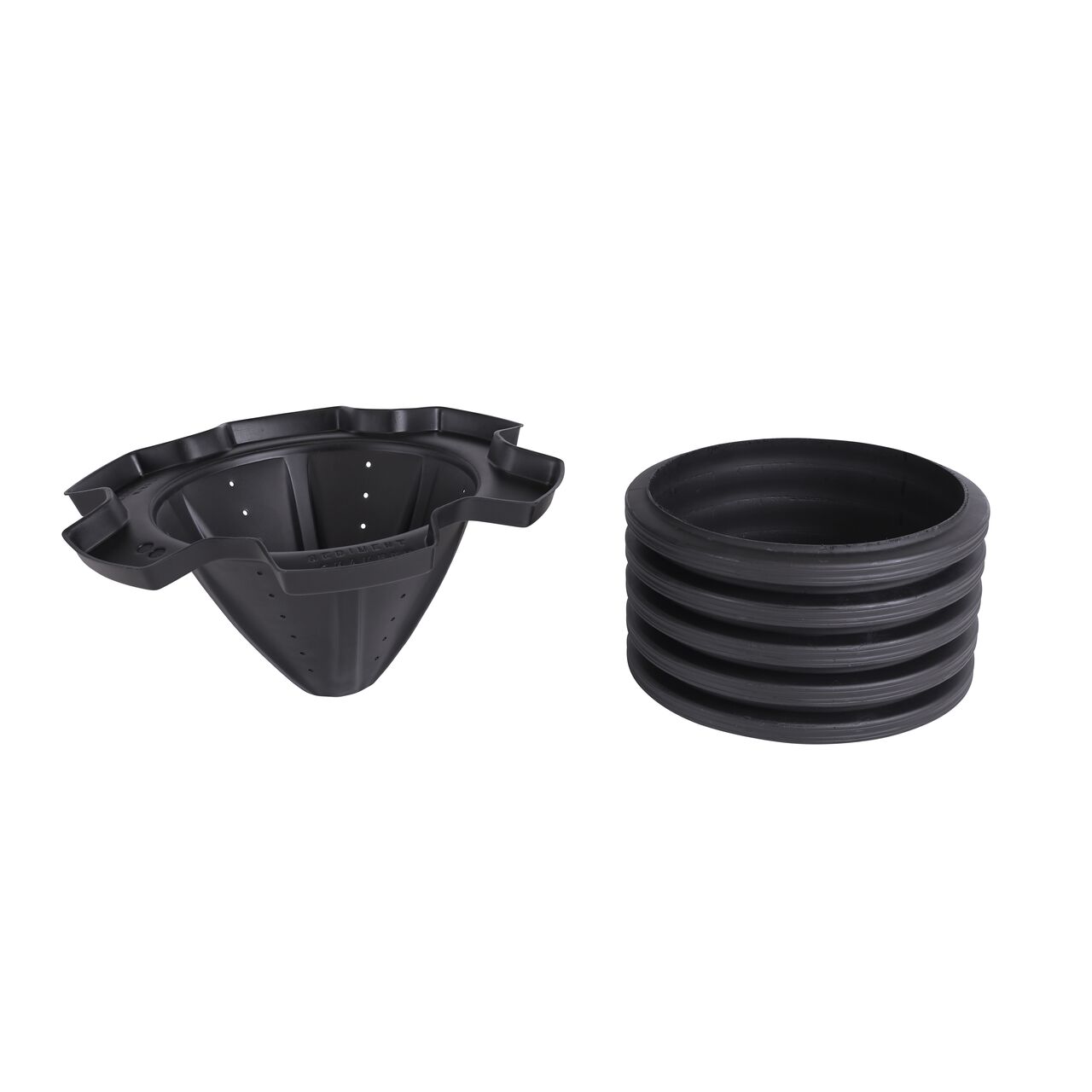

NDS SedimenTrap unassembled as the corrugated pipe and cone tip can be removed from each other (NDS SC-ST)
Closeup of the words on the left tab of the NDS SedimenTrap (NDS SC-ST)

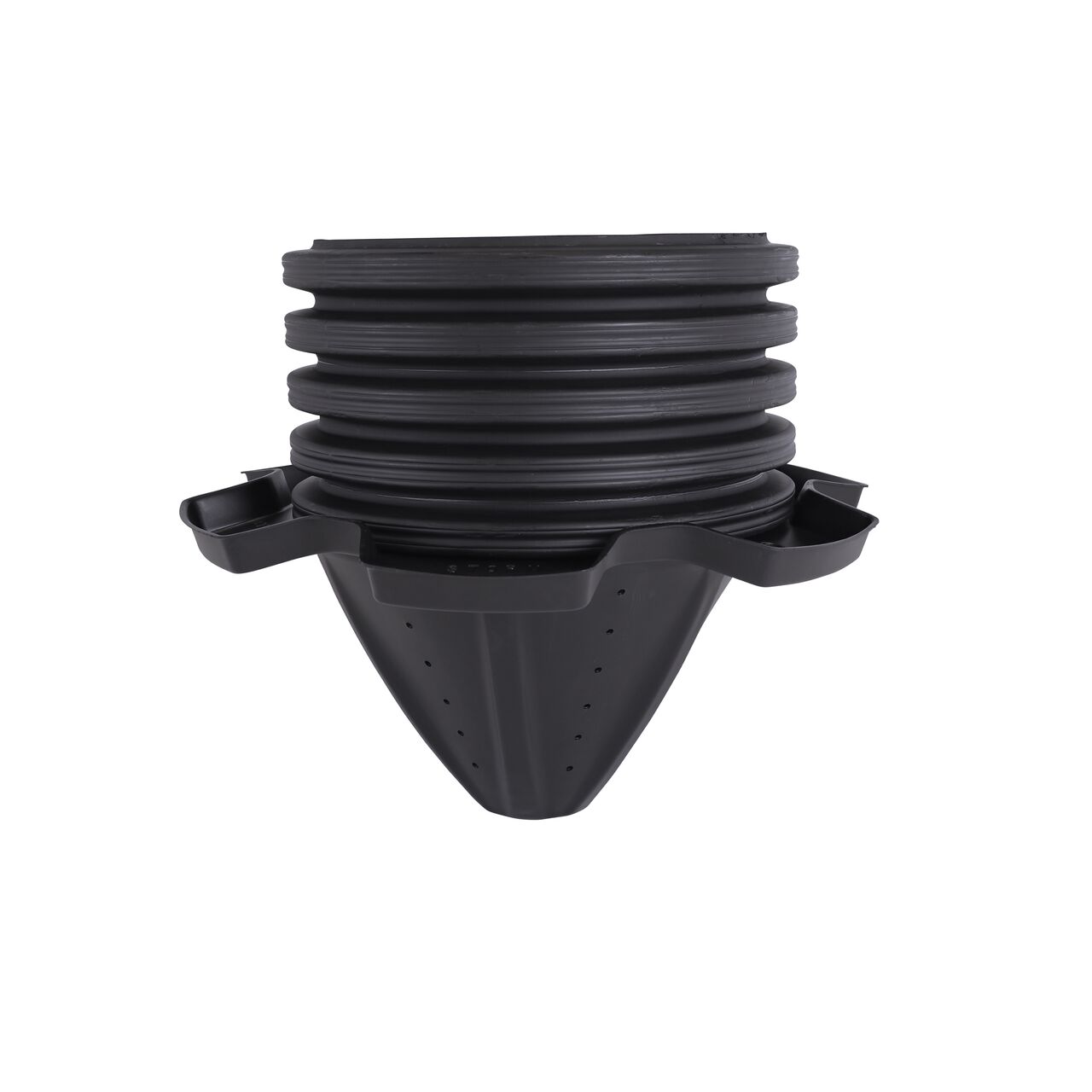

Straight on view of the NDS SedimenTrap to show all the components (NDS SC-ST)

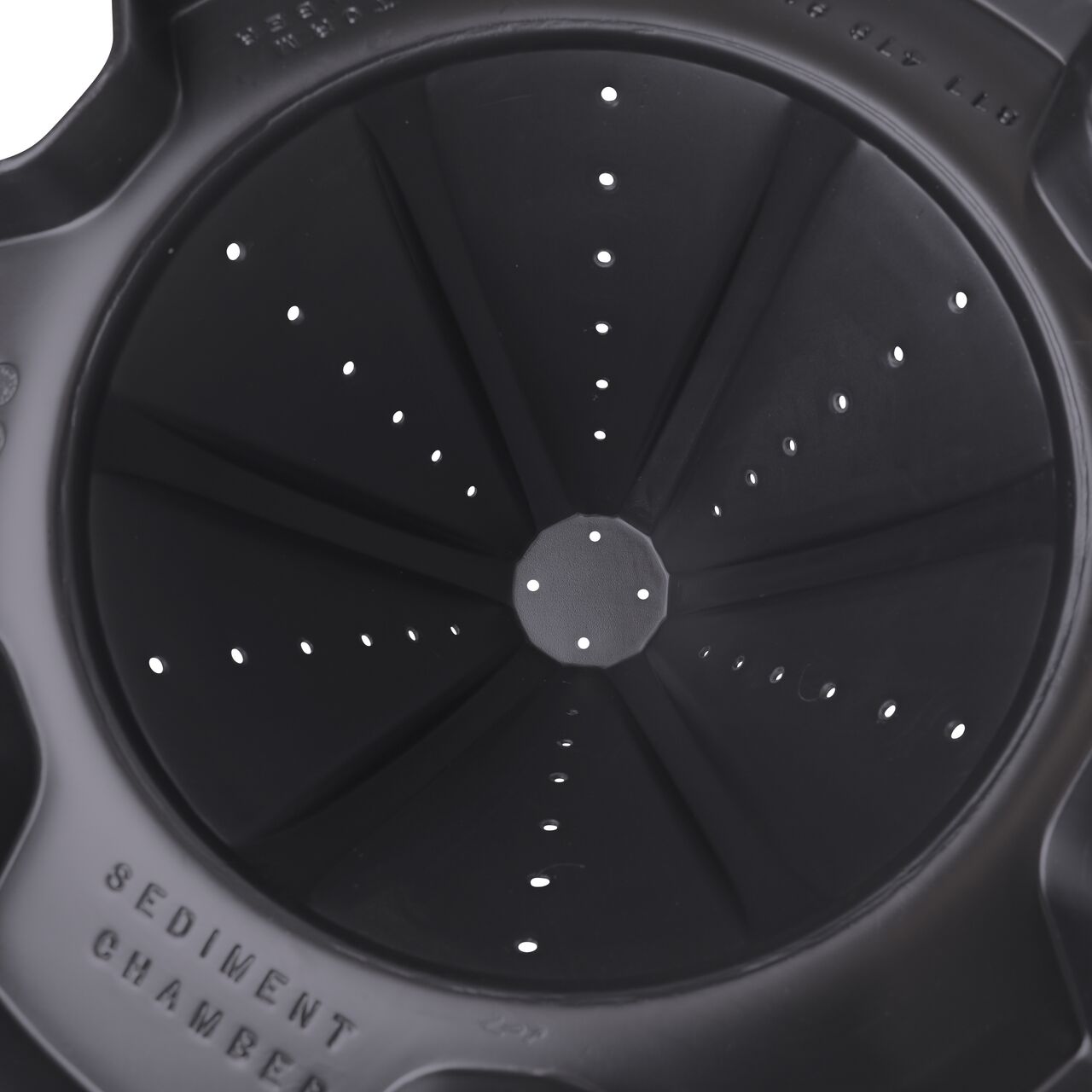

Top Down of the NDS SedimenTrap sediment capture devices work with the StormChamber® stormwater system (NDS SC-ST)

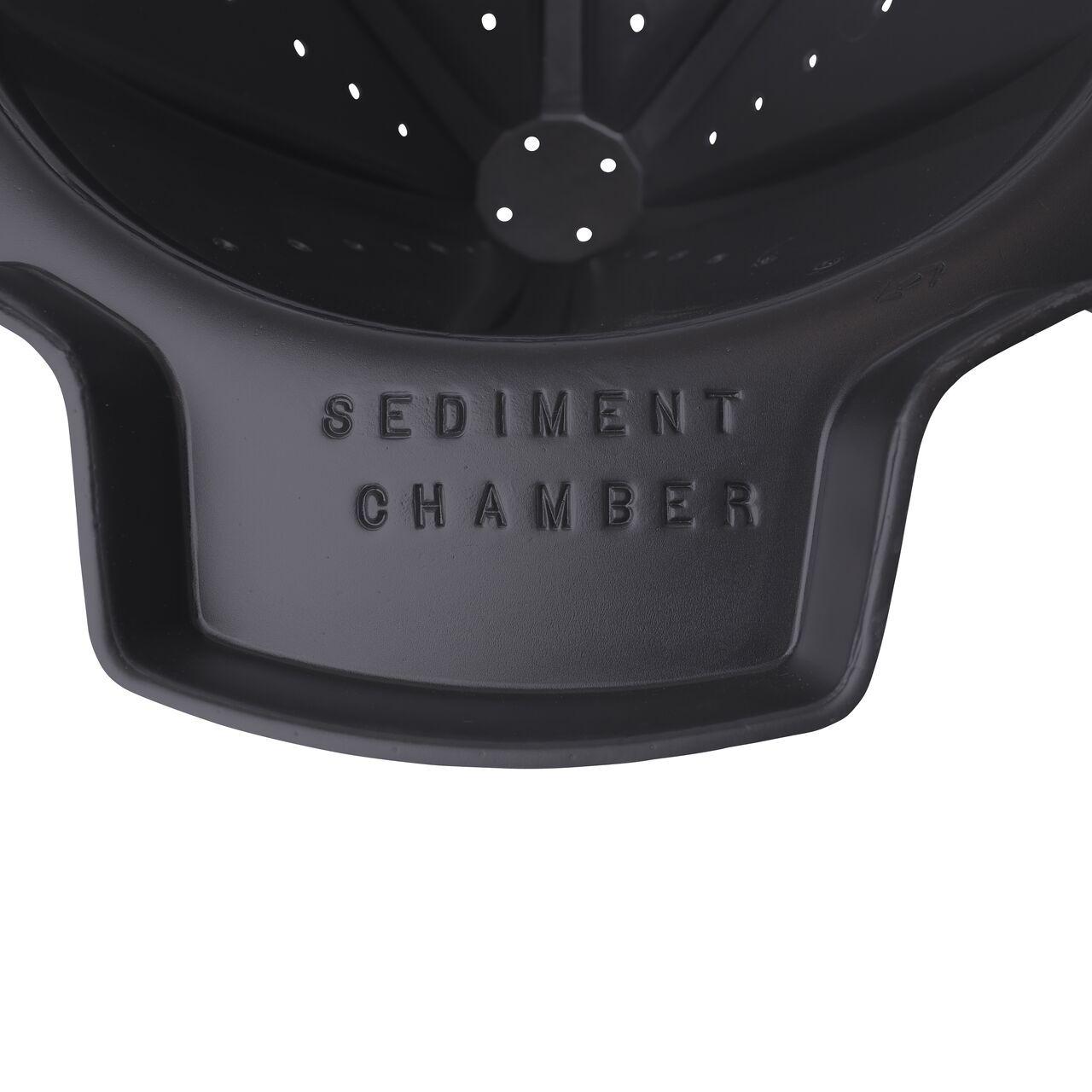

Closeup of the opening and the large shelf on the cone of the NDS Sediment Trap (NDS SC-ST)
Closeup of the corrugated pipe of the NDS SedimenTrap where the pipe meets the cone end (NDS SC-ST)
The NDS SedimenTrap sediment capture devices work with the StormChamber® stormwater system (NDS SC-ST)
Closeup of thebottom outlet side of the  NDS SedimenTrap (NDS SC-ST)
Closeup of the branding and lettering on the NDS SedimenTrap (NDS SC-ST)
Closeup of the reinforced ribs and the holes around the cone of the NDS SedimenTrap (NDS SC-ST)
Top Down closeup of the inside of the SeidmenTrap (NDS SC-ST)
Closeup of the corrugated pipe of the SedimenTrap (NDS SC-ST) showing it's opening including the outside wall of pipe
Side view of the NDS SedimenTrap showing the cone tip feature that filters out any debris (NDS SC-ST)
Alternate view of the SedimenTrap upside down to show how the underside looks (NDS SC-ST)
NDS SedimenTrap unassembled as the corrugated pipe and cone tip can be removed from each other (NDS SC-ST)
Closeup of the words on the left tab of the NDS SedimenTrap (NDS SC-ST)
Straight on view of the NDS SedimenTrap to show all the components (NDS SC-ST)
Top Down of the NDS SedimenTrap sediment capture devices work with the StormChamber® stormwater system (NDS SC-ST)
Closeup of the opening and the large shelf on the cone of the NDS Sediment Trap (NDS SC-ST)

Intercept sediments and other debris in stormwater runoff that can potentially harm the local ecology by using SedimenTrap™ sediment capture devices with the StormChamber® stormwater system. This patented filtration system works as a pre-treatment unit but at a fraction of the cost. Recommended use (at a minimum) is placement of one SedimenTrap device in the first chamber and one device in the final chamber or row. The first trap will capture most of the sediments, and any debris that escapes will inevitably be trapped in the second device. SedimenTrap devices are easy to inspect and maintain, and cleaning is done by air vacuuming rather than jet cleaning, saving water and cost.

Applications:

  • Patented filtration system intercepts sediments that enter the StormChamber® stormwater management system
  • The first SedimenTrap™ device is placed in the first chamber of the StormChamber® system and the second trap is placed the final chamber or row
  • As part of a complete stormwater management system, the SedimenTrap™ devices work with the StormChamber® system to intercept sediments and other debris in stormwater runoff

Features:

  • Filtration system works as a pre-treatment unit but at a fraction of the cost when placed in first and last chamber of the row receiving stormwater inflow
  • SedimenTrap™ device gathers sediments and other debris for quick, easy, and inexpensive removal by vacuum truck
  • Easy inspection using riser pipe as an observation well; inspection can be done without a third party involved
  • Removal of sediment from SedimenTrap™ device is done by air vacuuming, saving water and cost compared to jet cleaning
  • Regular inspection and proper cleaning will lower cost for operation and maintenance
