Root Barrier Rolls

Direct root growth from shrubs and trees downward and away from hardscapes with the root barrier molded roll. Can be used with same height root barrier panels. Available in 4 sizes.

Where to Buy

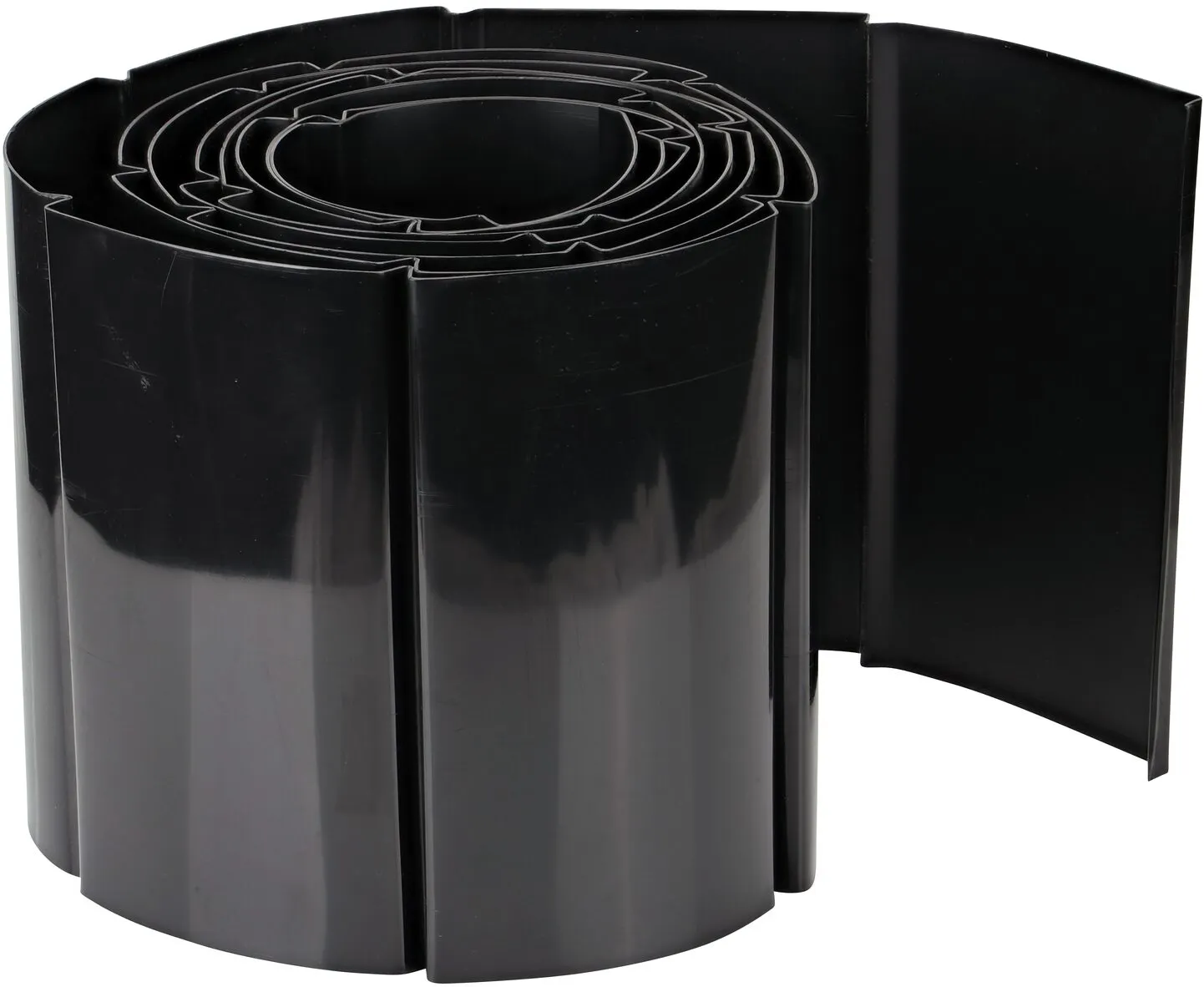

The 12 in. deep NDS Root Barrier Roll (NDS SM-1220) creates a water and root barrier to prevent costly damage to pavements, roads, and foundations
Where to Buy

Key Features

  • Roll includes built-in, vertical, and flared 90° root-deflecting ribs
  • Root-impervious molded end allows easy assembly with the use of staples or dual-sided solvent-based tape.
  • Durable material is treated with UV inhibitors and made of up to 50% recycled HDPE
  • Roll sizes: 12 in. X 20 ft.; 18 in. X 20 ft.; 24 in. X 20 ft.; and 36 in. X 20 ft.
  • Can be used with same height root barrier panels

Applications

  • Directs root growth from shrubs and trees downward and away from nearby hardscapes. Prevents costly property damage to pavements, roads, and building foundations
  • Ideal for use in planting applications directly adjacent to hardscape and use in individual tree planting
  • Root barrier rolls are available in rolls of 20 ft. lengths and 12 in., 18 in., 24 in., and 36 in. heights to form a protective barrier between roots and hardscapes

Installation & Maintenance

  • Cut sheet from roll to desired length, overlap and connect cut ends with staples or dual-sided solvent-based tape; place sheet at a distance around root ball to allow proper backfill
  • Integrated 90° root-deflecting ribs should always face root ball during installation
  • Check root barrier molded roll for damage; replace as needed

Materials & Sustainability

  • Roll material is made of durable high-density polyethylene (HDPE)
  • NDS root barriers are made of up to 50% post-consumer content and treated with  UV inhibitors
  • Made in the USA

Product Models

Filter results
Family
Color

4 products

    Part Number
    (click for more info)    		 Description
    SM-1220 12 in. X 20 ft. Root Barrier Molded Roll, Black
    SM-1820 18 in. X 20 ft. Root Barrier Molded Roll, Black
    SM-2420 24 in. X 20 ft. Root Barrier Molded Roll, Black
    SM-3620 36 in. X 20 ft. Root Barrier Molded Roll, Black
