Flo-Lock™ Gripper Couplings and Adapters

Use Flo-Lock™ gripper couplings and adapters to connect pipe and form a leak-proof joint with less chance of pull-out when properly installed. Helps prevent costly property damage, pipe corrosion, and system issues.

Where to Buy

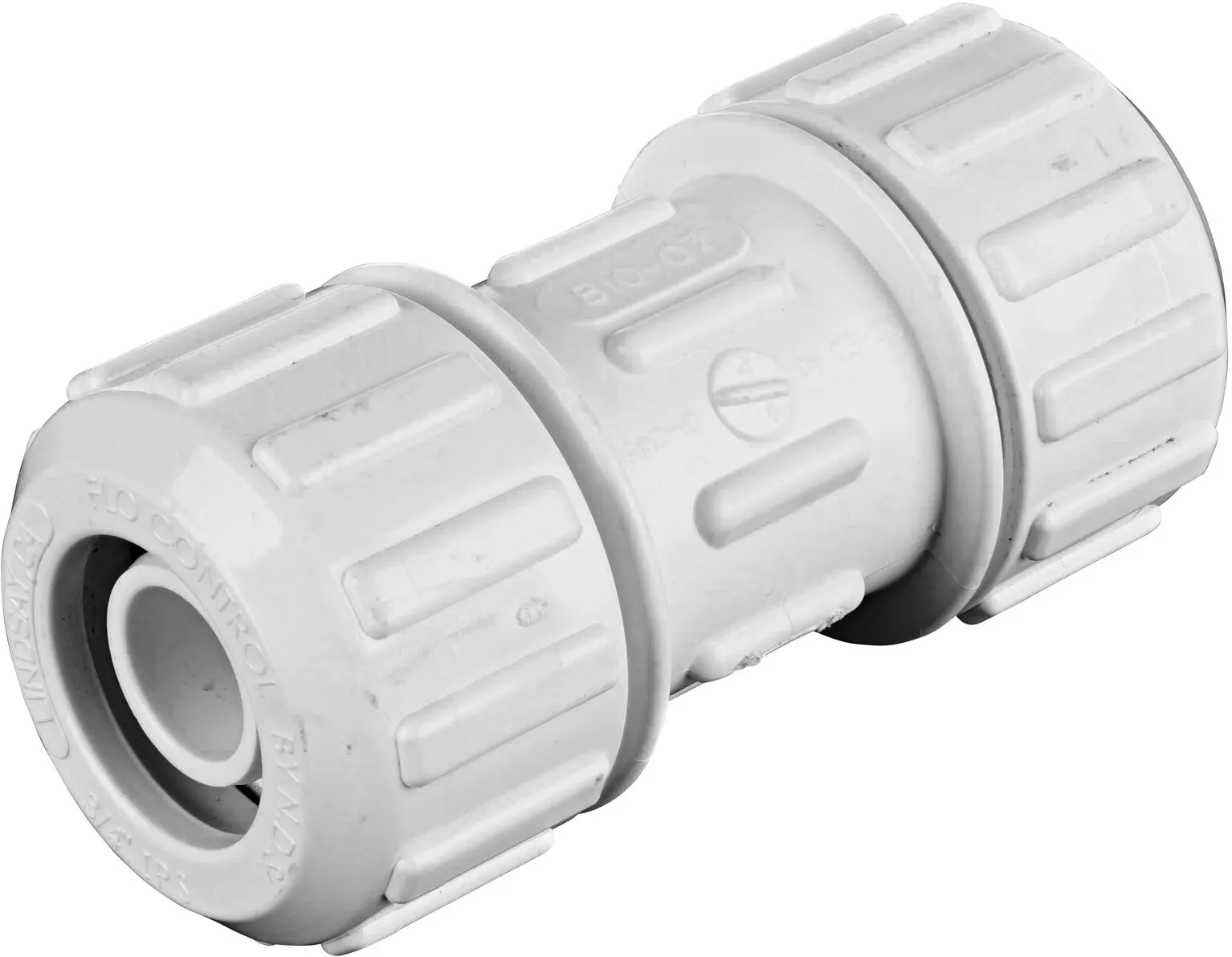

NDS 3/4 in. SIDR-7 Flo-Lock™ Gripper Coupling provides a leak-resistant connection between pipes (NDS 810-07)
Where to Buy

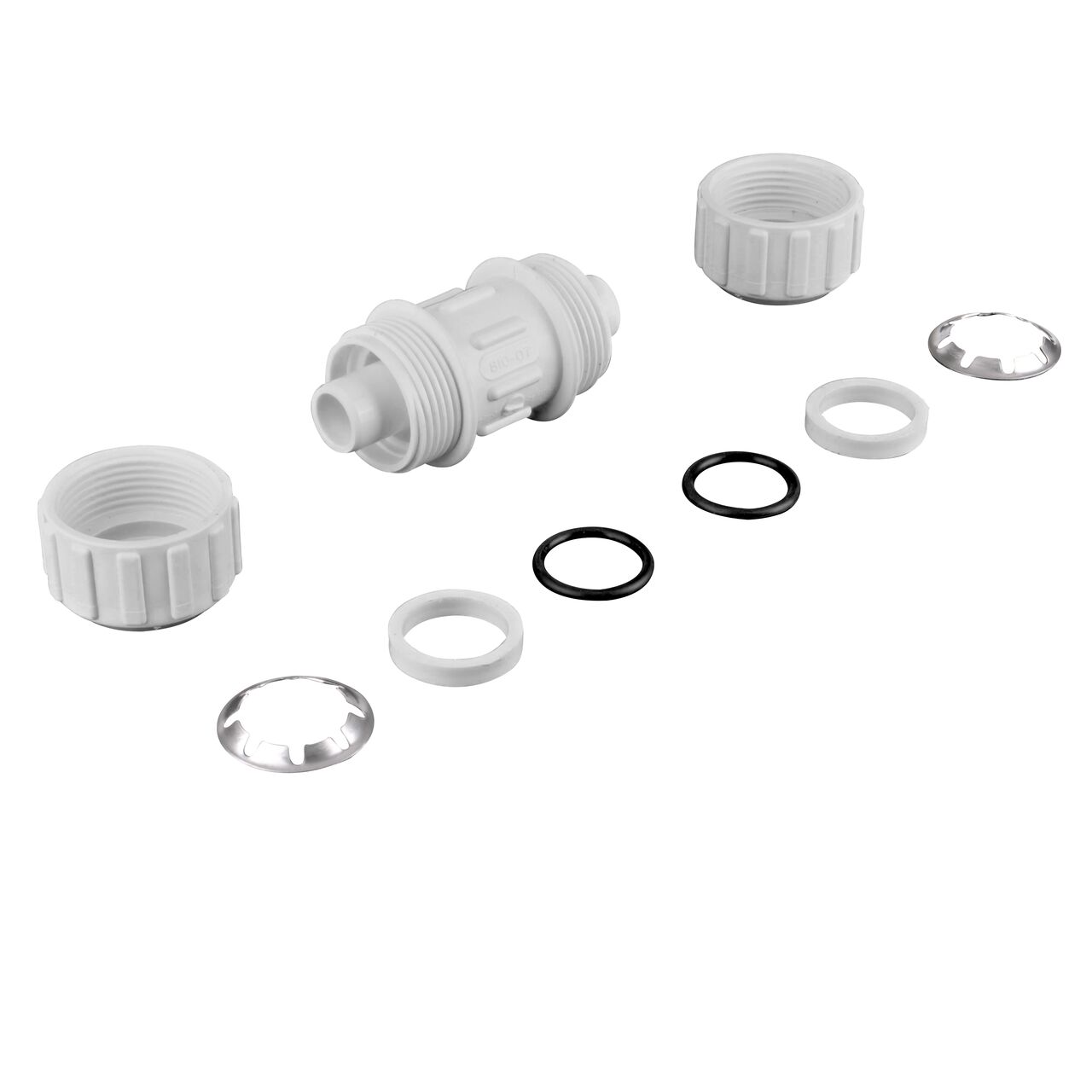

The NDS 3/4 in. SIDIR-7 Flo-Lock™ Gripper Coupling for PE Pipe fully unassembled showing the steel gripper, EPDM O-Ring and stiffner (NDS 810-07)

Key Features

  • Flo-Lock™ couplings and adapters are used to connect pipes; Flo-Lock™ products are installed in tubing or pipe systems to allow water to flow through freely
  • NDS offers a wide range of Flo-Lock™ gripper couplings and adapters to  work with a variety of pipe sizes and types
  • Gripper coupling provides a leak-resistant connection between two pipes
  • Gripper adapter provides a leak-resistant connection between smooth pipe and threaded pipe end
  • Gripper couplings and adapters are made of polyvinyl chloride (PVC)

Applications

  • Flo-Lock pipe couplings and adapters make water service line installations easy and provide a leak-resistant joint with less chance of pipe pull-out
  • Use for pool and spa, irrigation, and plumbing applications; works with most plastic pipe to transport water and provide a leak-resistant connection
  • Flo-Lock™ gripper fittings connect two pipes to allow water to flow through

Installation & Maintenance

  • Coupling has two compression ends that connect onto pipe; no glue required
  • Adapter has one compression end that connects onto pipe and one threaded end that connects to pipe end; no glue required
  • Gripper fitting performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Gripper couplings and adapters are made of polyvinyl chloride (PVC)
  • Gripper is made of steel; EPDM O-Ring
  • Parts made in the USA
  • Onsite flow management helps provide a leak
  • and corrosion-free system

Product Models

Filter results
Family
Color

55 products

    Part Number
    (click for more info)    		 Description
    831-10 Flo-Lock™ PVC Gripper Adapter for PE Pipe, 1 in. SIDR-7 FPT X 1 in. PE TS, White
    830-10 Flo-Lock™ PVC Gripper Adapter for PE Pipe, 1 in. SIDR-7 MPT X 1 in. PE TS, White
    831-07 Flo-Lock™ PVC Gripper Adapter for PE Pipe, 3/4 in. SIDR-7 FPT X 3/4 in. PE TS, White
    830-07 Flo-Lock™ PVC Gripper Adapter for PE Pipe, 3/4 in. SIDR-7 MPT X 3/4 in. PE TS, White
    935-10 Flo-Lock™ PVC Gripper Adapter, 1 in. CTS FPT X IPS Spigot, White
    235-10 Flo-Lock™ PVC Gripper Adapter, 1 in. CTS X 1 in. CTS MPT, White
    733-10 Flo-Lock™ PVC Gripper Adapter, 1 in. IPS Spigot X 1 in. SDR-9 CTS, White
    136-10 Flo-Lock™ PVC Gripper Adapter, 1 in. IPS X 1 in. IPS FPT, White
    135-10 Flo-Lock™ PVC Gripper Adapter, 1 in. IPS X 1 in. IPS MPT, White
    731-10 Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1 in. FPT, White
    730-10 Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1 in. MPT, White
    731-12-10 Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1-1/4 in. FPT, White
    235-05 Flo-Lock™ PVC Gripper Adapter, 1/2 in. CTS X 1/2 in. CTS MPT, White
    136-05 Flo-Lock™ PVC Gripper Adapter, 1/2 in. IPS X 1/2 in. IPS FPT, White
    135-05 Flo-Lock™ PVC Gripper Adapter, 1/2 in. IPS X 1/2 in. IPS MPT, White
    235-15 Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. CTS X 1-1/2 in. CTS MPT, White
    733-15 Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. IPS Spigot X 1-1/2 in. SDR-9 CTS, White
    135-15 Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. IPS X 1-1/2 in. IPS MPT, White
    731-15 Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. SDR-9 CTS X 1-1/2 in. FPT, White
    730-15 Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. SDR-9 CTS X 1-1/2 in. MPT, White
    935-125 Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. CTS FPT X 1-1/2 IPS S, White
    733-12 Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. IPS Spigot X 1-1/4 in. SDR-9 CTS, White
    135-12 Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. IPS X 1-1/4 in. IPS MPT, White
    731-12 Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. SDR-9 CTS X 1-1/4 in. FPT, White
    730-12 Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. SDR-9 CTS X 1-1/4 in. MPT, White
    935-20 Flo-Lock™ PVC Gripper Adapter, 2 in. CTS FPT X 2 IPS S, White
    235-20 Flo-Lock™ PVC Gripper Adapter, 2 in. CTS X 2 in. CTS MPT, White
    733-20 Flo-Lock™ PVC Gripper Adapter, 2 in. IPS Spigot X 2 in. SDR-9 CTS, White
    135-20 Flo-Lock™ PVC Gripper Adapter, 2 in. IPS X 2 in. IPS MPT, White
    731-20 Flo-Lock™ PVC Gripper Adapter, 2 in. SDR-9 CTS X 2 in. FPT, White
    730-20 Flo-Lock™ PVC Gripper Adapter, 2 in. SDR-9 CTS X 2 in. MPT, White
    935-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. CTS FPT X IPS Spigot, White
    733-71 Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS Spigot X 1 in. SDR-9 CTS, White
    733-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS Spigot X 3/4 in. SDR-9 CTS, White
    136-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS X 3/4 in. IPS FPT, White
    135-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS X 3/4 in. IPS MPT, White
    730-71 Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 1 in. MPT, White
    731-71 Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 1 in. FPT, White
    731-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 3/4 in. FPT, White
    730-07 Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 3/4 in. MPT, White
    810-10 Flo-Lock™ PVC Gripper Coupling for PE Pipe, 1 in. SIDR-7, White
    810-07 Flo-Lock™ PVC Gripper Coupling for PE Pipe, 3/4 in. SIDR-7, White
    112-10 Flo-Lock™ PVC Gripper Coupling, 1 in. IPS, White
    710-10 Flo-Lock™ PVC Gripper Coupling, 1 in. SDR-9 CTS, White
    112-05 Flo-Lock™ PVC Gripper Coupling, 1/2 in. IPS, White
    112-15 Flo-Lock™ PVC Gripper Coupling, 1-1/2 in. IPS, White
    112-12 Flo-Lock™ PVC Gripper Coupling, 1-1/4 in. IPS, White
    710-12 Flo-Lock™ PVC Gripper Coupling, 1-1/4 in. SDR-9 CTS X 1-1/4 in. PE TS, White
    112-20 Flo-Lock™ PVC Gripper Coupling, 2 in. IPS, White
    710-20 Flo-Lock™ PVC Gripper Coupling, 2 in. SDR-9 CTS, White
    112-07 Flo-Lock™ PVC Gripper Coupling, 3/4 in. IPS, White
    710-07 Flo-Lock™ PVC Gripper Coupling, 3/4 in. SDR-9 CTS, White
    710-17 Flo-Lock™ PVC Gripper Reducer Coupling, 1 in. SDR-9 CTS X 3/4 in. SDR-11, White
    710-17-9 Flo-Lock™ PVC Gripper Reducer Coupling, 1 in. SDR-9 CTS X 3/4 in. SDR-9 CTS, White
    710-15 Flo-Lock™ PVC Gripper Reducer Coupling, 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS, White

    Specifications & Documents
