Flo-Lock™ PVC Gripper Reducer Coupling, 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS, White

SKU: 710-15

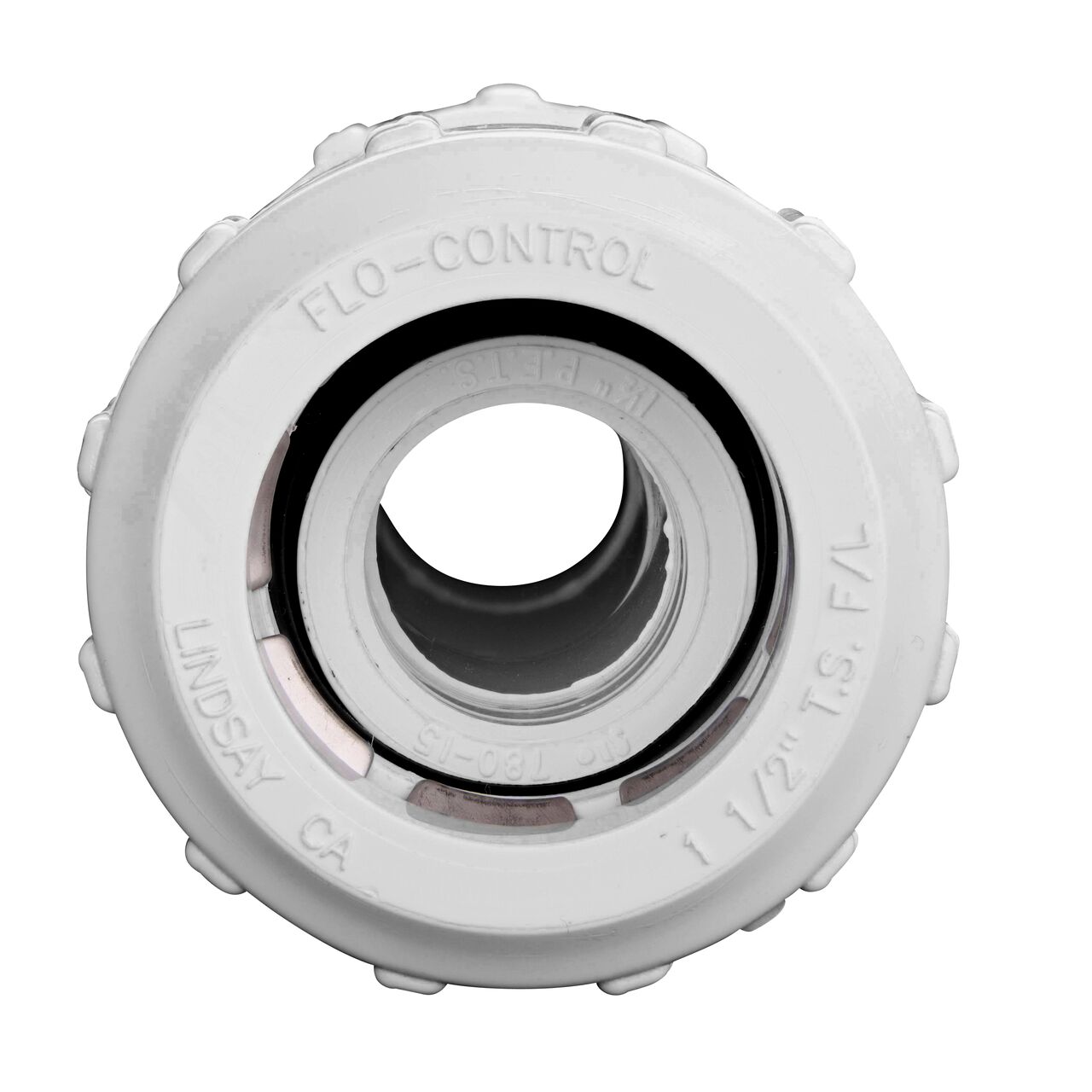

Steel Gripper and EPDM O-Ring provides a leak proof connection on the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)

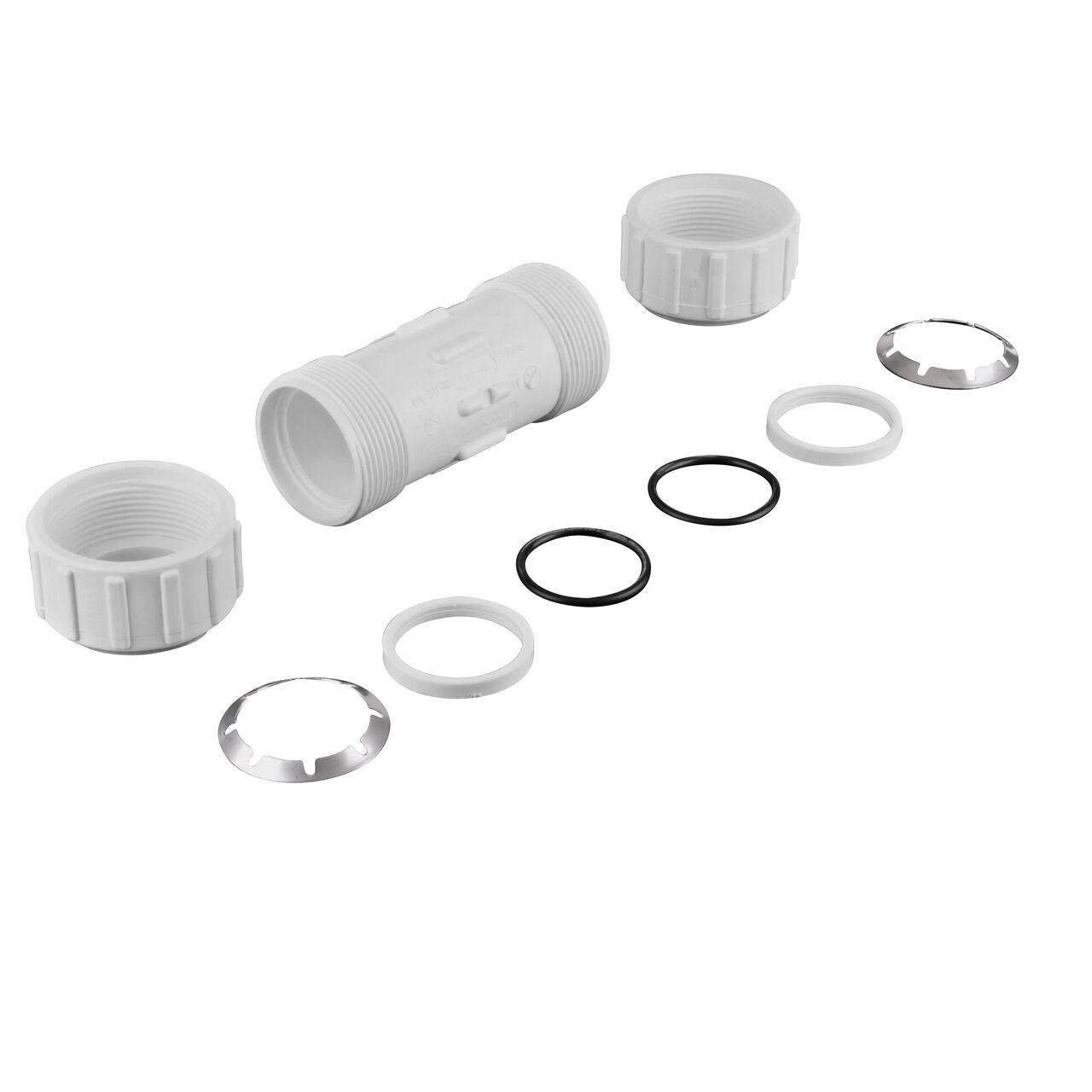

The NDS 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS Flo-Lock™ Gripper Reducer Coupling fully unassembled showing the steel gripper and EPDM O-Ring (NDS 710-15)

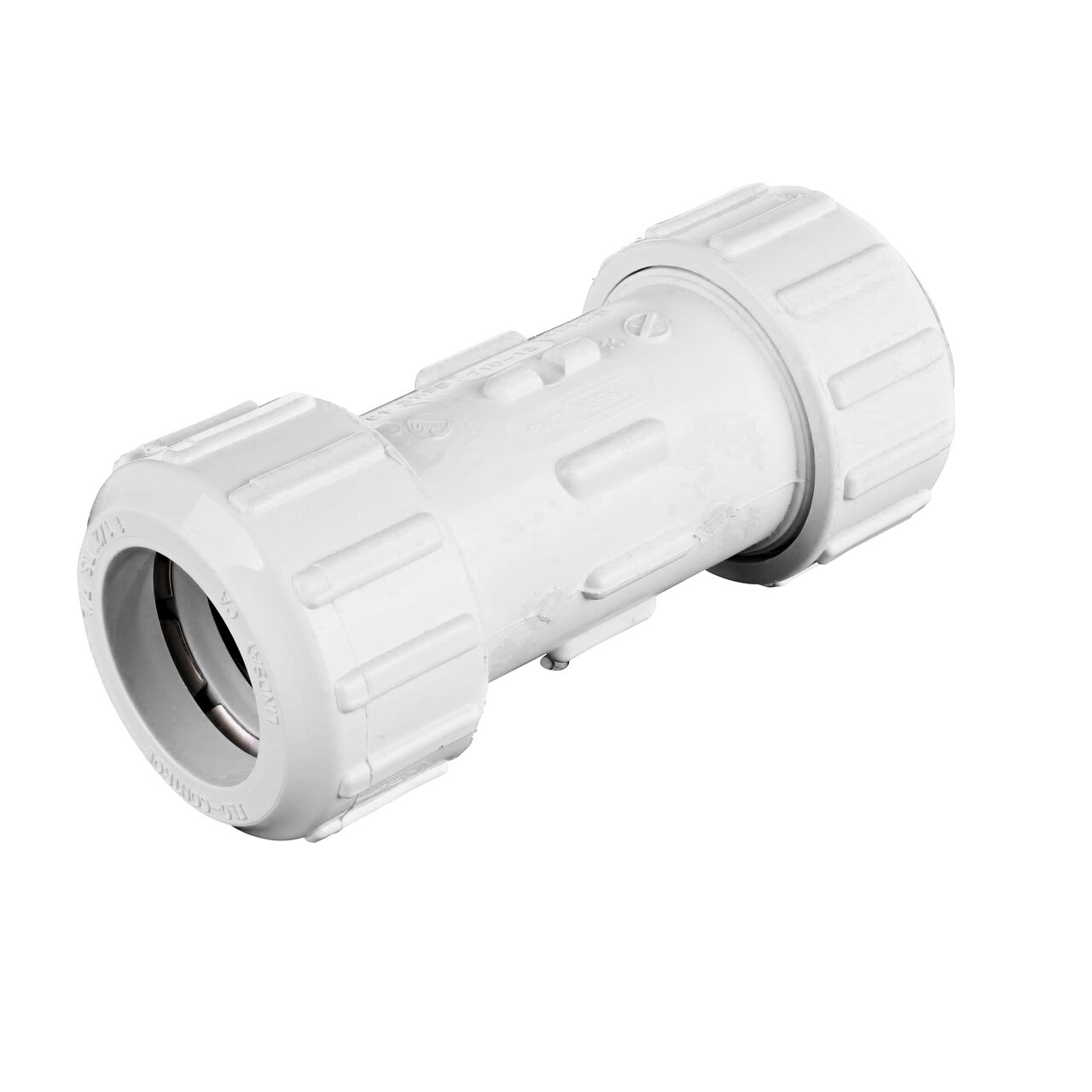

The 1 1/2 inch compression end of the NDS Flo-Lock Gripper Reducer Coupling (NDS 710-15) which includes a 1 1/2 inch compression end for SDR-9 CTS pipe and and a 1 1/4 inch compression end that connects to PE TS pipe (NDS 710-15)

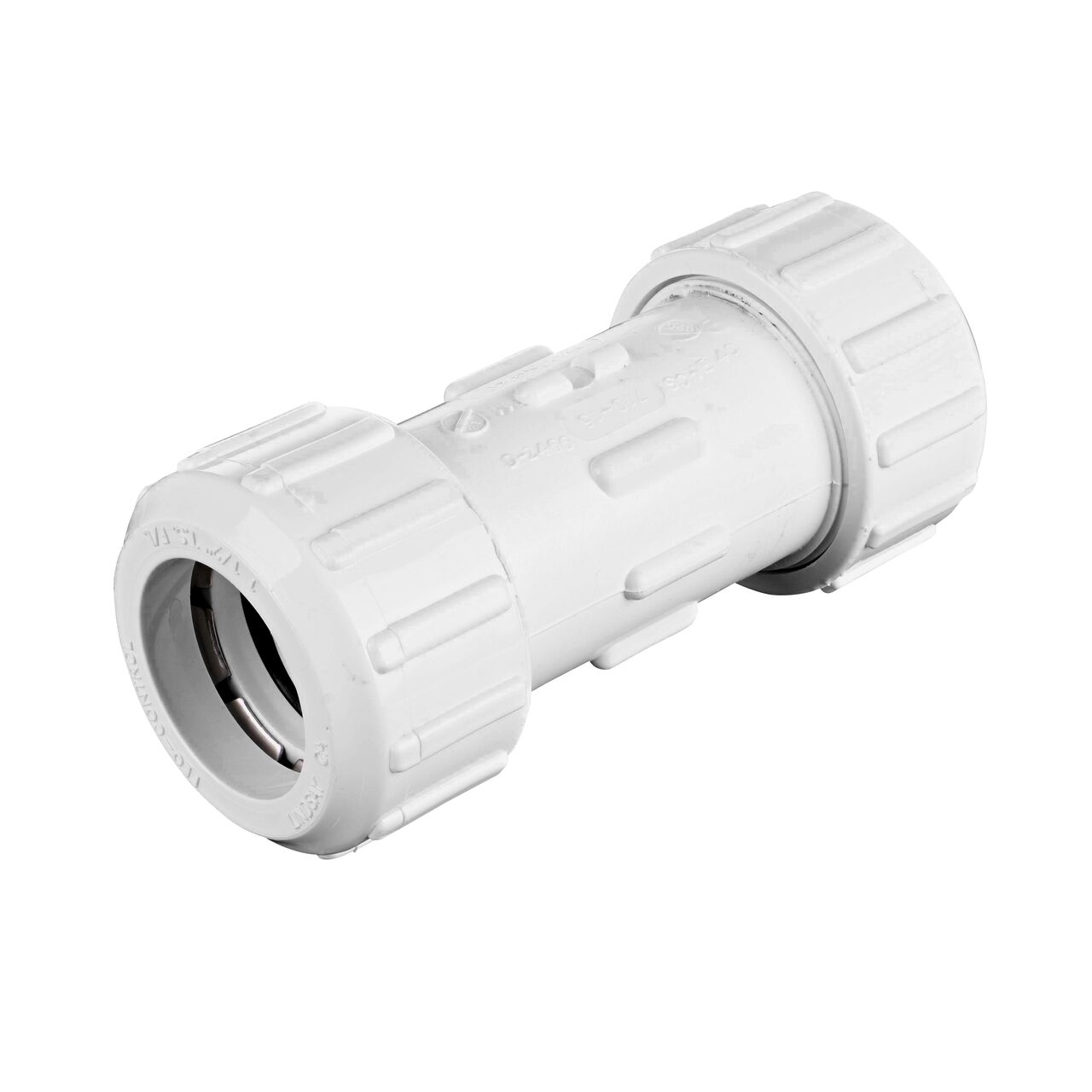

The 1 1/4 in. Flo Lock compression end of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)

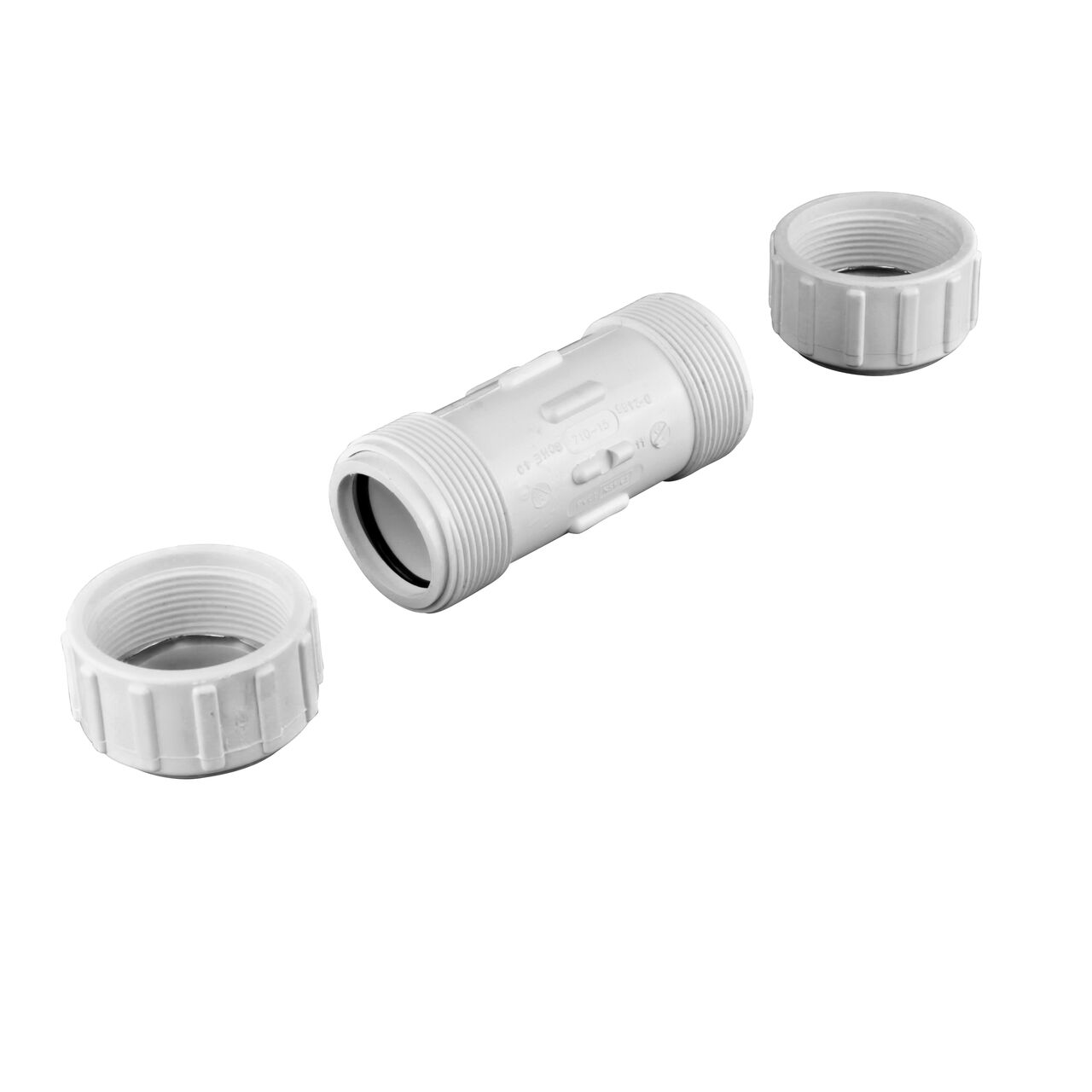

Unassembled NDS 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS Flo-Lock™ Gripper Reducer Coupling showing where the two ends come apart to secure the coupling to the pipe (NDS 710-15)

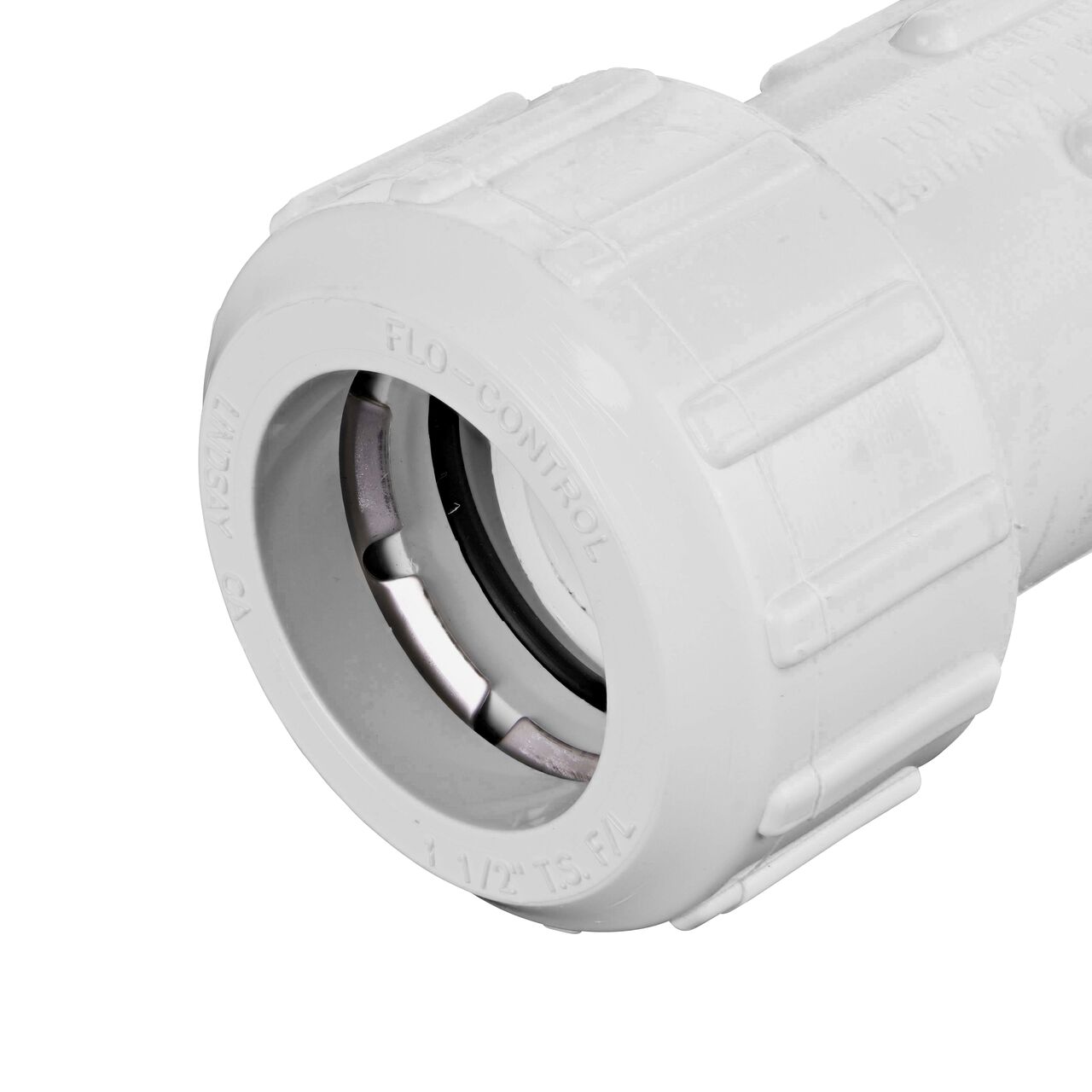

Closeup of the 1 1/2 inch compression end of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)

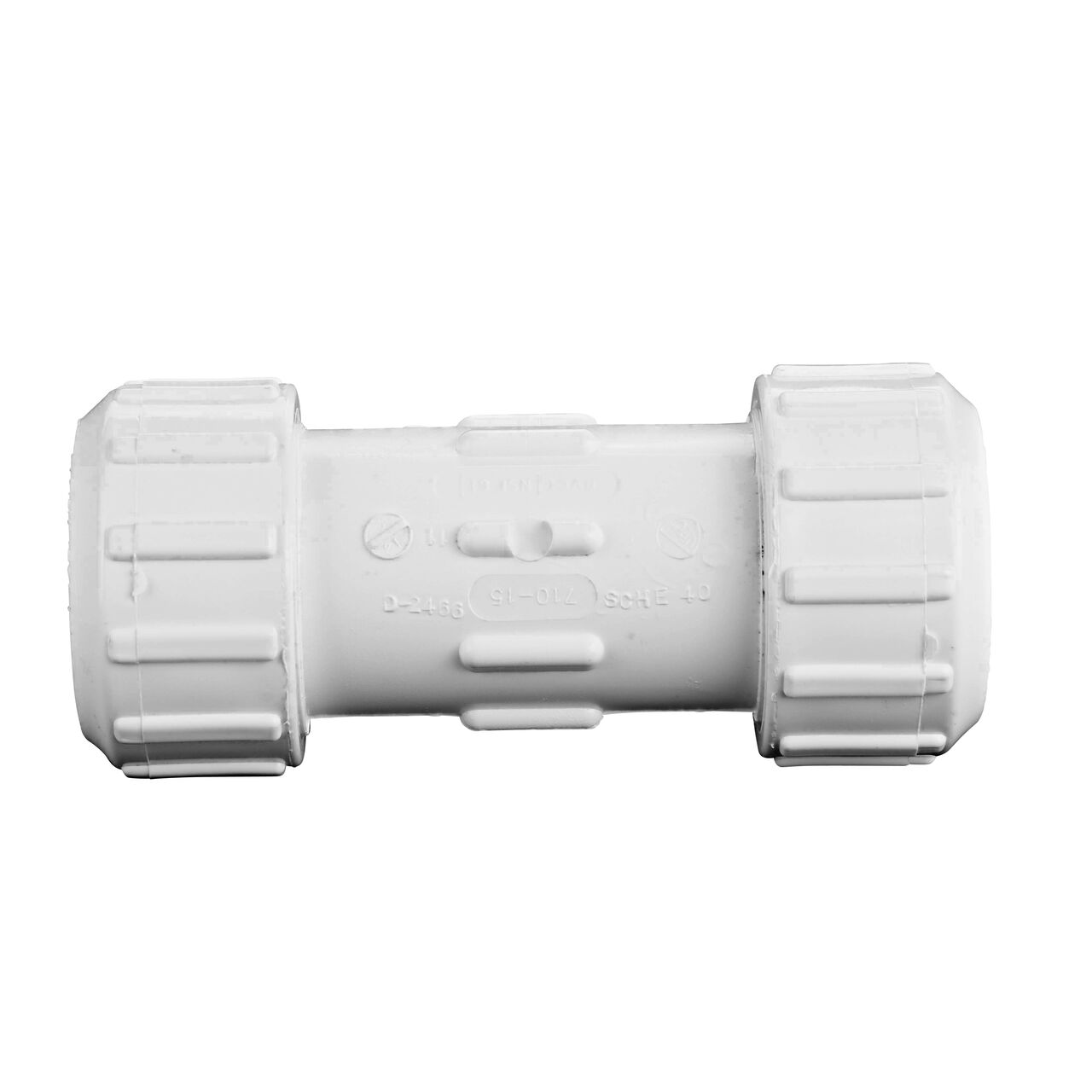

Side view of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)
Steel Gripper and EPDM O-Ring provides a leak proof connection on the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)
The NDS 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS Flo-Lock™ Gripper Reducer Coupling fully unassembled showing the steel gripper and EPDM O-Ring (NDS 710-15)
The 1 1/2 inch compression end of the NDS Flo-Lock Gripper Reducer Coupling (NDS 710-15) which includes a 1 1/2 inch compression end for SDR-9 CTS pipe and and a 1 1/4 inch compression end that connects to PE TS pipe (NDS 710-15)
The 1 1/4 in. Flo Lock compression end of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)
Unassembled NDS 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS Flo-Lock™ Gripper Reducer Coupling showing where the two ends come apart to secure the coupling to the pipe (NDS 710-15)
Closeup of the 1 1/2 inch compression end of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)
Side view of the NDS Flo-Lock Gripper 1 1/2 in. to 1 1/4 in. Reducer Coupling (NDS 710-15)

Use the Flo-Lock™ PVC Gripper Reducer Coupling, 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS to connect pipes and help provide a leak-proof connection. This easy-fit coupling has one 1-1/2 in. SDR-9 CTS compression end and one 1-1/4 in. PE TS compression end to connect pipe and can form a leak-proof joint with less chance of pull-out when properly installed. Helps prevent costly property damage, pipe corrosion, and system issues. Durable gripper coupling is made of PVC plastic. Gripper is made of steel. O-Ring is made of EPDM. Use fittings and other valves to set up a new irrigation system, expand an existing system, or make repairs.

Where to Buy Find a Pro

Applications:

  • Flo-Lock pipe couplings make water service line installations easy and provide a leak-resistant joint with less chance of pipe pull-out
  • Use for pool and spa, irrigation, and plumbing applications; works with most CTS pipe to transport water and provide a leak-resistant connection
  • As part of a complete flow management system, the Flo-Lock™ Gripper Coupling connects 1-1/2 in. SDR-9 CTS and 1-1/4 in. PE TS pipe ends to allow water to flow through

Features:

  • Includes an insert stiffener that must be used with this fitting
  • Coupling has a steel gripper
  • Coupling has an EPDM O-Ring
  • Coupling is NSF/ANSI 61 + 372 listed, ASTM D-2737, UPC
  • Works with NDS products and other products with compatible connection type
