Backwater Valves

Prevent street sewer waste from backflowing into basements or low areas with the backwater valve. Valve is lightweight and easy to install. Horizontal installation required; arrows on valve hub point in the direction of water flow.

Where to Buy

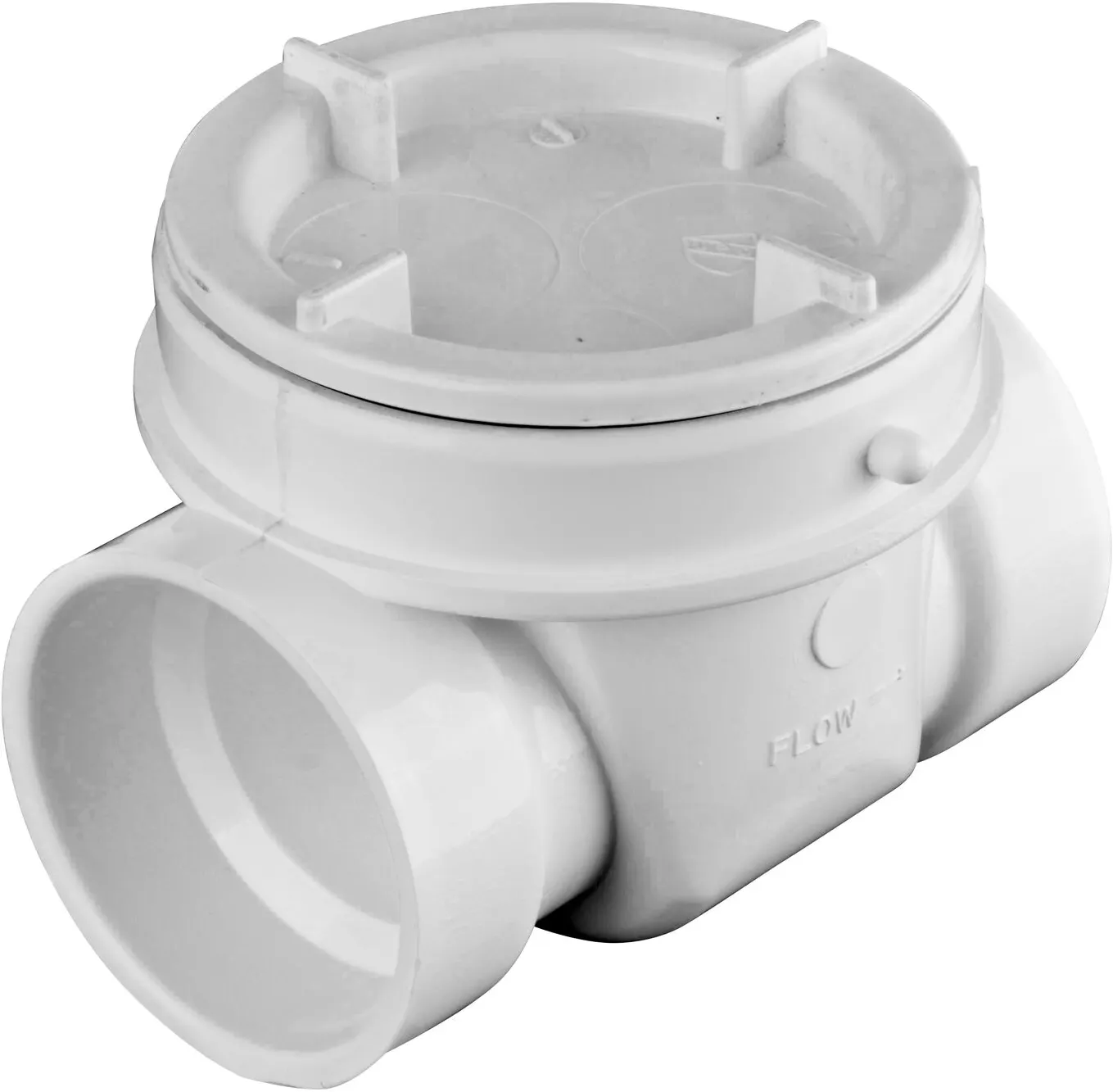

The NDS White 2 in. PVC Backwater Valve (NDS 275P) prevents street sewer waste from backflowing into basements or low areas
Where to Buy

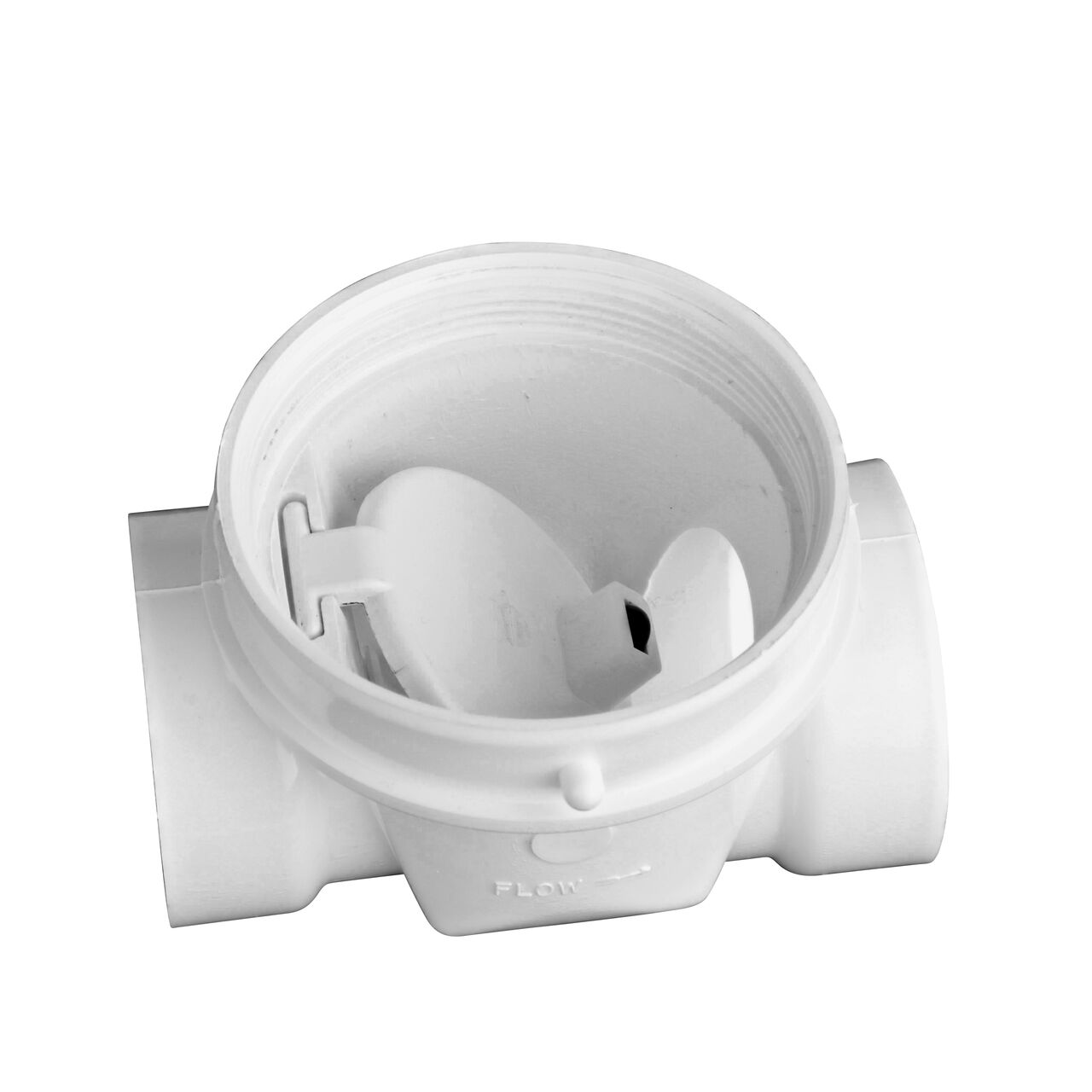

The flapper opened inside of the NDS White 2 in. PVC Backwater Valve (NDS 275P) controls the flow of water

Key Features

  • Backwater valves have a quick action flapper to allow unrestricted uni-directional flow
  • NDS offers 2 in. – 6 in. PVC or ABS backwater valves and 4 in. PVC or ABS diverter valves
  • Backwater valves are a chemically resistant alternative to cast iron valves
  • Diverter valves direct flow one-way to individual or multiple septic tank leach fields; valve stem is used to divert flow through limited outlets
  • remove stem to allow flow through all outlets
  • Both backwater and diverter valves are made of polyvinyl chloride (PVC) or acrylonitrile butadiene styrene (ABS)

Applications

  • Use backwater valves for low basement areas and sewage system installations; works with most DWV pipe to transport waste and prevent backflow in pressurized systems
  • Use diverter valves for septic tank leach fields and sewage system installations

Installation & Maintenance

  • Backwater valve has two ends that connect to DWV pipe; need solvent cement to keep in place
  • Diverter valve has four ends that connect to sewer and drain pipe; need solvent cement to keep in place
  • Valve performance issues can indicate damage or clogging; service or replace as needed

Materials & Sustainability

  • Both backwater and diverter valves are made of polyvinyl chloride (PVC) or acrylonitrile butadiene styrene (ABS)
  • Backwater valve flapper gasket is made of elastomeric material; access cap gasket is made of neoprene material
  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Filter results
Family
Color

14 products

    Part Number
    (click for more info)    		 Description
    275 ABS Backwater Valve, 2 in., Black
    375 ABS Backwater Valve, 3 in., Black
    475 ABS Backwater Valve, 4 in., Black
    675 ABS Backwater Valve, 6 in., Black
    575 ABS Diverter Valve, 4 in., Black
    1530603 PVC Backwater Valve Flapper, 6 in., White
    475PS PVC Backwater Valve with Adapter, 4 in., White
    375PR PVC Backwater Valve with Riser and Cover, 3 in., White
    475PR PVC Backwater Valve with Riser and Cover, 4 in., White
    275P PVC Backwater Valve, 2 in., White
    375P PVC Backwater Valve, 3 in., White
    475P PVC Backwater Valve, 4 in., White
    675P PVC Backwater Valve, 6 in., White
    575P PVC Diverter Valve, 4 in., White

    Specifications & Documents
