PVC Spring Check Valve, 2-1/2 in. IPS S X S, 5 lb. Spring, White

SKU: 1015-25

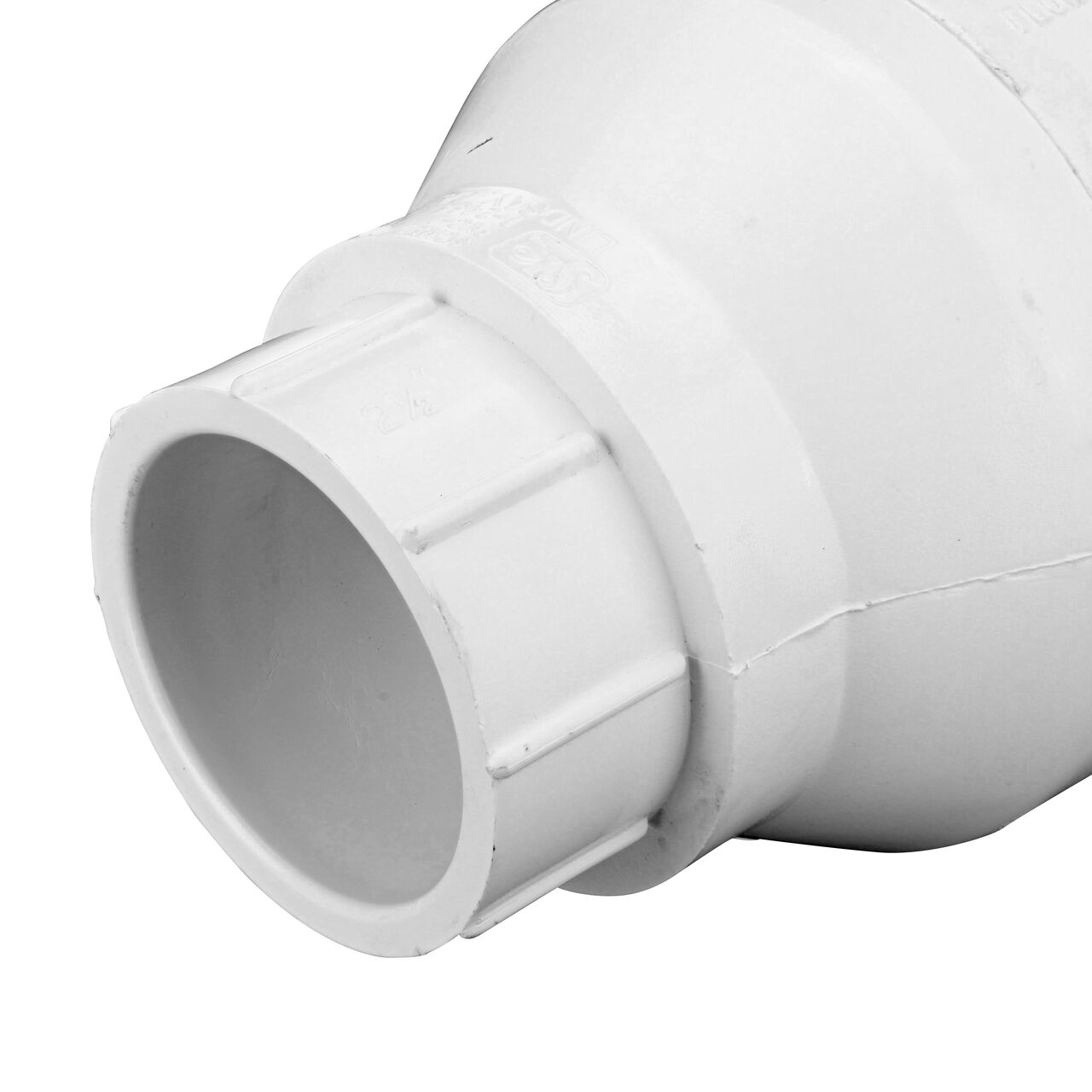

Closeup view of the outlet end on the 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)

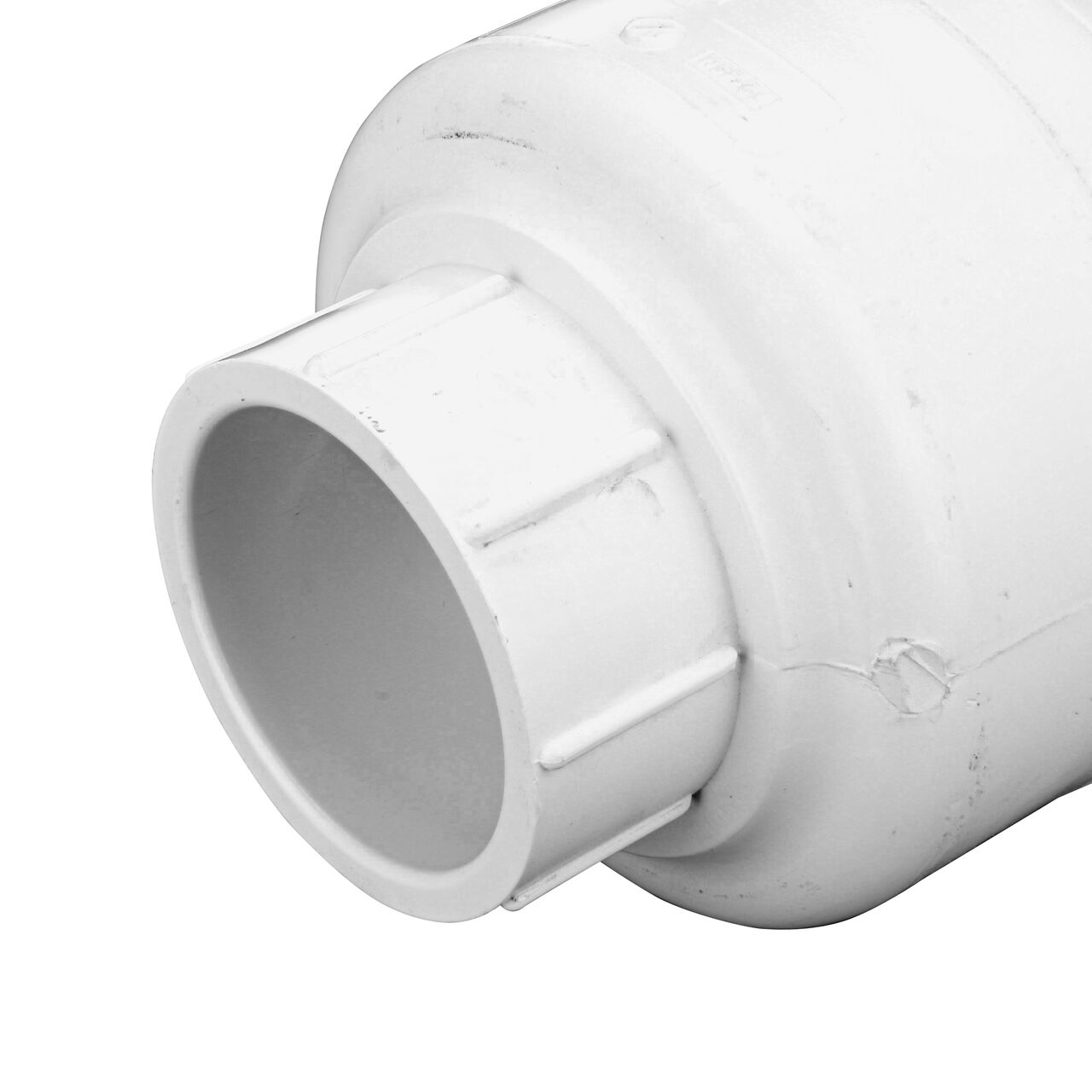

Closeup view of the inlet end on the 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)

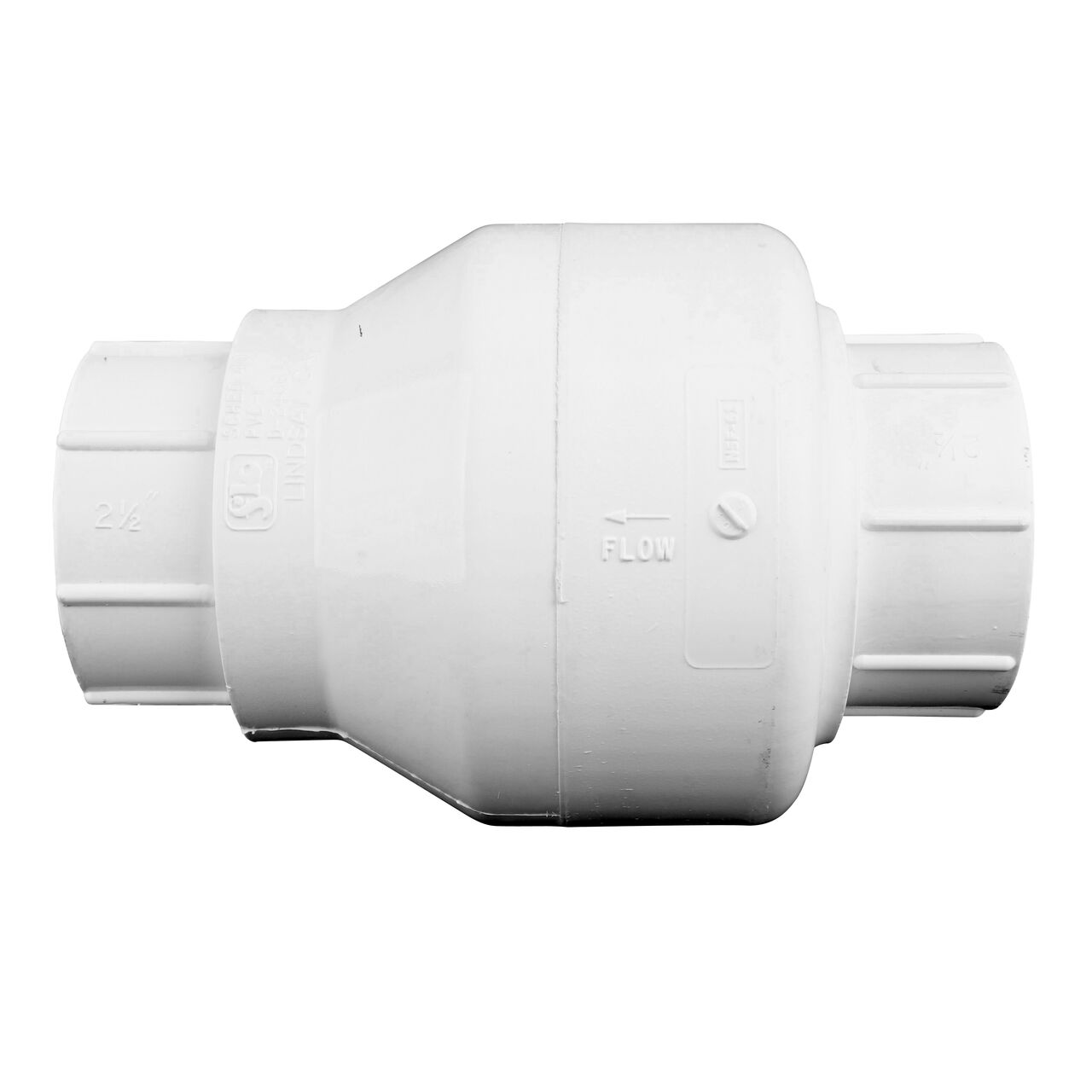

Side to side view Slope end to the left of the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)

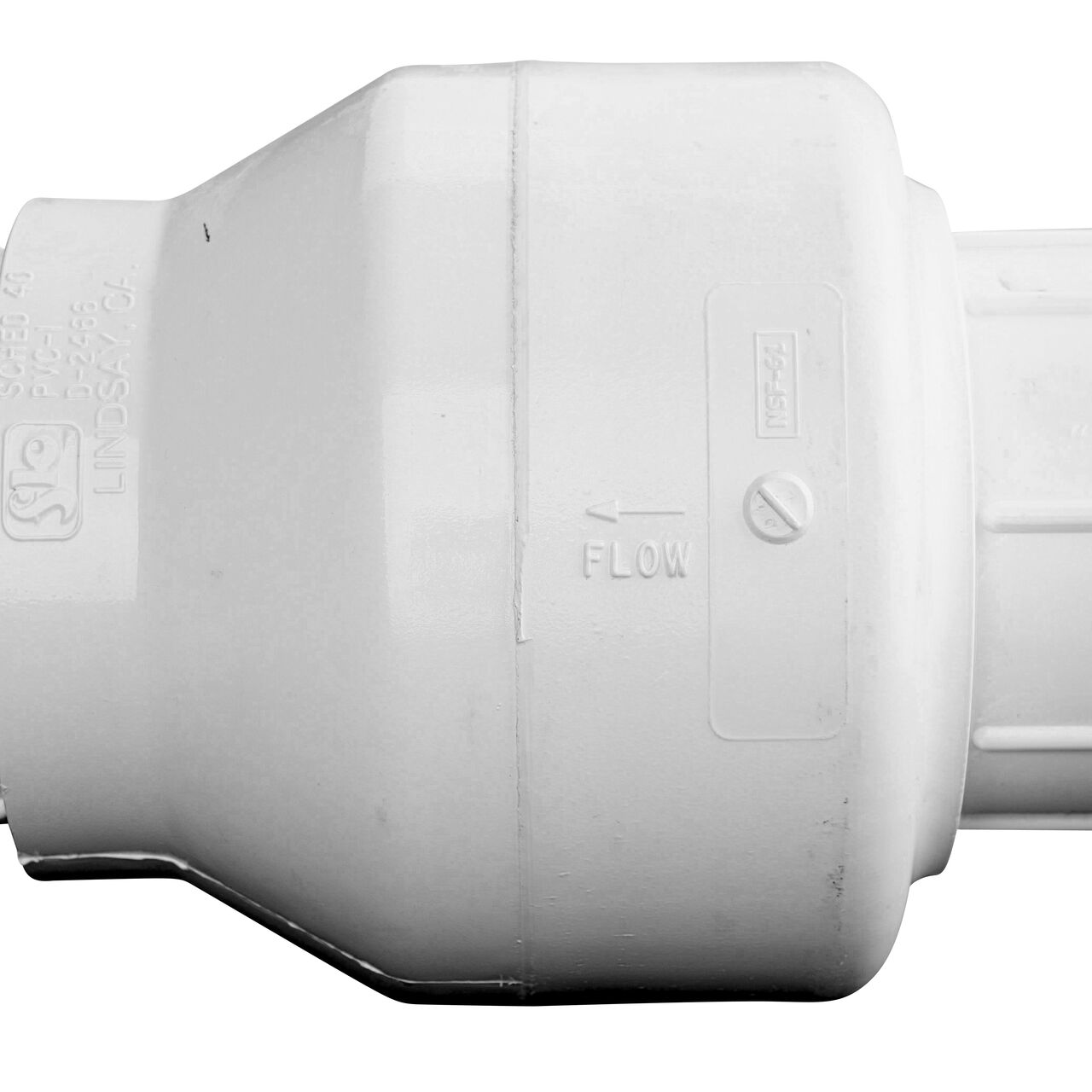

Closeup of the arrow showing water flow of the Clear 2-1/2 in. slip end by slip end PVC Spring Check Valve (NDS 1012-25, NDS 1015-25)

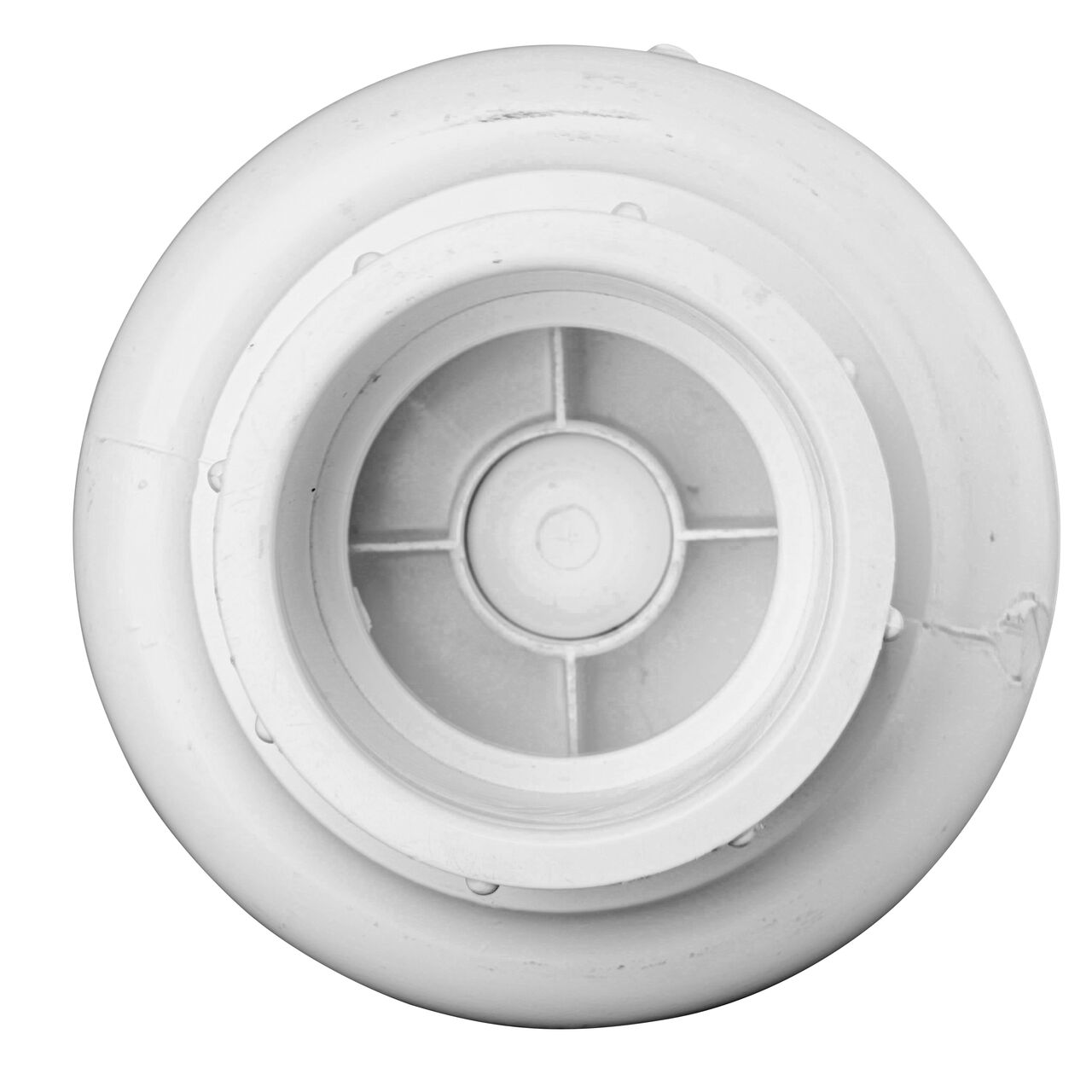

Straight on view of the inside of the inlet end on the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) showing the flapper

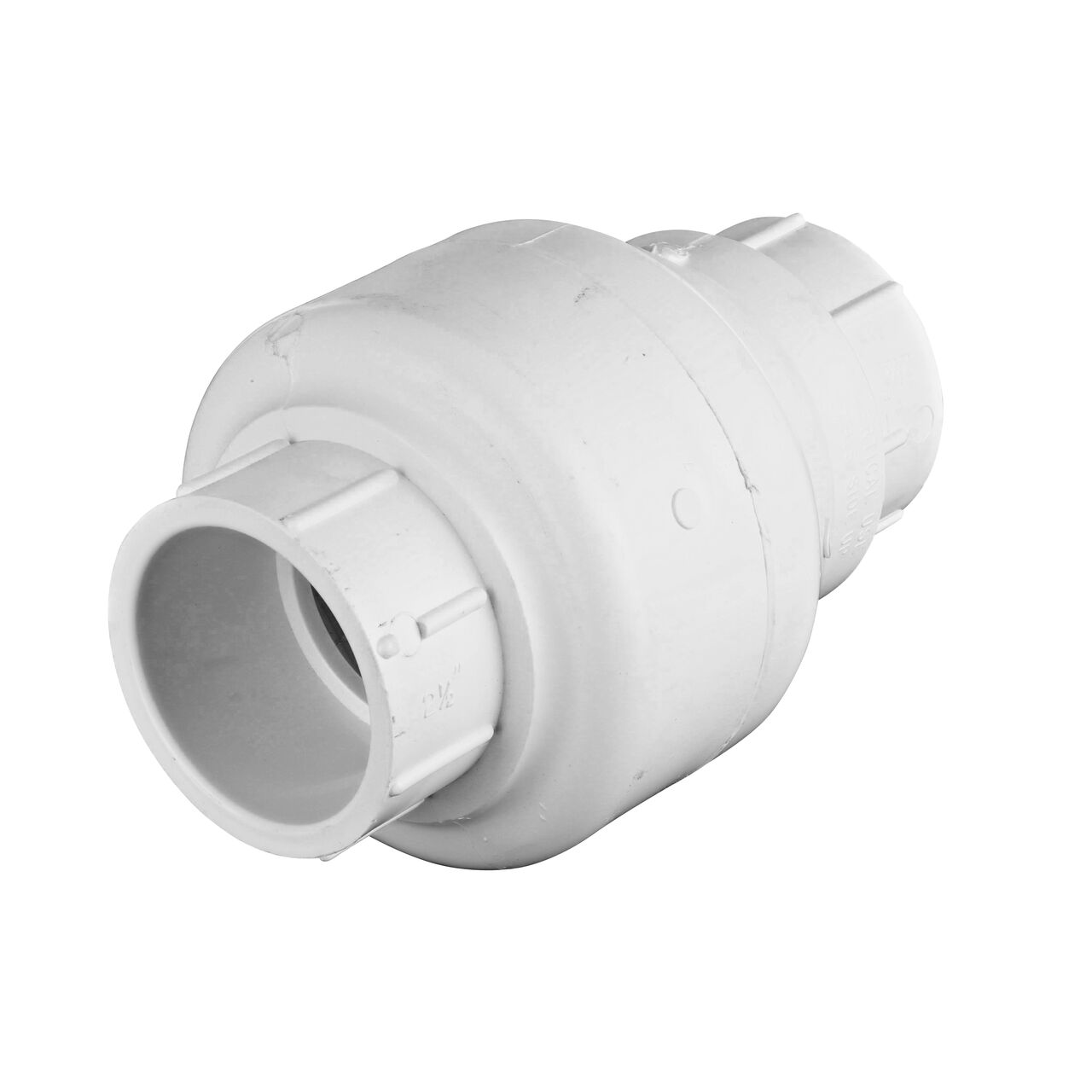

The inlet end of the NDS 2-1/2 in. IPS Spring Check Valve (NDS 1012-25, NDS 1015-25) connects to 2-1/2 in. IPS pipe

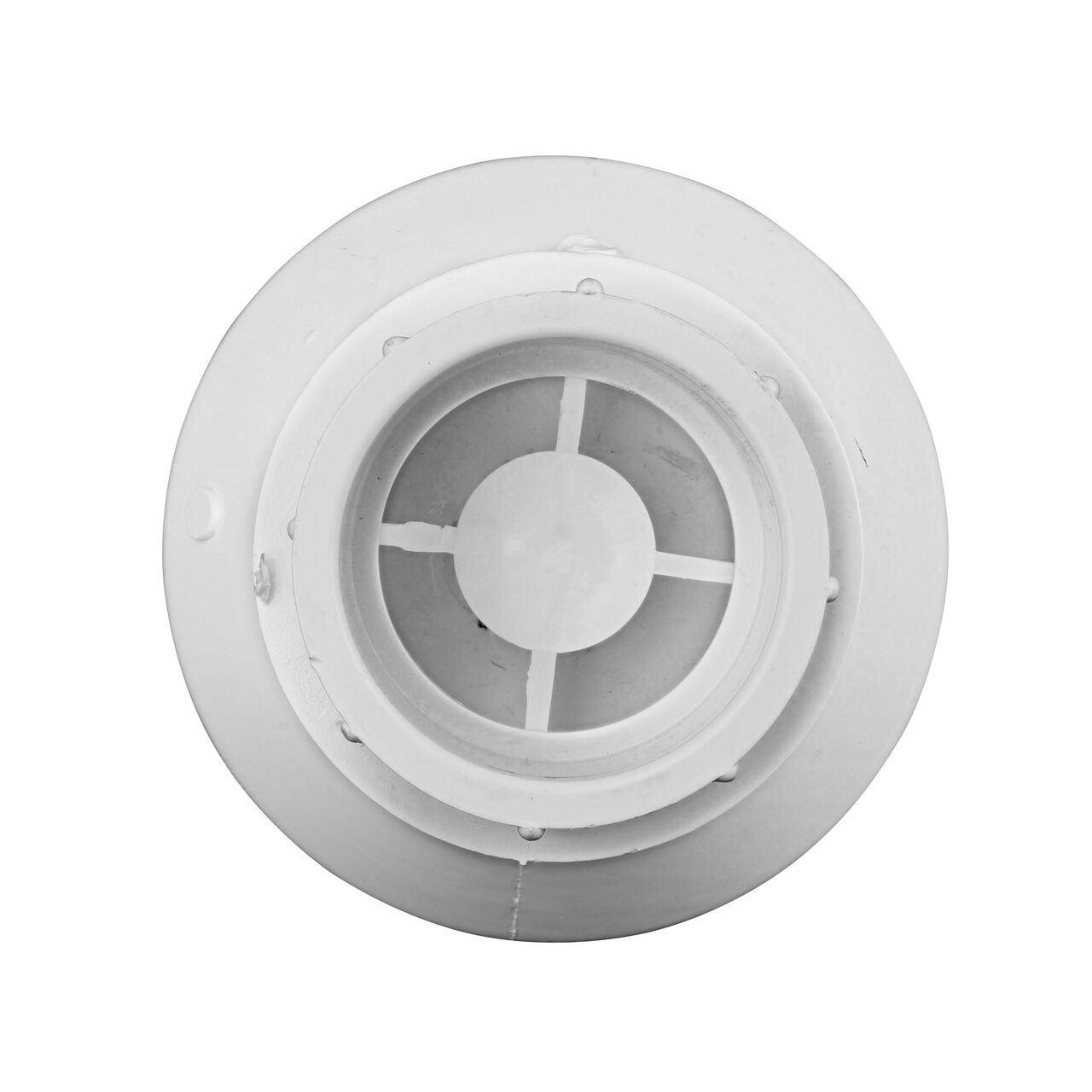

Straight on view of the inside on the outlet end of the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) showing the flapper

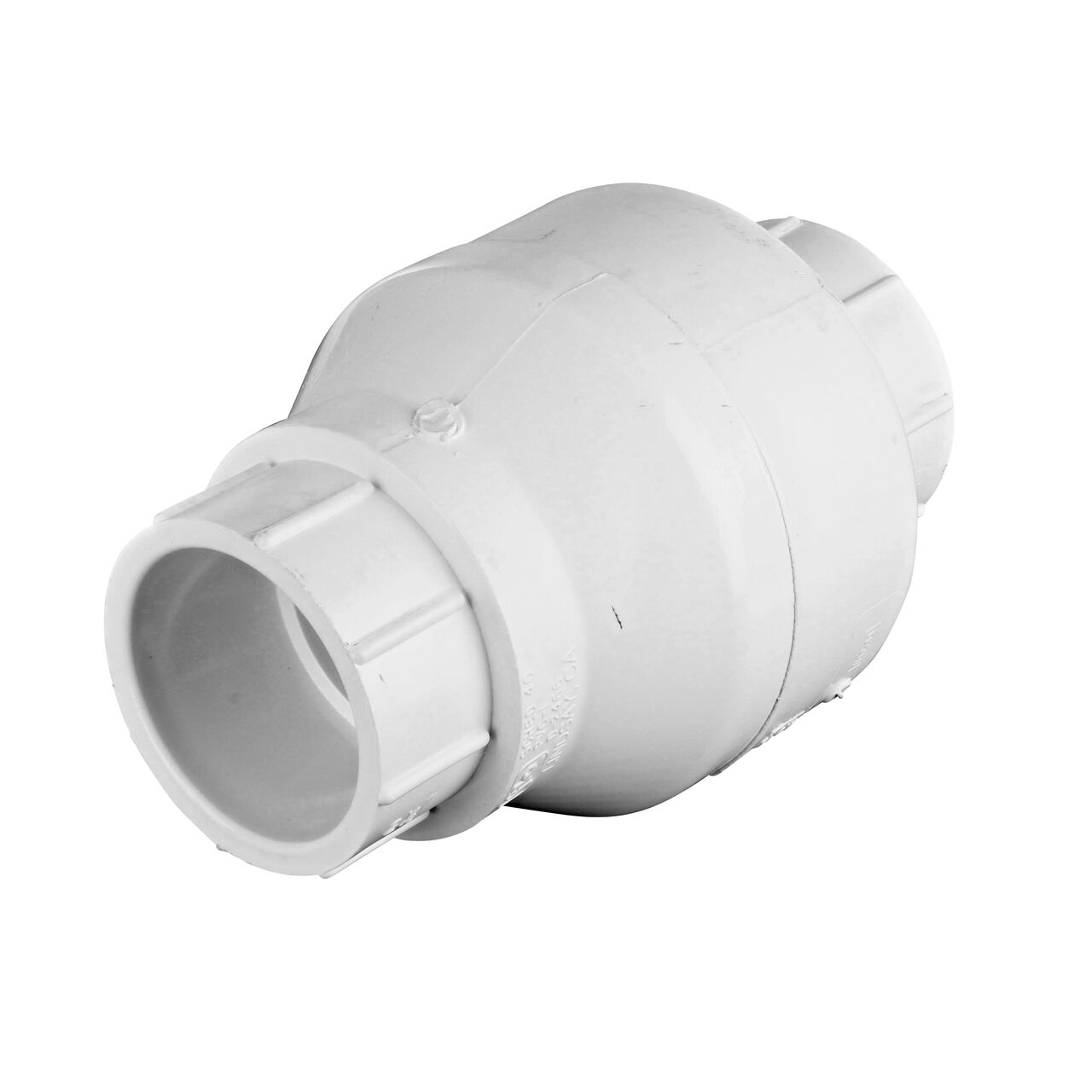

The NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) directs water flow one-way through pipe
Closeup view of the outlet end on the 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)
Closeup view of the inlet end on the 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)
Side to side view Slope end to the left of the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25)
Closeup of the arrow showing water flow of the Clear 2-1/2 in. slip end by slip end PVC Spring Check Valve (NDS 1012-25, NDS 1015-25)
Straight on view of the inside of the inlet end on the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) showing the flapper
The inlet end of the NDS 2-1/2 in. IPS Spring Check Valve (NDS 1012-25, NDS 1015-25) connects to 2-1/2 in. IPS pipe
Straight on view of the inside on the outlet end of the NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) showing the flapper
The NDS 2-1/2 in. IPS Slip Spring Check Valve (NDS 1012-25, NDS 1015-25) directs water flow one-way through pipe

Prevent backflow in your irrigation system with the PVC Spring Check Valve, 2-1/2 in. IPS S X S in white. Water flows one-way through pipe when the water pressure is greater than the weight of the 5 lb spring. This easy-fit valve connects two 2-1/2 in. pipes in an irrigation or other pressurized system and prevents the backflow of water. Prevents costly property damage, pipe corrosion, and system issues. Durable check valve is made of PVC plastic. Pressurized Spring is made of stainless steel. Gasket is made of EPDM. Use fittings and other valves to set up a new irrigation system, expand an existing system, or make repairs.

Where to Buy Find a Pro

Applications:

  • Directs water flow one-way through pipe when the water pressure is greater than the weight of the spring valve
  • Use for subsurface irrigation or in sprinkler control system installation; works with most PVC pipe to transport water and prevent backflow in pressurized systems
  • As part of a complete flow management system, the Spring Check Slip Valve works with PVC pipes and other compatible system components to allow water to flow through

Features:

  • Check valve is constructed using durable PVC: Pressurized spring is made of stainless steel
  • 5 lb. spring allows water through when water pressure exceeds its force
  • Check valve body and spring are white
  • Works with NDS products and other products with compatible connection type
