Check Valves

Prevent water backflow with PVC one-way check valves from NDS. Ensure efficient flow and protect your irrigation and drain systems from costly damage.

Where to Buy

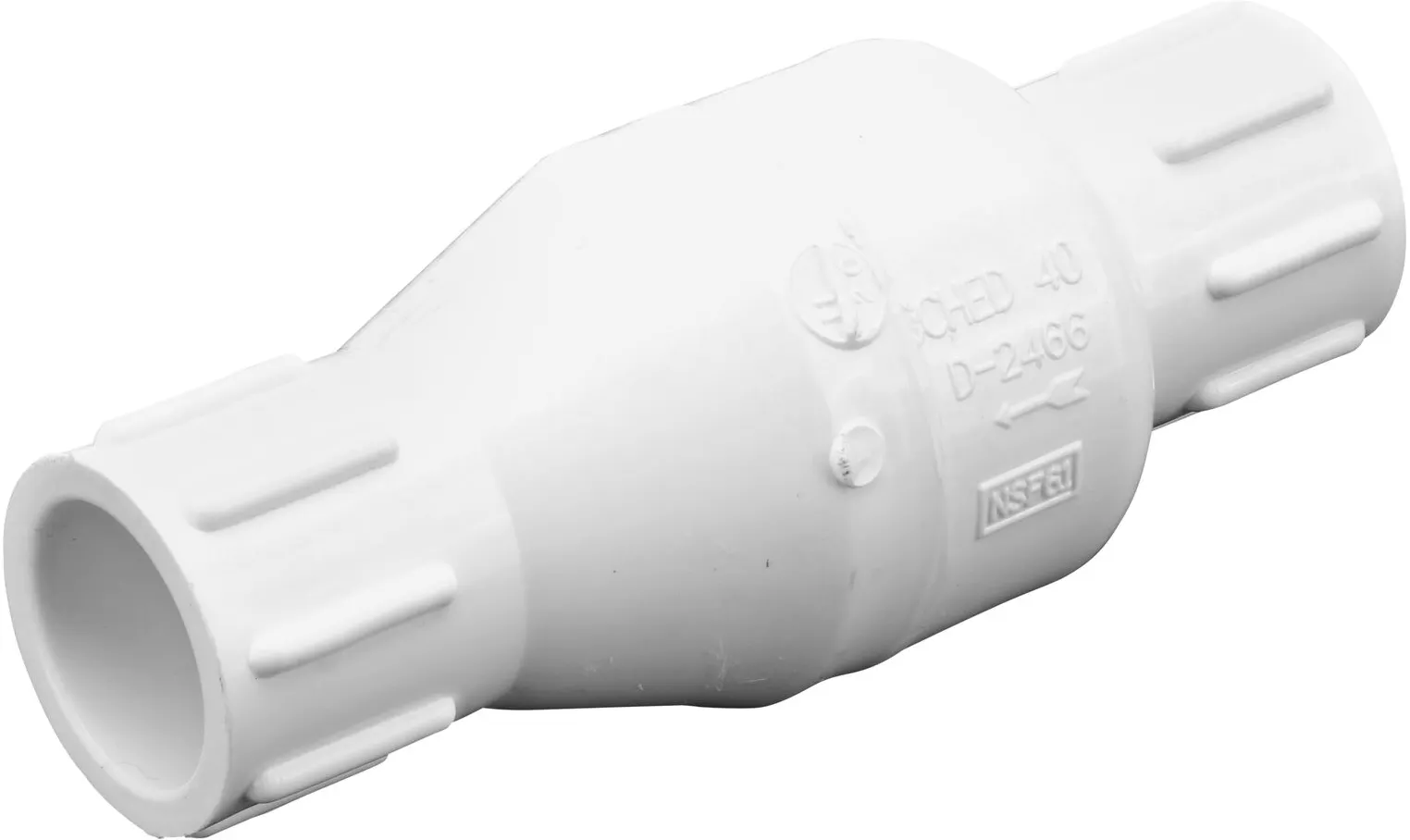

NDS White 1/2 in. PVC Spring Check Valve (NDS 1011-05, NDS 1012-05)
Where to Buy

Key Features

  • Water flows one-way through check valves when the water pressure triggers the internal spring or flap to open
  • NDS offers 1/2 in. – 2 in. spring check valves, 3/4 in. – 4 in. swing check valves, as well as sump pump and foot valves
  • Spring check valves allow water through when the water pressure is greater than the weight of the spring
  • Swing check valves allow water through when the flap opens; flap shuts to prevent backflow if water direction changes
  • Check valves are made of polyvinyl chloride (PVC)

Applications

  • Directs water flow one-way through pipe and allows water through; prevents backflow and avoids costly property damage, pipe corrosion, and system issues

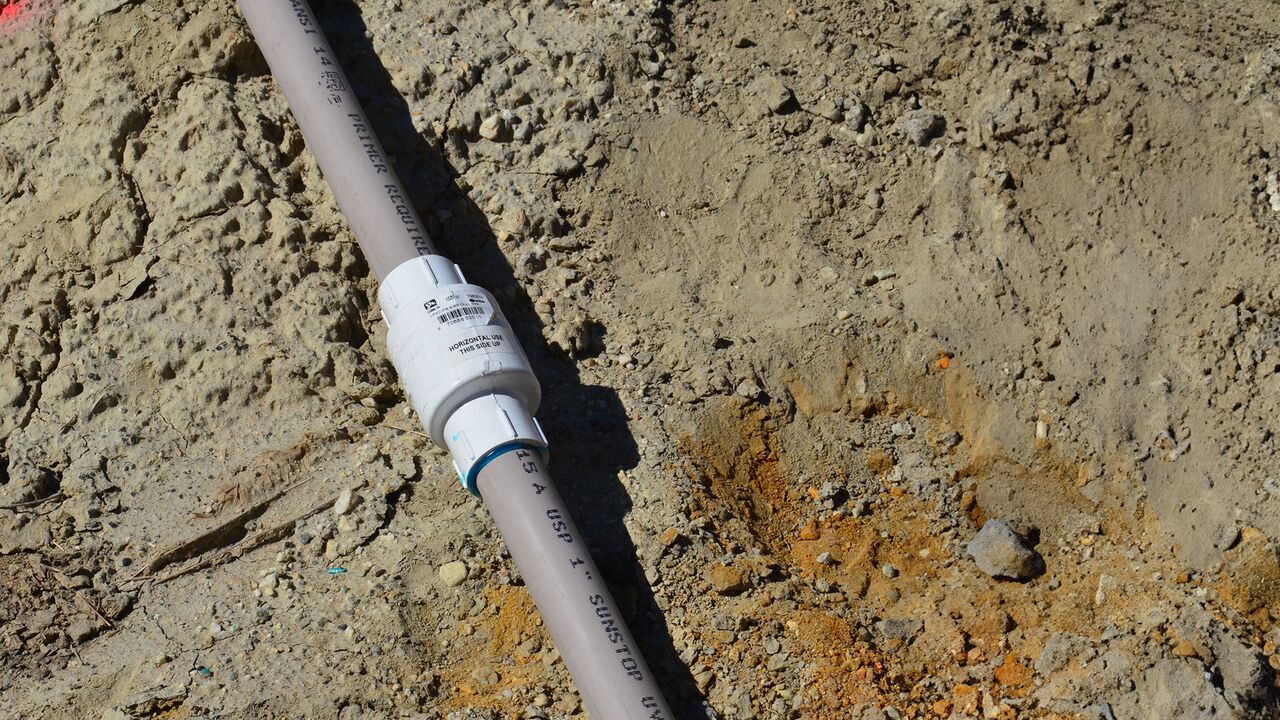

  • Use for subsurface irrigation or in sprinkler control system installation; works with most PVC pipe to transport water and prevent backflow in pressurized systems
  • Adjustable inline, true union, and compact spring check valves; low-profile, compression, true union, and sump pump swing check valves connect pipes and other system components to allow water to flow through and prevent backflow

Installation & Maintenance

  • Valve has ends that connect to pipe; ends can be turned to tighten onto pipe or may require solvent cement to keep in place
  • Valve can vibrate or emit noises to indicate damage; replace as needed

Materials & Sustainability

  • Check valves are made of polyvinyl chloride (PVC)
  • Onsite flow management protects pipe systems from backflow which can lead to corrosion of pipes, property damage, and issues with the flow system

Product Models

Filter results
Family
Color

117 products

    Part Number
    (click for more info)    		 Description
    1800-10 Foot Valve Screen, 1 in. IPS, 100 Mesh
    1800-15 Foot Valve Screen, 1-1/2 in. IPS, 100 Mesh
    1800-12 Foot Valve Screen, 1-1/4 in. IPS, 100 Mesh
    1800-20 Foot Valve Screen, 2 in. IPS, 100 Mesh
    CV-1000-FF PVC Adjustable Inline Spring Check Valve, 1 in. IPS FPT X FPT, 5 lb. Spring, Gray
    CV-1000-MF PVC Adjustable Inline Spring Check Valve, 1 in. IPS MPT X FPT, 5 lb. Spring, Gray
    CV-0500-FF PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS FPT X FPT, 5 lb. Spring, Gray
    CV-0500-FM PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS FPT X MPT, 5 lb. Spring, Gray
    CV-0500-MF PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS MPT X FPT, 5 lb. Spring, Gray
    CV-0750-FF PVC Adjustable Inline Spring Check Valve, 3/4 in. IPS FPT X FPT, 5 lb. Spring, Gray
    CV-0750-MF PVC Adjustable Inline Spring Check Valve, 3/4 in. IPS MPT X FPT, 5 lb. Spring, Gray
    1205-10 PVC Adjustable Spring Check Valve, 1 in. IPS FPT X FPT, 4-1/8 - 17 lb. Spring, White
    1205-05 PVC Adjustable Spring Check Valve, 1/2 in. IPS FPT X FPT, 2 - 5 lb. Spring, White
    1205-15 PVC Adjustable Spring Check Valve, 1-1/2 in. IPS FPT X FPT, 3-1/2 - 50 lb. Spring, White
    1228V15 PVC Adjustable Spring Check Valve, 1-1/2 in. IPS S X S, 30 lb. Spring, White
    1205-20 PVC Adjustable Spring Check Valve, 2 in. IPS FPT X FPT, 1-3/4 - 14-1/2 lb. Spring, White
    1225-10 PVC Adjustable Spring Check Valve, 2 in. IPS S X S, 4-1/4 - 17 lb. Spring, White
    1205-07-20 PVC Adjustable Spring Check Valve, 3/4 in. IPS FPT X FPT, 20 lb. Spring, White
    1205-07 PVC Adjustable Spring Check Valve, 3/4 in. IPS FPT X FPT, 2-1/2 - 5 lb. Spring, White
    1050C10 PVC Air Check Valve, 1 in. IPS S X 1-1/4 in. Spigot, 1/4 lb. Spring, Clear
    1050C20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 1/4 lb. Spring, Clear
    S1050C20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 1/4 lb. Spring, Clear
    S1050-20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 1/4 lb. Spring, White
    S1052C20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 2 lb. Spring, Clear
    1053C20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 3 lb. Spring, Clear
    1055C20 PVC Air Check Valve, 1-1/2 in. IPS S X 2 in. Spigot, 5 lb. Spring, Clear
    1010-05-O PVC Breakaway Coupling Valve, 1/2 in. IPS FPT X FPT, Orange
    1010-07-O PVC Breakaway Coupling Valve, 3/4 in. IPS FPT X FPT, Orange
    1790C15 PVC Compact True Union Spring Check Valve, 1-1/2 in. IPS S X S, 1/2 lb. Spring, Clear
    1790-15 PVC Compact True Union Spring Check Valve, 1-1/2 in. IPS S X S, 1/2 lb. Spring, White
    1790C20 PVC Compact True Union Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, Clear
    1790-20 PVC Compact True Union Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, White
    1795C20 PVC Compact True Union Spring Check Valve, 2 in. IPS S X S, 5 lb. Spring, Clear
    1500C15 PVC Compression Swing Check Valve, 1-1/2 in. IPS UC X UC, Clear
    1500-15 PVC Compression Swing Check Valve, 1-1/2 in. IPS UC X UC, White
    1500-12 PVC Compression Swing Check Valve, 1-1/4 in. IPS UC X UC, White
    1500C20 PVC Compression Swing Check Valve, 2 in. IPS UC X UC, Clear
    1500-20 PVC Compression Swing Check Valve, 2 in. IPS UC X UC, White
    1500-30 PVC Compression Swing Check Valve, 3 in. IPS UC X UC, White
    1001-15FV PVC Foot Valve, 1-1/2 in. IPS FPT, 1/2 lb. Spring, White
    1001-20FV PVC Foot Valve, 2 in. IPS FPT, 1/2 lb. Spring, White
    1001-10 PVC Spring Check Valve, 1 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-10 PVC Spring Check Valve, 1 in. IPS FPT X FPT, 2 lb. Spring, White
    1011C10 PVC Spring Check Valve, 1 in. IPS S X S, 1/2 lb. Spring, Clear
    1011-10 PVC Spring Check Valve, 1 in. IPS S X S, 1/2 lb. Spring, White
    1012-10 PVC Spring Check Valve, 1 in. IPS S X S, 2 lb. Spring, White
    1001-05 PVC Spring Check Valve, 1/2 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-05 PVC Spring Check Valve, 1/2 in. IPS FPT X FPT, 2 lb. Spring, White
    1011-05 PVC Spring Check Valve, 1/2 in. IPS S X S, 1/2 lb. Spring, White
    1012-05 PVC Spring Check Valve, 1/2 in. IPS S X S, 2 lb. Spring, White
    1001-15 PVC Spring Check Valve, 1-1/2 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-15 PVC Spring Check Valve, 1-1/2 in. IPS FPT X FPT, 2 lb. Spring, White
    1011-15 PVC Spring Check Valve, 1-1/2 in. IPS S X S, 1/2 lb. Spring, White
    1012-15 PVC Spring Check Valve, 1-1/2 in. IPS S X S, 2 lb. Spring, White
    1001-12 PVC Spring Check Valve, 1-1/4 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-12 PVC Spring Check Valve, 1-1/4 in. IPS FPT X FPT, 2 lb. Spring, White
    1011-12 PVC Spring Check Valve, 1-1/4 in. IPS S X S, 1/2 lb. Spring, White
    1012-12 PVC Spring Check Valve, 1-1/4 in. IPS S X S, 2 lb. Spring, White
    1001-20 PVC Spring Check Valve, 2 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-20 PVC Spring Check Valve, 2 in. IPS FPT X FPT, 2 lb. Spring, White
    1011C20 PVC Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, Clear
    1011-20 PVC Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, White
    1012-20 PVC Spring Check Valve, 2 in. IPS S X S, 2 lb. Spring, White
    1012-25 PVC Spring Check Valve, 2-1/2 in. IPS S X S, 2 lb. Spring, White
    1015-25 PVC Spring Check Valve, 2-1/2 in. IPS S X S, 5 lb. Spring, White
    1001-30 PVC Spring Check Valve, 3 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-30 PVC Spring Check Valve, 3 in. IPS FPT X FPT, 2 lb. Spring, White
    1011-30 PVC Spring Check Valve, 3 in. IPS S X S, 1/2 lb. Spring, White
    1012-30 PVC Spring Check Valve, 3 in. IPS S X S, 2 lb. Spring, White
    1001-07 PVC Spring Check Valve, 3/4 in. IPS FPT X FPT, 1/2 lb. Spring, White
    1002-07 PVC Spring Check Valve, 3/4 in. IPS FPT X FPT, 2 lb. Spring, White
    1011-07 PVC Spring Check Valve, 3/4 in. IPS S X S, 1/2 lb. Spring, White
    1012-07 PVC Spring Check Valve, 3/4 in. IPS S X S, 2 lb. Spring, White
    1400-15 PVC Sump Pump Swing Check Valve, 1-1/4 in. and 1-1/2 in. IPS UC, White
    1520C10F PVC Swing Check Valve, 1 in. IPS FPT X FPT, Clear
    1520-10F PVC Swing Check Valve, 1 in. IPS FPT X FPT, White
    1520C10 PVC Swing Check Valve, 1 in. IPS S X S, Clear
    1520-10 PVC Swing Check Valve, 1 in. IPS S X S, White
    1520C05F PVC Swing Check Valve, 1/2 in. IPS FPT X FPT, Clear
    1520-05F PVC Swing Check Valve, 1/2 in. IPS FPT X FPT, White
    1520C05 PVC Swing Check Valve, 1/2 in. IPS S X S, Clear
    1520-05 PVC Swing Check Valve, 1/2 in. IPS S X S, White
    1520C15F PVC Swing Check Valve, 1-1/2 in. IPS FPT X FPT, Clear
    1520-15F PVC Swing Check Valve, 1-1/2 in. IPS FPT X FPT, White
    1520C15V PVC Swing Check Valve, 1-1/2 in. IPS S X S with Viton™ O-Ring, Clear
    1520C15 PVC Swing Check Valve, 1-1/2 in. IPS S X S, Clear
    1520-15 PVC Swing Check Valve, 1-1/2 in. IPS S X S, White
    1520-12F PVC Swing Check Valve, 1-1/4 in. IPS FPT X FPT, White
    1520C12 PVC Swing Check Valve, 1-1/4 in. IPS S X S, Clear
    1520-12 PVC Swing Check Valve, 1-1/4 in. IPS S X S, White
    1520C20F PVC Swing Check Valve, 2 in. IPS FPT X FPT, Clear
    1520-20F PVC Swing Check Valve, 2 in. IPS FPT X FPT, White
    1520V20 PVC Swing Check Valve, 2 in. IPS S X S with Viton™ O-Ring, White
    1520C20 PVC Swing Check Valve, 2 in. IPS S X S, Clear
    1520-20 PVC Swing Check Valve, 2 in. IPS S X S, White
    1520C30 PVC Swing Check Valve, 3 in. IPS S X S, Clear
    1520-30 PVC Swing Check Valve, 3 in. IPS S X S, White
    1520C07F PVC Swing Check Valve, 3/4 in. IPS FPT X FPT, Clear
    1520-07F PVC Swing Check Valve, 3/4 in. IPS FPT X FPT, White
    1520C07 PVC Swing Check Valve, 3/4 in. IPS S X S, Clear
    1520-07 PVC Swing Check Valve, 3/4 in. IPS S X S, White
    1520C40 PVC Swing Check Valve, 4 in. IPS S X S, Clear
    1520-40 PVC Swing Check Valve, 4 in. IPS S X S, White
    1700C10 PVC True Union Spring Check Valve, 1 in. IPS S X S, 1/2 lb. Spring, Clear
    1700C15 PVC True Union Spring Check Valve, 1-1/2 in. IPS S X S, 1/2 lb. Spring, Clear
    1700-15 PVC True Union Spring Check Valve, 1-1/2 in. IPS S X S, 1/2 lb. Spring, White
    1700C20 PVC True Union Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, Clear
    1700-20 PVC True Union Spring Check Valve, 2 in. IPS S X S, 1/2 lb. Spring, White
    1720C10 PVC True Union Swing Check Valve, 1 in. IPS U X U, Clear
    1720-10 PVC True Union Swing Check Valve, 1 in. IPS U X U, White
    1720C15 PVC True Union Swing Check Valve, 1-1/2 in. IPS U X U, Clear
    1720-15 PVC True Union Swing Check Valve, 1-1/2 in. IPS U X U, White
    1720C20 PVC True Union Swing Check Valve, 2 in. IPS U X U, Clear
    1720-20 PVC True Union Swing Check Valve, 2 in. IPS U X U, White
    1720C30 PVC True Union Swing Check Valve, 3 in. IPS U X U, Clear
    1720-30 PVC True Union Swing Check Valve, 3 in. IPS U X U, White
    1720C07 PVC True Union Swing Check Valve, 3/4 in. IPS U X U, Clear
