PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS MPT X FPT, 5 lb. Spring, Gray

SKU: CV-0500-MF

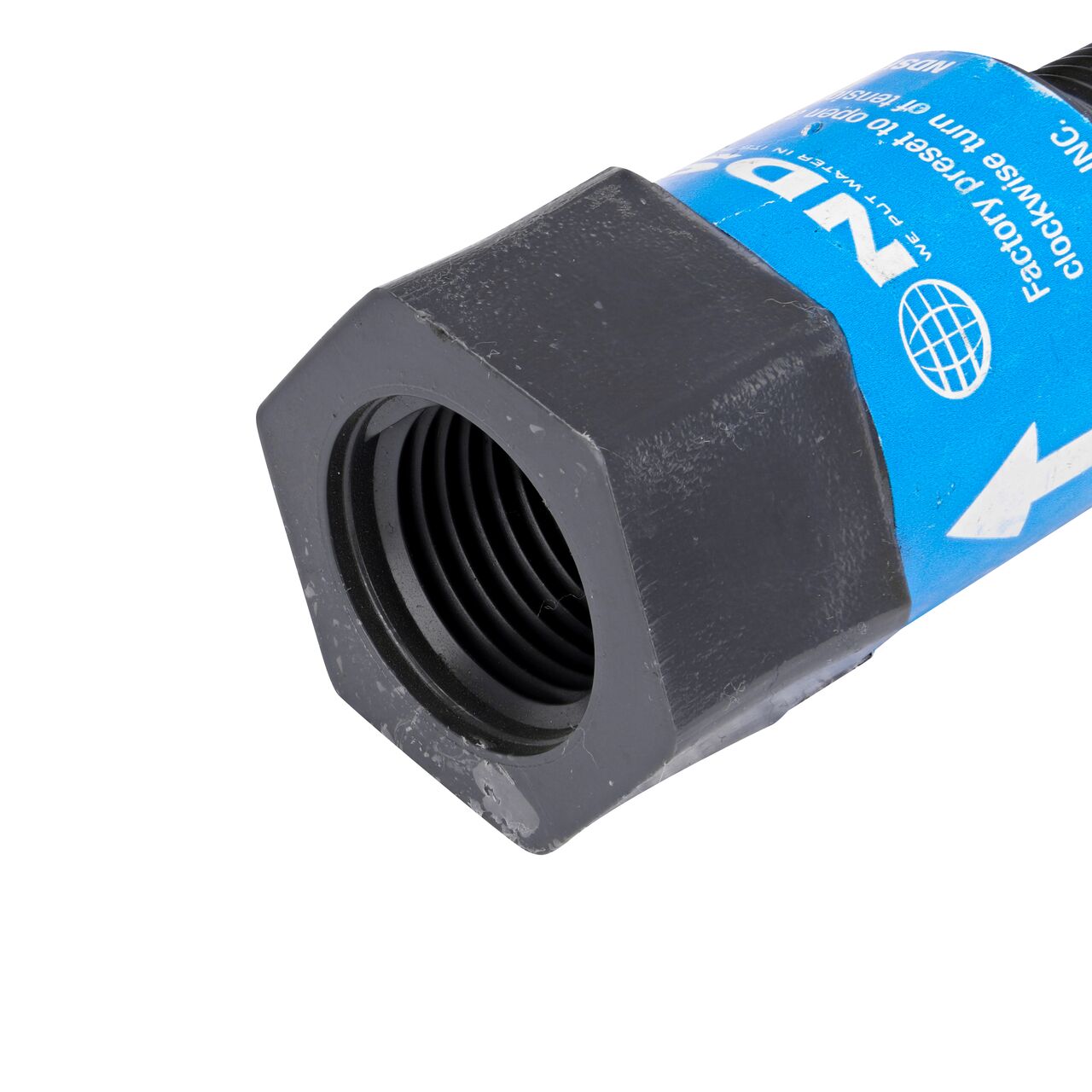

Closeup of the FPT end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)

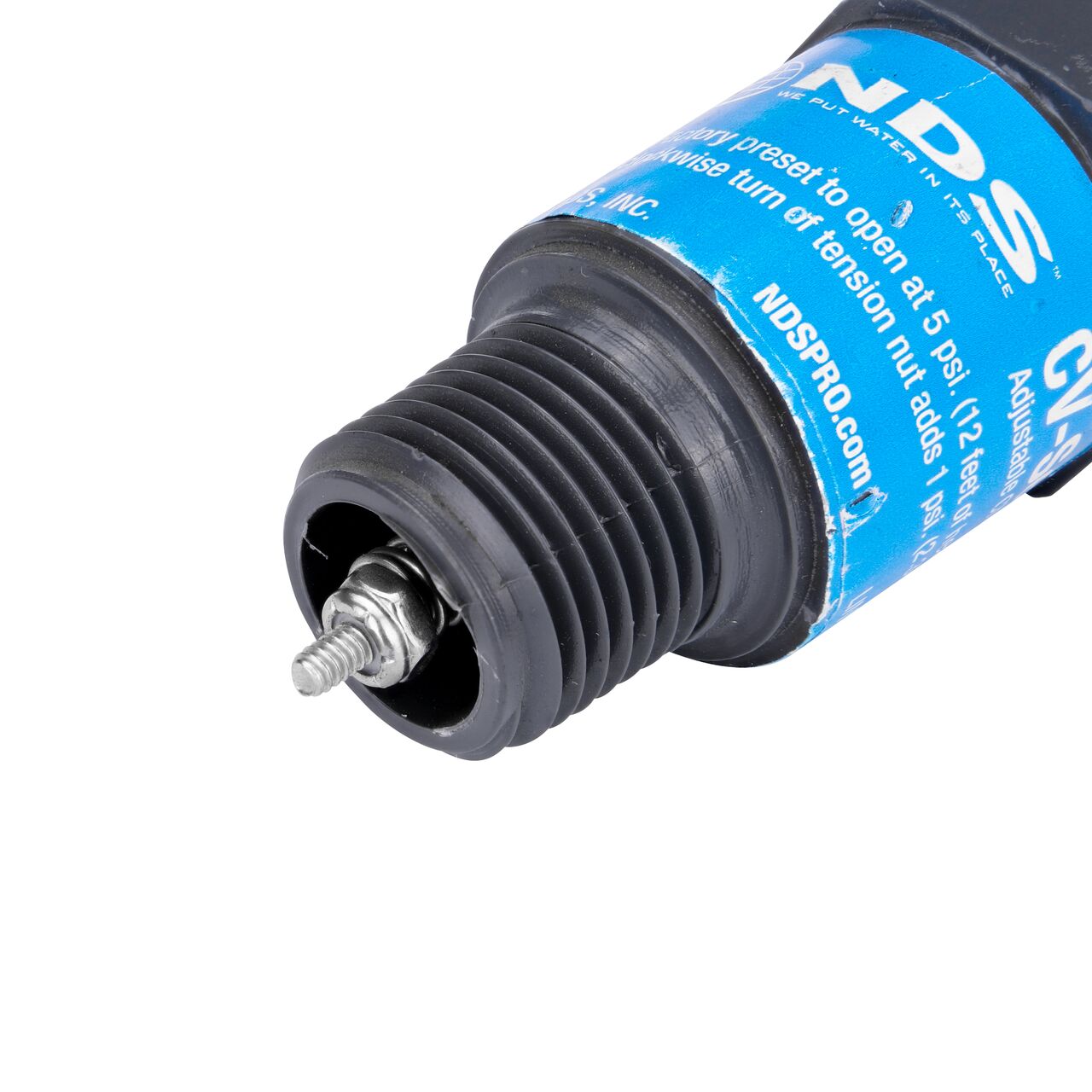

Closeup of MPT end with needle point spring on the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)

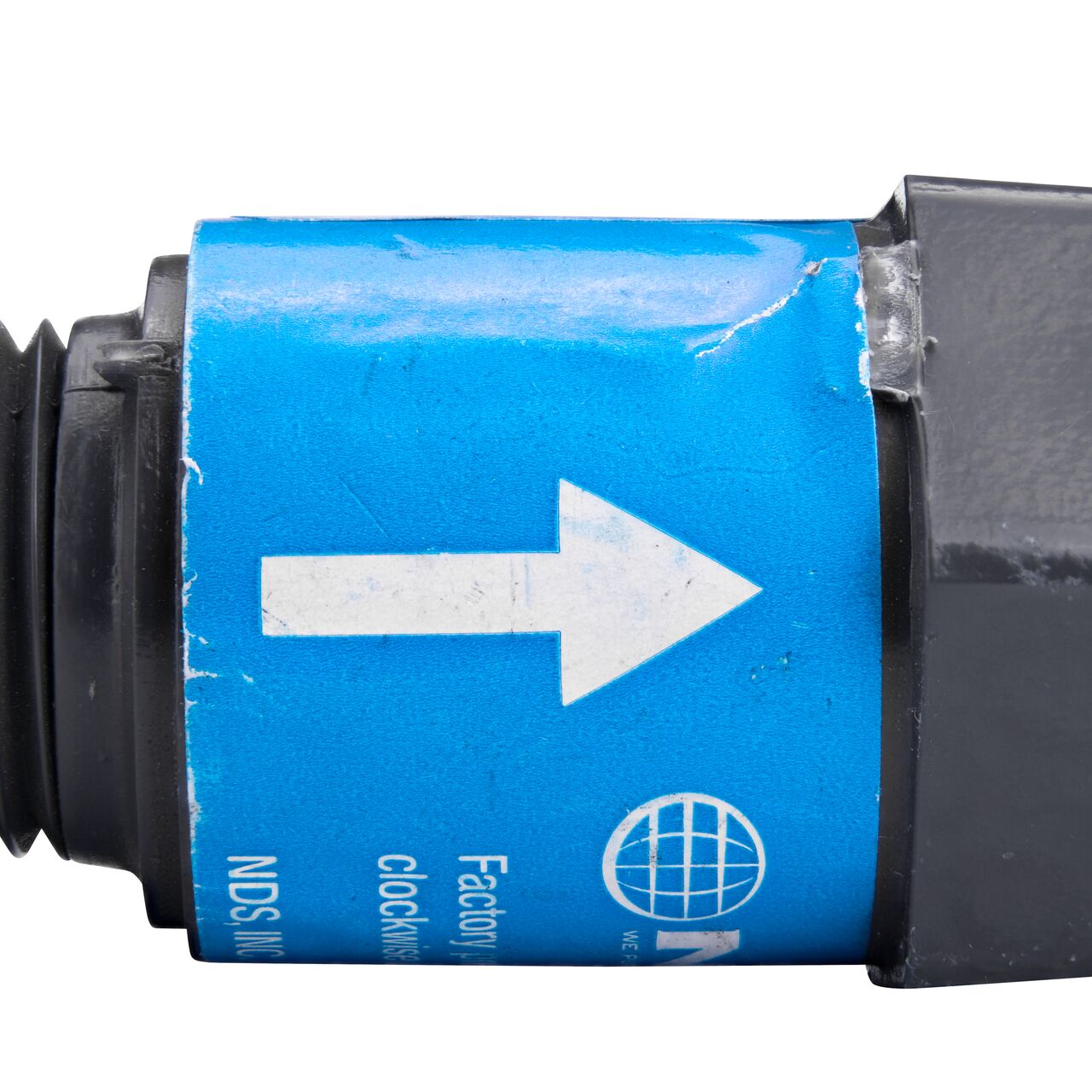

Closeup of the label marking the flow of water of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)

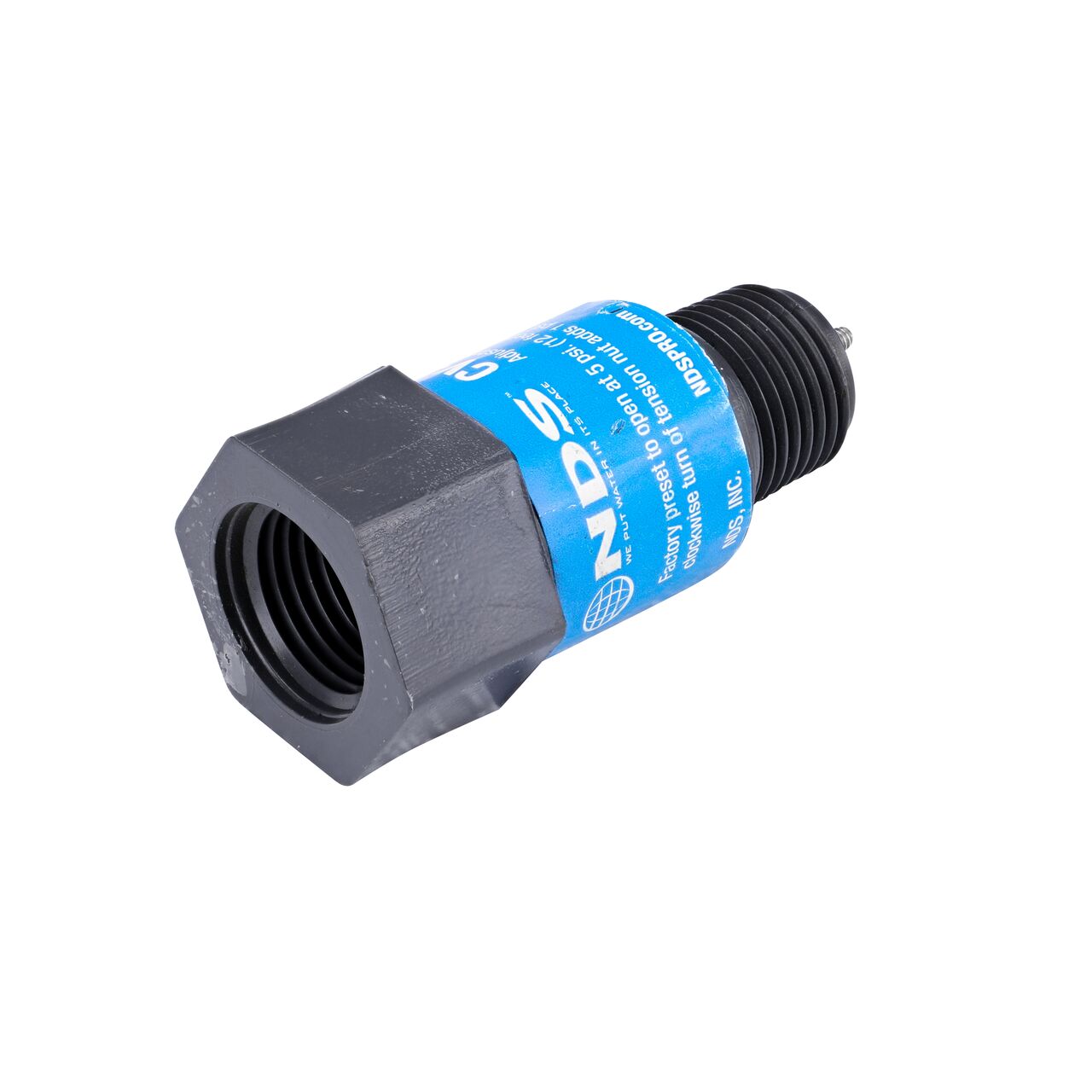

The female end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)

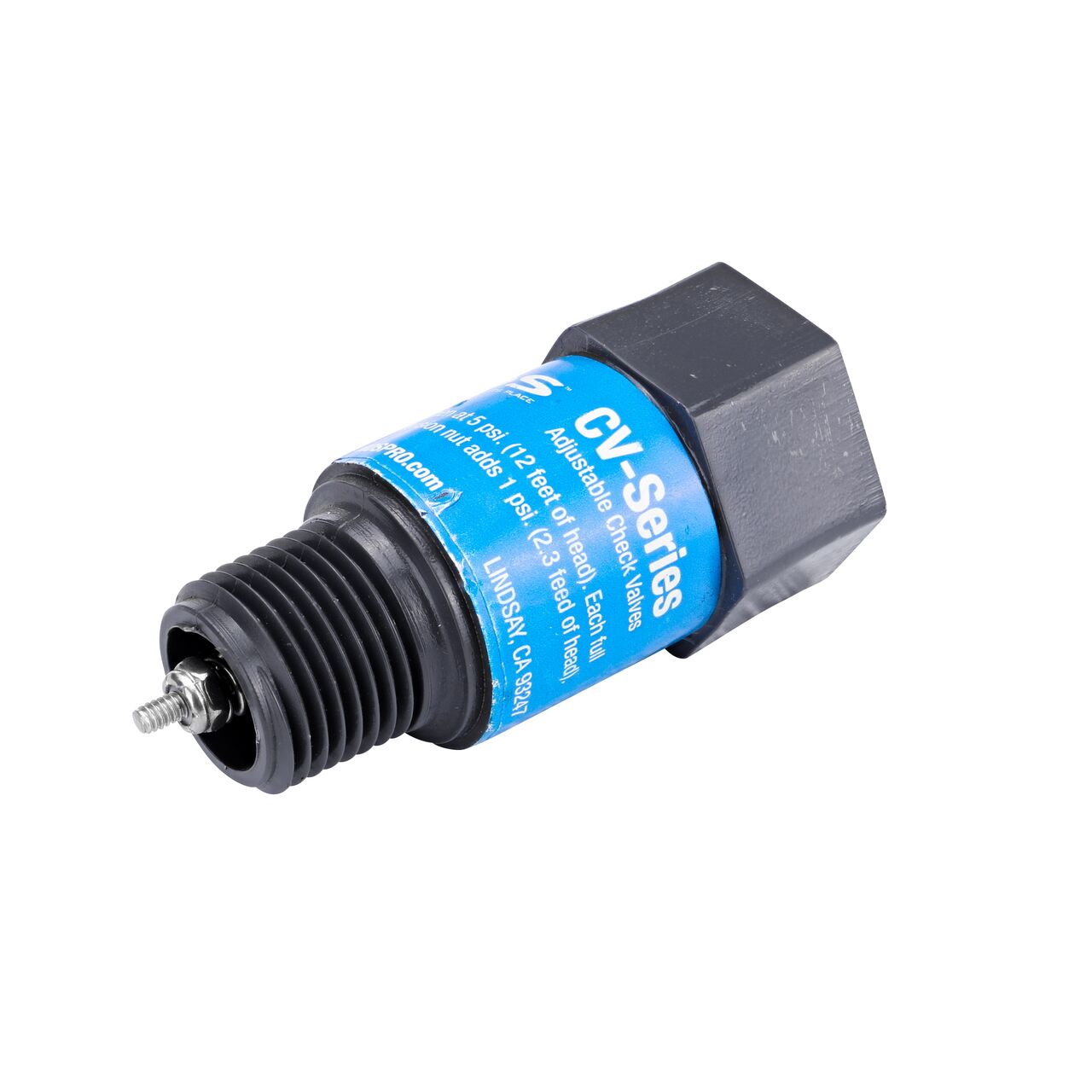

The male end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF) has a nut on end to adjust the 5 lb spring tension

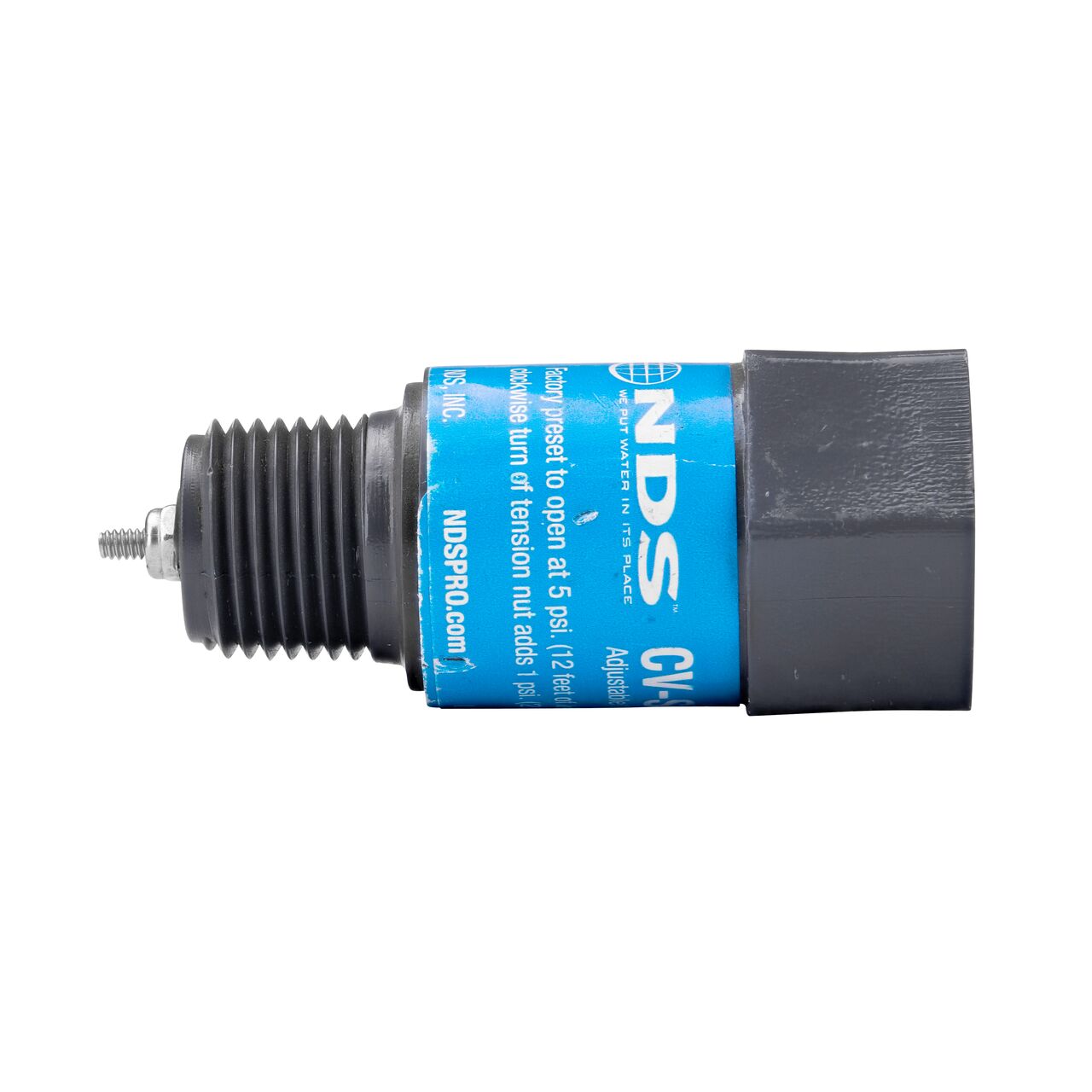

Side view of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)
Closeup of the FPT end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)
Closeup of MPT end with needle point spring on the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)
Closeup of the label marking the flow of water of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)
The female end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)
The male end of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF) has a nut on end to adjust the 5 lb spring tension
Side view of the NDS Gray 1/2 in. IPS MPT X FPT PVC Adjustable Inline Spring Check Valve (NDS CV-0500-MF)

Limit pressure in your pipeline with the PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS MPT X FPT. Allow water to flow one-way through pipe with its adjustable spring that is preset at 5 lb. and lifts when the water pressure exceeds the selected spring weight. This leak-resistant valve prevents backflow in your irrigation system. Connect 1/2 in. FPT pipe and 1/2 in. MPT pipe with this check valve as part of a complete irrigation or other pressurized system. Prevents costly property damage, pipe corrosion, and system issues. Durable check valve is made of PVC plastic. Pressurized Spring is made of stainless steel. O-Ring is made of EPDM. Washer is made of neoprene. Use fittings and other valves to set up a new irrigation system, expand an existing system, or make repairs.

Applications:

  • Allows water to flow one-way through pipe when the water pressure is greater that the weight of the spring valve. Spring tension is adjustable
  • Used for subsurface irrigation in industrial plumbing, elevated irrigation lines, pools and spas; works with pipe to transport water and prevent backflow
  • As part of a complete flow management system, the Adjustable Inline Spring Check Valve connects to 1/2 in. FPT pipe, 1/2 in. MPT pipe, and other system components to allow water to flow through

Features:

  • Can use tool to turn nut on end to adjust tension; 1-1/2 turn equals 1 lb. force; preset at 5 lb
  • Check valve is constructed using durable PVC: Pressurized spring is made of stainless steel
  • Check valve body and spring are gray
  • Works with NDS products and other products with compatible connection type
