PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS FPT X FPT, 5 lb. Spring, Gray
SKU: CV-0500-FF
Limit pressure in your pipeline with the PVC Adjustable Inline Spring Check Valve, 1/2 in. IPS FPT X FPT. Allow water to flow one-way through pipe with its adjustable spring that is preset at 5 lb. and lifts when the water pressure exceeds the selected spring weight. This leak-resistant valve prevents backflow in your irrigation system. Connect two 1/2 in. MPT pipes with this check valve as part of a complete irrigation or other pressurized system. Prevents costly property damage, pipe corrosion, and system issues. Durable check valve is made of PVC plastic. Pressurized Spring is made of stainless steel. O-Ring is made of EPDM. Washer is made of neoprene. Use fittings and other valves to set up a new irrigation system, expand an existing system, or make repairs.
Applications:
- Allows water to flow one-way through pipe when the water pressure is greater that the weight of the spring valve. Spring tension is adjustable
- Used for subsurface irrigation in industrial plumbing, elevated irrigation lines, pools and spas; works with pipe to transport water and prevent backflow
- As part of a complete flow management system, the Adjustable Inline Spring Check Valve connects to 1/2 in. MPT pipes and other system components to allow water to flow through
Features:

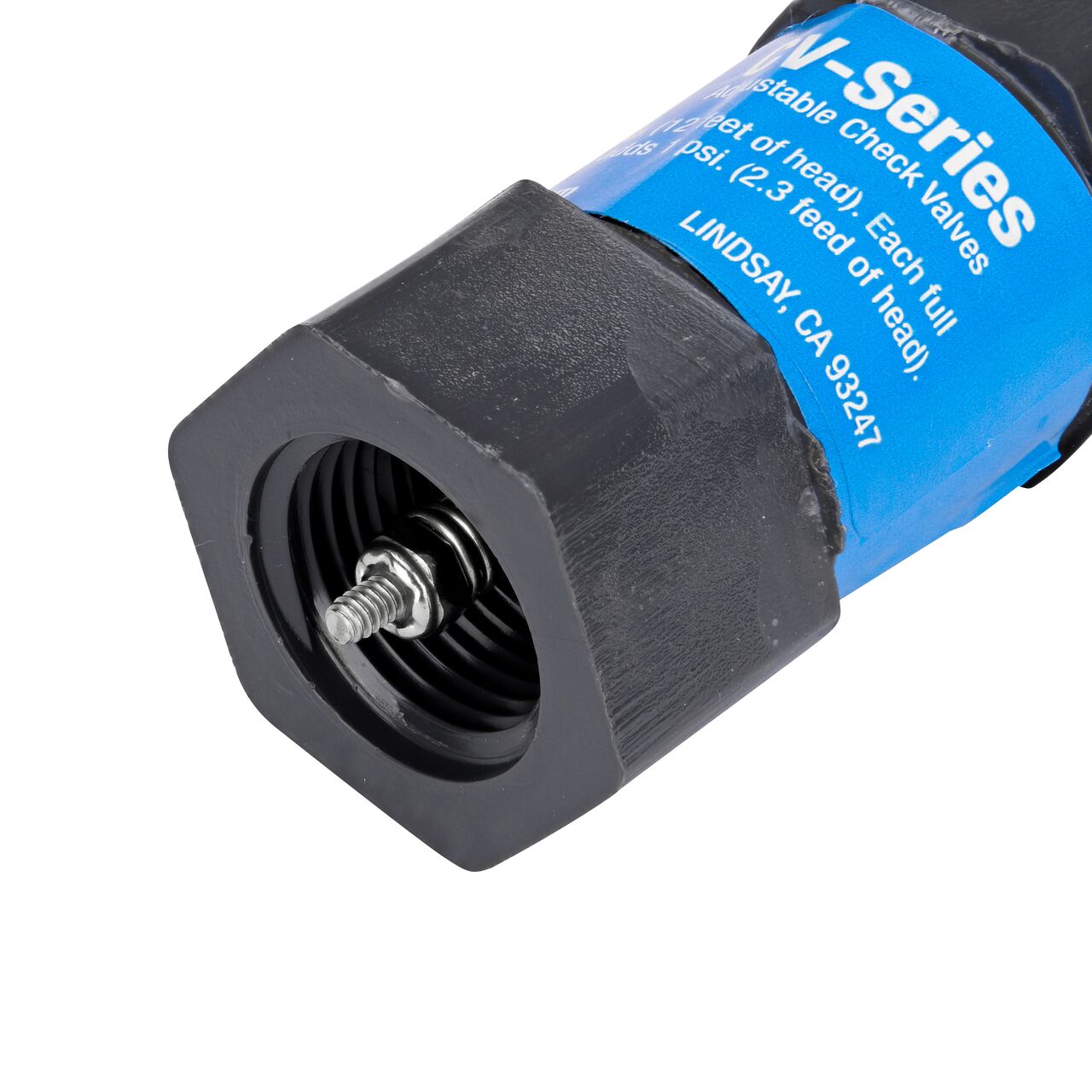

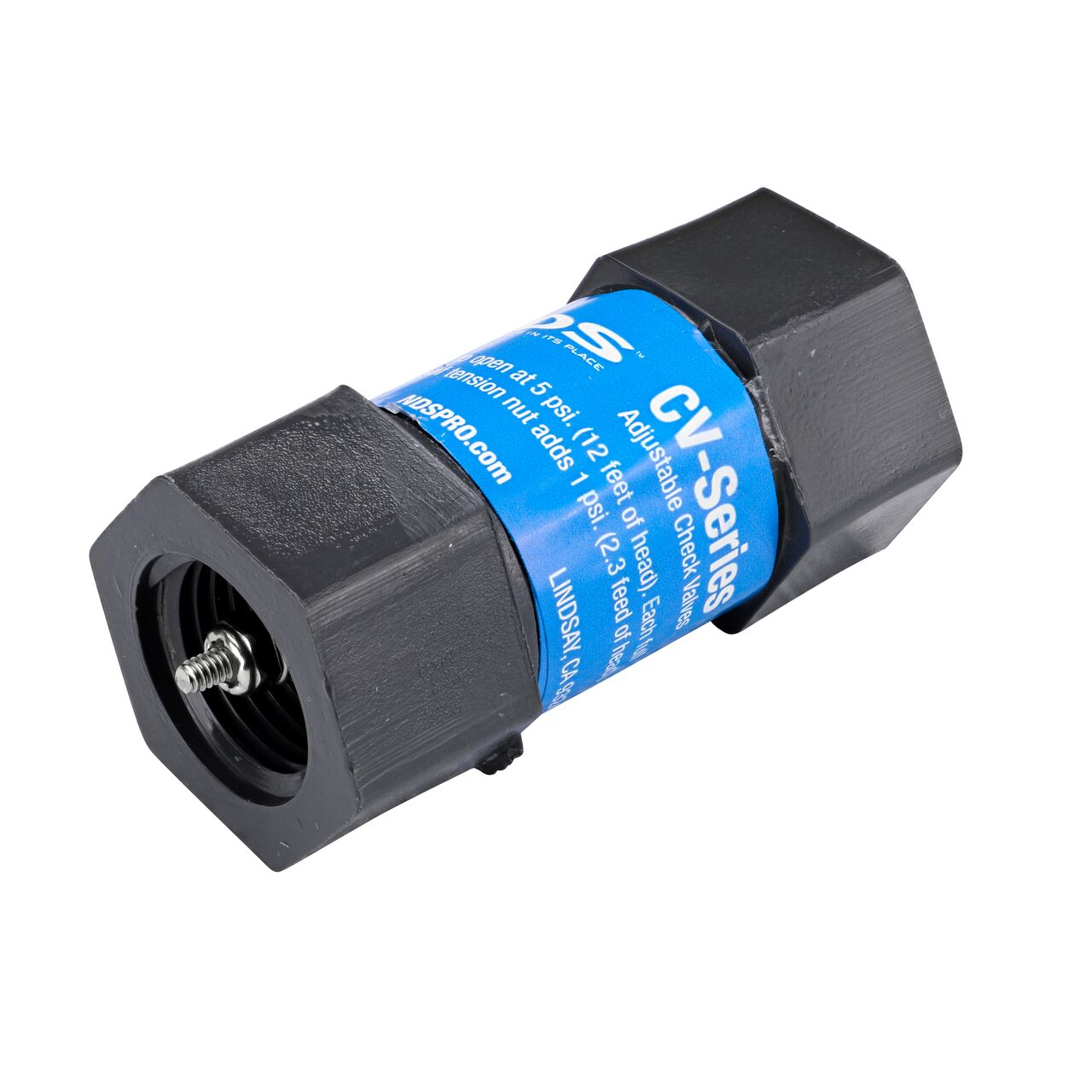

- Can use tool to turn nut on end to adjust tension; 1-1/2 turn equals 1 lb. force; preset at 5 lb
- Check valve is constructed using durable PVC: Pressurized spring is made of stainless steel
- Check valve body and spring are gray
- Works with NDS products and other products with compatible connection type
