Infiltrator Guardian™ 24-inch Safety Device

The Infiltrator Guardian takes septic system safety to the next level. It protects against unauthorized entry of septic tanks while also improving waste haulers’ speed and ease when servicing tanks. The Infiltrator Guardian is built to accommodate a variety of risers including Infiltrator’s EZsnap and EZset risers, as well as 24-inch diameter pipe risers. It mounts to the top of the riser, which enables it to be used at the start of a new system or years after. Join the effort to make safety the industry’s top priority by using the Infiltrator Guardian on your next job and reset the standard for septic system safety.

Product Specifications

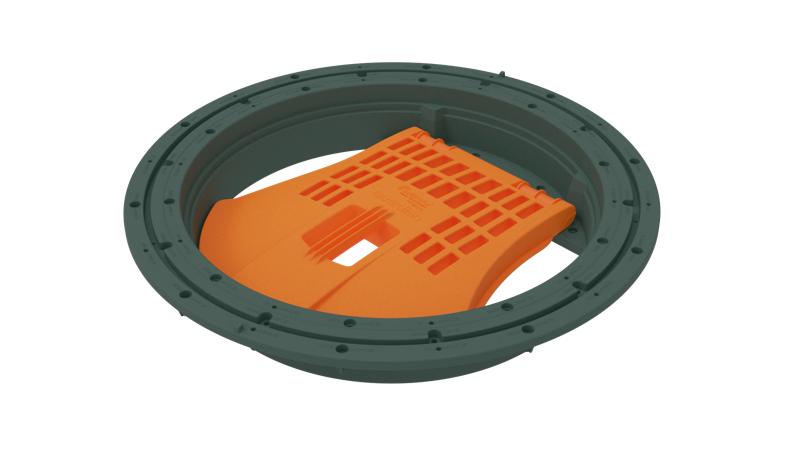

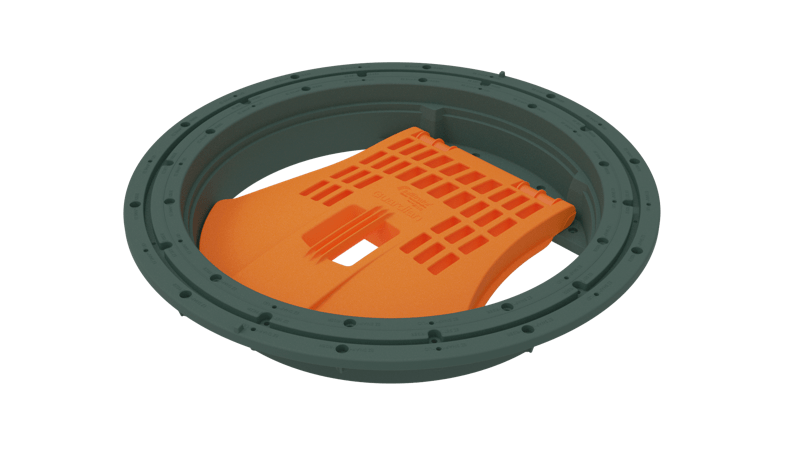

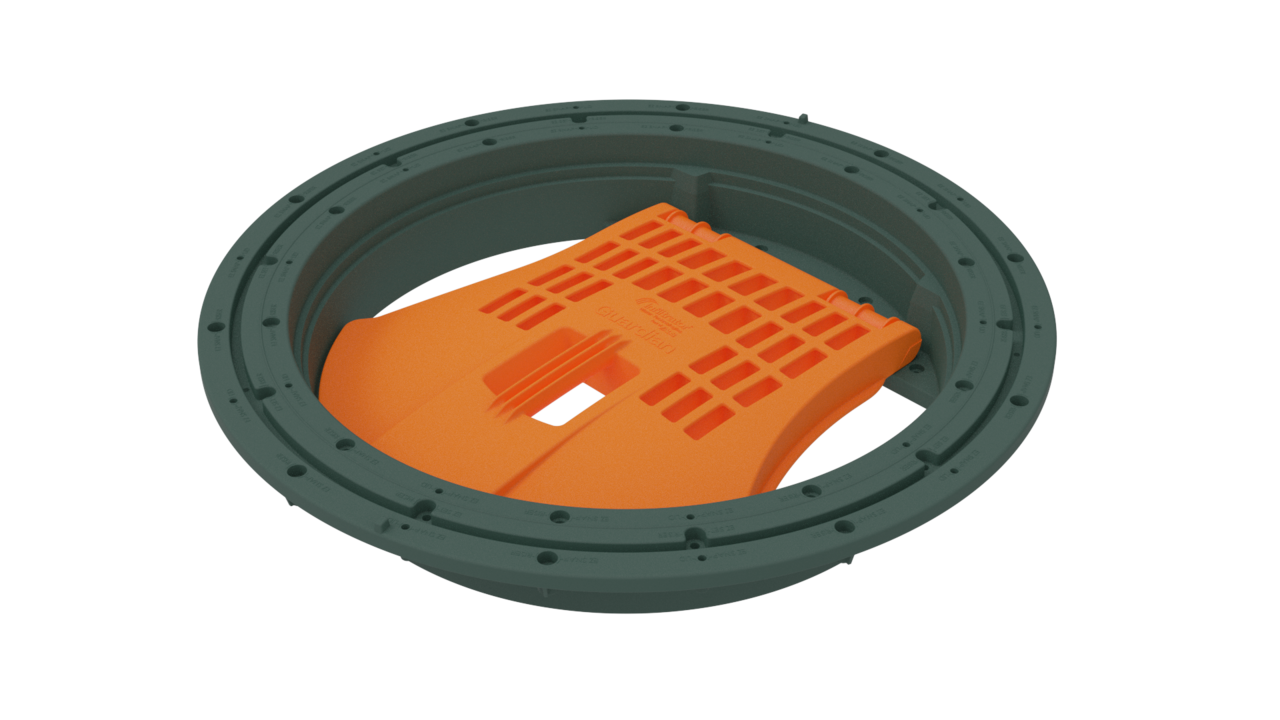

Guardian Safety Device - Iso

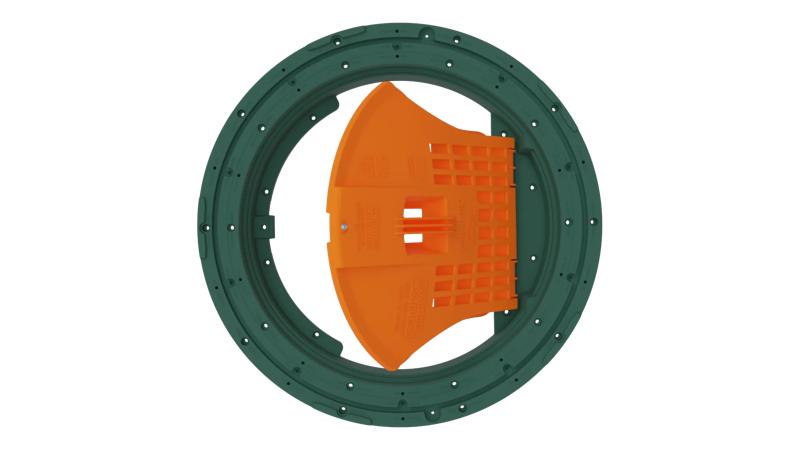

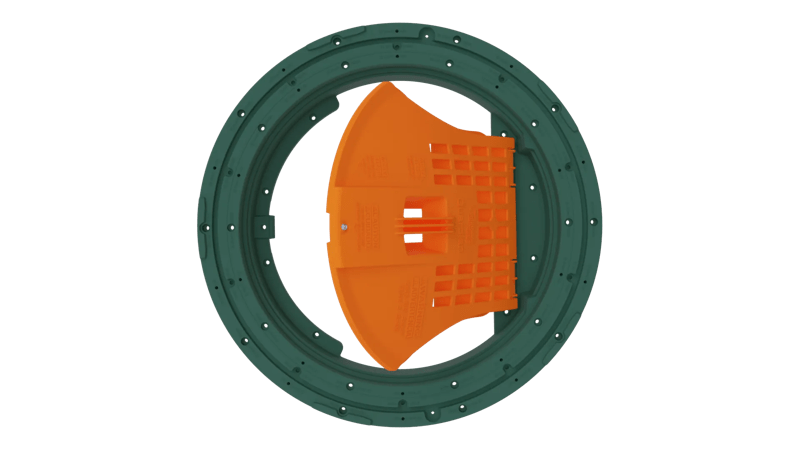

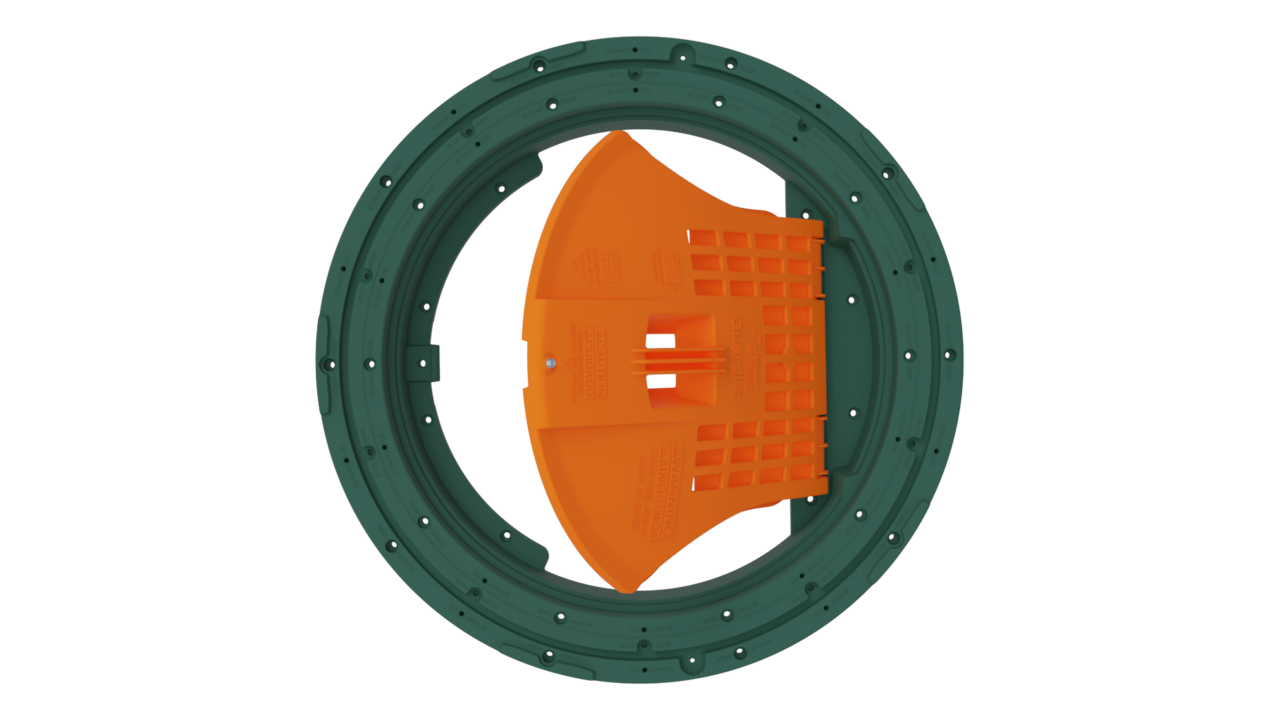

Guardian - Top Down - Open

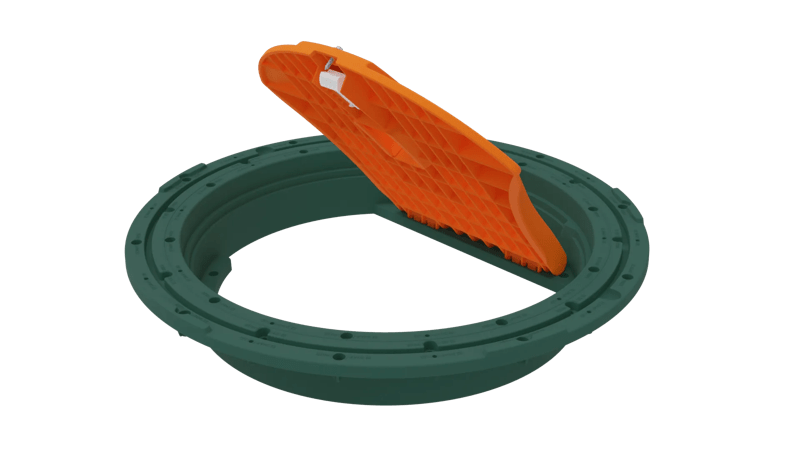

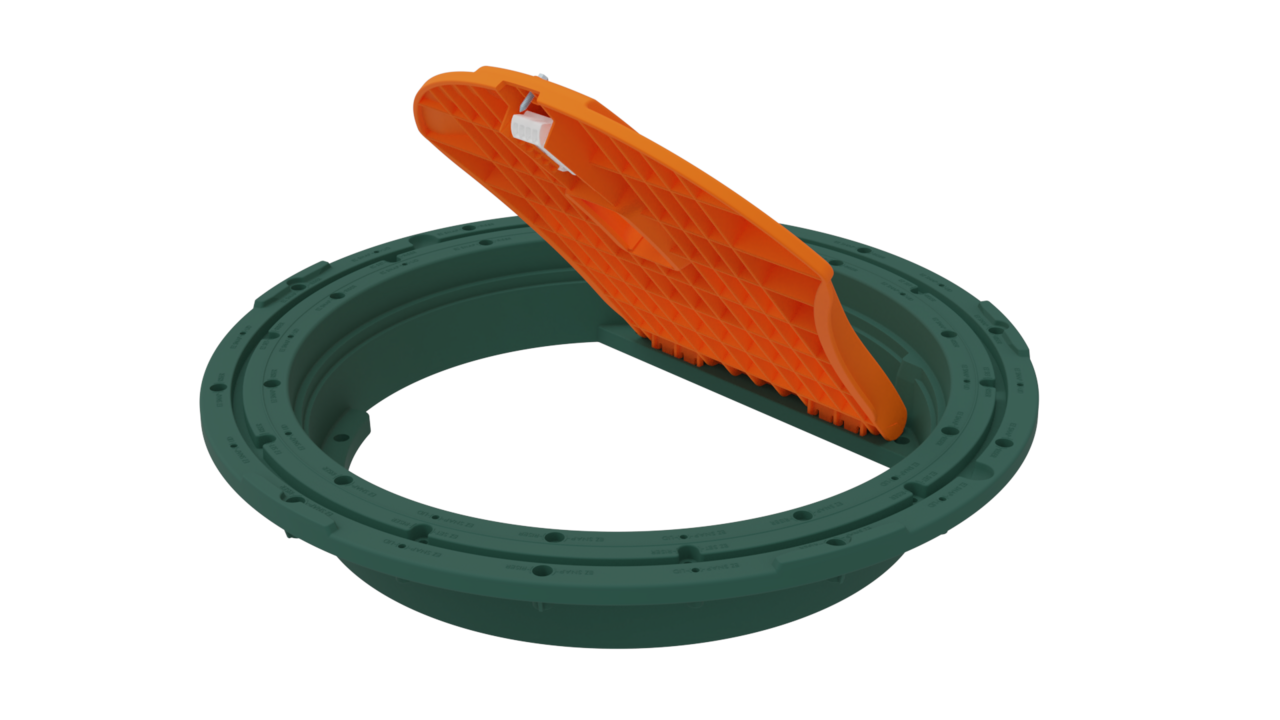

Guardian - Open Hatch
Guardian Safety Device - Iso
Guardian - Top Down - Open
Guardian - Open Hatch

Infiltrator Guardian 24-inch Safety Device

Size 30"W x 5"H
(762 mm x 127 mm)
Maximum Opening 22.5" (571.5 mm)
EZsnap Compatibility 6" & 12: Risers
EZset Compatibility 24" ID 6", 12" & 18" Risers
Pipe Compatibility 24" ID Dual Wall
Corrugated; 24"
ID Ultra Rib Pipe

  • UNIVERSAL FIT: Compatible with Infiltrator EZsnap & EZset (24-inch diameter) riser systems and lids. The Infiltrator Guardian™ is also compatible with 24-inch diameter corrugated dual-wall and ultra-rib pipe
  • INCREASED ACCESS: The safety gate design allows waste haulers to easily navigate a vacuum hose throughout the septic tank’s riser
  • STRENGTH: Capable of supporting over 300 pounds
  • EASE OF USE: A single stainless-steel retained screw locks
    the safety gate in place
  • SECONDARY SAFETY: The safety latch protects against incidental and unauthorized entry

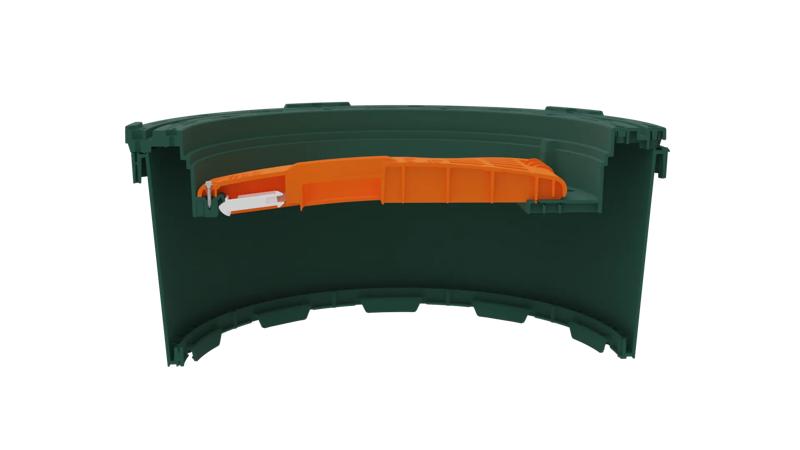

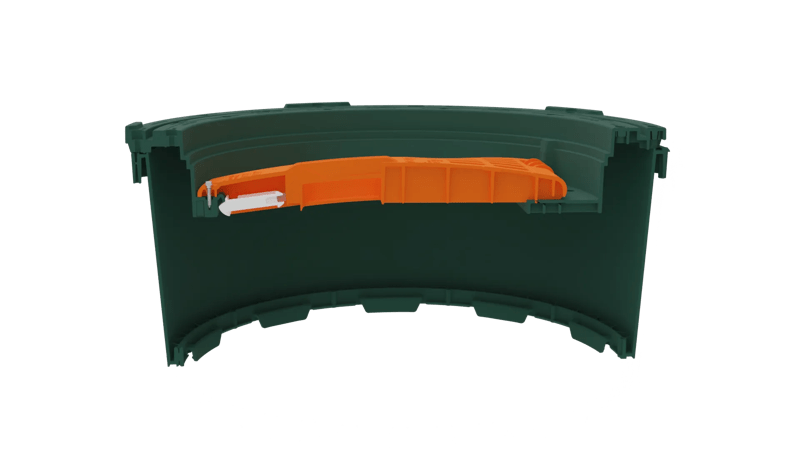

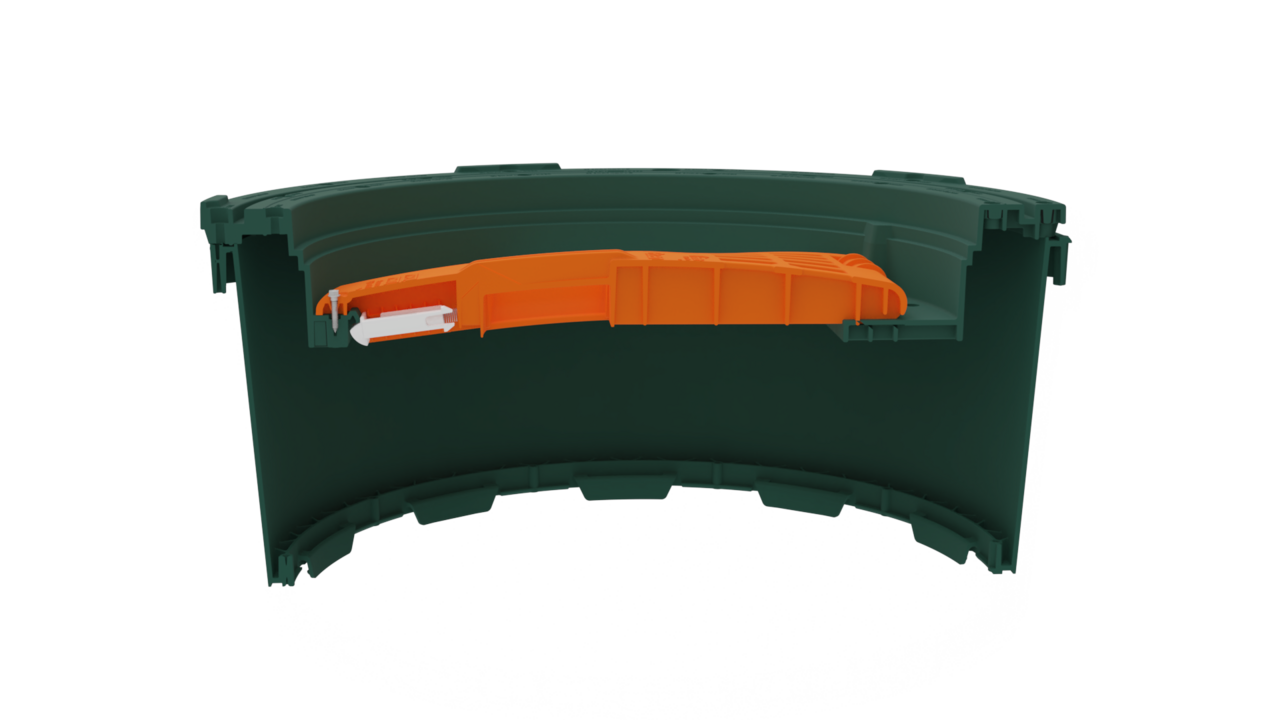

Guardian - Cutaway - EZsnap Riser Narrow End

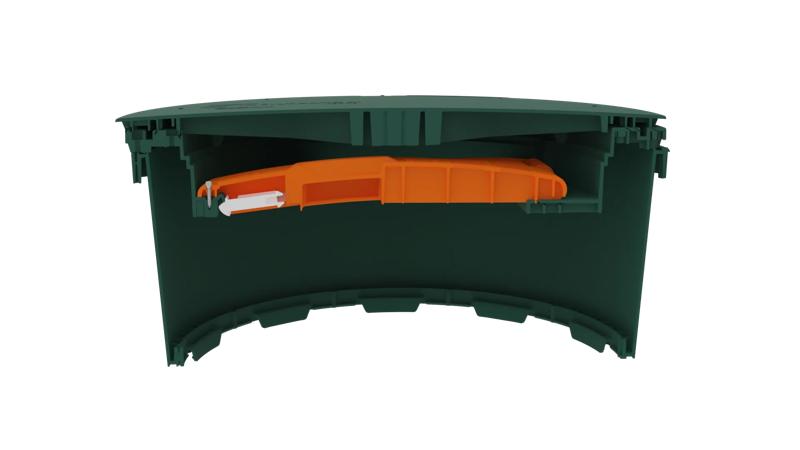

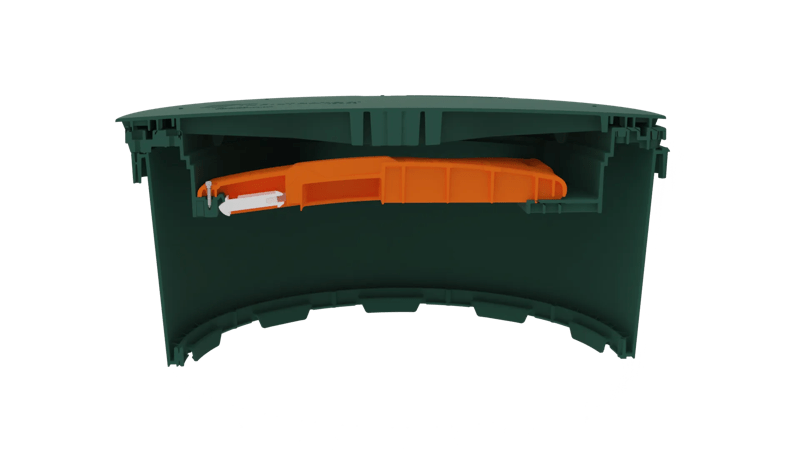

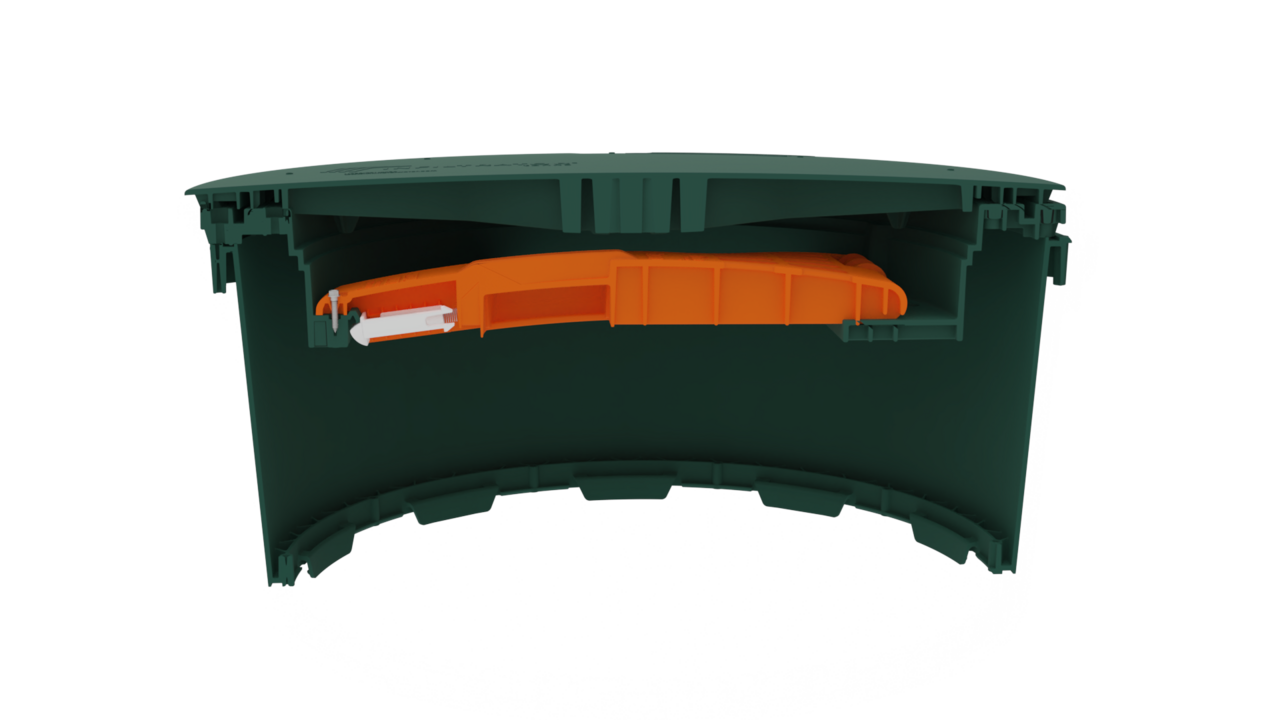

Guardian - Cutaway - EZsnap Riser + Lid

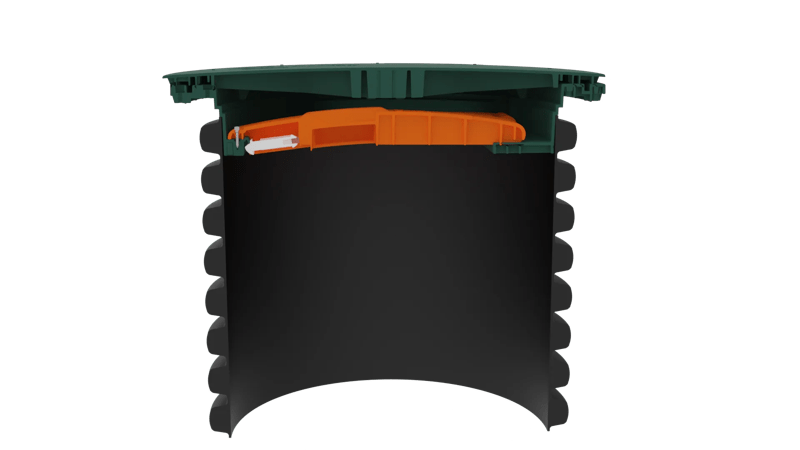

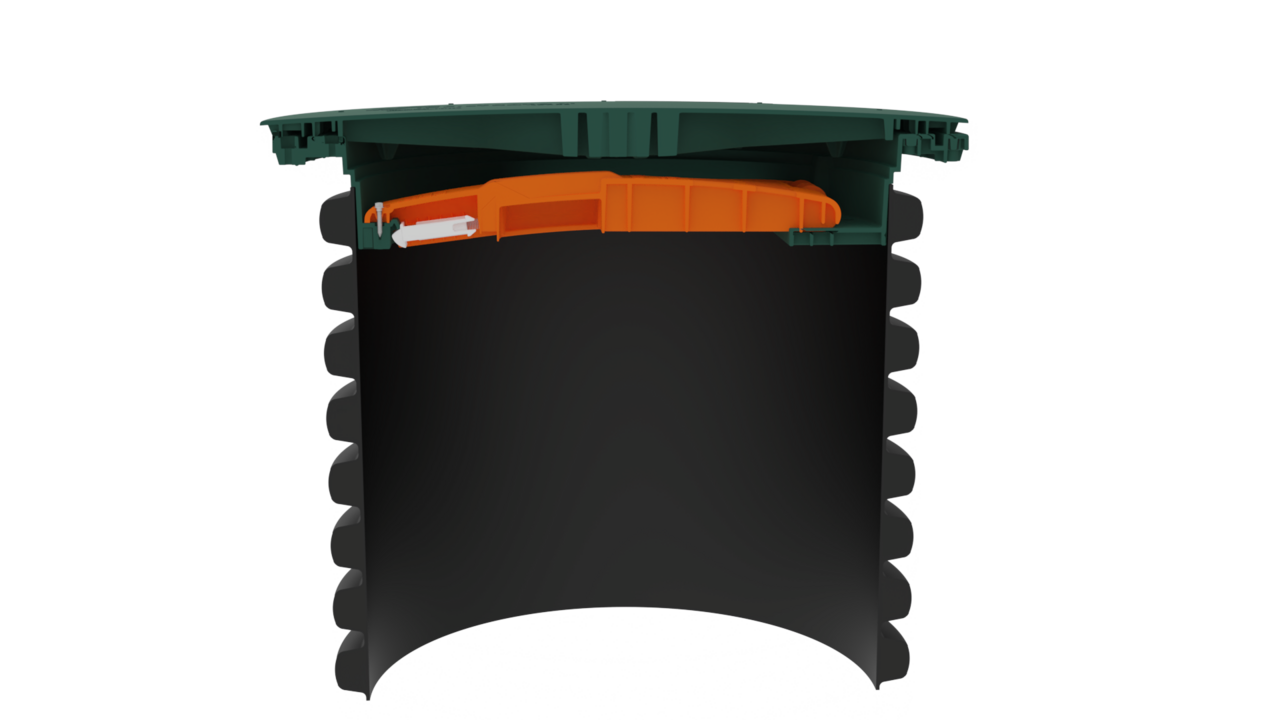

Guardian - Cutaway - Corrugated Pipe + Lid

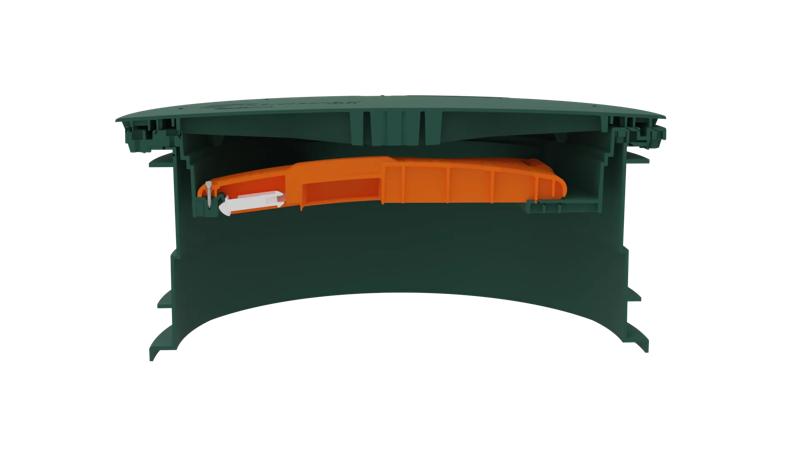

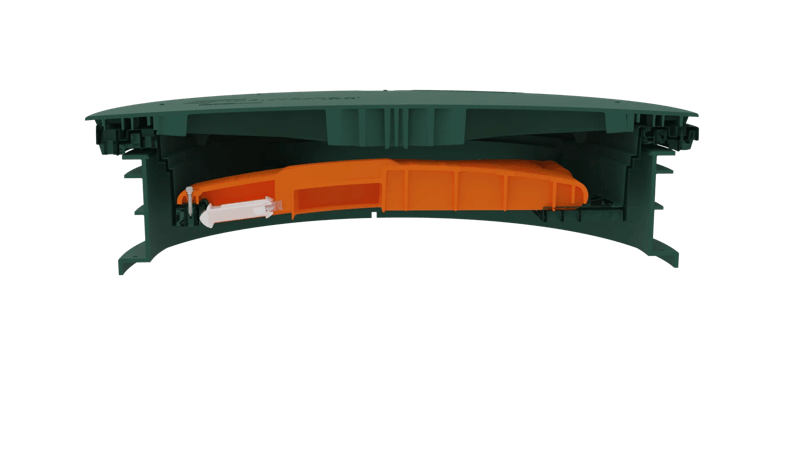

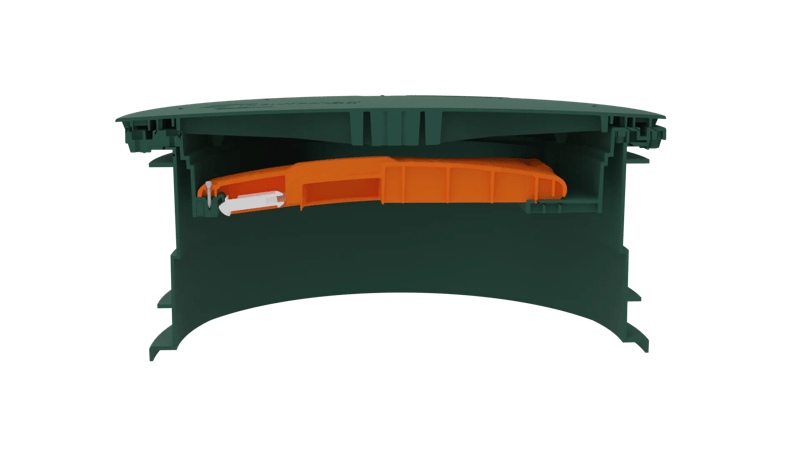

Guardian - Cutaway - EZset Riser +Lid

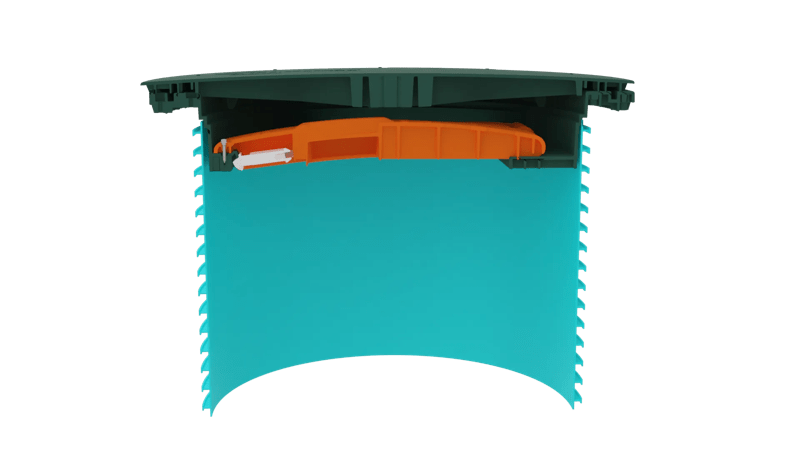

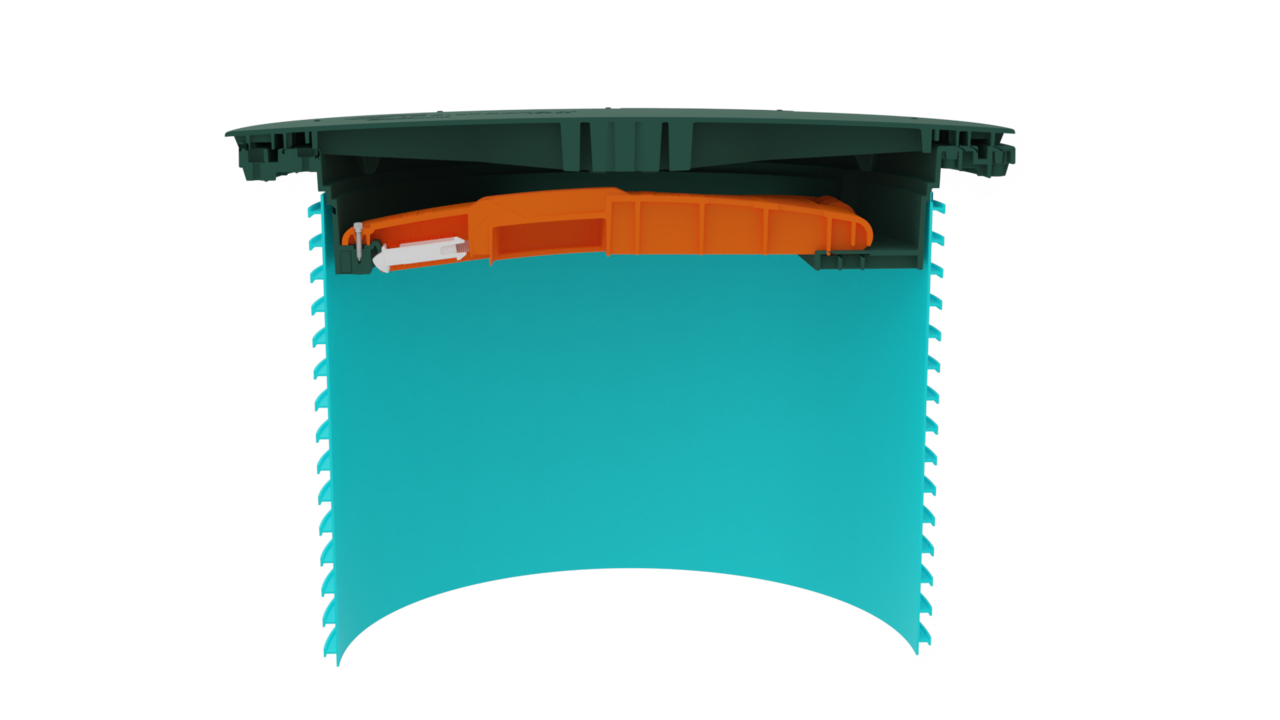

Guardian - Cutaway - Ultra-Rib Riser + Lid

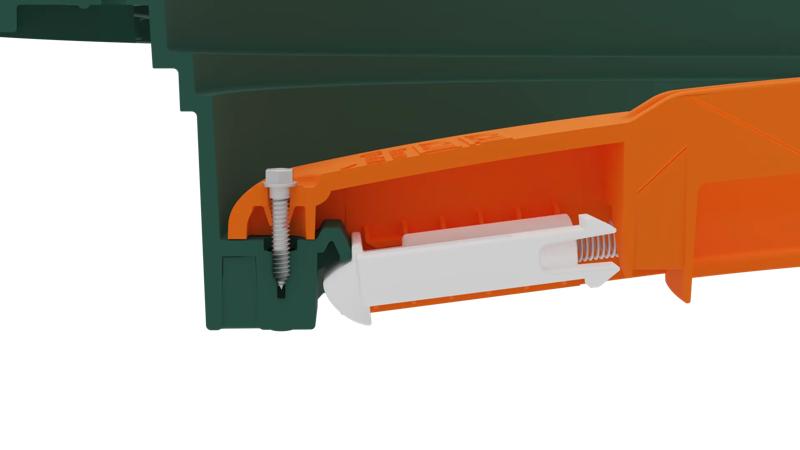

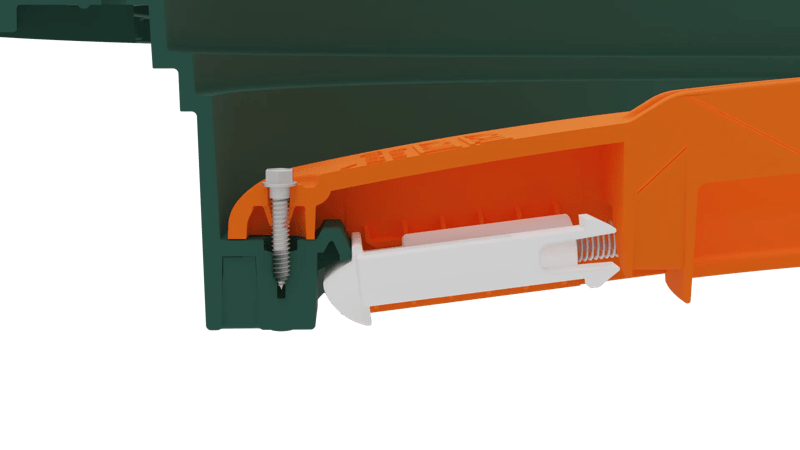

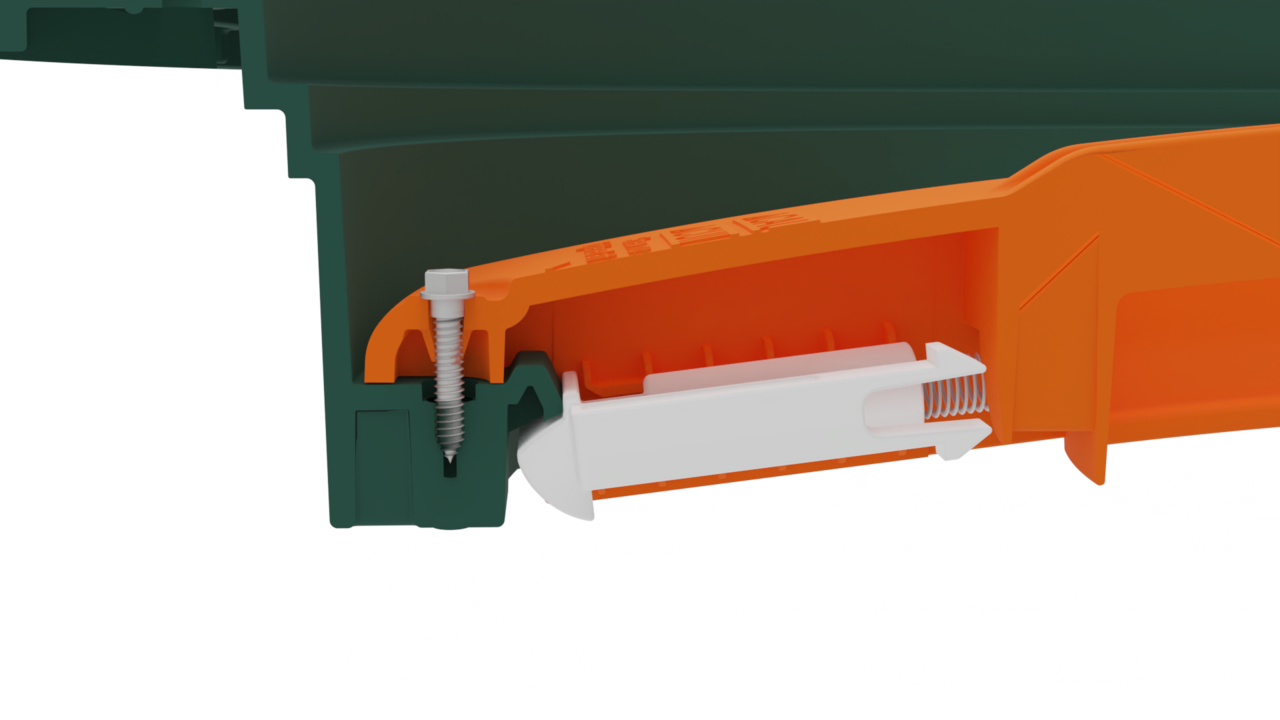

Guardian - Latch Side Cutaway
Guardian - Cutaway - EZsnap Riser Narrow End
Guardian - Cutaway - EZsnap Riser + Lid
Guardian - Cutaway - Corrugated Pipe + Lid
Guardian - Cutaway - EZset Riser +Lid
Guardian - Cutaway - Ultra-Rib Riser + Lid
Guardian - Latch Side Cutaway
