BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.45 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.43 in. Deep, Constant Depth Channel 0

SKU: 10620200

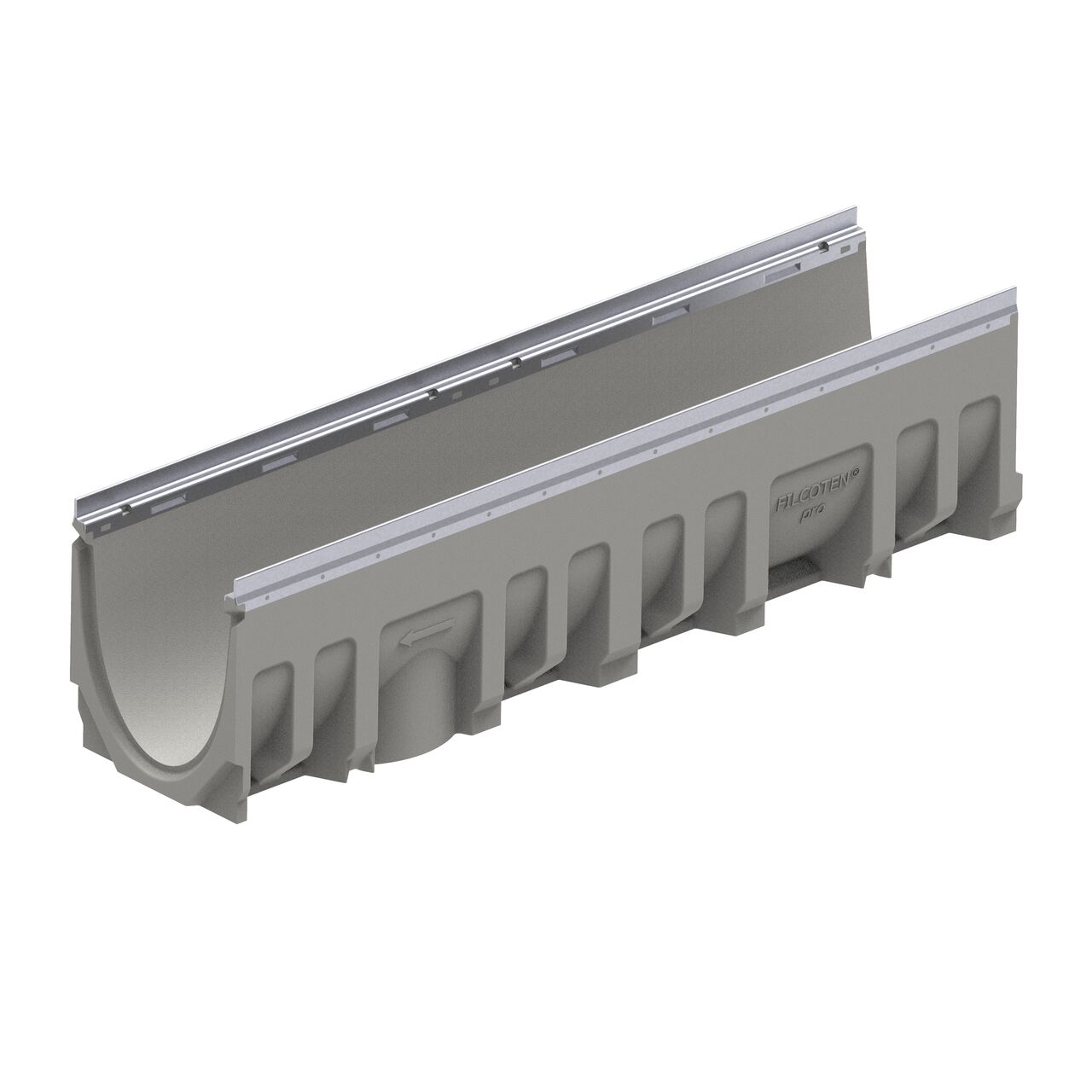

The female interlocking end of the constant depth channel 0 BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails, an 8 in. wide trench drain with high-load capacity made of high-performance concrete (HPC)
The 8 in. wide BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails comes in multiple channel depths in both constant depth and sloped channel sections (NDS 10620200)
Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails
The female interlocking end of the constant depth channel 0 BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails, an 8 in. wide trench drain with high-load capacity made of high-performance concrete (HPC)
The 8 in. wide BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails comes in multiple channel depths in both constant depth and sloped channel sections (NDS 10620200)
Closeup view of the male interlocking end of the BG-FILCOTEN® by NDS® pro V 200 Trench Channel Drain with Galvanized Steel Rails

The BG-FILCOTEN® high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. The pro V 200 series features 8 in. wide channels with galvanized steel rails. Channel 0 has a constant depth with an invert depth of 9.45 in. BG-FILCOTEN drains stand apart from concrete channel drains due to its unique engineering and materials. This powerful trench drain has all the features of a stable concrete channel, yet constructed with high-performance concrete for sheer strength and durability. Built for high-load capacity, it is ideal for commercial, industrial, and municipal applications.

Where to Buy Find a Pro

Applications:

  • Captures surface runoff and conveys to connected drain pipe to prevent costly property damage and mildew growth which can lead to slip hazards and concrete staining
  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features:

  • Made of high-performance concrete (HPC), the channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation
  • Handles high-load capacity, load rating based on type of grate installed
  • Anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete
  • Smooth interior channel reduces turbulence for flow, enables self-cleaning effect
  • Vertical outlets are possible with every channel
